WERA 05136043001 9524 Photovoltaic mounting tool set 1, 7 pieces

7-piece tool set for installing photovoltaic systems. One adjustable torque screwdriver (pistol handle) 7442 for the measuring range 3.0-6.0 Nm. Digital torque value display. Reliable slip-over mechanism and audible signal when the set torque is reached. One 889/4/1 F Rapidaptor bitholding screwdriver with fast-rotating function for a particularly quick return movement without having to remove the tool during clockwise torque operation. One 6003 Joker ring spanner. The special open end geometry expands the placement possibilities of the tool which makes the ring spanner particularly suitable for narrow spaces. 2 installation tools for MC4 solar connectors (Multi-Contact). One socket 1/2" (with side wire cutout) size 17 for installing panel connectors, one tool shaft (adapter 1/4" to 1/2") for manually operated socket wrench inserts.

Features

• Screwdriving tool set for installing photovoltaic systems
• Includes 2x 9108 installation tools for MC4 solar connectors (Multi-Contact)
• Includes 7442 adjustable torque screwdriver (3.0-6.0 Nm) with pistol handle
• Includes Rapidaptor 889/4/1 F bitholder with fast-rotating function for a particularly quick return movement without having to remove the tool during clockwise torque operation
• Includes Joker 6003 ring spanner, particularly suitable for narrow spaces; the special open end geometry expands the placement possibilities of the tool
• Includes 1/2" socket (with side wire cutout) size 17 for installing panel connectors
• Includes tool shaft 870/4 (adapter 1/4" hexagon to 1/2" square head) for manually operated 1/2" socket wrench inserts

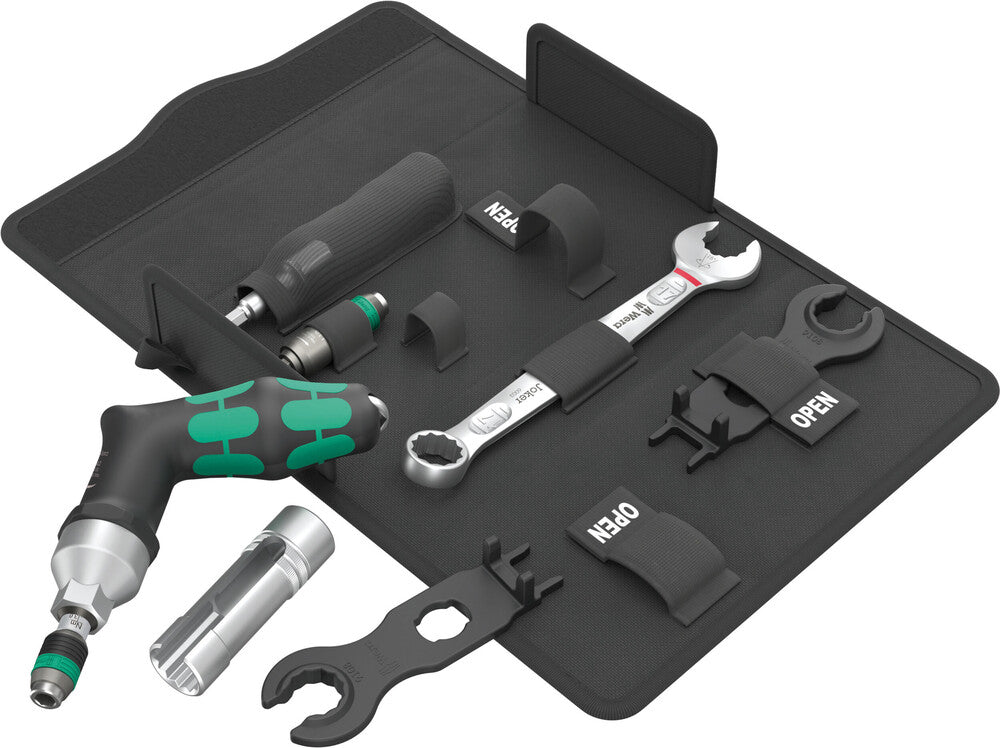

Set Includes

• 1x Series 7400 Kraftform pistol handle, adjustable torque screwdrivers (3.0-8.8 Nm) with Rapidaptor quick-release chuck: 7442 x 3.0-6.0 Nm
• 1x 8790 HMC Deep Socket wrench insert with cutout shaft, with 1/2" drive: 17 x 76 mm
• 1x 870/4 Adaptor for manual nut spinner sockets: 1/4" x 1/2" x 72 mm
• 1x 889/4/1 F Rapidaptor free-running bit holder for torque screwdrivers with pistol handle: 1/4" x 64 mm
• 1x 6003 Joker Combination wrench: 17 x 190 mm
• 2x 9108 Installation tool for MC4 Solar connector: 115 mm
• 1x Hook and Loop Fastener Strip 120: 120 x 50 mm

Specifications

• Brand: Wera
• Wera Part Number: 05136043001
• Article / Model: 9524
• EAN: 4013288228017
• Product Type: Torque tool set
• Wera Category: Torque Tools / Torque screwdriver / Torque Screwdriver
• Number of Pieces: 7
• Product Dimensions: Width 130 × Length 240 × Height 65 mm
• Product Weight: 938 g
