WERA 05075830001 SAFE-TORQUE A 1 SET 1

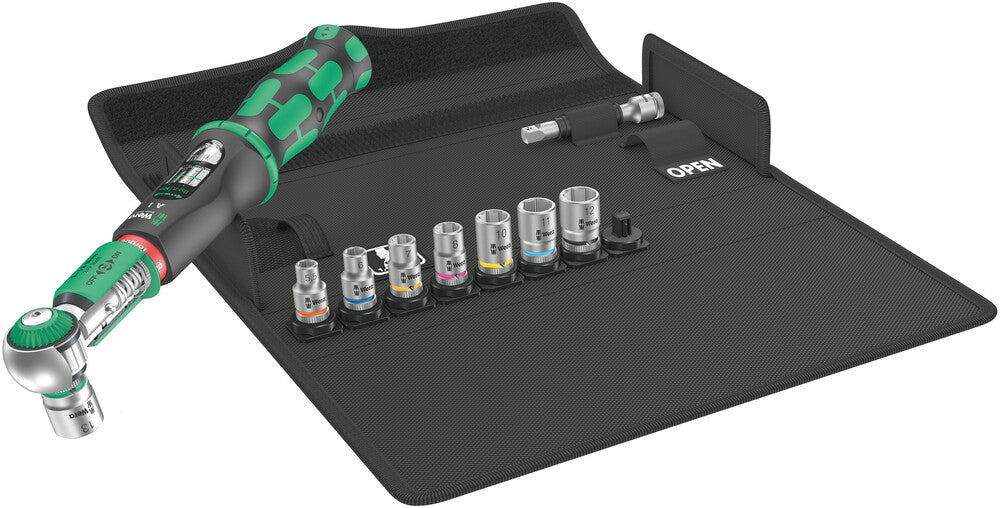

10-piece 1/4" torque wrench set in a robust textile box; torque wrench with slide-over mechanism. Once the set torque has been reached, the tool cannot be overtightened, so that excessive torque cannot be applied. Setting range of 2 to 12 Nm for controlled clockwise and counterclockwise torque operation. Easy setting and saving of the default value: The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The Torque Lock function allows use as a standard ratchet without torque function. Thus also usable for applications with angles of rotation. Accuracy ±10%. Max. breaking torque of the ¼" square head as per DIN 3122. The return angle of only 5° allows the ratchet to be used even in confined spaces. Included are: Safe-Torque A 1 torque wrench, 1/4" square head, 2-12 Nm, 8 sockets with 1/4" drive and one short extension.

Features

• Slip-over release mechanism - the set torque can never be overtightened
• Torque Lock function: The torque function can be deactivated and the tool can then be used as a standard ratchet with high loosening moments and for applications with defined angles of rotation
• For controlled clockwise and counterclockwise torque operation - tightening and loosening with or without torque
• Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
• After the target torque has been reached, the release angle is only 30°
• Accuracy ±10%
• The fine toothing with 72 teeth allows for a low return angle of 5°
• 1/4" square head drive with socket locking

Set Includes

• 1x Safe-Torque A 1 torque wrench with 1/4" square head drive, 2-12 Nm: 1/4" x 2-12 Nm
• 8x 8790 HMA Zyklop 1/4" socket: 5.5x23 mm, 6x23 mm, 7x23 mm, 8x23 mm, 10x23 mm, 11x23 mm, 12x23 mm, 13x23 mm
• 1x 8794 SA Zyklop extension with free-turning sleeve, short, 1/4": 1/4" x 75 mm
• 1x Hook and Loop Fastener Strip 240: 50 x 240 mm

Specifications

• Brand: Wera
• Wera Part Number: 05075830001
• Article / Model: Safe-Torque A 1 Set 1
• EAN: 4013288223005
• Product Type: Torque tool set
• Wera Category: Torque Tools / Safe-Torque Torque Wrench / Safe-Torque Torque Wrench
• Number of Pieces: 10
• Product Dimensions: Width 140 × Length 275 × Height 65 mm
• Product Weight: 1023 g
