WERA 05020170001 6004 JOKER VDE 4 SET 1

Individually tested tools as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. The adjustable VDE spanner continuously and automatically grips all hexagonal sizes in the indicated range of dimensions - metric and imperial. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a return angle of only 30° can be achieved. The single-arm design, in conjunction with the ratchet feature and the corner-width prism, makes it possible to work even in confined spaces. The adjustable Joker 6004 VDE has a naturally comfortable handle thanks to the 2-component plastic insulation. Safety is increased by the anti-slip protection at the front end of the handle. The sliding function offers contactless and safe opening of the non-insulated jaws, thereby providing extra protection.

Features

• For hexagon screw heads and bolts with wrench sizes 7.0; 8.0; 9.0; 10.0; 11.0; 12.0; 13.0; 14.0; 15.0; 16.0; 17.0; 18.0; 19.0 (metric)
• For hexagon screw heads and bolts with wrench sizes 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 17/32"; 9/16"; 19/32"; 5/8"; 11/16"; 3/4" (imperial)
• Individually tested tools with insulated handles for safe working up to 1,000 volt, with anti-slip protection and sliding function for contactless and safe opening of the non-insulated jaws
• Automatically and continuously gripping hexagonal screws and bolts
• Lever mechanism upon gripping prevents slipping and damage
• With mechanical ratchet functionality for fast and consistent screwdriving without removing the spanner
• Return angle of only 30° when using the corner-width rectangular prisms in the jaw

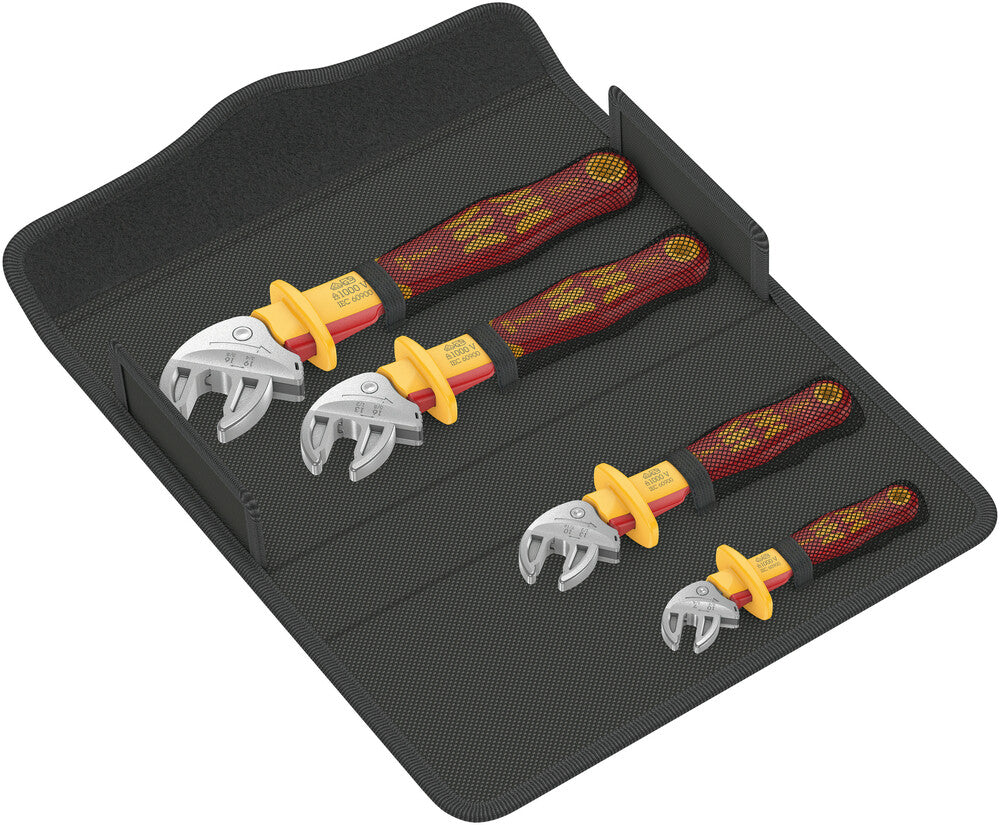

Set Includes

• 1x 6004 Joker VDE XS VDE-insulated, self-setting spanner: 7; 8; 9; 10 x 1/4; 5/16; 3/8“" x 119 mm
• 1x 6004 Joker VDE S VDE-insulated, self-setting spanner: 10; 11; 12; 13 x 7/16; 1/2" x 155 mm
• 1x 6004 Joker VDE M VDE-insulated, self-setting spanner: 13; 14; 15; 16 x 1/2; 17/32; 9/16; 19/32; 5/8" x 190 mm
• 1x 6004 Joker VDE L VDE-insulated self-setting spanner: 16; 17; 18; 19 x 5/8; 11/16; 3/4" x 226 mm
• 1x Hook and Loop Fastener Strip 120: 120 x 50 mm

Specifications

• Brand: Wera
• Wera Part Number: 05020170001
• Article / Model: 6004 Joker VDE 4 Set 1
• EAN: 4013288221803
• Product Type: Spanner, self-adjusting open-end spanner set
• Wera Category: Wrench / Joker Adjustable Insulated Open-End Wrenches VDE
• Number of Pieces: 4
• Product Dimensions: Width 130 × Length 270 × Height 65 mm
• Product Weight: 1197 g
