New KnipeXtend 95 12 225 9" StepCut® XL Cable Shears
New KnipeXtend 95 12 225 9" StepCut® XL Cable Shears

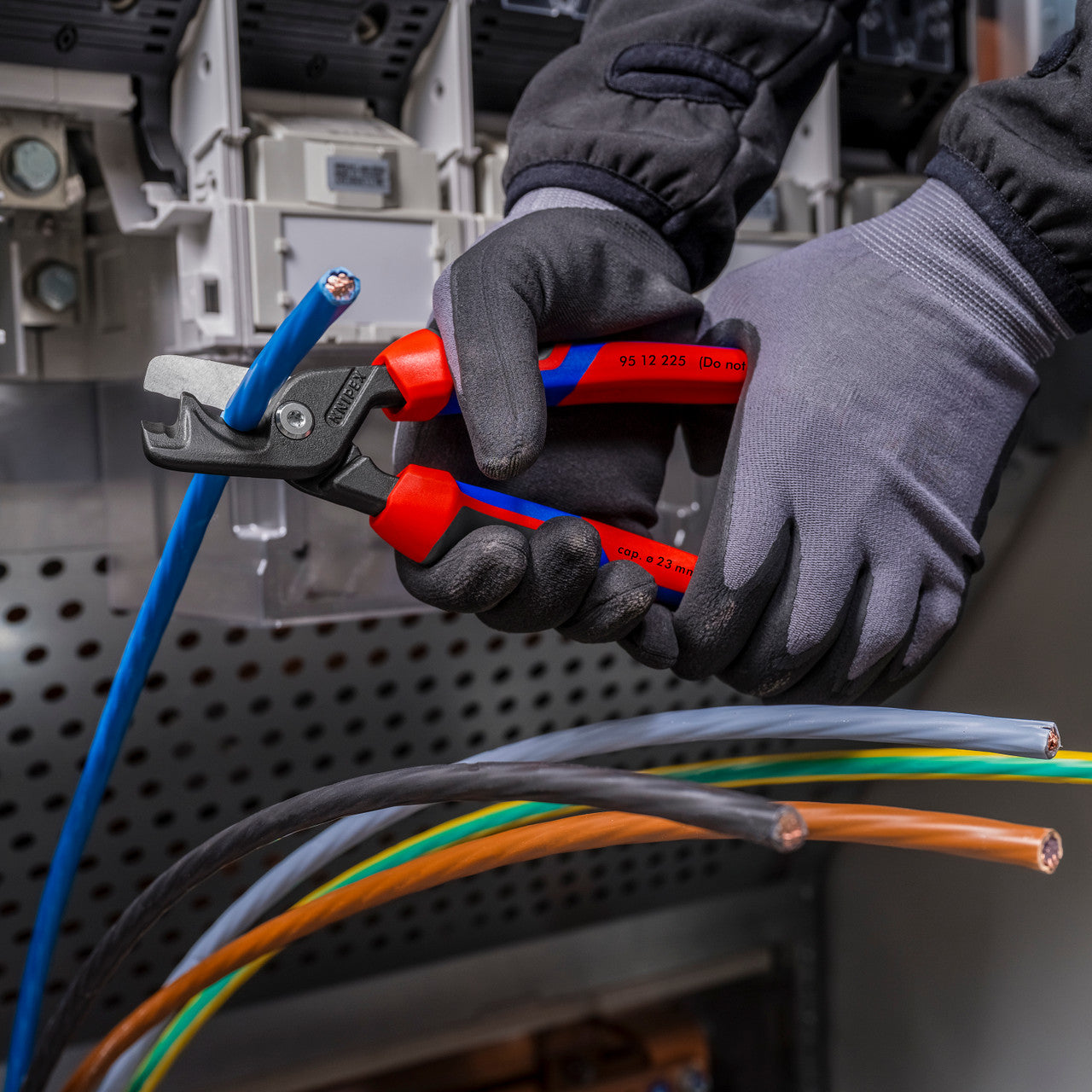

Tired of cables putting up a fight? The Knipex 95 12 225 StepCut Cable Shears are here to make quick work of even the toughest cable jobs. Engineered with innovation in mind, these shears feature the StepCut design, reducing cutting force by up to 40%, so you can power through cables like a hot knife through butter. Say goodbye to hand fatigue and hello to precise, effortless cuts on copper and aluminum cables—up to 15 mm in diameter. Whether you’re on the job site or working on a project at home, these shears are the secret agent in your toolkit, ensuring clean, professional results with every snip. When it comes to cutting cables, the Knipex StepCut doesn’t just get the job done—it does it with style.
- KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)
- High-leverage joint, long handles, and optimized cutting edges for an easier cut than with compact cable shears
- Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG, and fine stranded cables up to 4/0 AWG

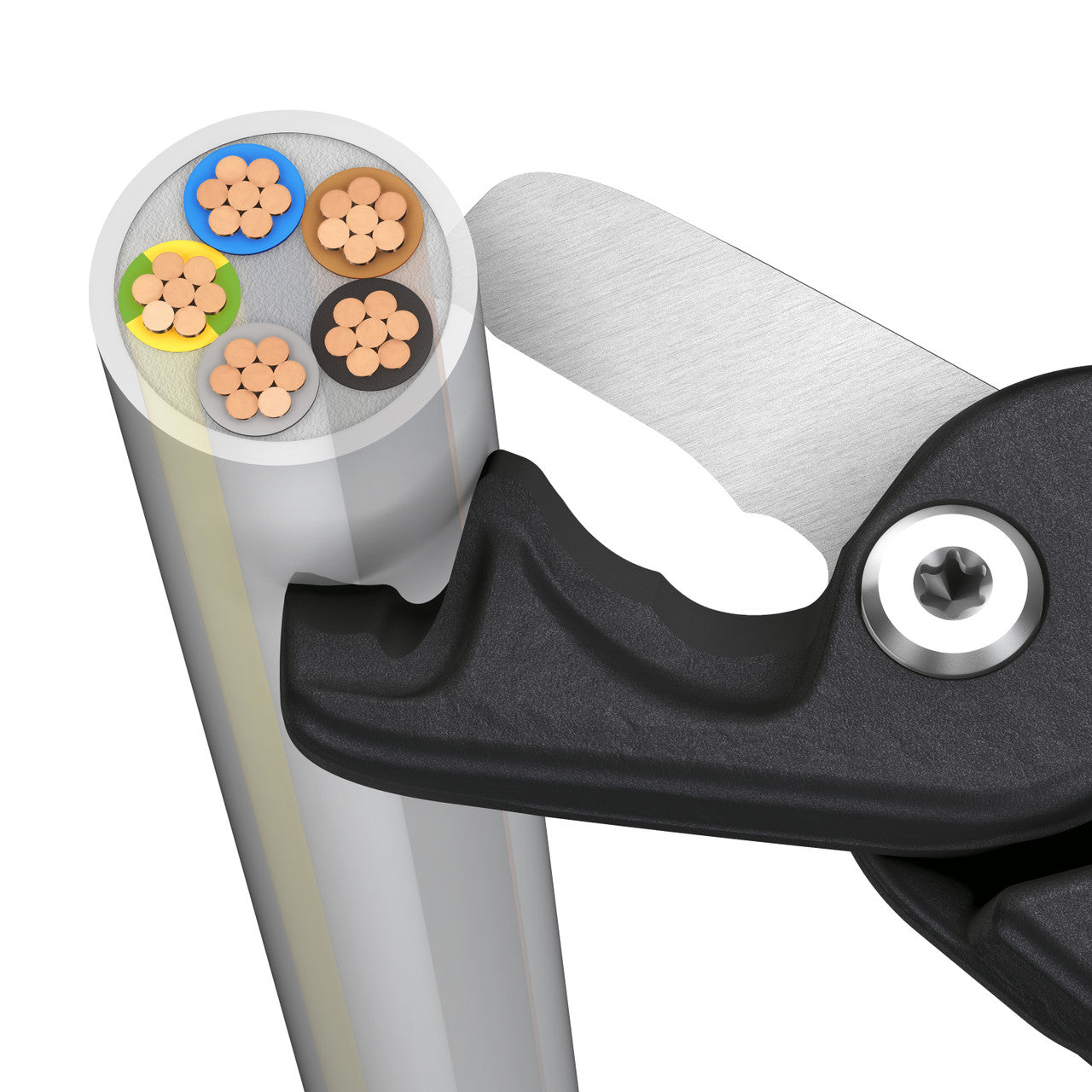

- Dual cutting areas: step cutting edges position cables close to the joint, and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
- Easy one- or two-handed operation with minimal handle opening for large cable diameters
- Slim head for better accessibility
- Not suitable for steel-reinforced cables, e.g., ACSR
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Pinch guard prevents operators' fingers from being pinched
- High-grade special tool steel; forged; oil-hardened
- Laser-hardened cutting edges (approx. 56 HRC)
Technical Details | Details |
---|---|
Part Number | 95 12 225 |
UPC | 843221029746 |
Country of Origin | Germany |
Length | 9" |
Width | 2 1/4" |
Height | 1" |
Weight | 0.925 lbs. |
1000 Volt Insulated | No |
ESD Indicator | No |
Spring Loaded | No |
Material Type | High-grade special tool steel, forged, oil-hardened |
Handle Type | KNIPEXTEND Comfort Handle |
Surface Finish | Burnished |
Joint Type | Bolted |
Cutting Capacity - Cu and Al conductor | 29/32" |
Cutting Edge Shape | Shear |
Jaw Length | 1 1/4" |
Jaw Width | 1 1/4" |
Jaw Thickness | 1/2" |
Tip Thickness | 1/4" |
Tip Width | 1" |
Wire Size | Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables) |
Cable Type | Stranded Cables | Fine Stranded Cables | Solid Cable |
Reach | Does not contain SVHC |
RoHS | Not applicable |
