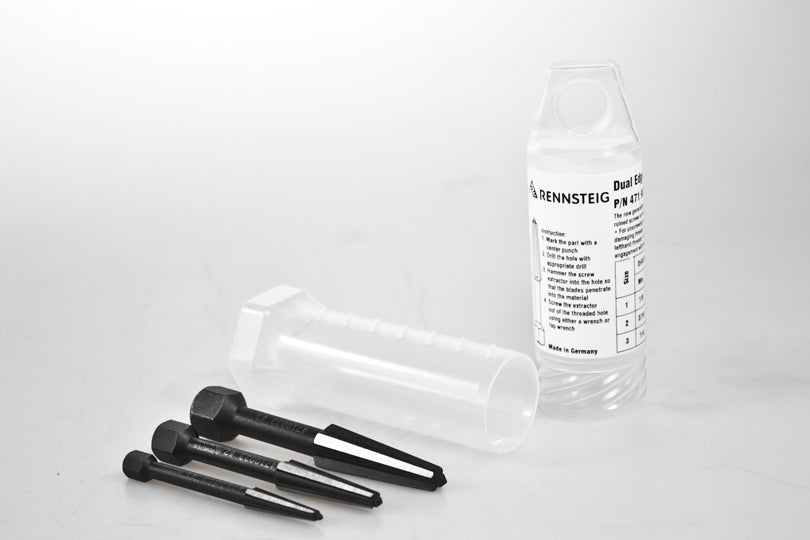

Knipex 9R 471 903 3 Screw Extractor Double Edged Set 3 Parts (Size 1-3 In Plastic Tube)

Non-slip and dual-edged engagement with the broken screw or bolt that needs to be removed.

Features

• Unique hex head design works well with all standard hex sockets and extensions or box wrenches, eliminating the problem of rounded corners.
• Can be turned in clockwise or counterclockwise direction (for right-and left-hand threads).
• For unscrewing ruined screws and bolts without damaging threads.
• Tip has a built-in center punch pin to mark the center point.
• Drill a hole in the broken fastener with appropriate size drill bit.
• Tap extractor into hole and use a socket or wrench to loosen the fastener.
• Tapered flute design.
• Black-Oxide, cutting edges polished.
• Made of high-strength chrome vanadium steel.
• Includes 1 each of: Screw Extractor Double Edged Size 1 (9R 471 001 3), Screw Extractor Double Edged Size 2 (9R 471 002 3), Screw Extractor Double Edged Size 3 (9R 471 003 3).

Set Includes

• 9R 471 001 3
• 9R 471 002 3
• 9R 471 003 3

Specifications

• Manufacturer Part Number: 9R 471 903 3
• Material Type: Chrome Vanadium Steel
• Surface Finish: Black-oxide
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Black
• Package Length: 4.15"
• Package Width: 1.05"
• Package Height: 1"
• Package Weight: 0.14 lb
• UOM: Set
• UOM Qty: 3
• Blade Diameter: 1/8" to 3/8"
• Screw Size-Inches: 3/16" to 1/2"
• Screw Size: M5 to M12
• Country of Origin: Germany
• Harmonized Tariff Code: 8207.50.2055
• ECCN: EAR99
• UPC: 843221020088
