Knipex 9K 98 98 22 US 5 Pc Pliers/Screwdriver Tool Set, 1000V Insulated

insulated tools are designed to meet or exceed national and international standards.

Features

• With our insulated tools, users can depend on the quality and durability of products from KNIPEX production.

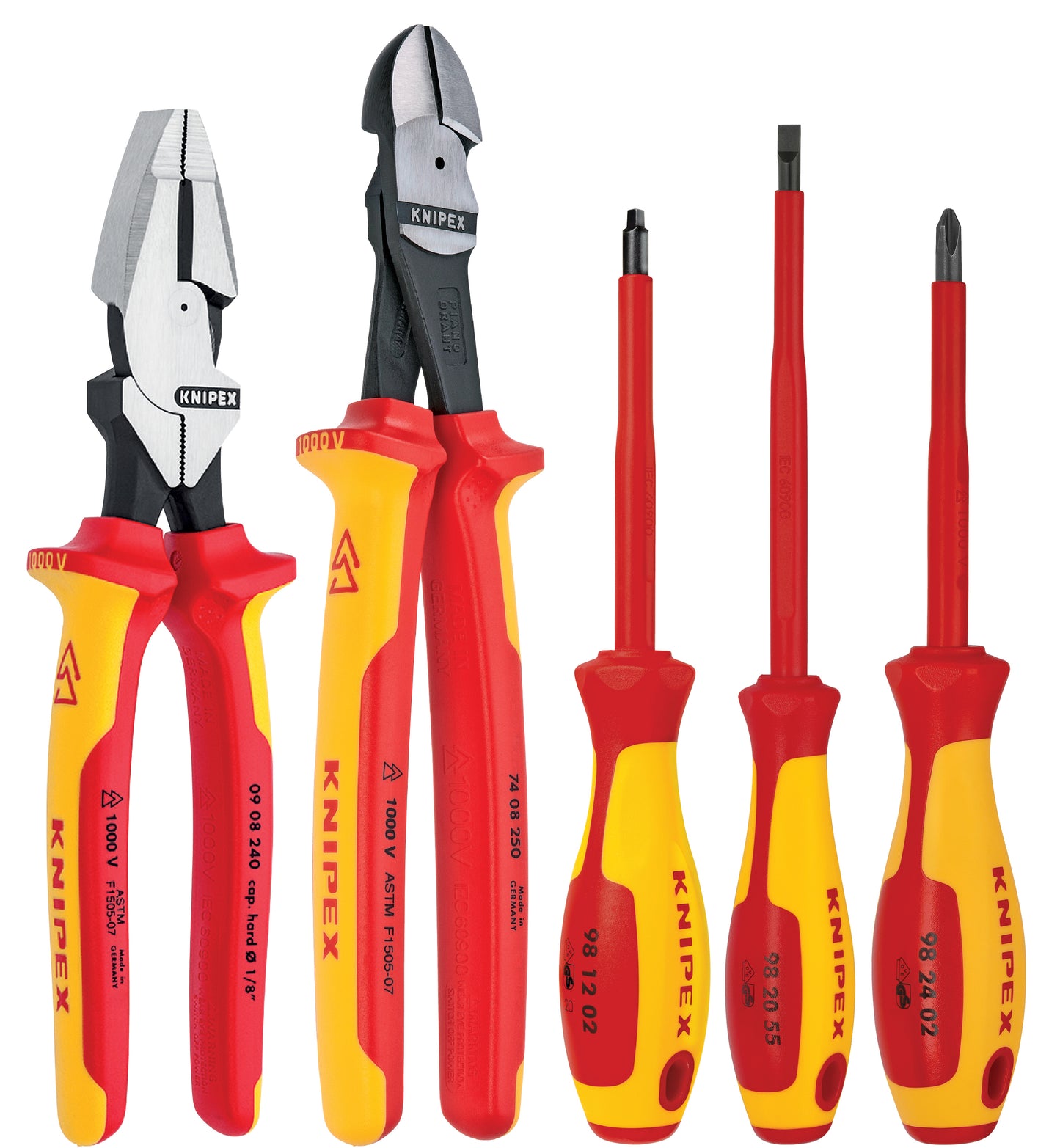

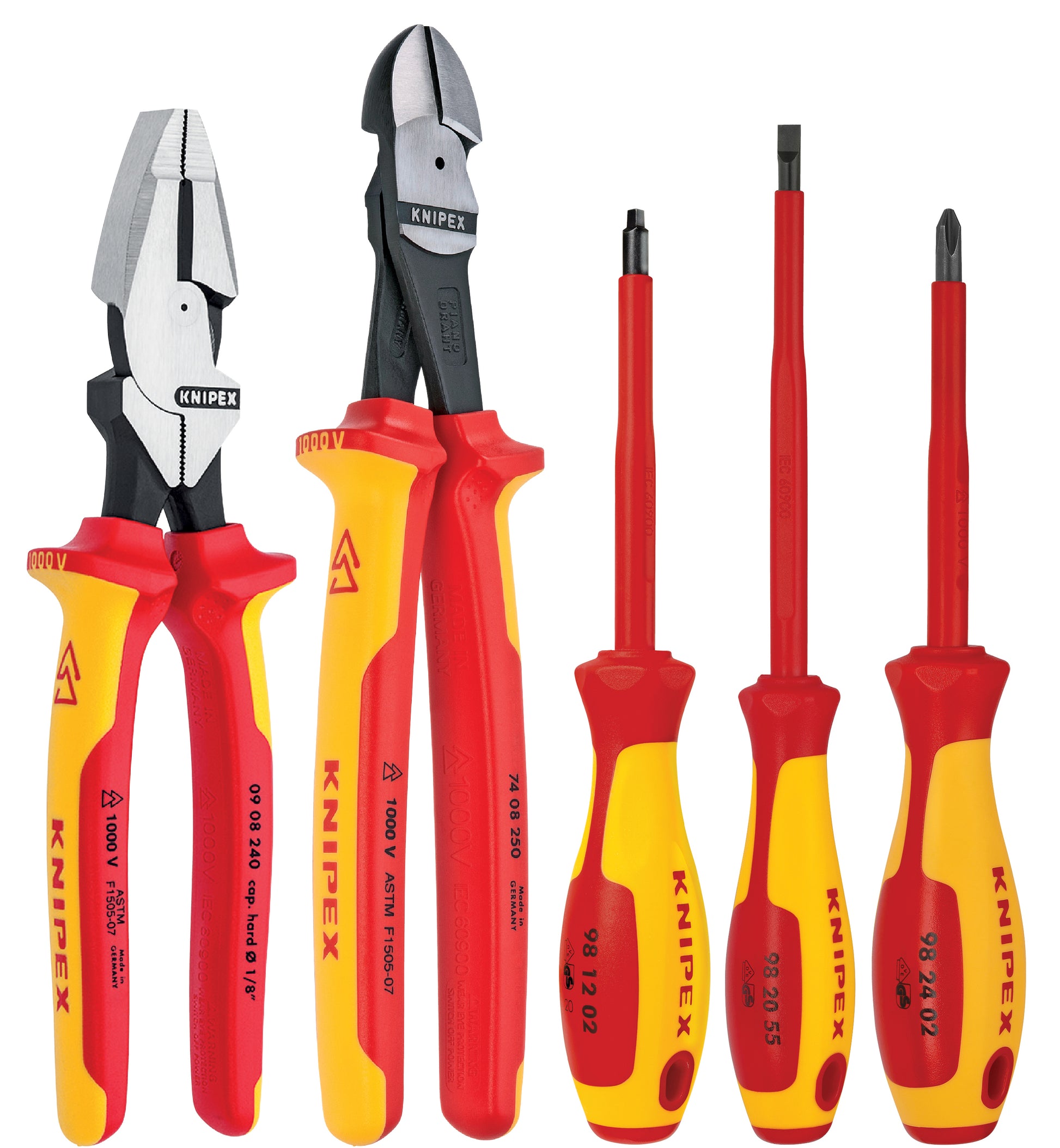

• Includes one (1) of each: High Leverage Lineman's Pliers, High Leverage Diagonal Cutting Pliers, Square Drive Screwdriver, Slotted Screwdriver and Phillips Screwdriver.

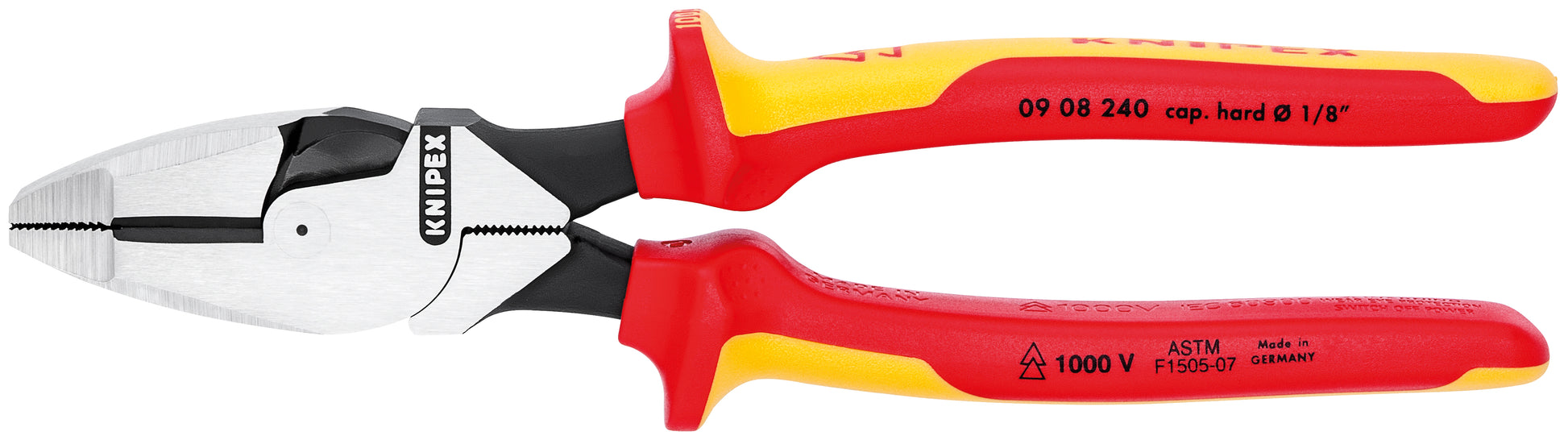

• 09 08 240 US - 9 1/2" High Leverage Lineman's Pliers New England Head-1000V Insulated.
• High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio.
• High transmission ratio for easy cutting.
• 74 08 250 US - 10" High Leverage Diagonal Cutters-1000V Insulated.
• 20% less effort required compared to conventional diagonal cutters of the same length.
• Suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm².

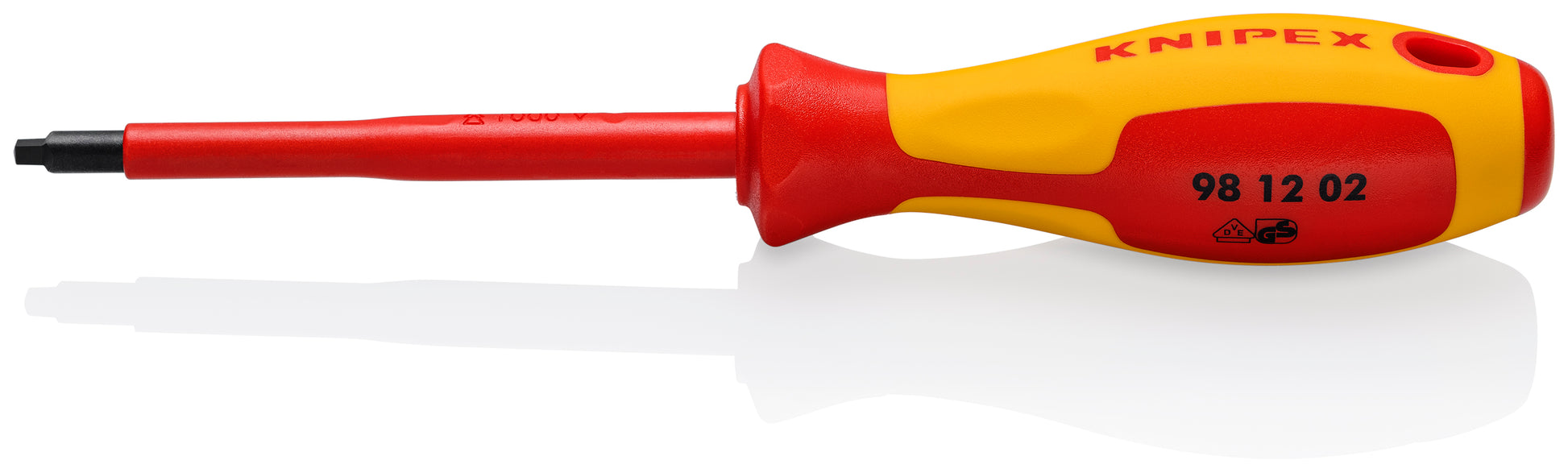

• 98 12 02 - Square Drive Screwdriver, 4"-1000V Insulated, R2.
• R2 square drive tip.

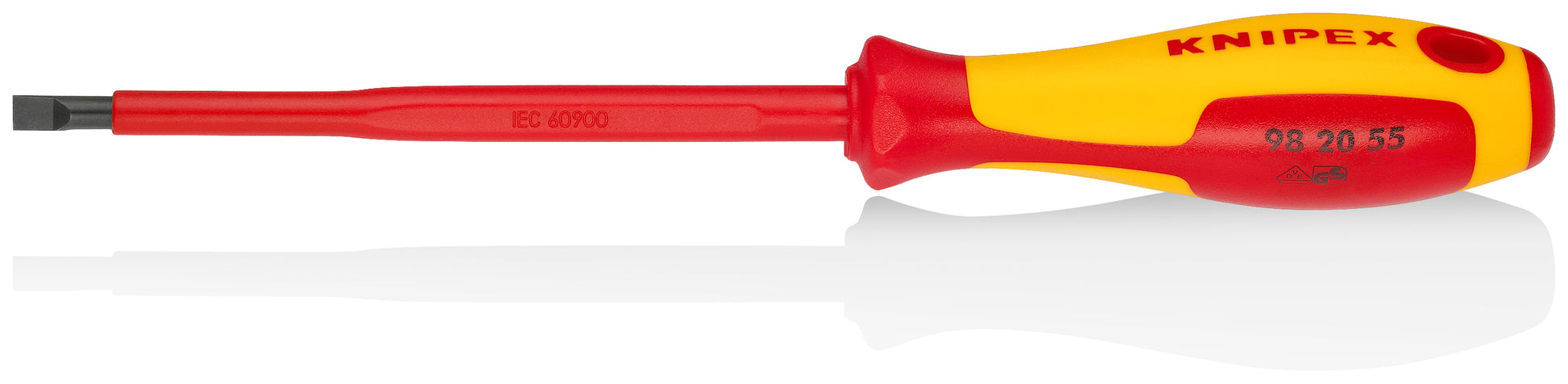

• 98 20 55 - Slotted Screwdriver, 5"-1000V Insulated, 7/32" tip.
• 1/32" blade thickness.

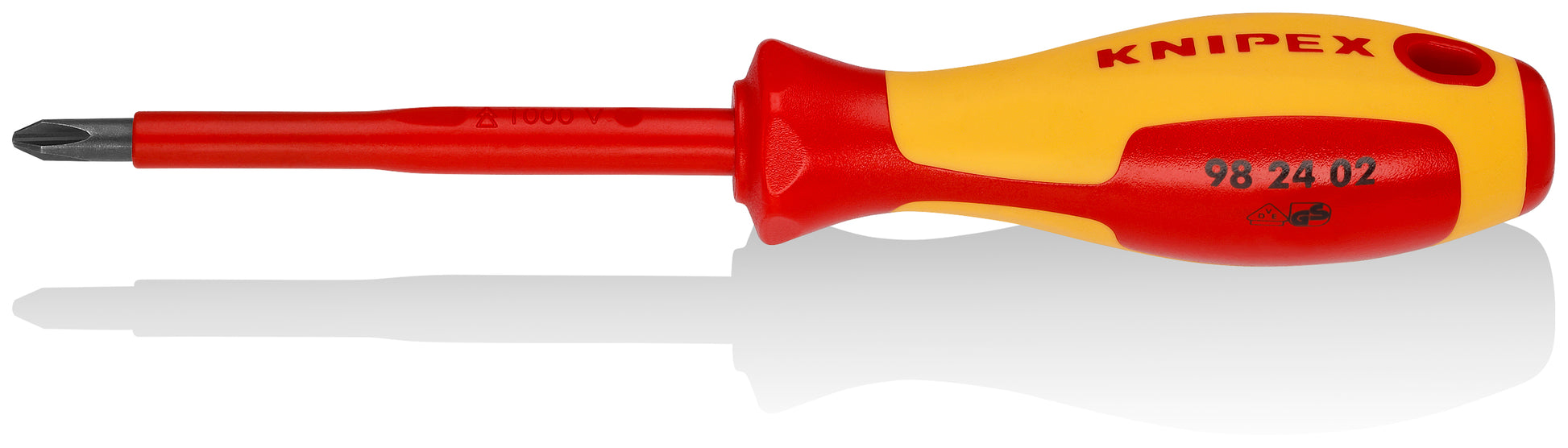

• 98 24 02 - Phillips Screwdriver, 4"-1000V Insulated, P2.
• P2 tip.

Set Includes

• 09 08 240 US
• 74 08 250 US
• 98 12 02
• 98 20 55
• 98 24 02

Specifications

• Manufacturer Part Number: 9K 98 98 22 US
• Material Type: Chrome Vanadium Steel|Chrome vanadium heavy-duty steel, forged, oil-hardened|Vanadium steel, forged, multi-stage oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM|1000V Insulated, multi-component, VDE
• Gripping Surface: Cross-hatched
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: Yes
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red/Yellow
• Tool Length: 4 1/2"
• Tool Width: 12 1/2"
• Tool Height: 4 1/2"
• Tool Length: 4.5"
• Tool Width: 12.5"
• Tool Height: 4.5"
• Tool Weight: 1170 g (2.58 lb)
• Package Length: 4"
• Package Width: 12"
• Package Height: 4"
• Package Weight: 2.58 lb
• UOM: Set
• UOM Qty: 5
• DIN: DIN ISO 5746 (09 08 240 US); DIN IS 5749 (74 08 250 US)
• REACH: does not contain SVHC
• RoHS: not applicable
• ASME: ASME B107.20 (09 08 240 US)
• IEC: IEC 60900
• Joint Type: Rivet|Forged-in axle
• Cutting Edge Shape: Bevel
• Cutting Edge HRC: Approx. 61 HRC (09 08 240 US); Approx. 64 HRC (74 08 250 US)
• Cutting Capacity - Medium Hard Wire (Nail): 3/16" (09 08 240 US and 74 08 250 US)
• Cutting Capacity - Hard Wire (Steel Wire): 1/8" (09 08 240 US); 9/64" (74 08 250 US)
• Cutting Capacity - Piano Wire: 1/8" (74 08 250 US)
• Tip Style: Phillips|Slotted|Square
• Tip Size: R2 (98 12 02); 7/32" (98 20 55); P2 (98 24 02)
• Shank Length: 4" (98 12 02 and 98 24 02); 5" (98 20 55)
• Country of Origin: Germany
• Harmonized Tariff Code: 8206.00.0000
• ECCN: EAR99
• UPC: 843221005573
