Knipex 9K 98 98 21 US 5 Pc Pliers/Screwdriver Tool Set, 1000V Insulated

Professionals trust their tools when working on electrical installations.

Features

• The insulation of KNIPEX insulated tools is designed in accordance with national and international standards to reduce risk of injury if the tools make contact with an energized source with voltage up to 1000 volts.

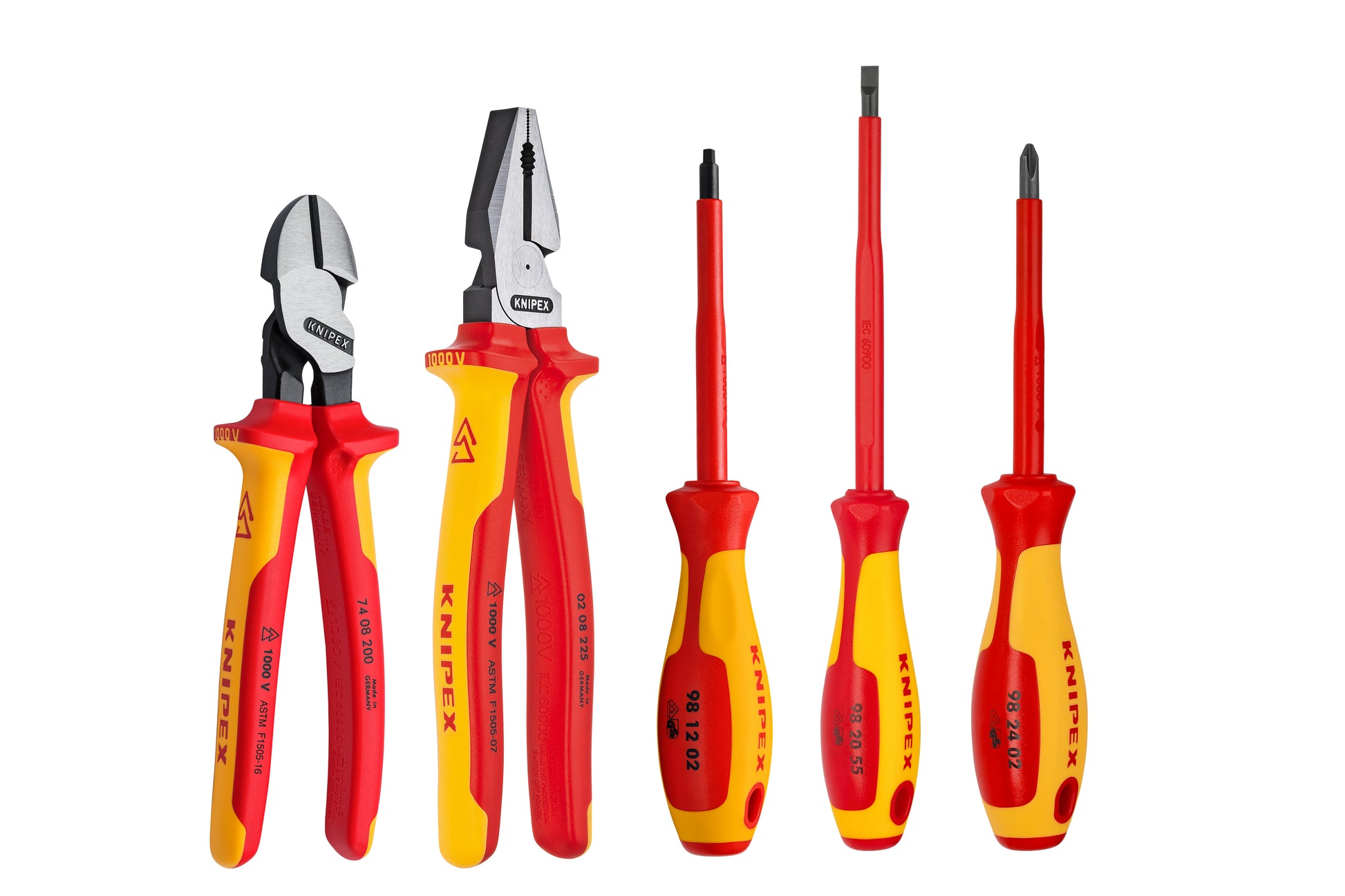

• Includes one (1) of each: High Leverage Diagonal Cutting Pliers, High Leverage Combination Pliers, Square Drive Screwdriver, Slotted Screwdriver and Phillips Screwdriver.

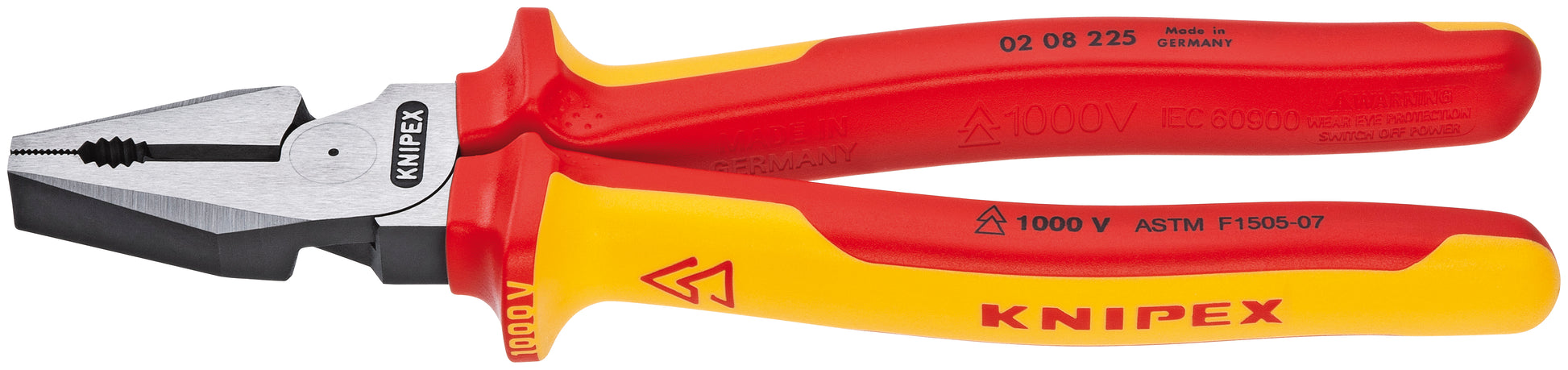

• 02 08 225 US - 9" High Leverage Combination Pliers-1000V Insulated.
• 35% less effort required than with conventional combination pliers due to high leverage.
• Easier cutting, powerful gripping, bending and pulling.

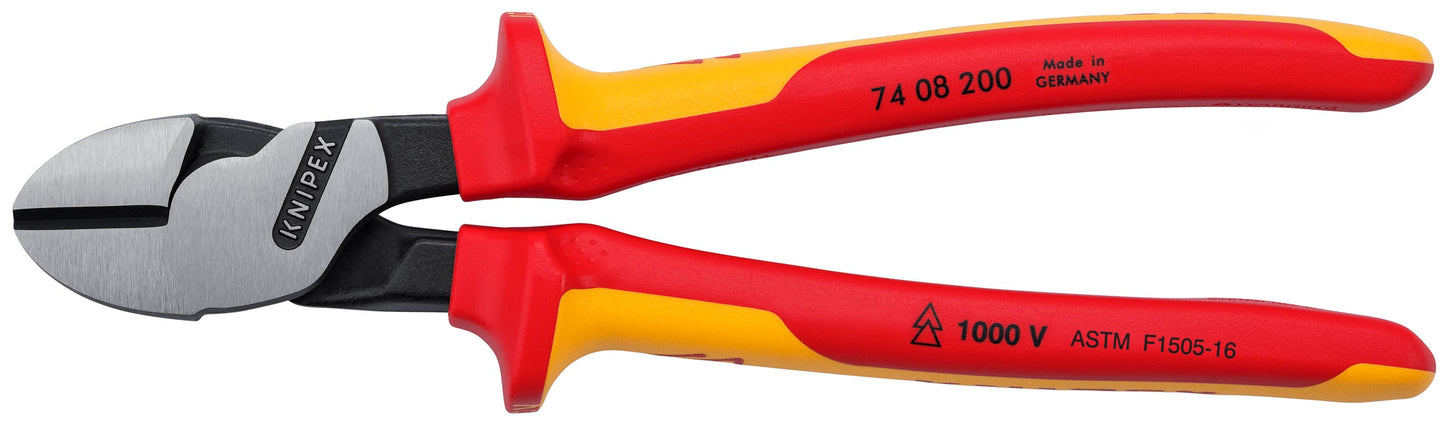

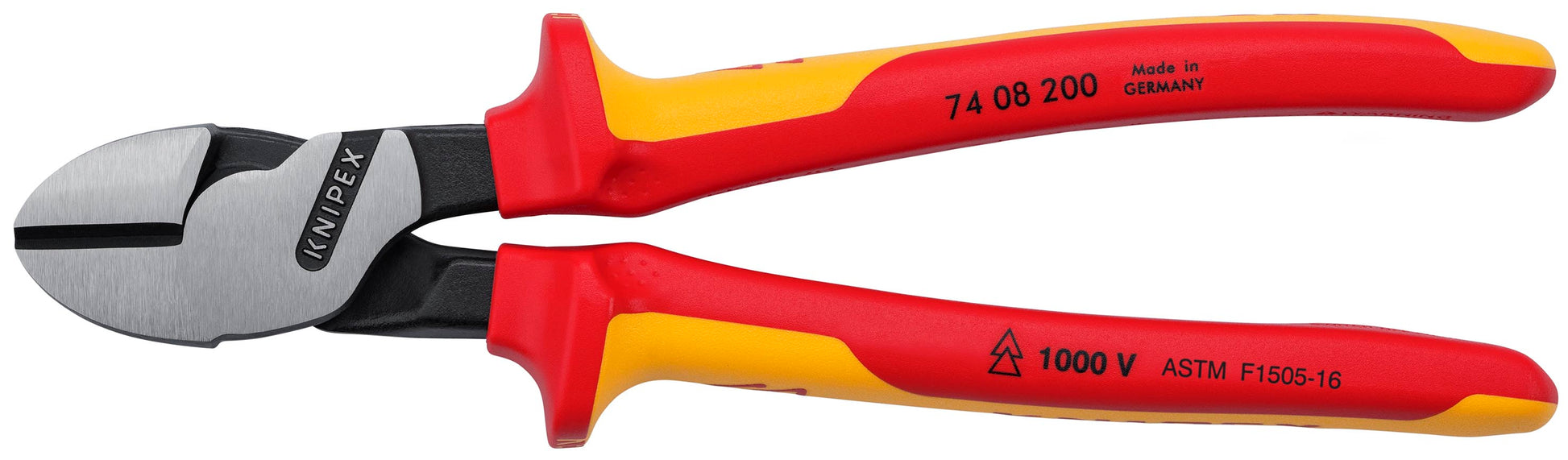

• 74 08 200 US - 8" High Leverage Diagonal Cutters-1000V Insulated.
• Riveted joint, closer to cutting edges, requires 20% less cutting effort.
• Superior cutting performance with reduced user effort, achieved by precisely aligning the cutting‑edge angle with an optimized transmission ratio.

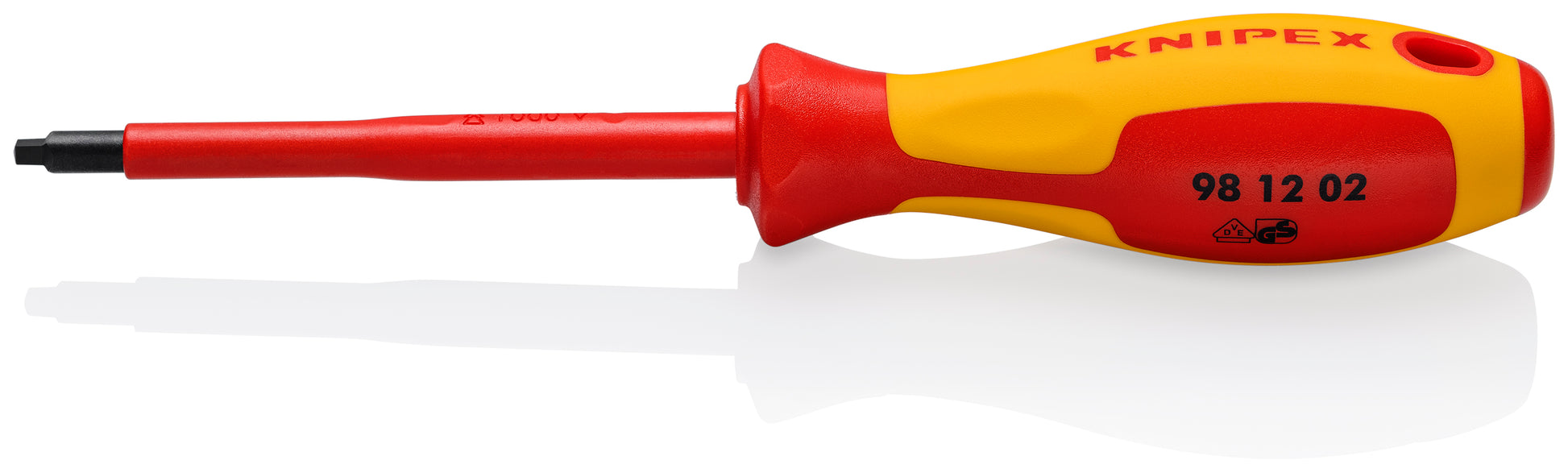

• 98 12 02 - Square Drive Screwdriver, 4"-1000V Insulated, R2.
• R2 square drive tip.

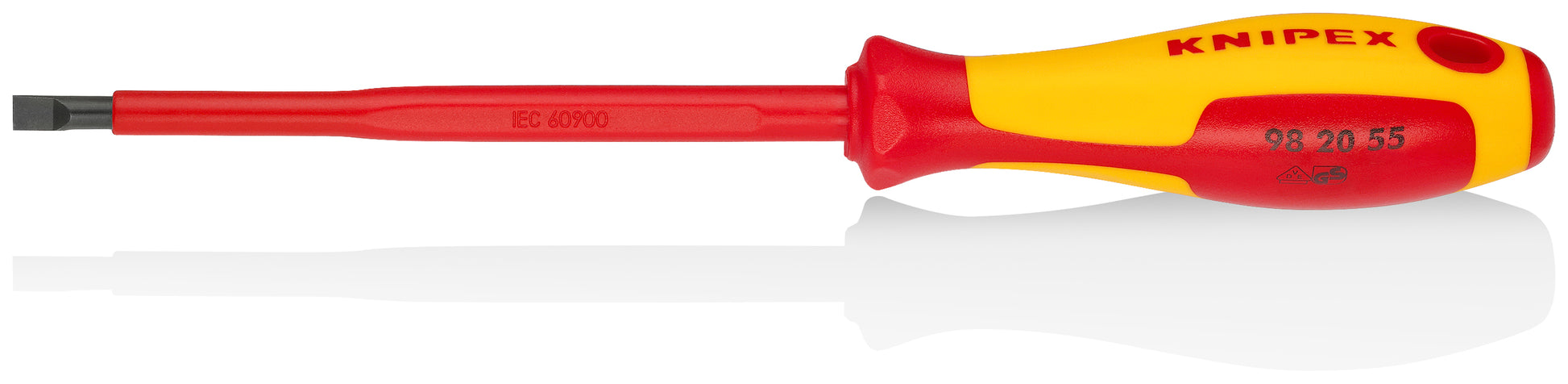

• 98 20 55 - Slotted Screwdriver, 5"-1000V Insulated, 7/32" tip.
• 1/32" blade thickness.

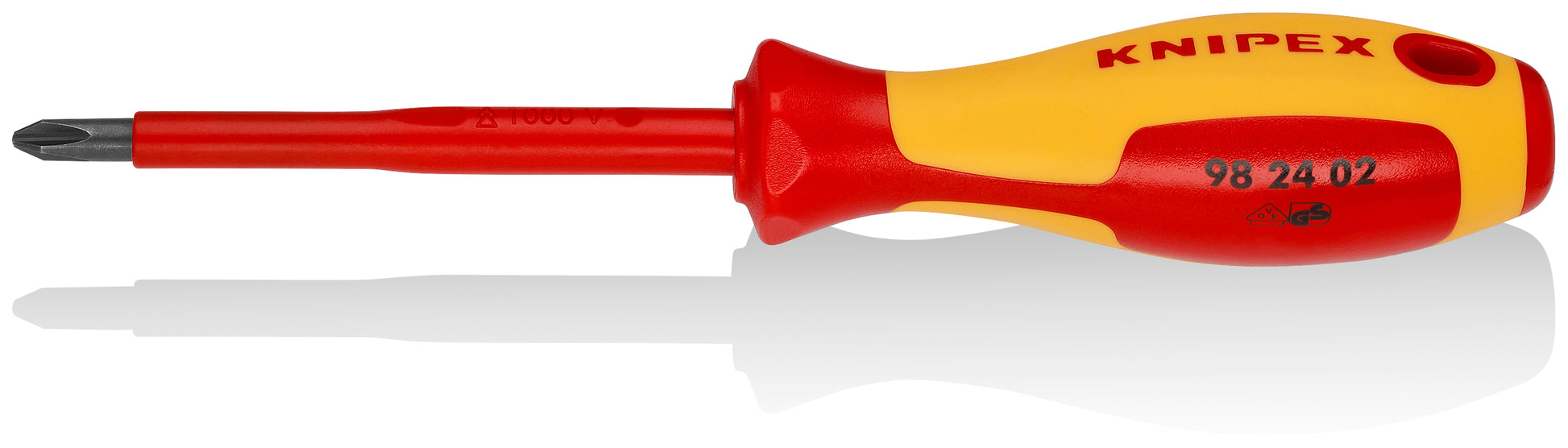

• 98 24 02 - Phillips Screwdriver, 4"-1000V Insulated, P2.
• P2 tip.

Set Includes

• 02 08 225 US
• 74 08 200 US
• 98 12 02
• 98 20 55
• 98 24 02

Specifications

• Manufacturer Part Number: 9K 98 98 21 US
• Material Type: Chrome Vanadium Steel|Chrome vanadium heavy-duty steel, forged, oil-hardened|High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM|1000V Insulated, multi-component, VDE
• Gripping Surface: Serrated
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: Yes
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red/Yellow
• Tool Length: 12 1/2"
• Tool Width: 4 1/2"
• Tool Height: 4 1/2"
• Tool Length: 12.5"
• Tool Width: 4.5"
• Tool Height: 4.5"
• Tool Weight: 1170 g (2.58 lb)
• Package Length: 12"
• Package Width: 4"
• Package Height: 4"
• Package Weight: 2.58 lb
• UOM: Set
• UOM Qty: 5
• DIN: DIN ISO 5746 (02 08 225 US); DIN ISO 5749 (74 08 200 US)
• REACH: does not contain SVHC
• RoHS: not applicable
• IEC: IEC 60900
• Joint Type: Rivet|Forged-in axle
• Cutting Edge Shape: Bevel
• Cutting Edge HRC: Approx. 63 HRS (02 08 225 US); Approx. 64 HRC (74 08 200 US)
• Cutting Capacity - Medium Hard Wire (Nail): 11/64" (74 08 200 US)
• Cutting Capacity - Hard Wire (Steel Wire): 1/8" (02 08 225 US and 74 08 200 US)
• Cutting Capacity - Piano Wire: 3/32" (02 08 225 US and 74 08 200 US)
• Cutting Capacity - Cu and Al conductor: 35/64" (02 08 225 US)
• Tip Style: Phillips|Slotted|Square
• Tip Size: R2 (98 12 02); 7/32" (98 20 55); P2 (98 24 02)
• Shank Length: 4" (98 12 02 and 98 24 02); 5" (98 20 55)
• Country of Origin: Germany
• Harmonized Tariff Code: 8206.00.0000
• ECCN: EAR99
• UPC: 843221005566
