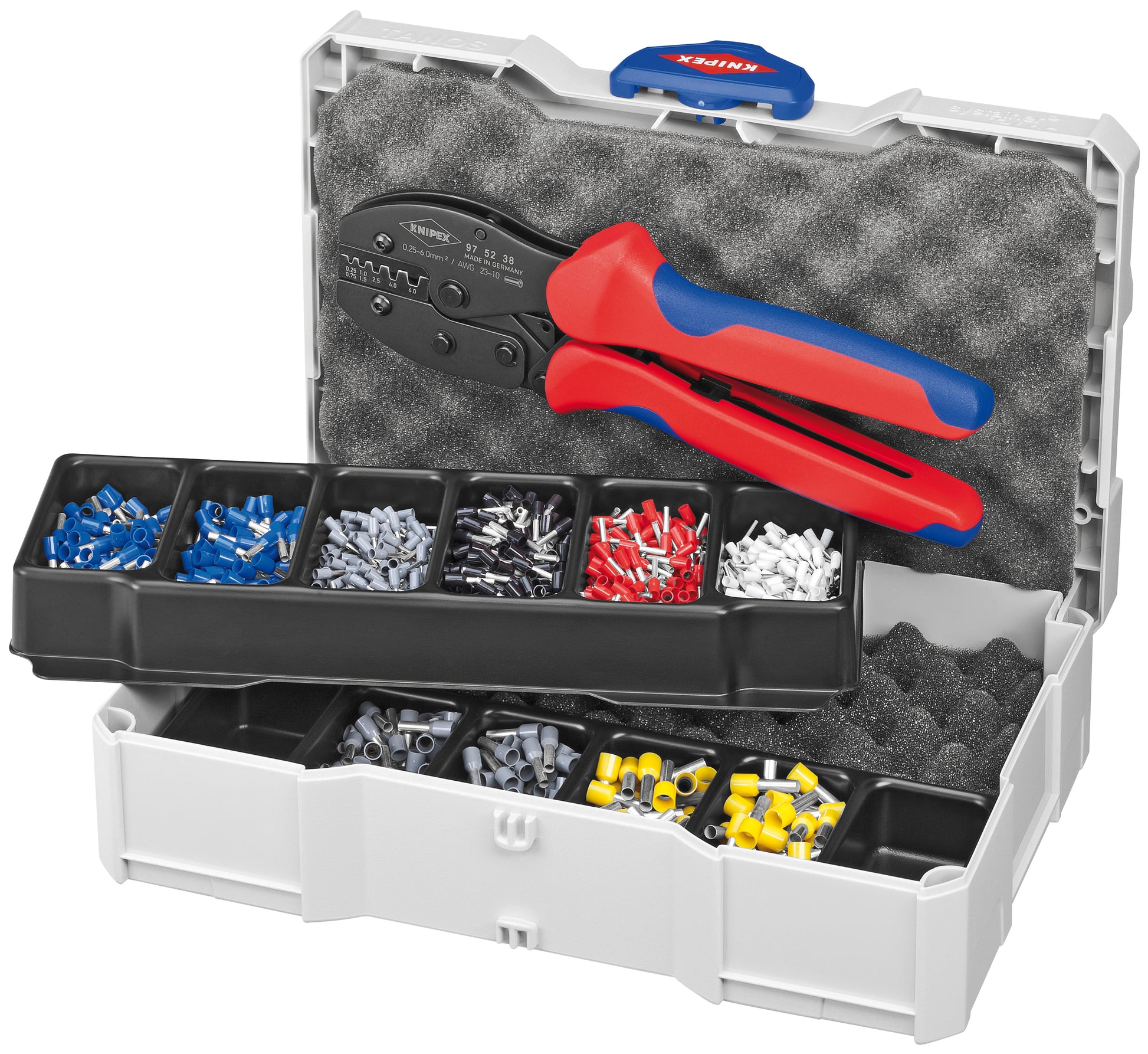

Knipex 97 90 23 Crimp Assortments

crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks.

Features

• With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals.
• Whether working with insulated or non-insulated crimps, this crimping kit provides quality results.

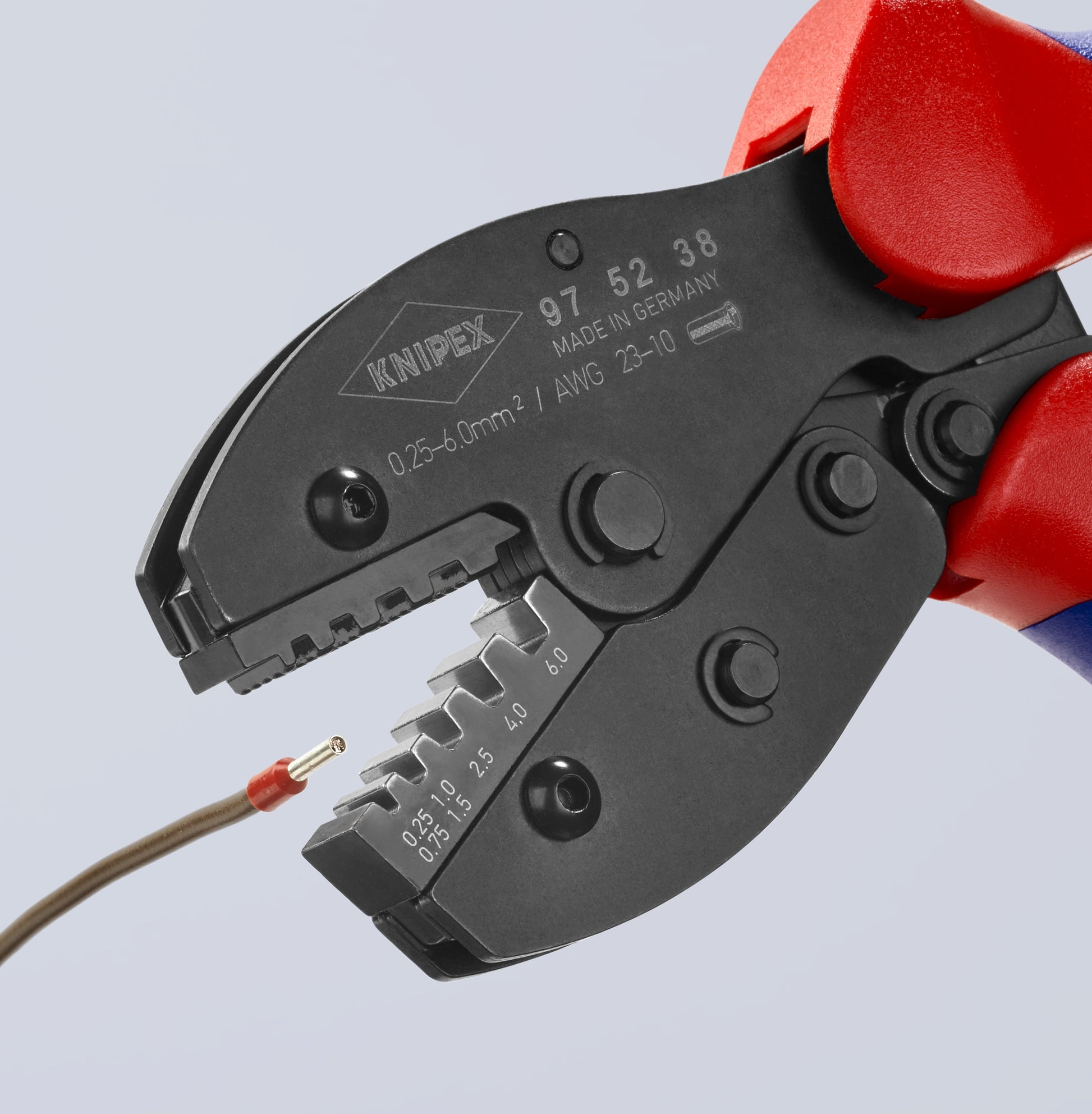

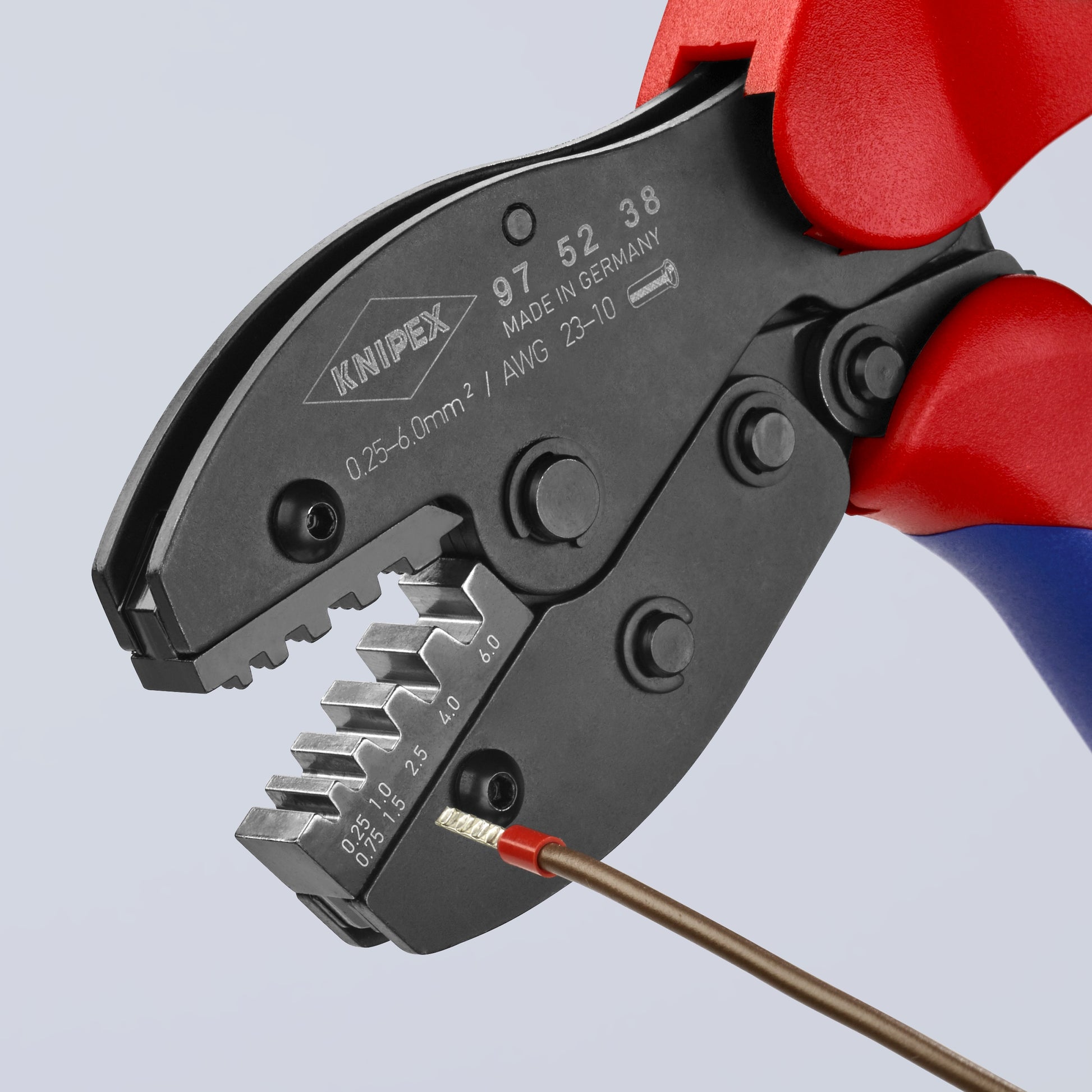

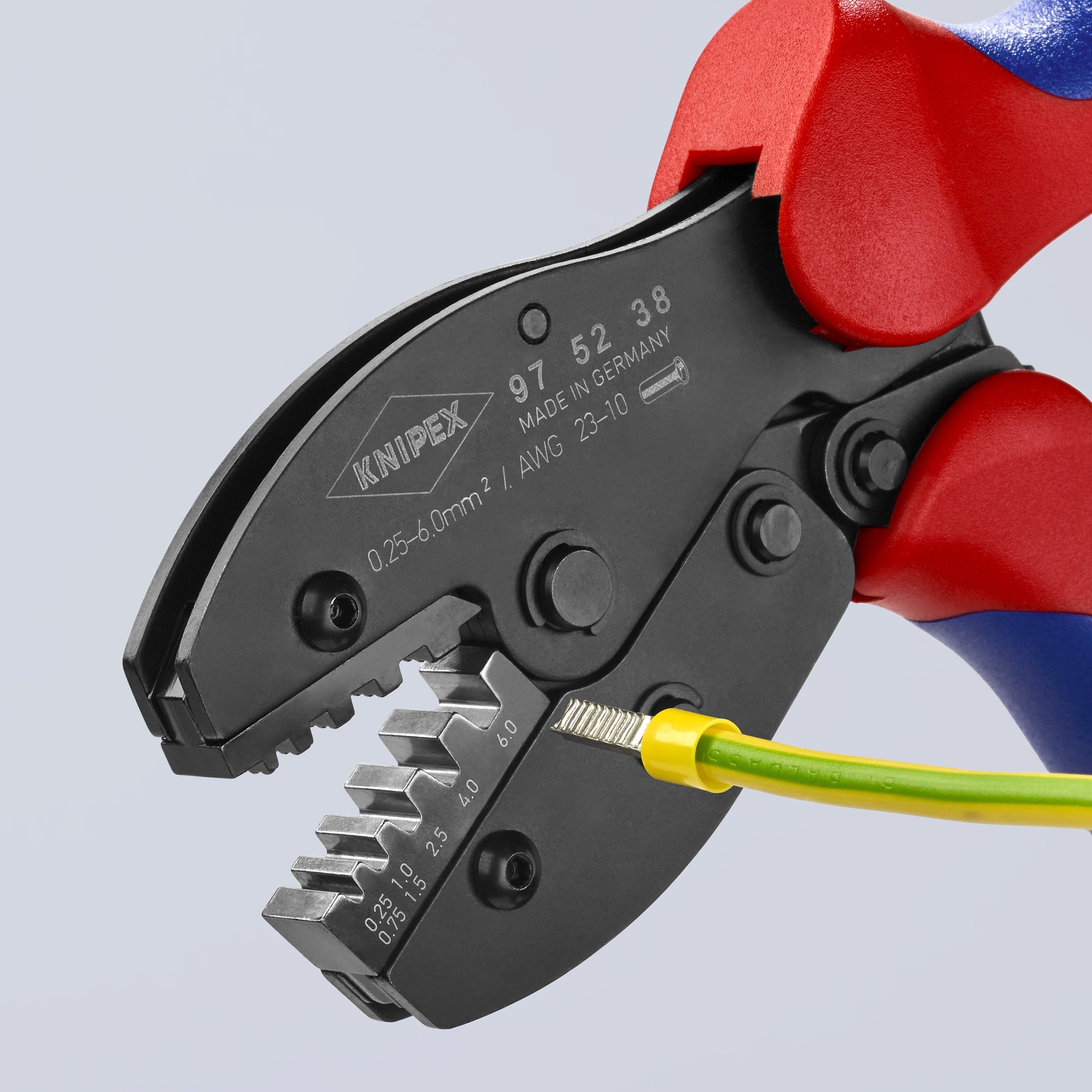

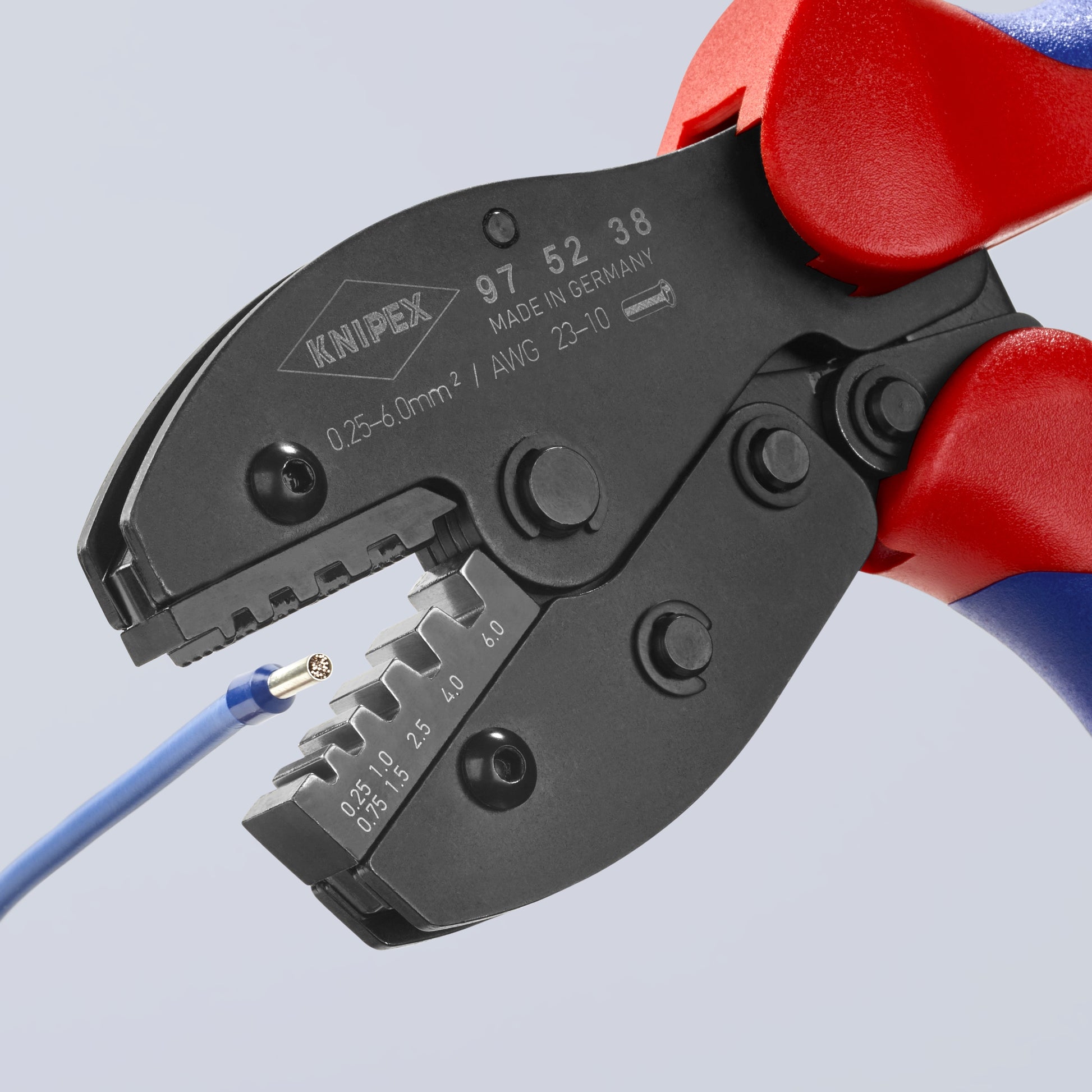

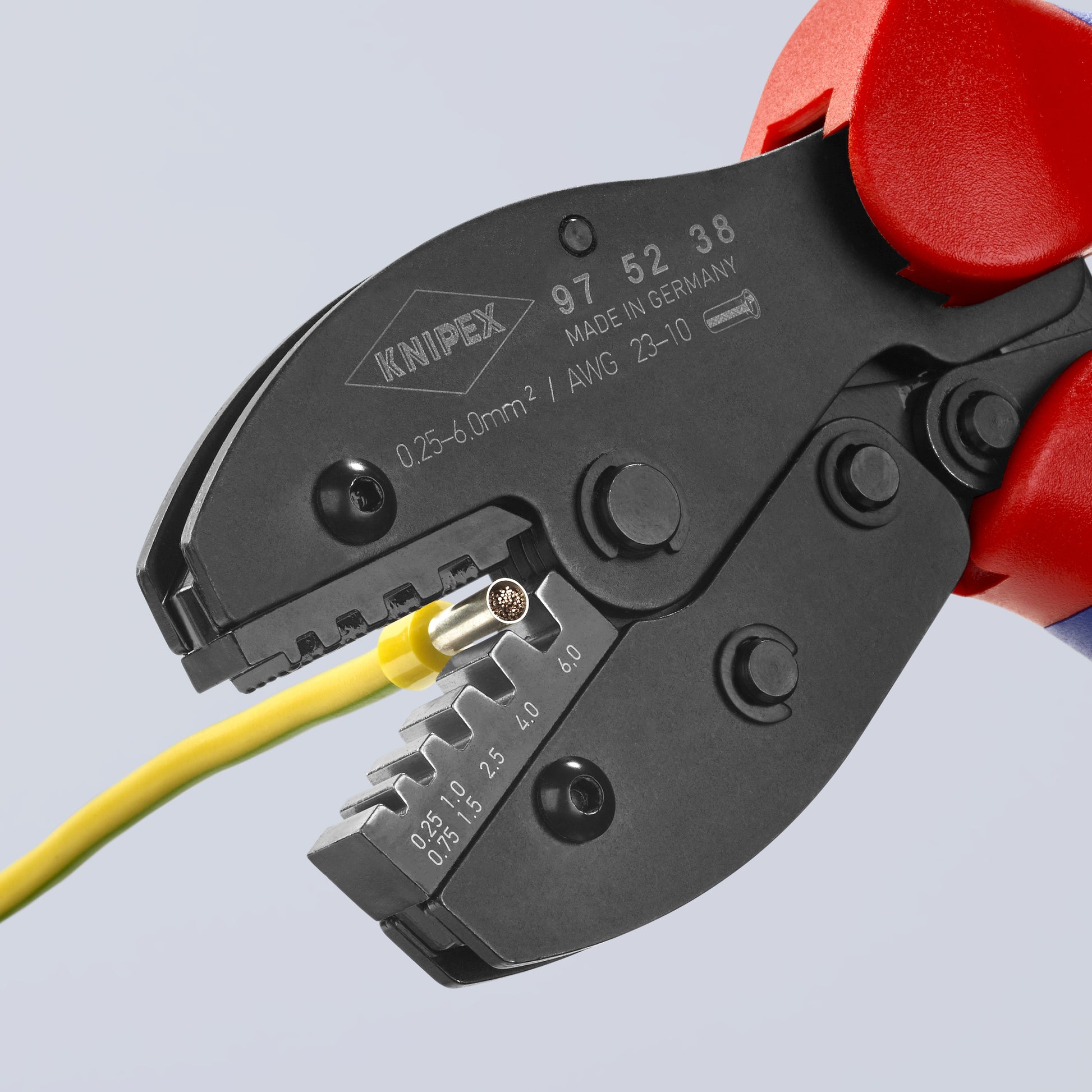

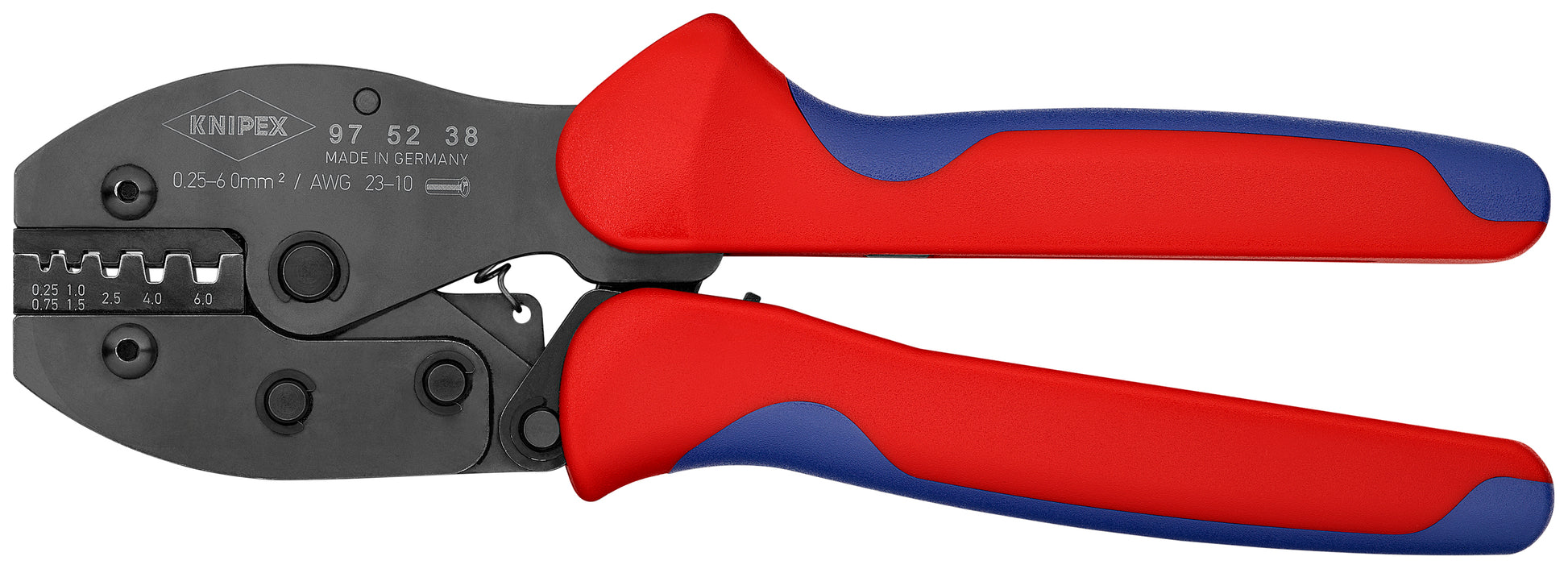

• Includes 97 52 38 (8 1/2" Crimping Pliers For Insulated and Non-Insulated Wire Ferrules) with assortment of the most common sizes of end sleeves.
• 0.5 mm² end sleeves - 200 each.
• 0.75 mm² end sleeves - 200 each.
• 1.0 mm² end sleeves - 200 each.
• 1.5 mm² end sleeves - 200 each.
• 2.5 mm² end sleeves - 200 each.
• 4.0 mm² end sleeves - 100 each.
• 6.0 mm² end sleeves - 100 each.

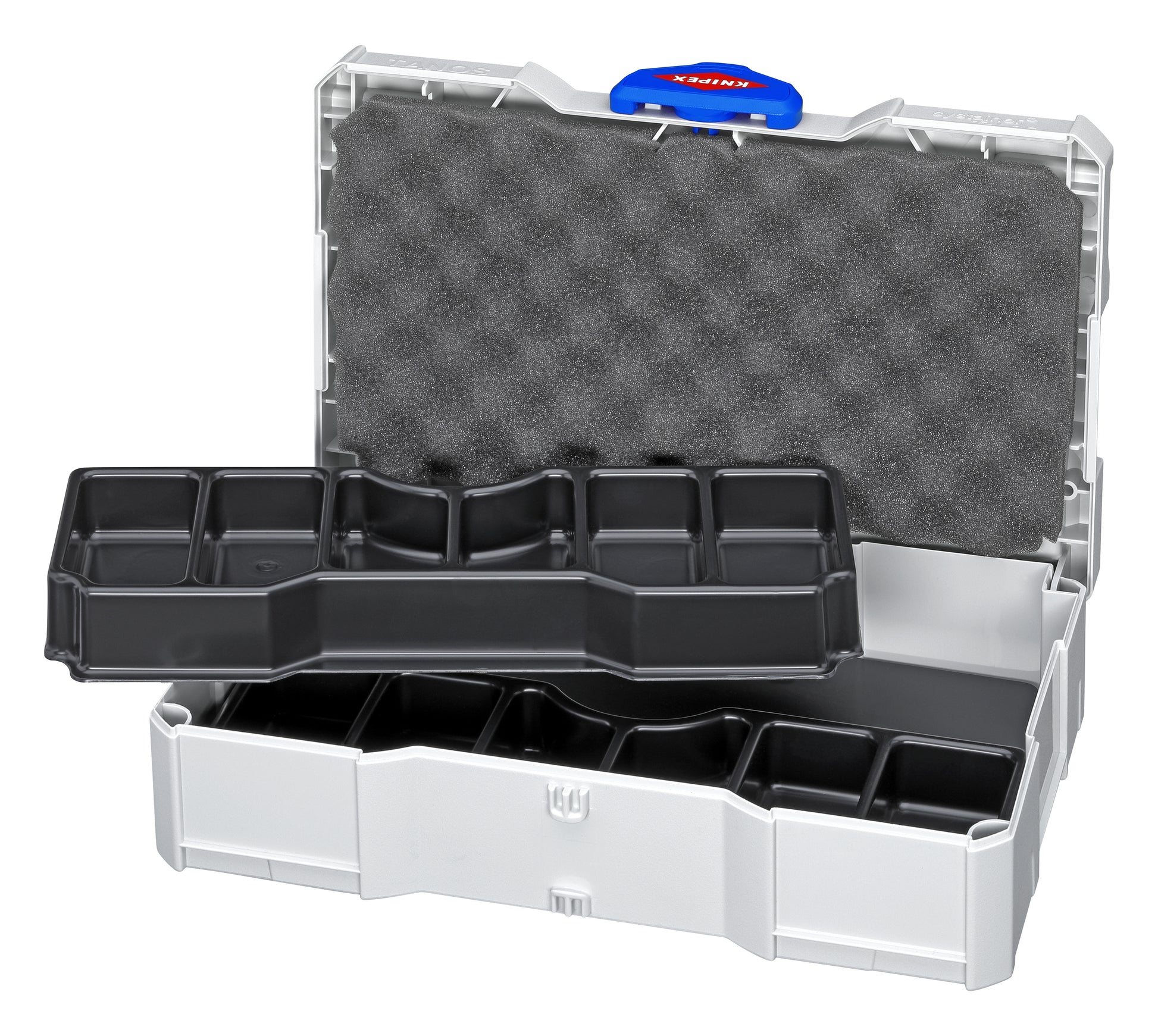

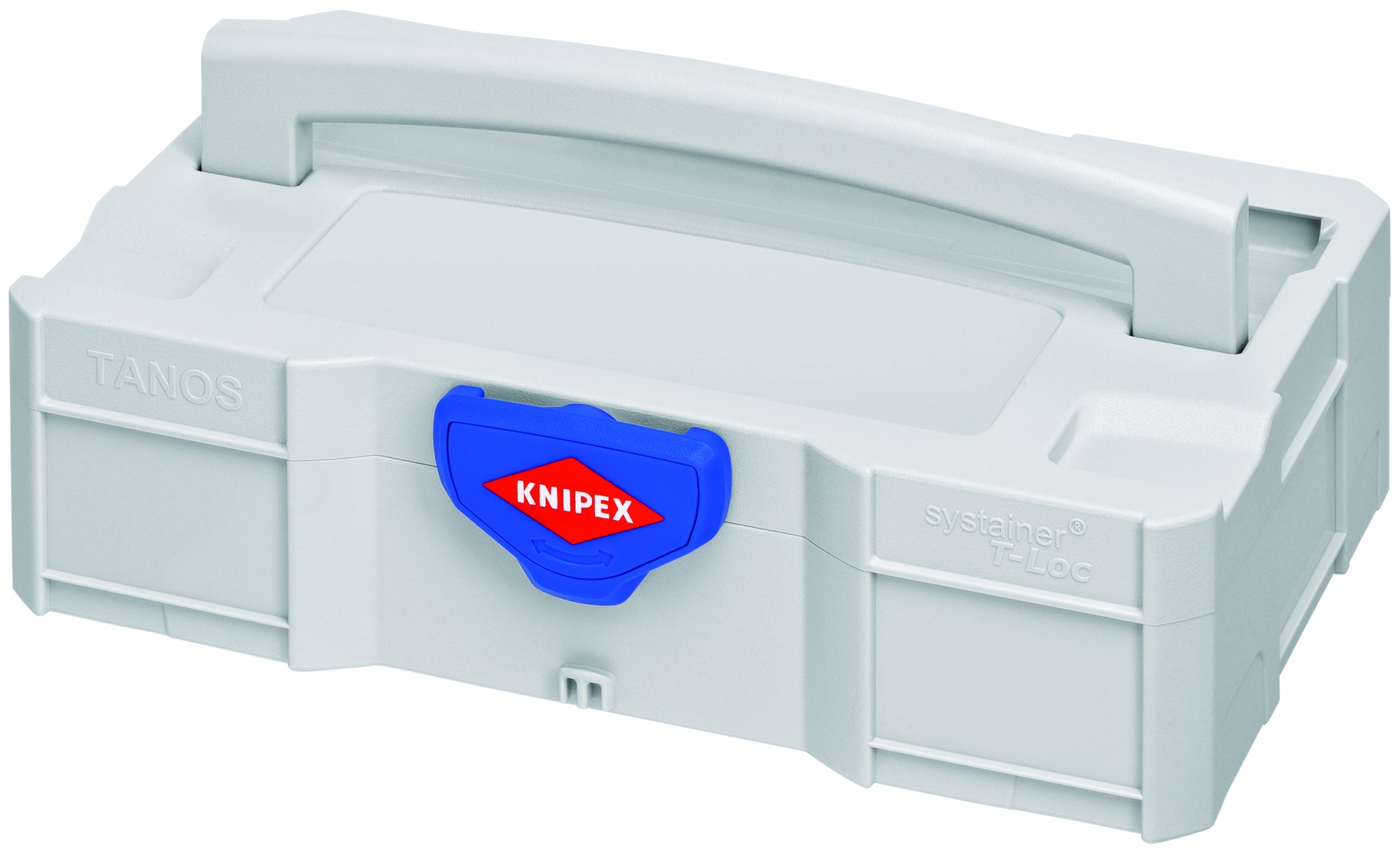

• In a TANOS MINI-systainer® (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors.
• T-Loc fastener for one-handed operation: open or close the systainer® with one turn and connect to a second systainer®.
• Several Tanos Mini-systanier boxes can be connected with each other.

Set Includes

• 97 52 38

Specifications

• Manufacturer Part Number: 97 90 23
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red/Blue
• Tool Length: 10 3/8"
• Tool Width: 6 5/8"
• Tool Height: 3"
• Tool Length: 10.45"
• Tool Width: 6.7"
• Tool Height: 3.05"
• Tool Weight: 1259 g (2.775 lb)
• Package Length: 10.45"
• Package Width: 6.7"
• Package Height: 3.05"
• Package Weight: 2.775 lb
• UOM: Kit
• UOM Qty: 1
• REACH: does not contain SVHC
• RoHS: not applicable
• Crimping Positions: 5
• Crimping Profile: Trapezoid crimp
• Terminal Type: End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity - AWG: 24 to 10
• Crimping Capacity - mm2: 0.25 to 6.0
• Country of Origin: Germany
• Harmonized Tariff Code: 8203.20.6060
• ECCN: EAR99
• Set Part Number: 97 52 38
• UPC: 843221016142
