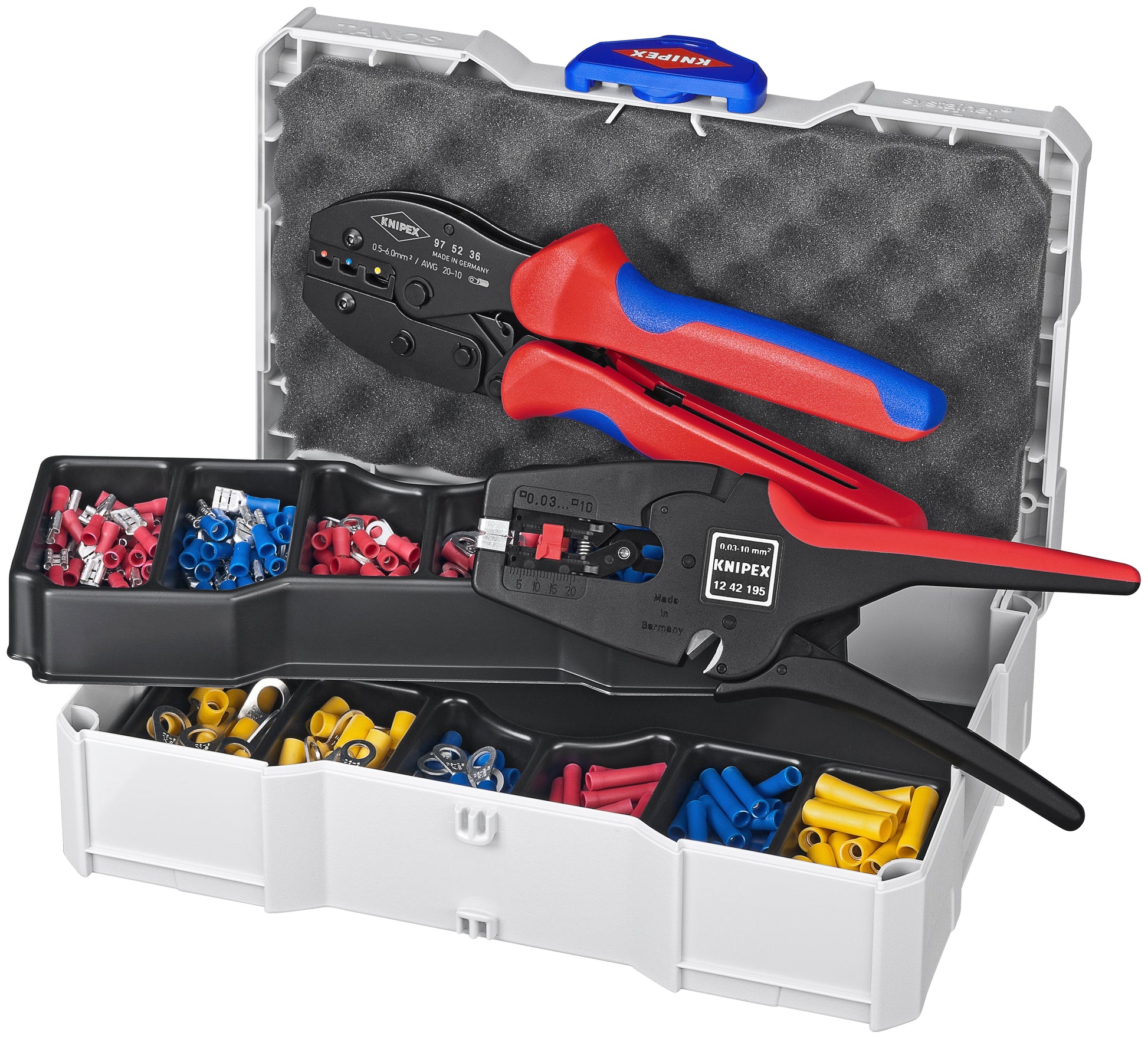

Knipex 97 90 22 Crimp Assortments

crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks.

Features

• With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals.
• Whether working with insulated or non-insulated crimps, this crimping kit provides quality results.

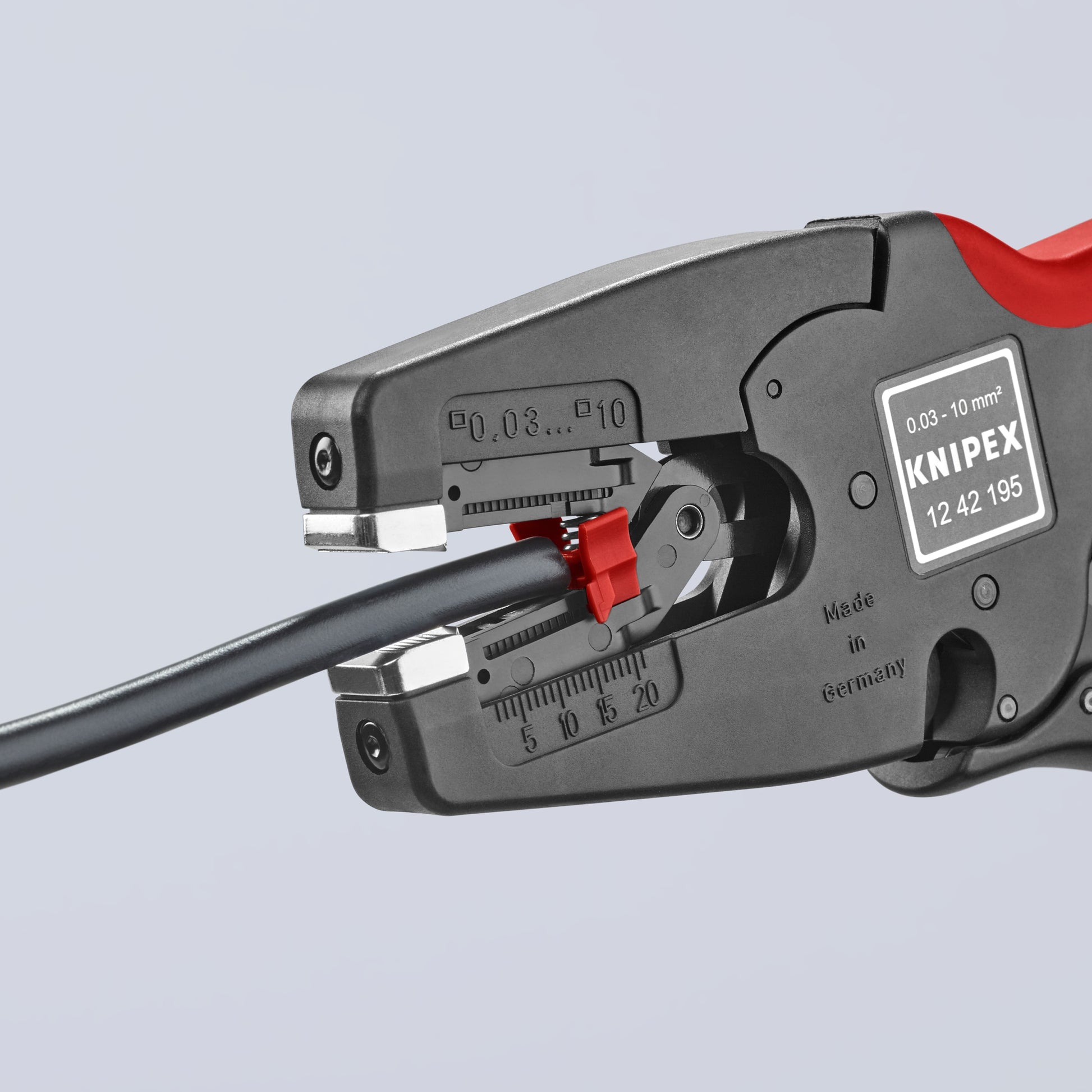

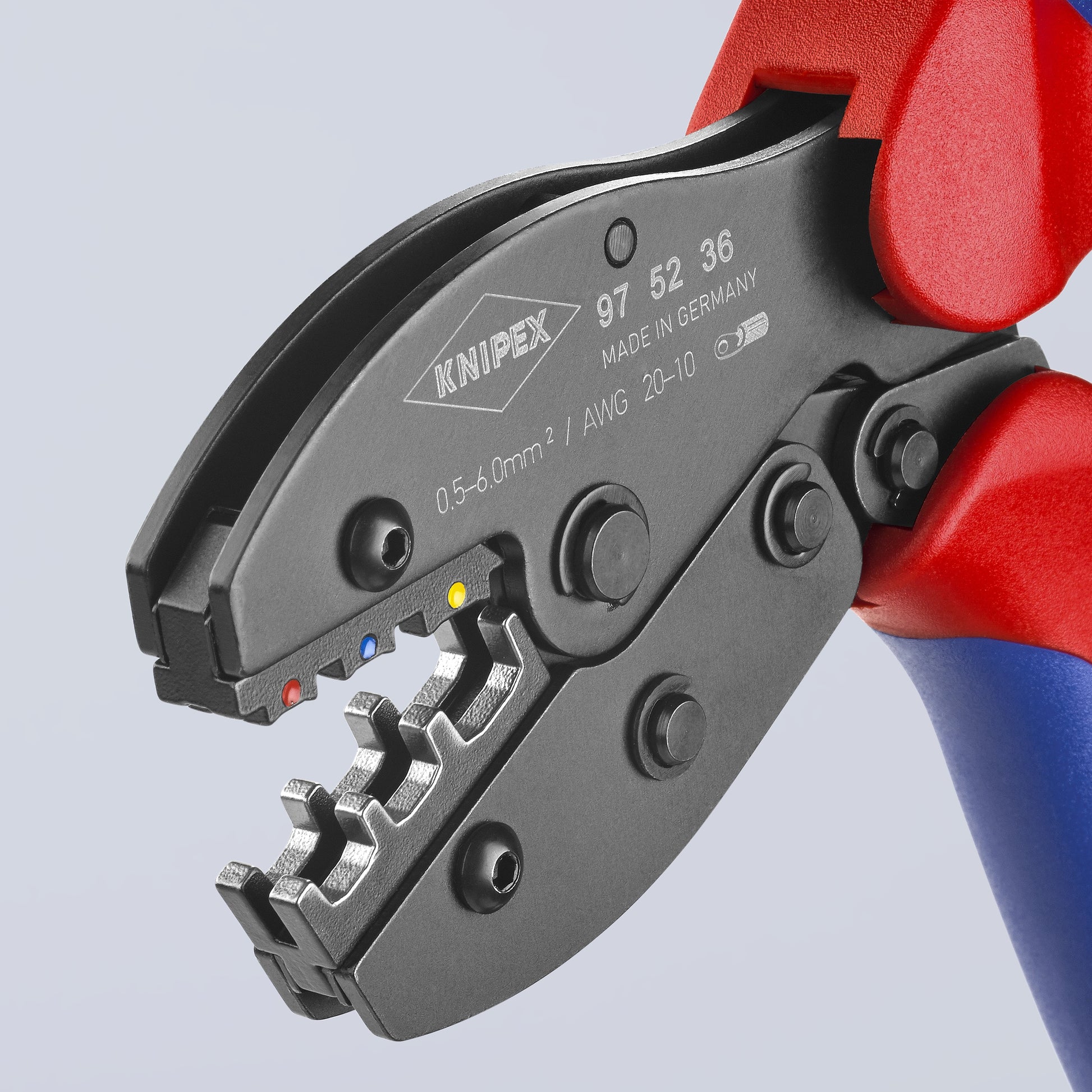

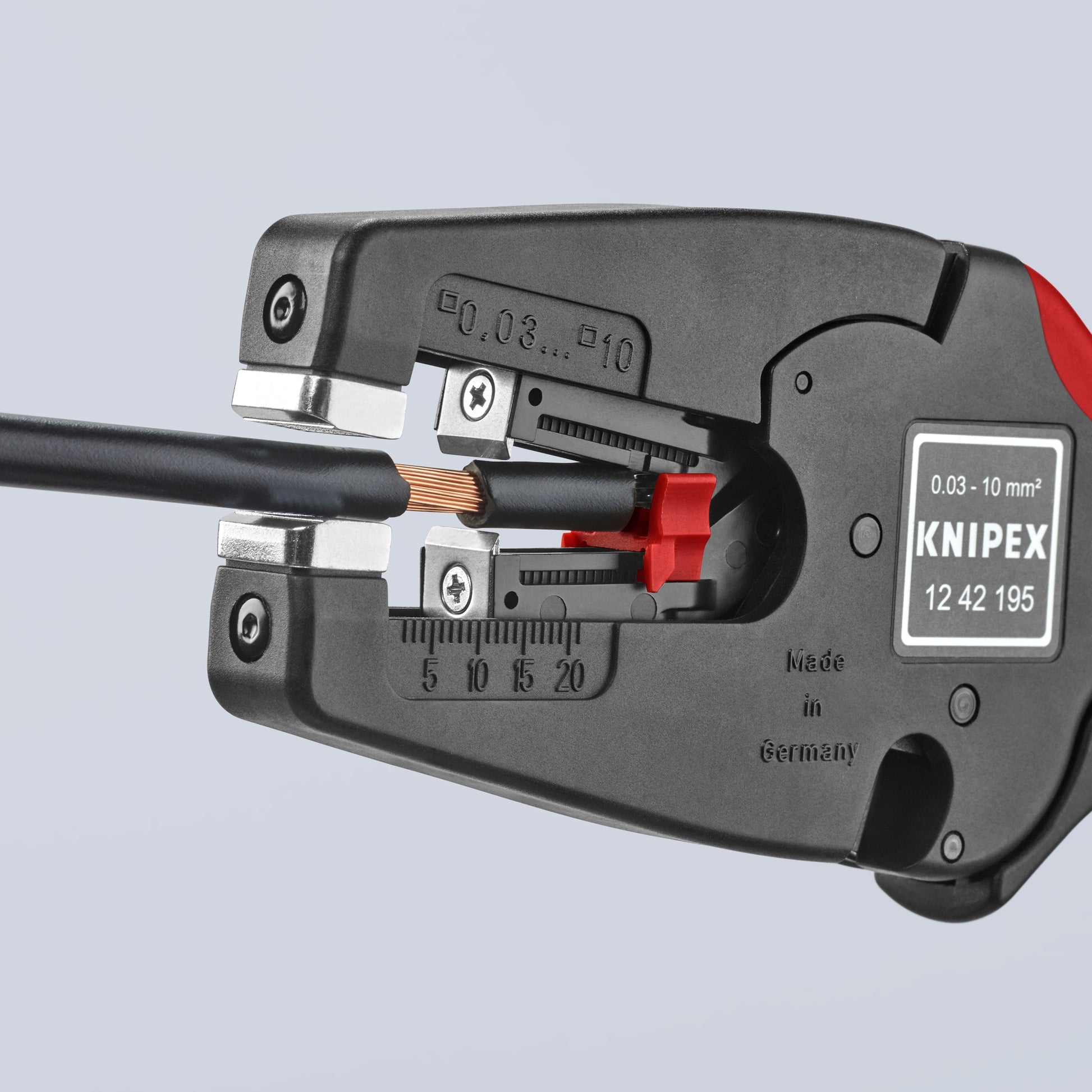

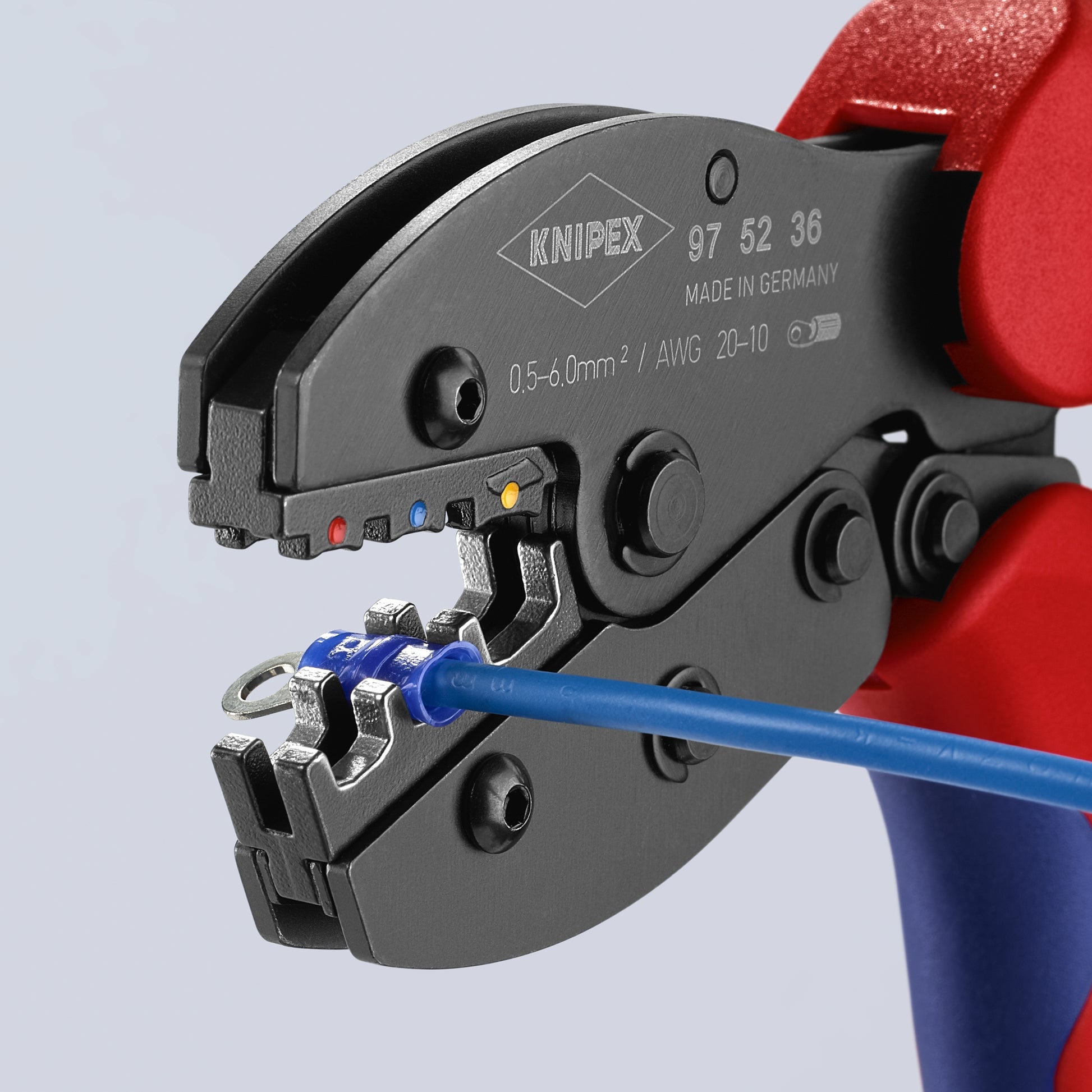

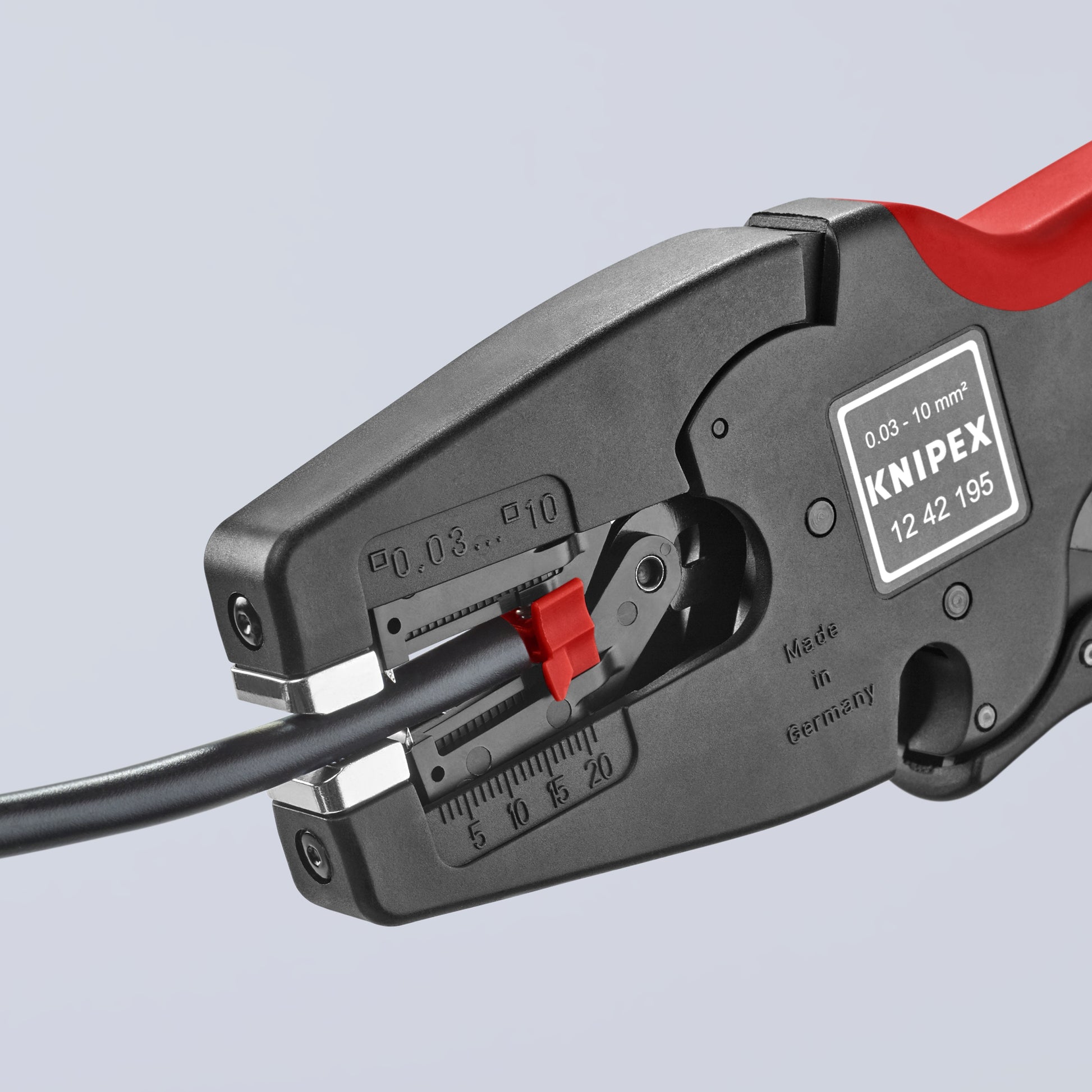

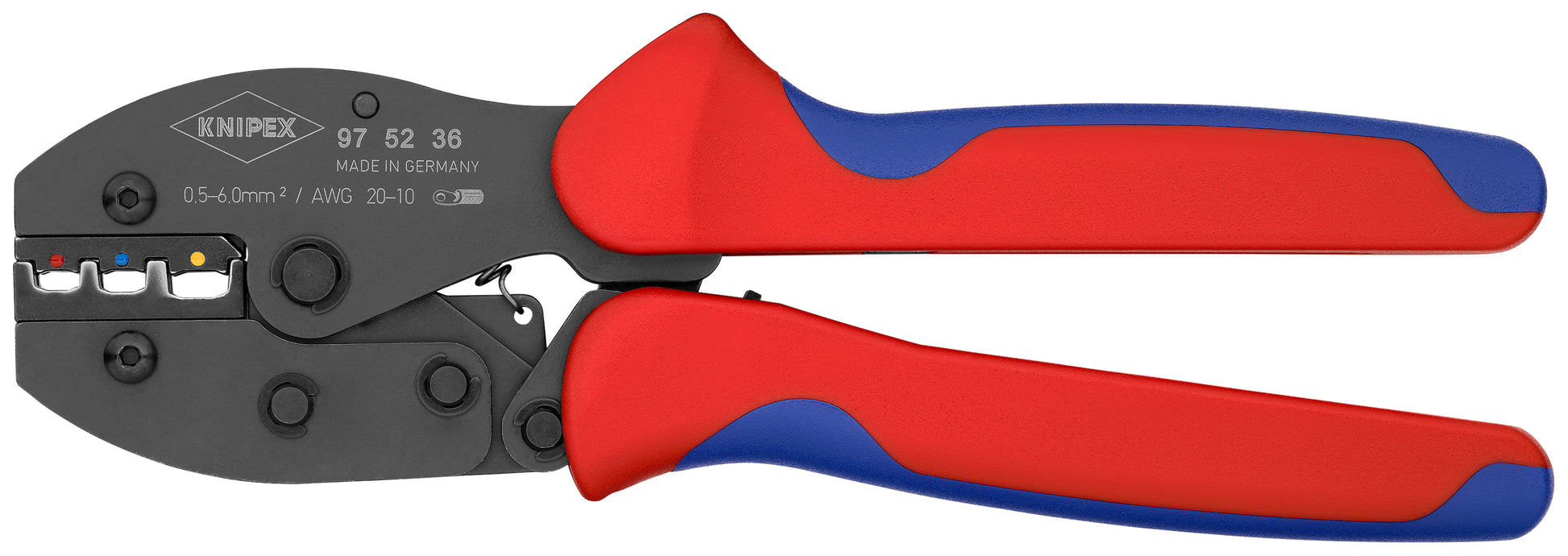

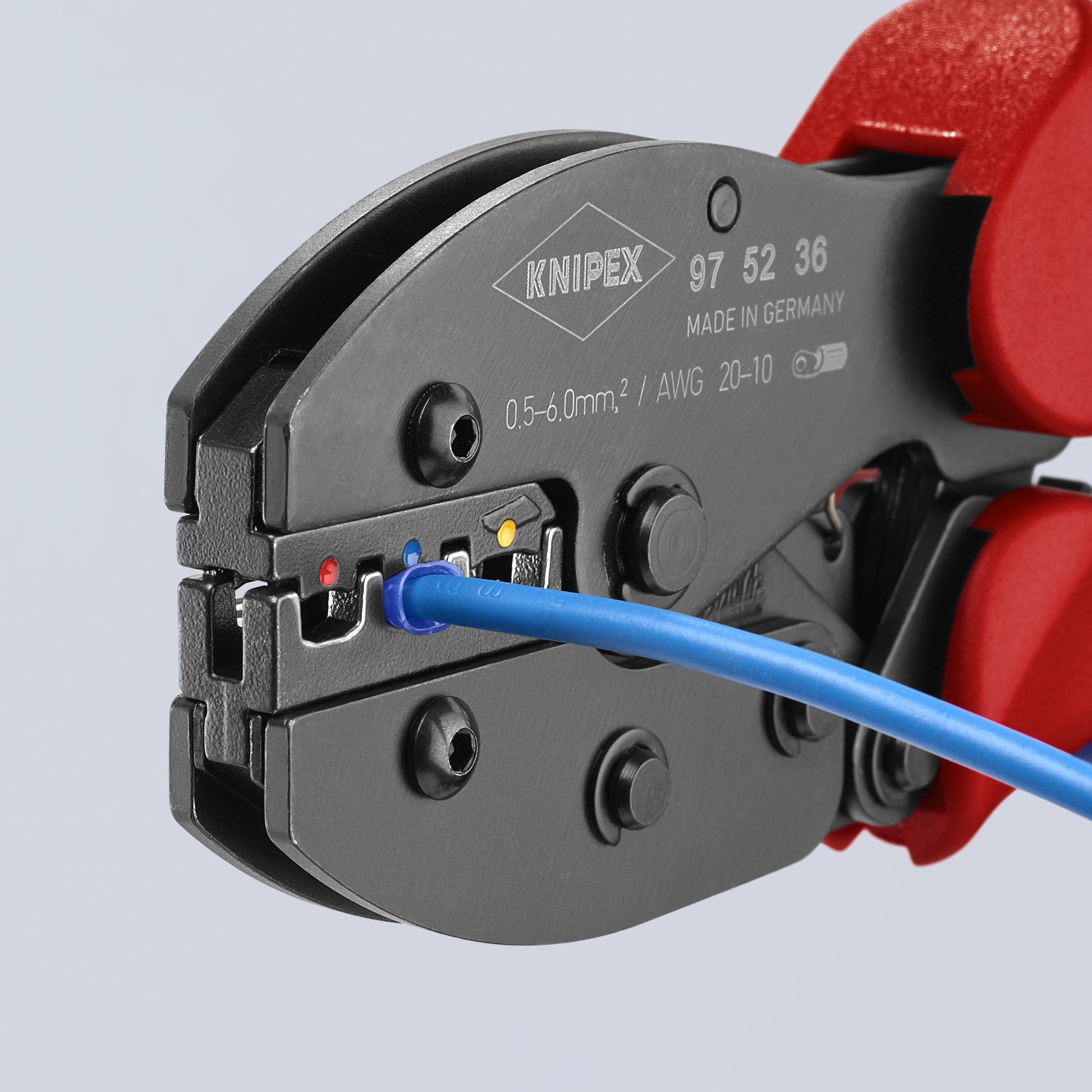

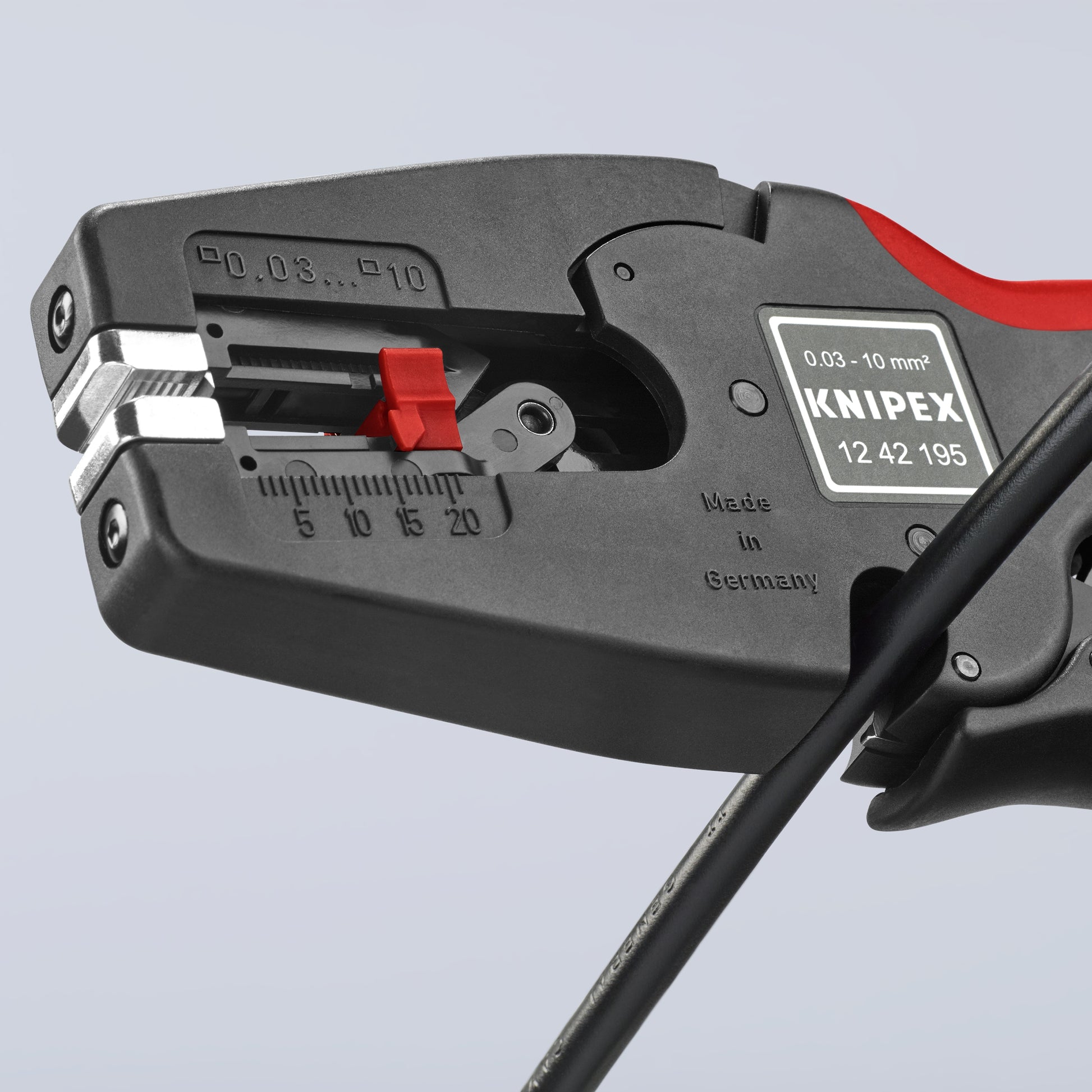

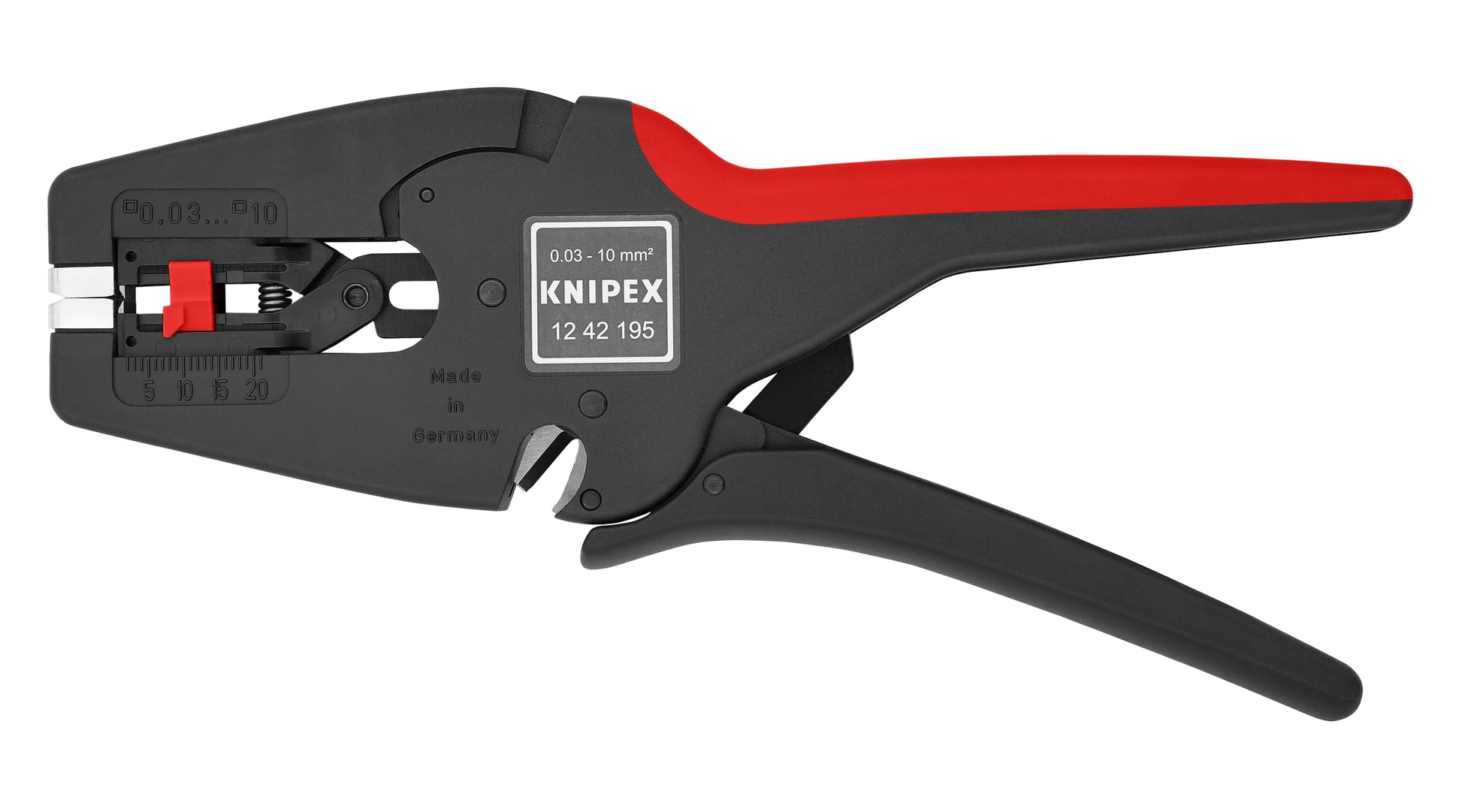

• Includes 97 52 36 (8 1/2" Crimping Pliers For Insulated Terminals, Plug Connectors and Butt Connectors) and 12 42 195 (7 3/4" Automatic Wire Stripper 8-32 AWG) with assortment of the most common sizes of end sleeves.
• 6.3 x 0.8 mm blade terminal sockets (0.5 to 1 mm² and 1.5 to 2.5 mm²) – 25 each.
• 4mm (0.5 to 1 mm²) ring terminal – 25 each.
• 5mm (0.5 to 1mm²) ring terminal – 25 each.
• 4mm (1.5 to 2.5mm²) ring terminal – 25 each.
• 5mm (1.5 to 2.5mm²) ring terminal – 25 each.
• 6mm (1.5 to 2.5mm²) ring terminal – 25 each.
• 6mm (4 to 6 mm) ring terminal – 25 each.
• 8mm (4 to 6 mm²) ring terminal – 25 each.
• Red (0.5 to 1mm²) insulated butt connector – 25 each.
• Blue (1.5 to 2.5mm²) insulated butt connector – 25 each.
• Yellow (4 to 6mm²) insulated butt connector – 25 each.

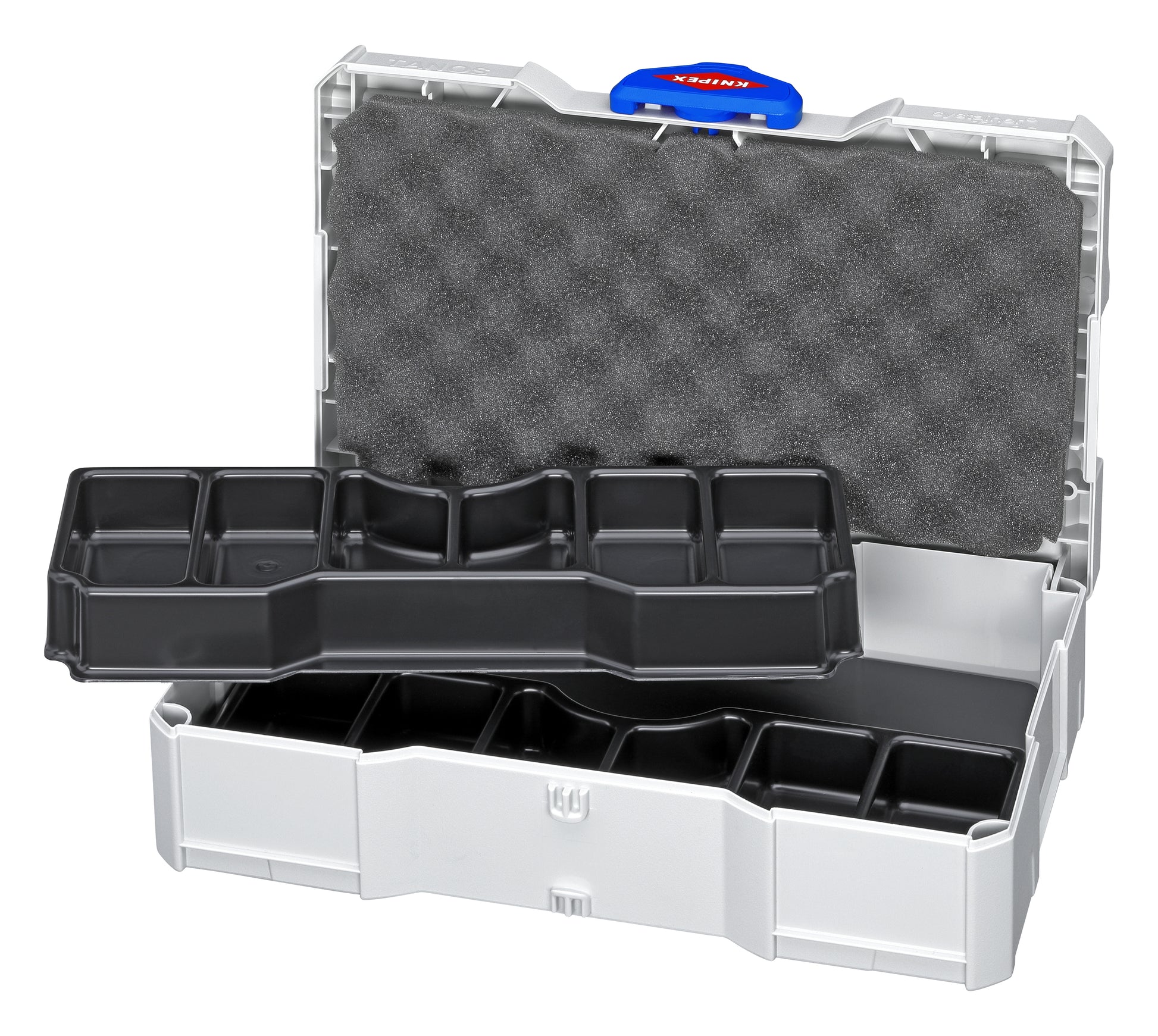

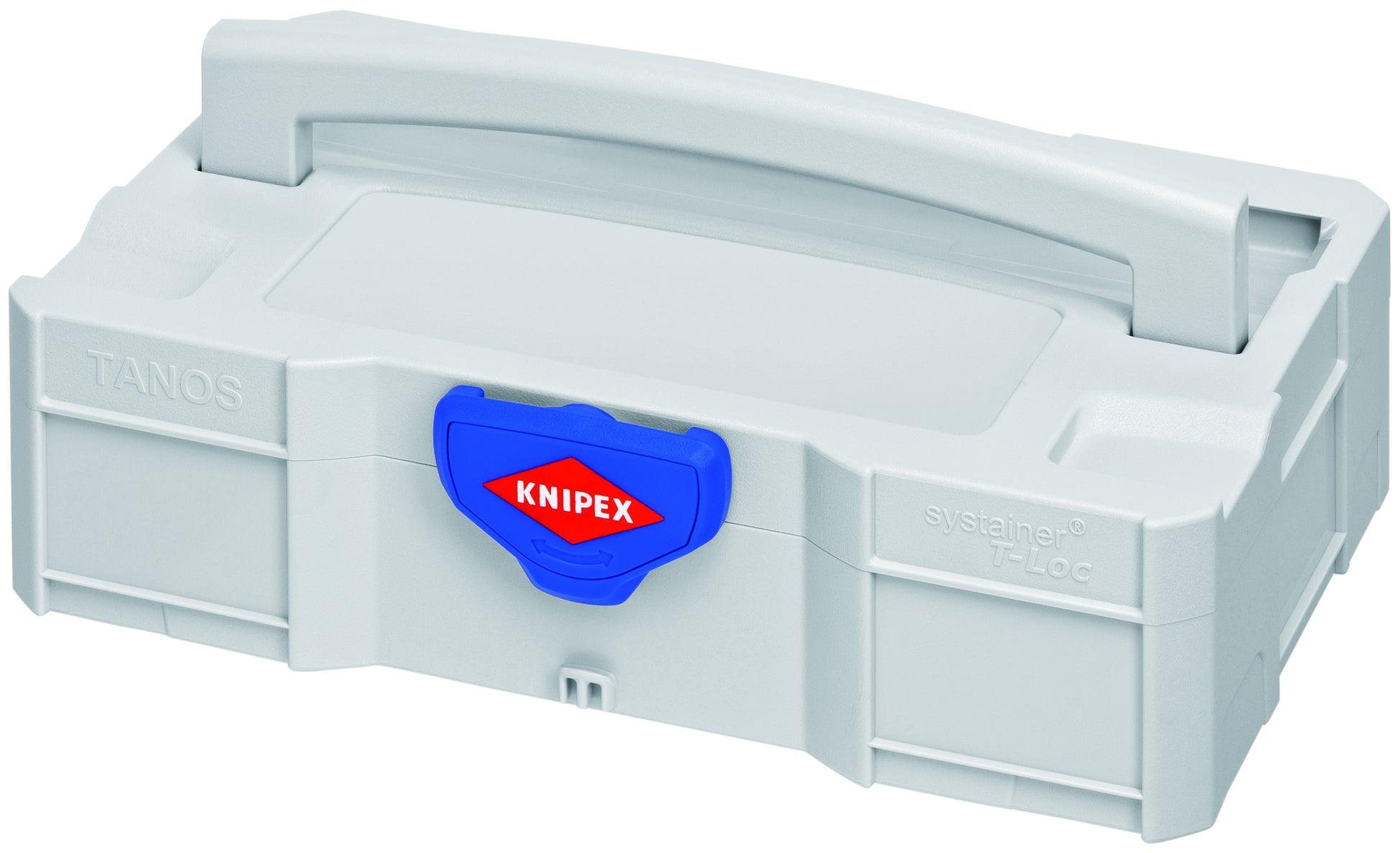

• In a TANOS MINI-systainer® (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors.
• T-Loc fastener for one-handed operation: open or close the systainer® with one turn and connect to a second systainer®.

Set Includes

• 97 52 36
• 12 42 195

Specifications

• Manufacturer Part Number: 97 90 22
• Material Type: Chrome vanadium electric steel, oil-hardened|Fiberglass reinforced plastic
• Other Material Type: Blades: special tool steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Tethered Enabled: false
• Tool Length: 10 3/8"
• Tool Width: 6 5/8"
• Tool Height: 3 1/8"
• Tool Length: 10.45"
• Tool Width: 6.7"
• Tool Height: 3.19"
• Tool Weight: 1594 g (3.515 lb)
• Package Length: 10.45"
• Package Width: 6.7"
• Package Height: 3.19"
• Package Weight: 3.515 lb
• UOM: Kit
• UOM Qty: 1
• REACH: does not contain SVHC
• RoHS: not applicable
• Stripping Capacity - AWG: 20 to 10
• Crimping Profile: Oval crimp
• Terminal Type: Butt/Ring/Fork (Insulated)
• Crimping Capacity - AWG: 20 to 10
• Crimping Capacity - mm2: 0.5 to 6.0
• Country of Origin: Germany
• Harmonized Tariff Code: 8203.20.6060
• ECCN: EAR99
• UPC: 843221016135
