Knipex 97 90 14 Crimp Assortments

crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks.

Features

• With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals.
• Whether working with insulated or non-insulated crimps, this crimping kit provides quality results.

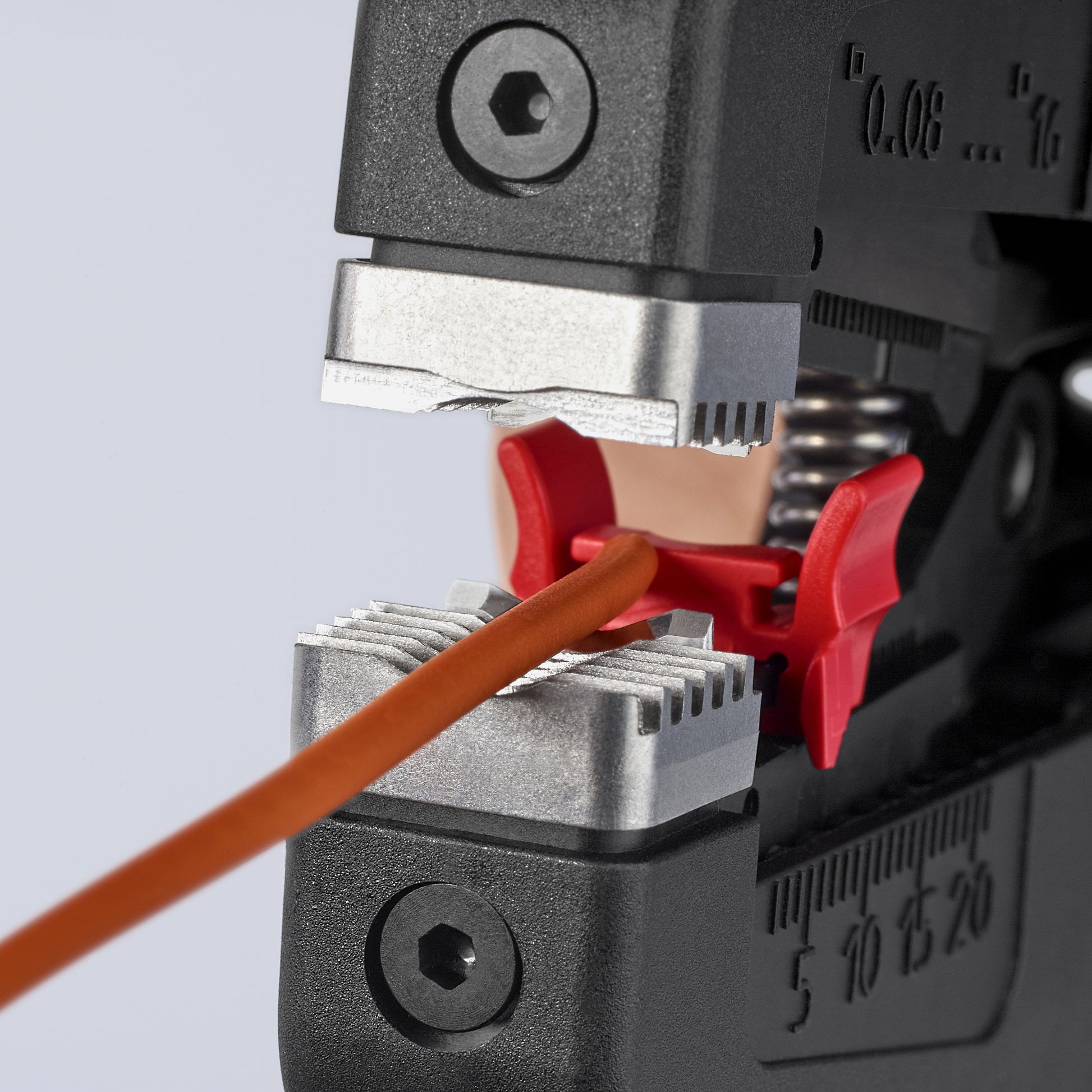

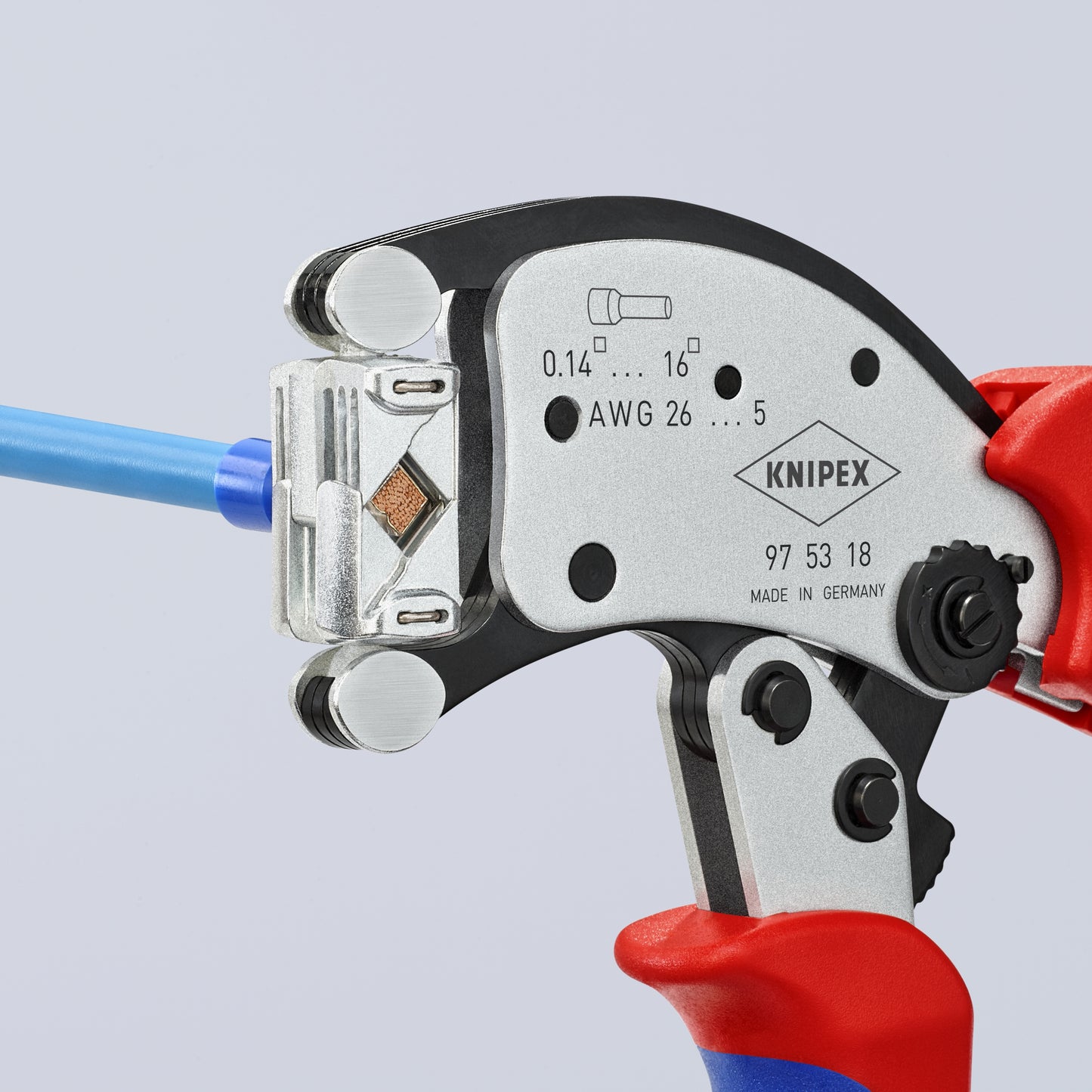

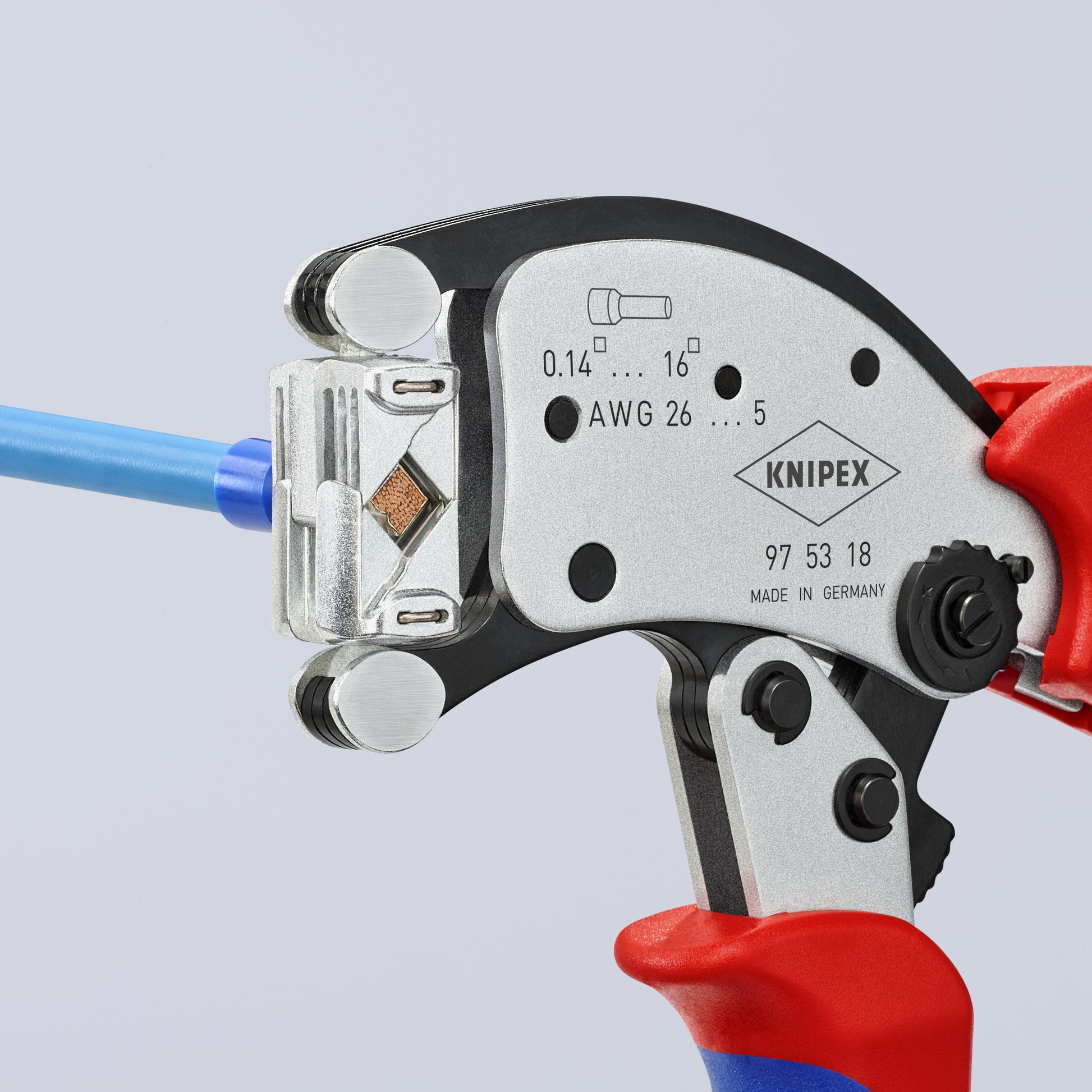

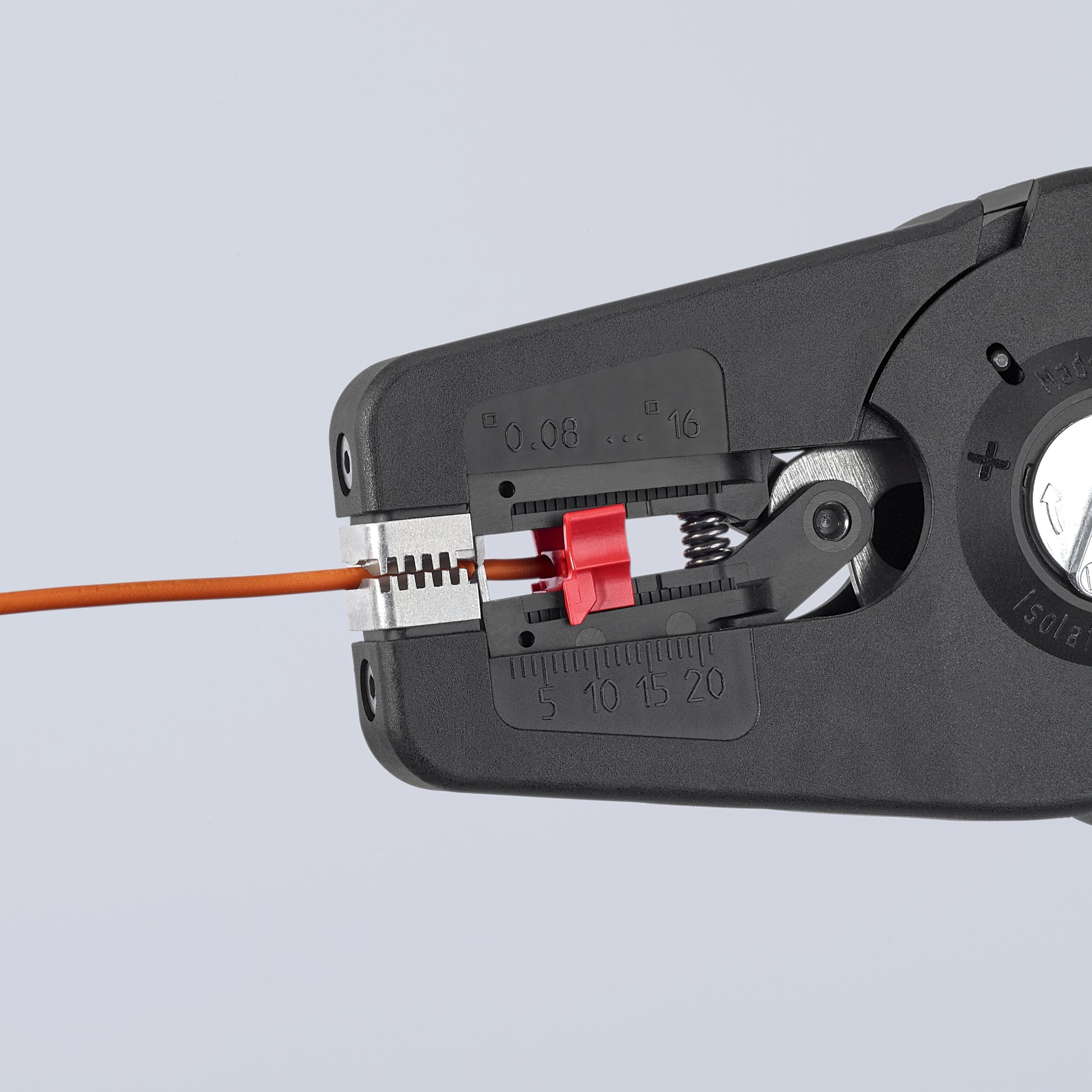

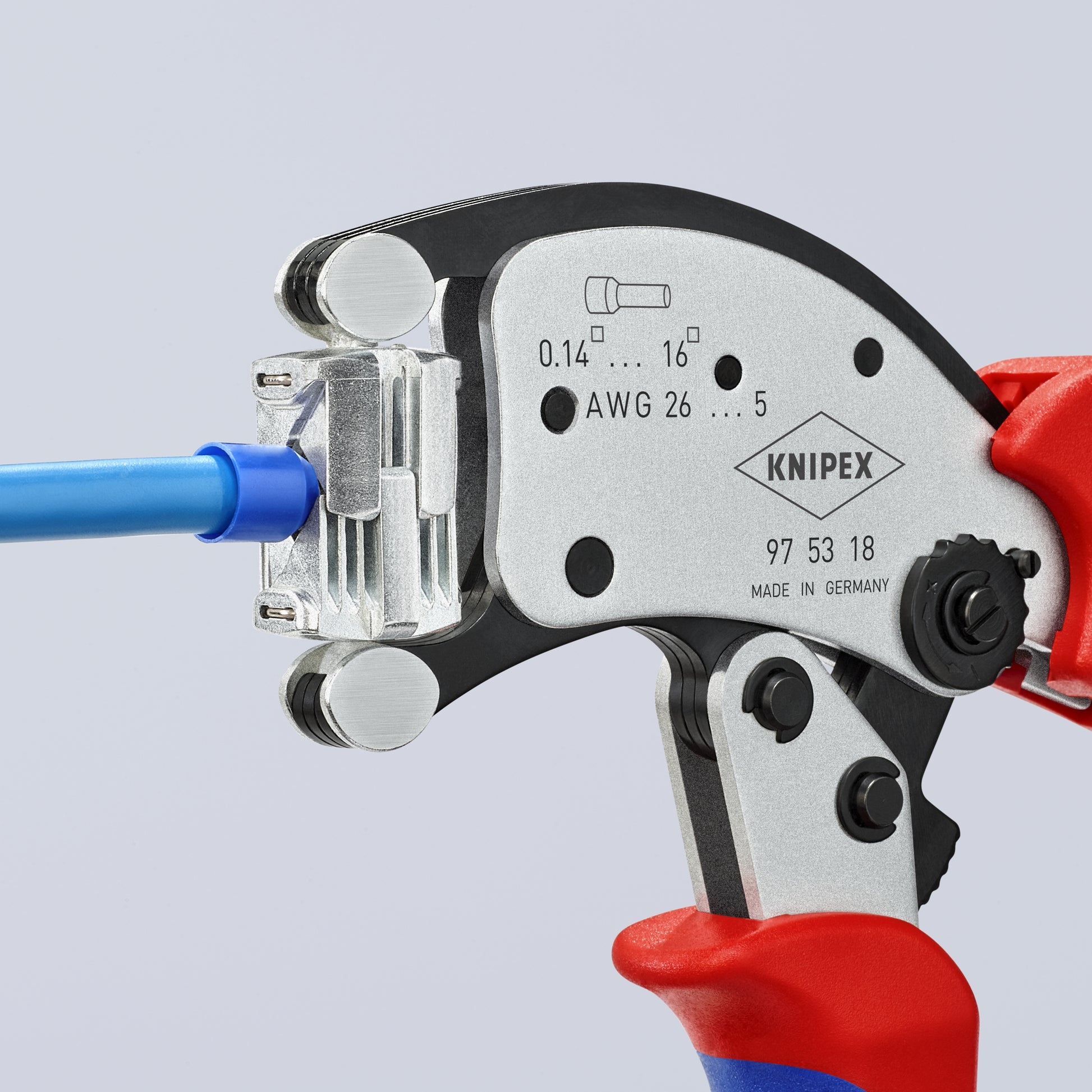

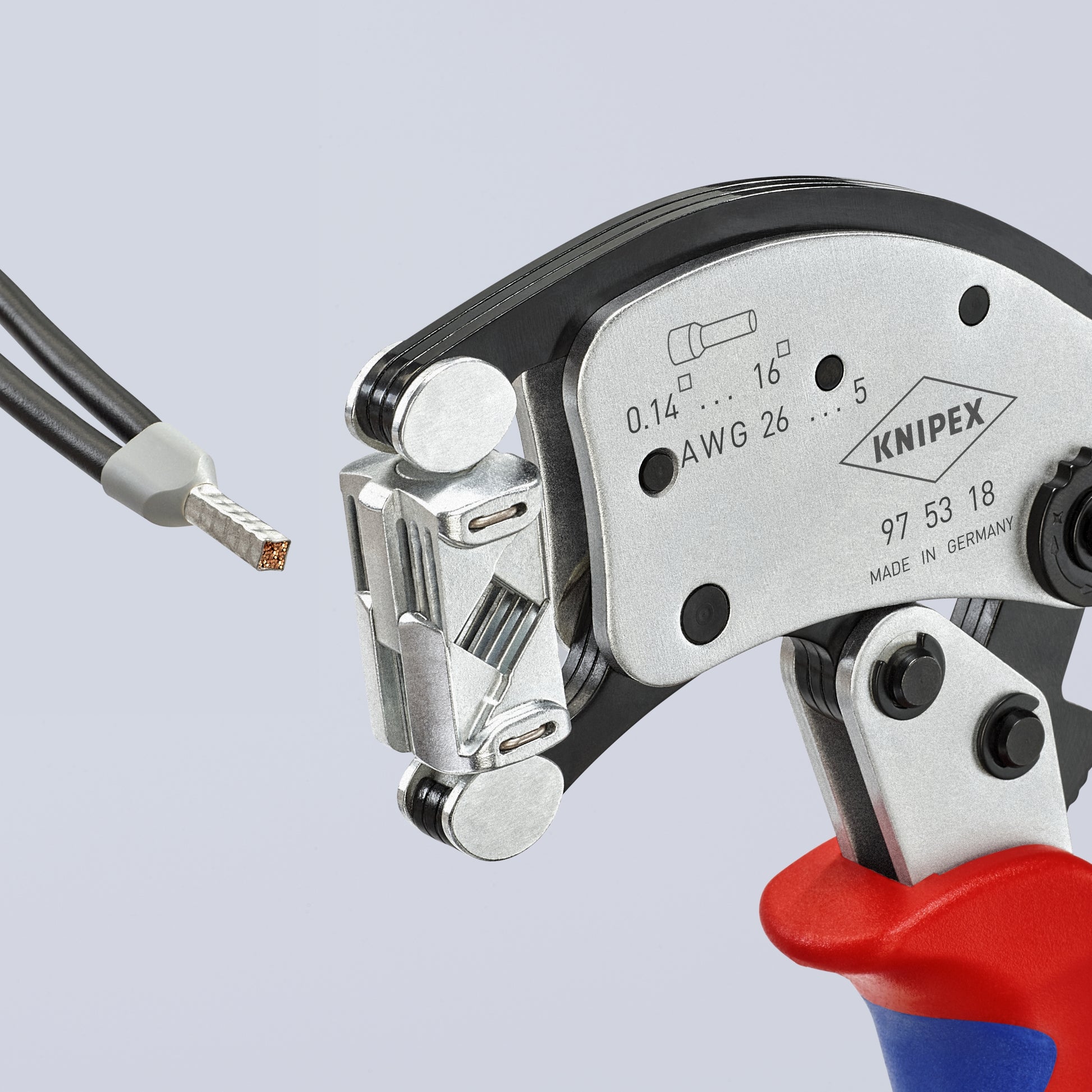

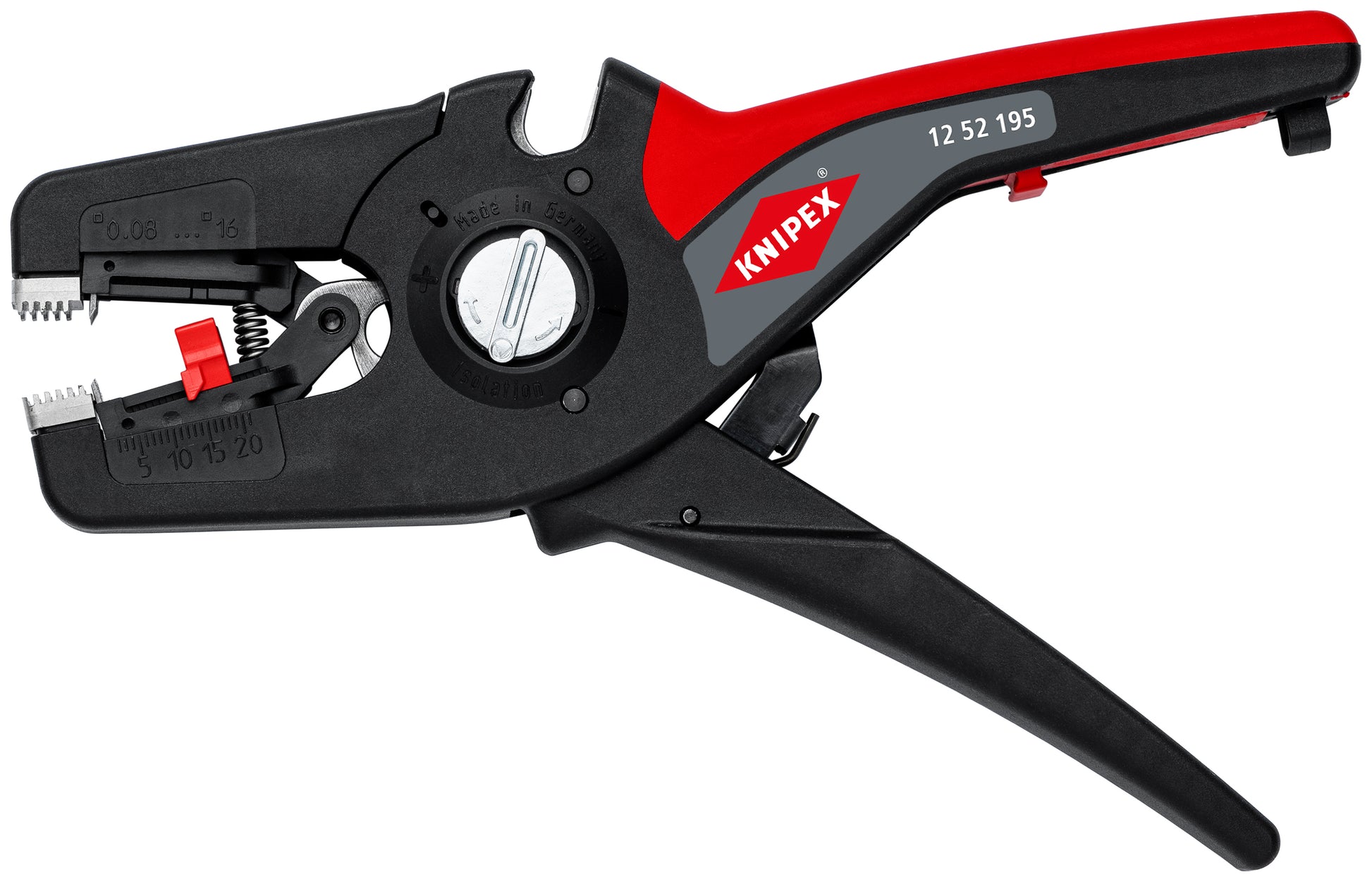

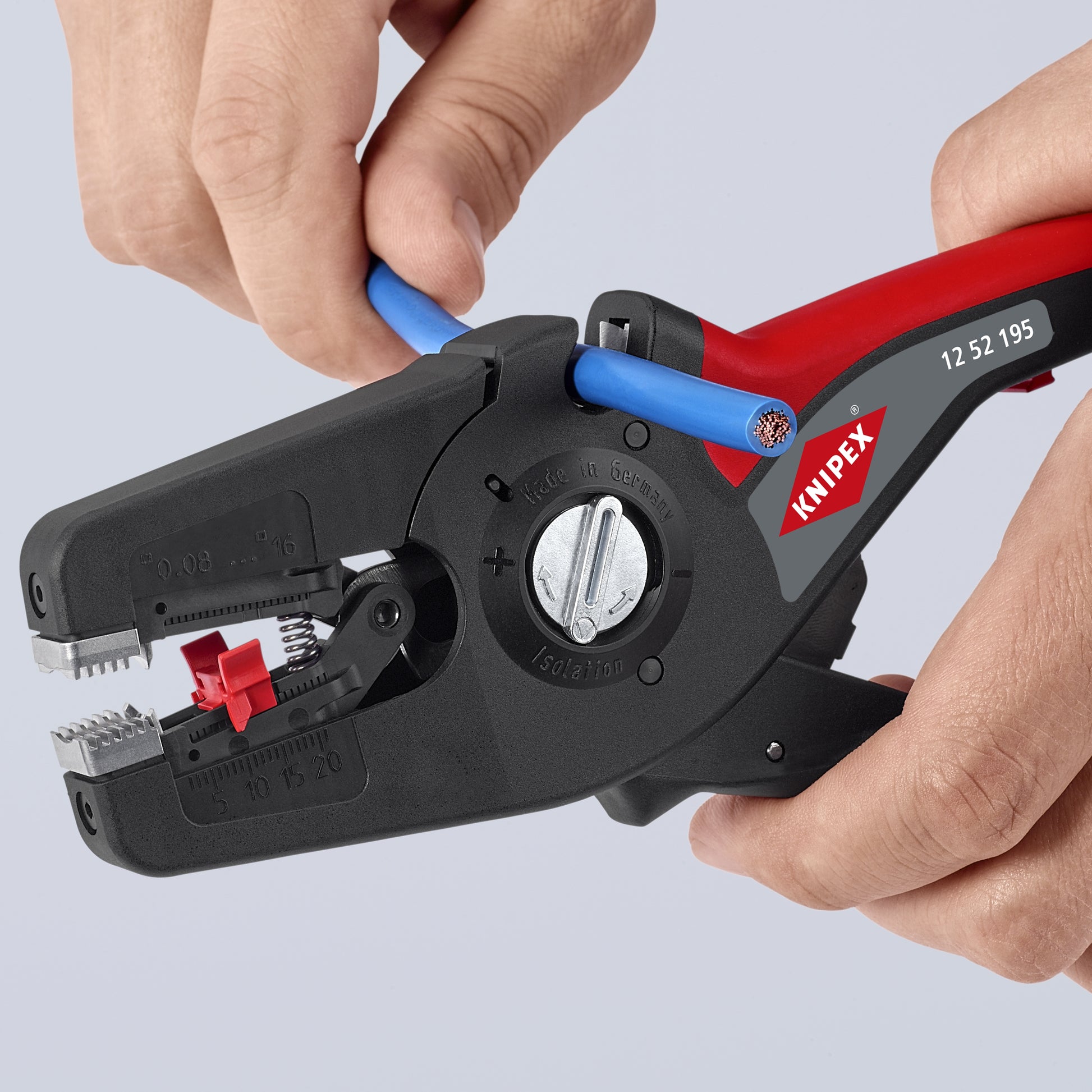

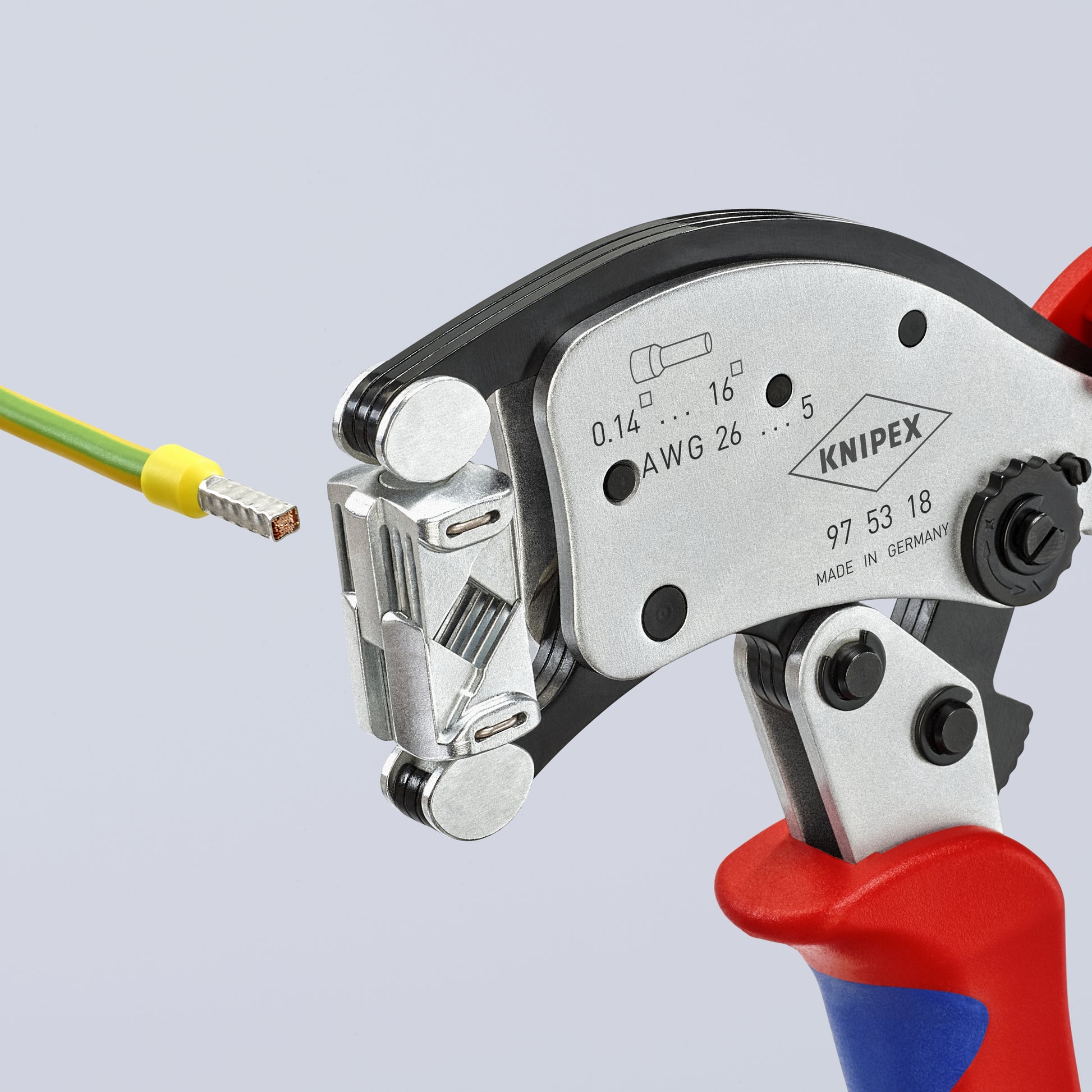

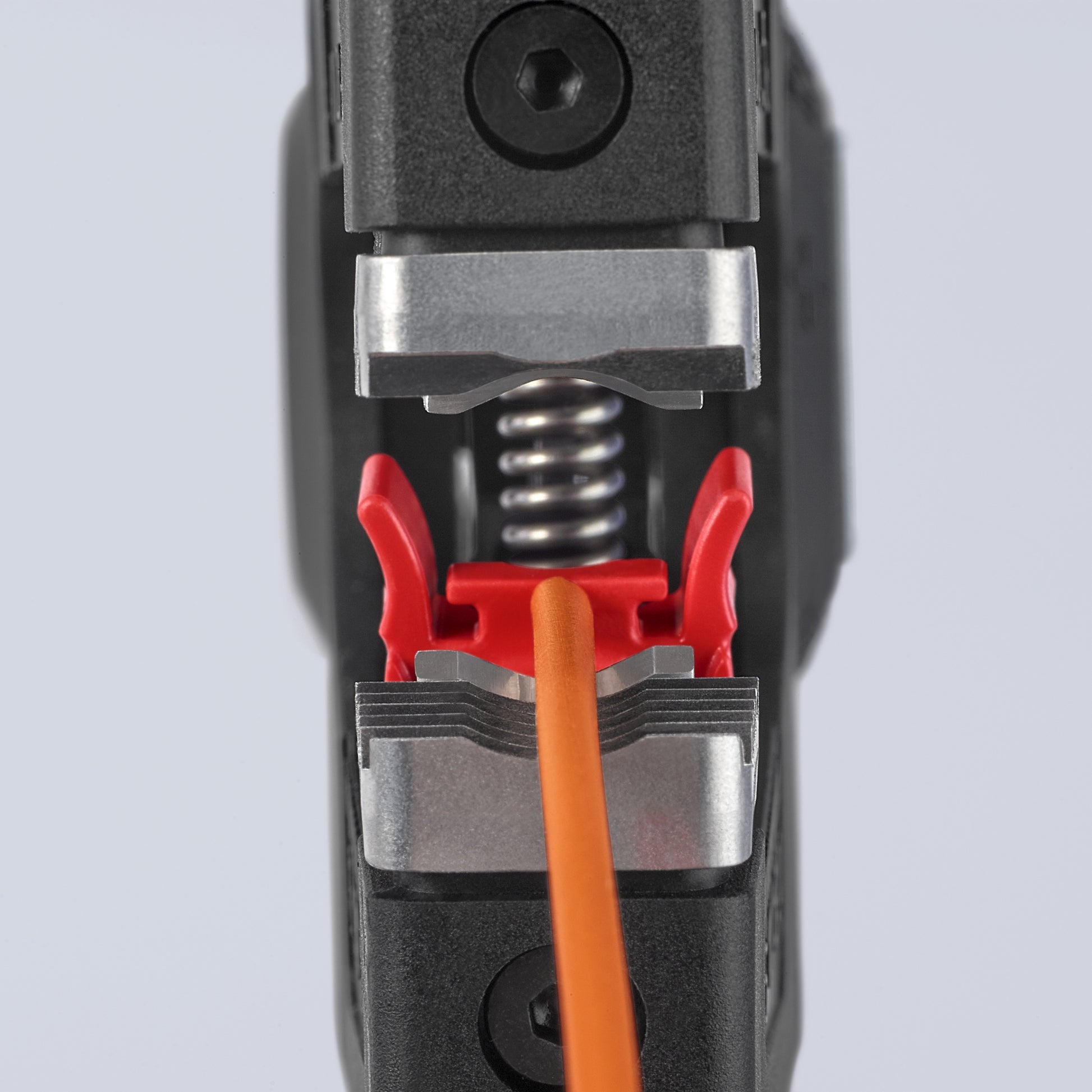

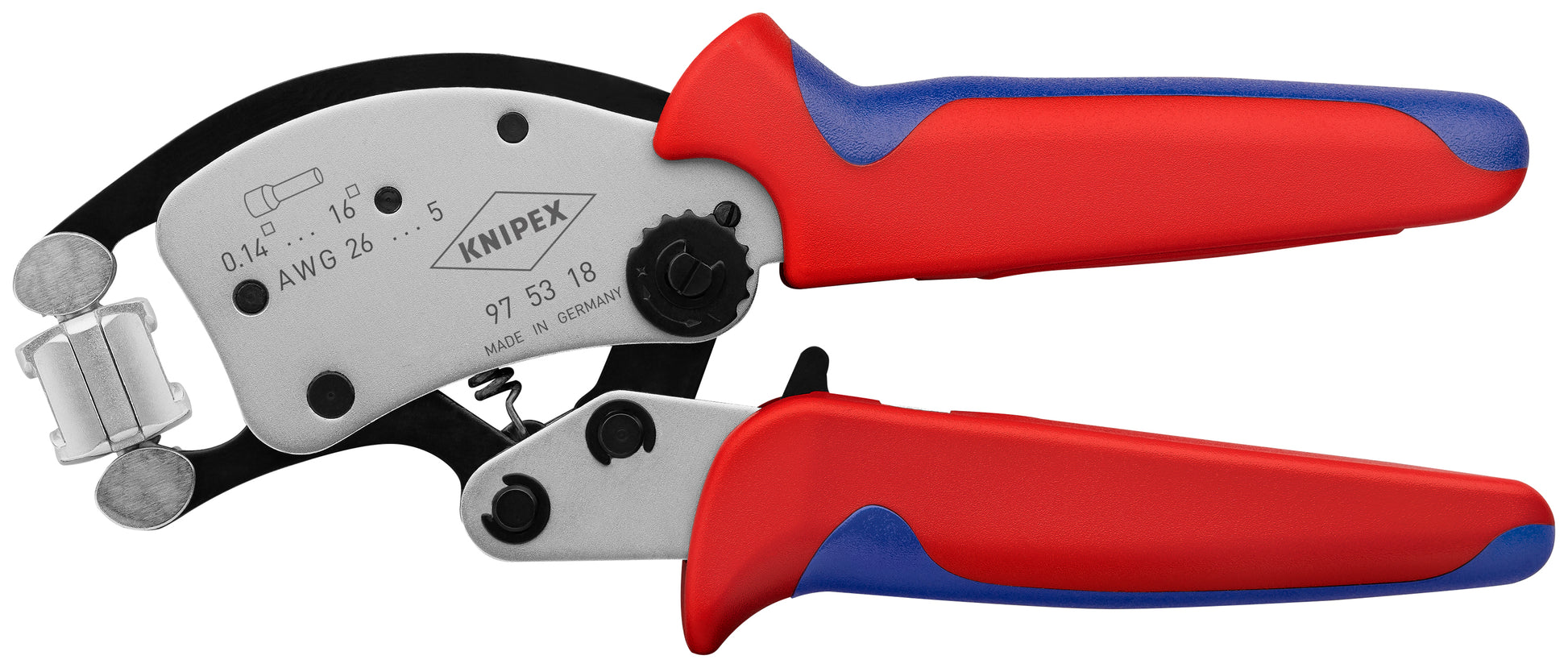

• Includes crimping pliers for wire ferrules 97 53 18 (8" KNIPEX Twistor®16 Self-Adjusting Crimping Pliers For Wire Ferrules) and automatic insulation stripper 12 52 195 (7 3/4" PreciStrip16 Automatic Wire Stripper 6-28 AWG) with assortment of wire ferrules with/without collar.
• 0.5 mm² end sleeves - 200 each.
• 0.75 mm² end sleeves - 200 each.
• 1.0 mm² end sleeves - 200 each.
• 1.5 mm² end sleeves - 200 each.
• 2.5 mm² end sleeves - 150 each.
• 4.0 mm² end sleeves - 75 each.
• 6.0 mm² end sleeves - 75 each.
• 10.0 mm² end sleeves - 50 each.
• 16.0 mm² end sleeves - 40 each.

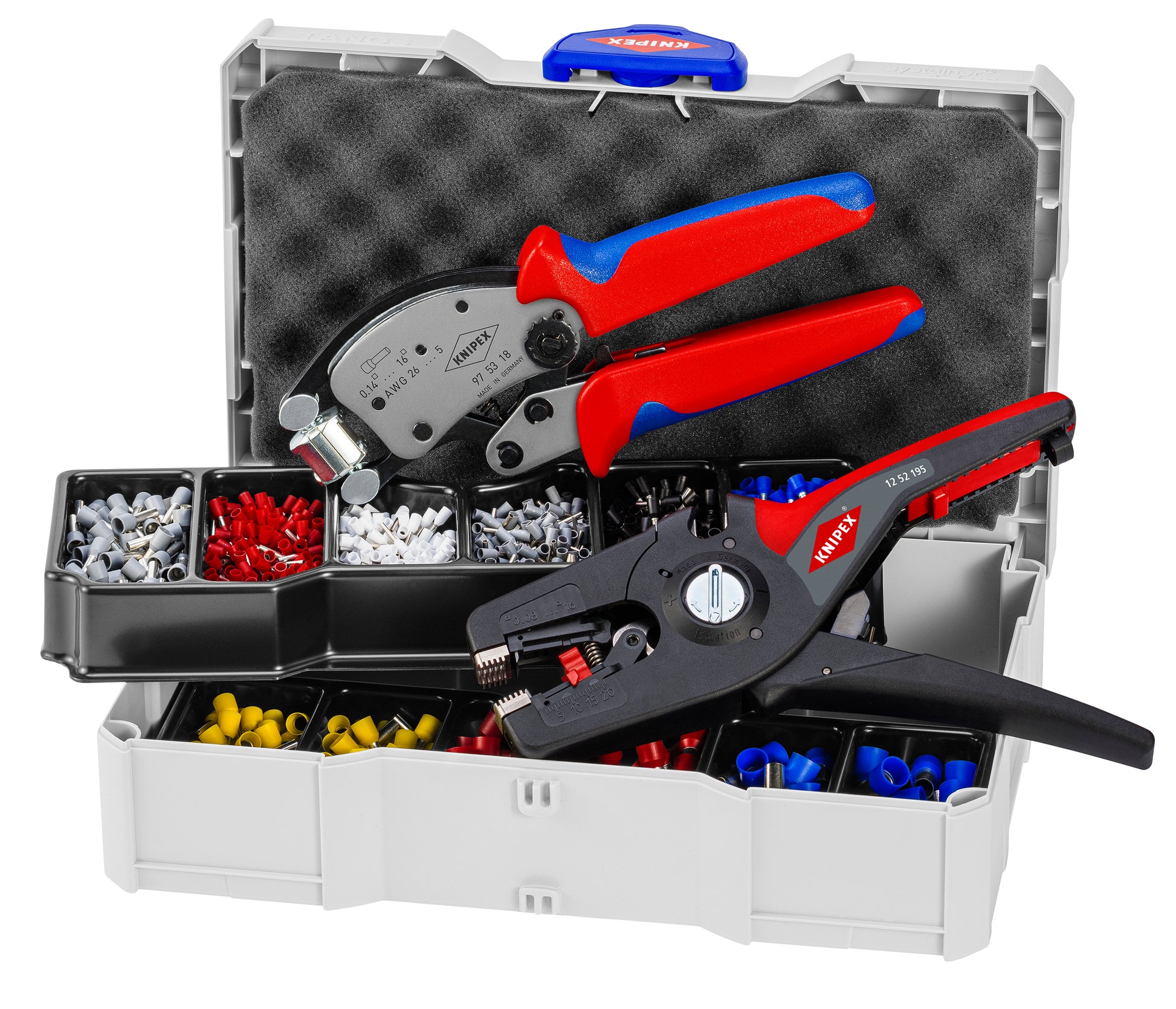

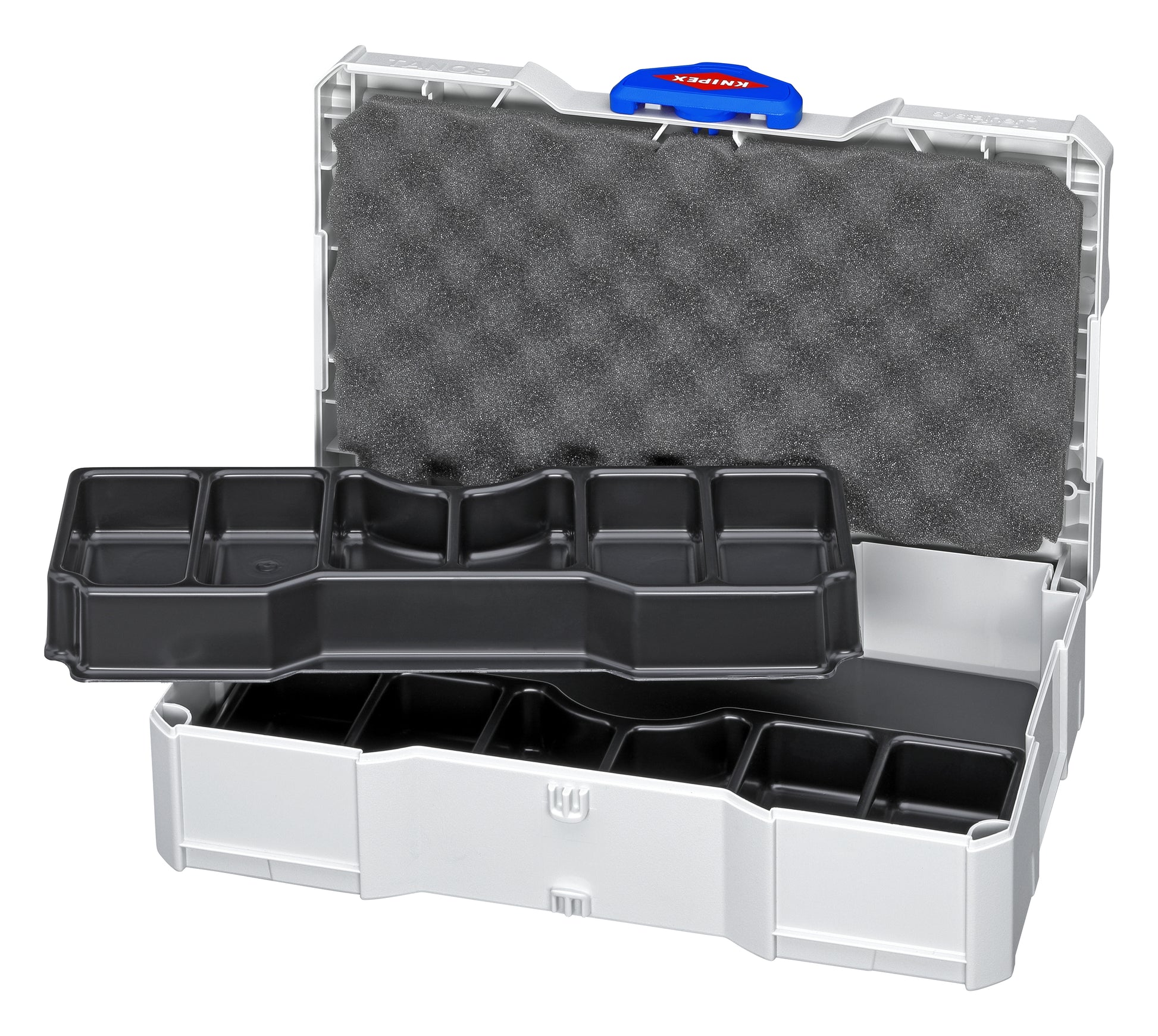

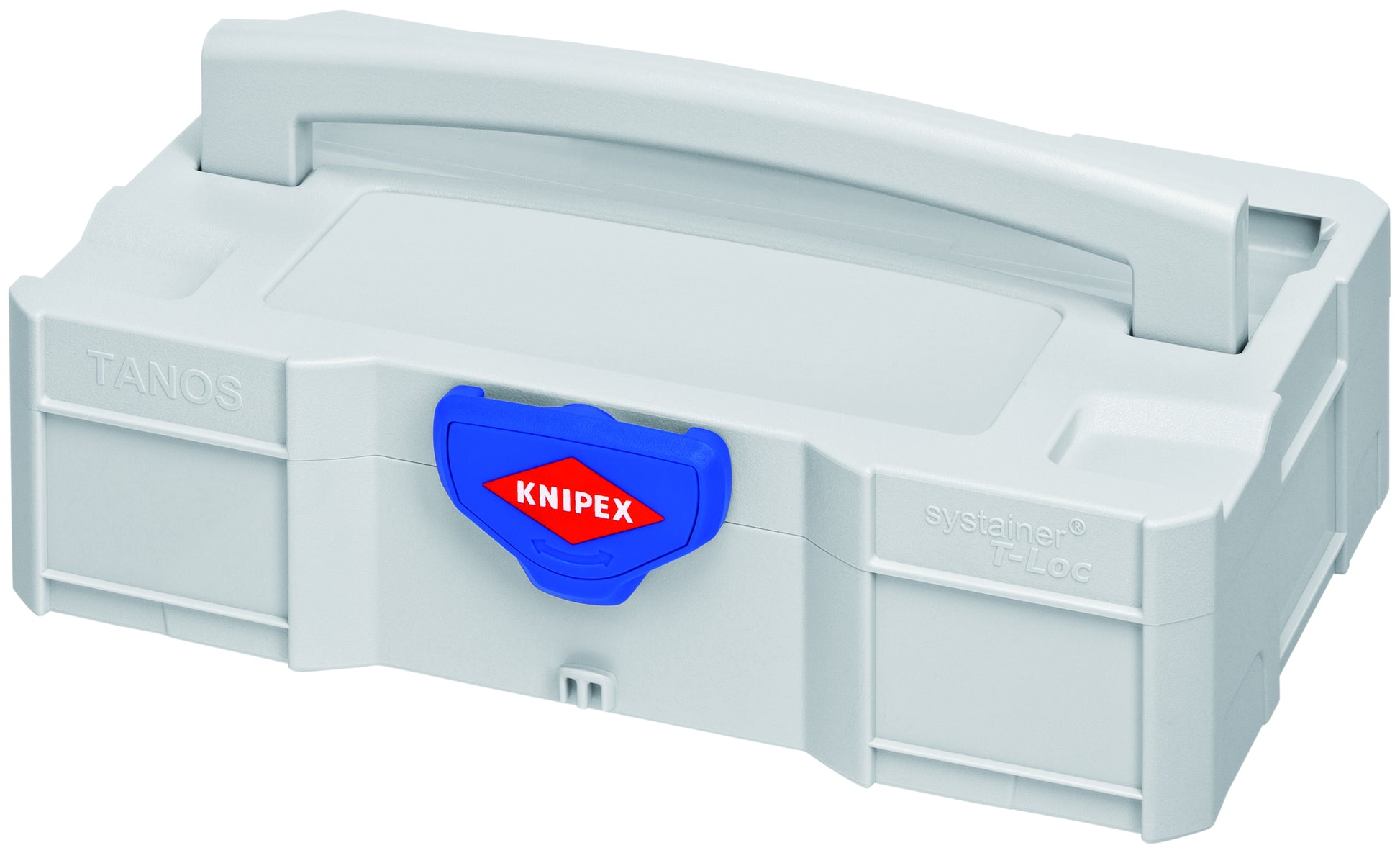

• In a TANOS MINI-systainer® (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors.
• T-Loc fastener for one-handed operation: open or close the systainer® with one turn and connect to a second systainer®.
• Several Tanos Mini-systanier boxes can be connected with each other.

Set Includes

• 97 53 18
• 12 52 195

Specifications

• Manufacturer Part Number: 97 90 14
• Material Type: Chrome vanadium electric steel, oil-hardened|Fiberglass reinforced plastic
• Handle Type: Multi-component
• Surface Finish: Chrome Plated
• 1000V Insulated: No
• Tethered Enabled: false
• Tool Length: 11 3/8"
• Tool Width: 10 3/8"
• Tool Height: 6 3/4"
• Tool Length: 11.4"
• Tool Width: 10.45"
• Tool Height: 6.75"
• Tool Weight: 5517 g (12.163 lb)
• Package Length: 11.4"
• Package Width: 10.45"
• Package Height: 6.75"
• Package Weight: 12.163 lb
• UOM: Kit
• UOM Qty: 1
• DIN: DIN 46228-4: 2020-03
• REACH: does not contain SVHC
• RoHS: not applicable
• Stripping Capacity - AWG: 28 to 6
• Crimping Profile: Square crimp
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)|End Ferrules-Twin
• Crimping Capacity - AWG: 26 to 6
• Crimping Capacity - mm2: 0.14 to 16.0
• Country of Origin: Germany
• Harmonized Tariff Code: 8203.20.6030
• ECCN: EAR99
• UPC: 843221028831
