Knipex 97 90 05 Crimp Assortments

crimping pliers with crimp assortments are versatile and efficient tools for various crimping tasks.

Features

• With a range of interchangeable crimping dies, the crimping pliers allow for precise and various crimps on different connectors and terminals.
• Whether working with insulated or non-insulated crimps, this crimping kit provides quality results.

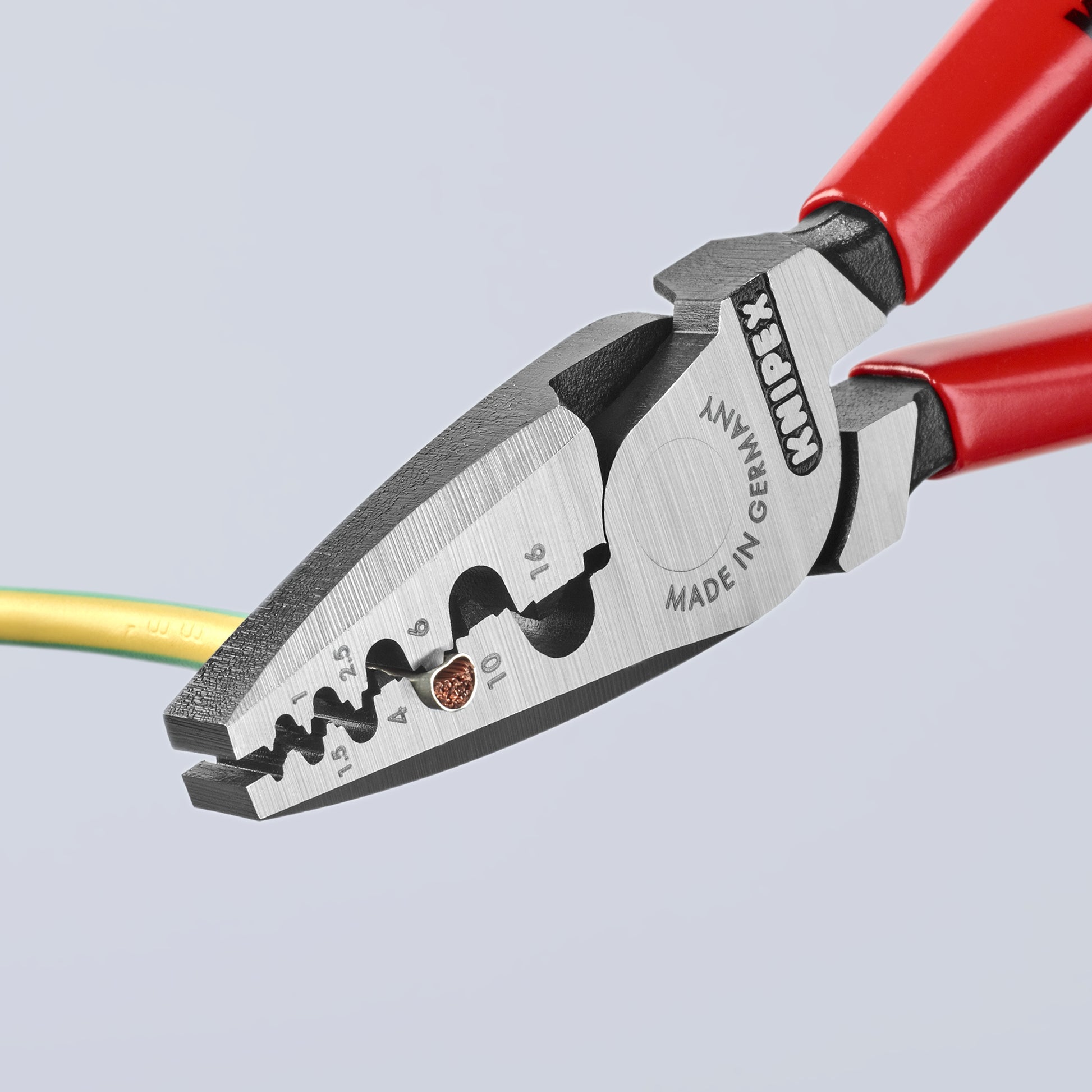

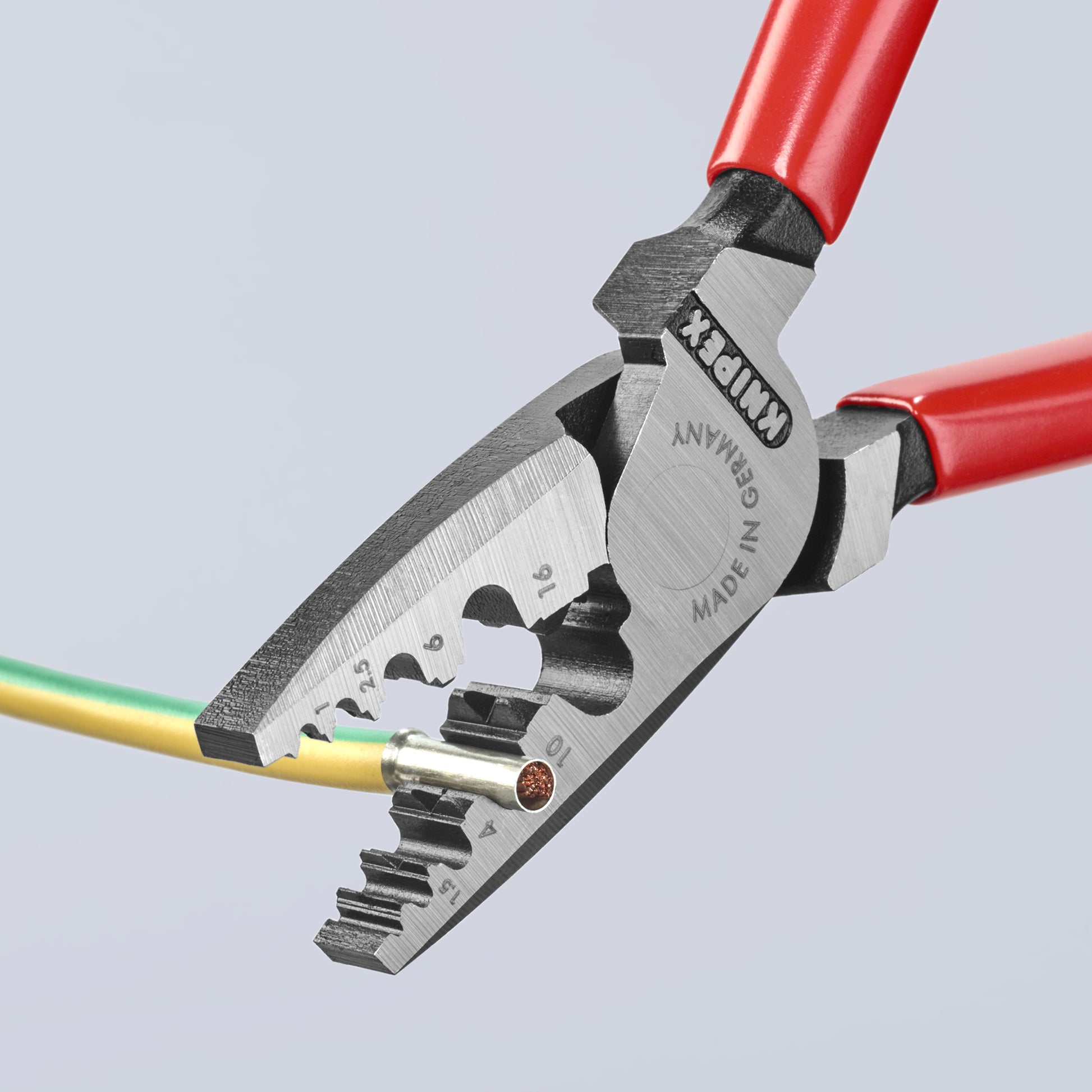

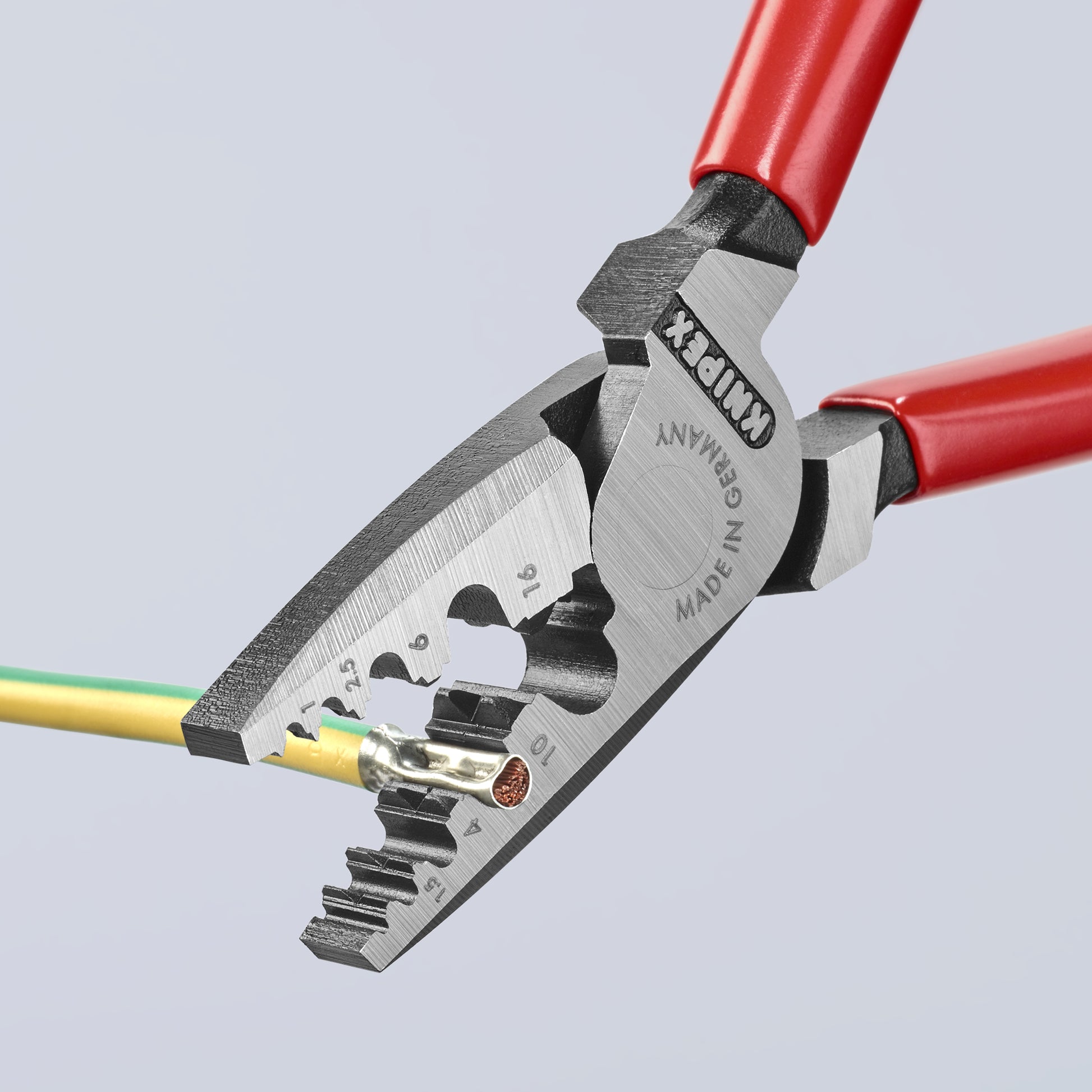

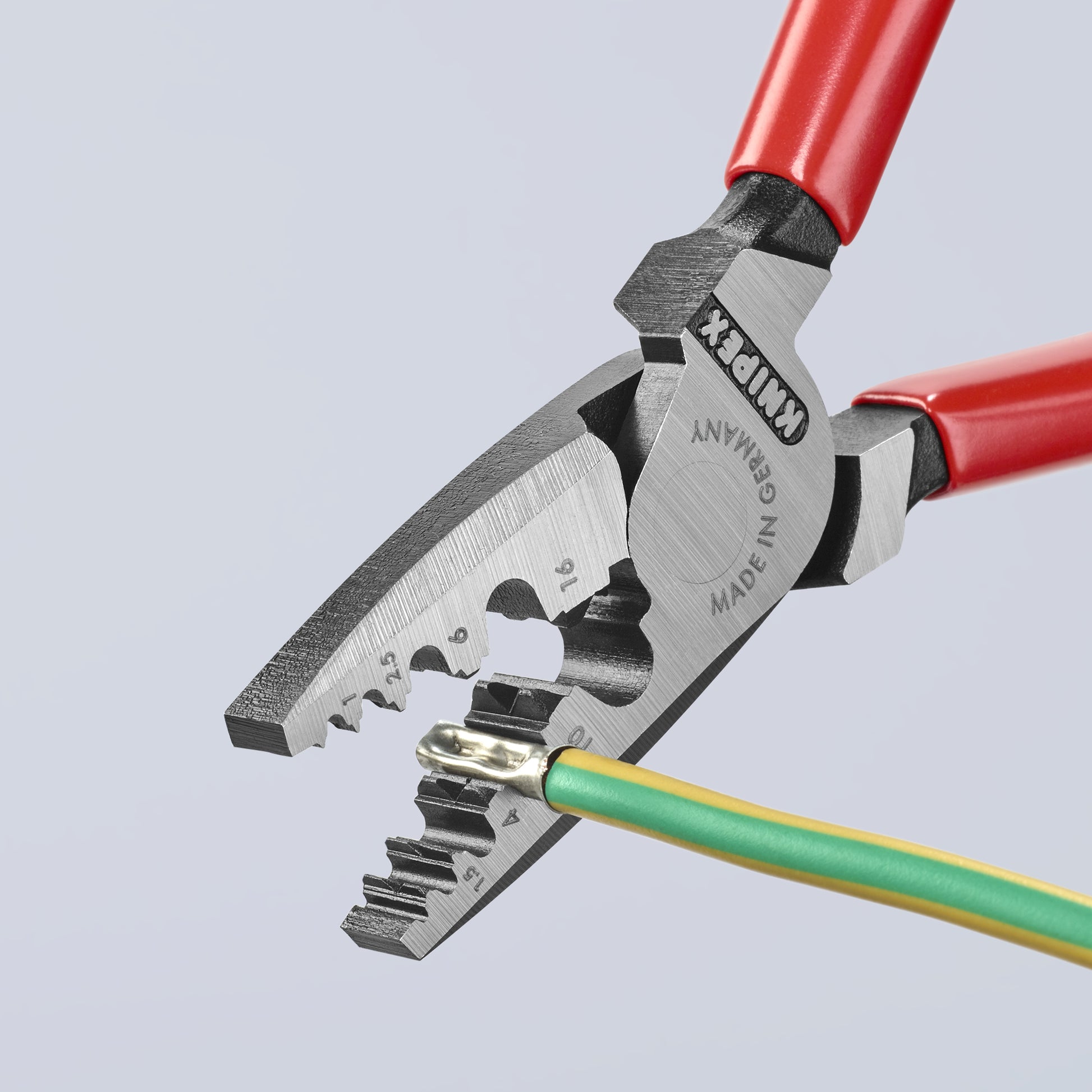

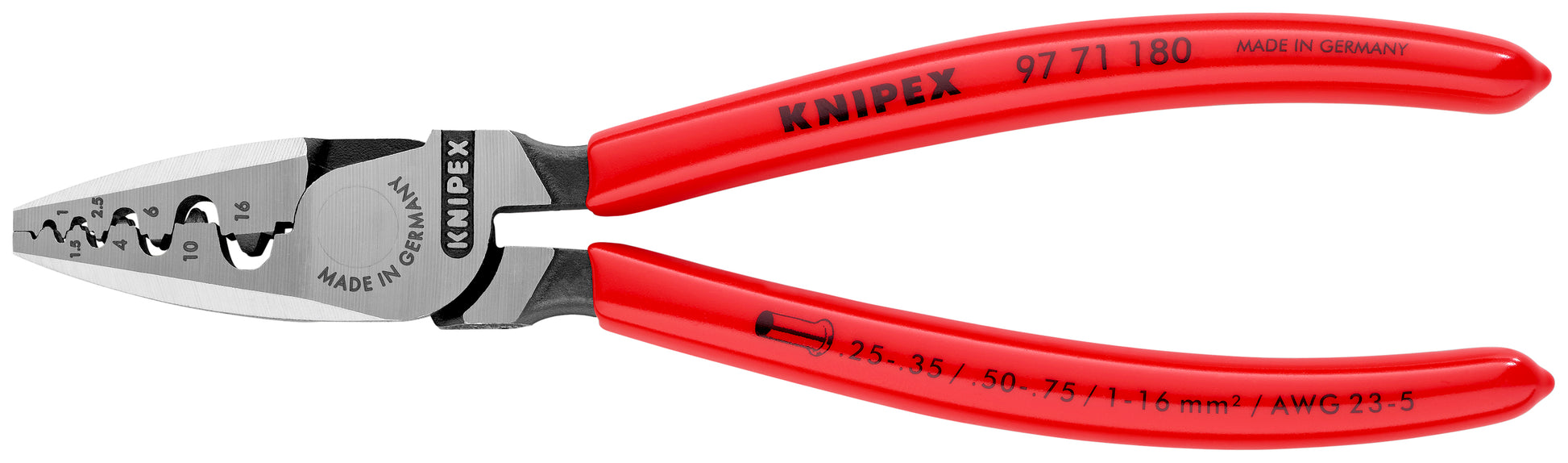

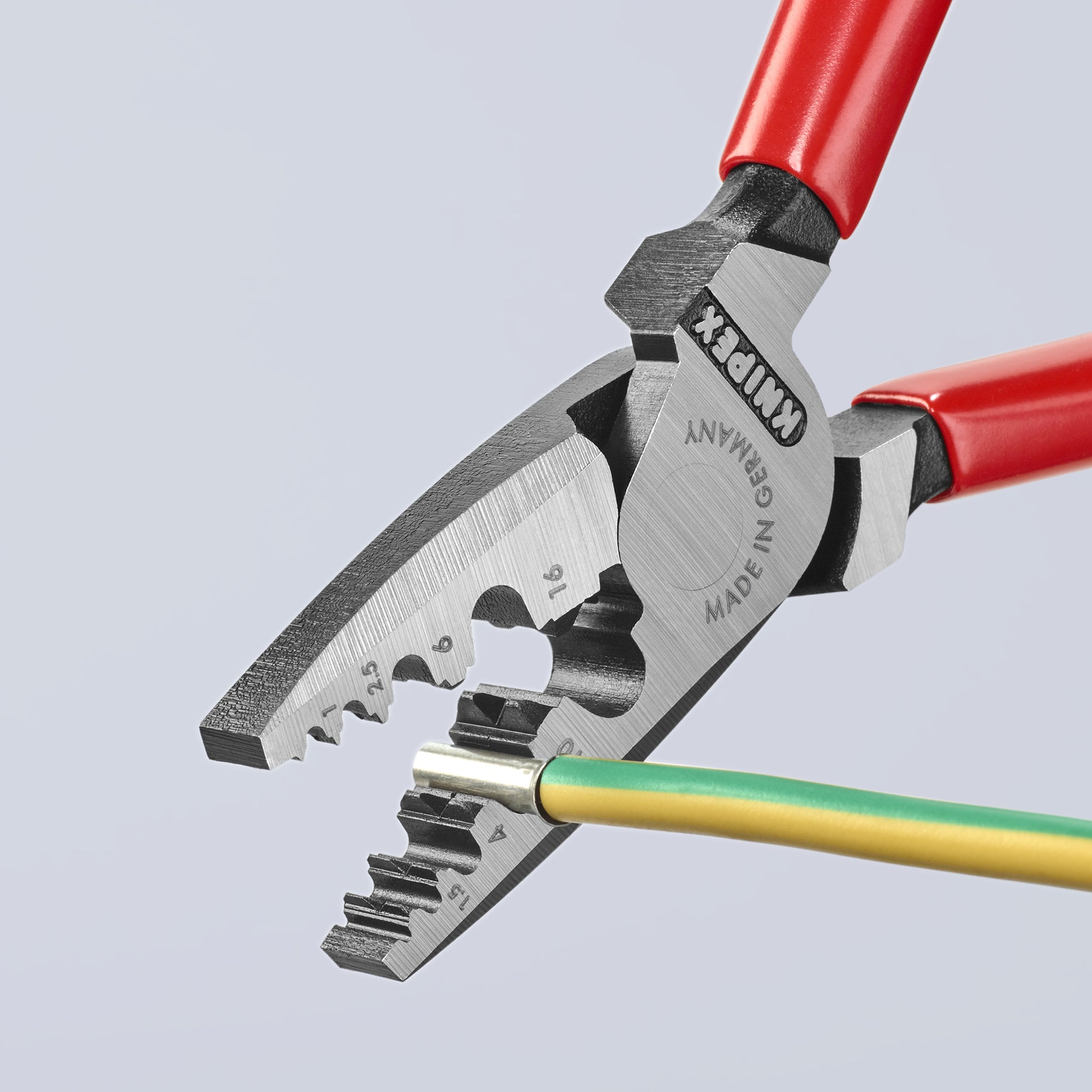

• Includes 97 71 180 (7 1/4" Crimping Pliers for Wire Ferrules) with assortment of the most common sizes of end sleeves (non-insulated).
• 0.5 mm² end sleeves - 200 each.
• 0.75 mm² end sleeves - 200 each.
• 1.0 mm² end sleeves - 200 each.
• 1.5 mm² end sleeves - 200 each.
• 2.5 mm² end sleeves - 200 each.
• 4.0 mm² end sleeves - 150 each.
• 6.0 mm² end sleeves - 150 each.
• 10.0 mm² end sleeves - 50 each.
• 16.0 mm² end sleeves - 50 each.

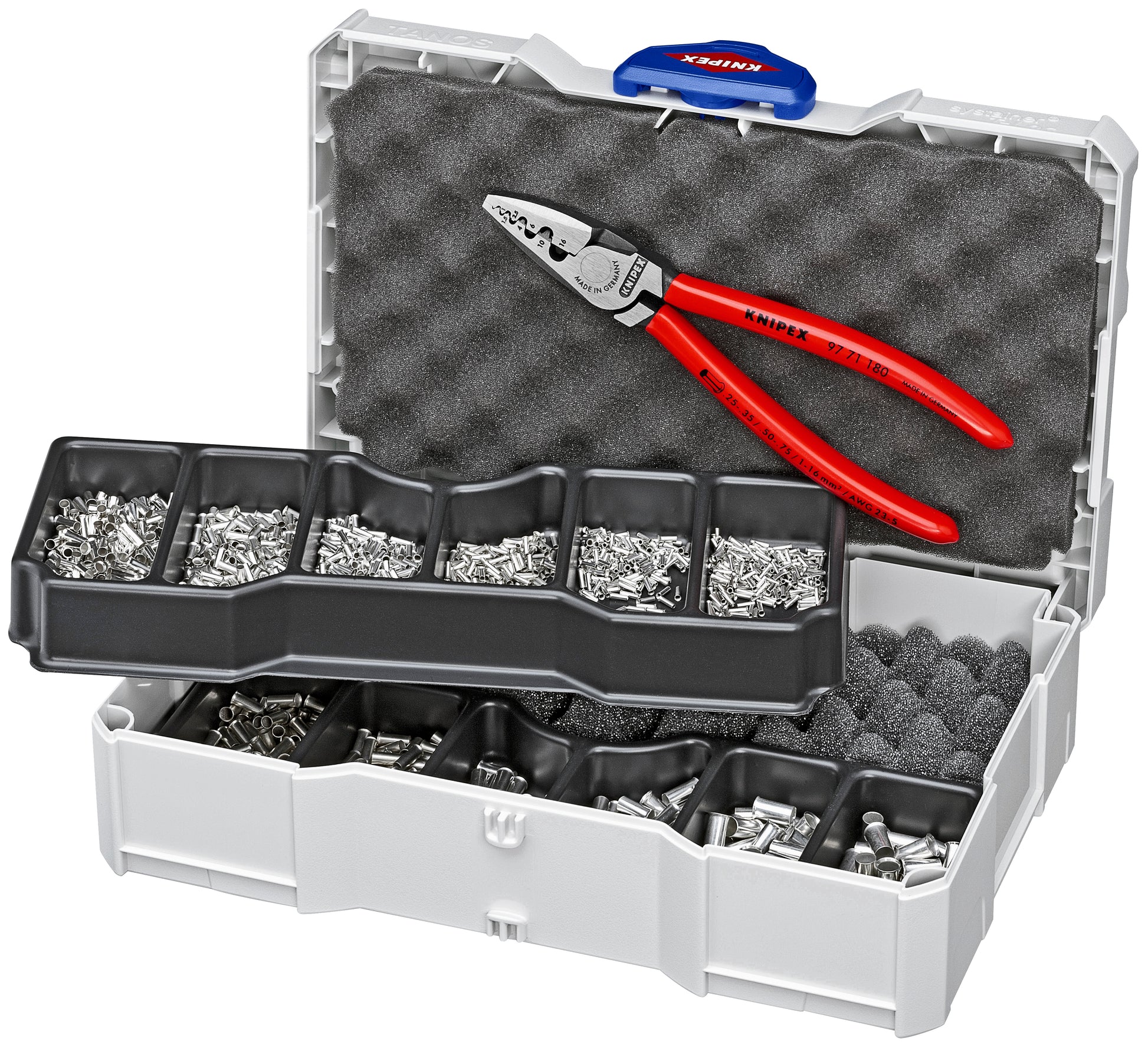

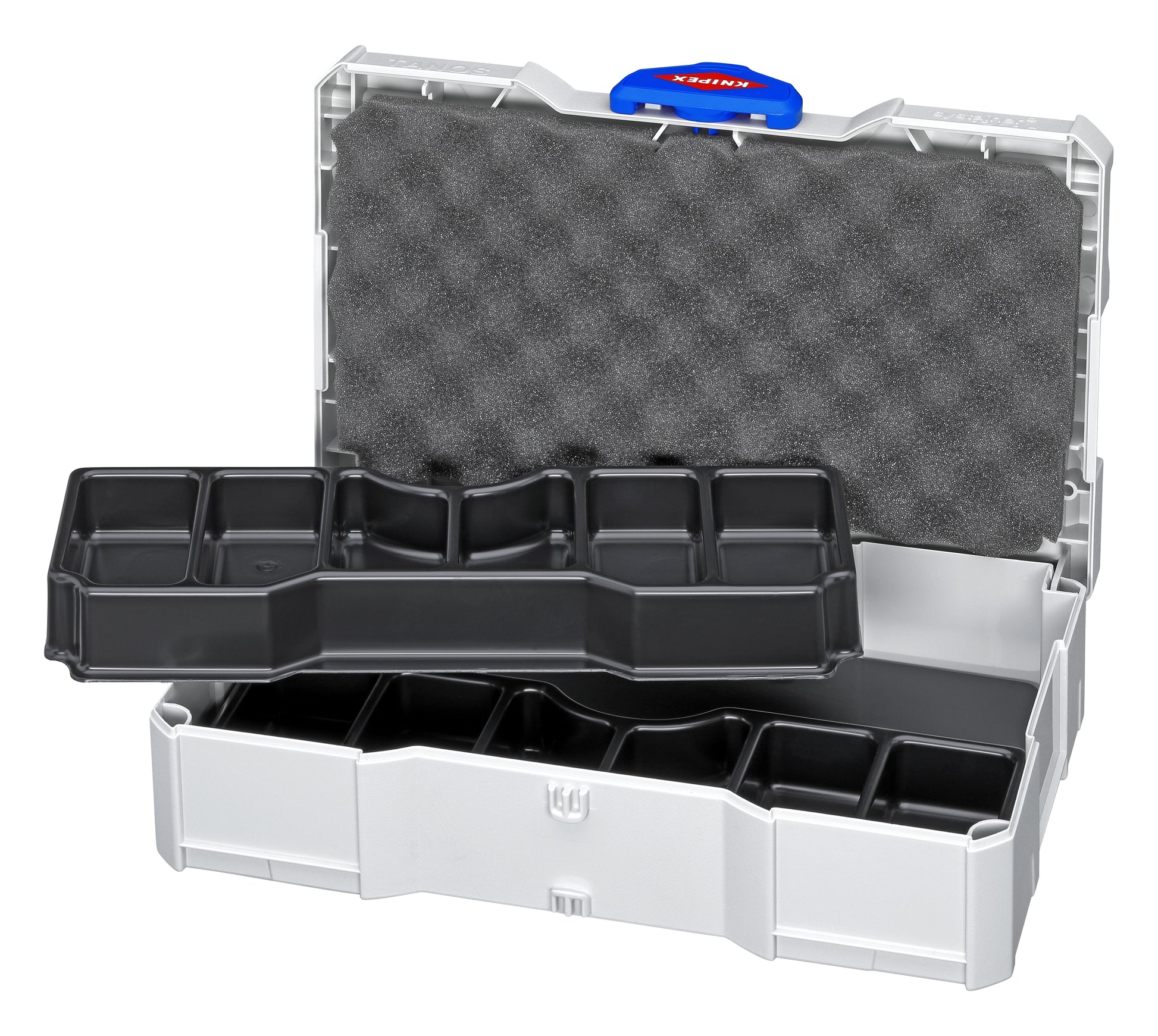

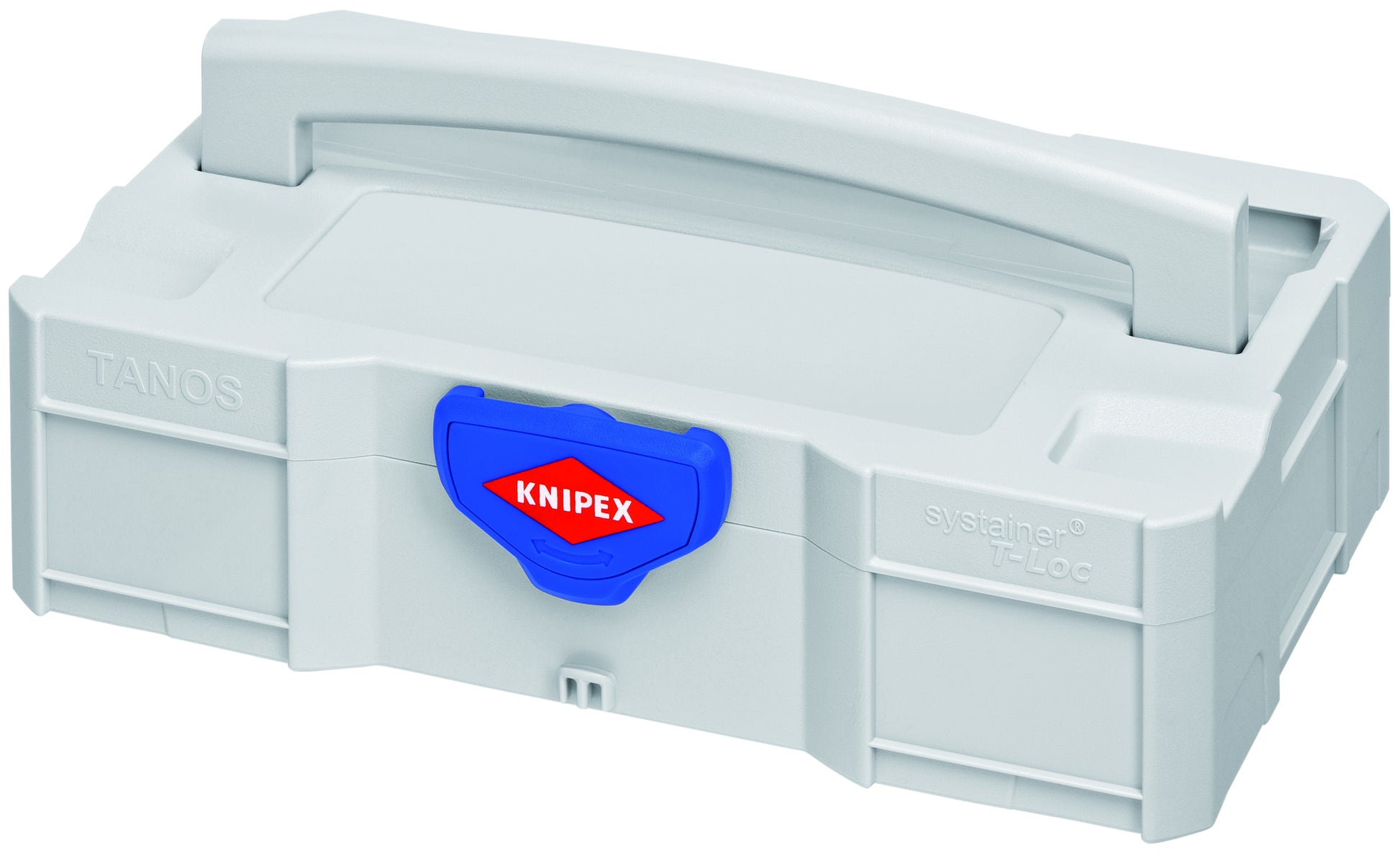

• In a TANOS MINI-systainer® (solid plastic box) includes two stackable plastic inserts with 6 trays each for connectors.
• T-Loc fastener for one-handed operation: open or close the systainer® with one turn and connect to a second systainer®.
• Several Tanos Mini-systanier boxes can be connected with each other.

Set Includes

• 97 71 180

Specifications

• Manufacturer Part Number: 97 90 05
• Material Type: High-grade special tool steel, forged, oil-hardened
• Handle Type: Plastic coating
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red
• Tool Length: 10 1/2"
• Tool Width: 6 5/8"
• Tool Height: 2 3/4"
• Tool Length: 10.55"
• Tool Width: 6.65"
• Tool Height: 2.8"
• Tool Weight: 964 g (2.125 lb)
• Package Length: 10.55"
• Package Width: 6.65"
• Package Height: 2.8"
• Package Weight: 2.125 lb
• UOM: Kit
• UOM Qty: 1
• REACH: does not contain SVHC
• RoHS: not applicable
• Joint Type: Rivet
• Crimping Positions: 9
• Crimping Profile: Mandrel crimp
• Terminal Type: End Ferrules-Long|End Ferrules-Single
• Crimping Capacity - AWG: 20 to 6
• Crimping Capacity - mm2: 0.5 to 16.0
• Country of Origin: Germany
• Harmonized Tariff Code: 8203.20.6060
• ECCN: EAR99
• UPC: 843221016043
