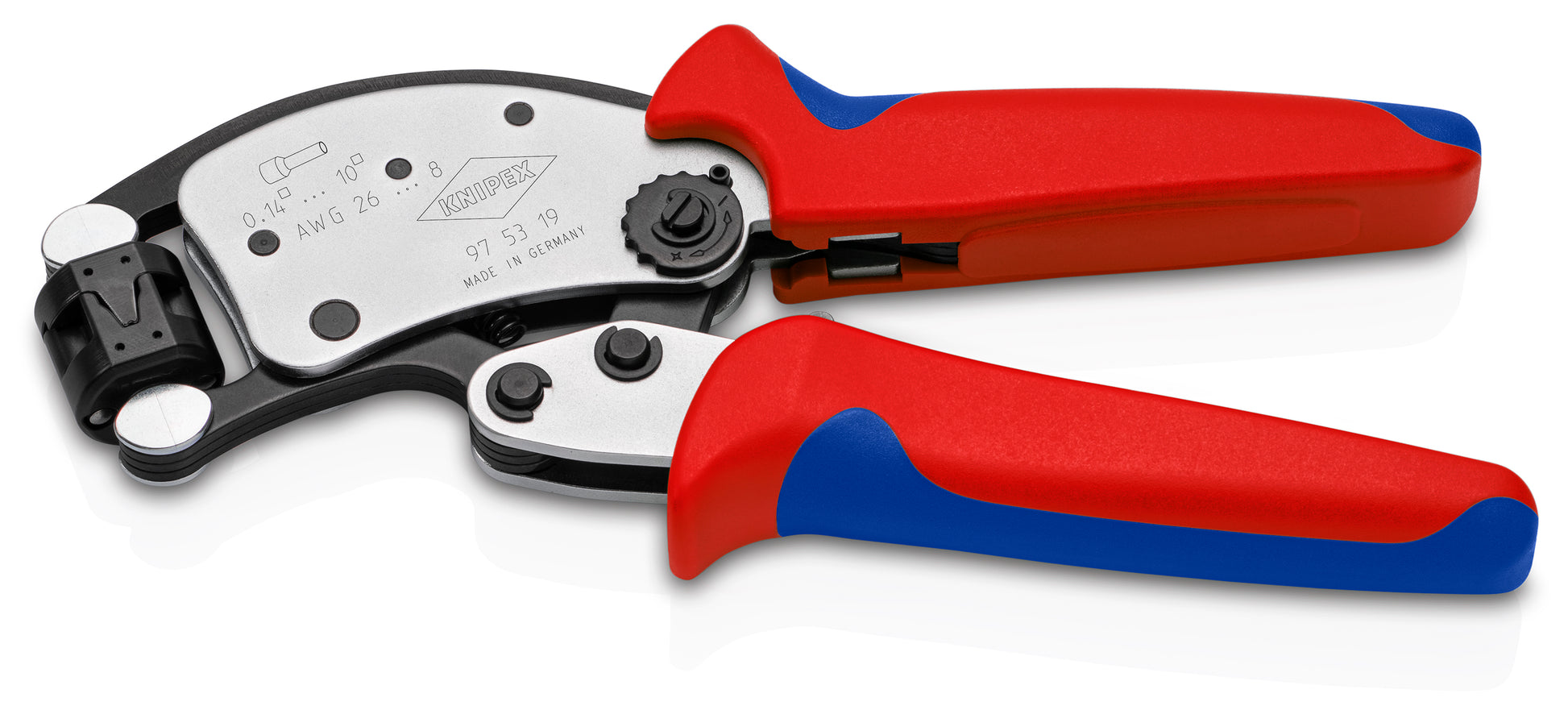

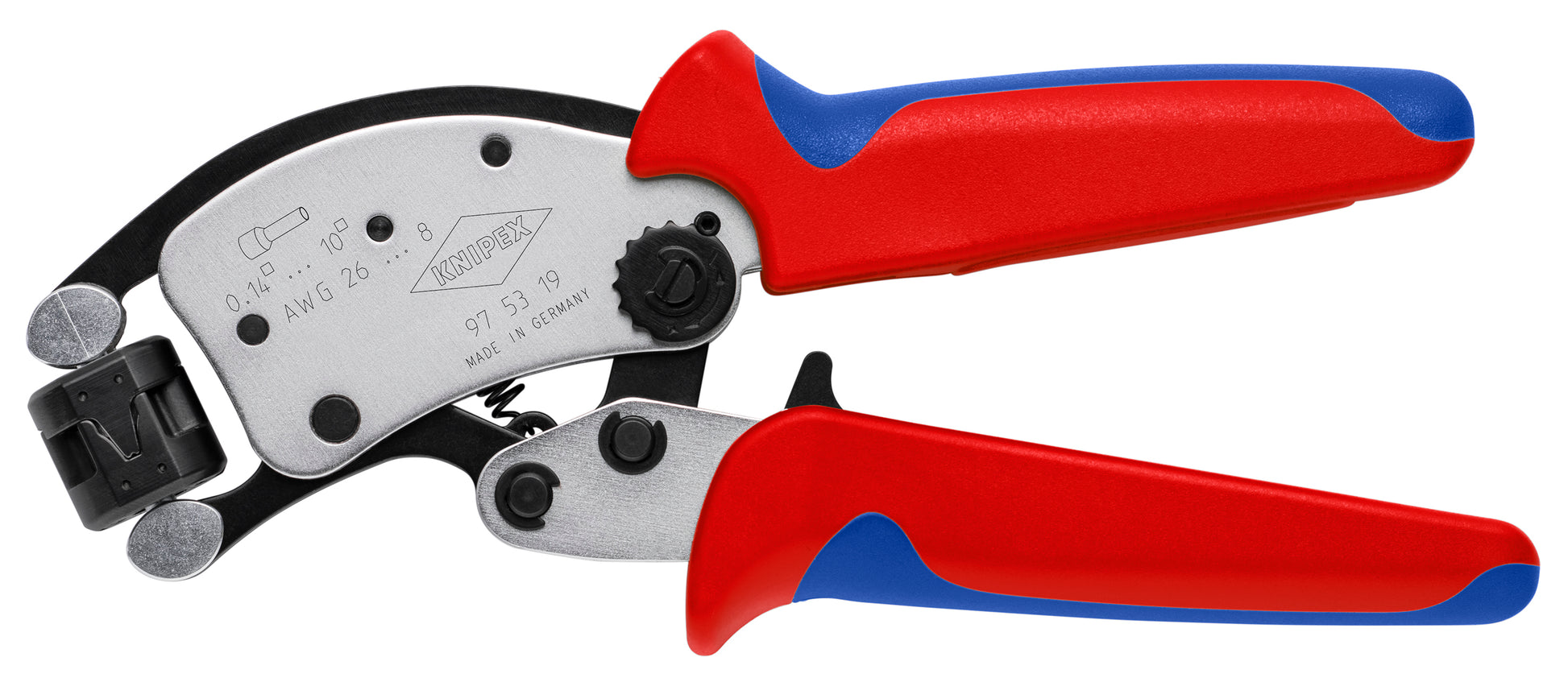

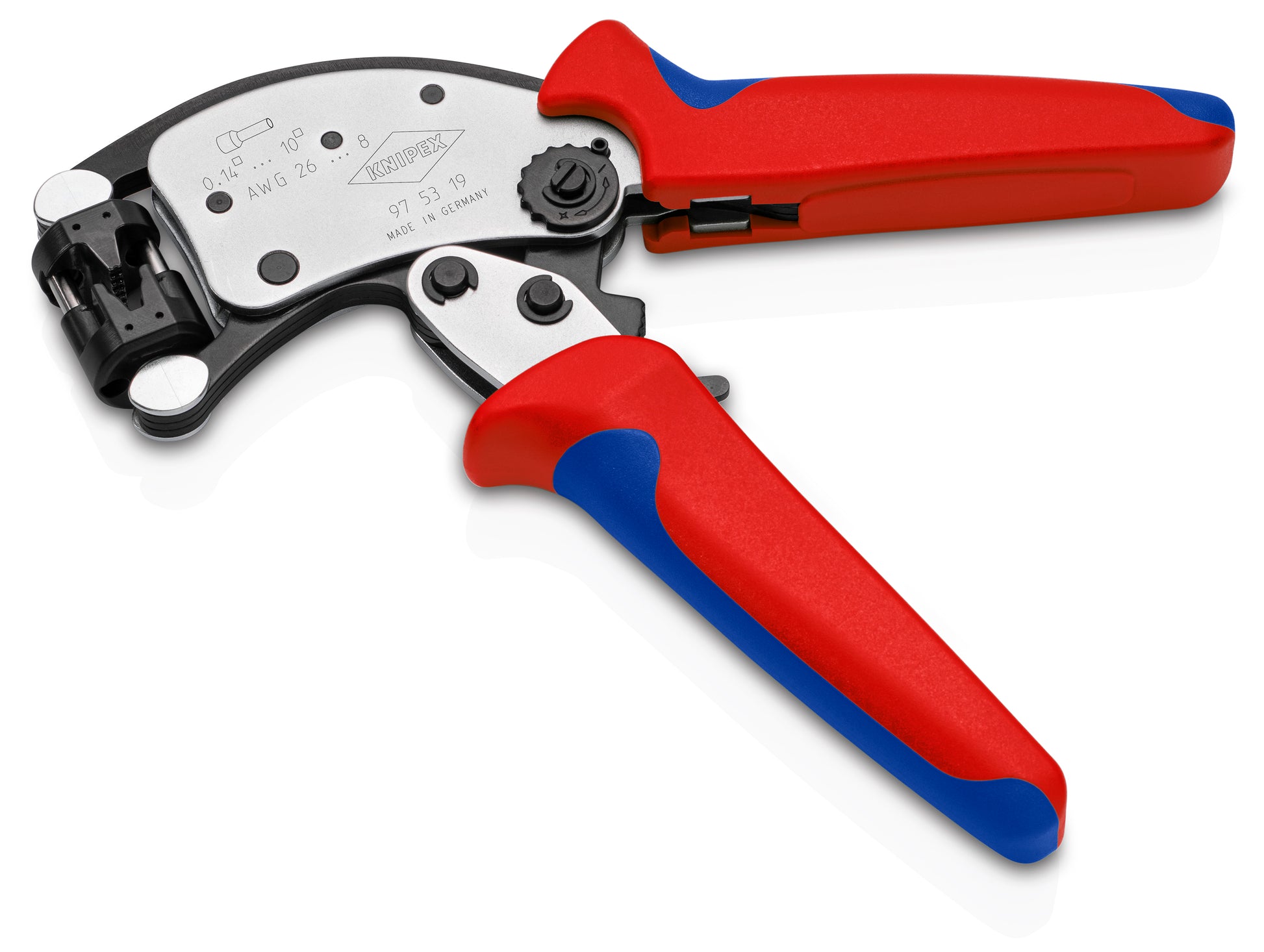

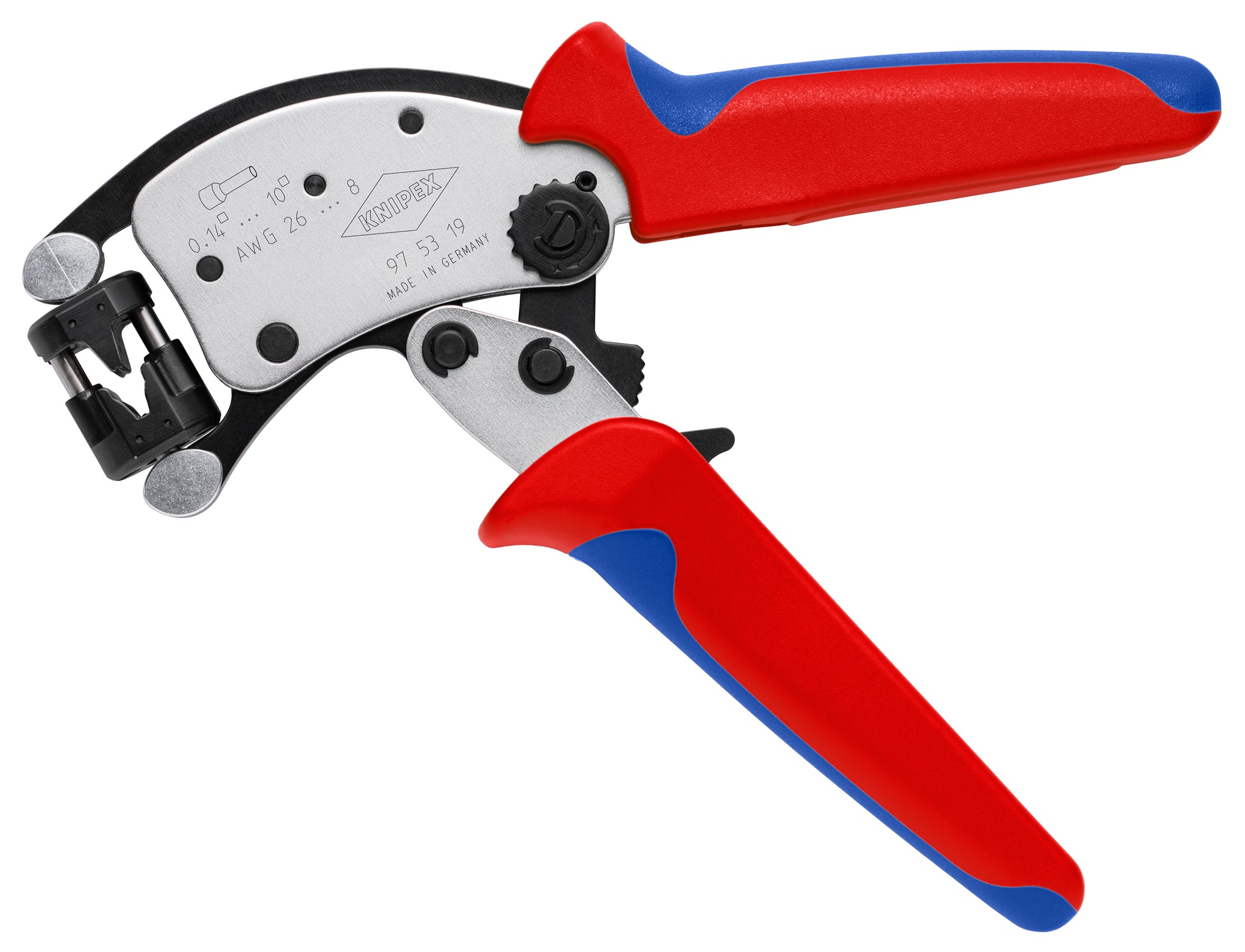

Knipex 97 53 19 Twistor® T Self-Adjusting Crimping Pliers For Wire Ferrules

KNIPEX Twistor® T combines the features of a front and side crimper into 1 tool

Features

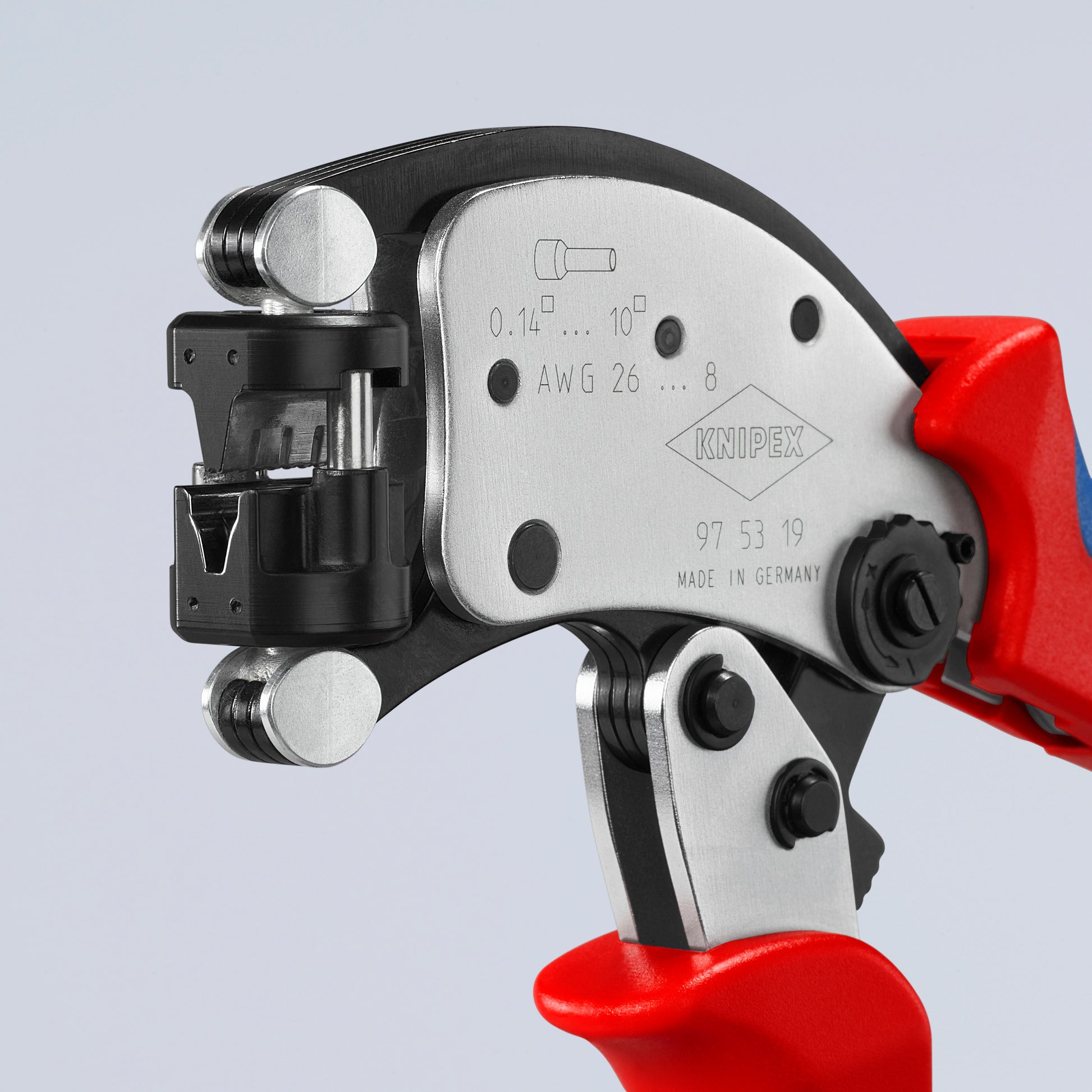

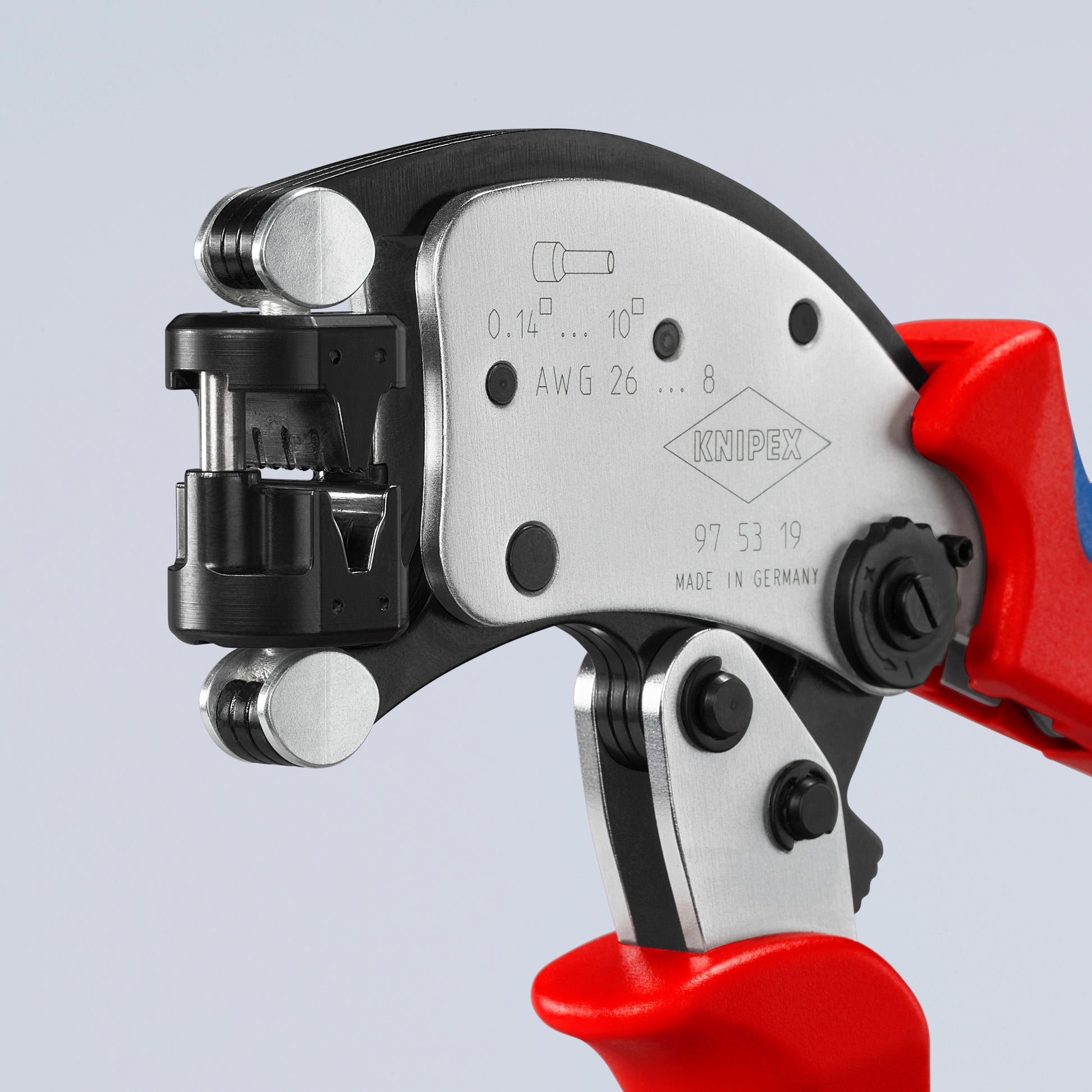

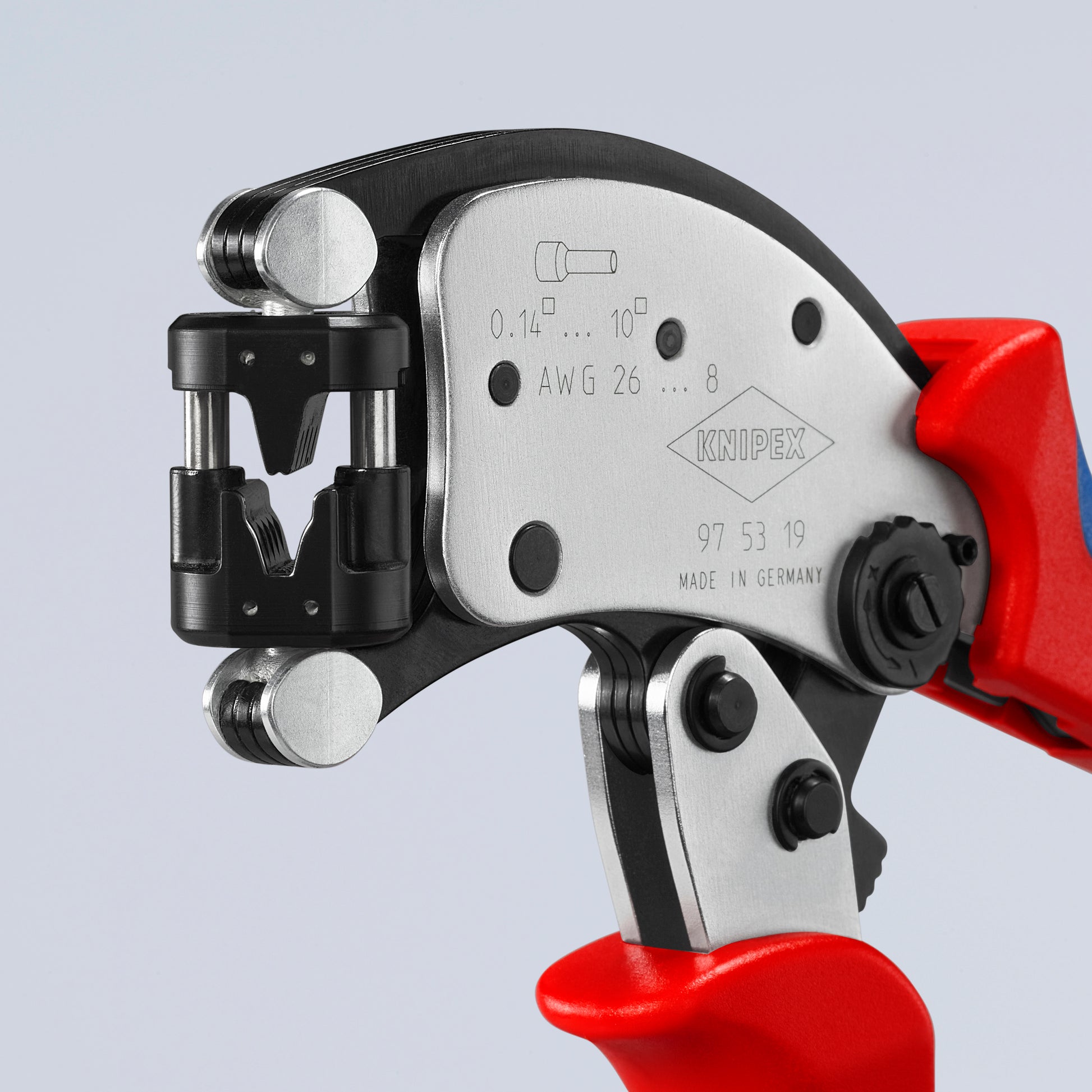

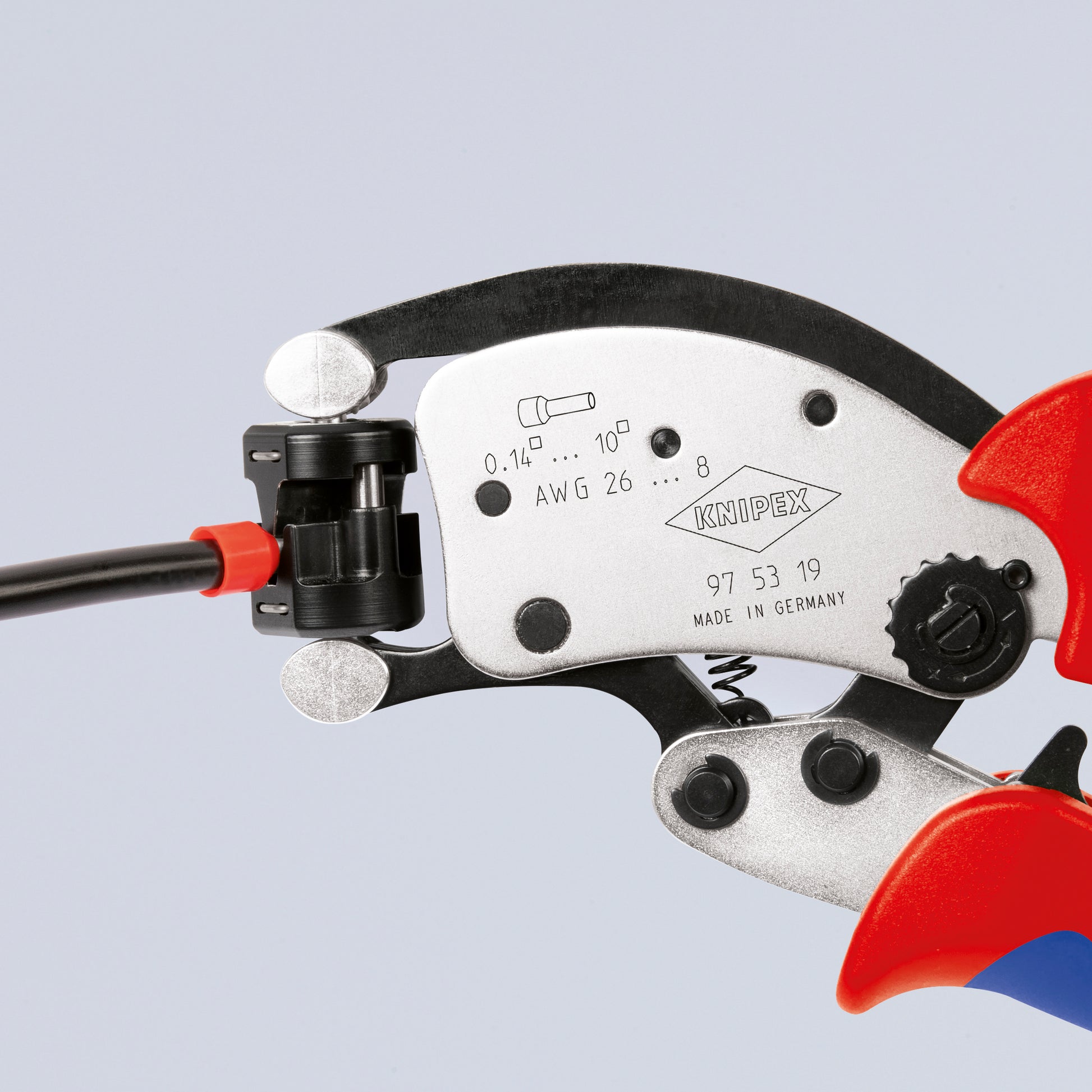

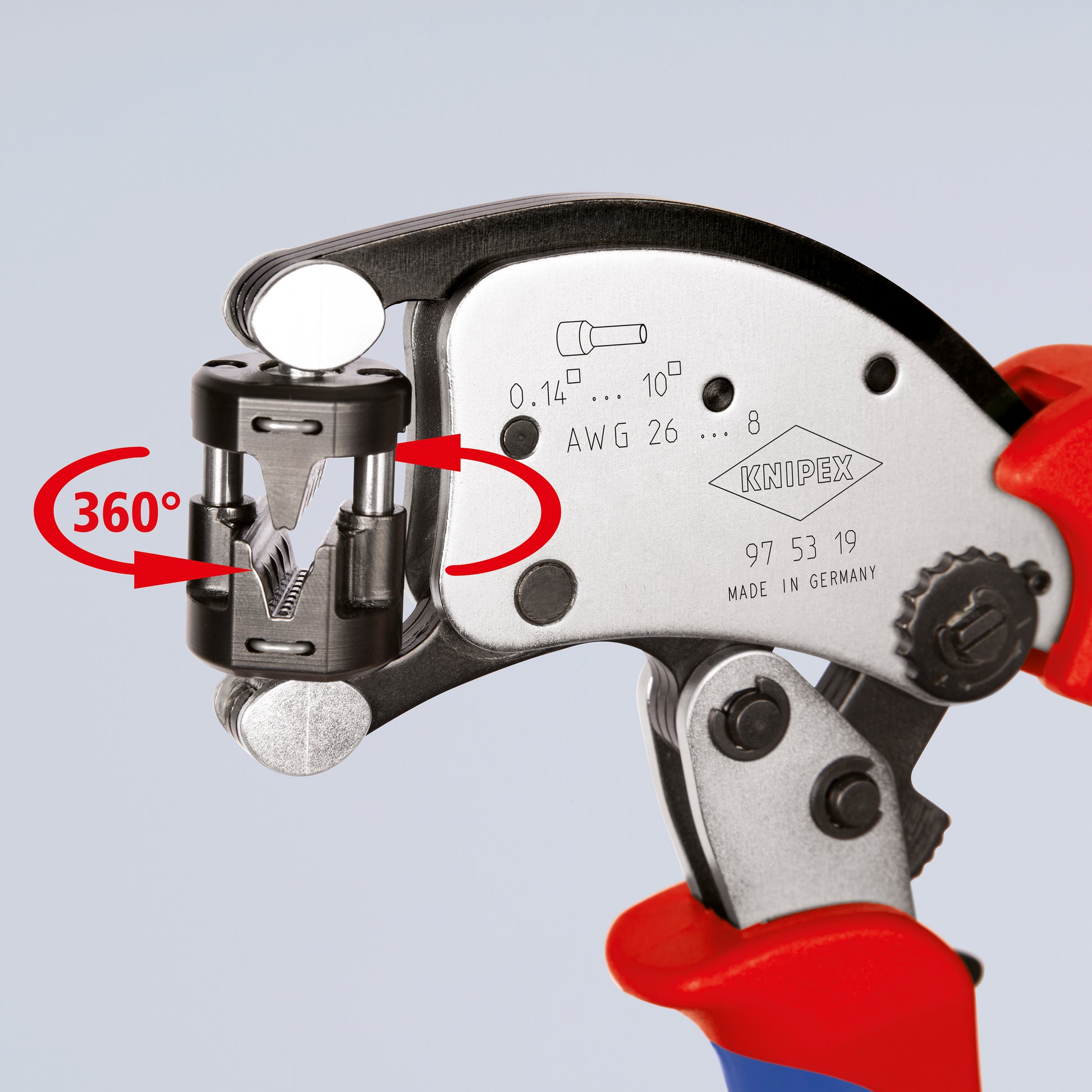

• Crimp head can be freely rotated 360°, with 8 locking positions

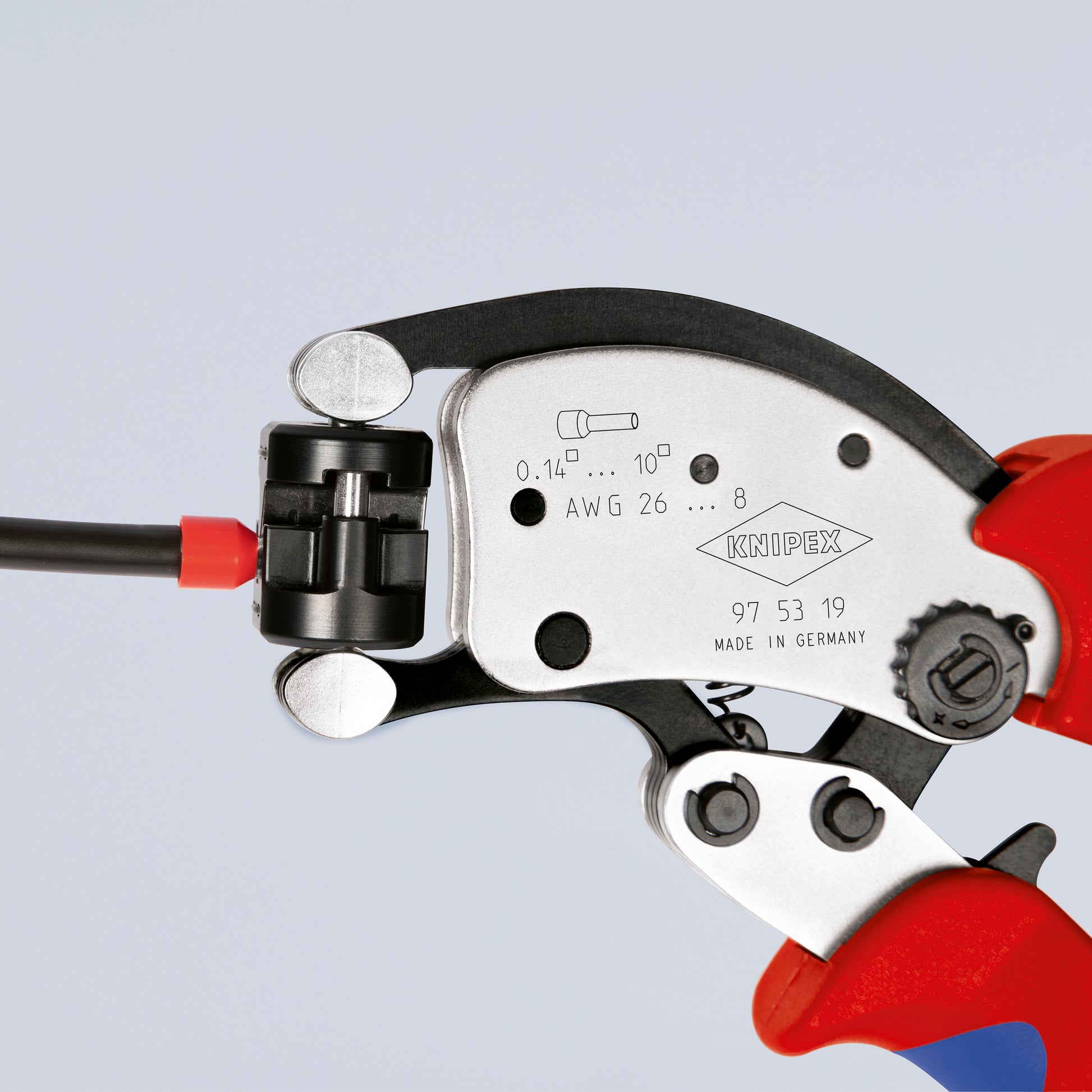

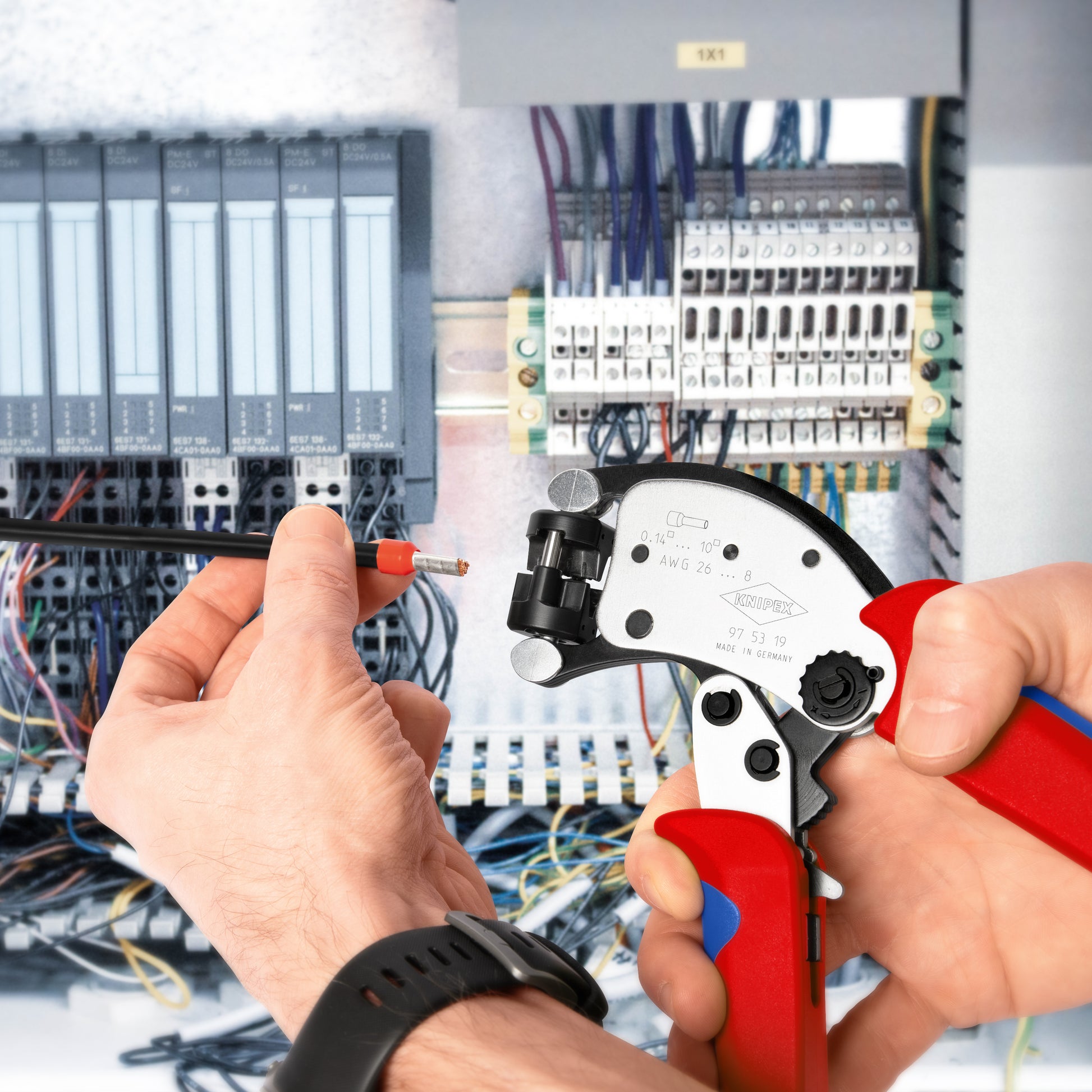

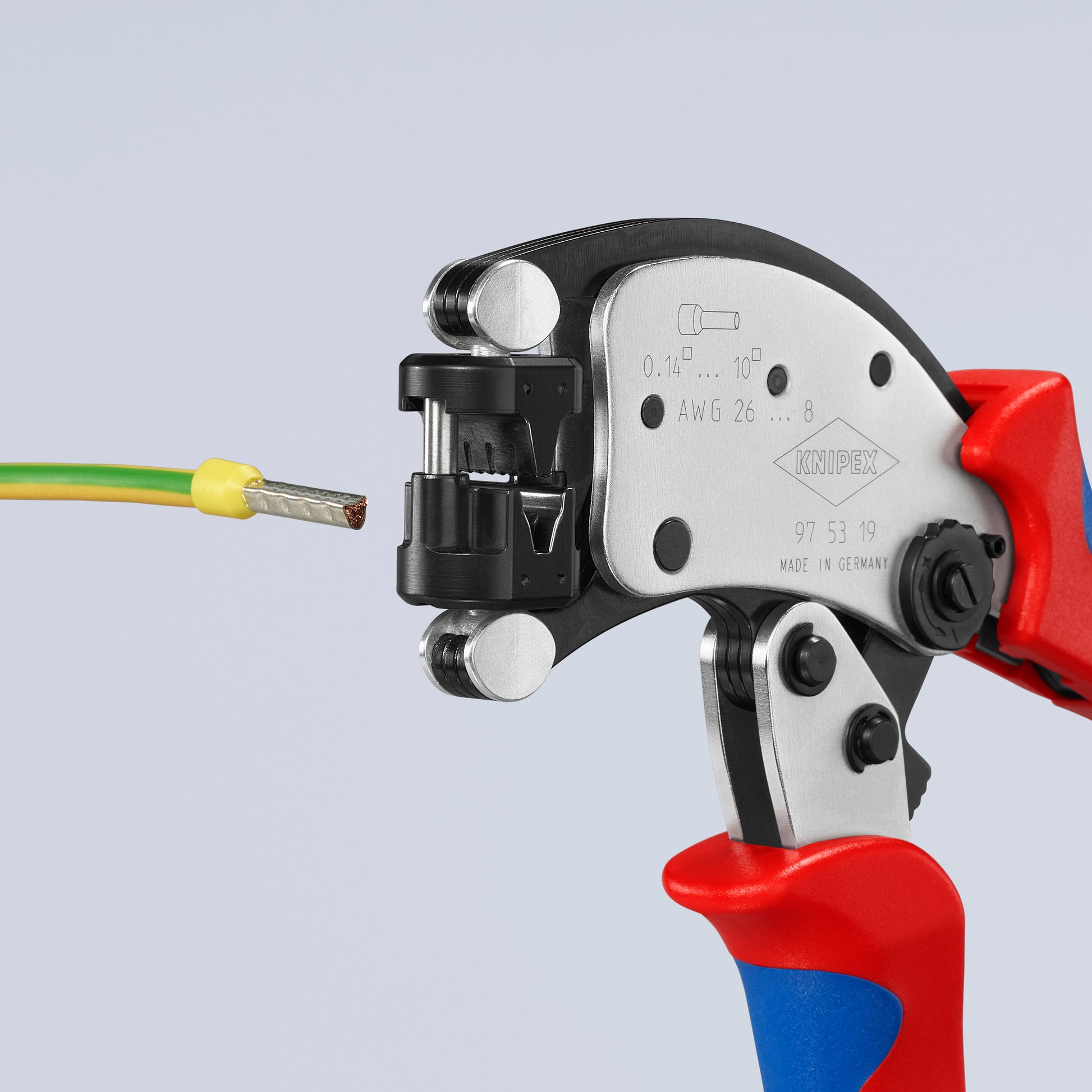

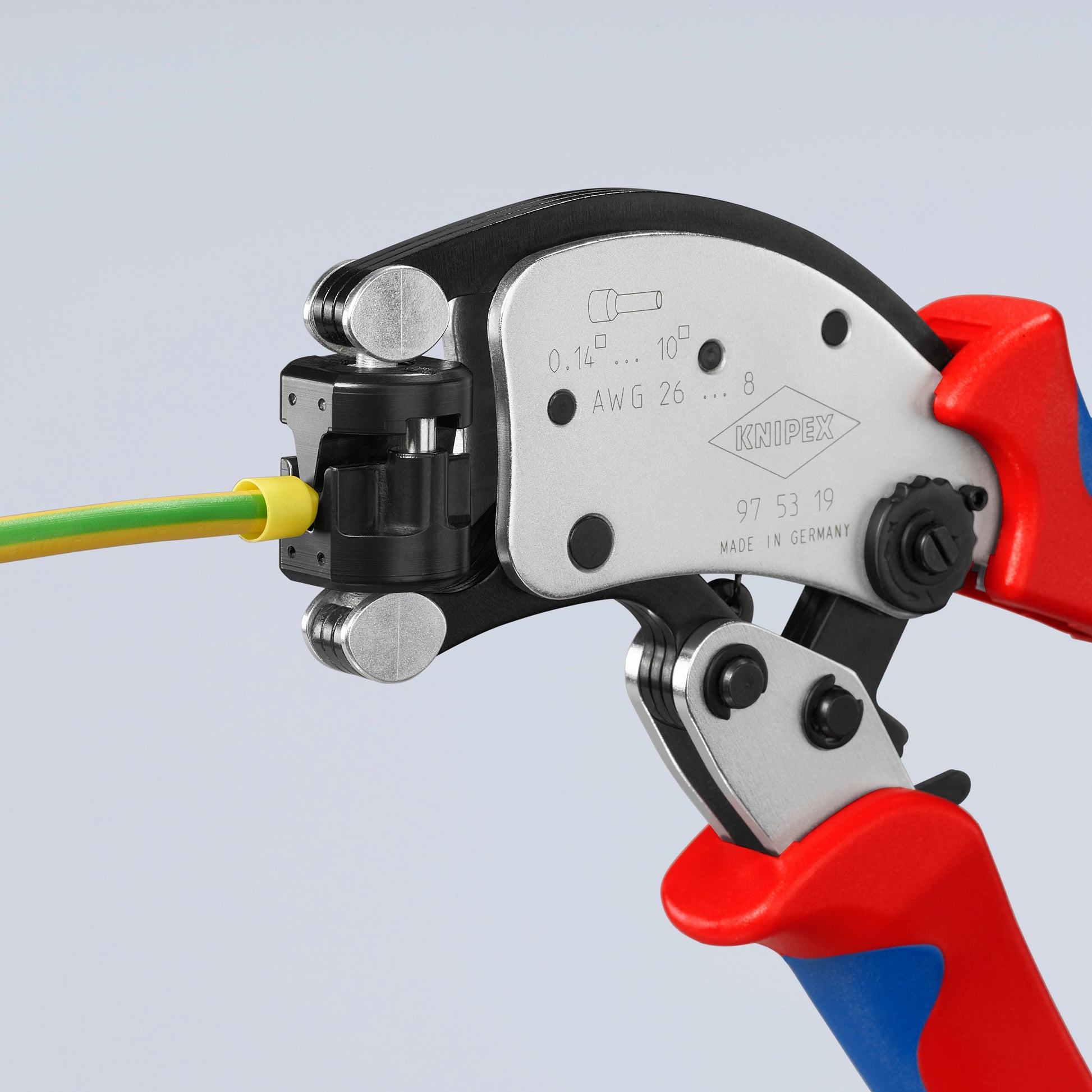

• End sleeves (ferrules) can be crimped from almost any working position

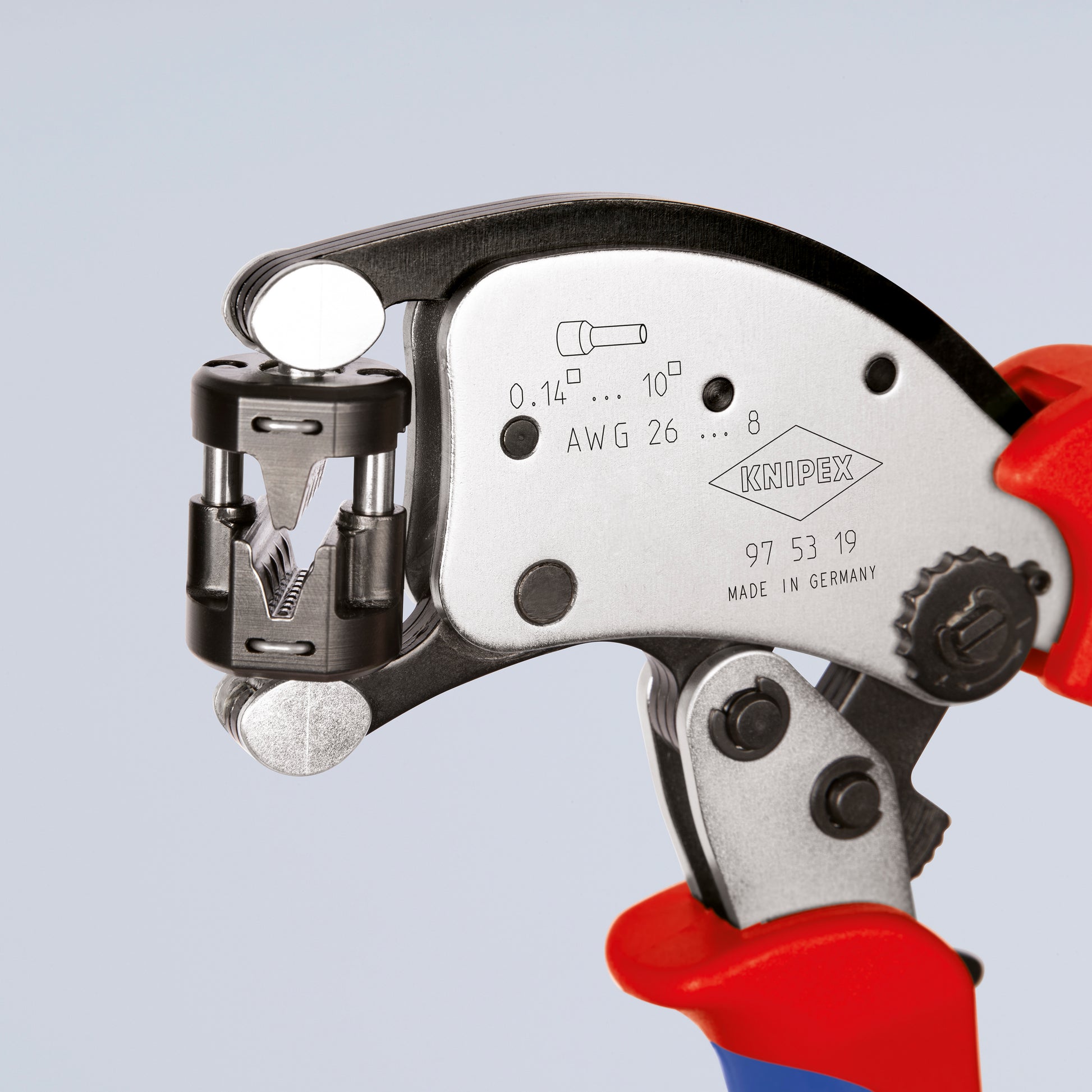

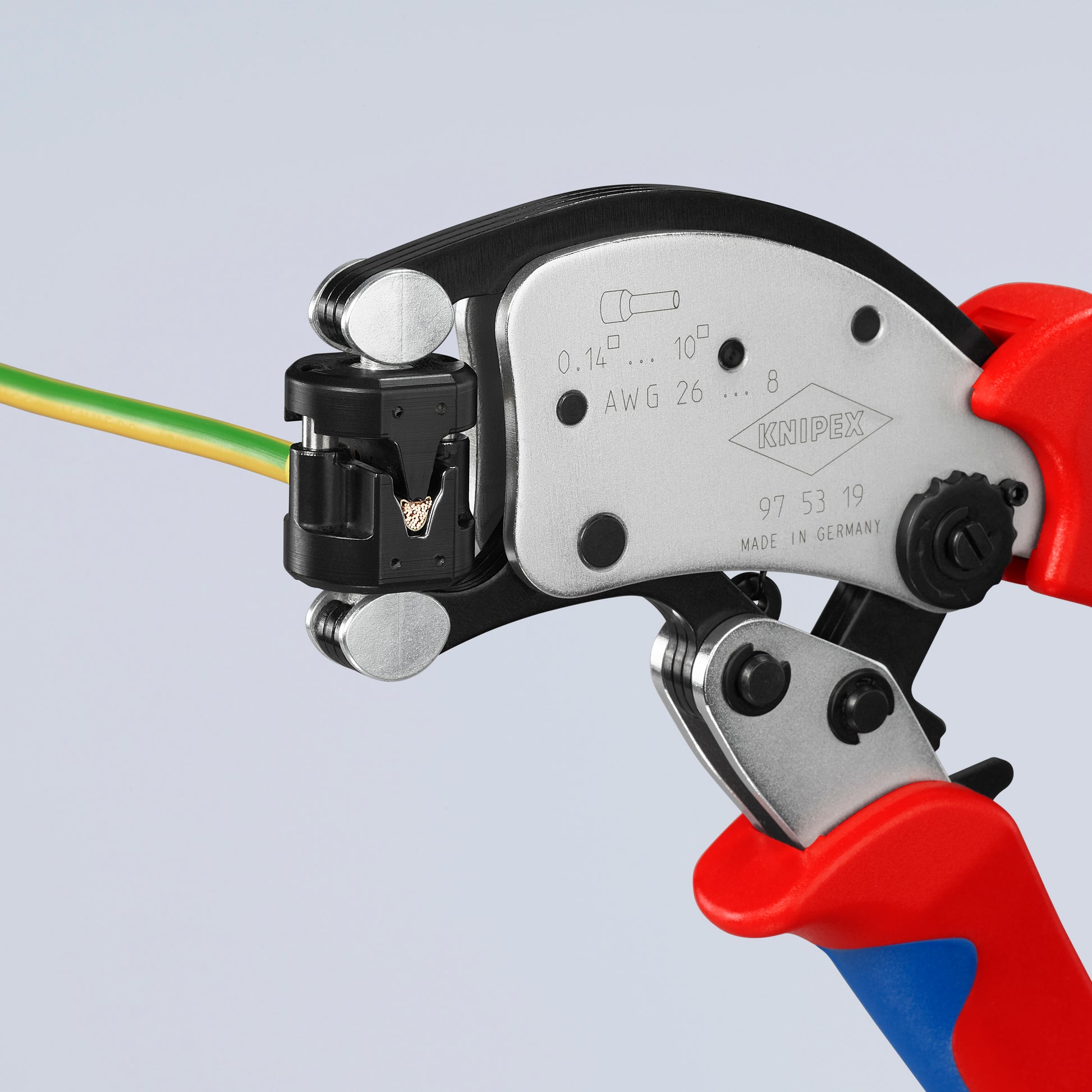

• Creates a trapeziodal crimp profile, high capacity range from 26 to 8 AWG (0.14 to 10 mm²)
• Crimping pliers adjust automatically to different diameters

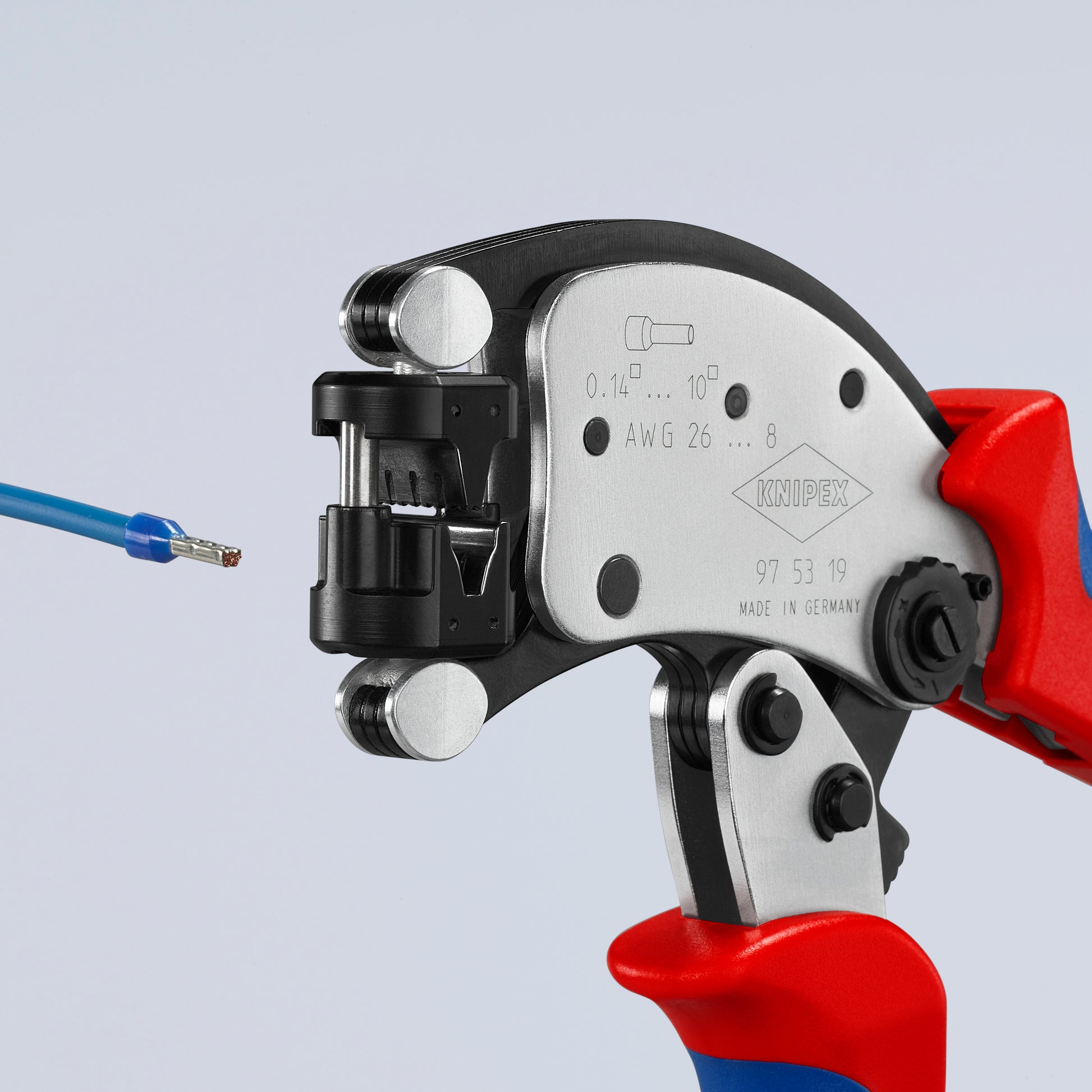

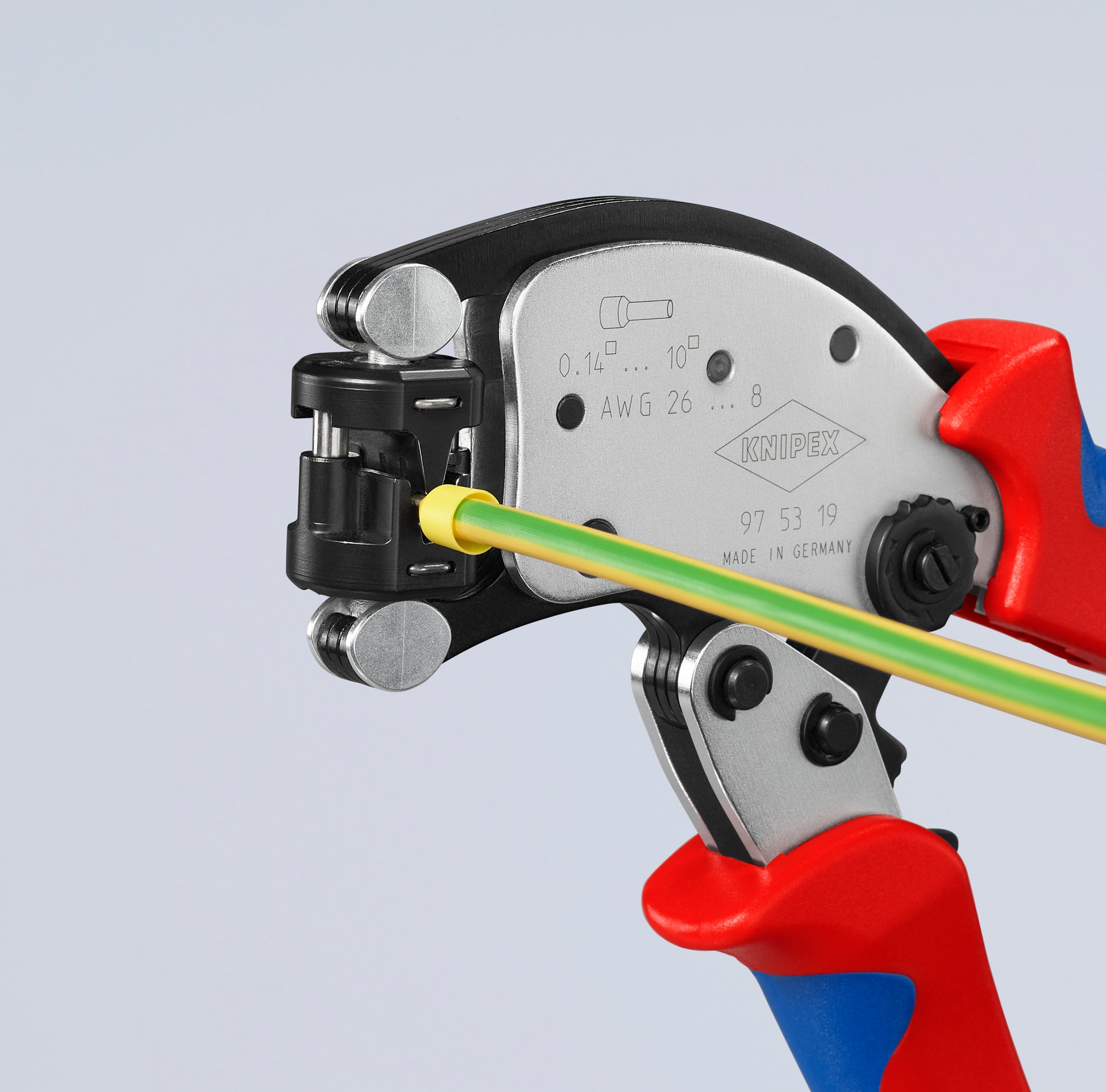

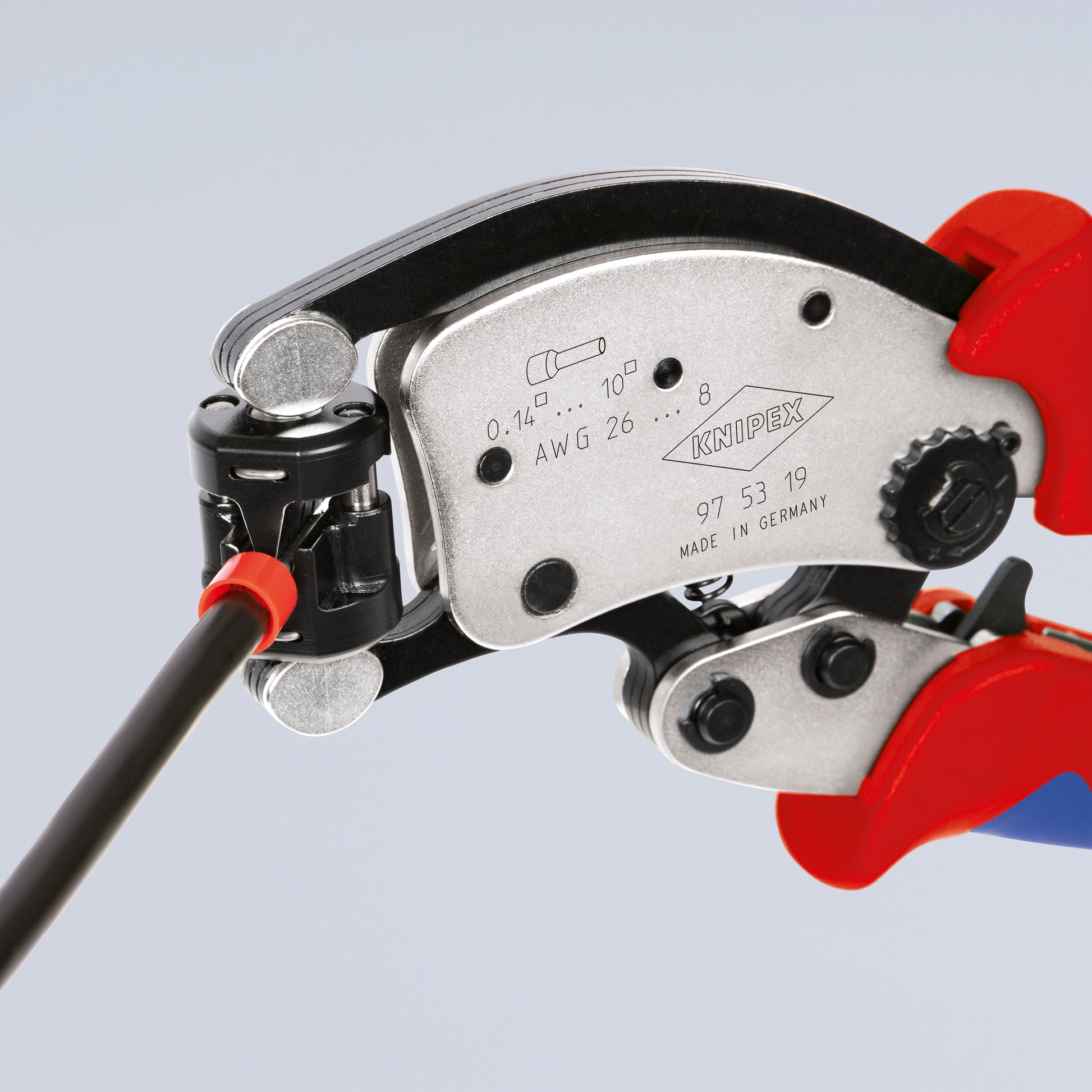

• Crimp opening is accessible from both sides, extra-long end sleeves can be fed in

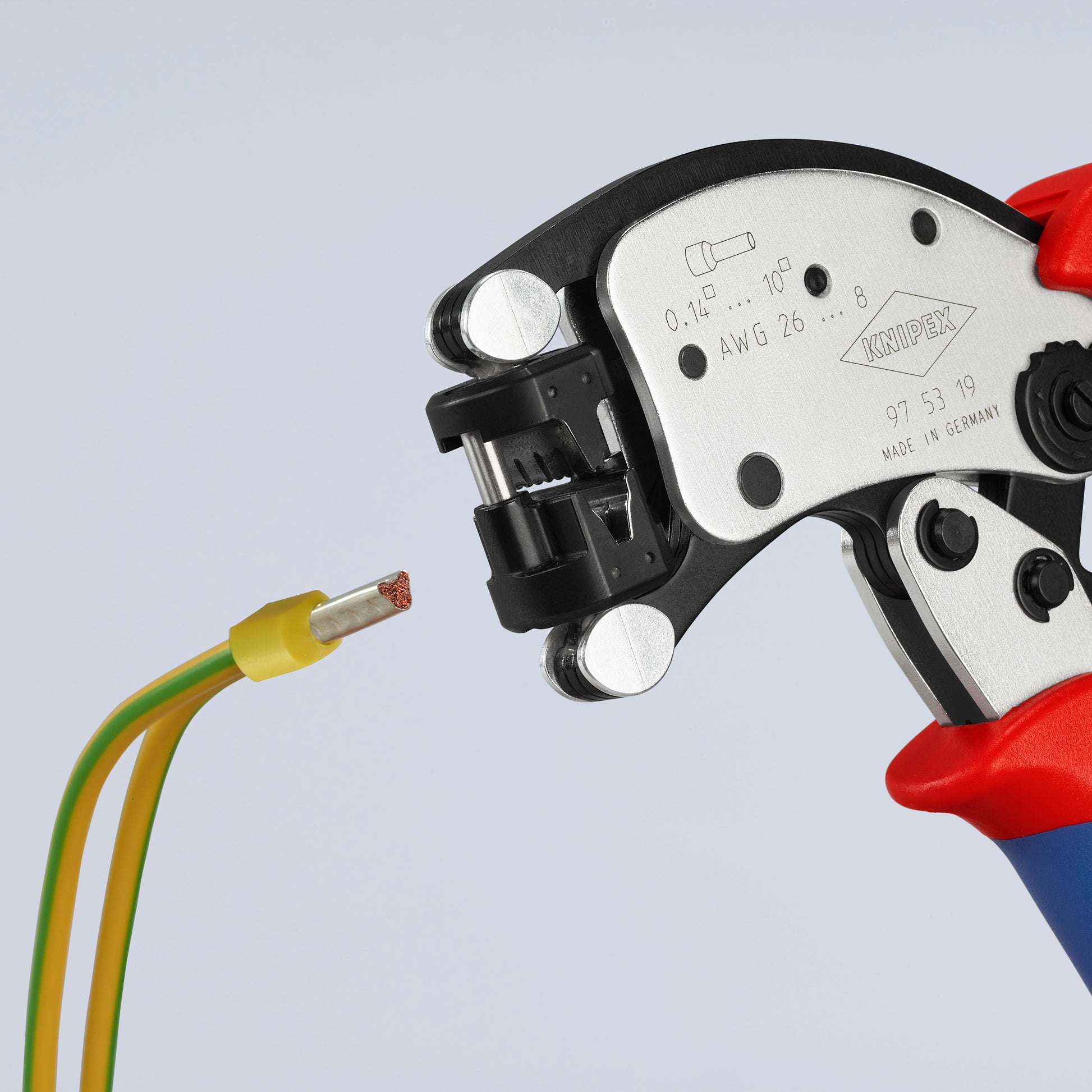

• Crimping of Twin wire ferrules up to 2 x 6 mm² possible
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Light and handy tool, manual force reinforced by toggle lever mechanism
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 53 19
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Chrome Plated
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red/Blue
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8"
• Tool Width: 3.25"
• Tool Height: 1"
• Tool Weight: 122 g (0.268 lb)
• Crimping Positions: 1
• Crimping Profile: Trapezoid indent crimp
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)|End Ferrules-Twin
• Crimping Capacity - AWG: 26 to 8
• Crimping Capacity - mm2: 0.14 to 10
• UPC: 843221029357
