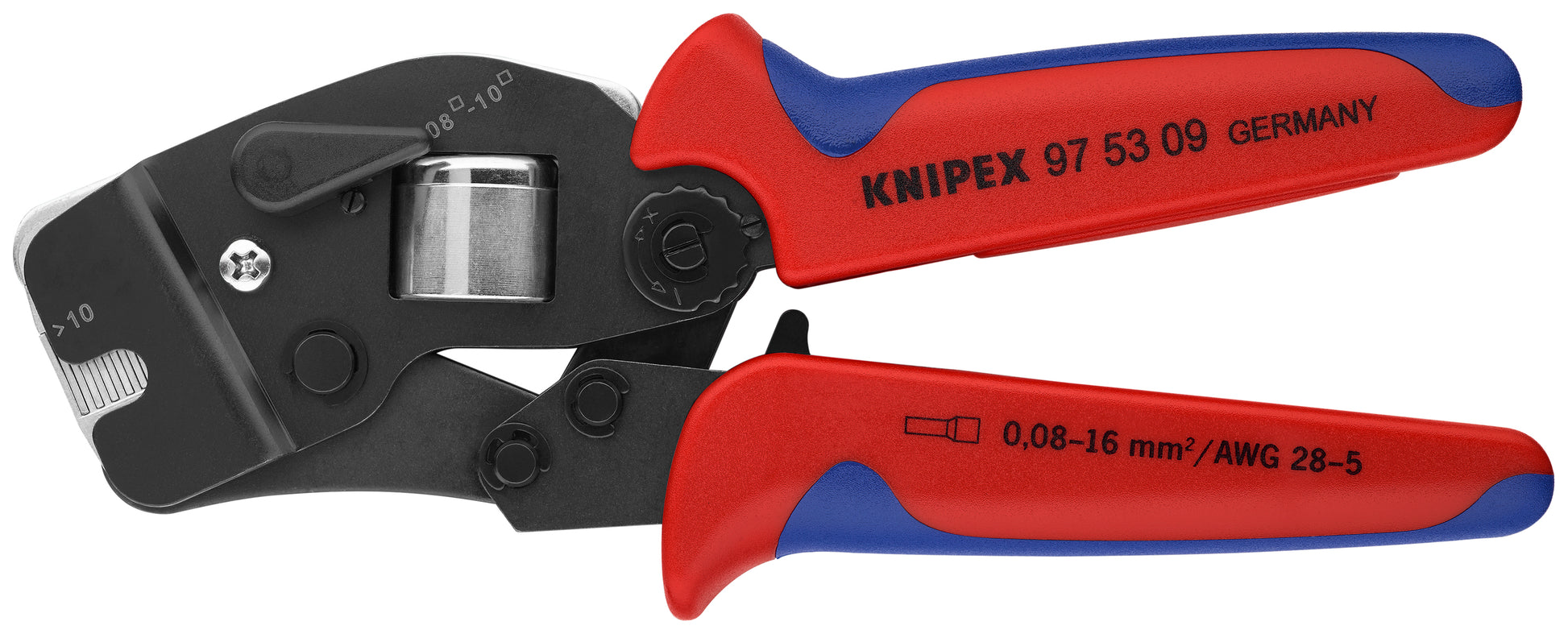

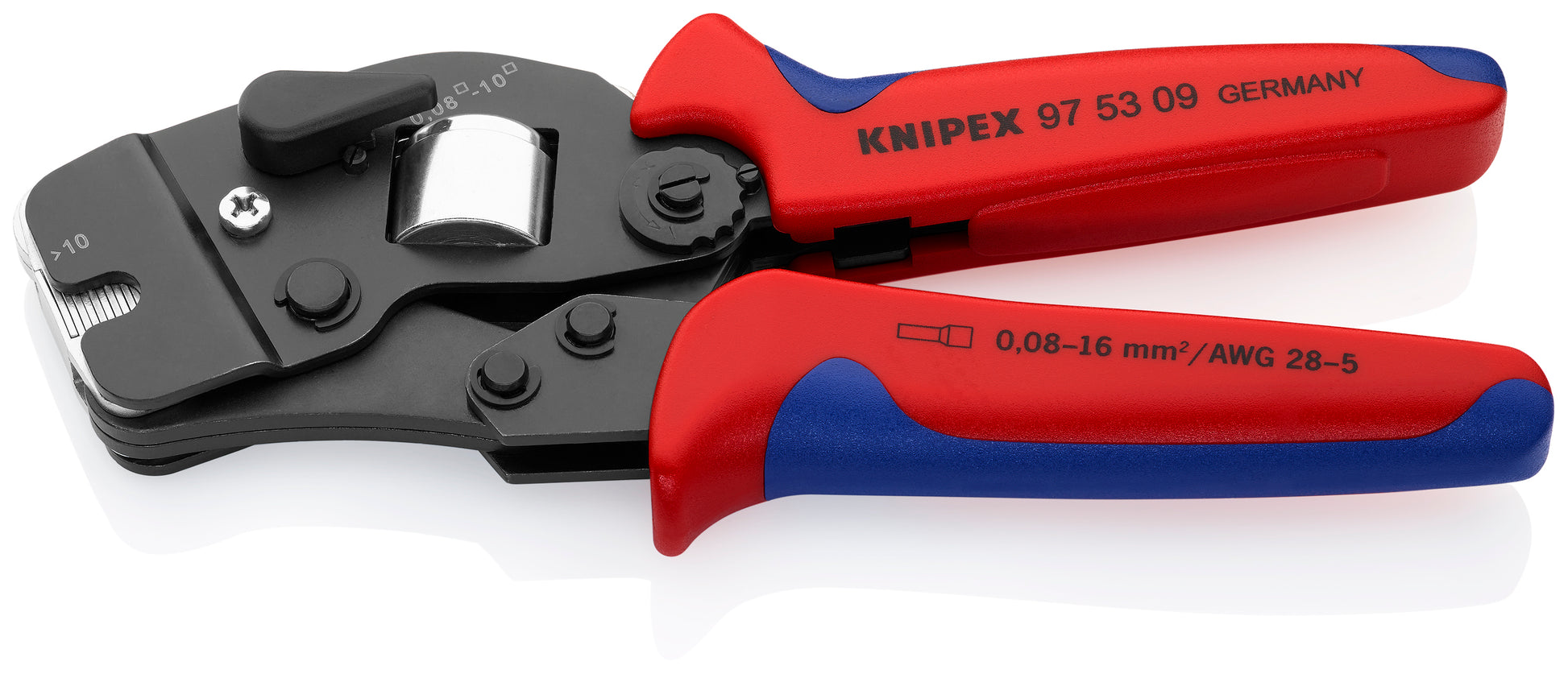

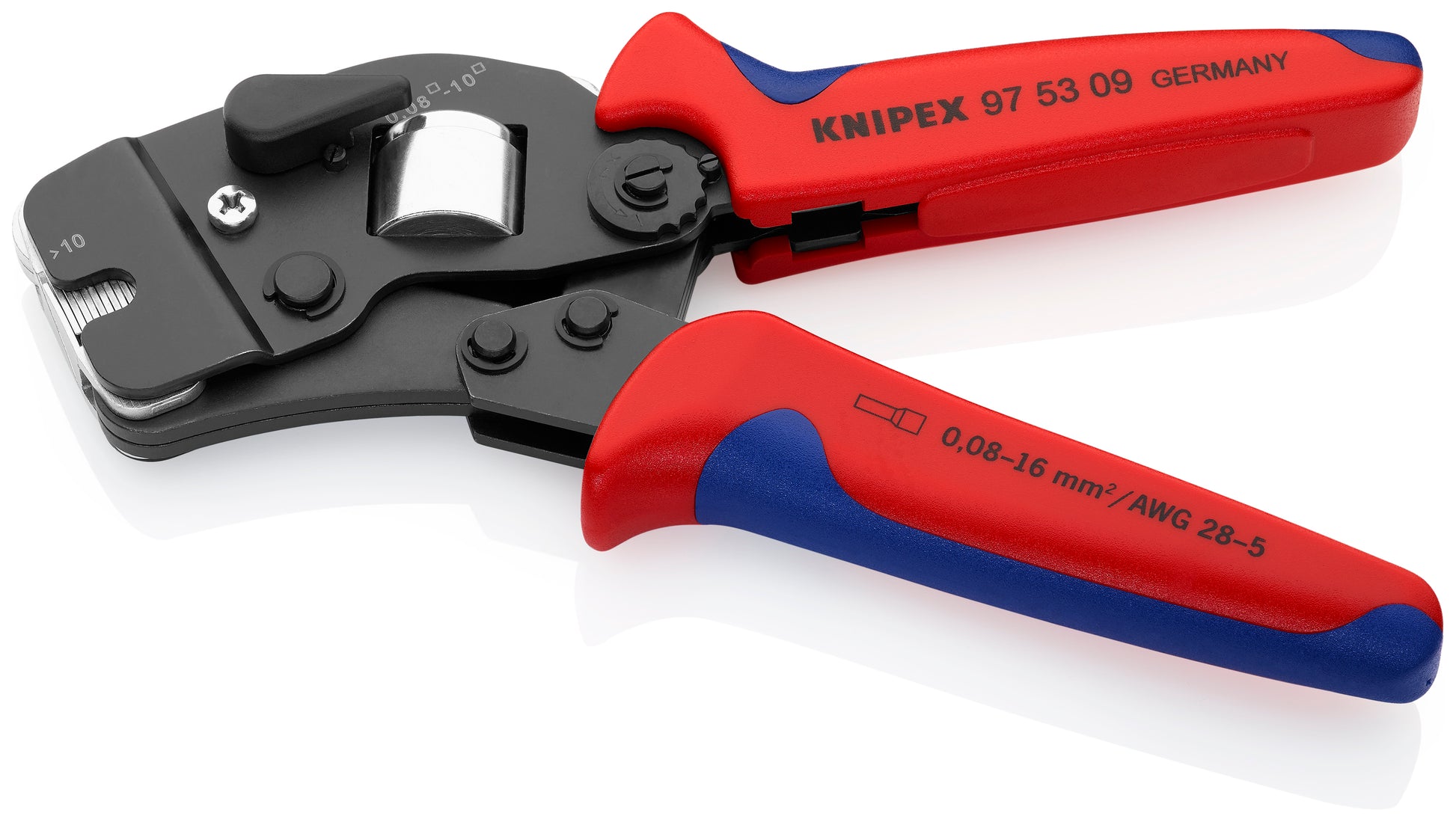

Knipex 97 53 09 Self-Adjusting Crimping Pliers For Wire Ferrules

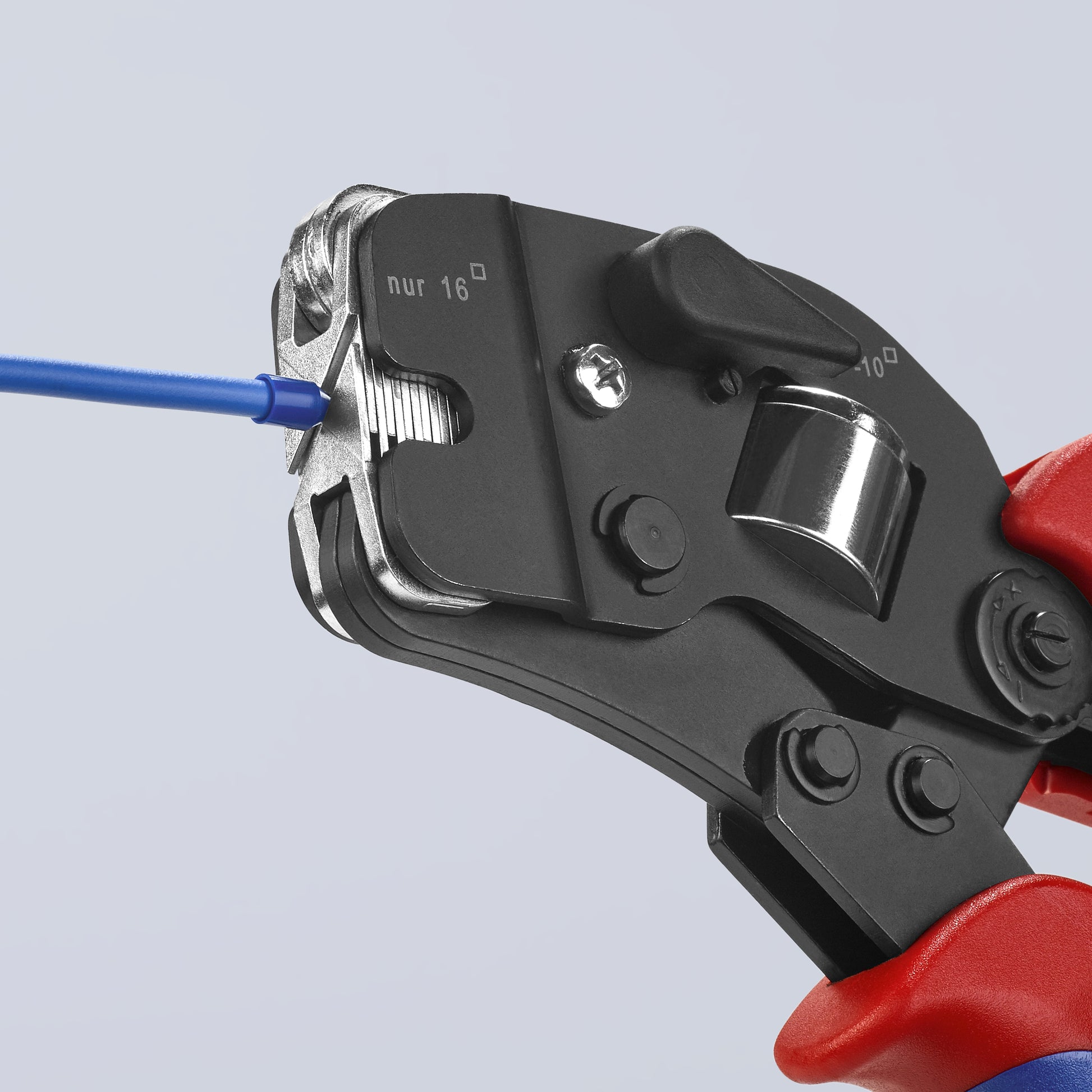

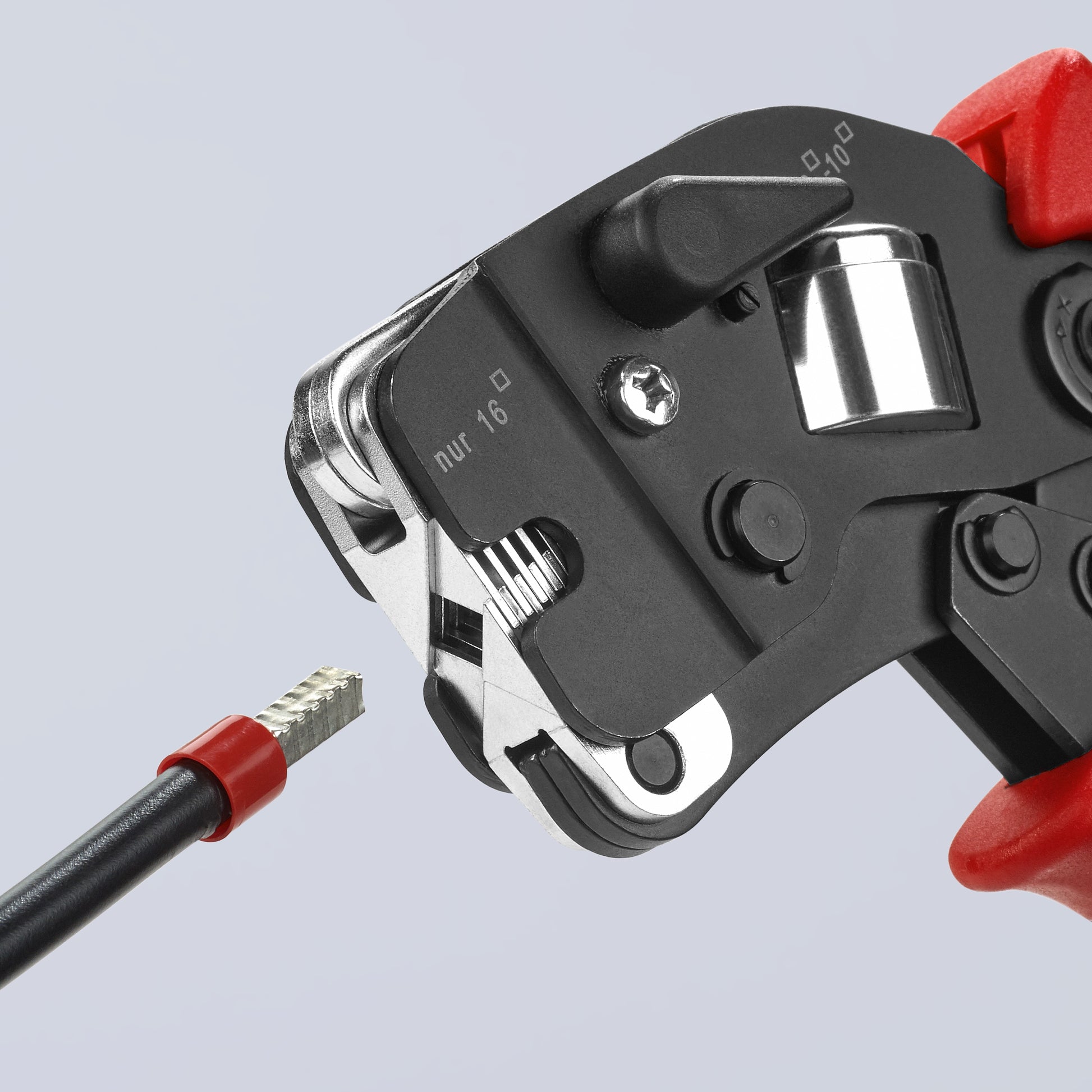

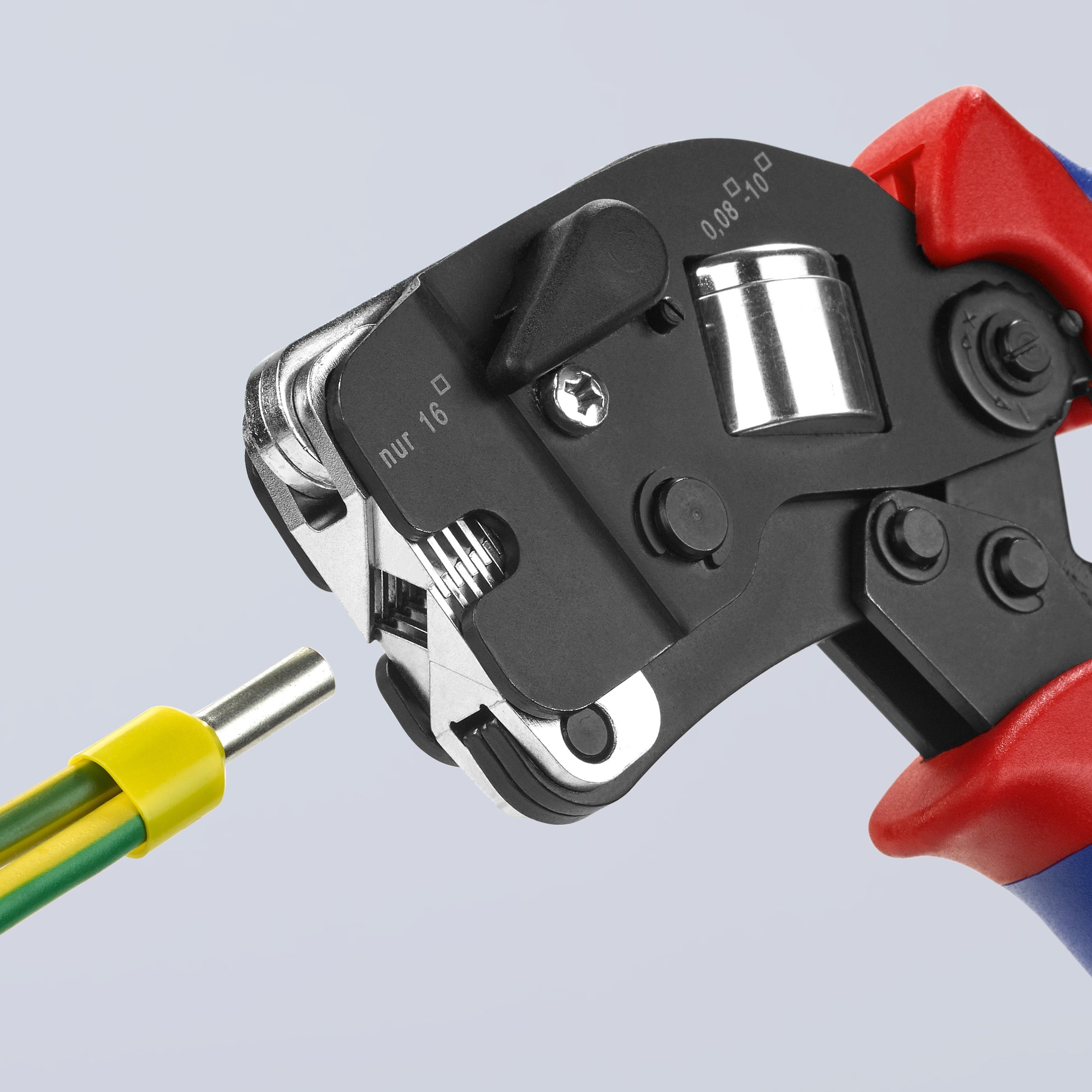

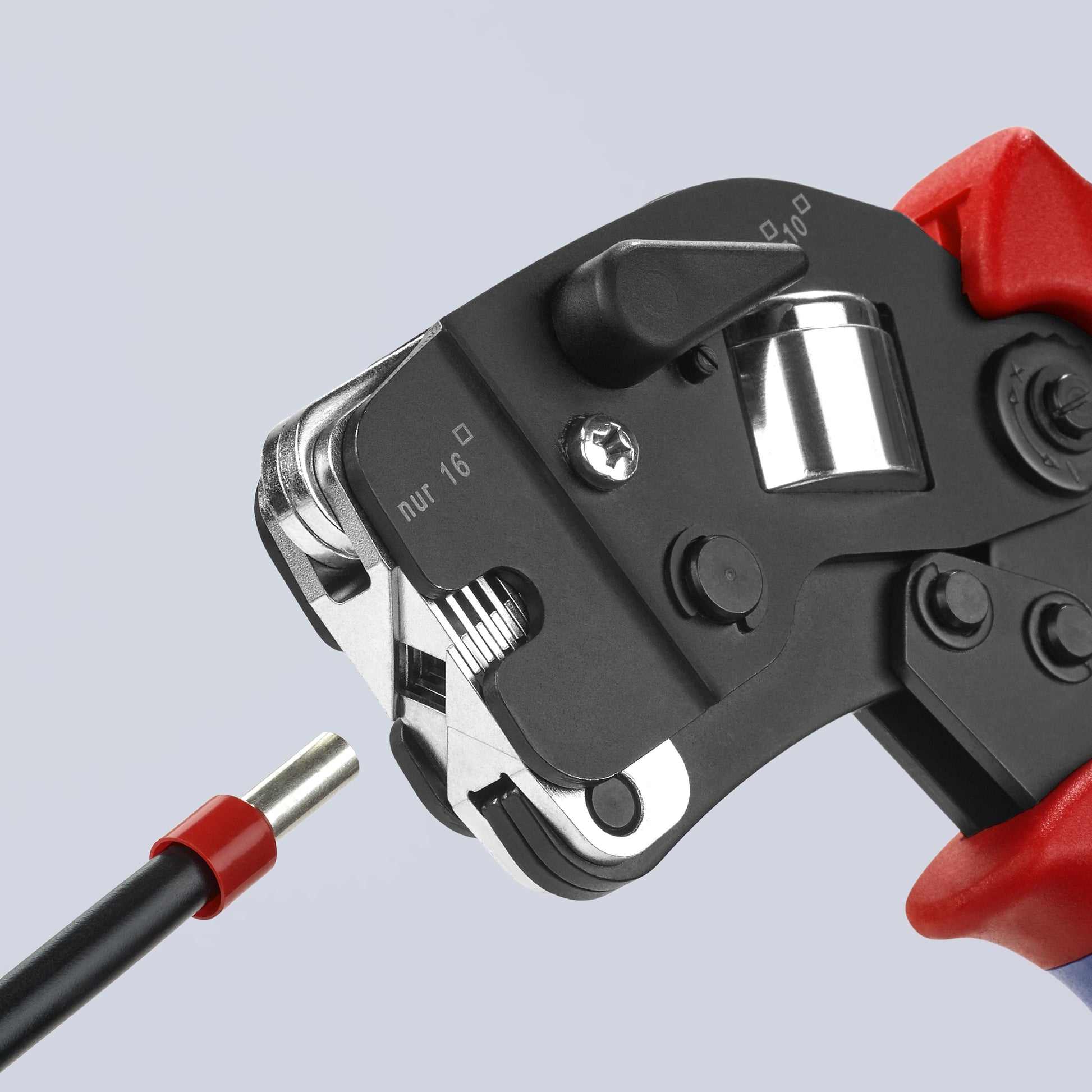

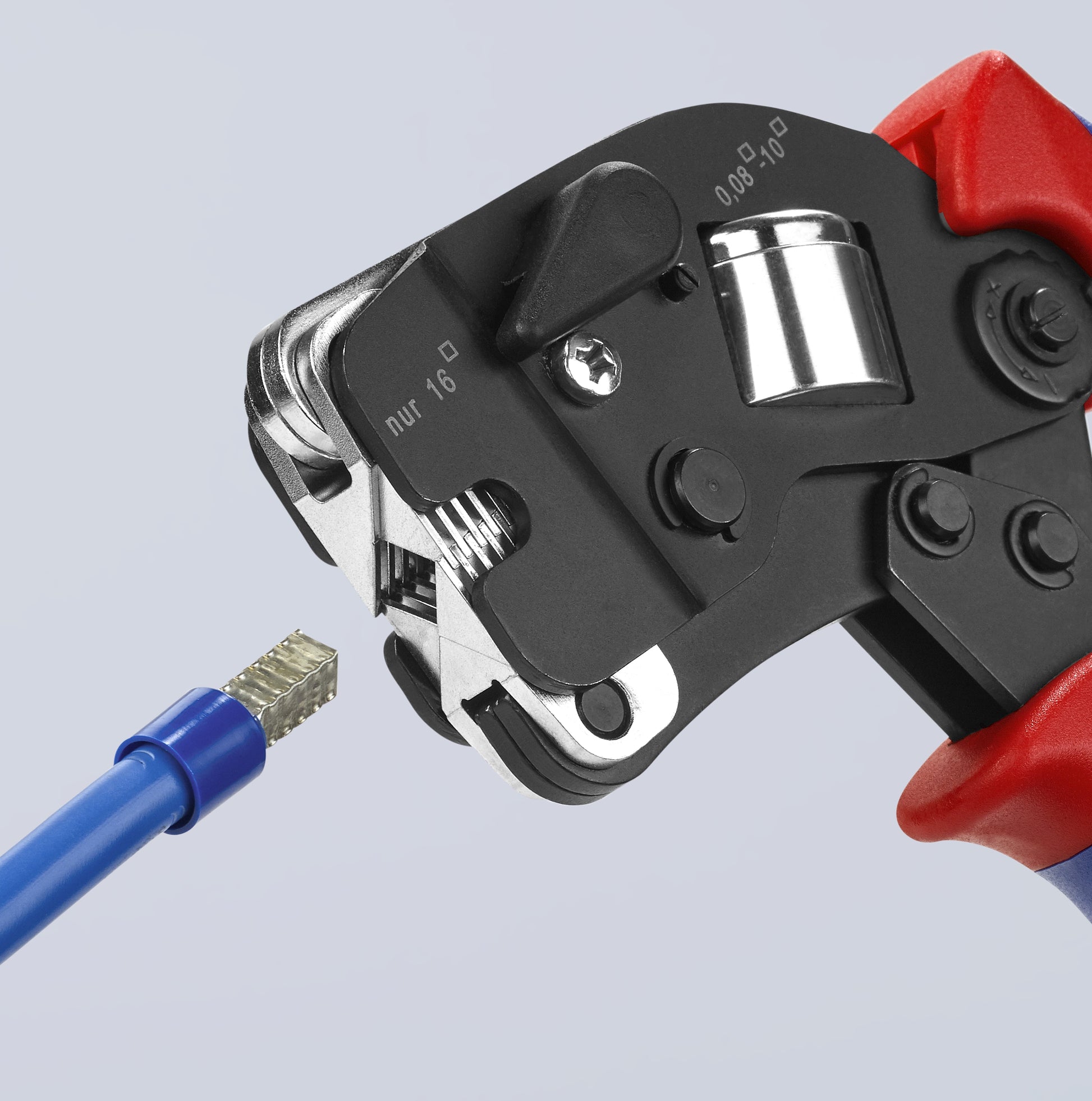

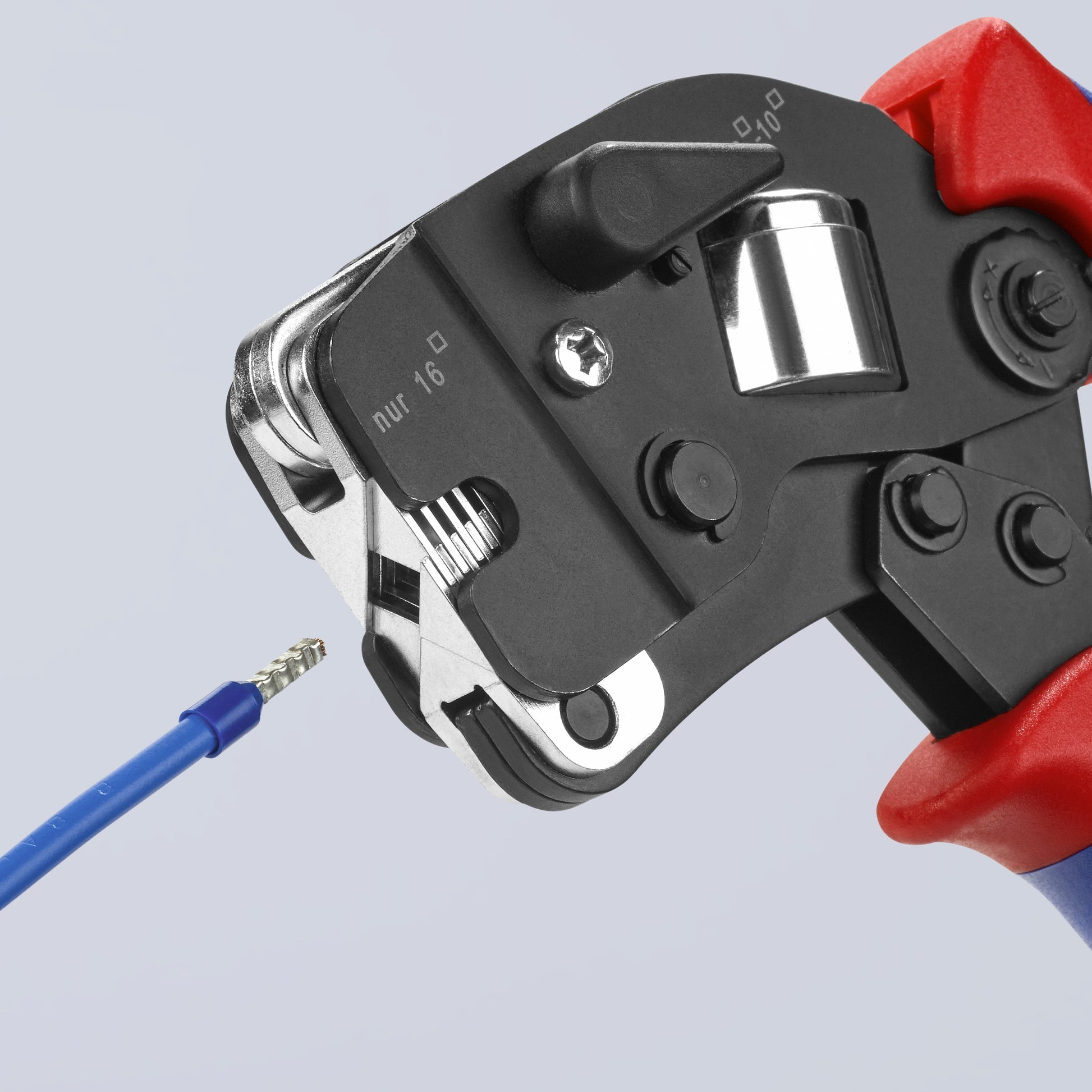

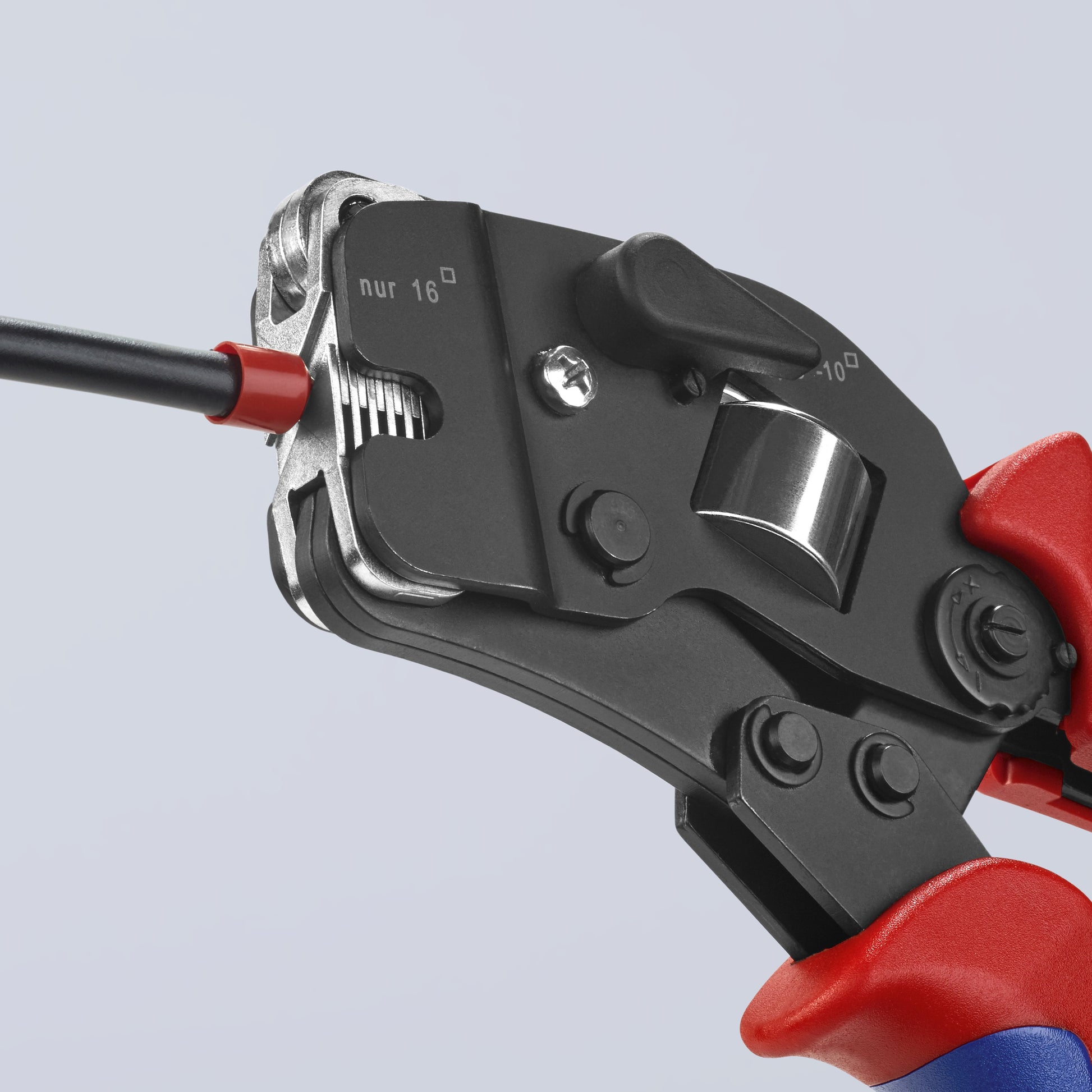

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading

Features

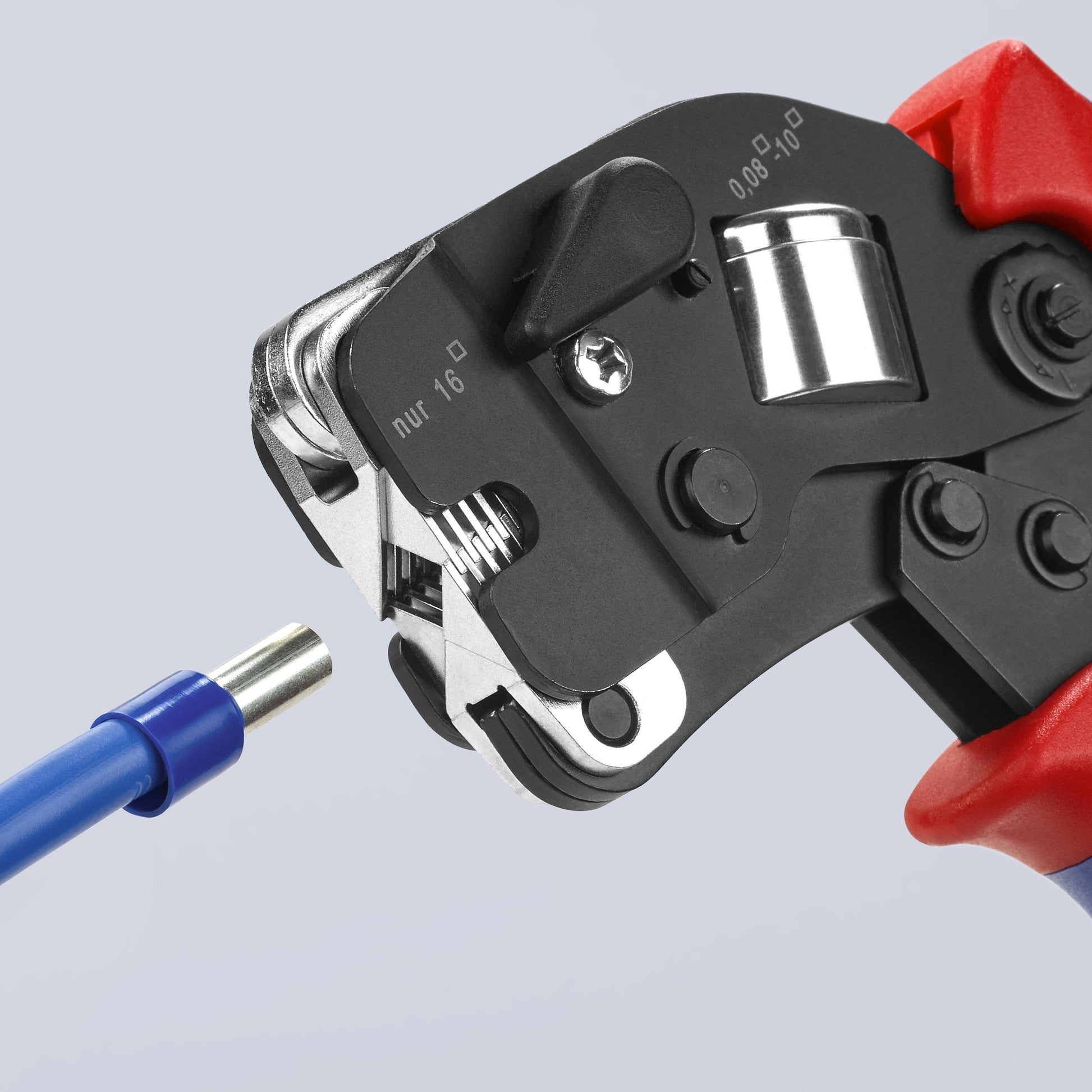

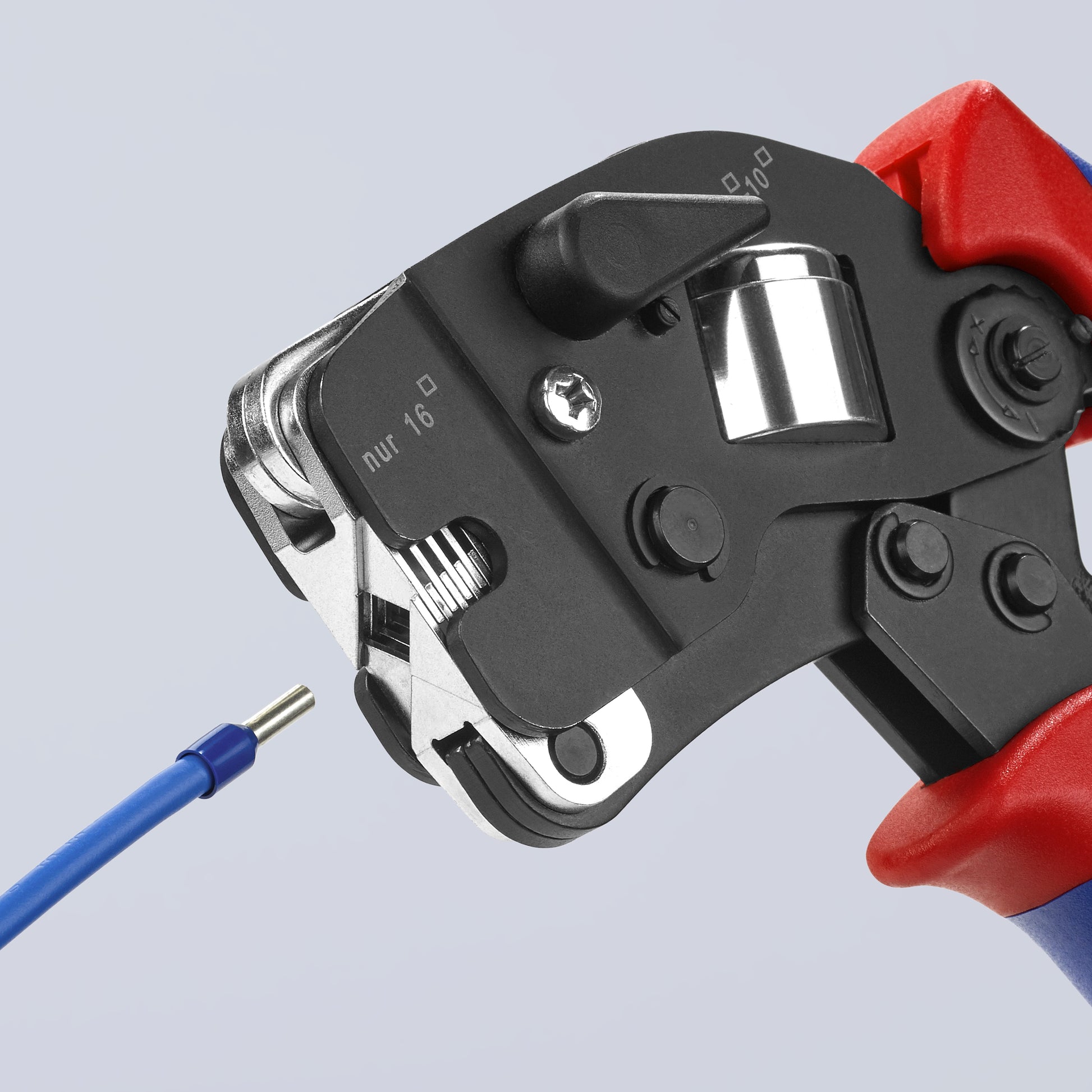

• For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
• Crimping from 28 to 8 and 6 AWG (0.08 - 10.0 and 16.0 mm²) in one profile; with selector lever for setting the crimping area either to 28 - 8 and 6 AWG (0.08 - 10 mm² or 16 mm²); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm² or 2 x AWG 8

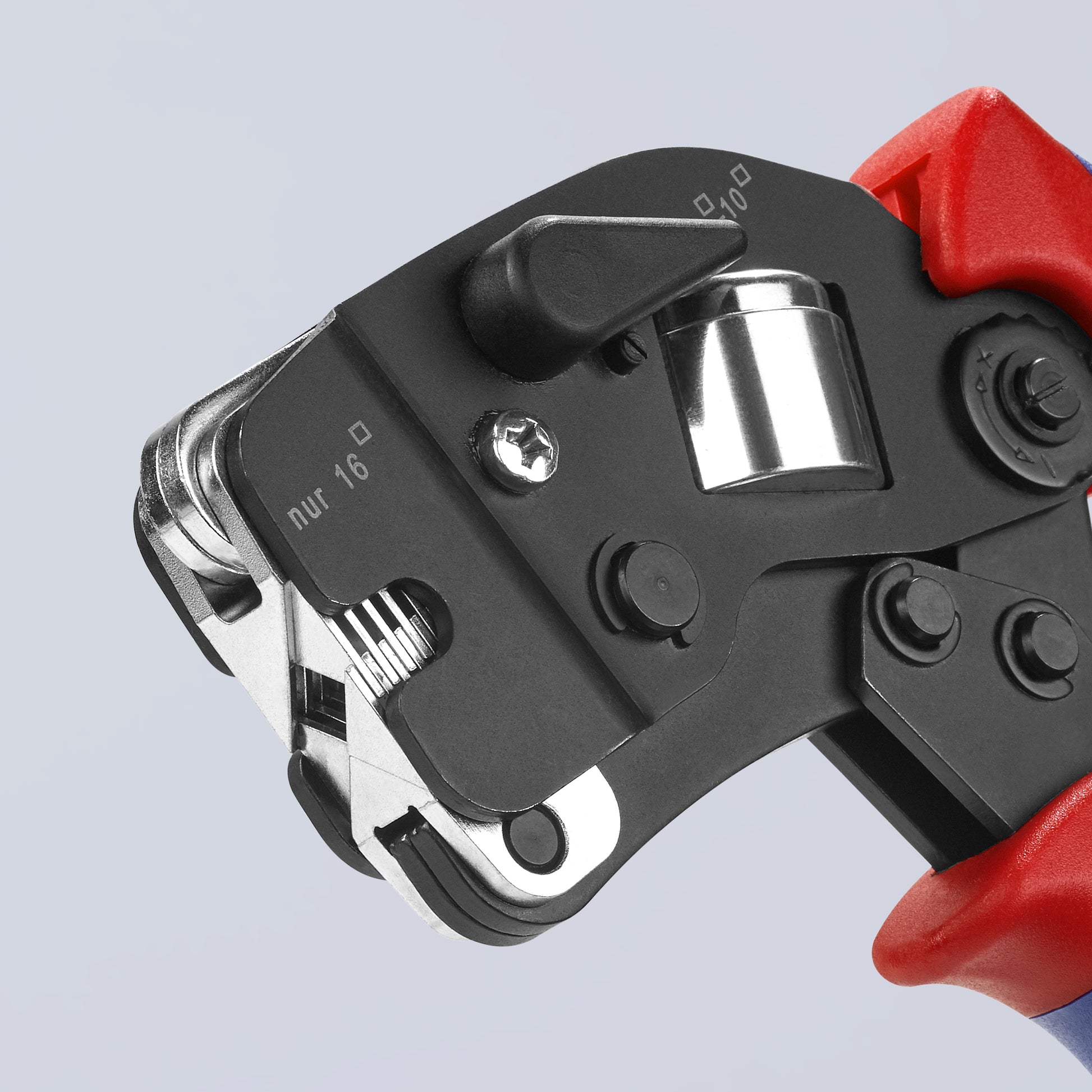

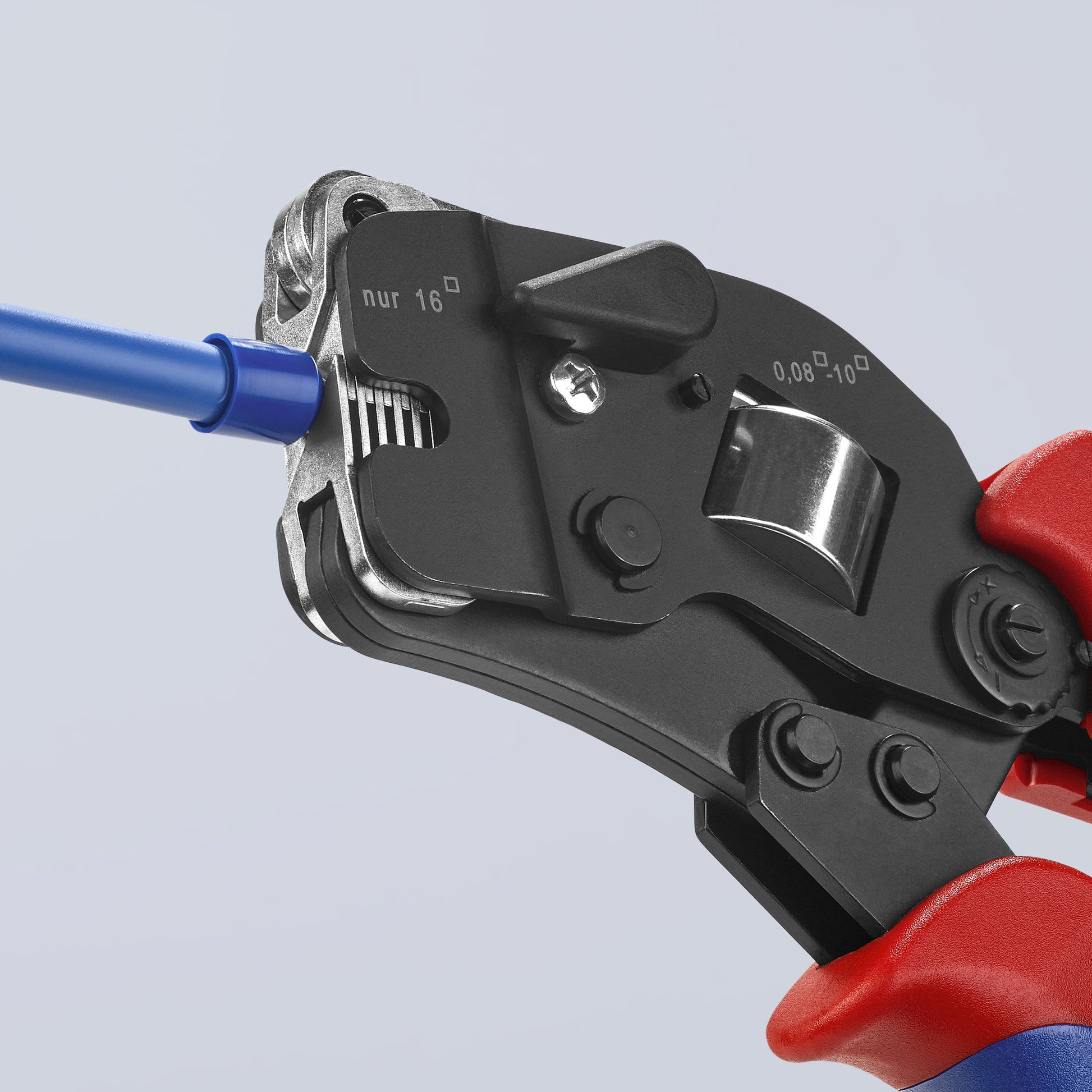

• Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Crimping pressure has been set precisely (calibrated) in the factory
• Optimum transmission of force due to toggle lever for fatigue-reduced operation
• High operation comfort thanks to handy shape and low weight
• Chrome vanadium electric steel in special quality, oil-hardened
• With selector lever for setting the crimping area either to 7 to 28 or 5 AWG (0.08 - 10 mm² or 16 mm²)

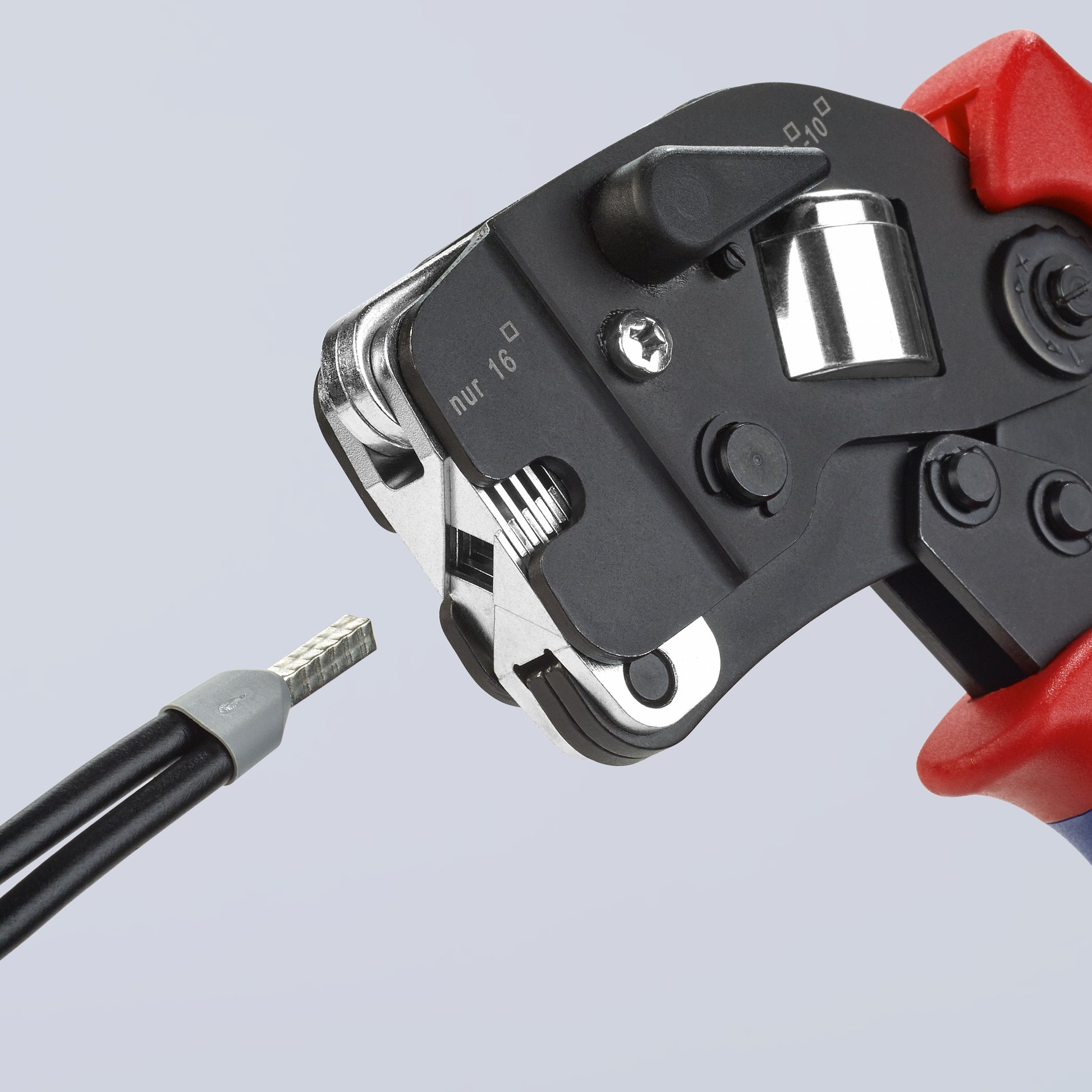

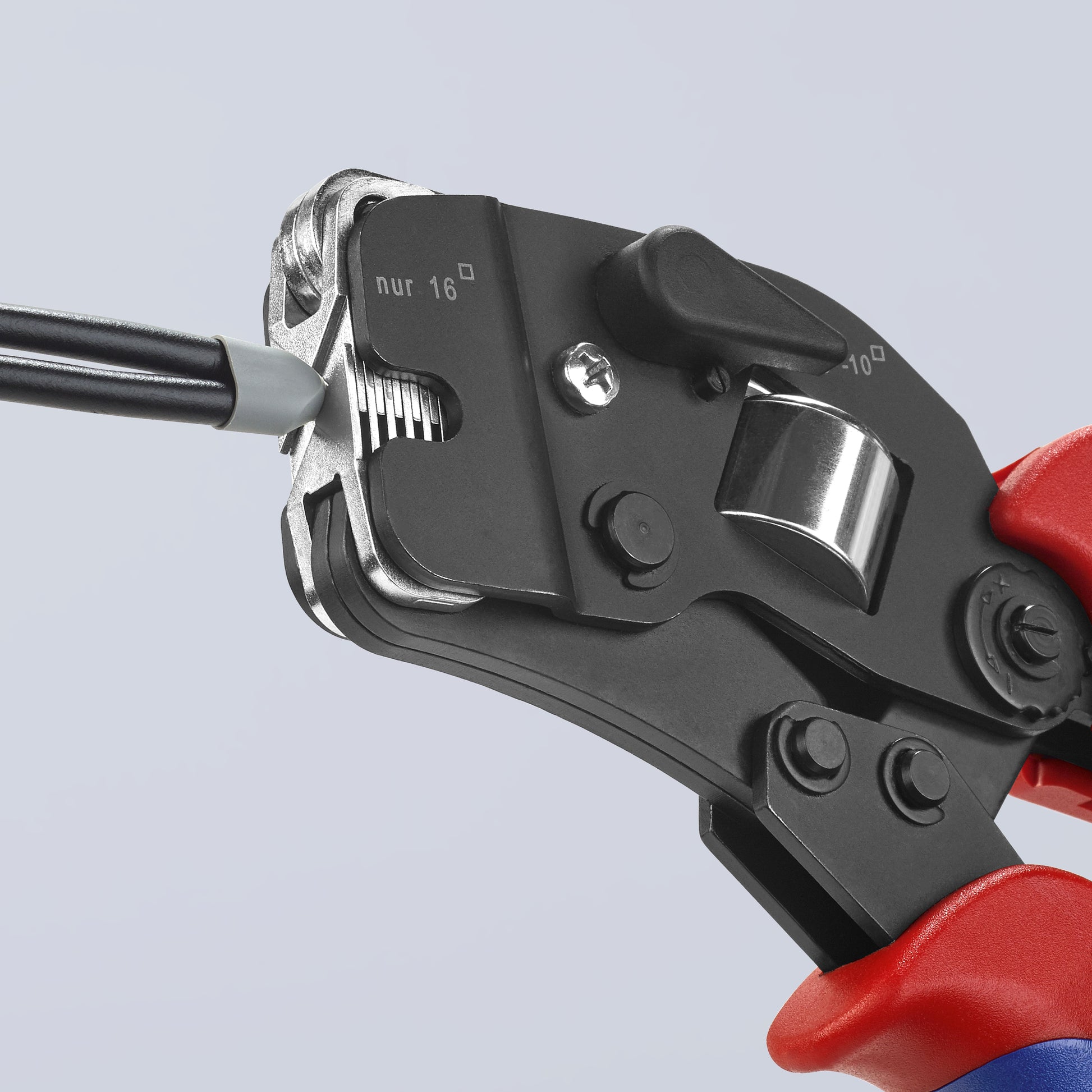

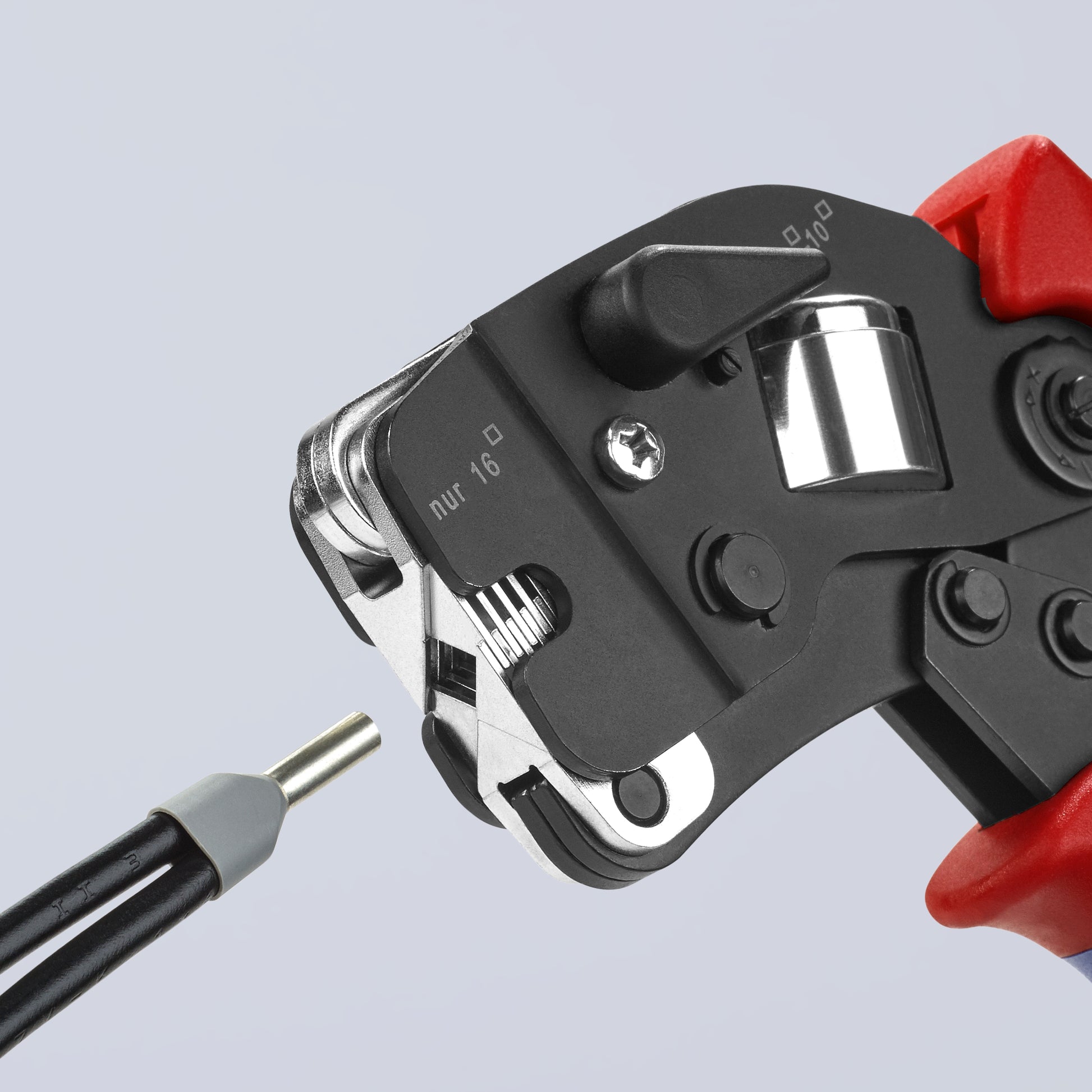

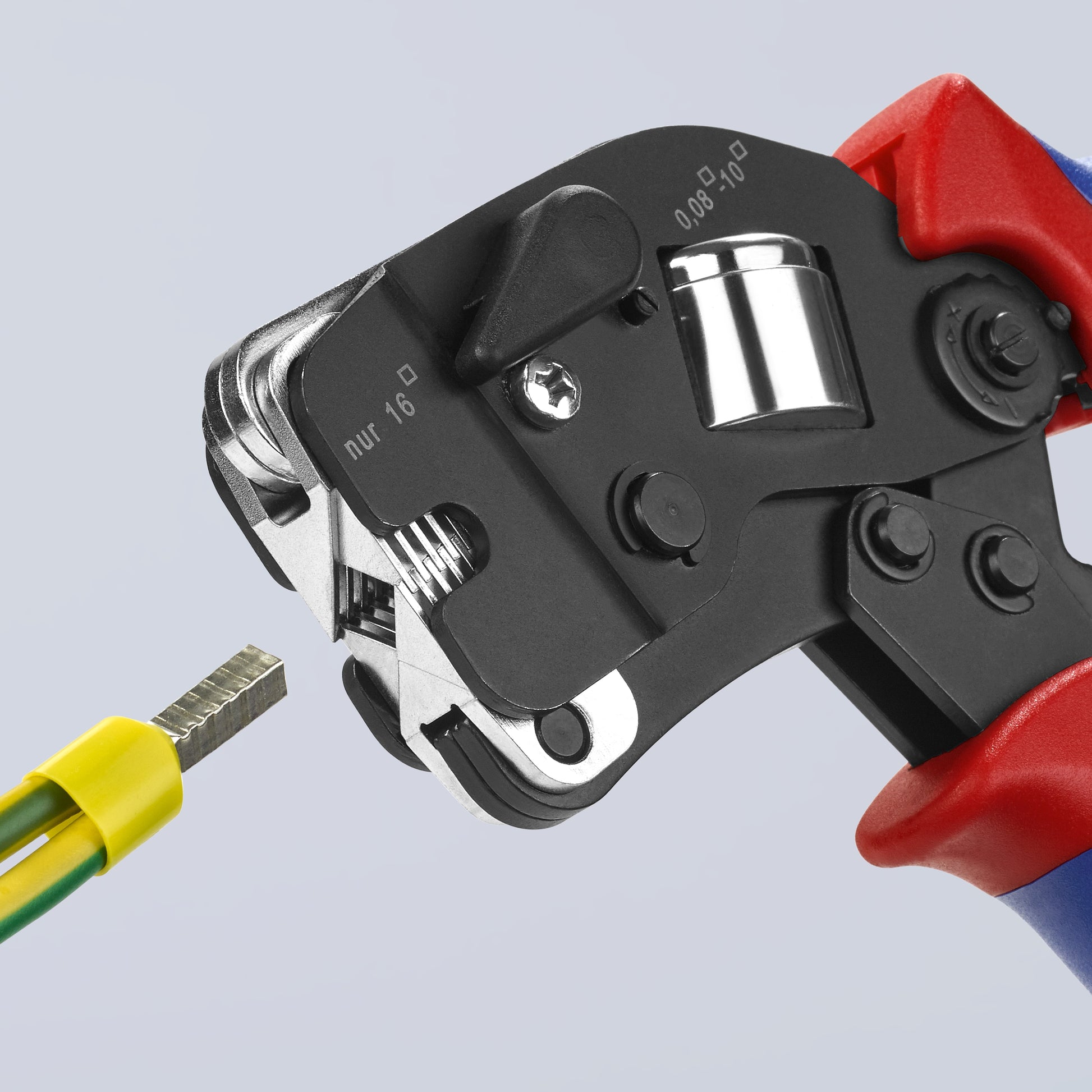

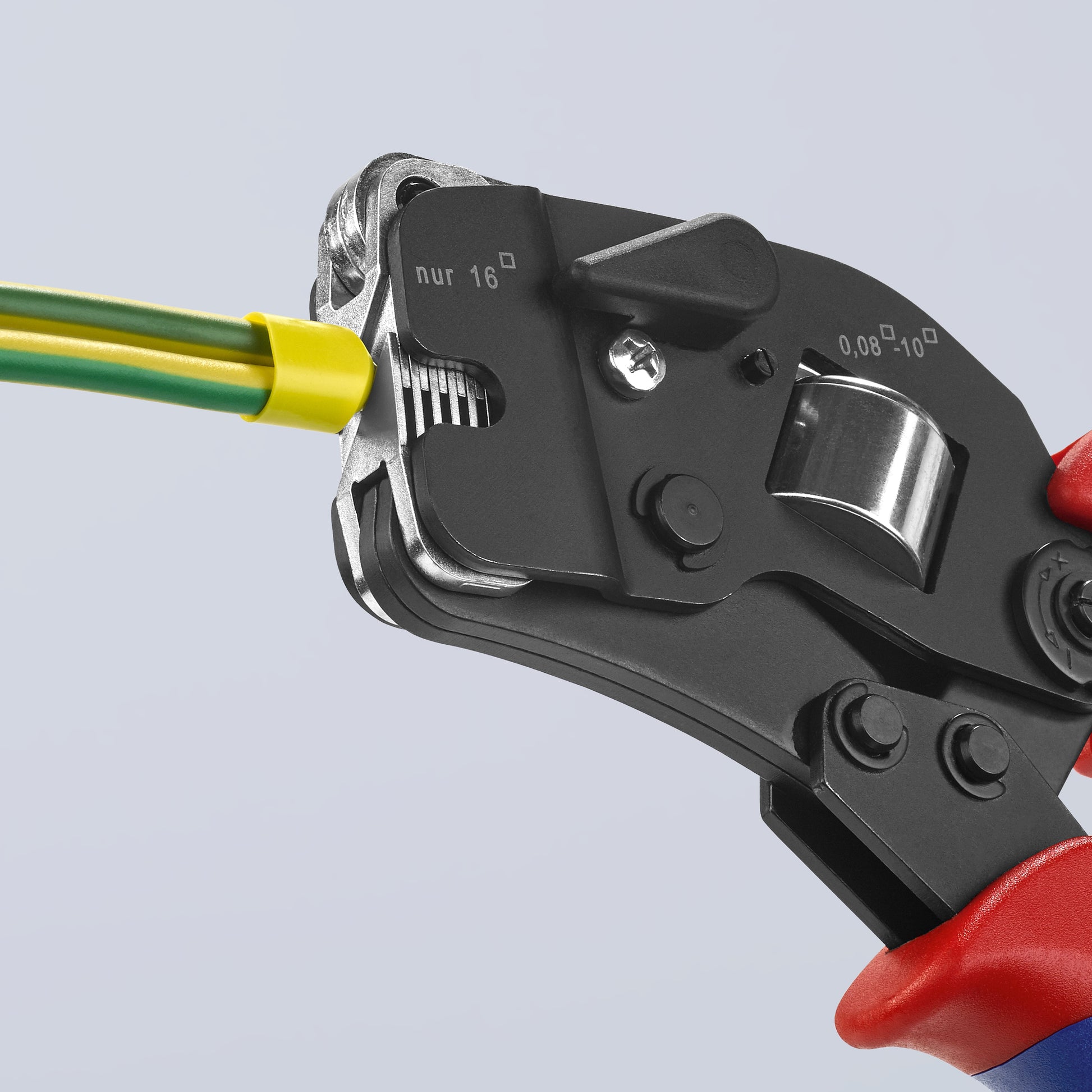

• Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8
• Pliers burnished
• Handles with multi-component covers

Specifications

• Manufacturer Part Number: 97 53 09
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 7 1/2"
• Tool Nominal Length: 7.5"
• Tool Length: 7.55"
• Tool Width: 2.85"
• Tool Height: 1.05"
• Tool Weight: 488 g (1.075 lb)
• Crimping Positions: 1
• Crimping Profile: Automatic square crimp
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity - AWG: 28 to 8 and 6
• Crimping Capacity - mm2: 0.08 to 10.0 and 16.0
• Set Part Number: 97 90 17|97 90 16|97 90 15
• UPC: 843221006204
