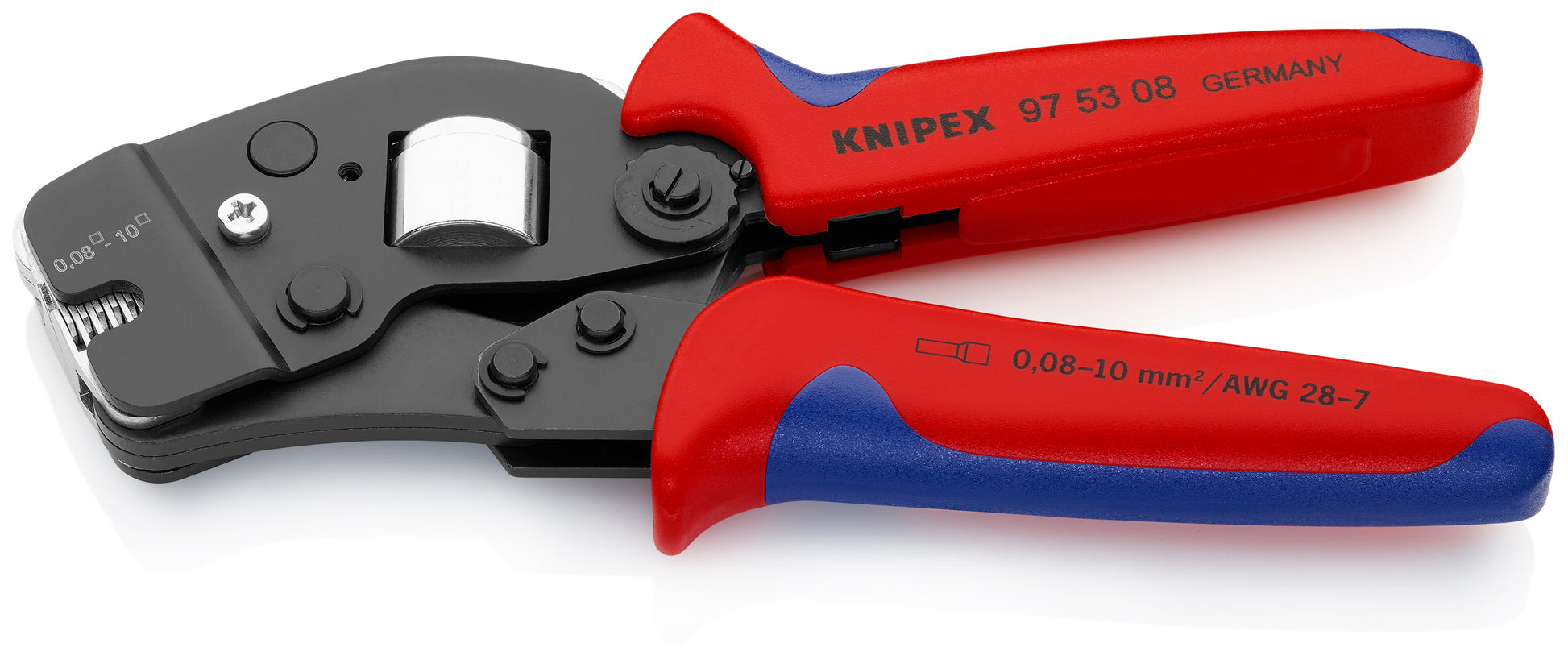

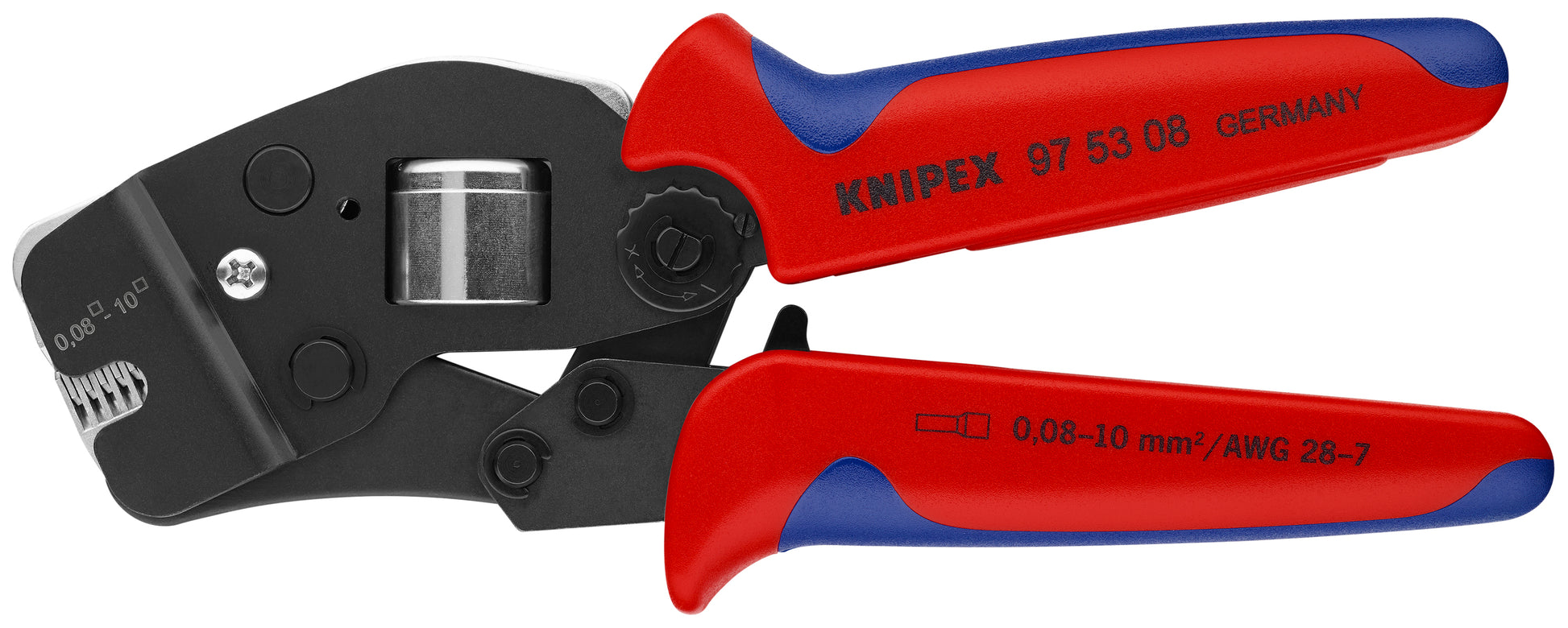

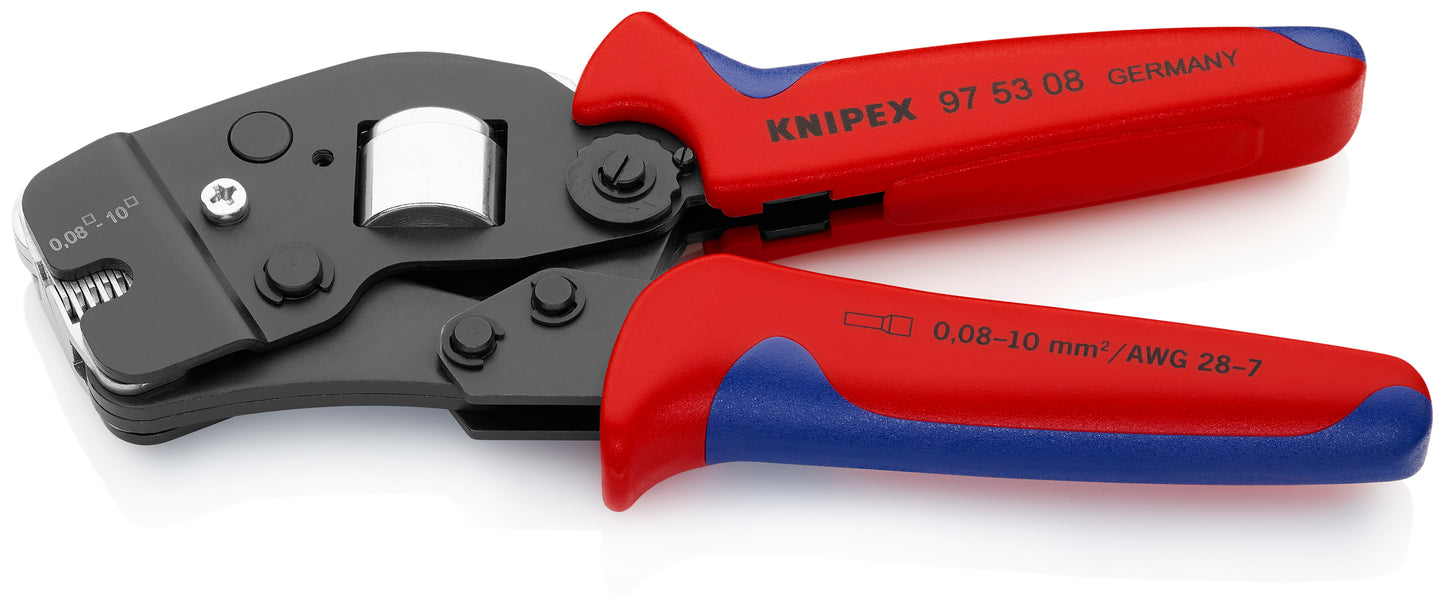

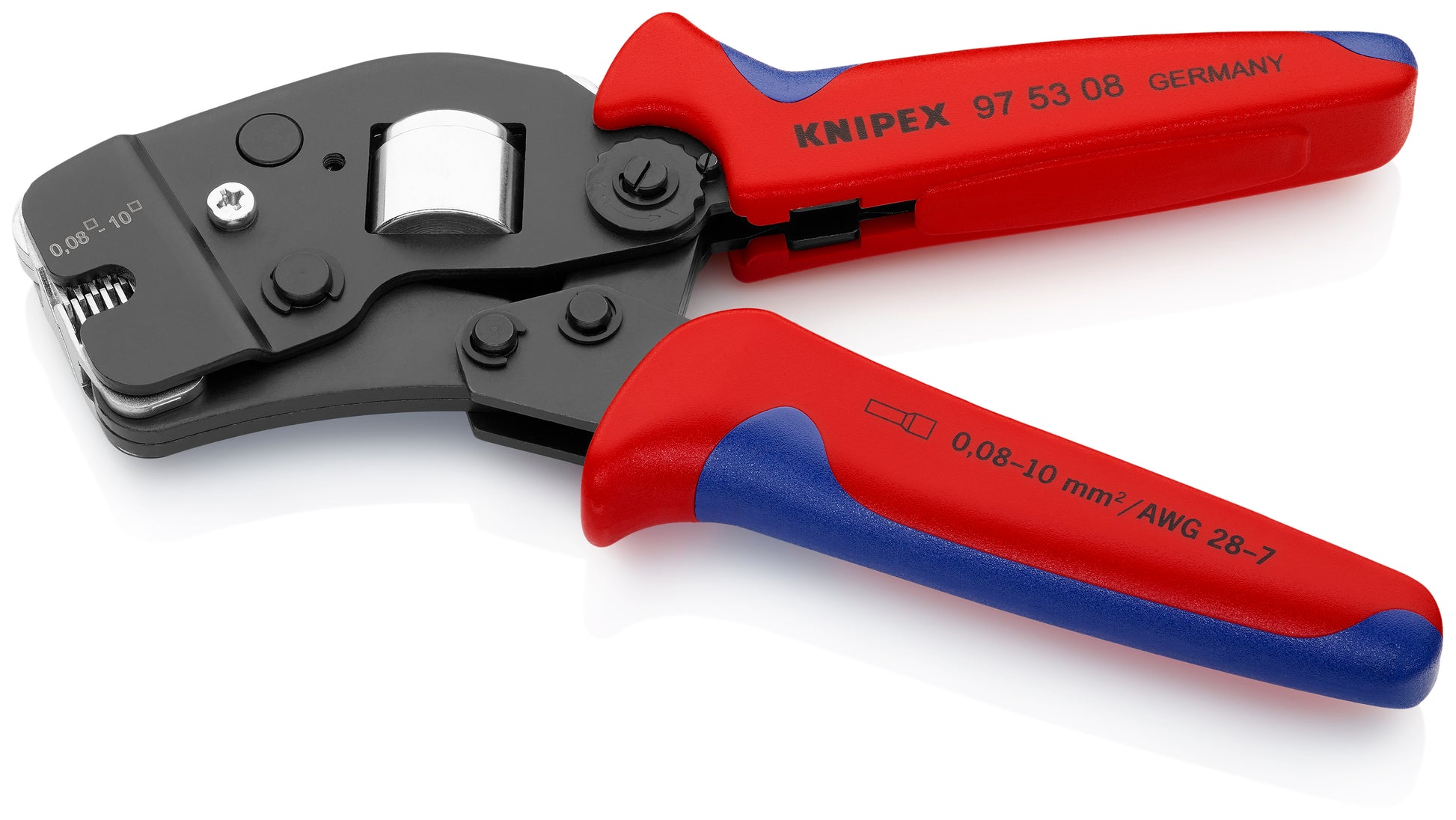

Knipex 97 53 08 Self-Adjusting Crimping Pliers For Wire Ferrules

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading

Features

• For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4

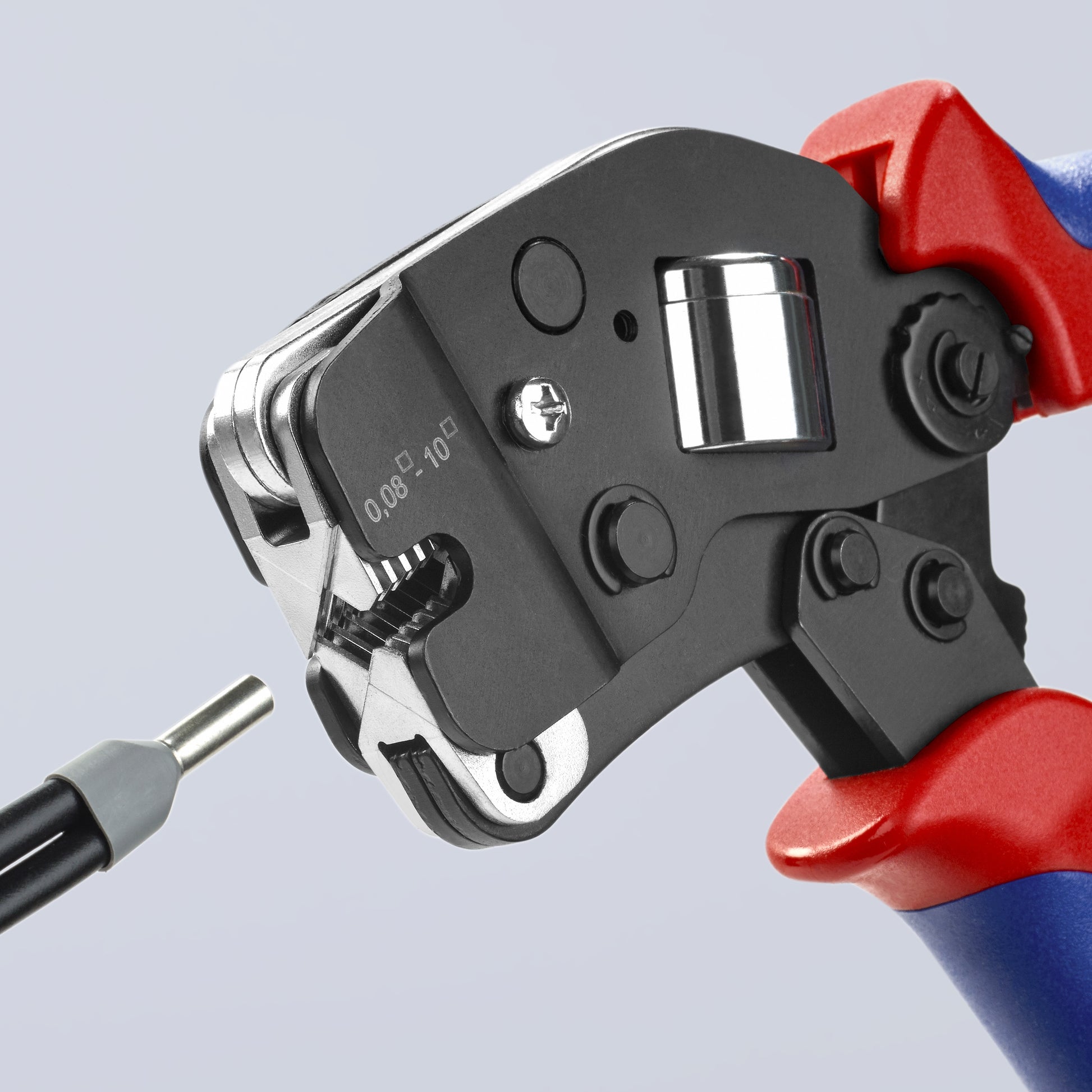

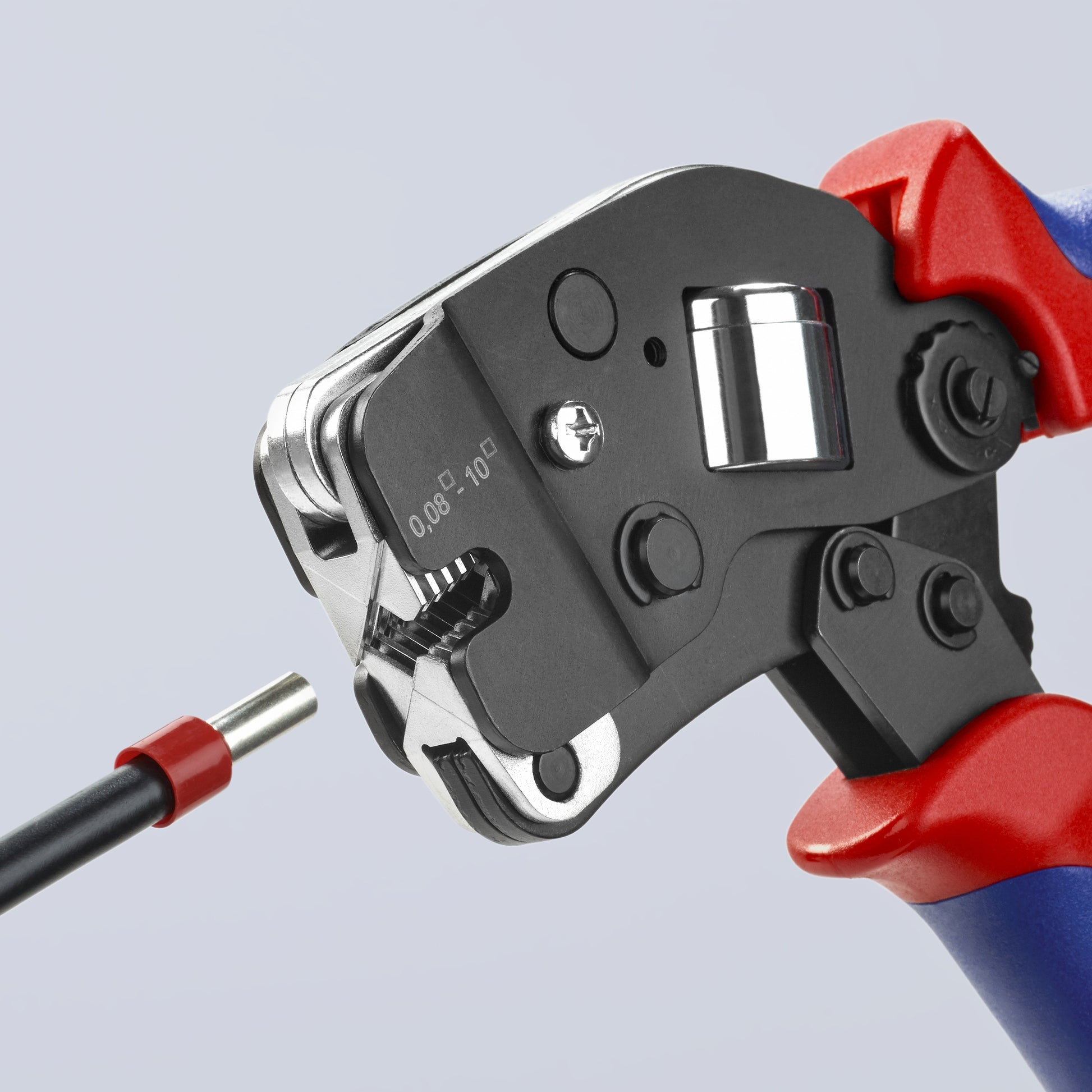

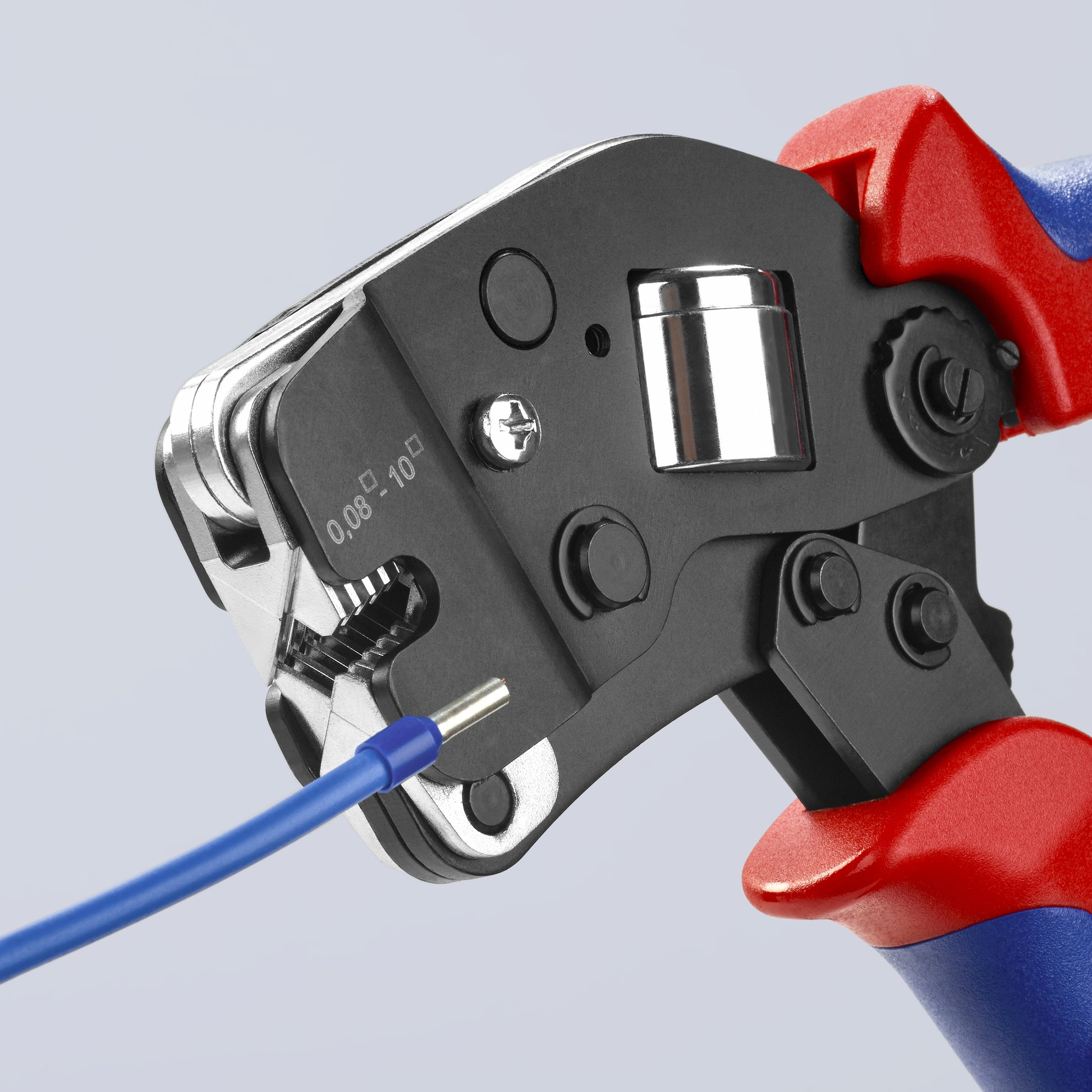

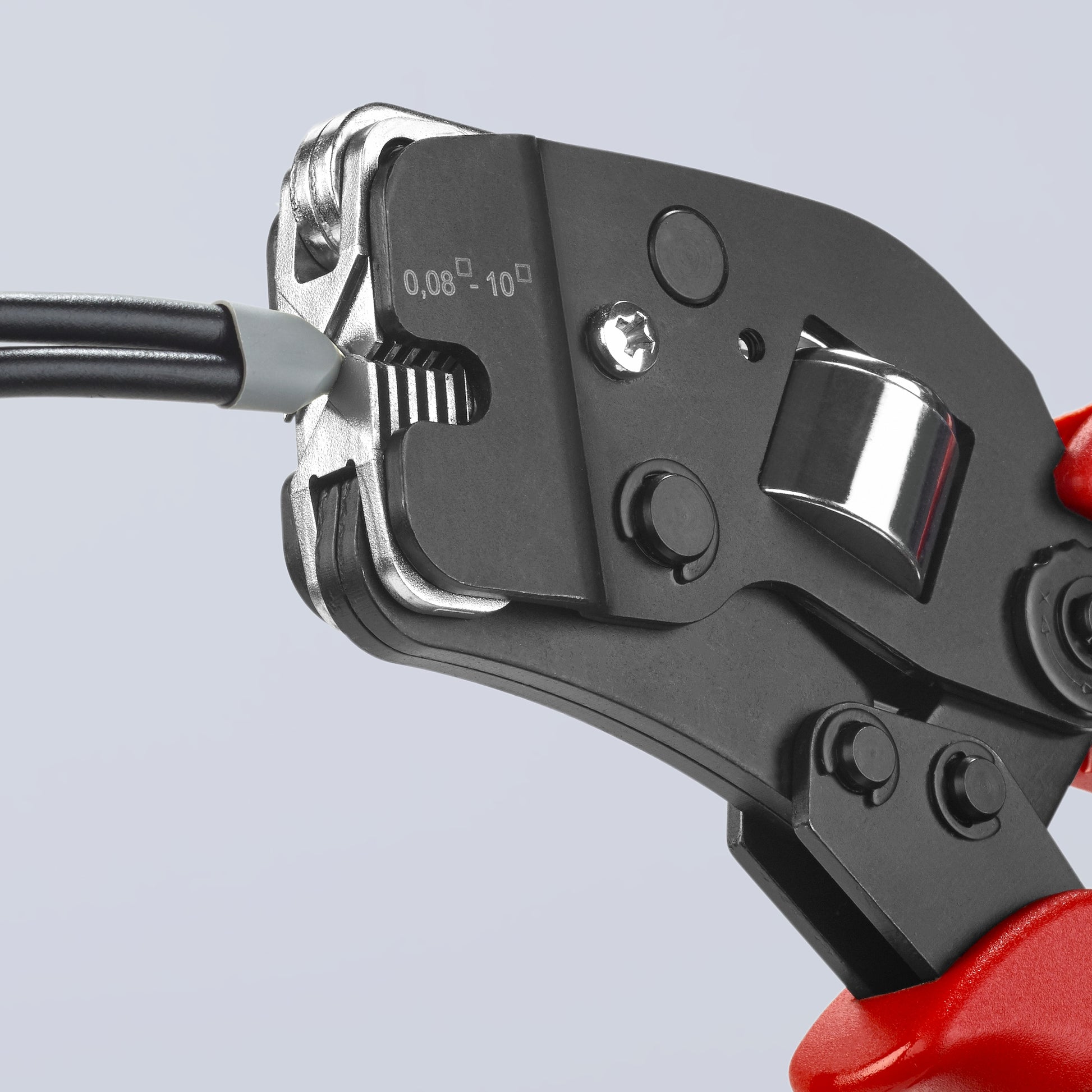

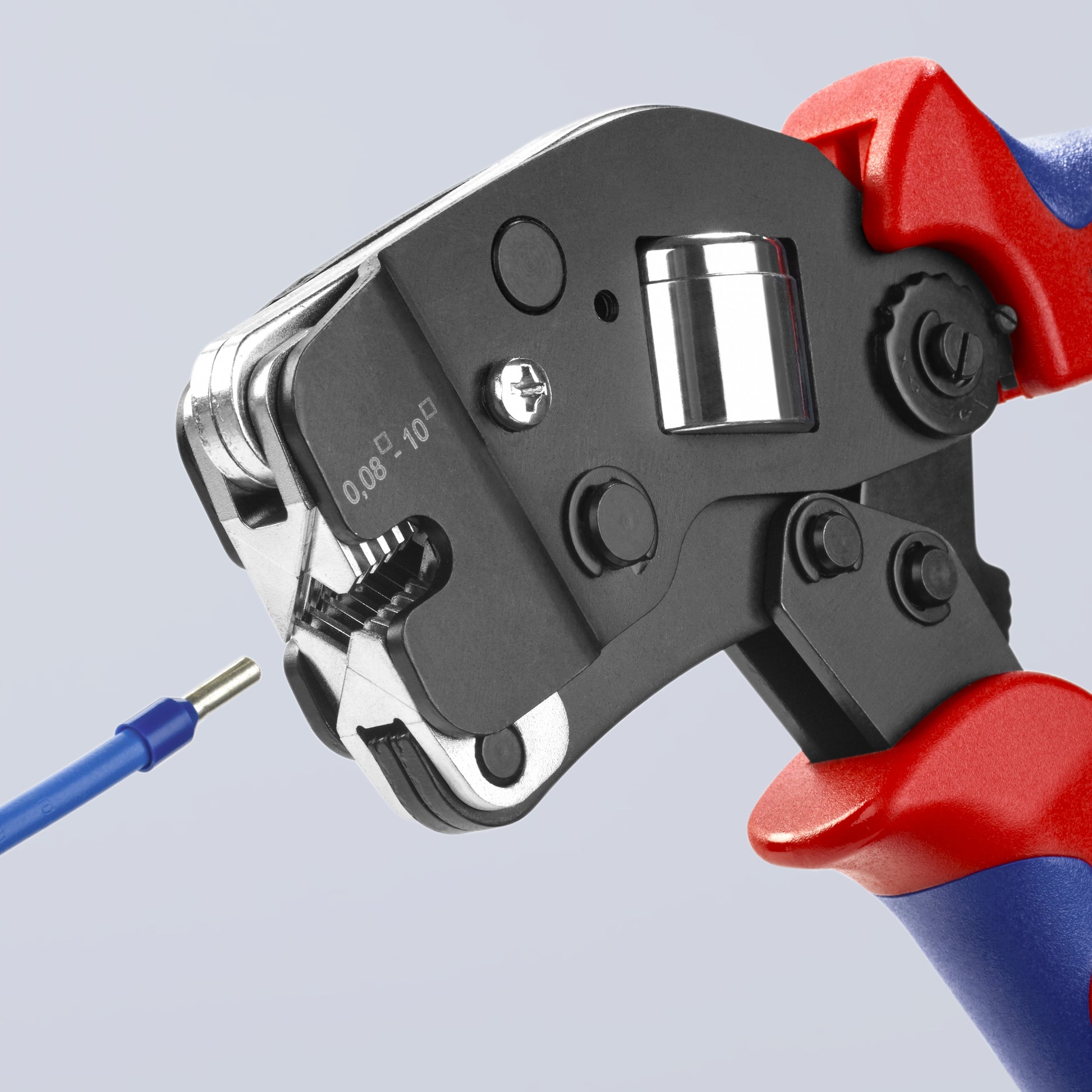

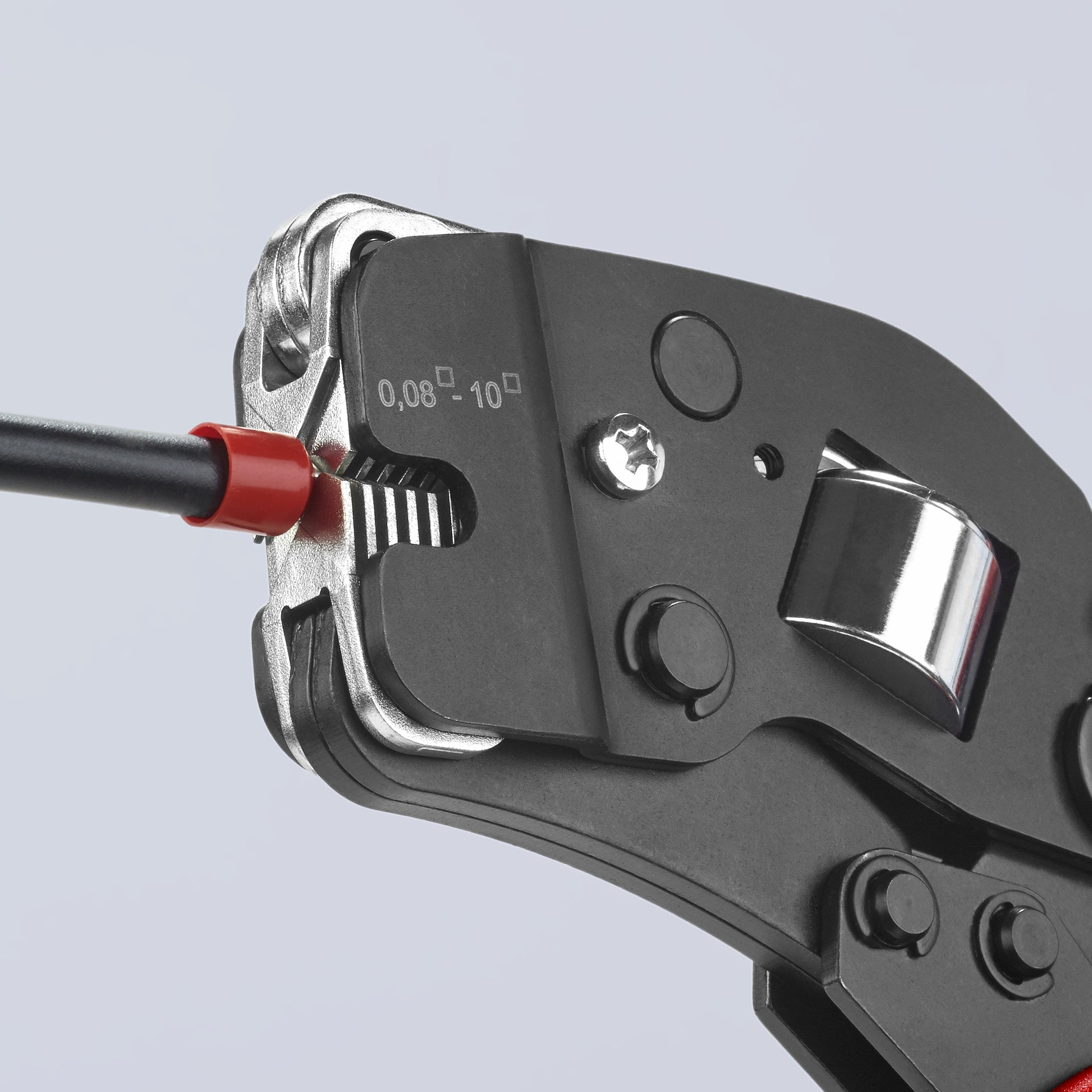

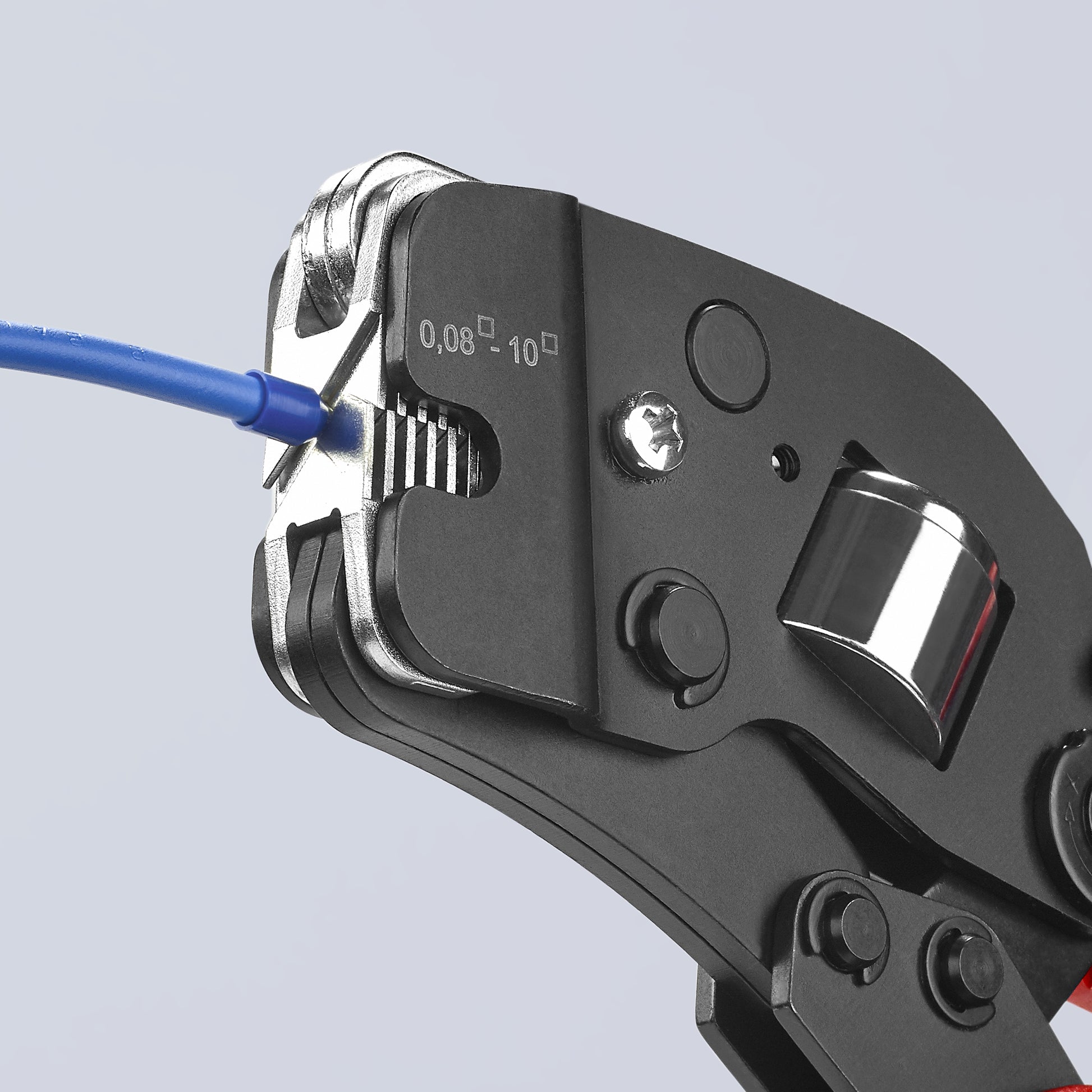

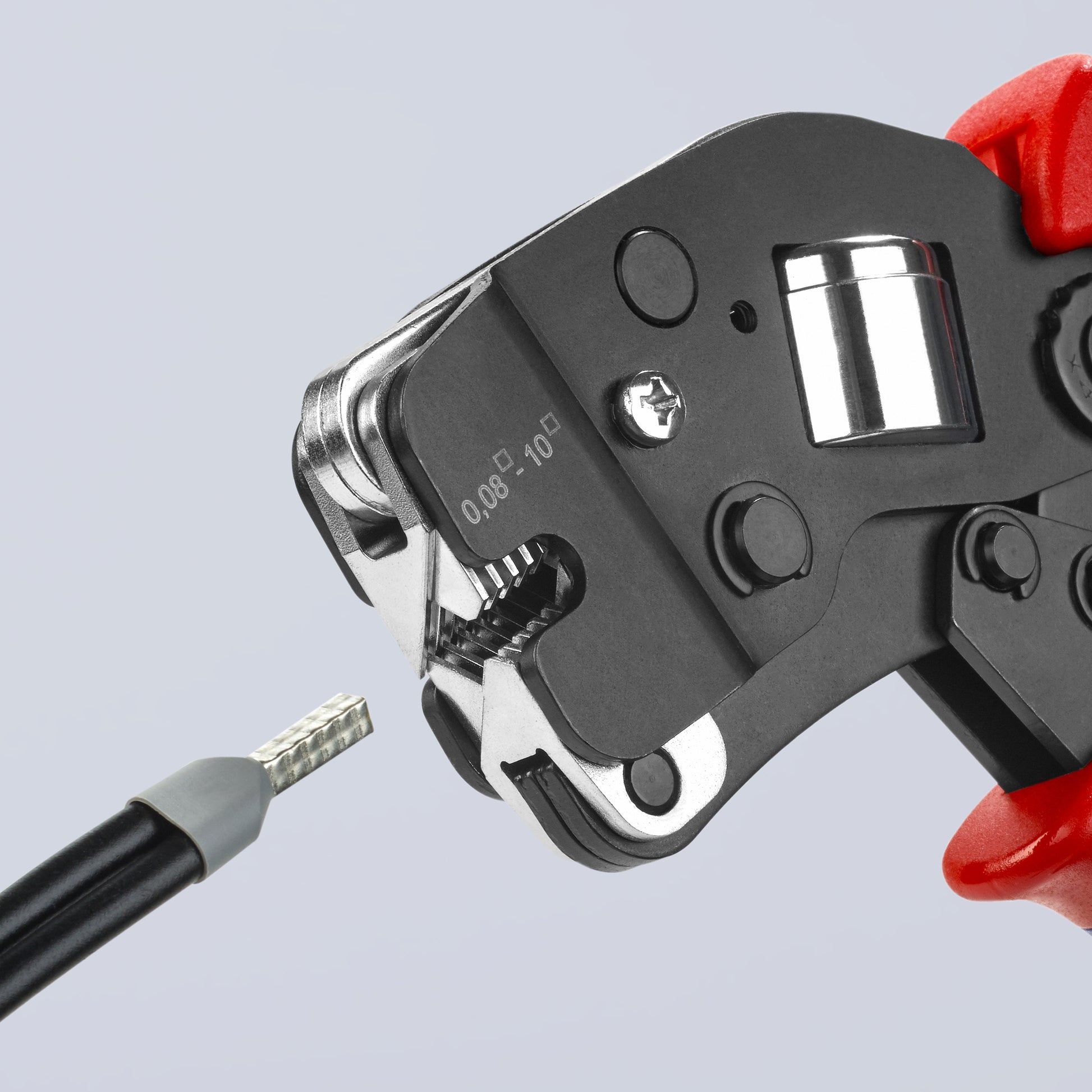

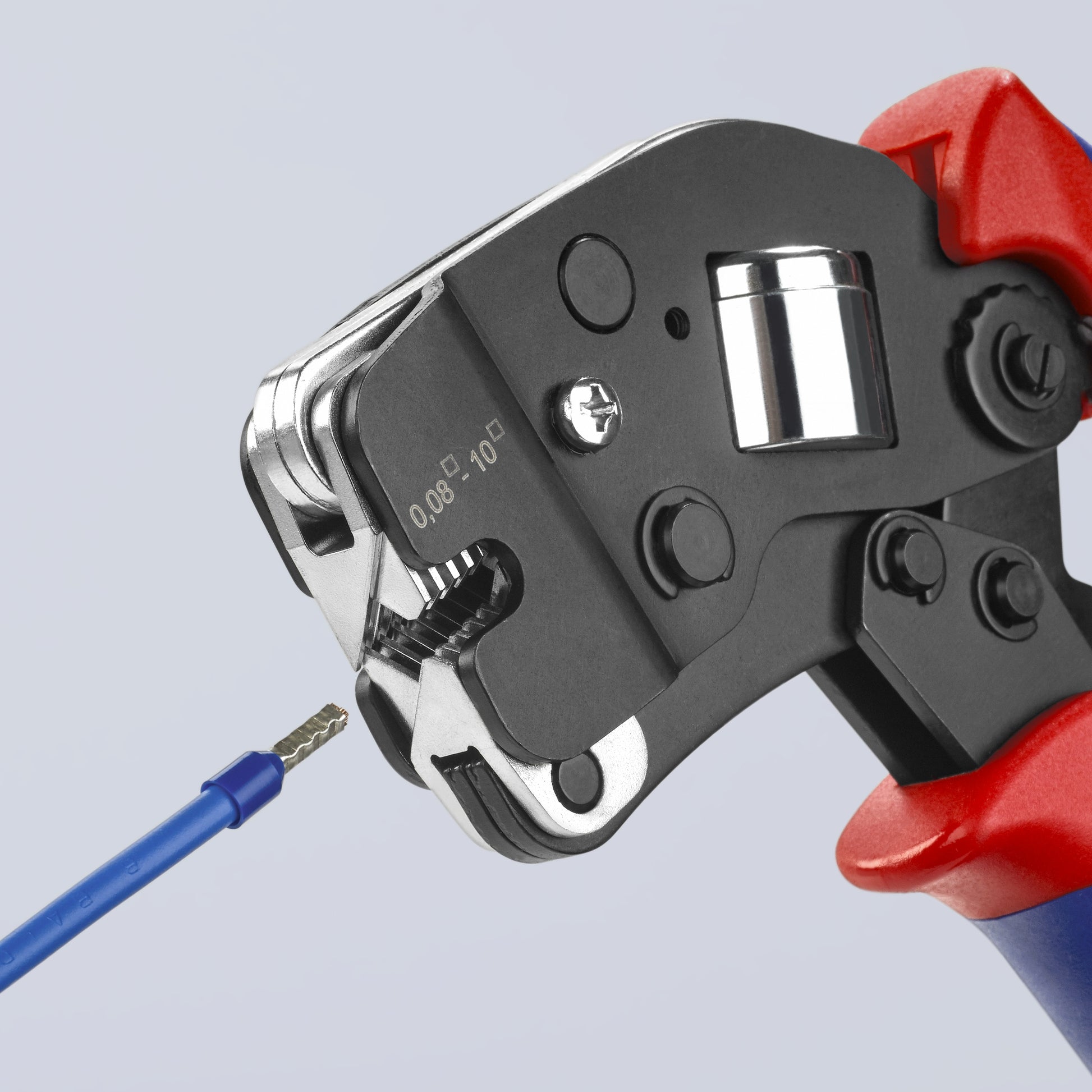

• Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10

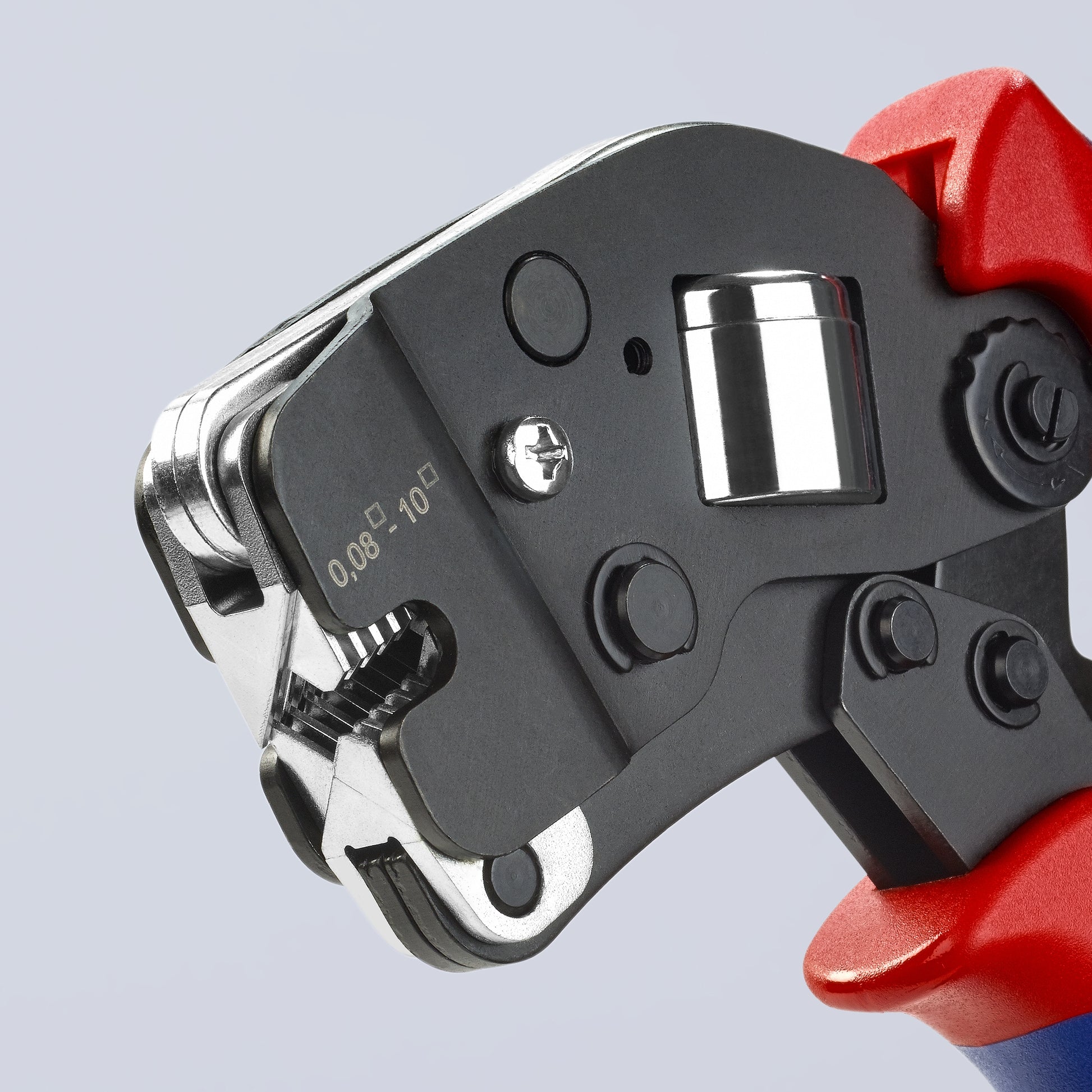

• Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Crimping pressure has been set precisely (calibrated) in the factory
• Optimum transmission of force due to toggle lever for fatigue-reduced operation
• High operation comfort thanks to handy shape and low weight
• Chrome vanadium electric steel in special quality, oil-hardened

Specifications

• Manufacturer Part Number: 97 53 08
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 7 1/2"
• Tool Nominal Length: 7.5"
• Tool Length: 7.6"
• Tool Width: 2.9"
• Tool Height: 0.95"
• Tool Weight: 479 g (1.055 lb)
• Crimping Positions: 1

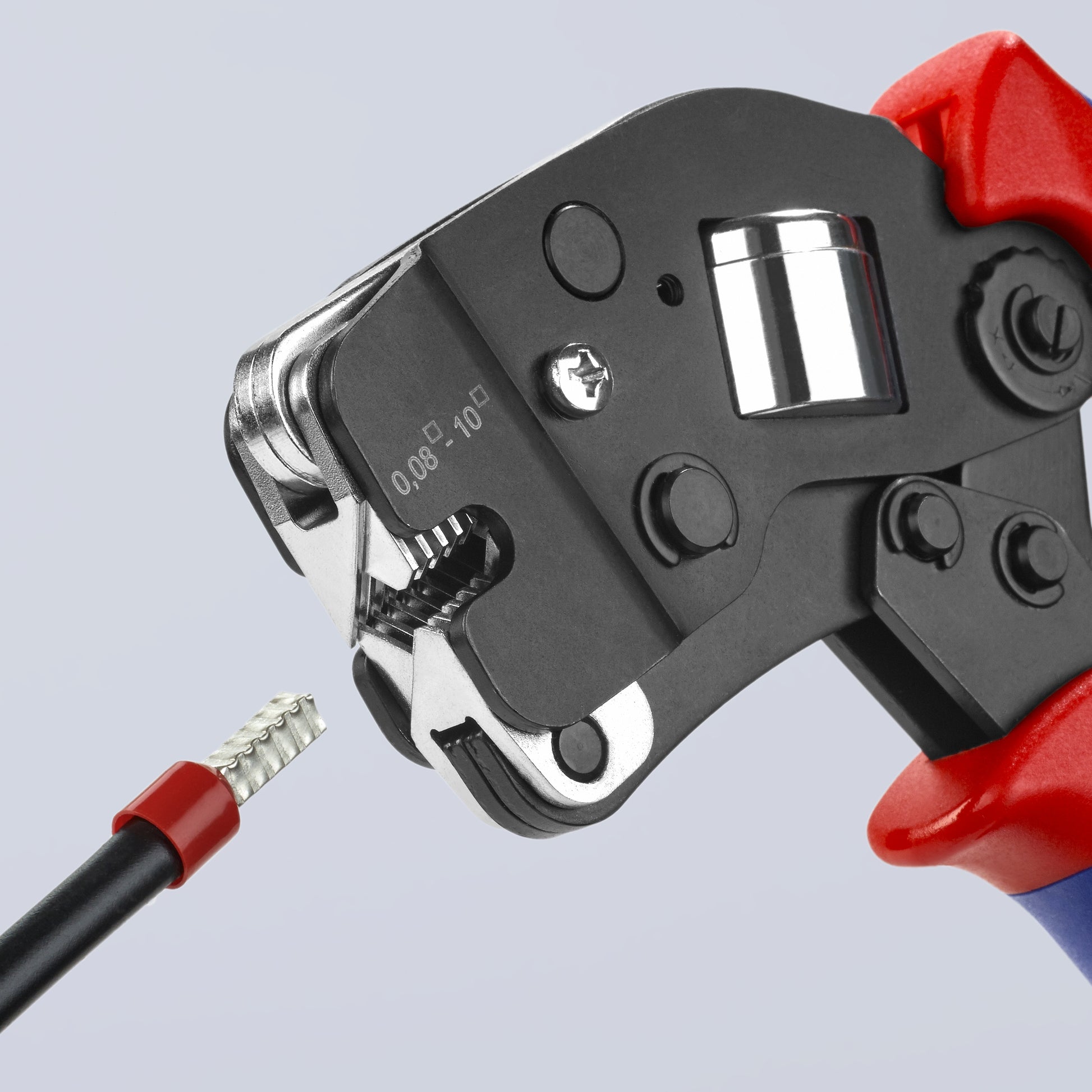

• Crimping Profile: Automatic square crimp
• Terminal Type: End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity - AWG: 28 to 8
• Crimping Capacity - mm2: 0.08 to 10.0
• Set Part Number: 97 90 24
• UPC: 843221002268
