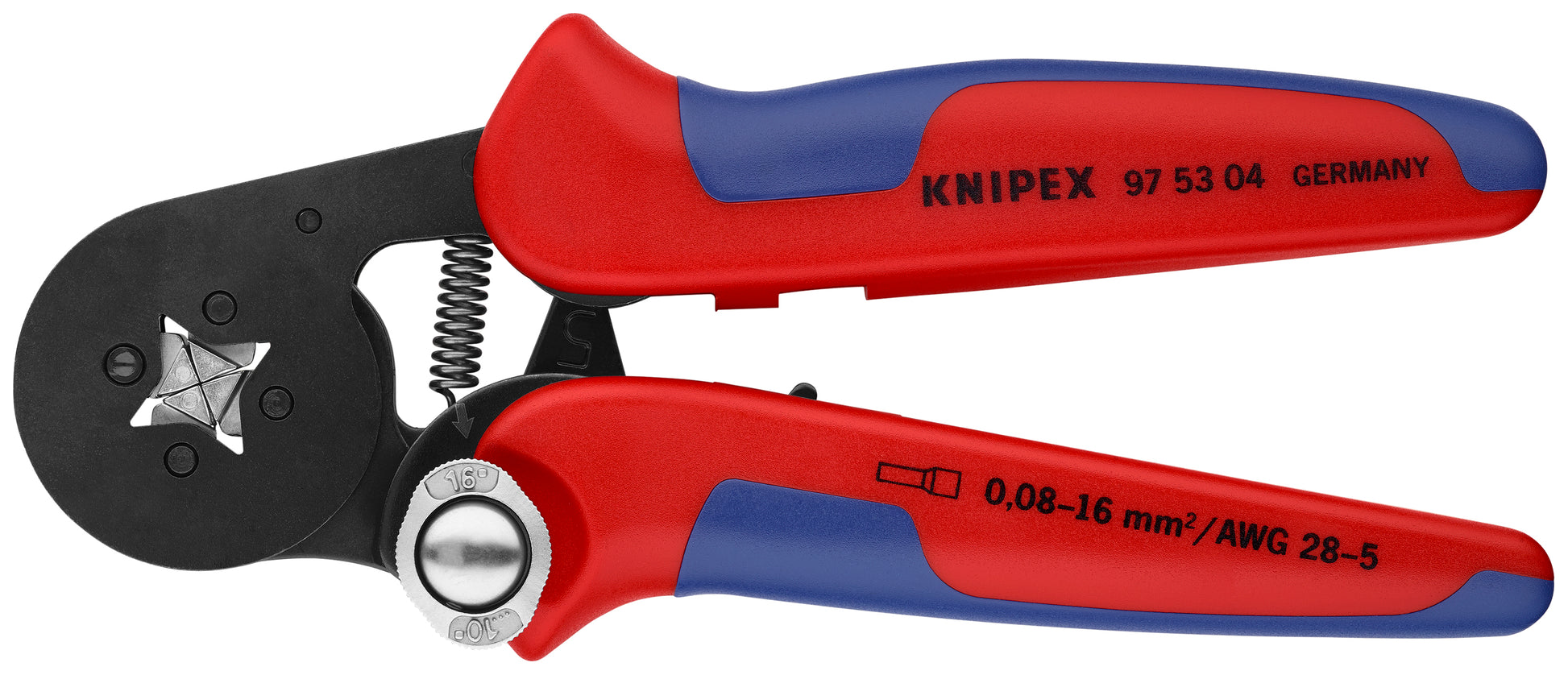

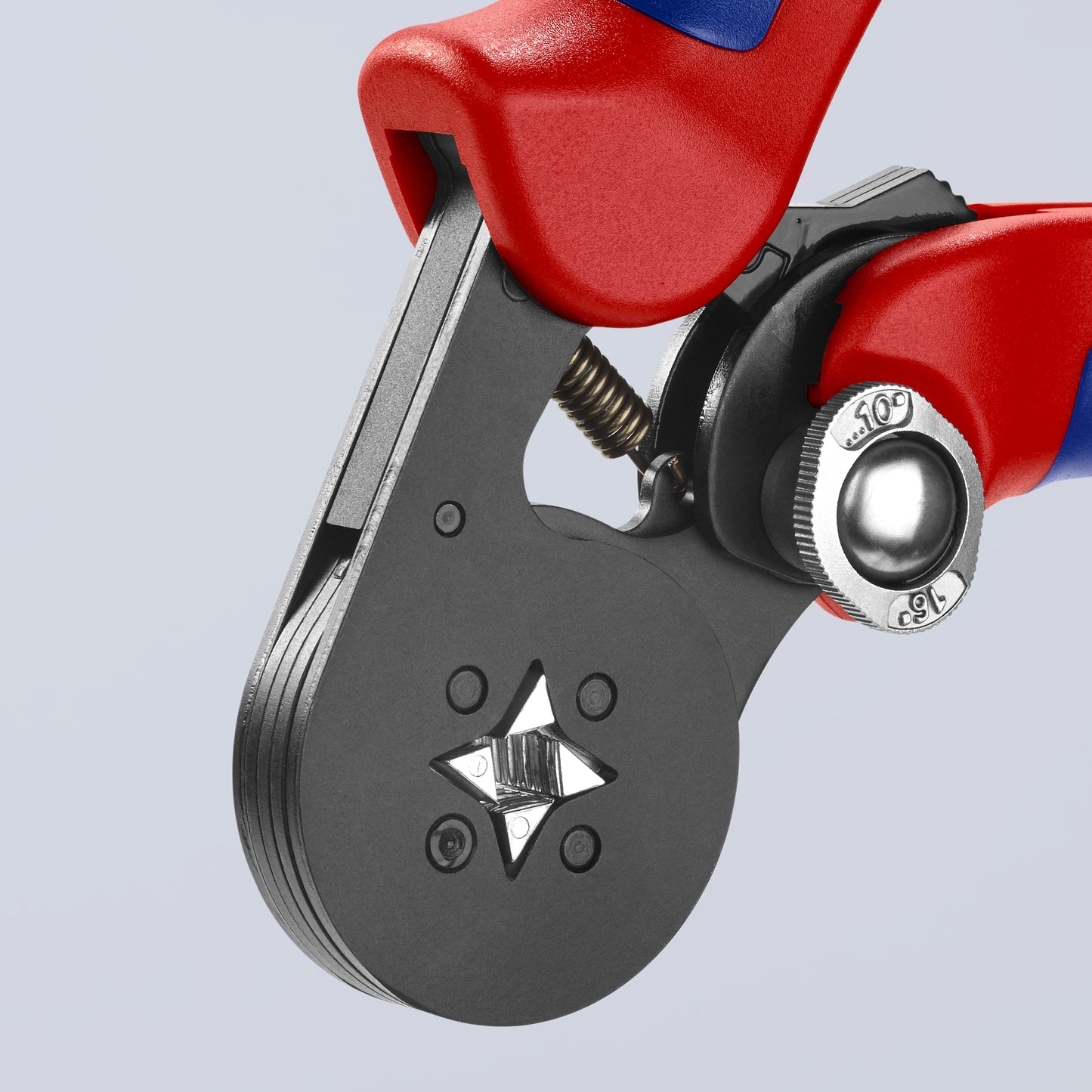

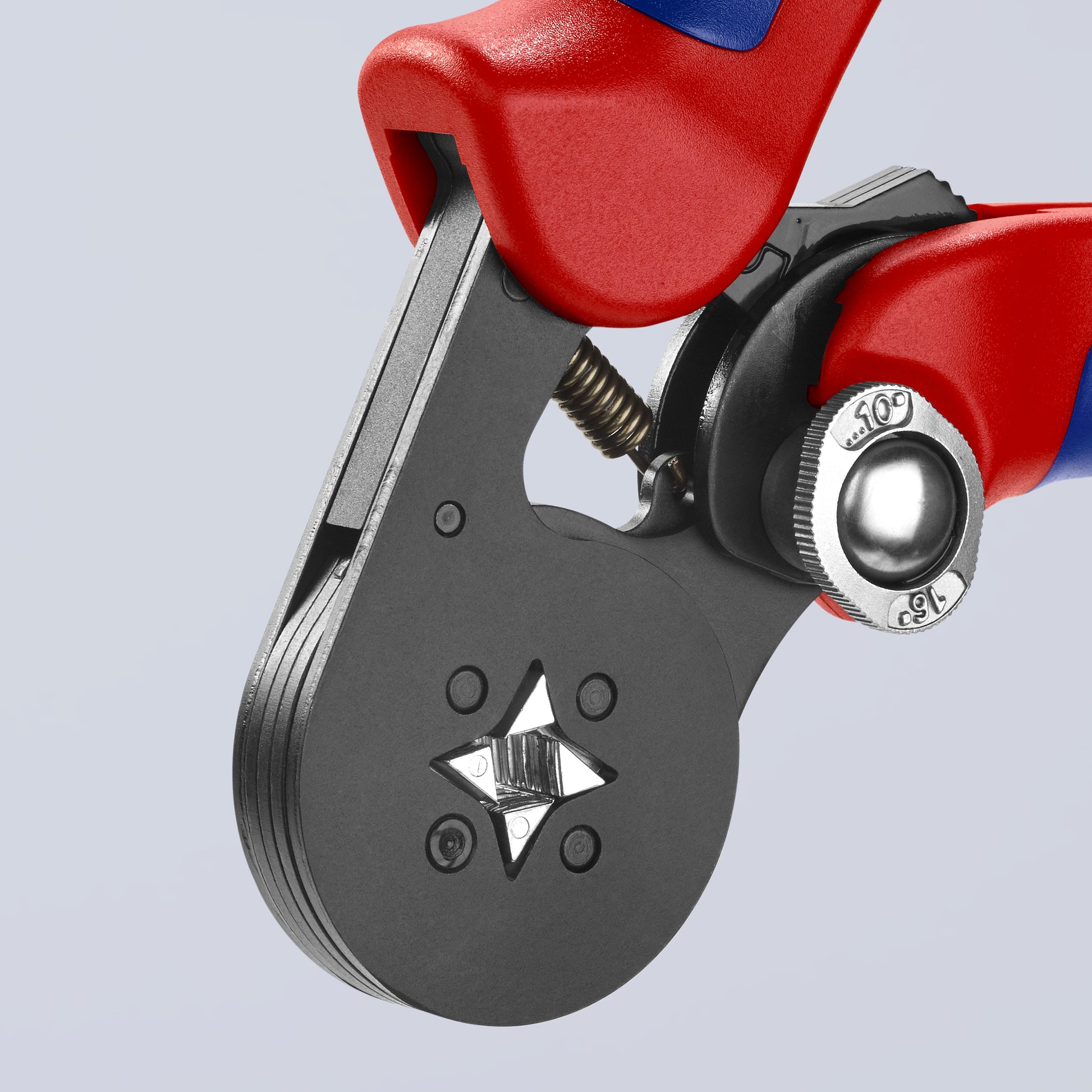

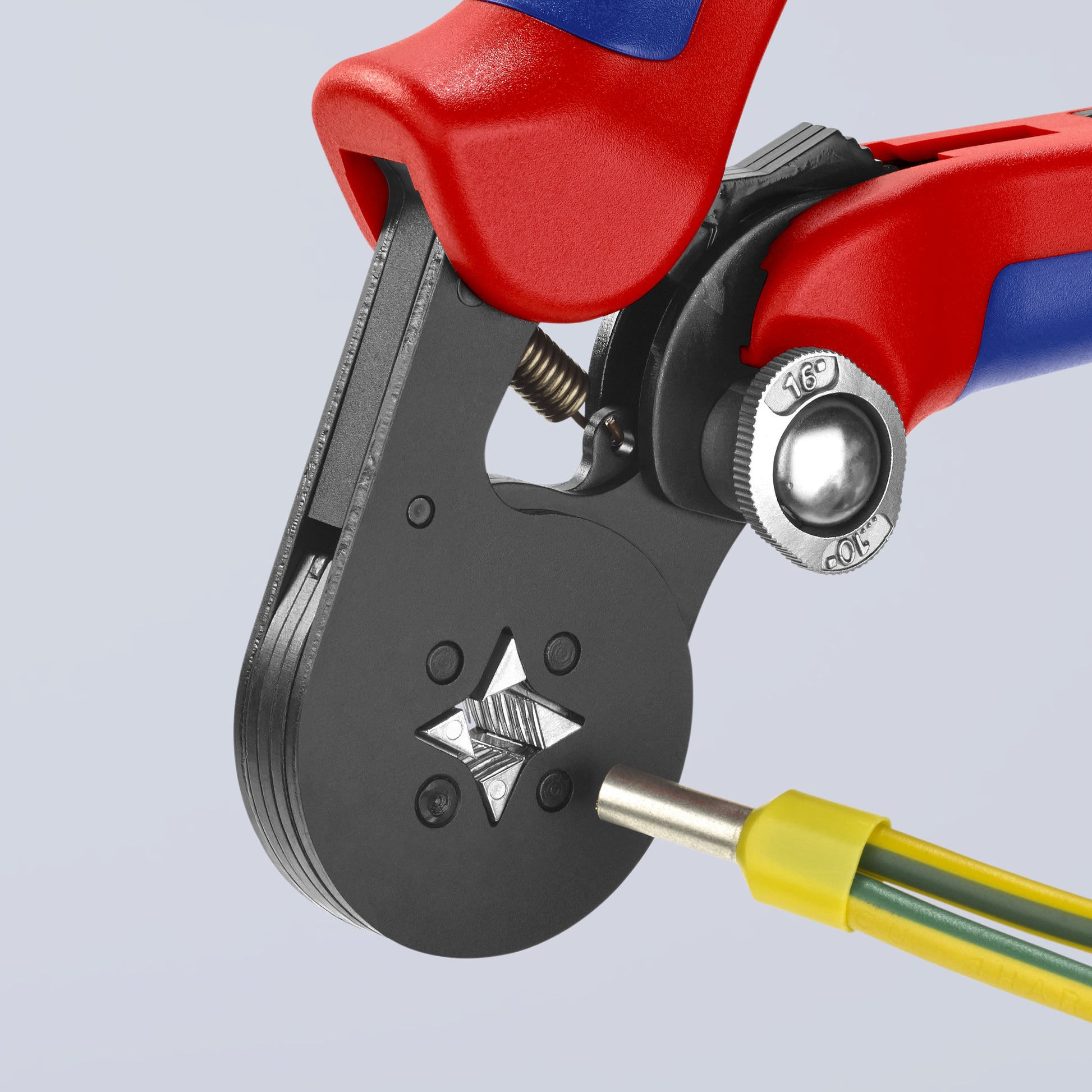

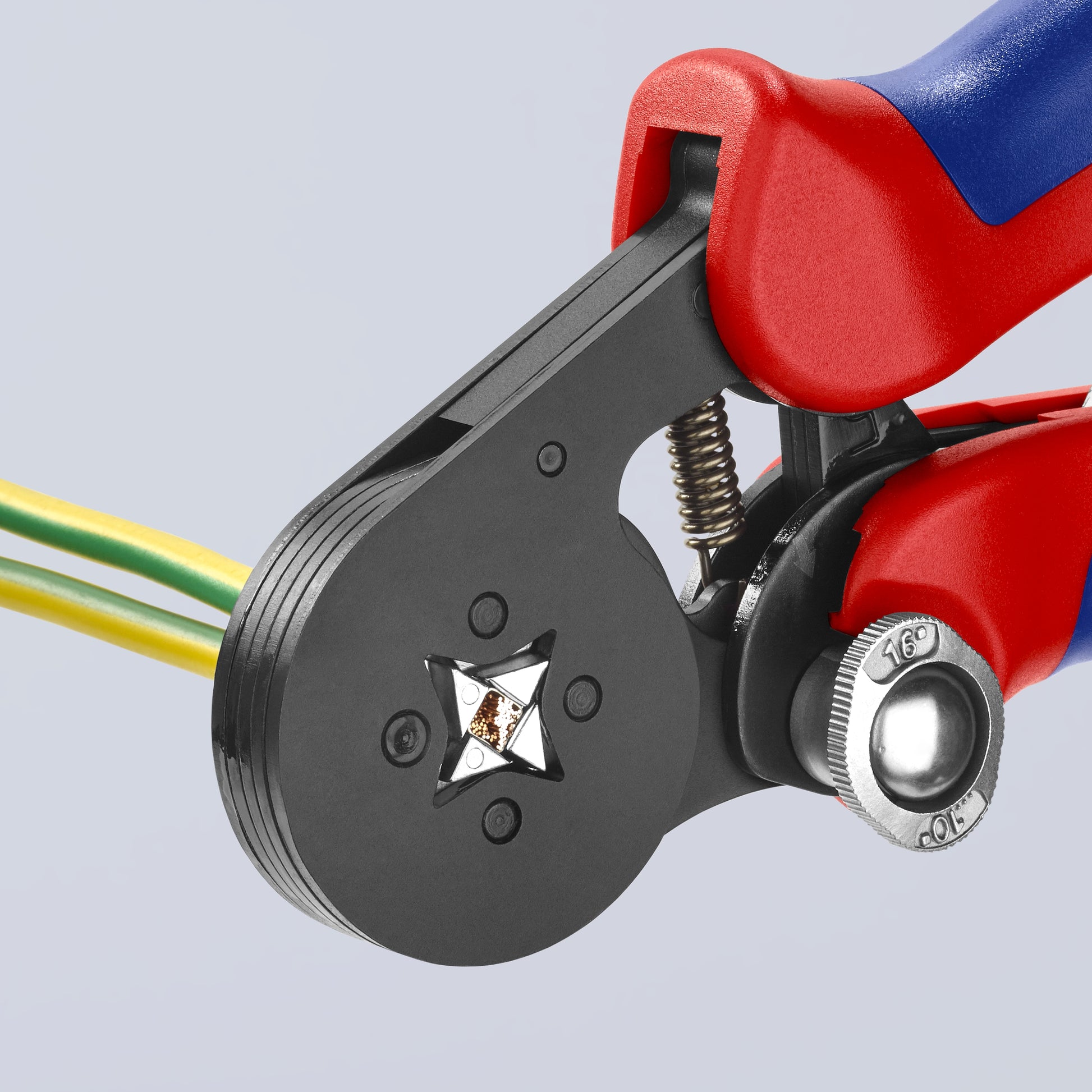

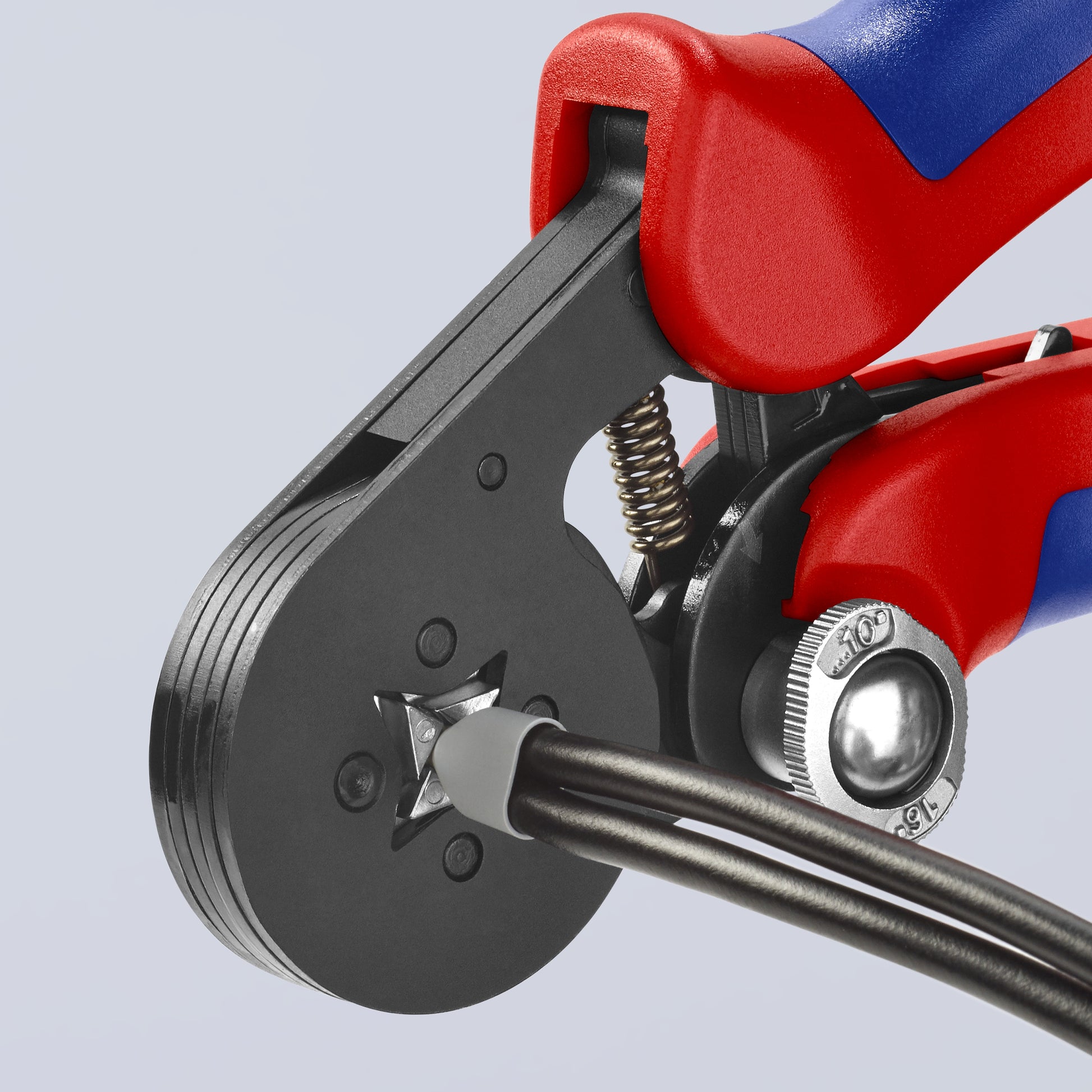

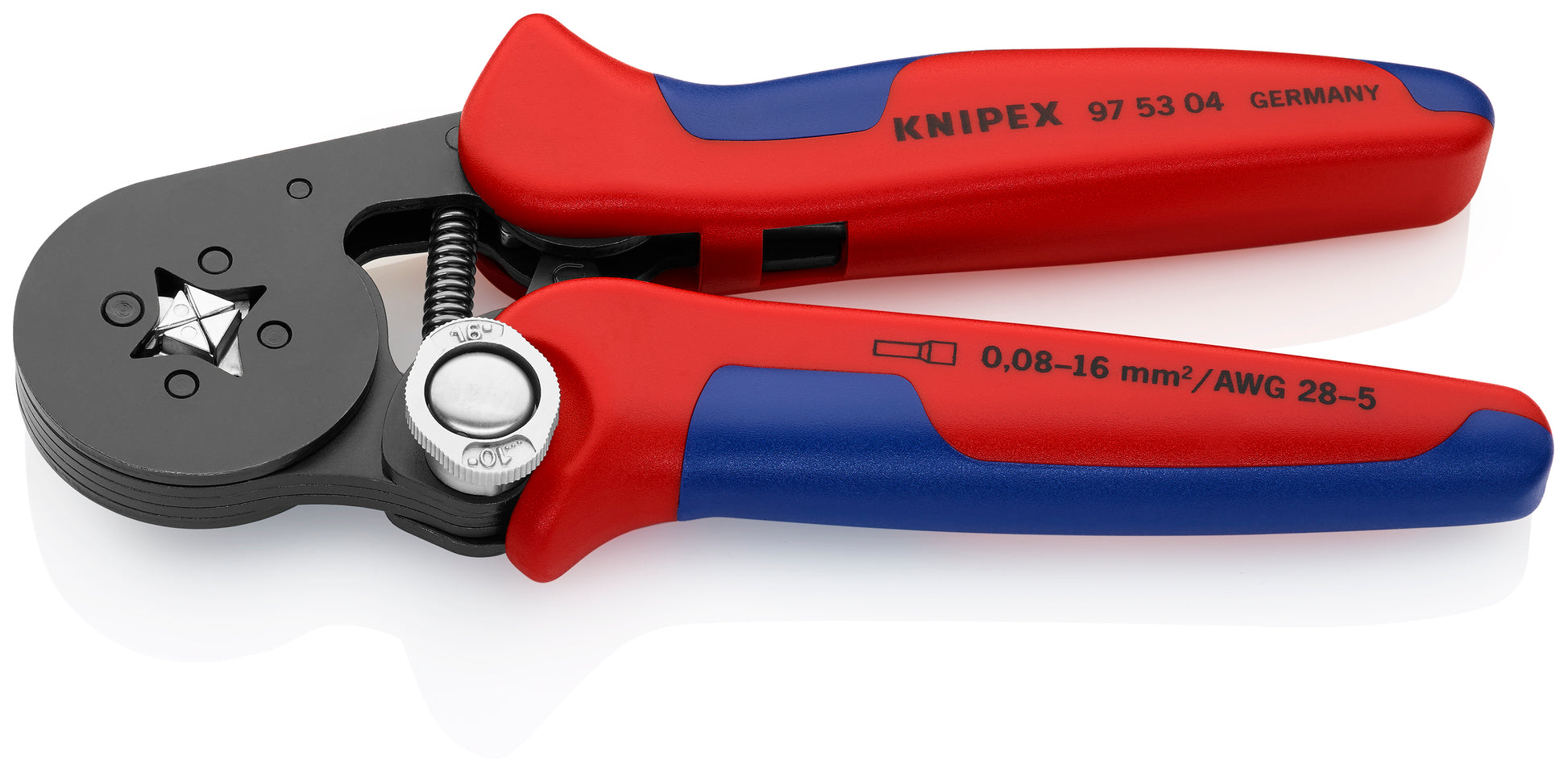

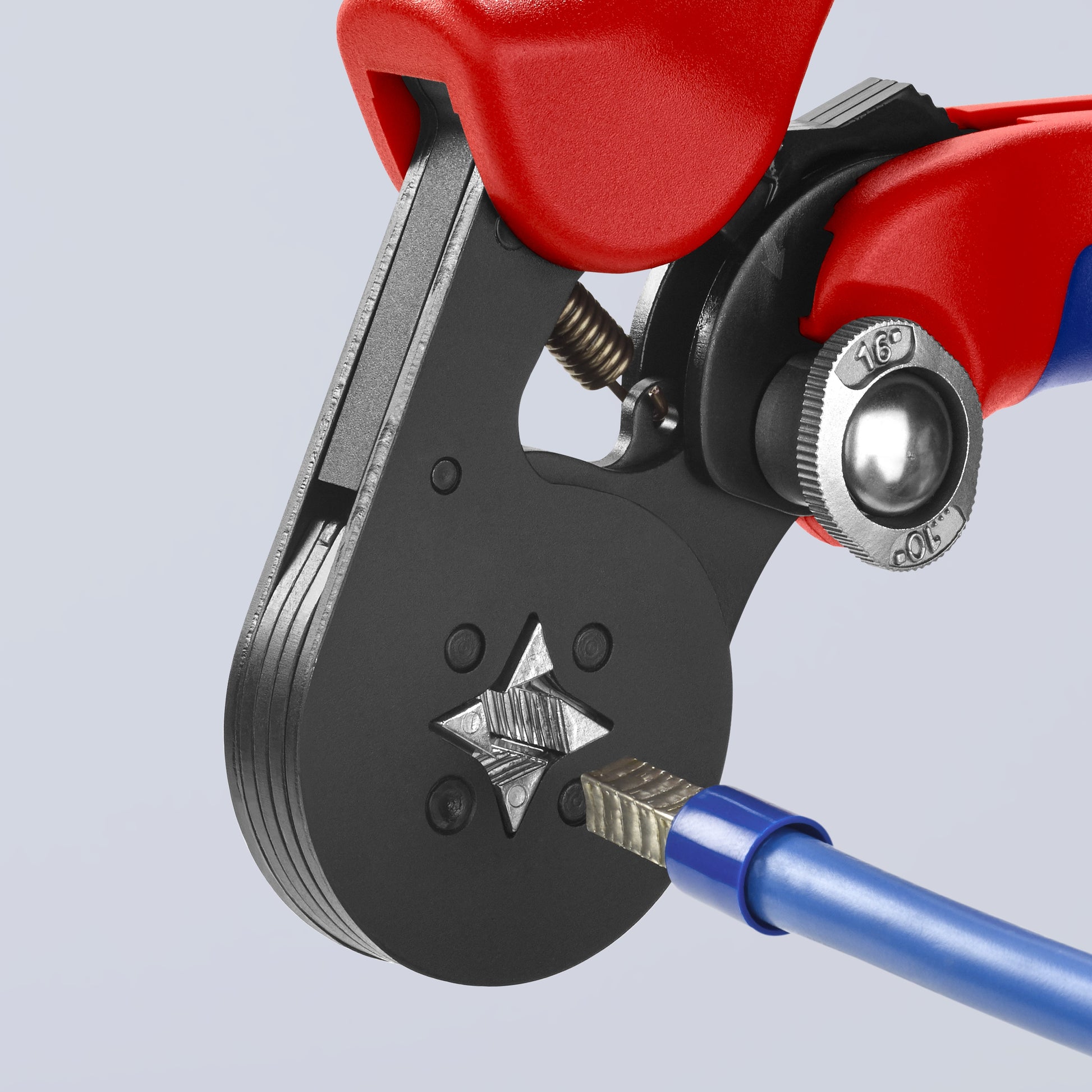

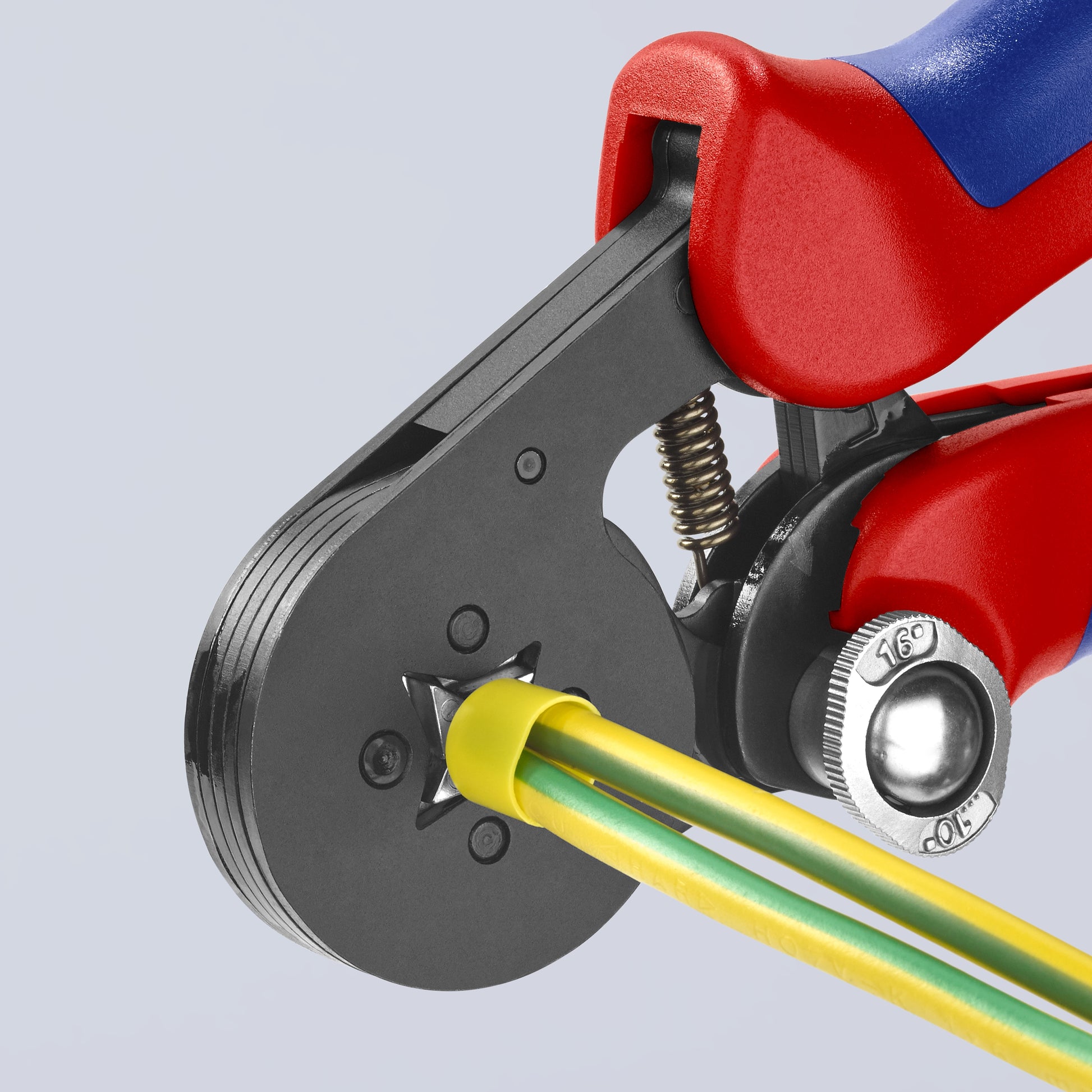

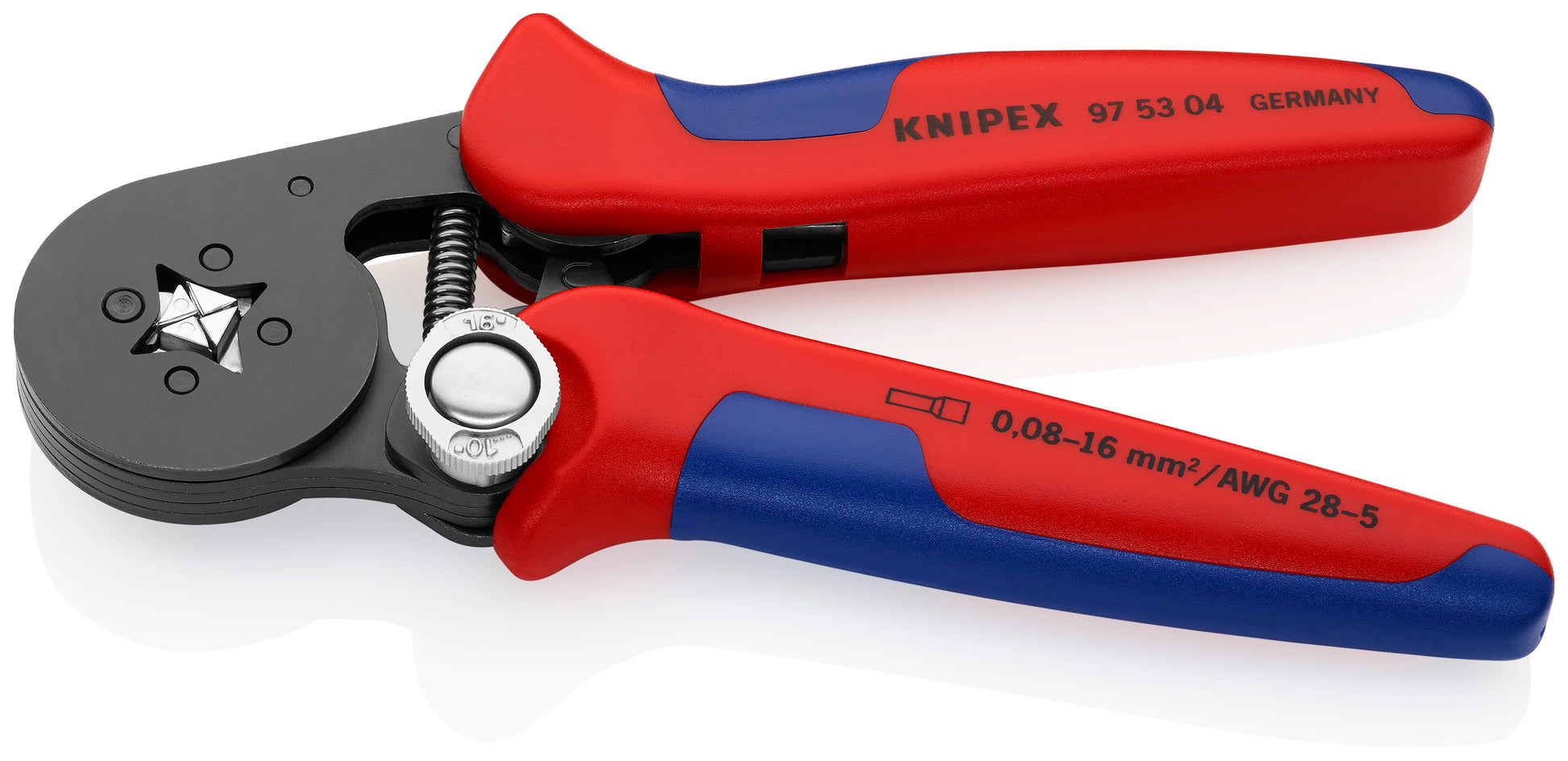

Knipex 97 53 04 Self-Adjusting Crimping Pliers For Wire Ferrules

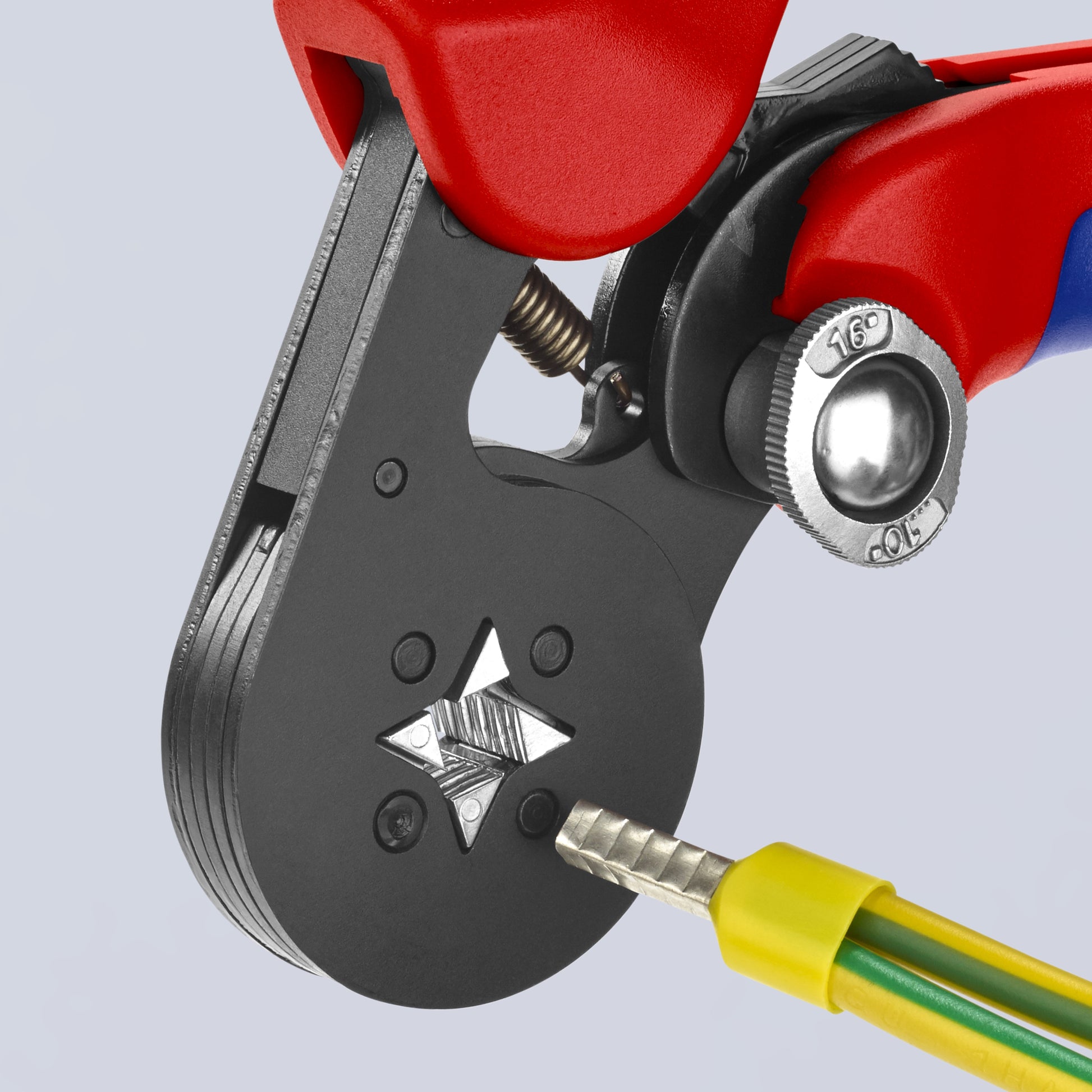

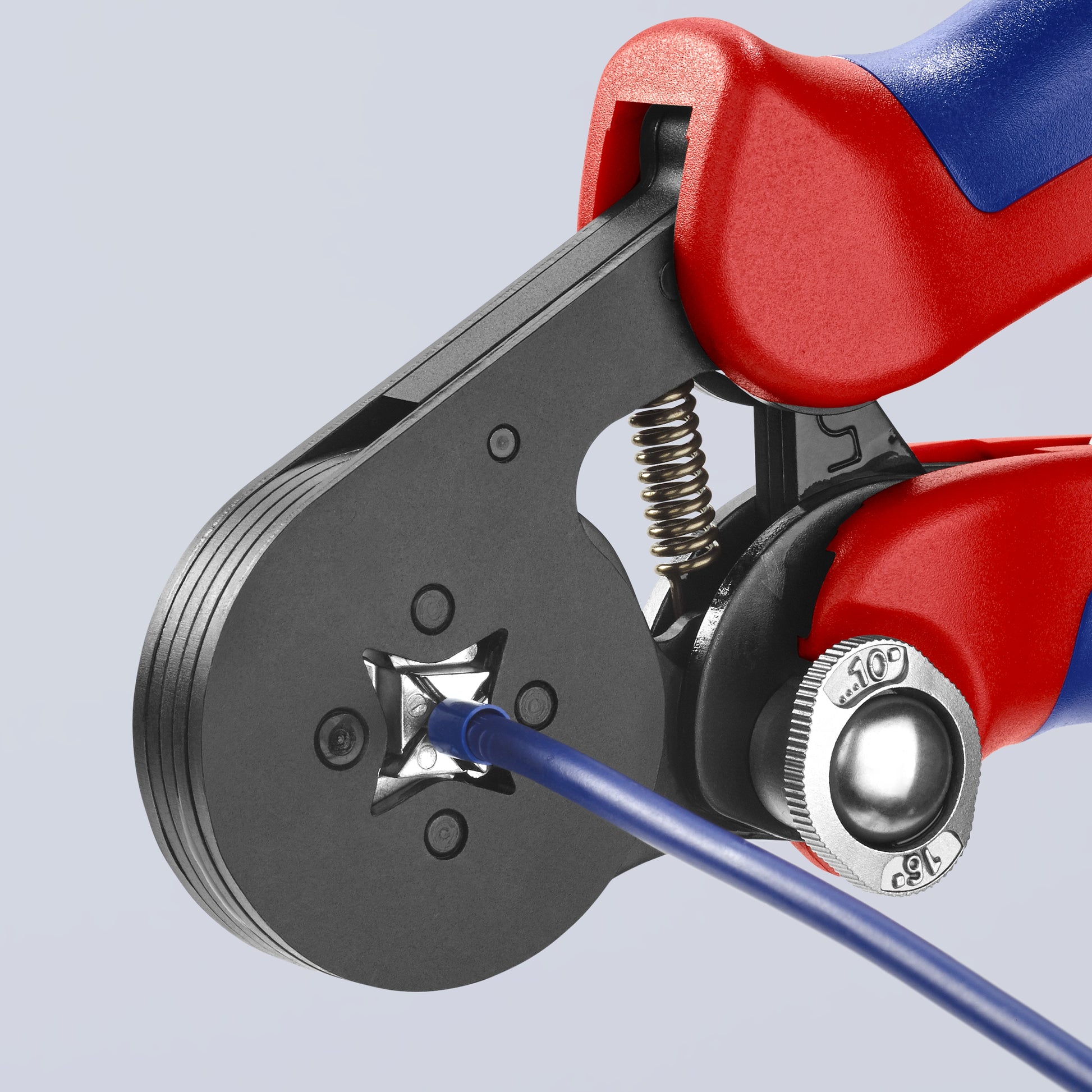

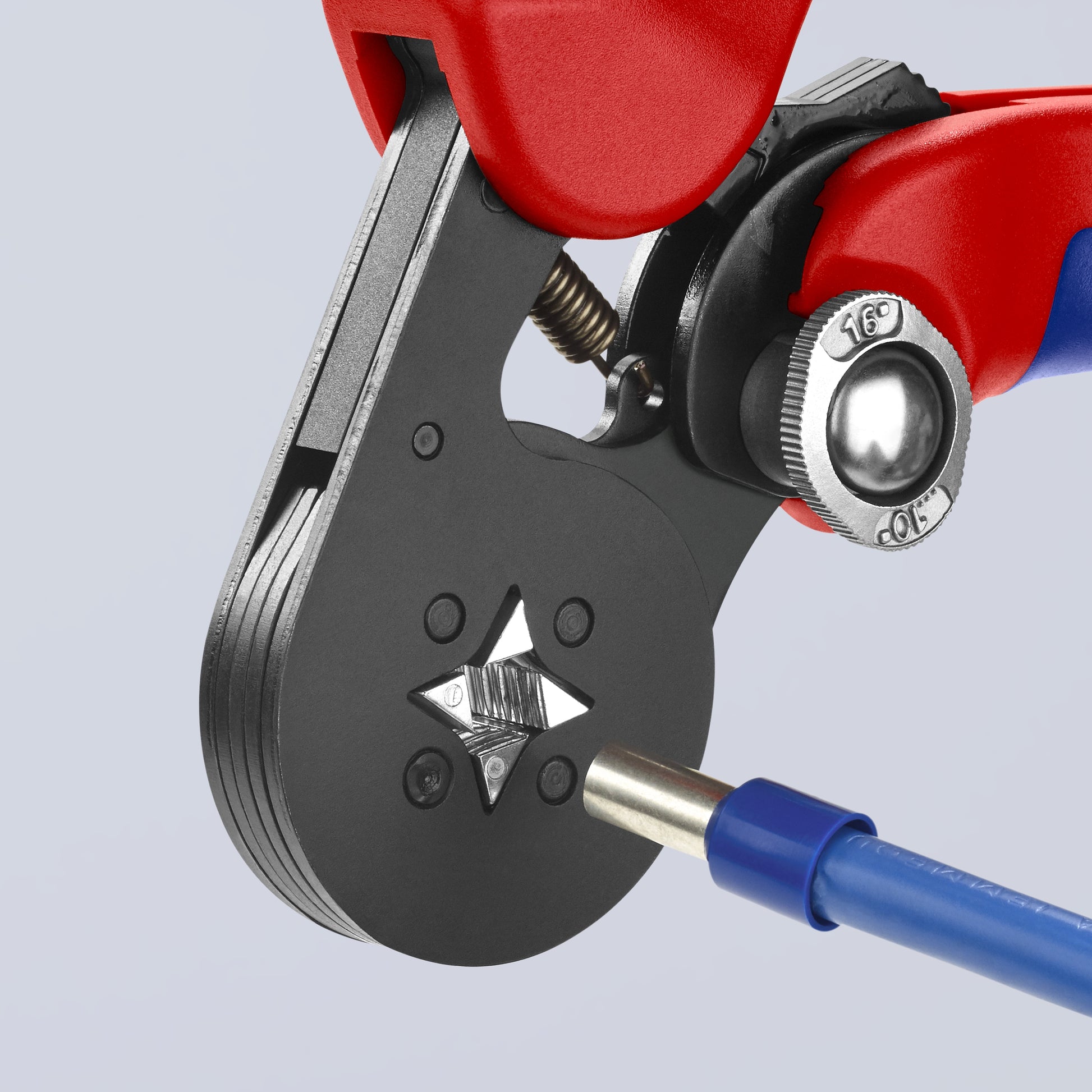

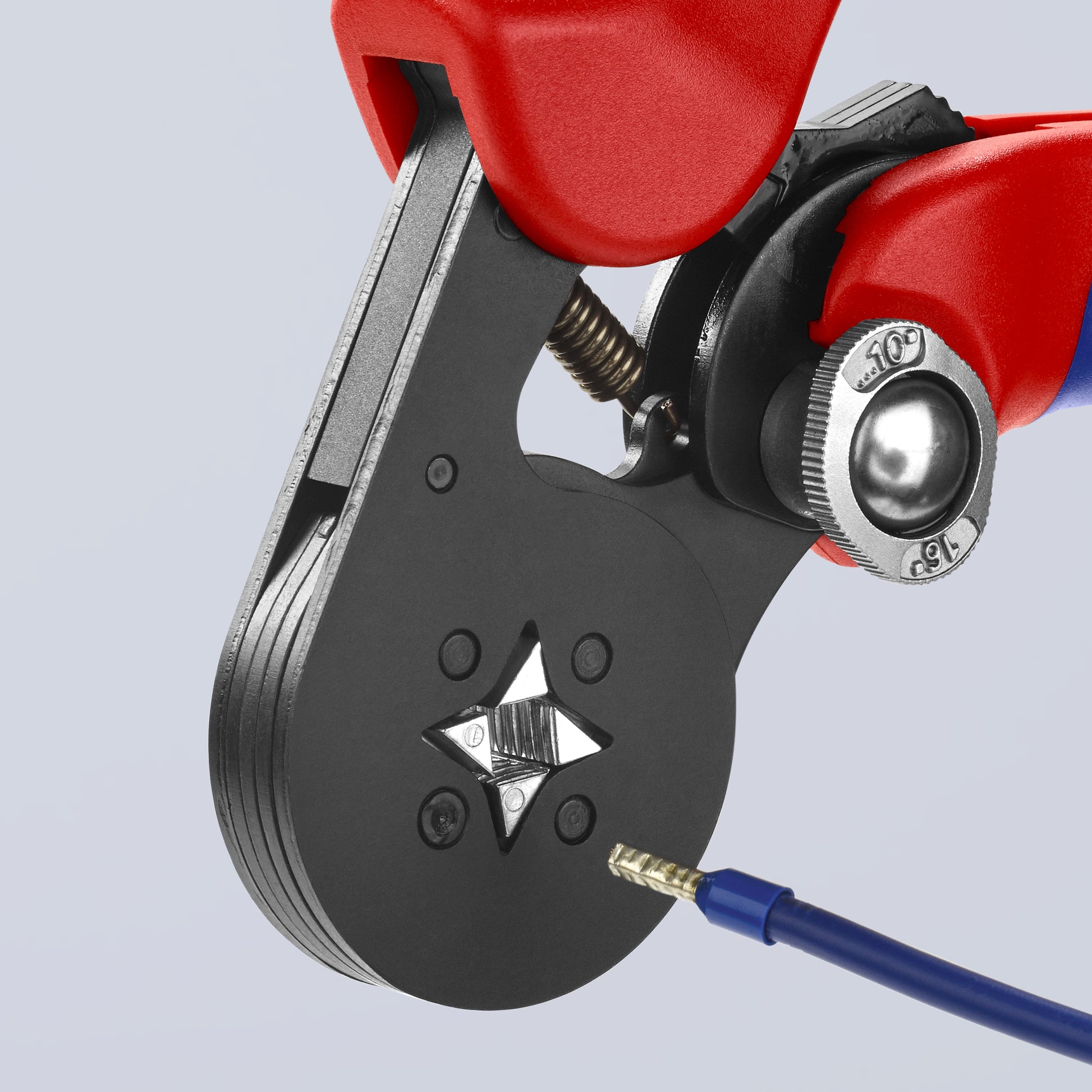

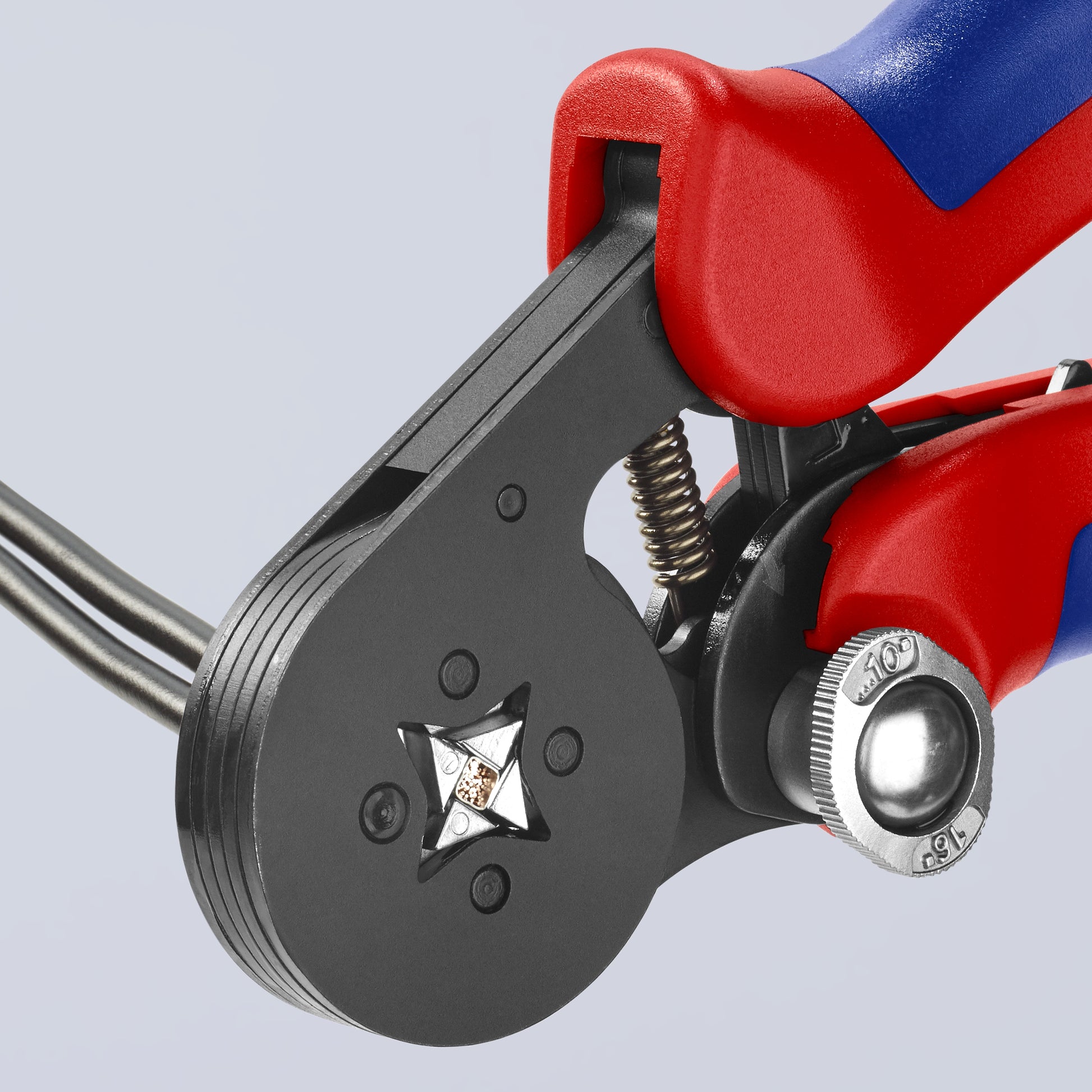

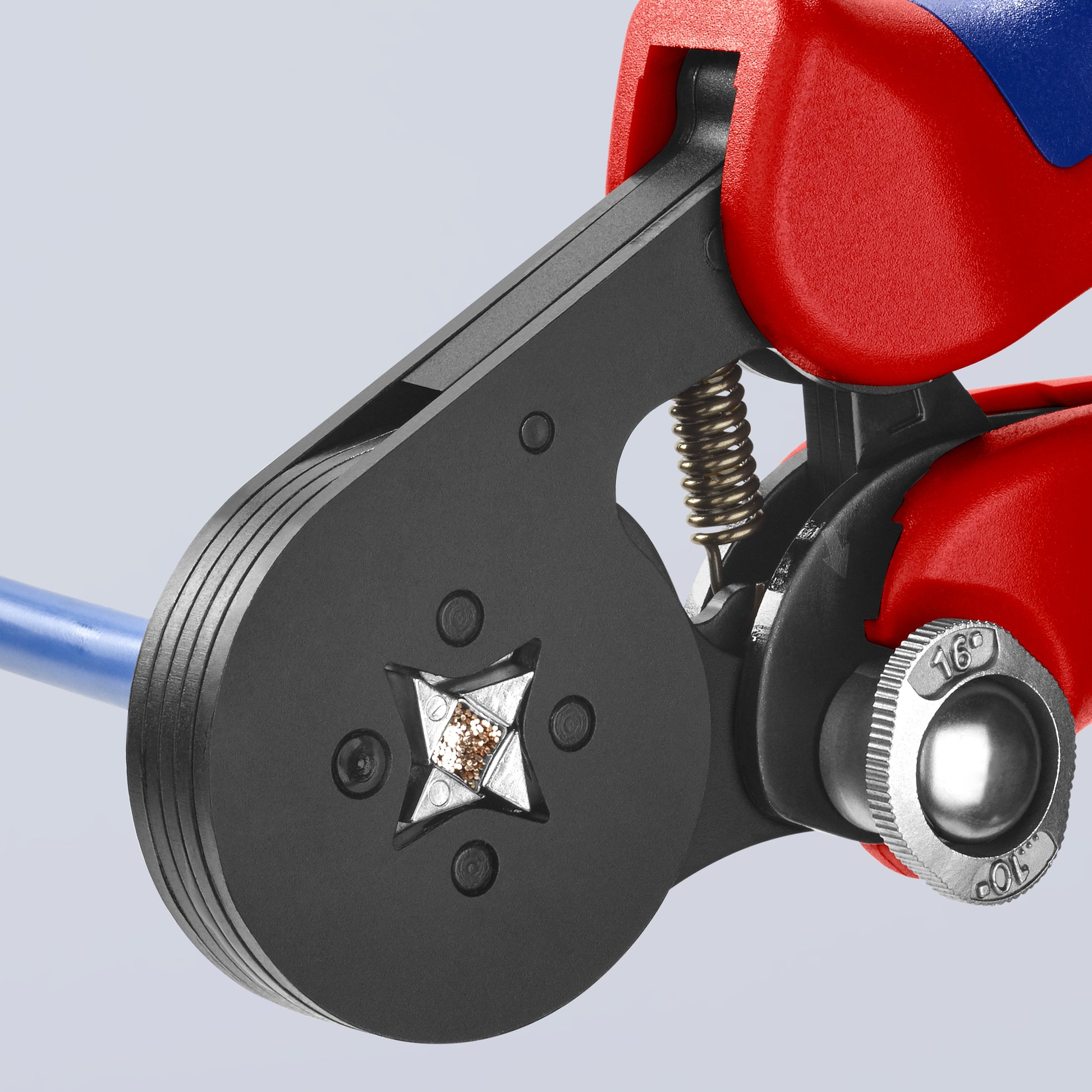

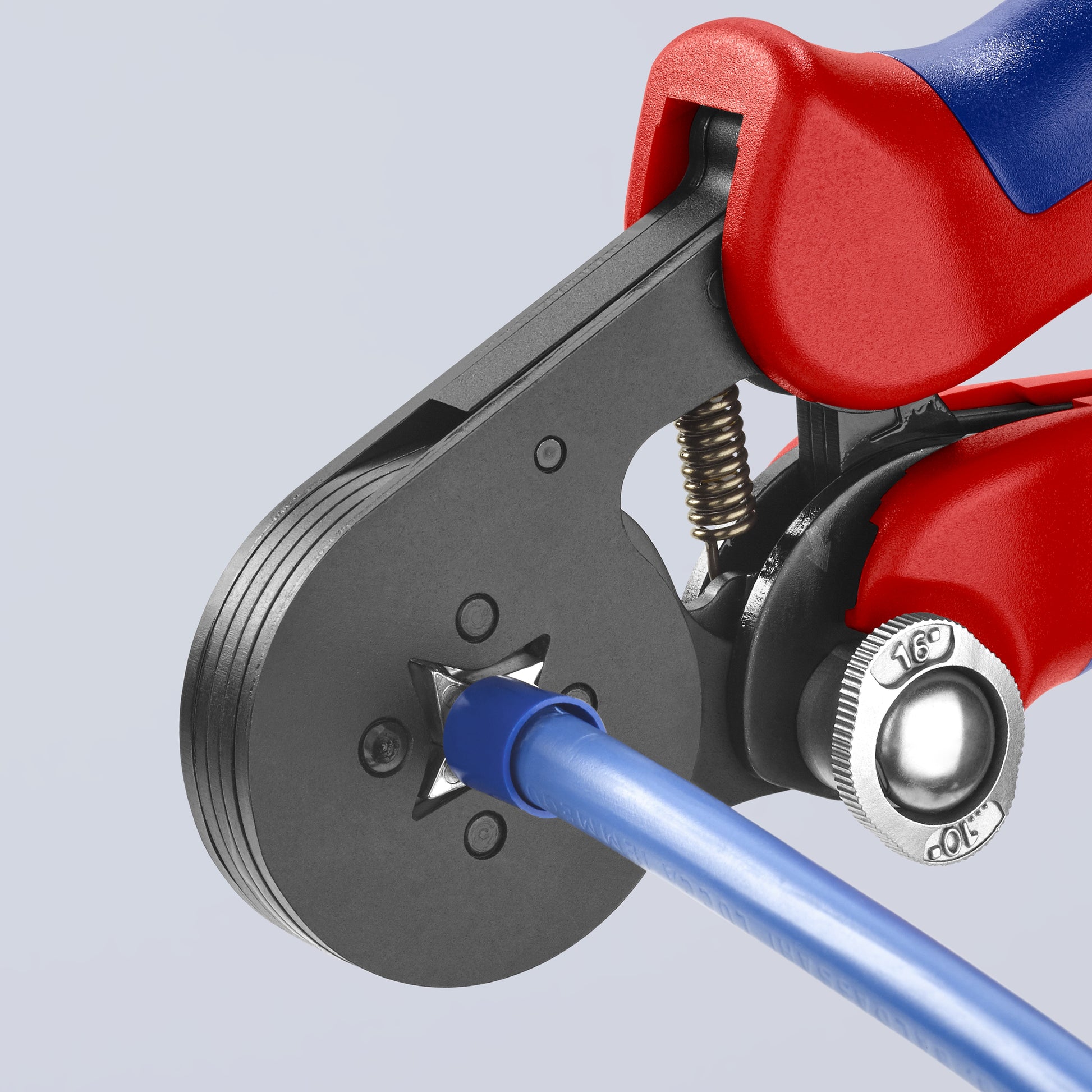

Self-adjusting crimping pliers for end sleeves (ferrules) with side access

Features

• For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
• Capacity - 0.08 to 10 and 16 mm² and 28 to 8 and 6 AWG
• Self-adjustment to the size of ferrules (end sleeves) required
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• These tools have been set precisely (calibrated) in the factory
• Optimum transmission of force due to toggle lever for fatigue-reduced operation
• High operation comfort thanks to handy shape and low weight
• Chrome vanadium electric steel in special quality, oil-hardened

Specifications

• Manufacturer Part Number: 97 53 04
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 7"
• Tool Nominal Length: 7"
• Tool Length: 7"
• Tool Width: 2.75"
• Tool Height: 1.2"
• Tool Weight: 426 g (0.94 lb)
• Crimping Positions: 1
• Crimping Profile: Automatic square crimp
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity - AWG: 28 to 8 and 6
• Crimping Capacity - mm2: 0.08 to 10.0 and 16.0
• Set Part Number: 97 90 10
• UPC: 843221015930
