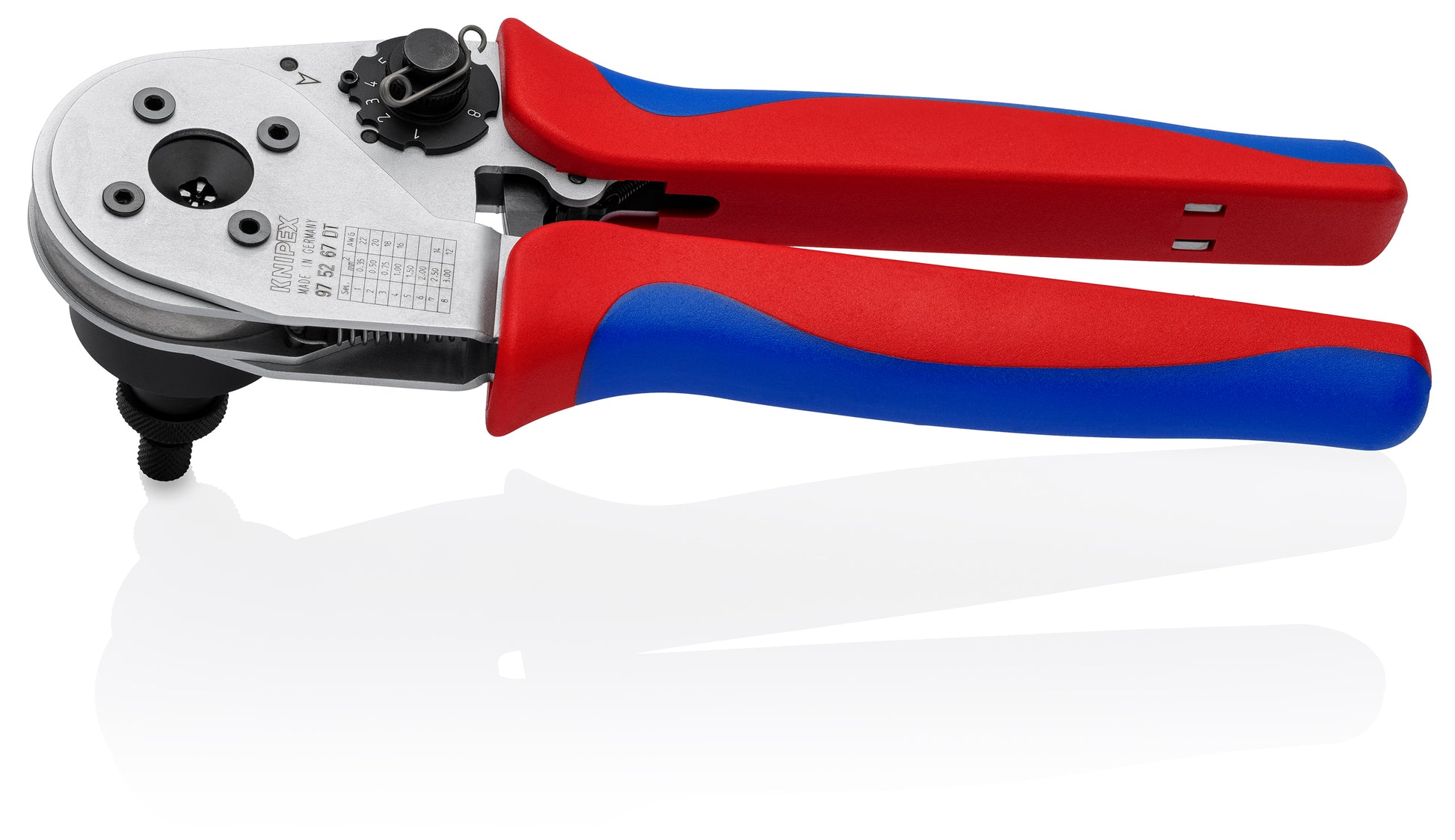

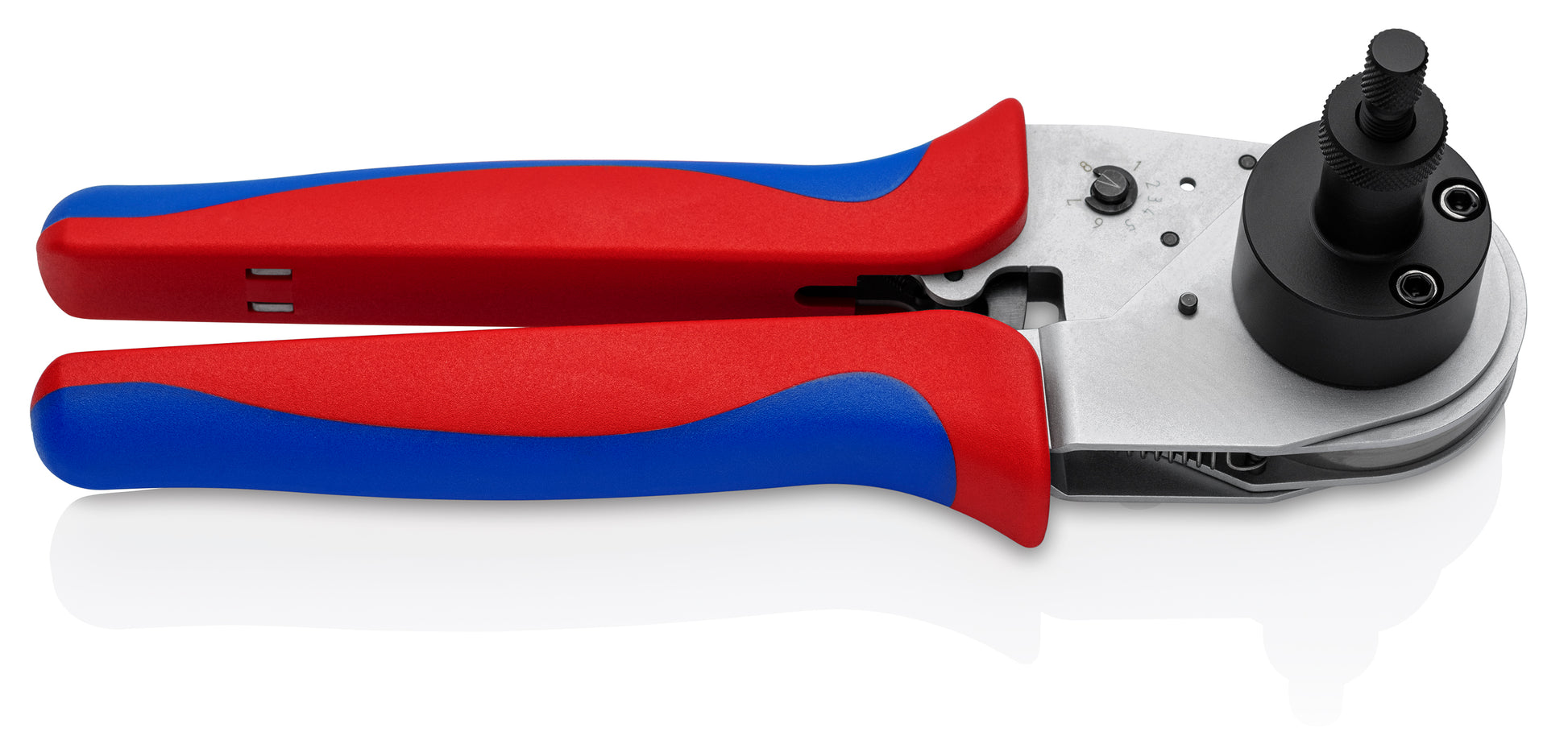

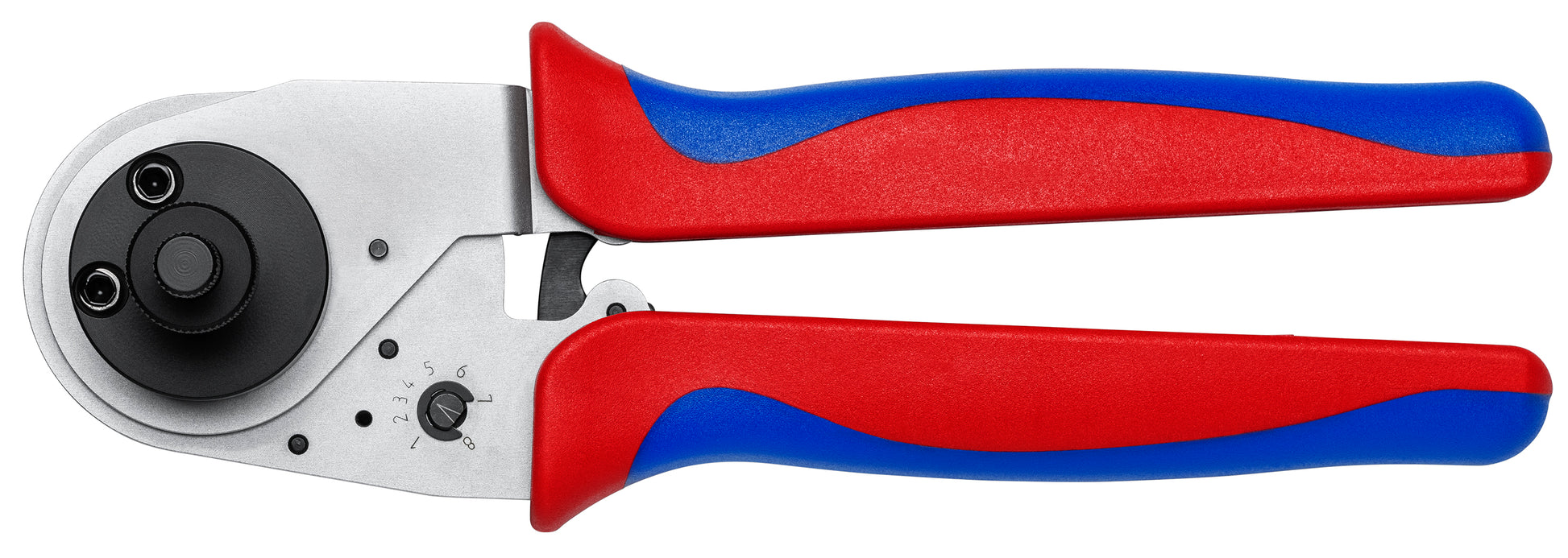

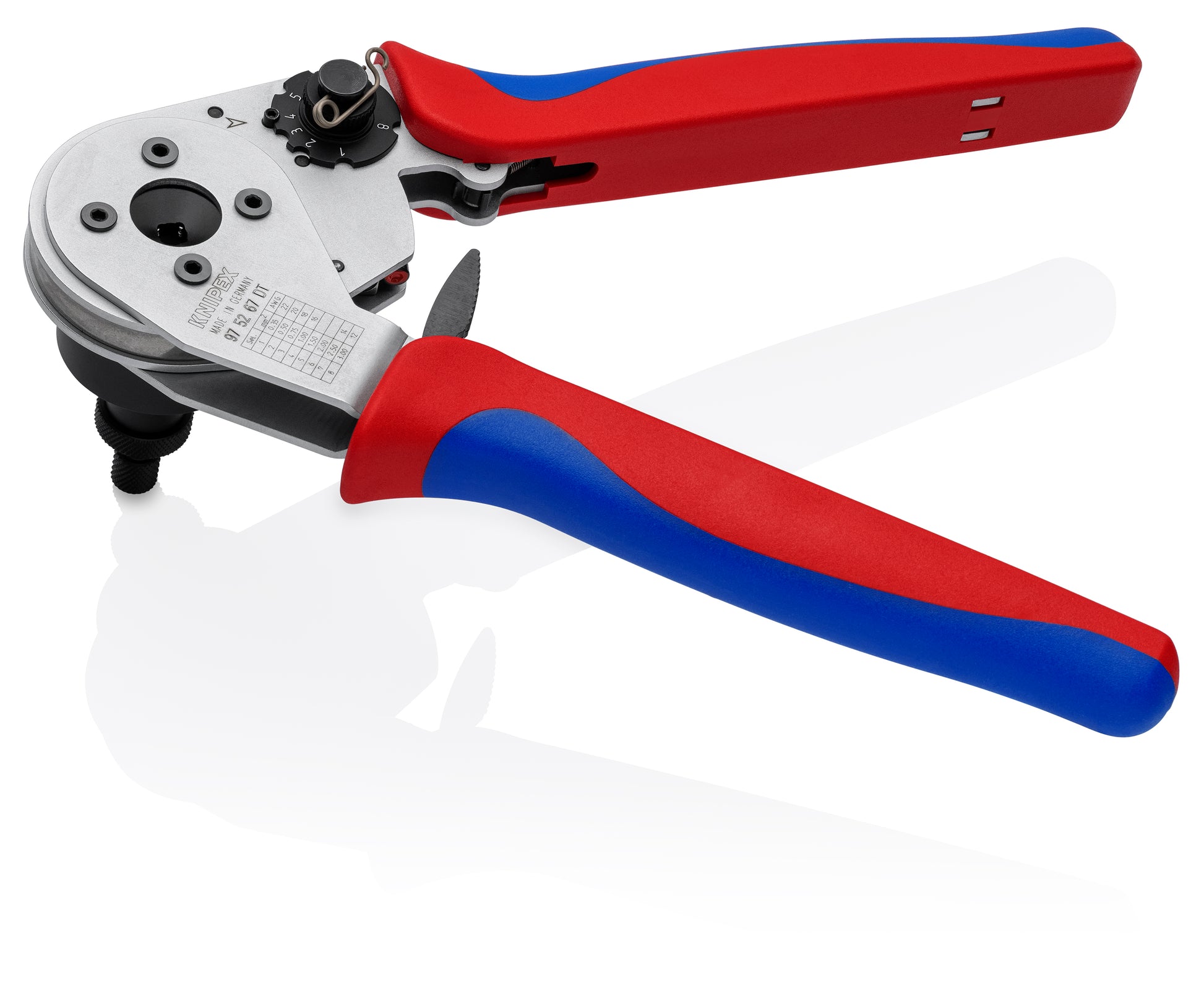

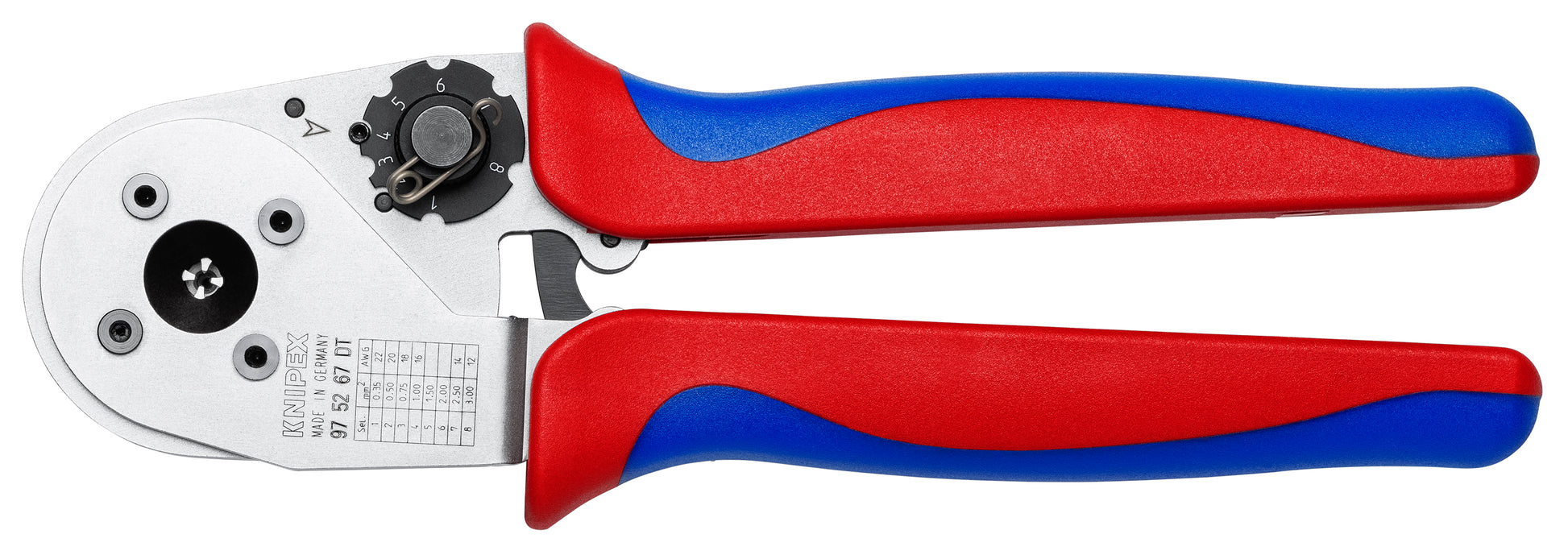

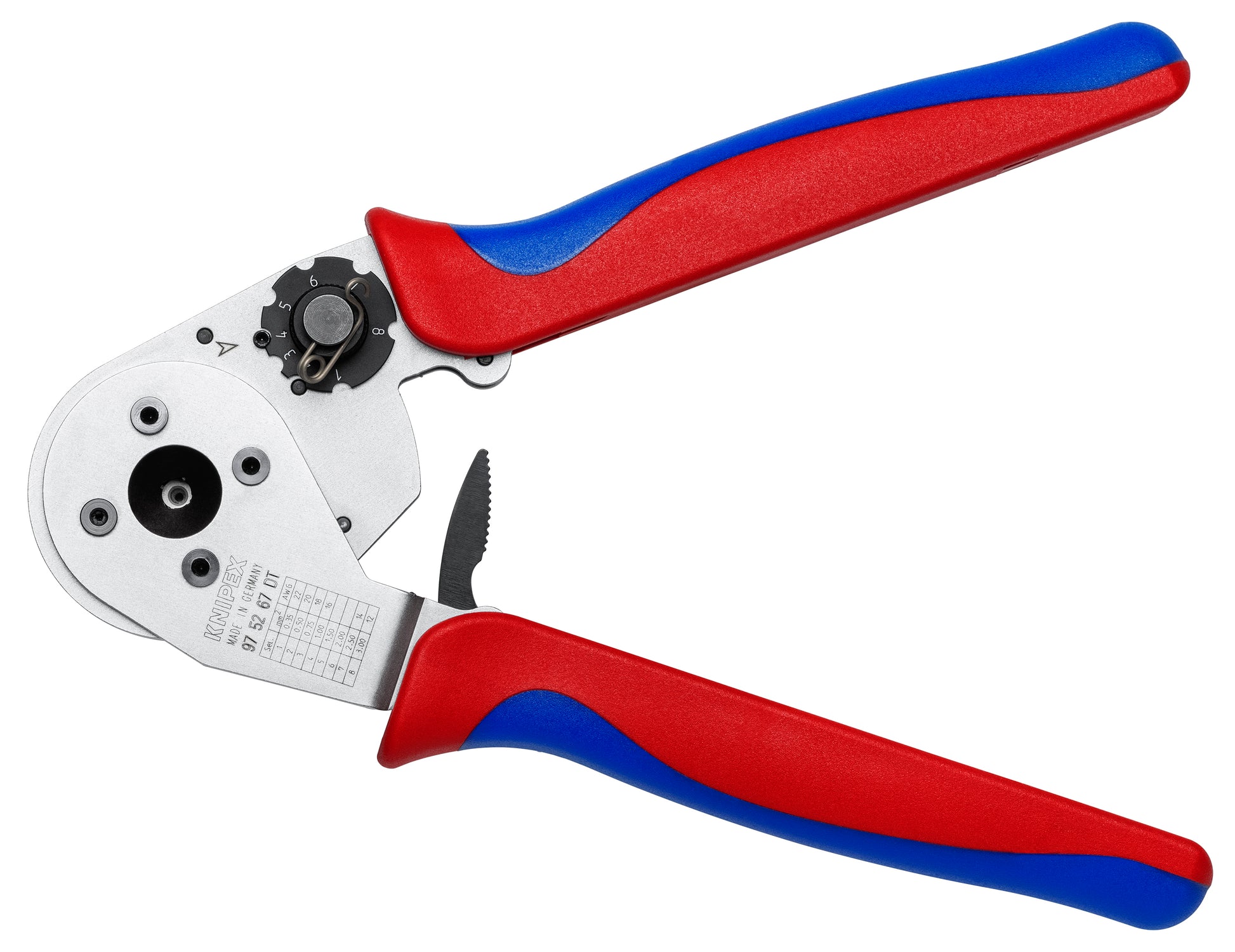

Knipex 97 52 67 DT Crimping Pliers - Four-Mandrel For DT Contacts

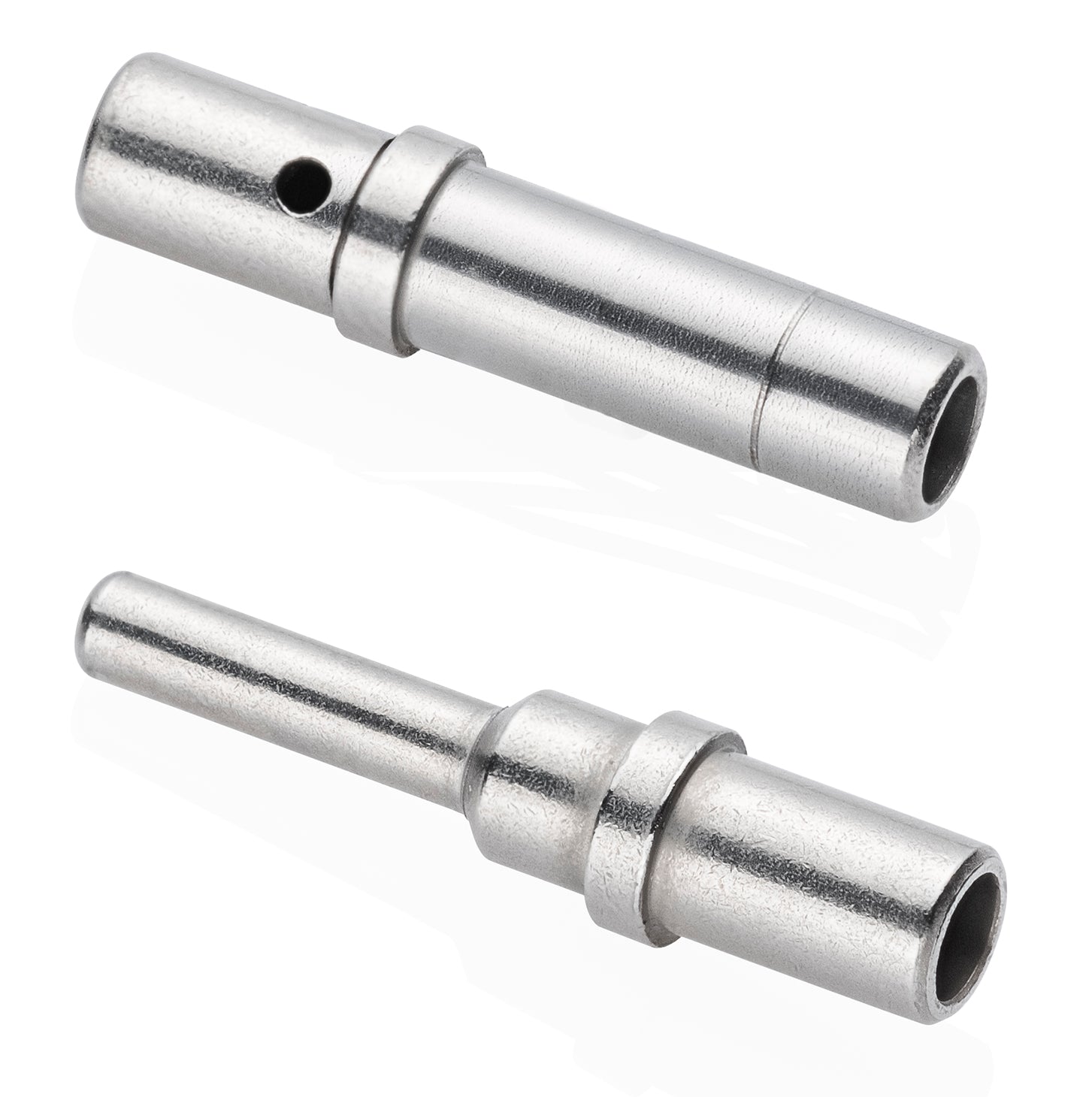

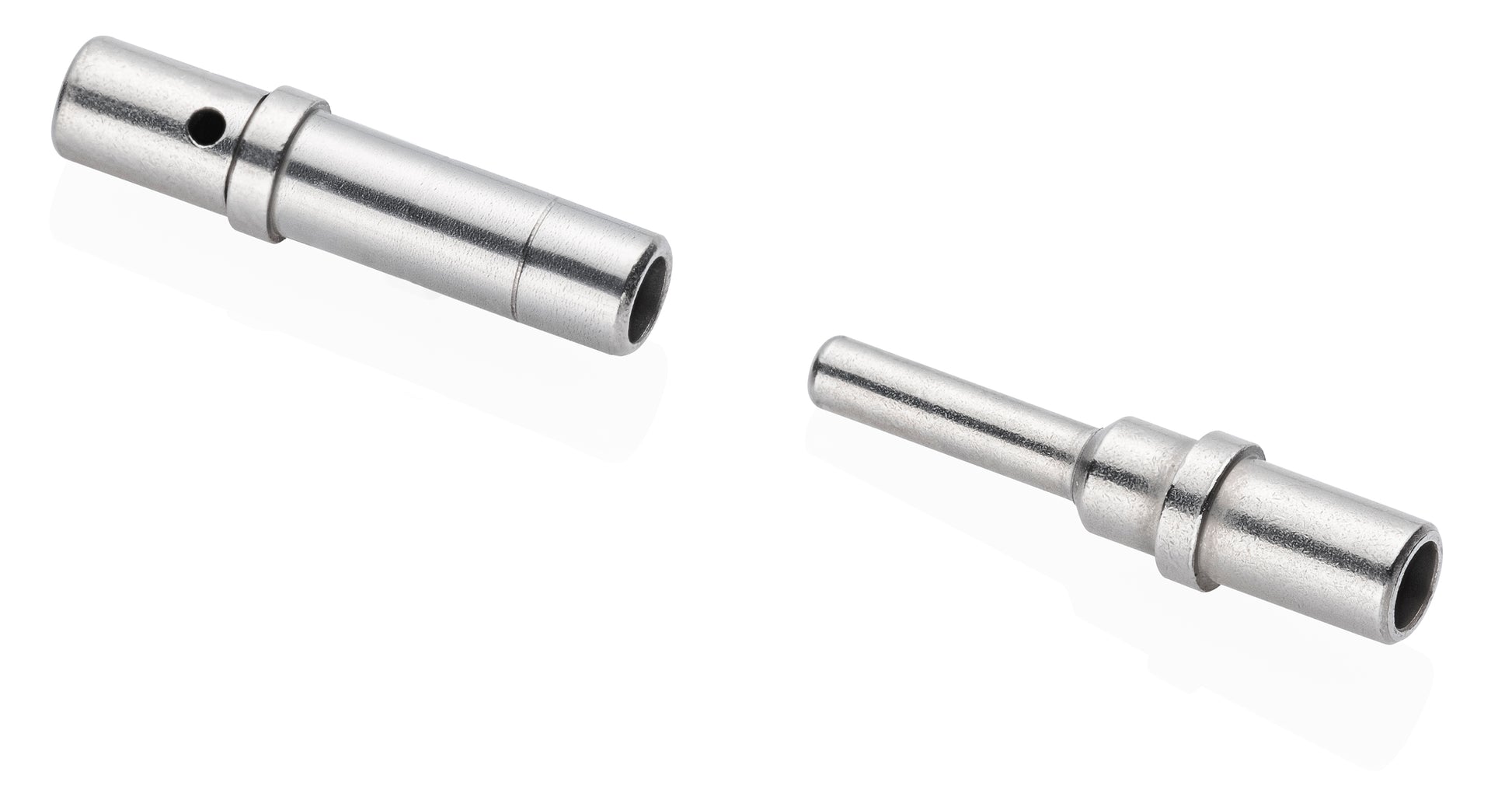

Crimps all turned male and female contacts of the DT, DTM and DTP series (DEUTSCH series)

Features

• Crimping capacity from 0.35 to 3.0 mm² (22 to 12 AWG)

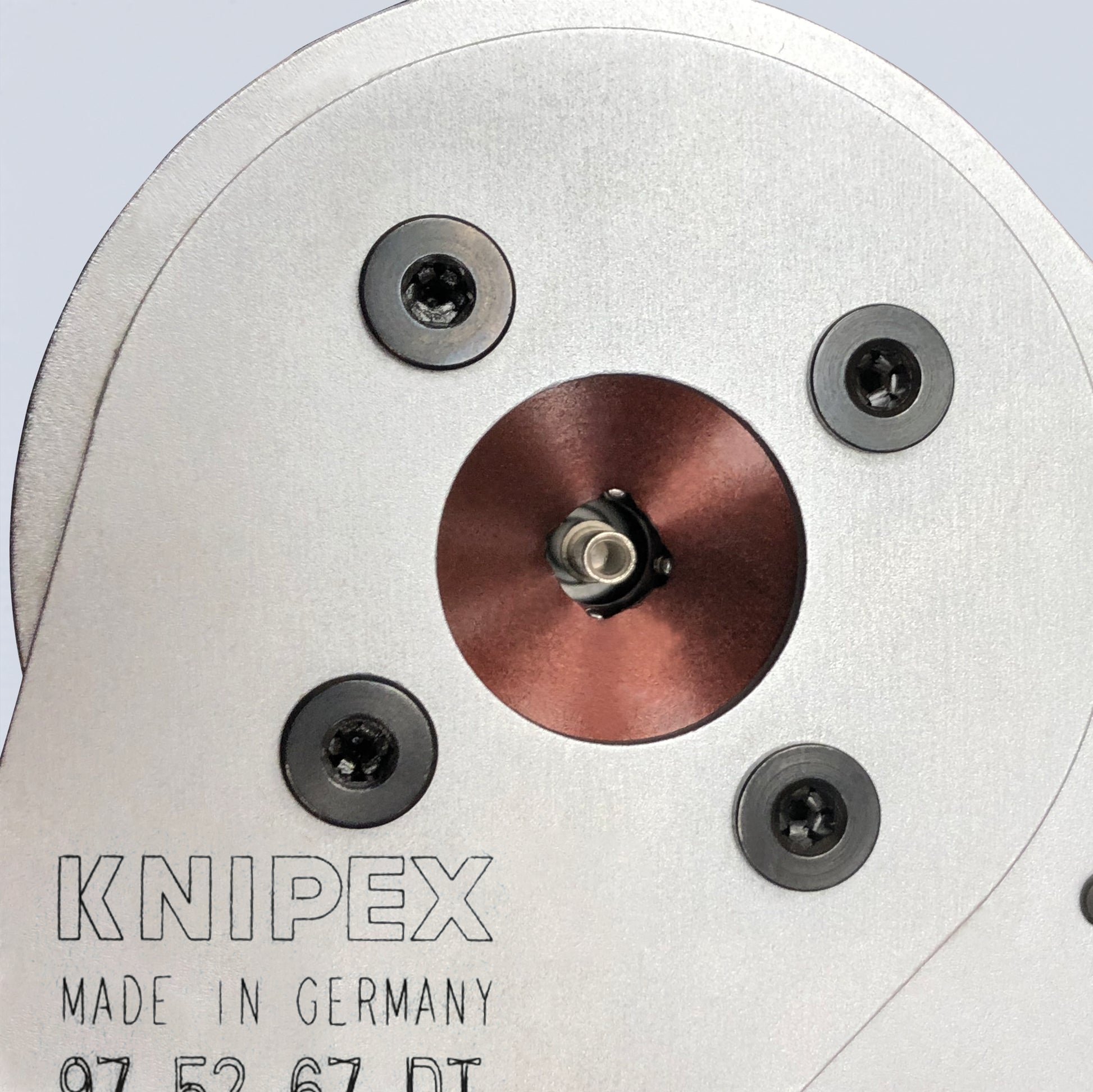

• Synchronous feed of the four mandrels achieves optimum crimping results with eight indentations (4/8-Indent)
• Position settings for the crimp depth can be clearly read on the pliers

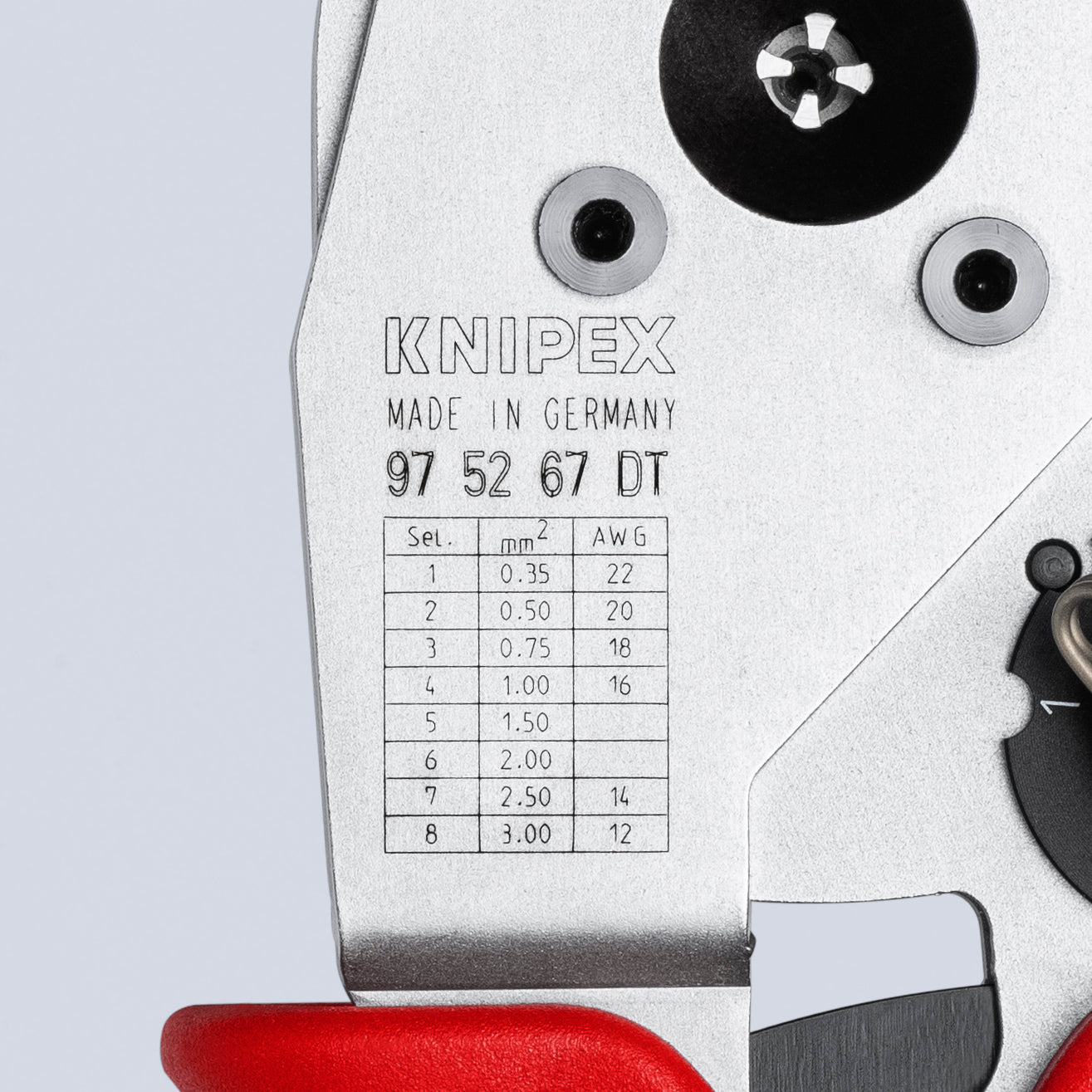

• Crimp depth selector wheel with eight locking positions for the perfect crimp

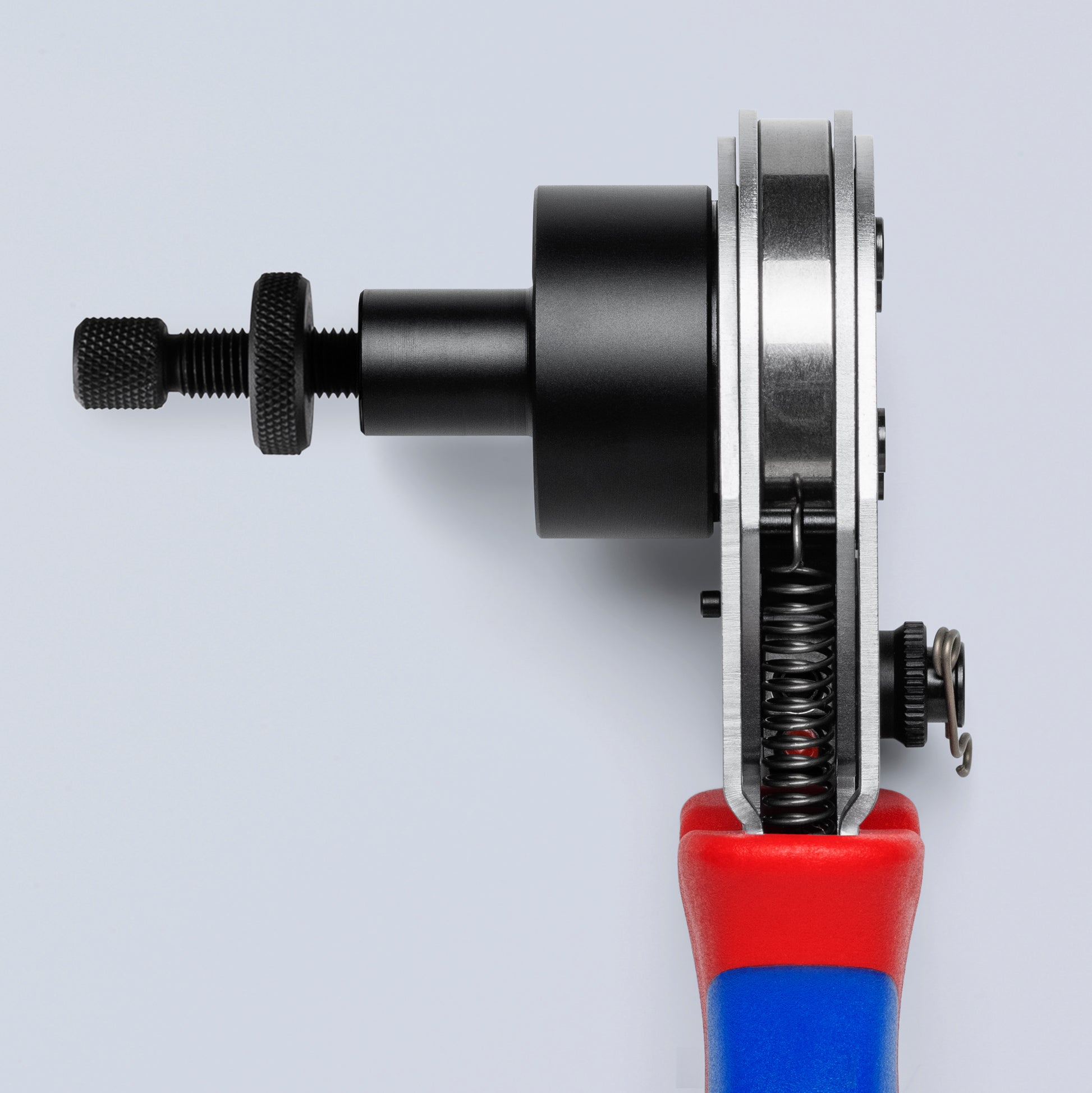

• Universal positioning locator for flexible adjustment to all contact lengths

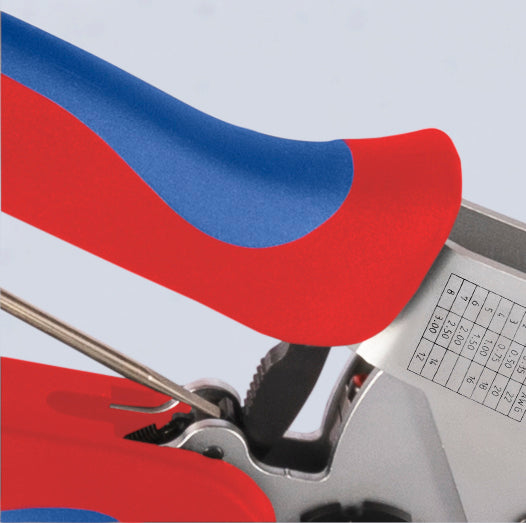

• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Low manual force required due to lever transmission
• Comfortable multi-component grips

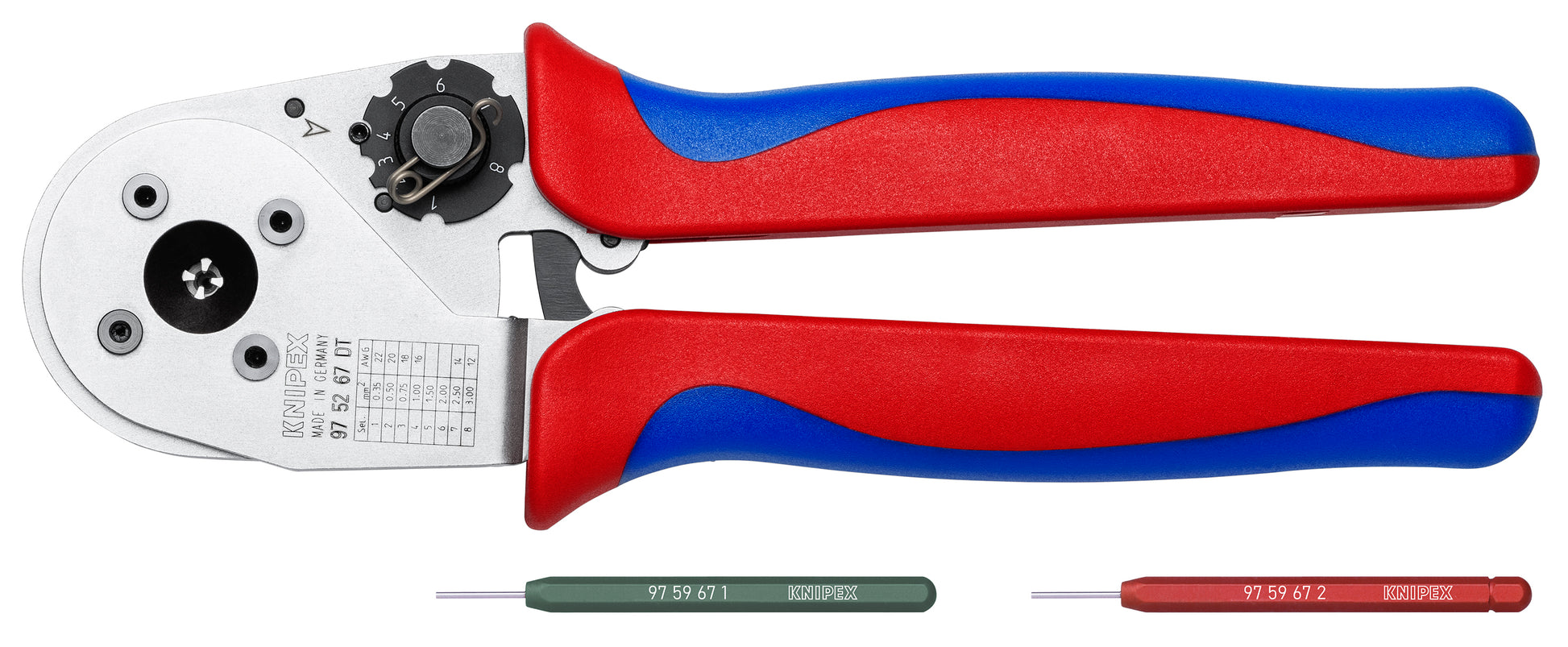

• Go/No-Go gauges allow quick quality calibration control at any time. Go gauge must fit, No-Go gauge must not fit. Gauges (97 59 67 1 and 97 59 67 2) are sold separately

Specifications

• Manufacturer Part Number: 97 52 67 DT
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red/Blue
• Nominal Length: 9"
• Tool Nominal Length: 9"
• Tool Length: 9"
• Tool Width: 3.15"
• Tool Height: 2.75"
• Tool Weight: 816 g (1.80 lb)
• Crimping Profile: Four-Mandrel crimp
• Terminal Type: DT, DTM, DTP
• Crimping Capacity: 0.35 to 3.0 mm² (22 to 12 AWG)
• Crimping Capacity - AWG: 22 to 12
• Crimping Capacity - mm2: 0.35 to 3.0
• Spare Part: 97 59 67 1|97 59 67 2
• UPC: 843221029364
