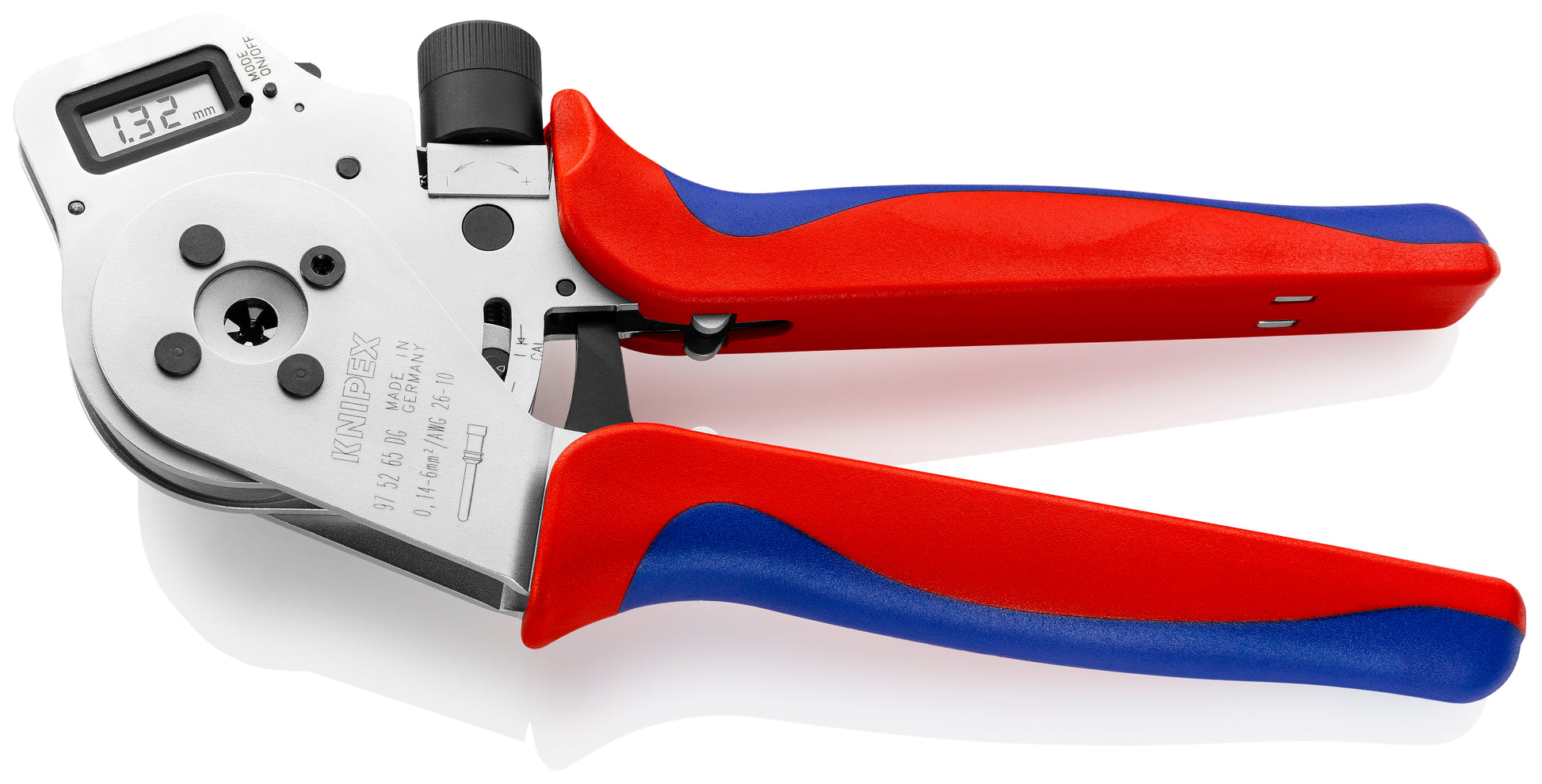

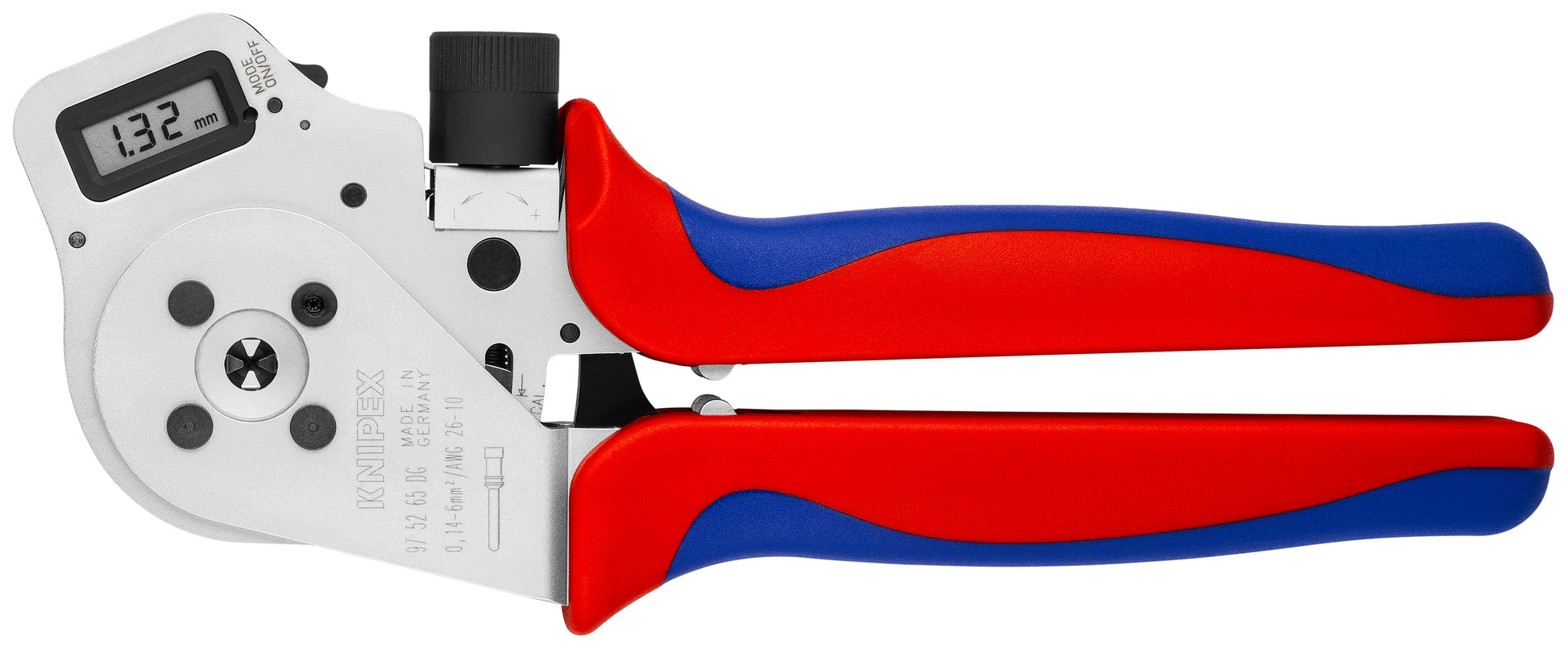

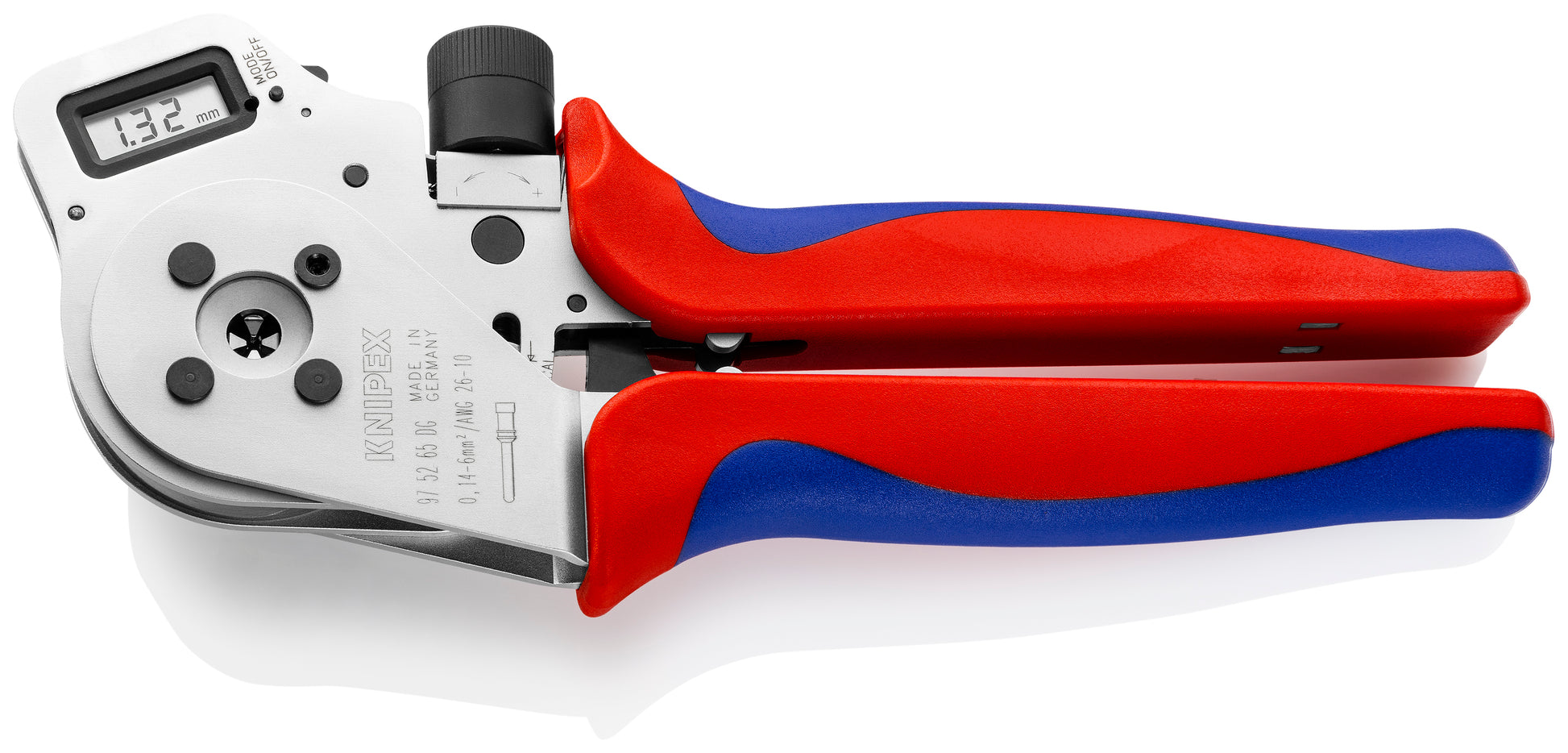

Knipex 97 52 65 DG Digital Crimping Pliers-Four Mandrel For Turned Contacts

Four mandrel crimping pliers for turned contacts

Features

• For crimping turned contacts
• Capacity - 0.14 to 6 mm² (26 to 10 AWG)
• Four-mandrel crimping for top-quality crimping connections
• Mandrel gauge to check the basic setting
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
• Comfortable multi-component grips

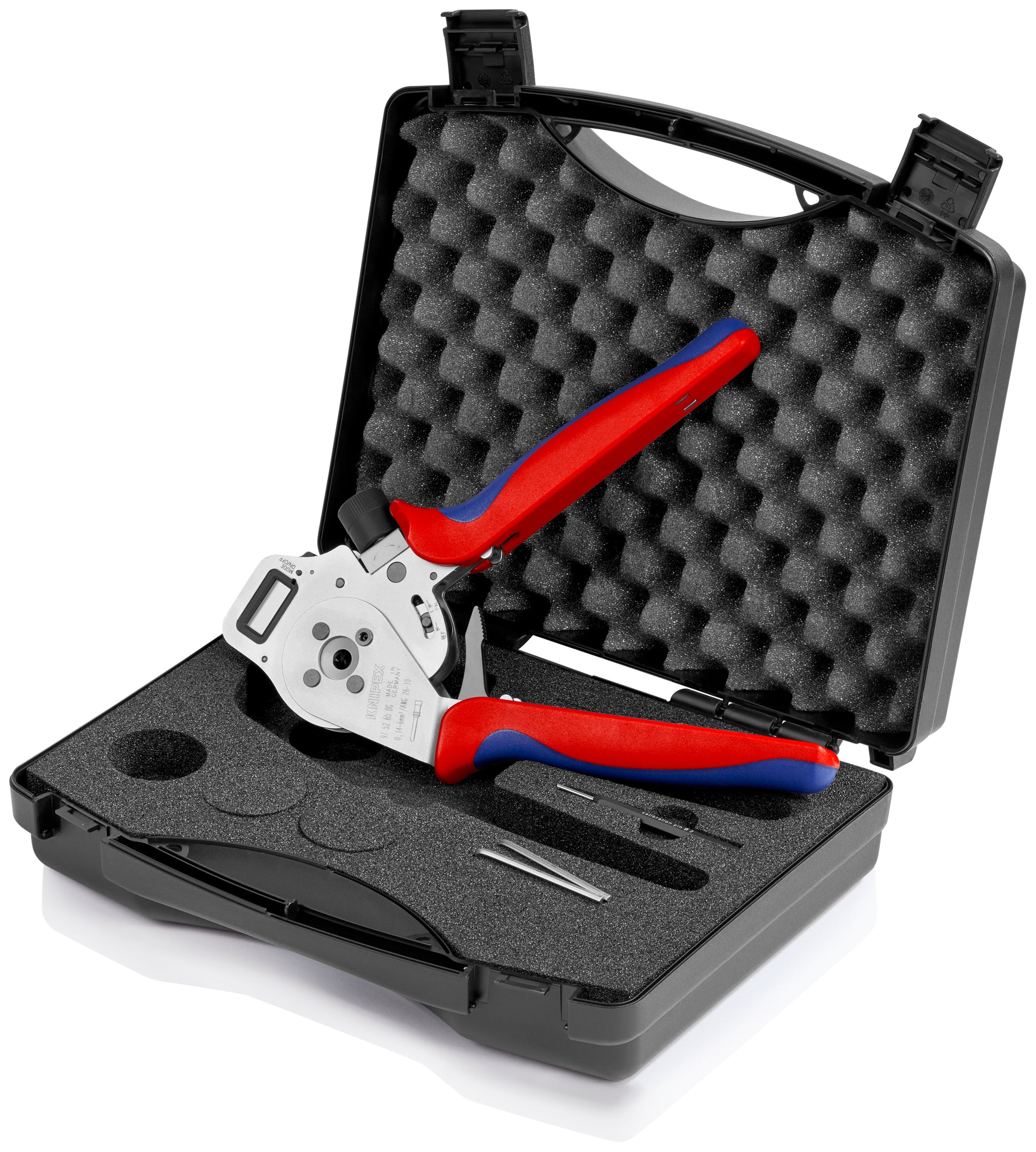

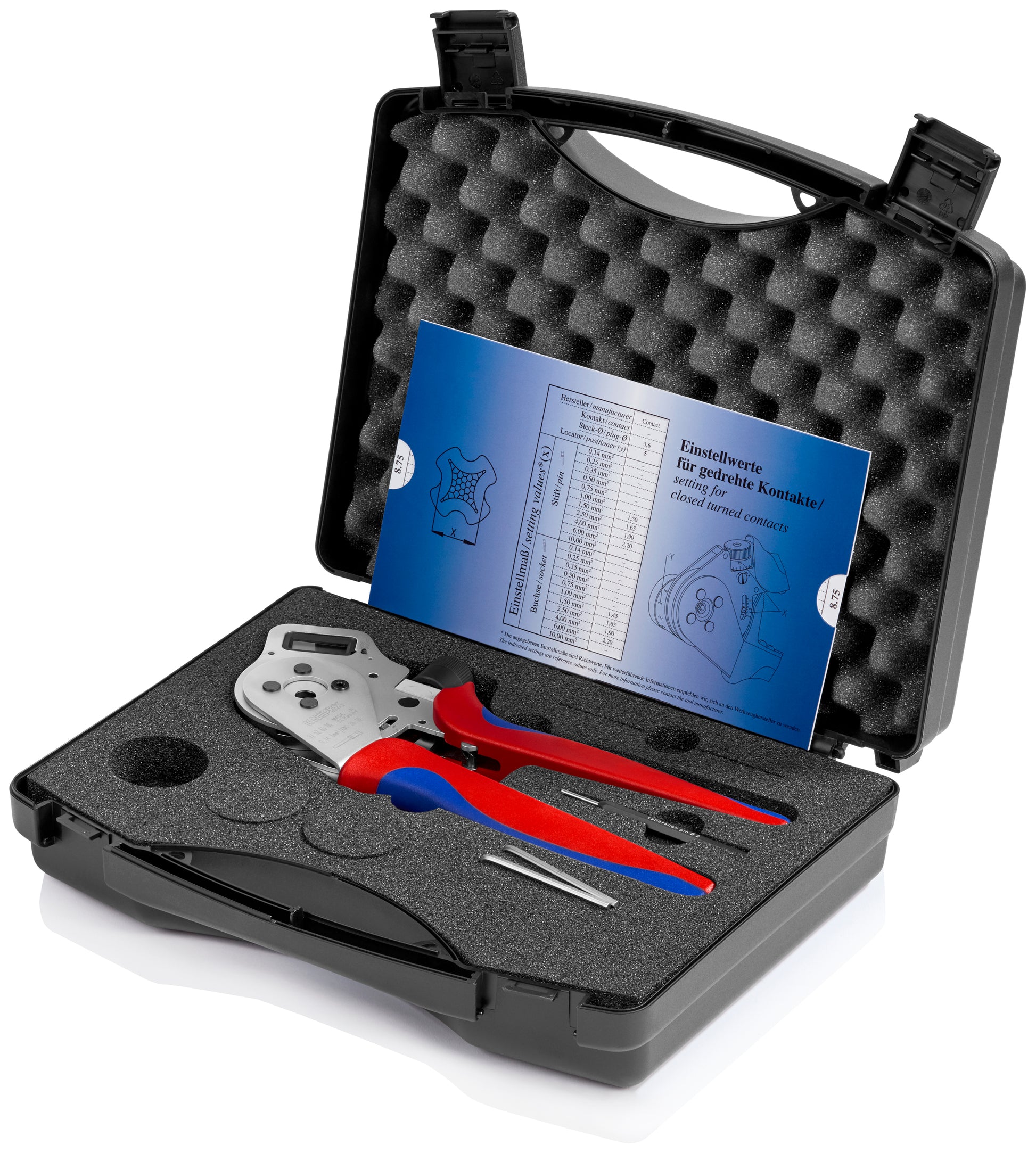

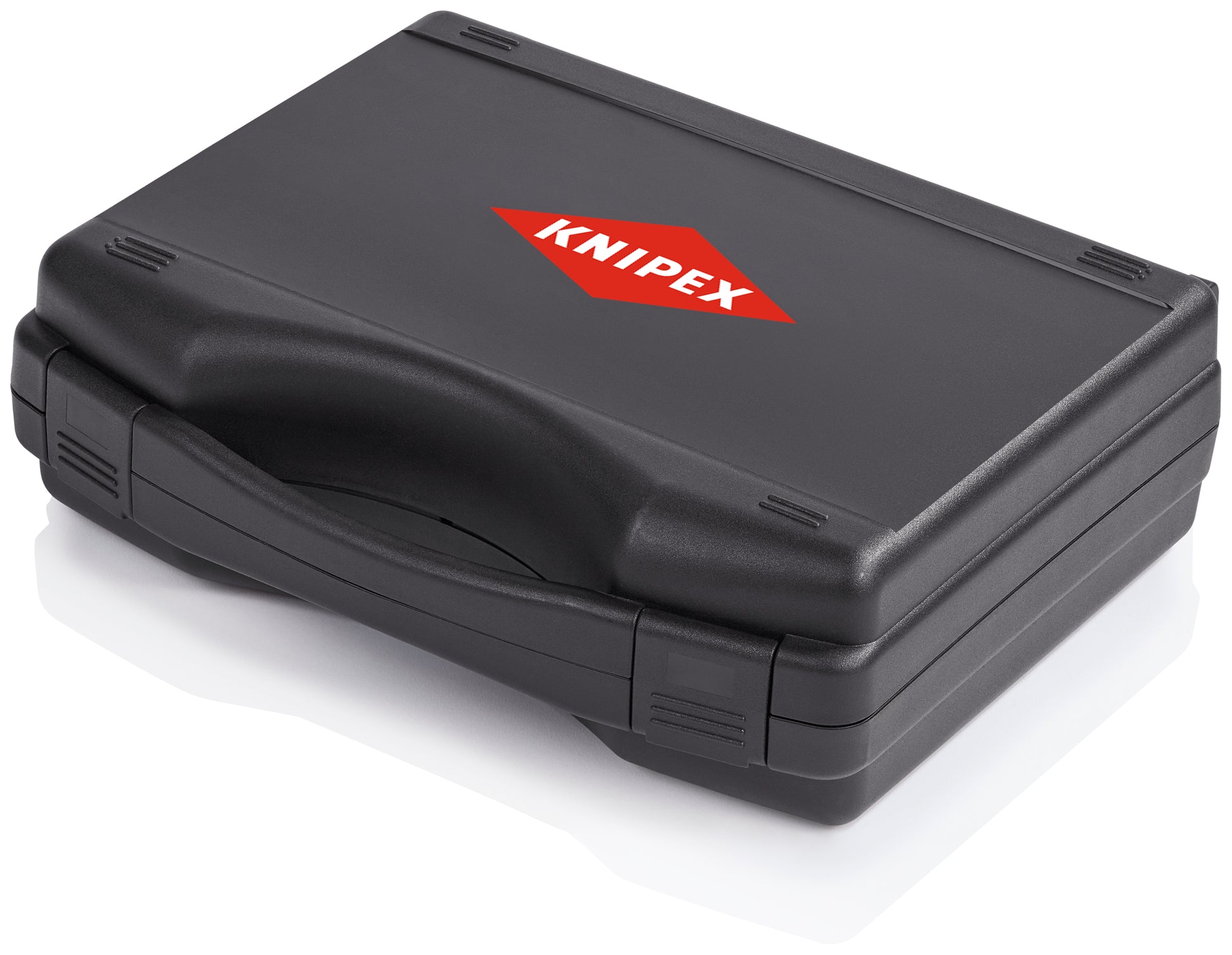

• Crimping capacity can be adjusted in increments of .0004" (0.01 mm); with digital display of the preset crimping capacities; adjustment in mm, inches or comparable selection positions according to MIL; with table for calculating the settings; packaged in a plastic case with foam insert and locator for holding the contacts
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 52 65 DG
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Other Surface Finish: Chrome Plated
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 10 3/4"
• Tool Nominal Length: 10.75"
• Tool Length: 10.8"
• Tool Width: 8.85"
• Tool Height: 3.35"
• Tool Weight: 1268 g (2.795 lb)
• Crimping Positions: 1
• Crimping Profile: Four-Mandrel crimp
• Crimping Capacity - AWG: 26 to 10
• Crimping Capacity - mm2: 0.14 to 6.0
• Diameter Max: 7.5 mm
• Accessory Part Number: 97 59 65 2
• UPC: 843221015916
