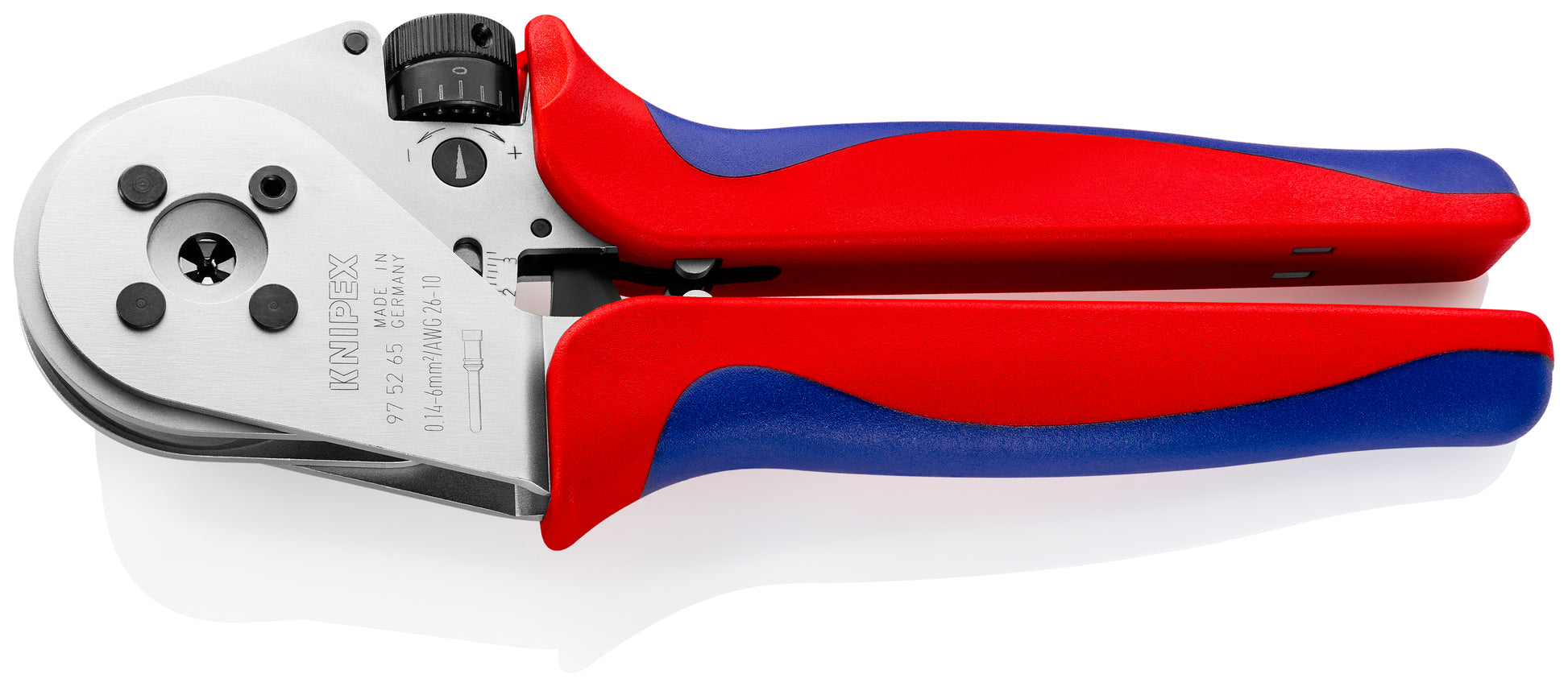

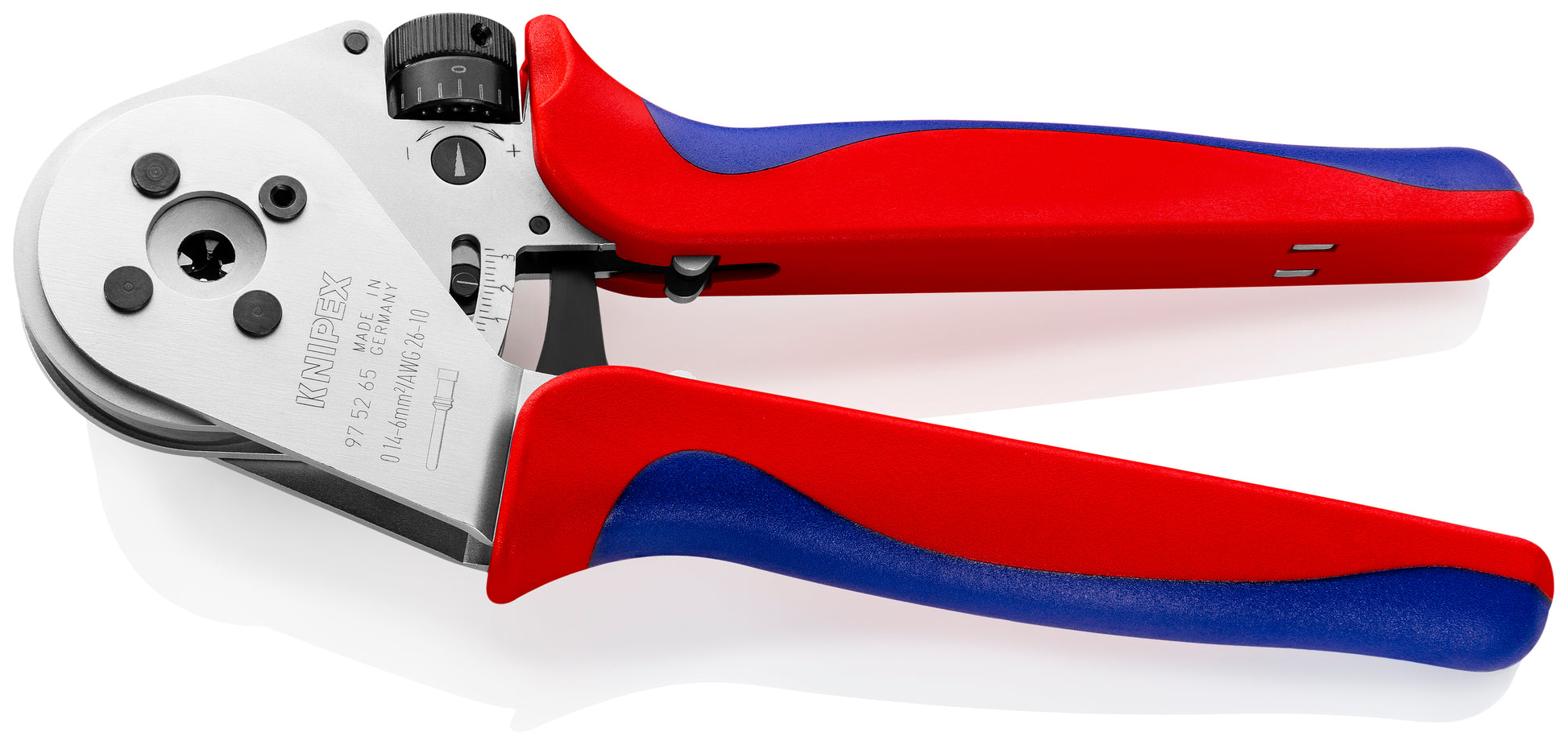

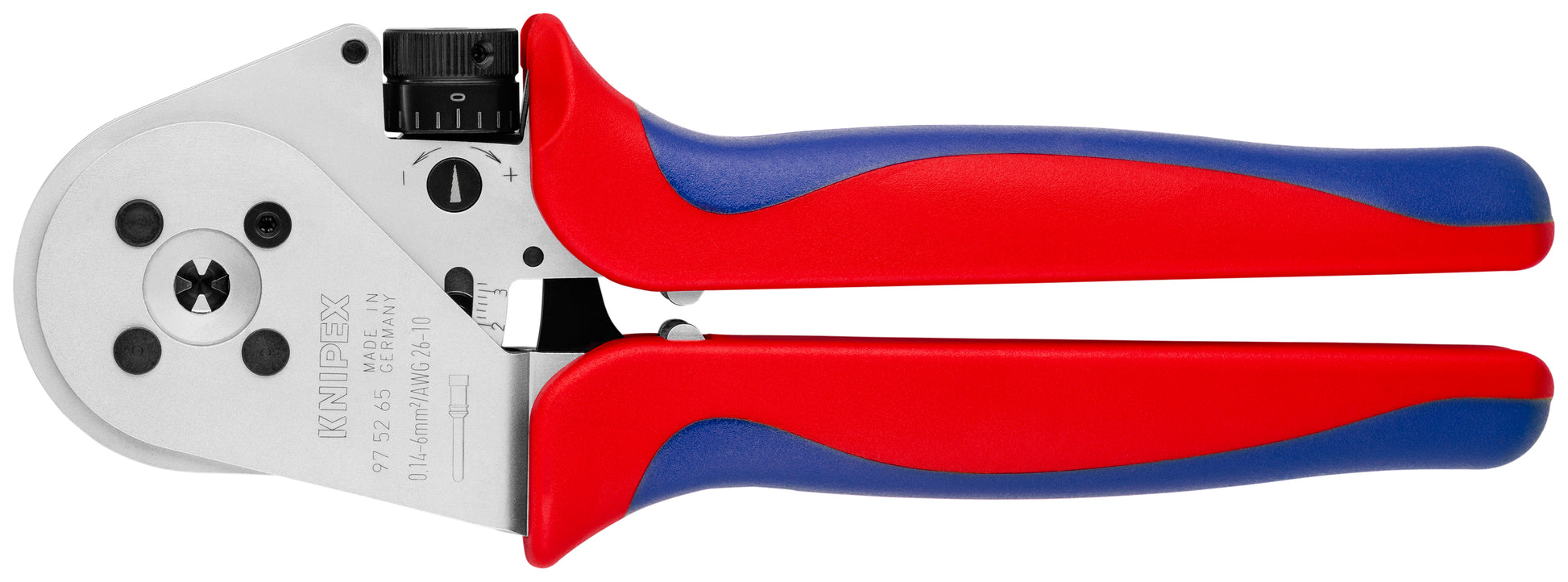

Knipex 97 52 65 Crimping Pliers-Four Mandrel For Turned Contacts

Four mandrel crimping pliers for turned contacts

Features

• For crimping turned contacts
• Capacity - 0.14 to 6 mm² (26 to 10 AWG)
• Four-mandrel crimping for top-quality crimping connections
• Mandrel gauge to check the basic setting
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
• Comfortable multi-component grips

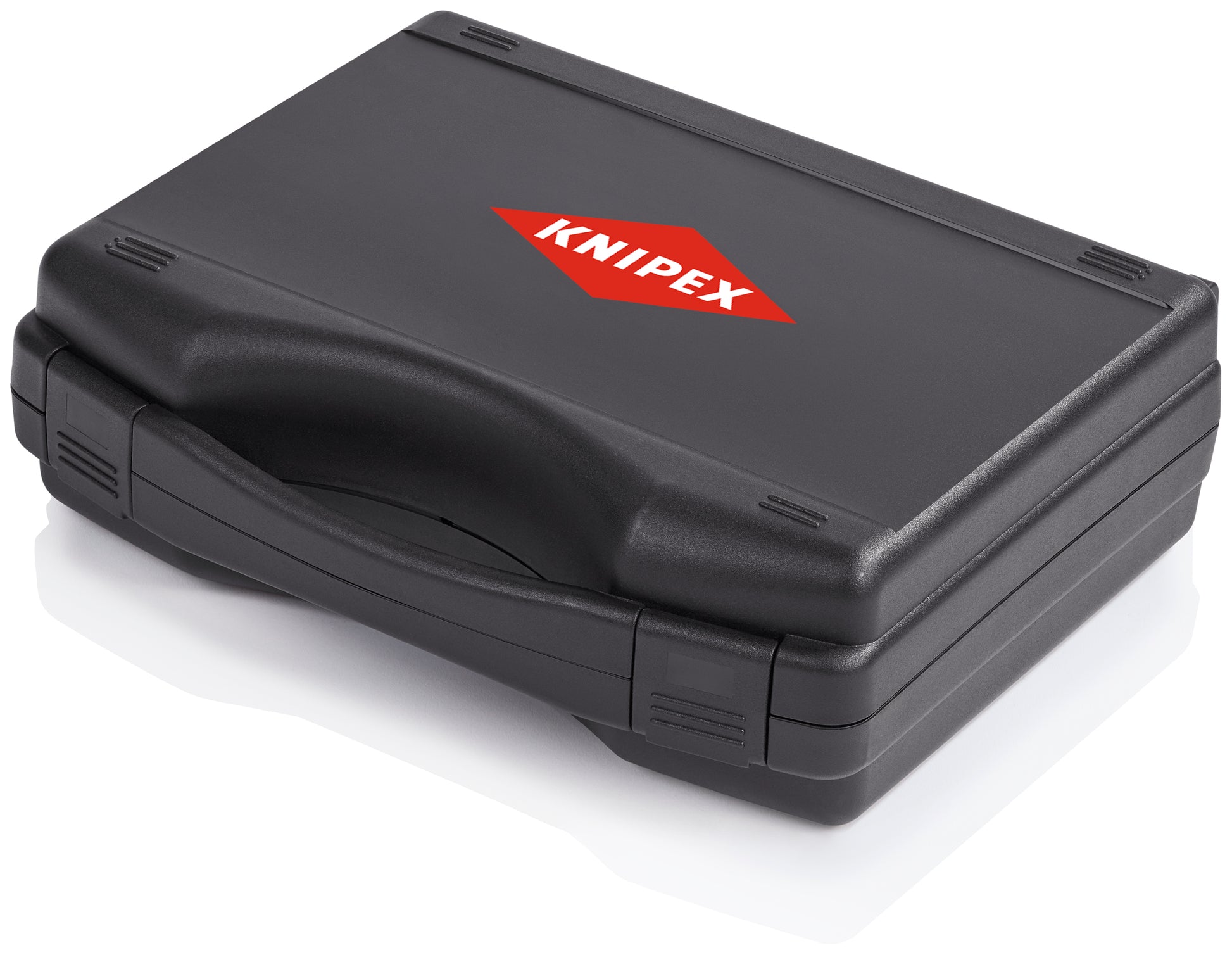

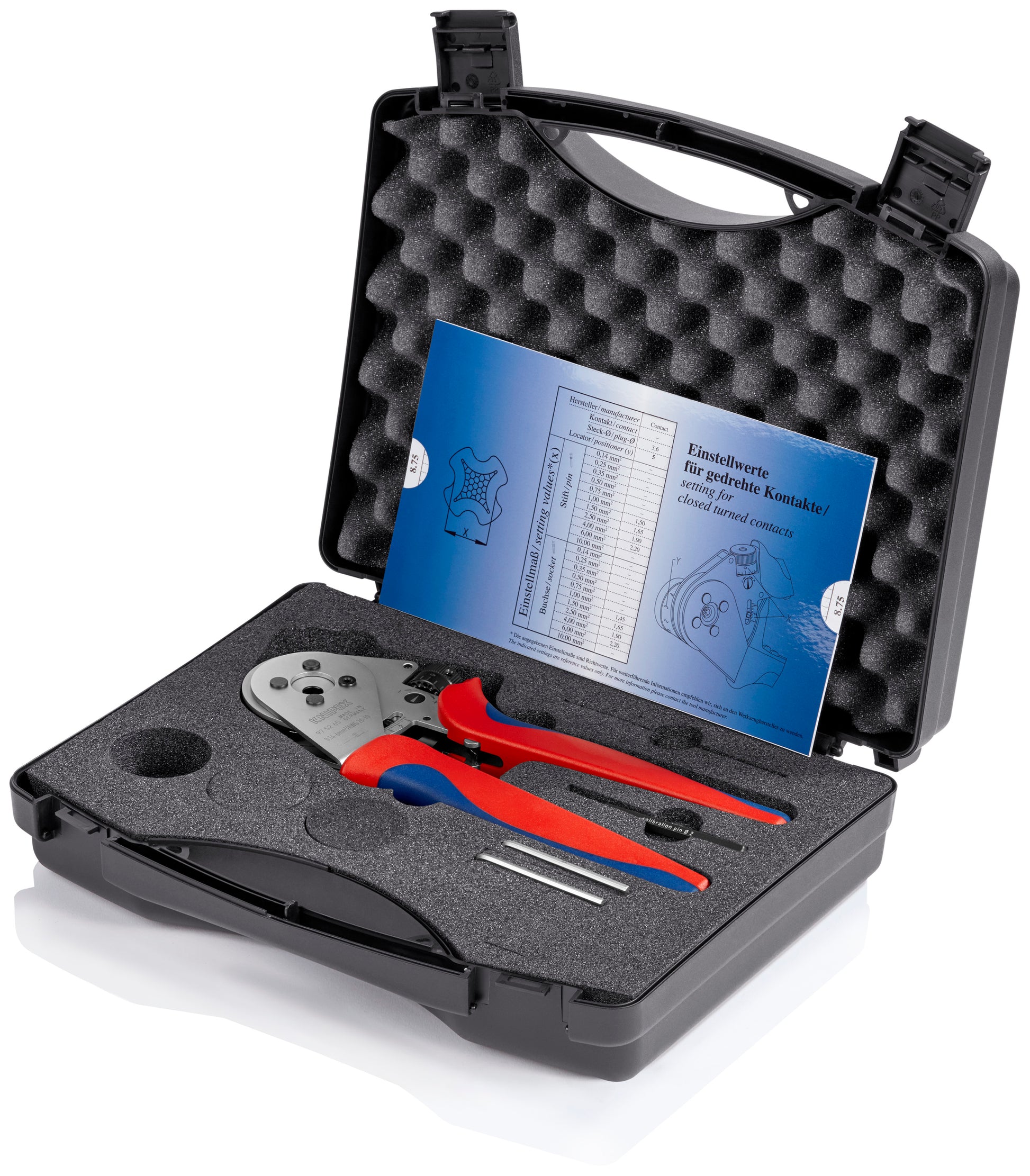

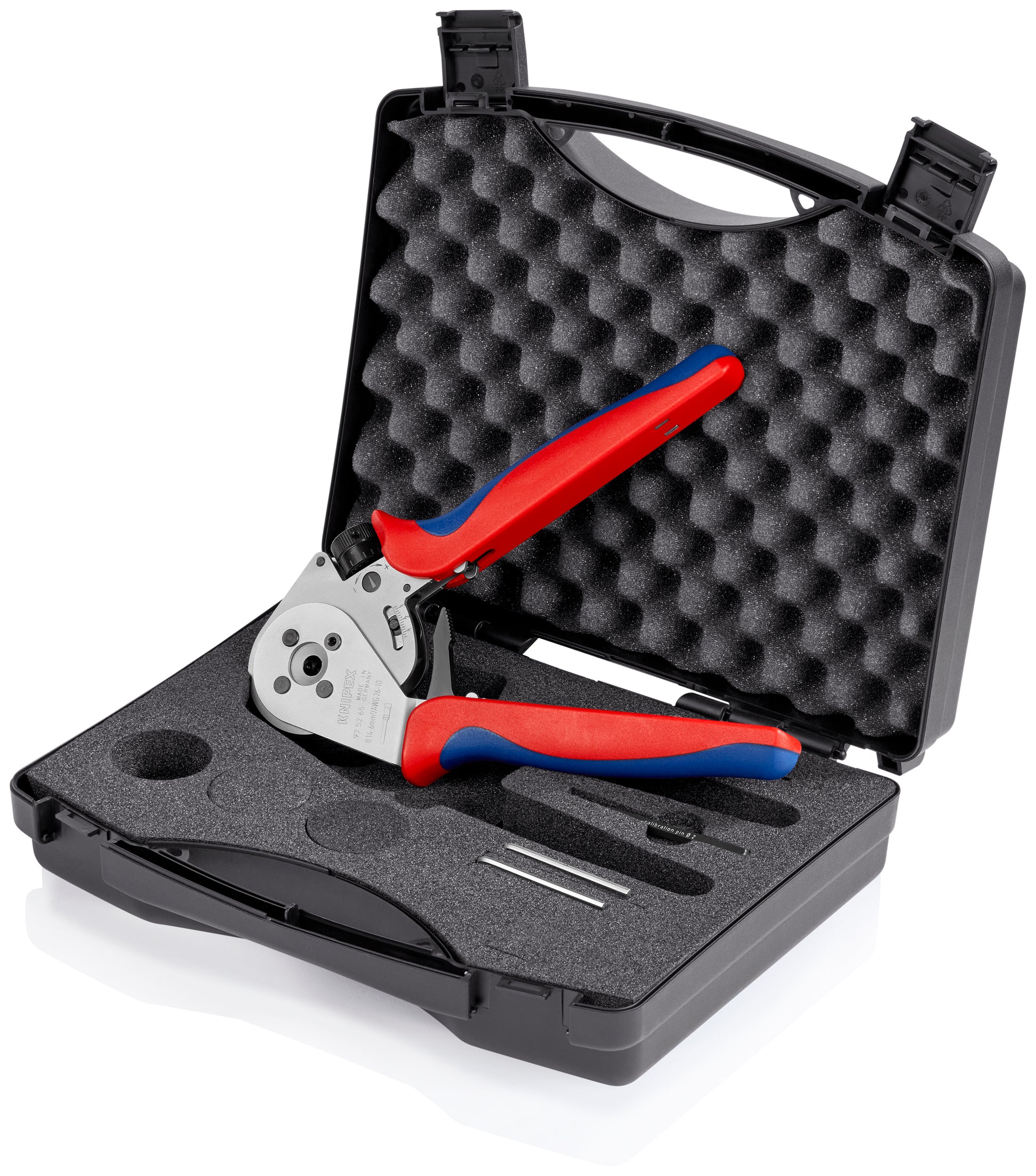

• Fine adjustment of pressure depending on the conductors diameter by means of adjusting wheel; locator for positioning the contacts; with table for calculating the settings; pliers in a plastic case with foam insert
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 52 65
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Chrome Plated
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 9"
• Tool Nominal Length: 9"
• Tool Length: 9"
• Tool Width: 3.05"
• Tool Height: 1.75"
• Tool Weight: 680 g (1.5 lb)
• Crimping Positions: 1
• Crimping Profile: Four-Mandrel crimp
• Crimping Capacity - AWG: 26 to 10
• Crimping Capacity - mm2: 0.14 to 6.0
• Diameter Max: 7.5 mm
• Accessory Part Number: 97 59 65 2
• UPC: 843221015923
