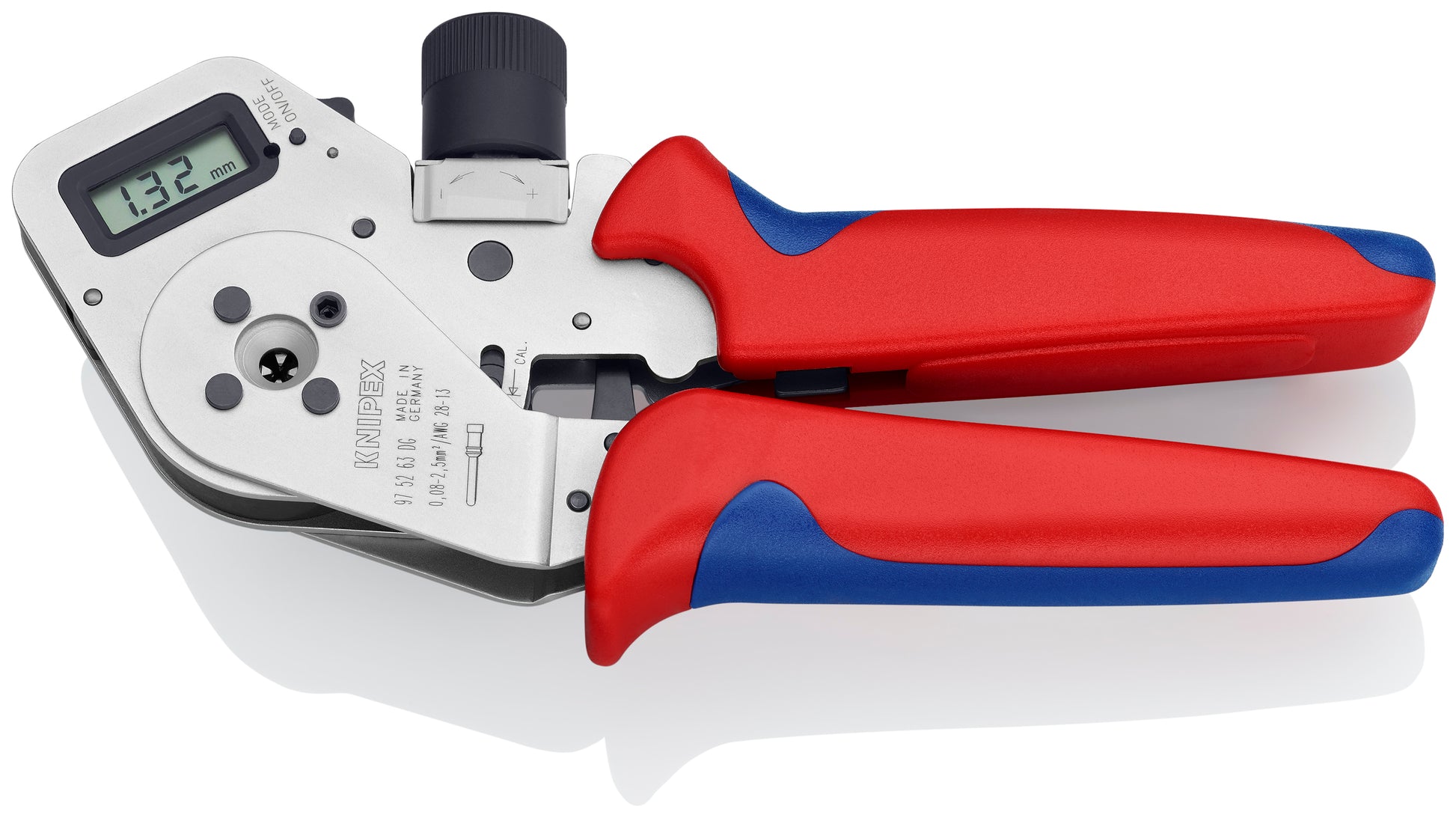

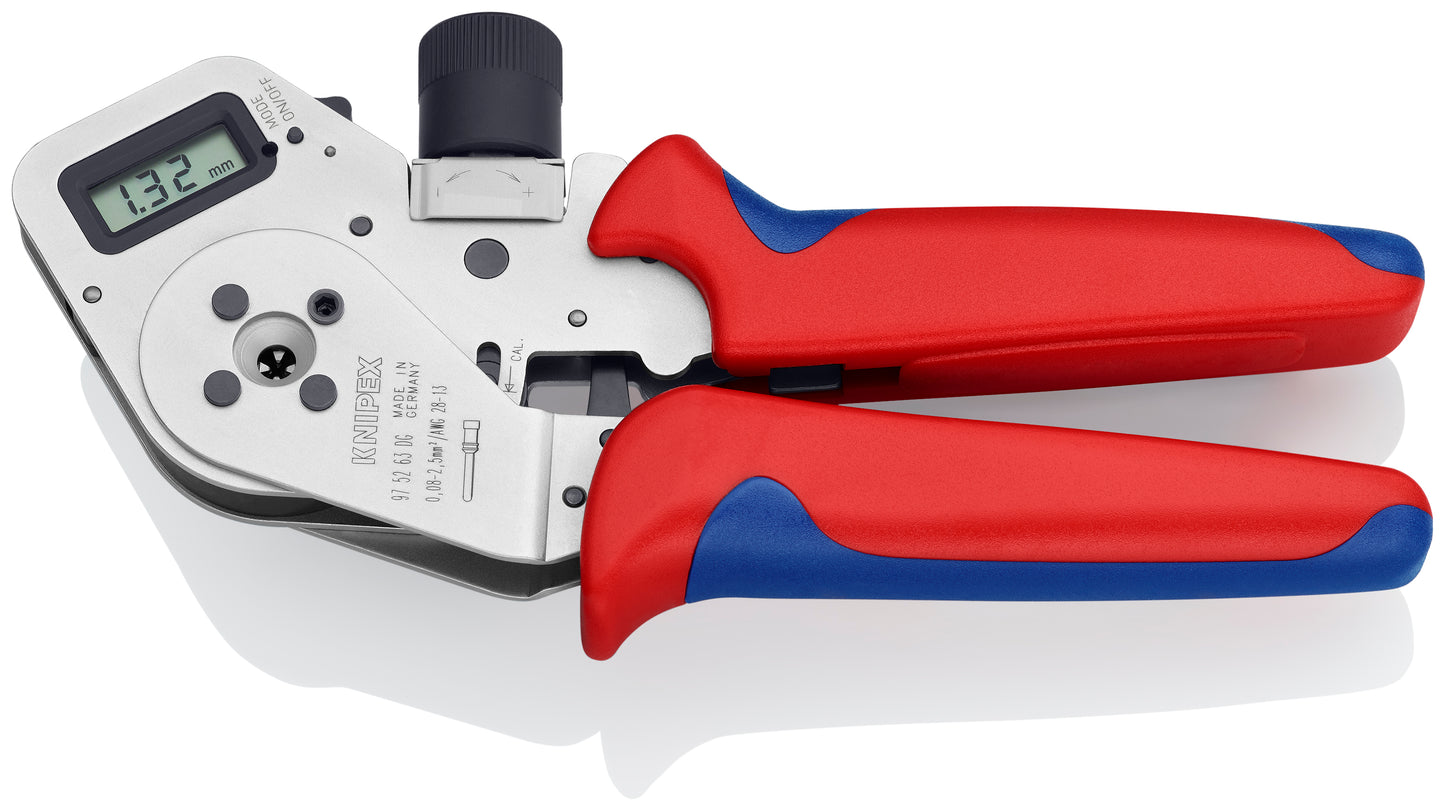

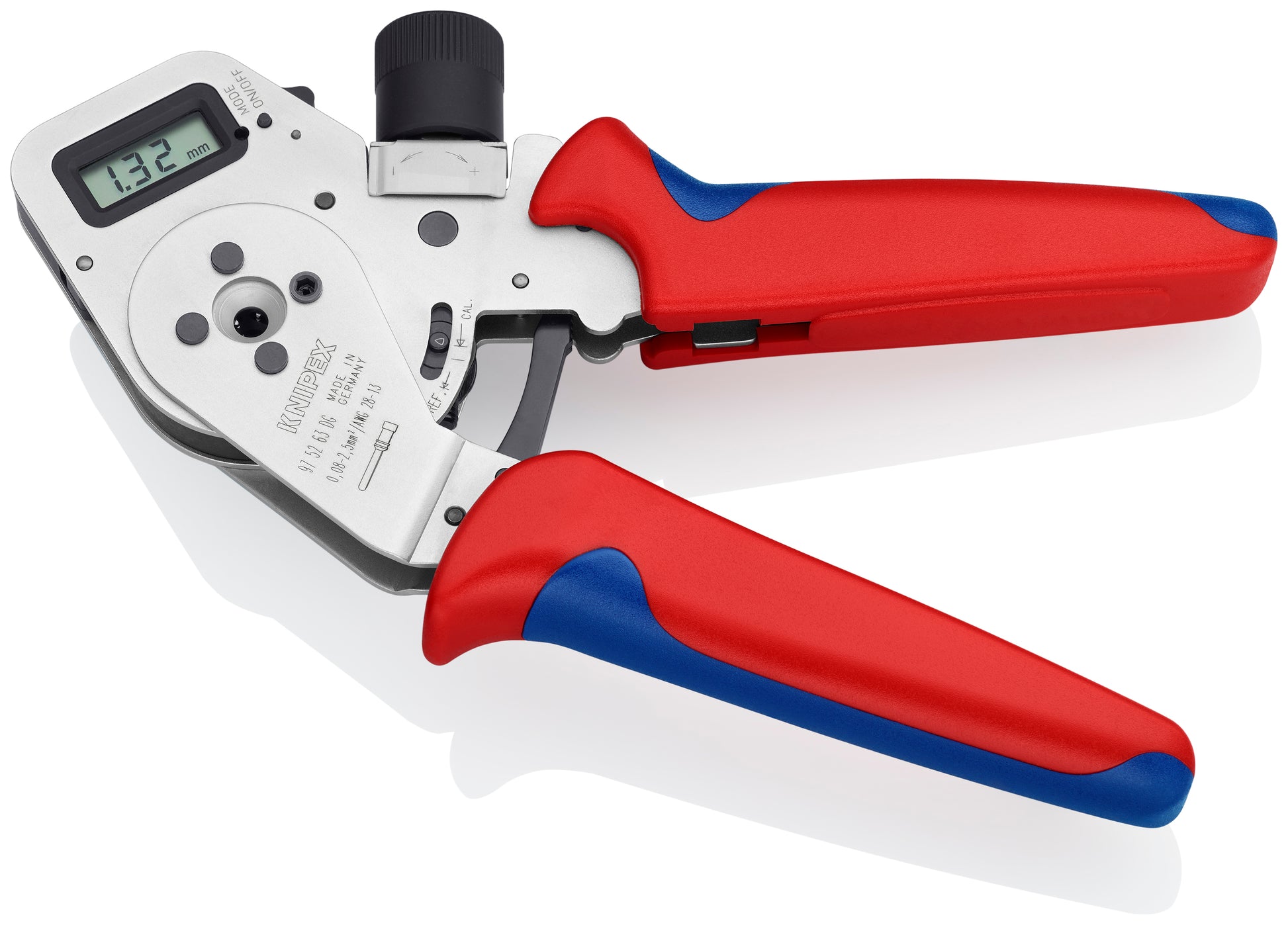

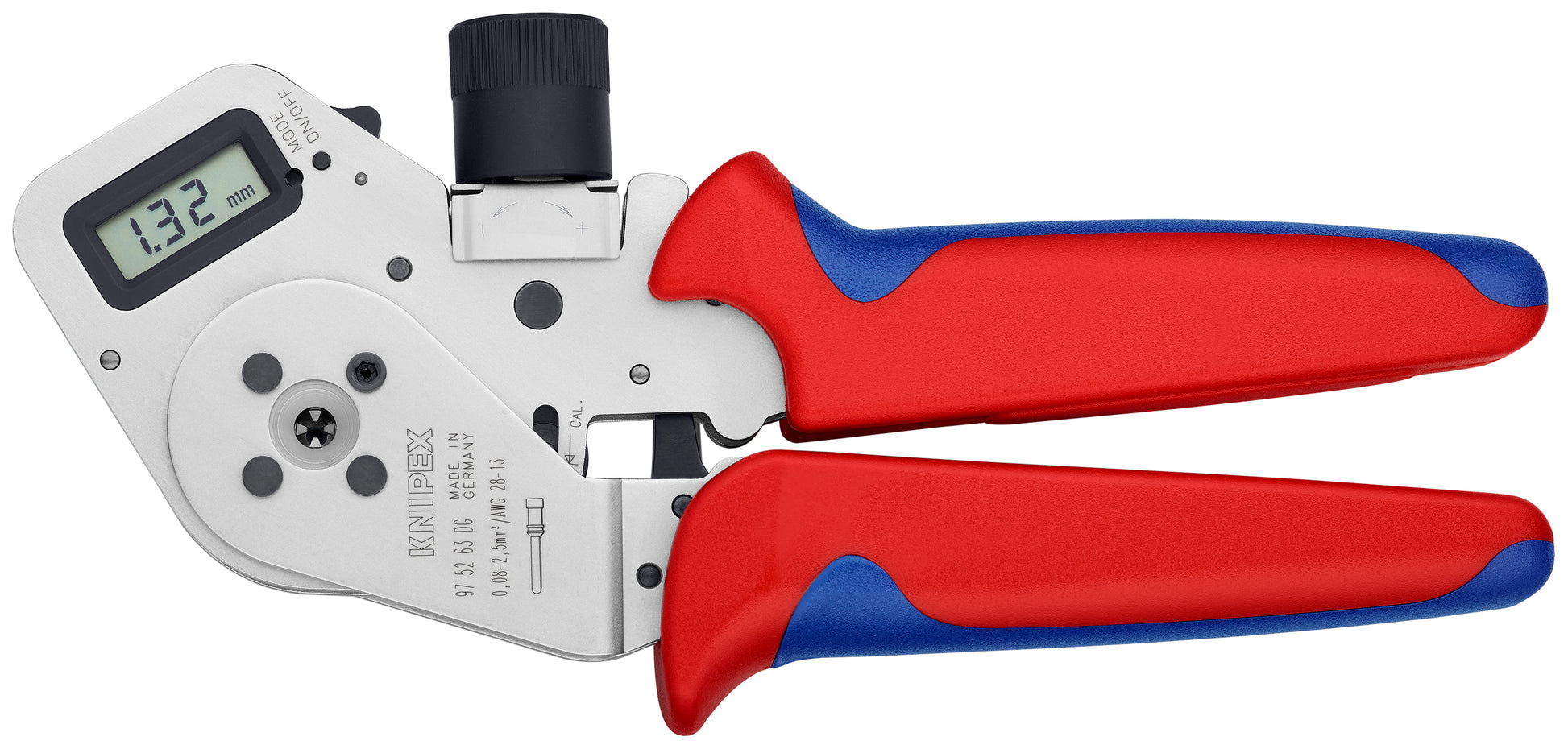

Knipex 97 52 63 DG Digital Crimping Pliers-Four Mandrel For Turned Contacts

Four mandrel crimping pliers for turned contacts

Features

• For crimping turned contacts
• Capacity - 0.08 to 2.5 mm² (28 to 14 AWG)
• Four-mandrel crimping for top-quality crimping connections
• Mandrel gauge to check the basic setting
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
• Comfortable multi-component grips

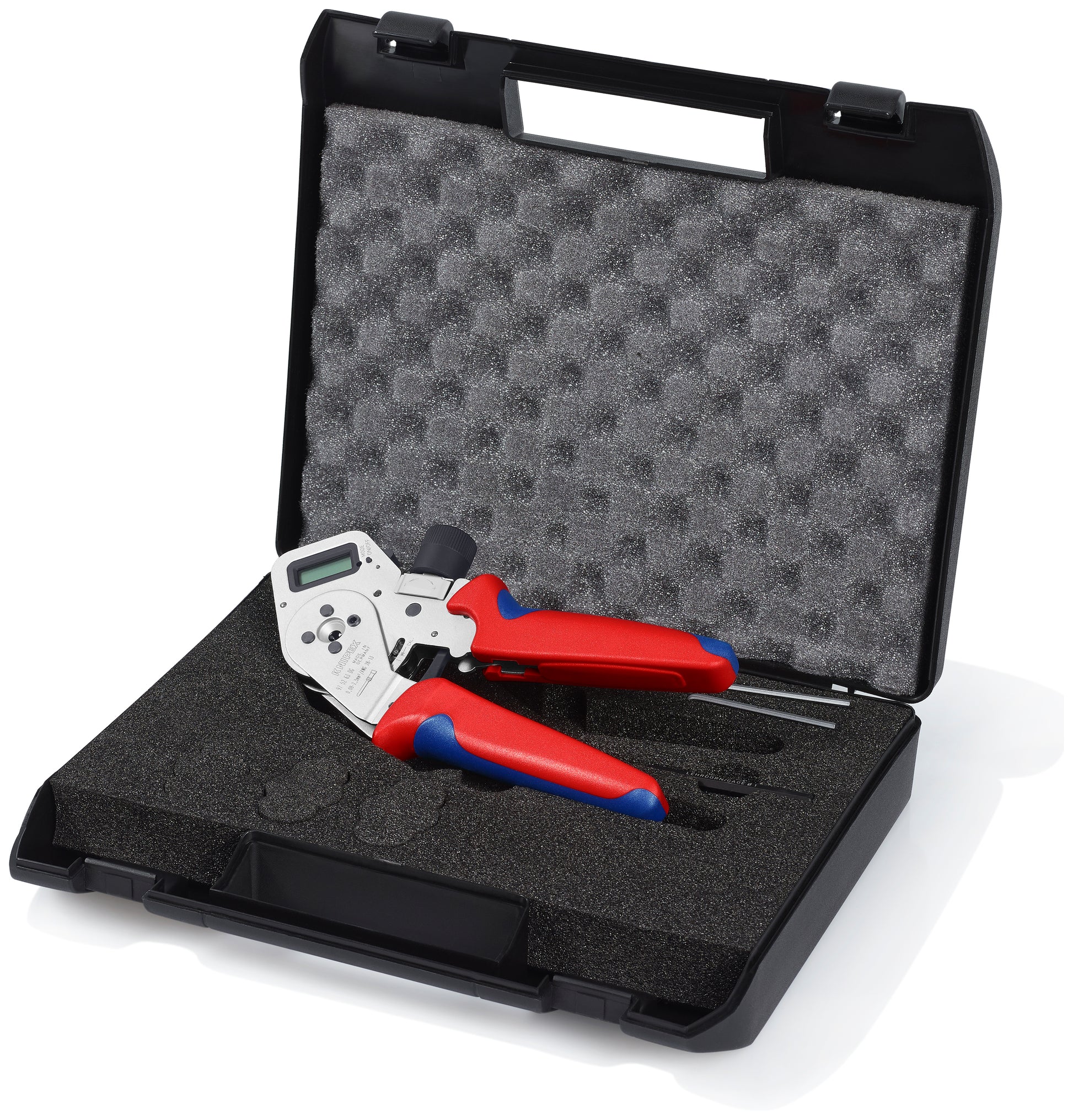

• Crimping capacity can be adjusted in increments of .0004" (0.01 mm); with digital display of the preset crimping capacities; adjustment in mm, inches or comparable selection positions according to MIL; packaged in a plastic case with foam insert and locator for holding the contacts
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 52 63 DG
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Other Surface Finish: Chrome Plated
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 10 1/4"
• Tool Nominal Length: 10.25"
• Tool Length: 10.4"
• Tool Width: 8.8"
• Tool Height: 2.2"
• Tool Weight: 857 g (1.89 lb)
• Crimping Positions: 1
• Crimping Profile: Four-Mandrel crimp
• Crimping Capacity - AWG: 28 to 14
• Crimping Capacity - mm2: 0.08 to 2.5
• Diameter Max: 5 mm
• UPC: 843221015879
