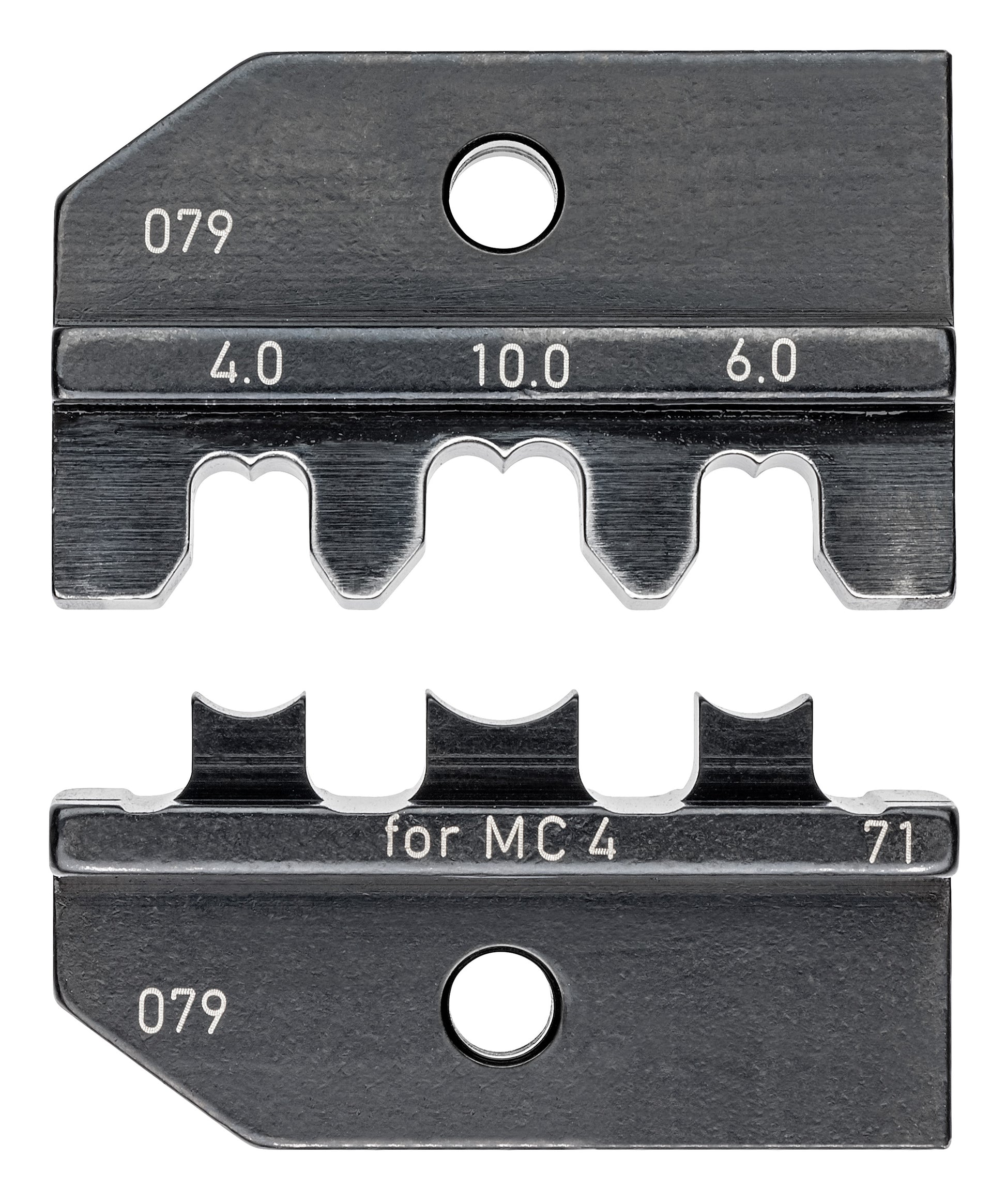

Knipex 97 49 71 Crimping die for MC4® and MC4® Evo 2 for 4, 6 and 10 mm² (12, 10 and 8 AWG)

Crimping die for MC4® and MC4® EVO 2

Features

• Capacity - 4.0, 6.0 and 10.0 mm² (12, 10 and 8 AWG)
• The optional locator 97 49 71 1 automatically aligns the contacts precisely
• With high-precision crimp geometry for the best crimp results

Specifications

• Manufacturer Part Number: 97 49 71
• Tethered Enabled: false
• Tool Nominal Length: "
• Tool Length: 2.3"
• Tool Width: 1.75"
• Tool Height: 0.7"
• Tool Weight: 43 g (0.095 lb)
• Crimping Profile: F crimp
• Terminal Type: MC4|MC4 EVO2
• Crimping Capacity: Capacity - 4.0, 6.0 and 10.0 mm² (12, 10 and 8 AWG)
• Crimping Capacity - AWG: 12, 10 and 8
• Crimping Capacity - mm2: 4.0, 6.0 and 10.0

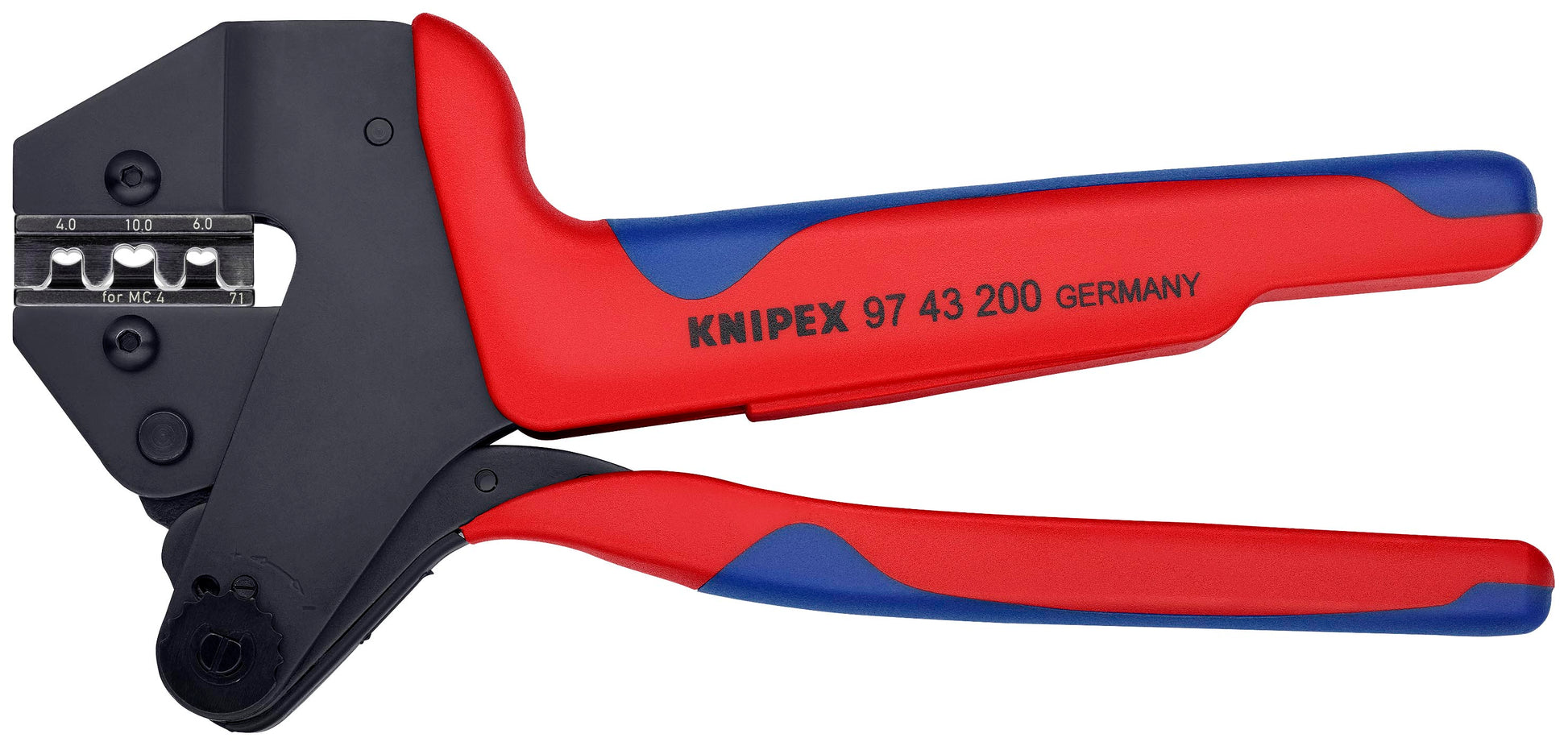

• For Use With: 97 43 66 EVO
• UPC: 843221031855
