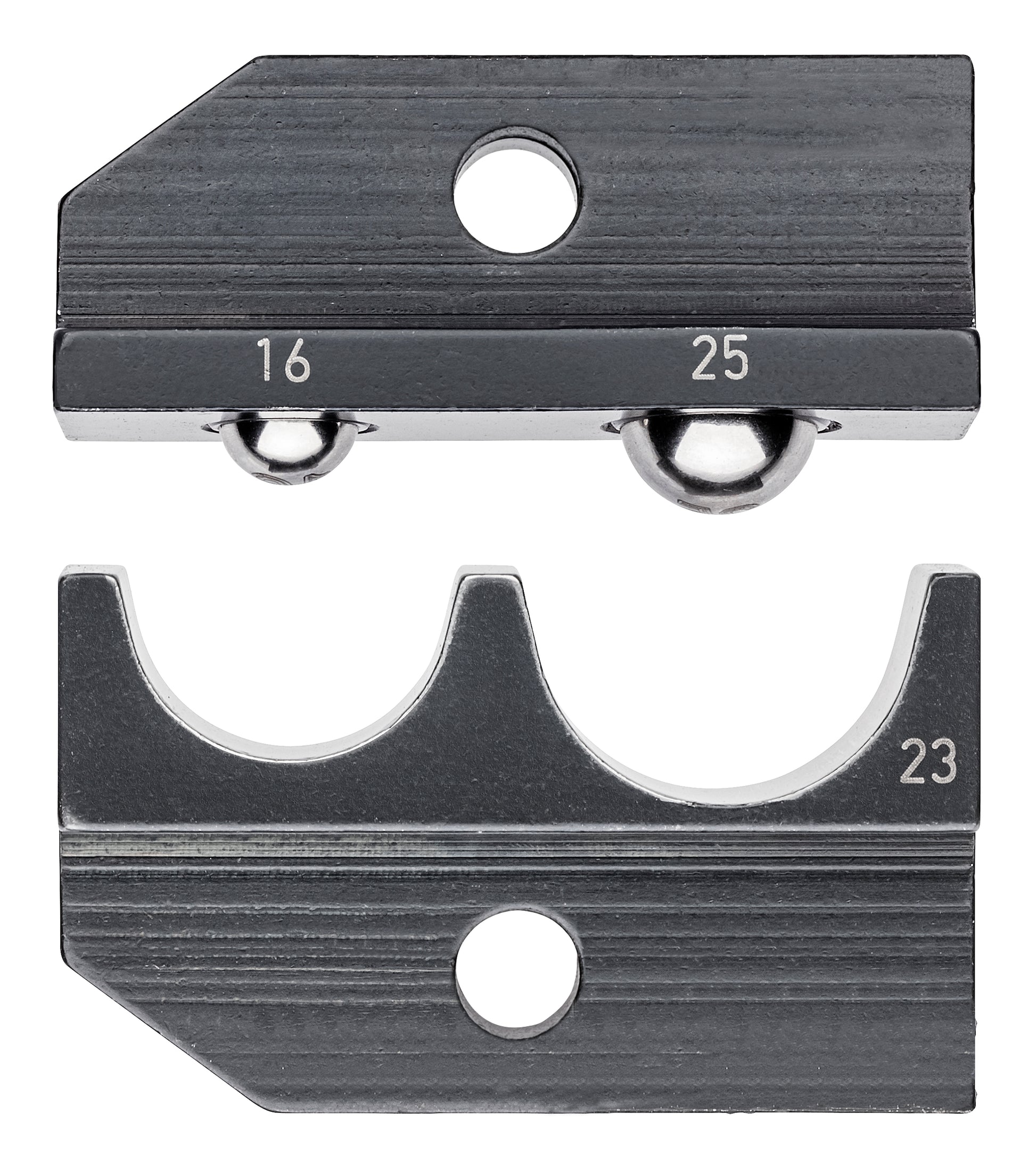

Knipex 97 49 23 Crimping Die For Non-Insulated Terminals and Plug Connectors

Crimping die for non-insulated terminals and plug connectors

Features

• Capacity - 16 and 25 mm² (6 and 4 AWG)

Specifications

• Manufacturer Part Number: 97 49 23
• Material Type: Ball Bearing Steel
• Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Black
• Tool Nominal Length: "
• Tool Length: 1.3"
• Tool Width: 1.2"
• Tool Height: 0.45"
• Tool Weight: 39 g (0.085 lb)
• Crimping Positions: 2
• Crimping Profile: Mandrel crimp
• Terminal Type: Butt/Ring/Fork
• Crimping Capacity: 16 and 25 mm² (6 and 4 AWG)
• Crimping Capacity - AWG: 6 and 4
• Crimping Capacity - mm2: 16 and 25
• UPC: 843221015480
