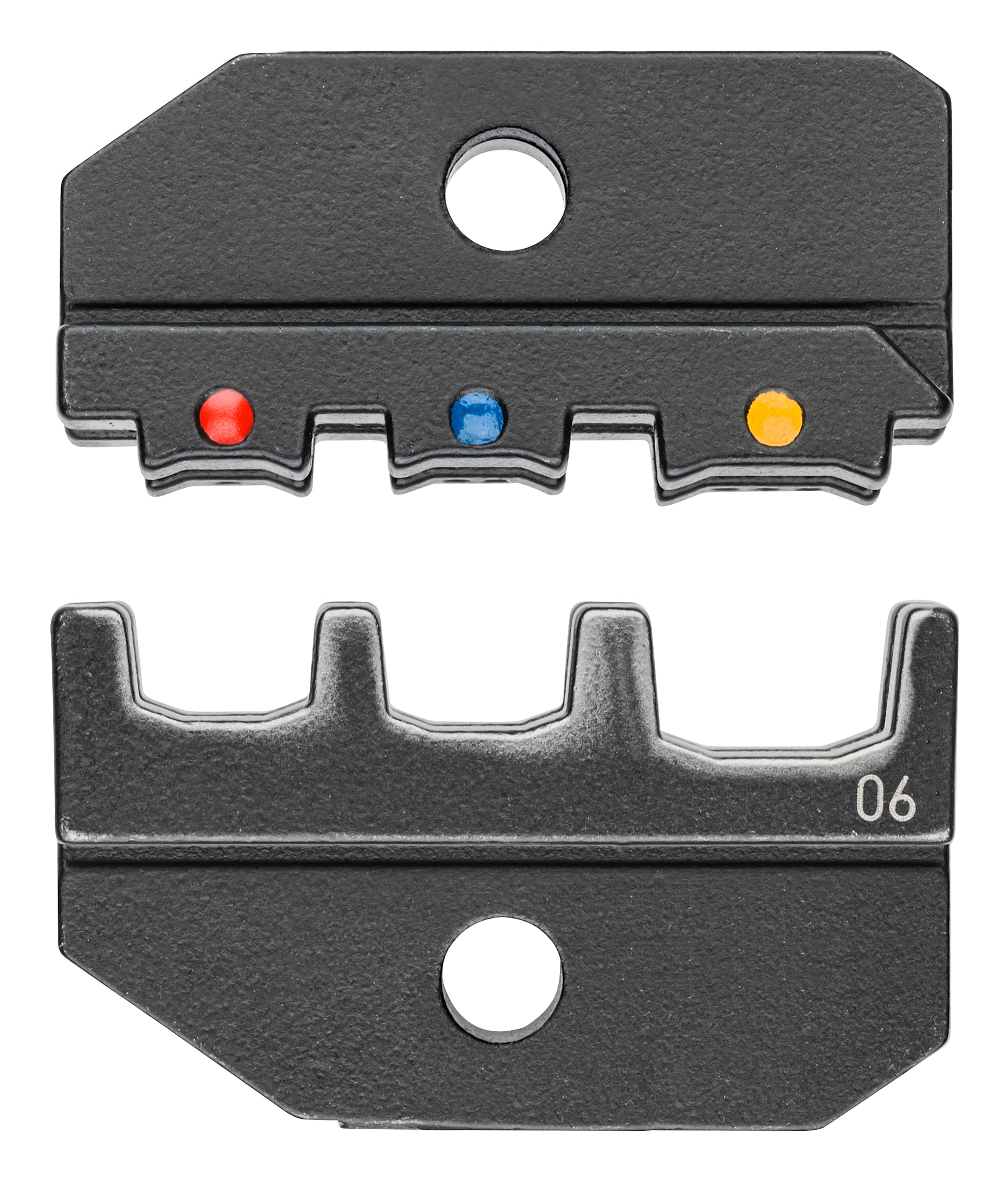

Knipex 97 49 06 Crimping Die For Insulated Terminals, Plug Connectors and Butt Connectors

Crimping die for insulated terminals and plug connectors

Features

• Capacity - 0.5 to 6.0 mm² (20 to 10 AWG)

Specifications

• Manufacturer Part Number: 97 49 06
• Material Type: Ball Bearing Steel
• Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Black
• Tool Nominal Length: "
• Tool Length: 1.25"
• Tool Width: 1.2"
• Tool Height: 0.45"
• Tool Weight: 41 g (0.09 lb)
• Crimping Positions: 3
• Crimping Profile: Oval crimp
• Terminal Type: Butt/Ring/Fork (Insulated)
• Crimping Capacity: 0.5 to 6.0 mm² (20 to 10 AWG)
• Crimping Capacity - AWG: 20 to 10
• Crimping Capacity - mm2: 0.5 to 6.0
• UPC: 843221006051
