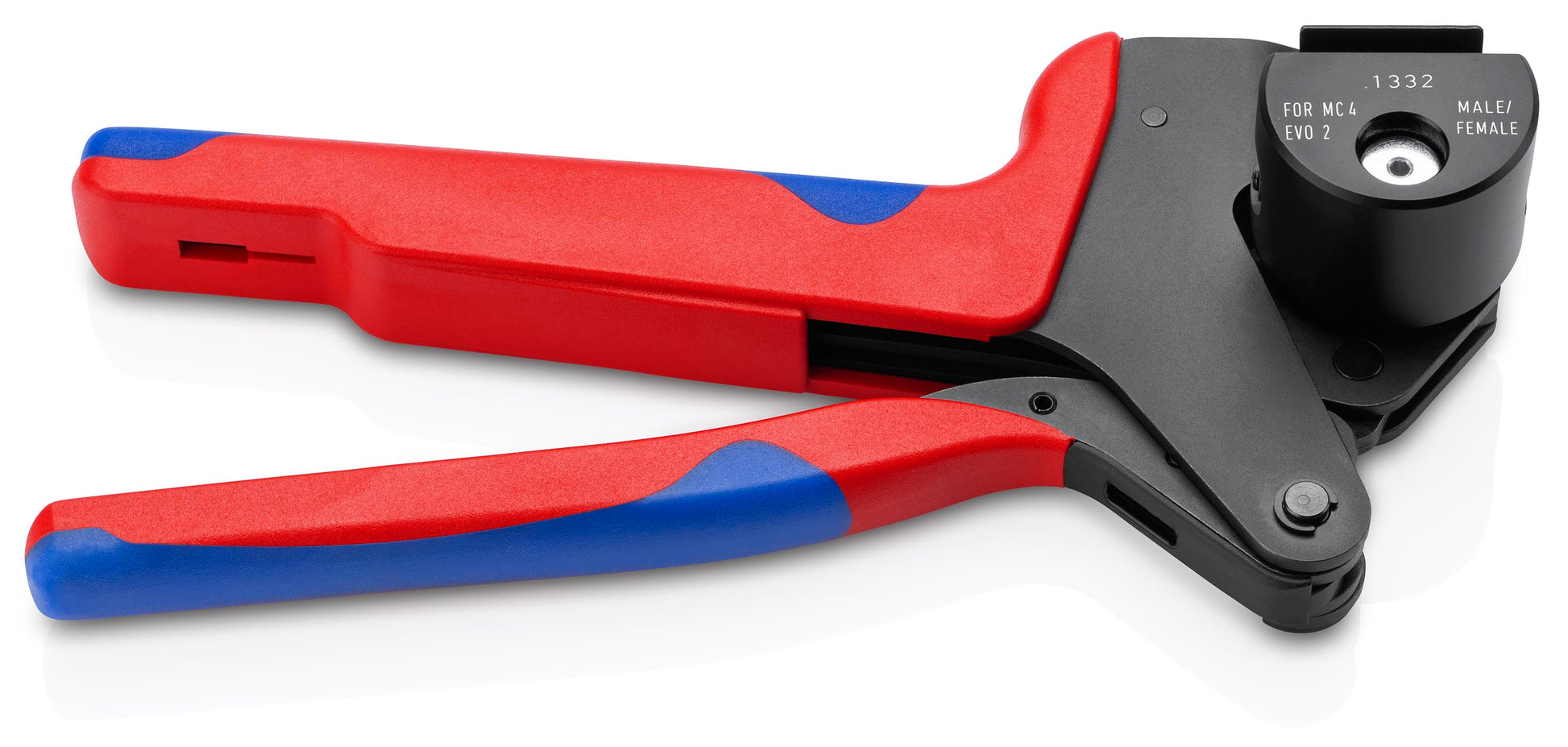

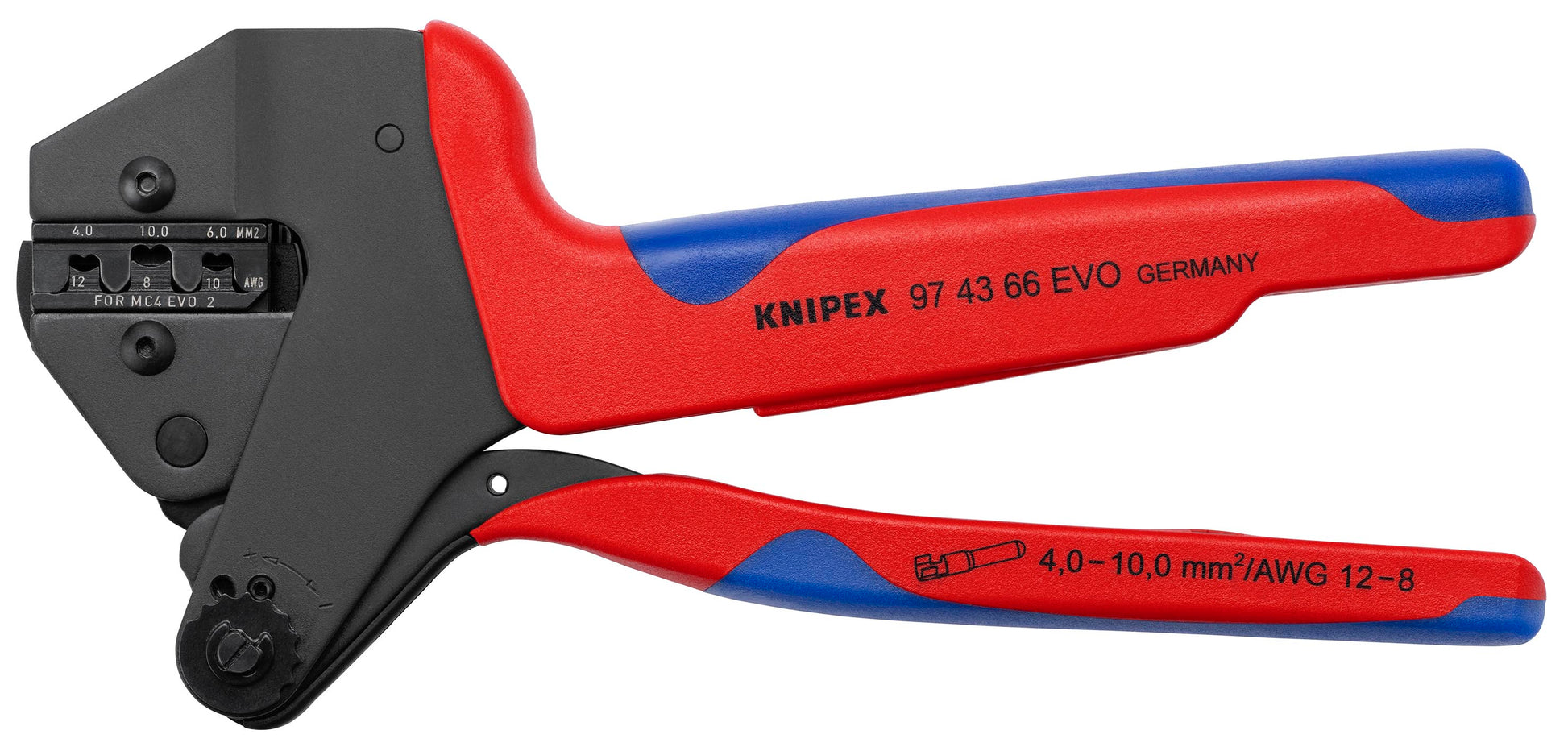

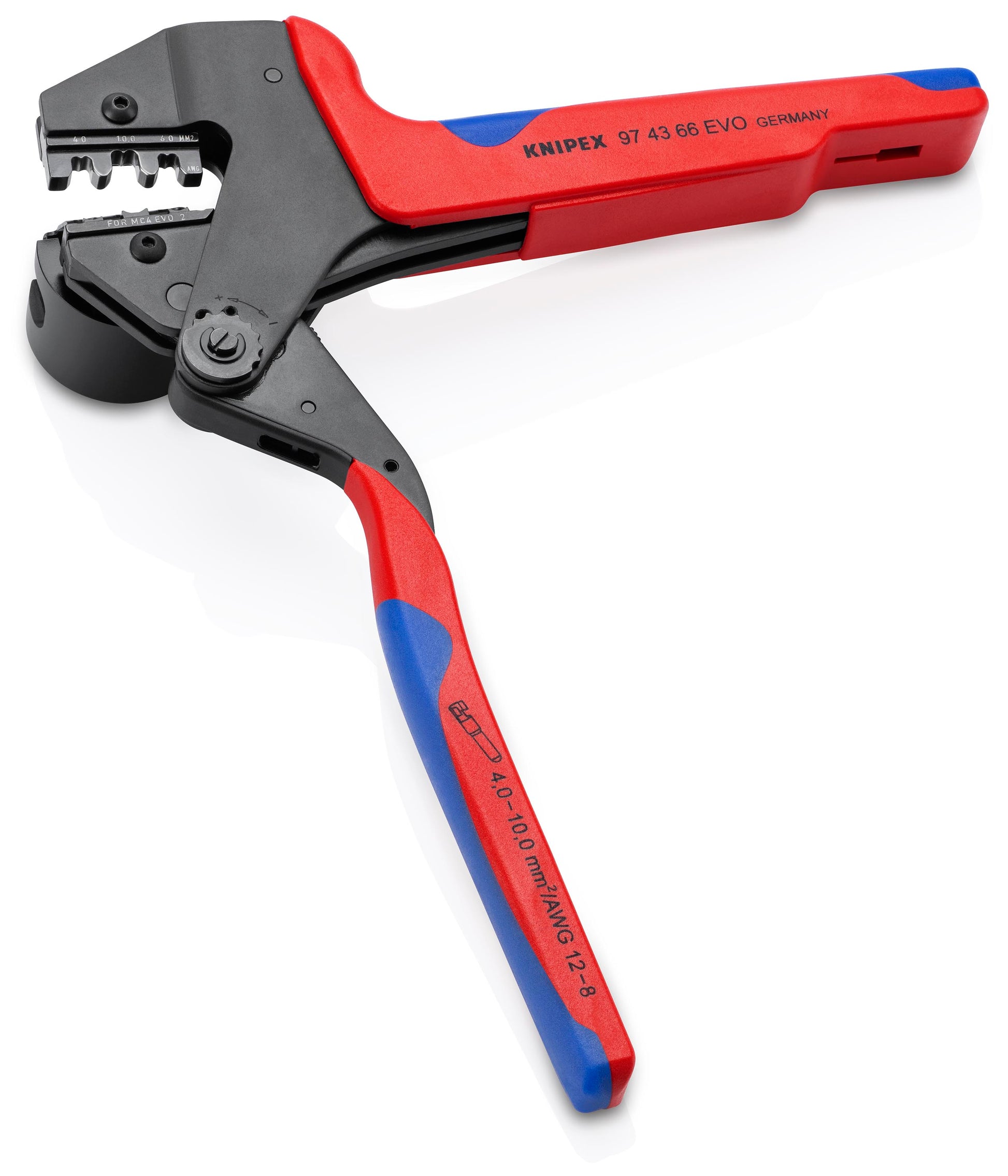

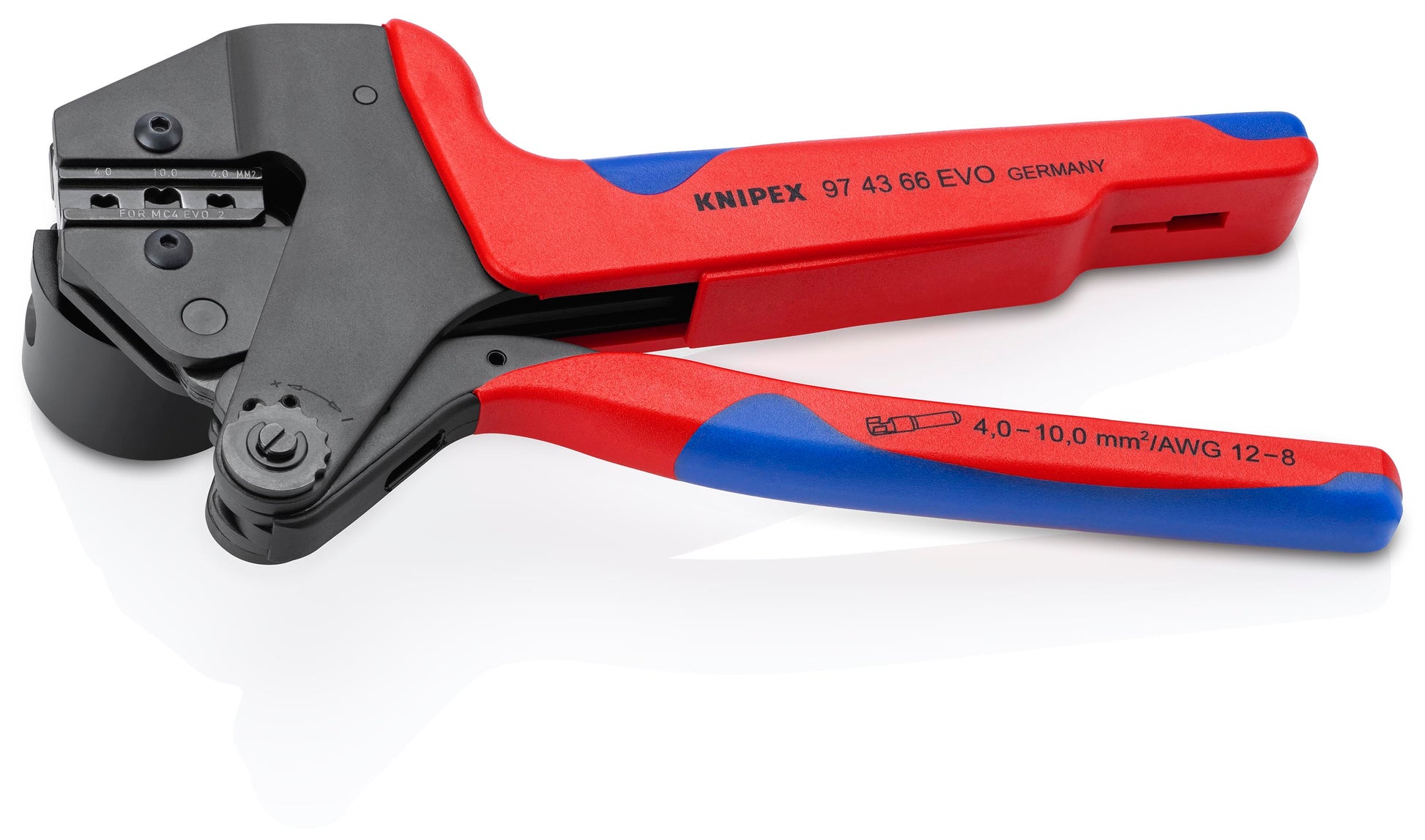

Knipex 97 43 66 EVO Crimp System Pliers MC4® Evo 2

Crimp system pliers with crimping capacity for MC4® Evo 2 connectors 4, 6 and 10 mm² (12, 10 and 8 AWG) – the professional standard for large PV (Photovoltaic) installations

Features

• Parallel crimping die movement
• Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)

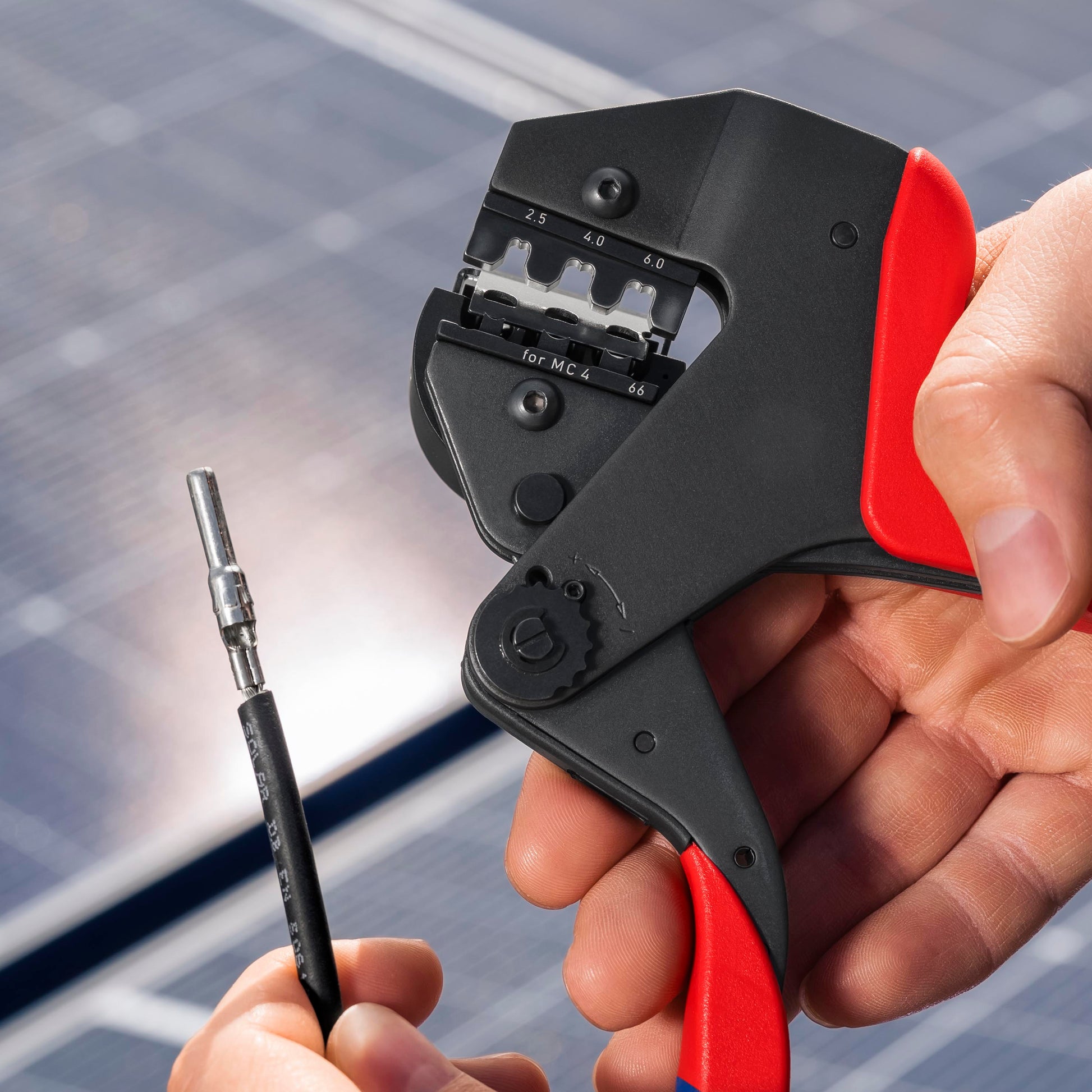

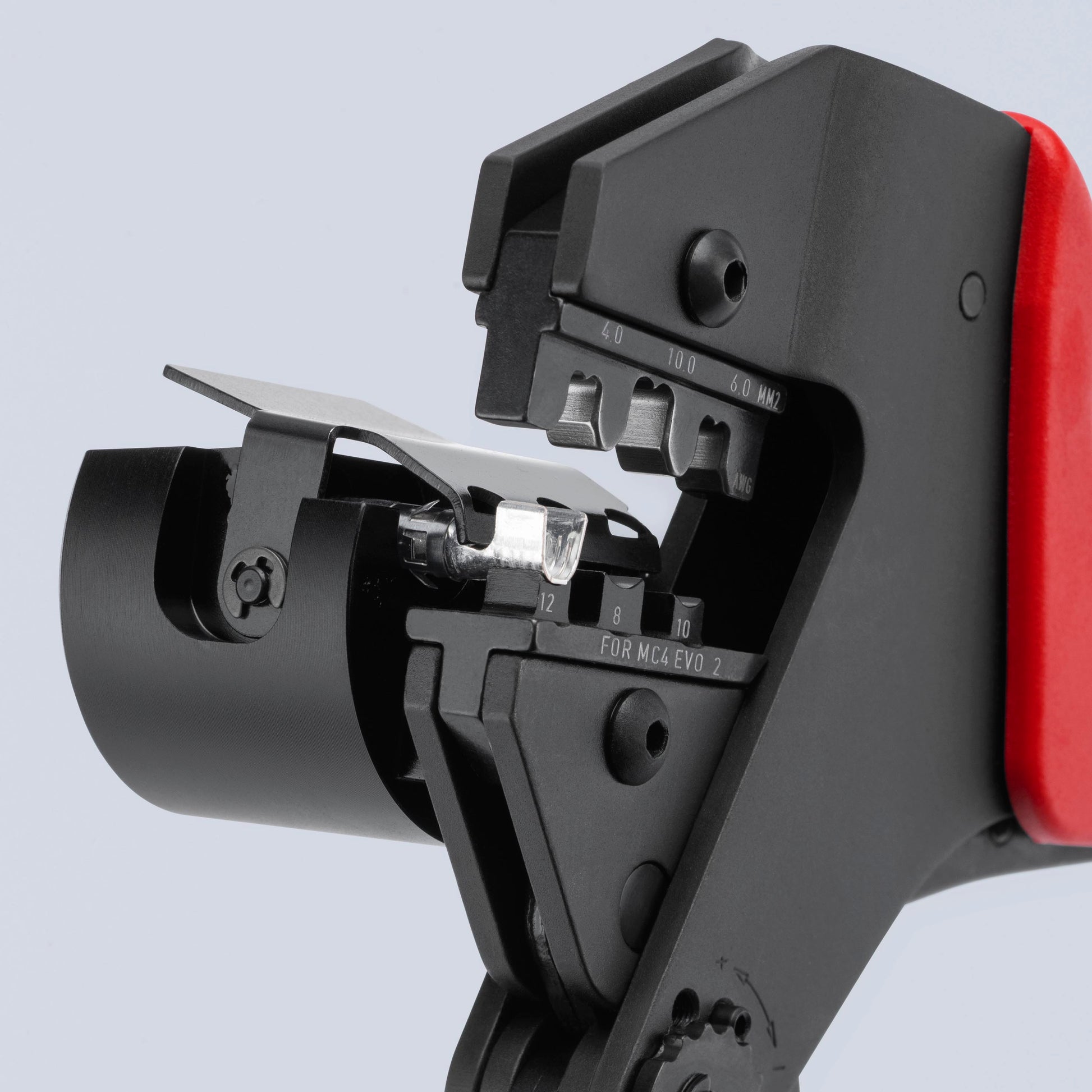

• Includes a locator for precise positioning of MC4® Evo 2
• Crimping die and locator are pre-assembled for precise positioning
• Additional MC4® locator sold separately (97 49 71 1)
• Crimping pressure has been set precisely (calibrated) in the factory
• For one- and two-handed operation
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 43 66 EVO
• Material Type: High-grade chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Burnished
• Tethered Enabled: false
• Nominal Length: 8 1/4"
• Tool Nominal Length: 8.25"
• Tool Length: 8.15"
• Tool Width: 3.6"
• Tool Height: 1.95"
• Tool Weight: 669 g (1.475 lb)
• Crimping Profile: F crimp
• Terminal Type: MC4 EVO2
• Crimping Capacity: 4, 6 and 10 mm² (12, 10 and 8 AWG)
• Crimping Capacity - AWG: 12, 10 and 8
• Crimping Capacity - mm2: 4.0, 6.0 and 10.0
• For Use With: 97 49 71|97 49 71 1
• UPC: 843221031794
