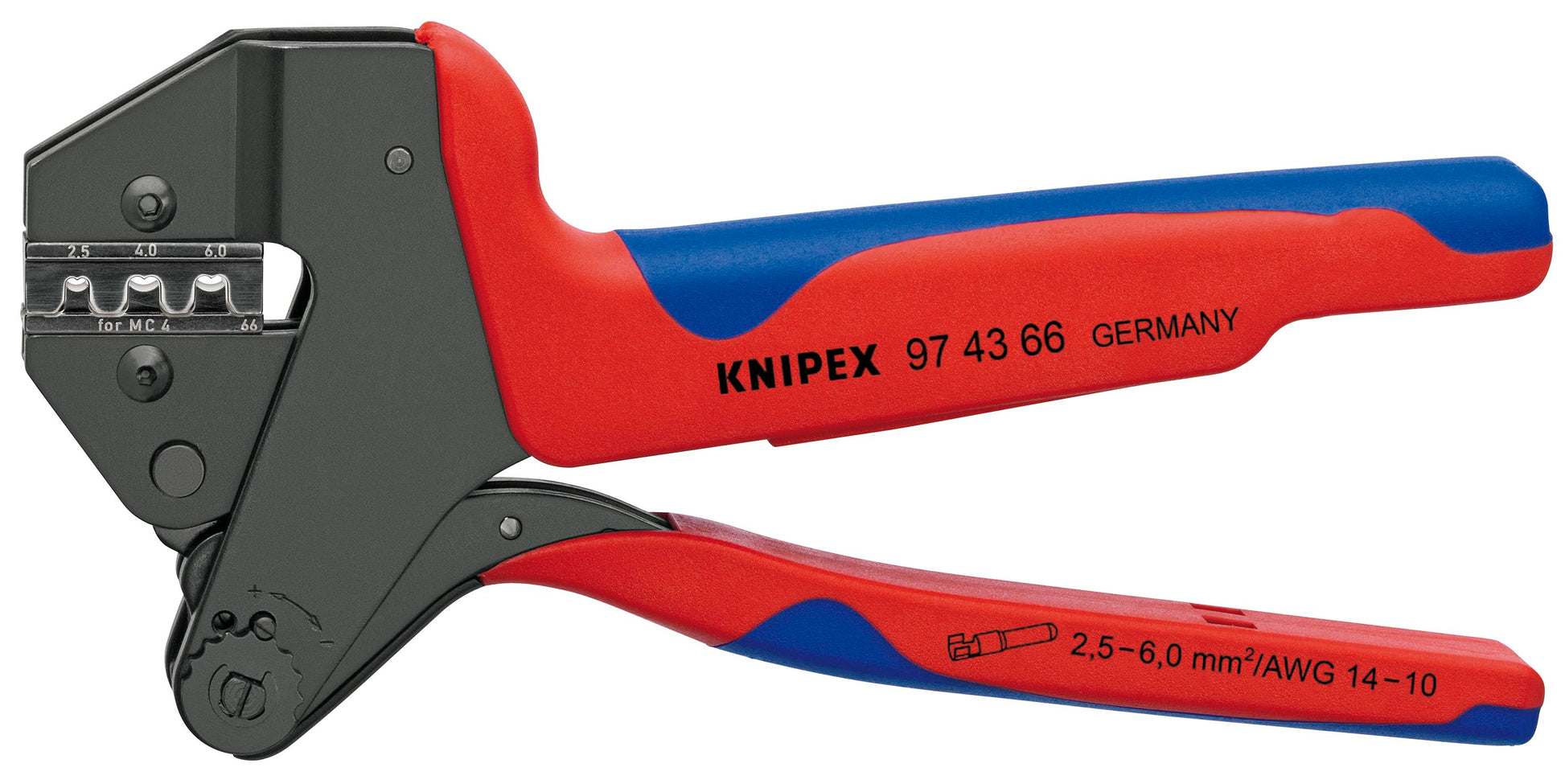

Knipex 97 43 66 Crimp System Pliers MC4® & MC4® Evo 2

Crimp system pliers with crimping capacity for MC4® and MC4® Evo 2 connectors 2.5, 4, and 6 mm² (14, 12 and 10 AWG) – the professional standard for large PV (Photovoltaic) installations

Features

• Parallel crimping die movement
• Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)

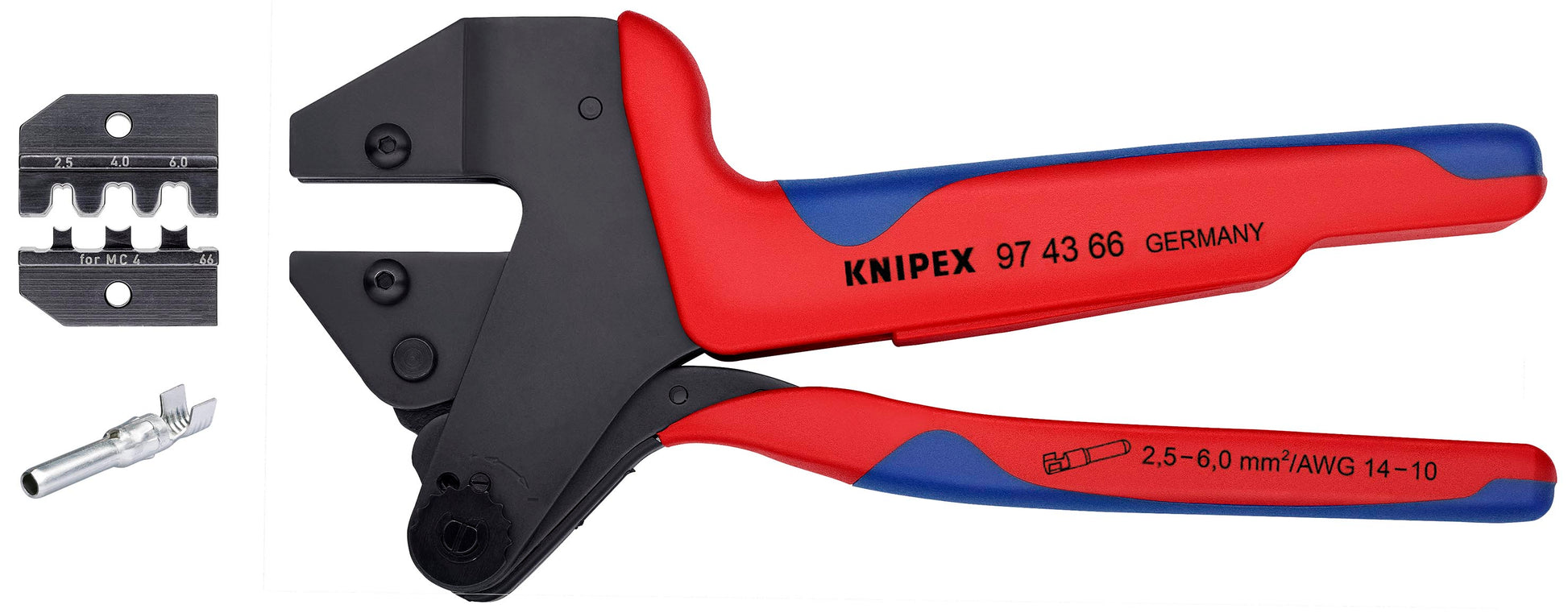

• Includes crimping die 97 49 66
• Additional locators (sold separately) make it easier to guide the contacts during the crimping process (97 49 66 1 for MC4 and 97 49 66 1 EVO for MC4 Evo 2)
• Crimping pressure has been set precisely (calibrated) in the factory
• For one- and two-handed operation
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 43 66
• Material Type: High-grade chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Burnished
• Tethered Enabled: false
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8"
• Tool Width: 3.7"
• Tool Height: 0.95"
• Tool Weight: 599 g (1.32 lb)
• Crimping Profile: F crimp
• Terminal Type: MC4|MC4 EVO2
• Crimping Capacity: 2.5, 4, and 6 mm² (14, 12 and 10 AWG)
• Crimping Capacity - AWG: 14, 12 and 10
• Crimping Capacity - mm2: 2.5, 4 and 6
• For Use With: 97 49 66|97 49 66 1
• UPC: 843221031787
