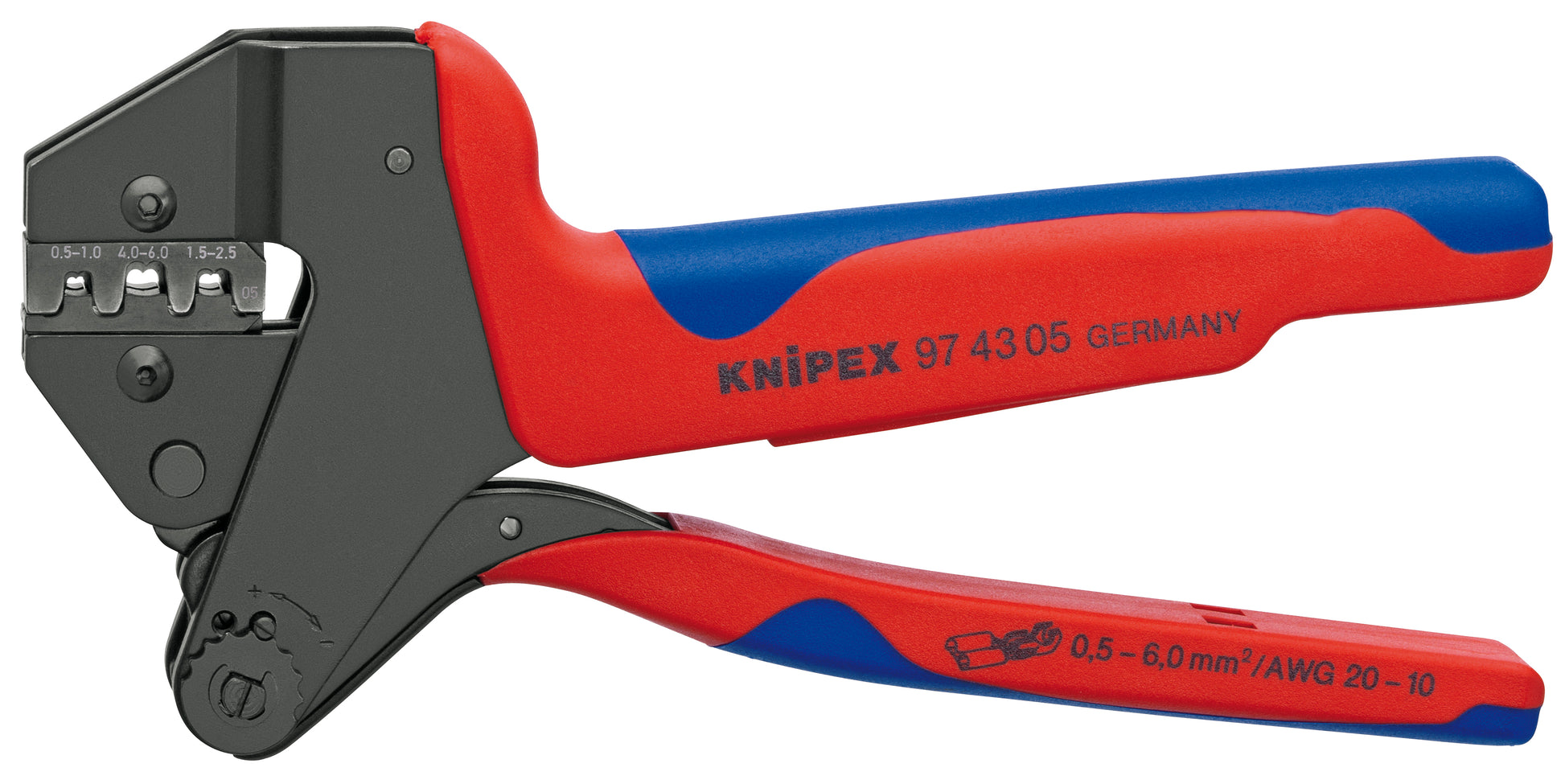

Knipex 97 43 05 Crimp System Pliers

Crimp system pliers for non-insulated open plug-type connectors (3/16" and 1/4" connector width)

Features

• Just one tool for almost 1,000 crimping applications
• Parallel crimping die movement
• Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)
• Crimping pressure has been set precisely (calibrated) in the factory
• Optimum transmission of force due to lever action for fatigue-reduced operation
• Comfortable handle design
• Different locators for precise positioning of the connectors
• Additional crimp dies available upon request
• Chrome vanadium electric steel in special quality; oil-hardened

Specifications

• Manufacturer Part Number: 97 43 05
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Burnished
• Other Surface Finish: Black-oxide
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8.05"
• Tool Width: 3.7"
• Tool Height: 0.95"
• Tool Weight: 601 g (1.325 lb)
• Crimping Positions: 3
• Crimping Profile: F crimp
• Terminal Type: Open Plug
• Crimping Capacity: 0.5 to 6.0 mm² (20 to 10 AWG)
• Crimping Capacity - AWG: 20 to 10
• Crimping Capacity - mm2: 0.5 to 6.0
• Accessory Part Number: 97 49 95
• UPC: 843221015404
