Knipex 97 33 03 MultiCrimp® PV Crimping Pliers

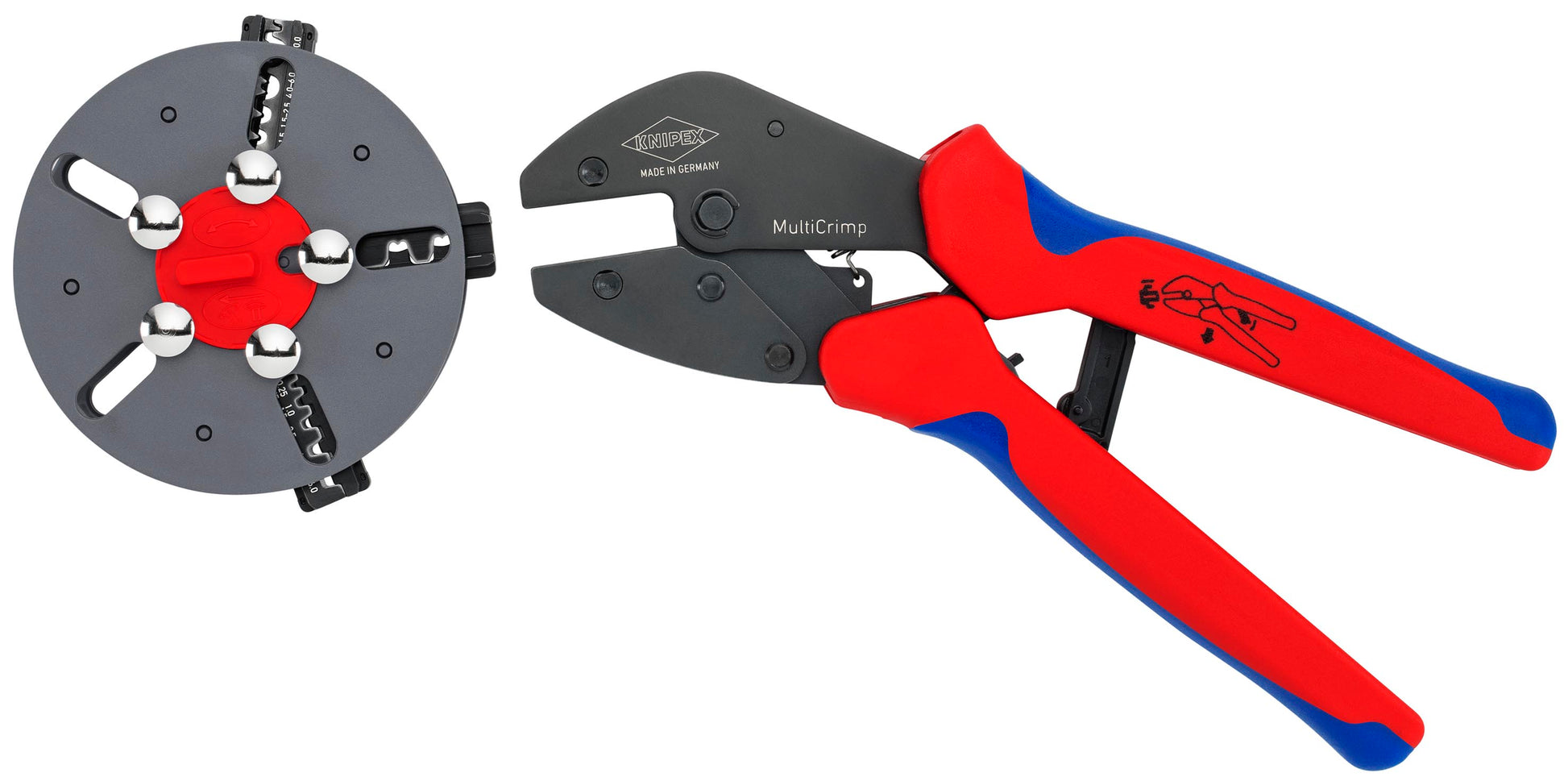

Crimping Pliers with round magazine and three interchangeable crimping dies for MC4®/ MC4® Evo 2, uninsulated cable connectors and wire ferrules

Features

• Just one tool for the most common crimping applications
• Crimping dies changed quickly and easily without any additional tool

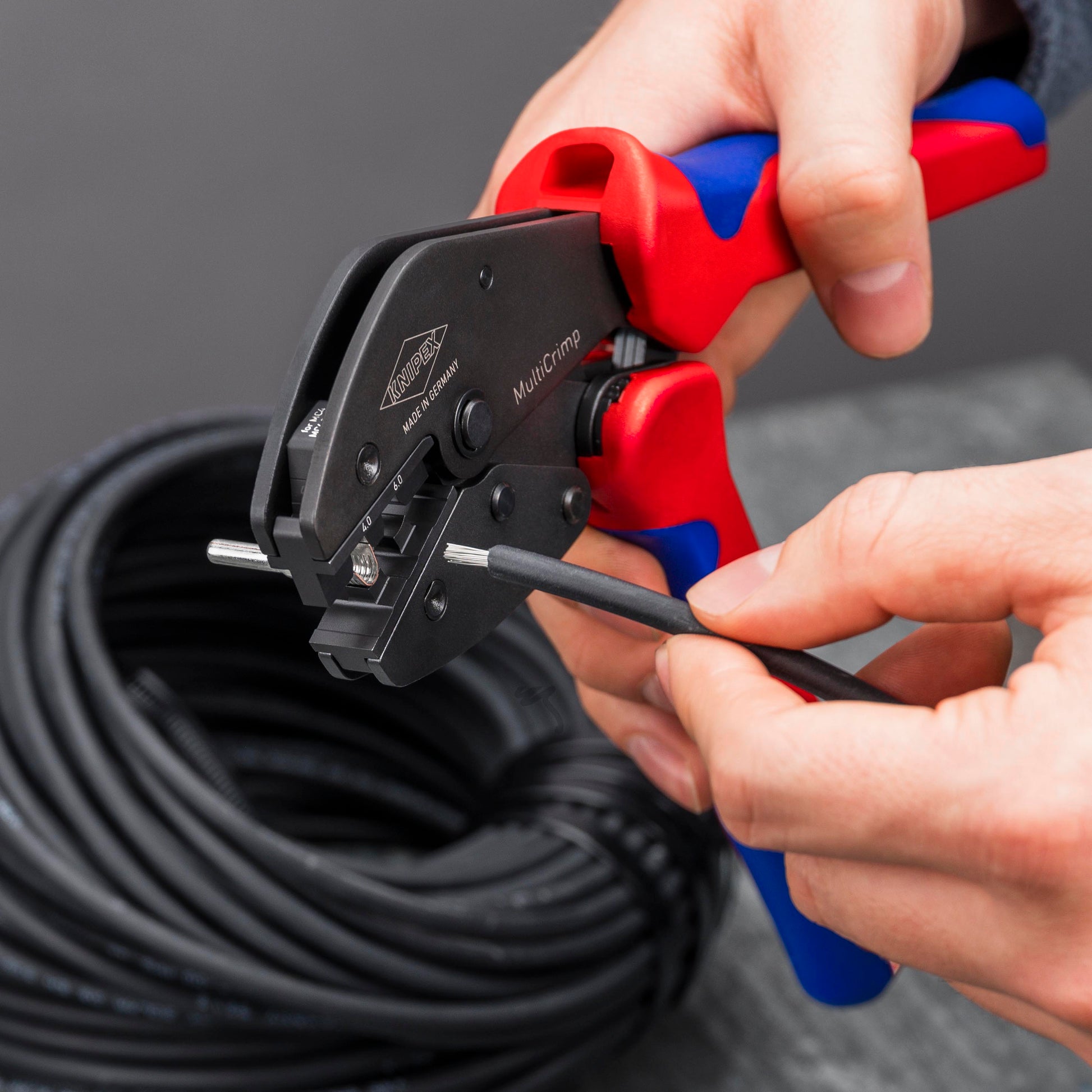

• For PV cables, grounding conductors and the wiring to the meter cabinet
• Consistently high crimping quality due to precision dies and forced locking mechanism (unlockable)
• Round magazine: plastic, fiberglass-reinforced
• Crimping die 97 39 08: Crimps insulated and uninsulated wire ferrules from 0.25 – 6 mm²
• Crimping die 97 39 13: Crimps connections for uninsulated cable connectors from 0.5 – 10 mm²

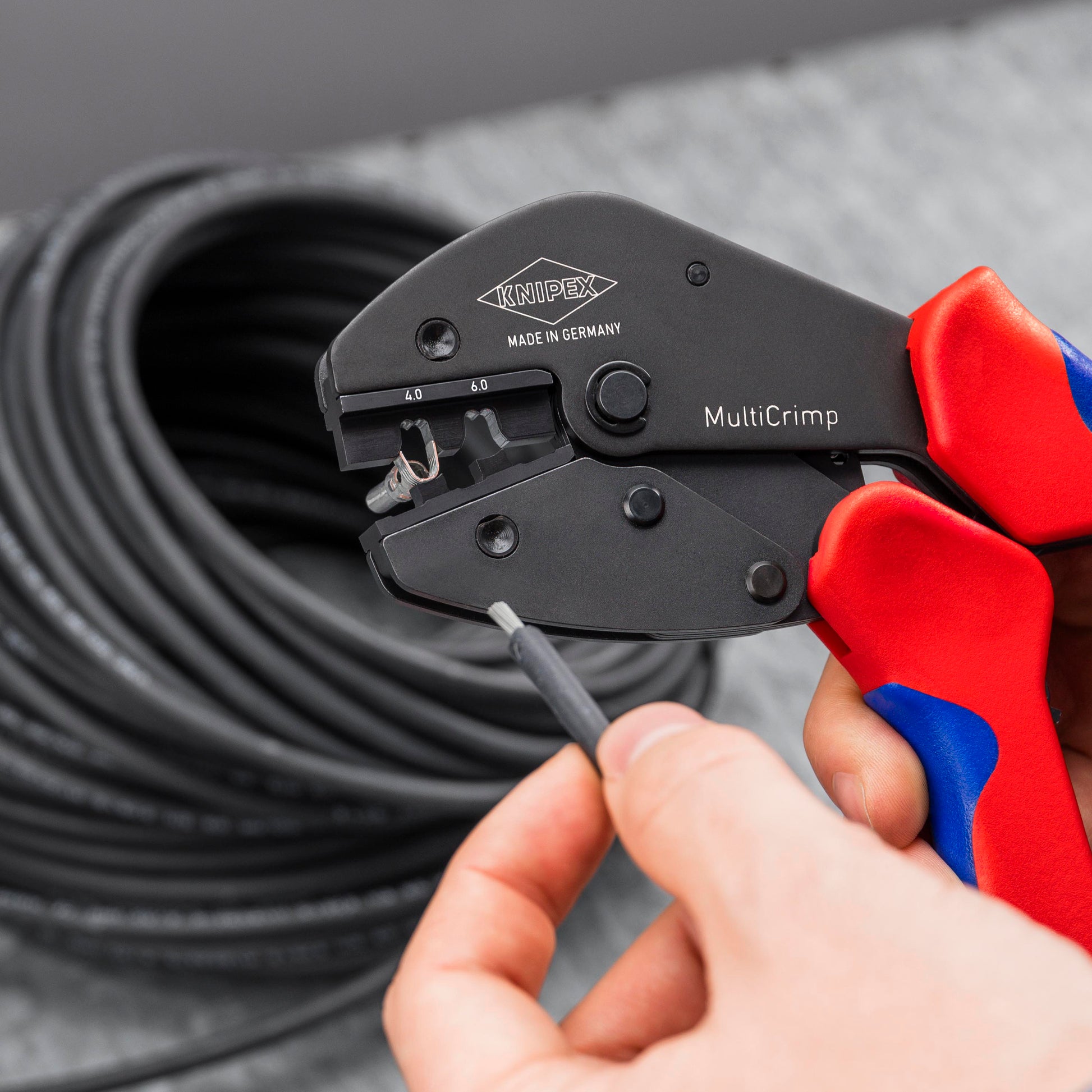

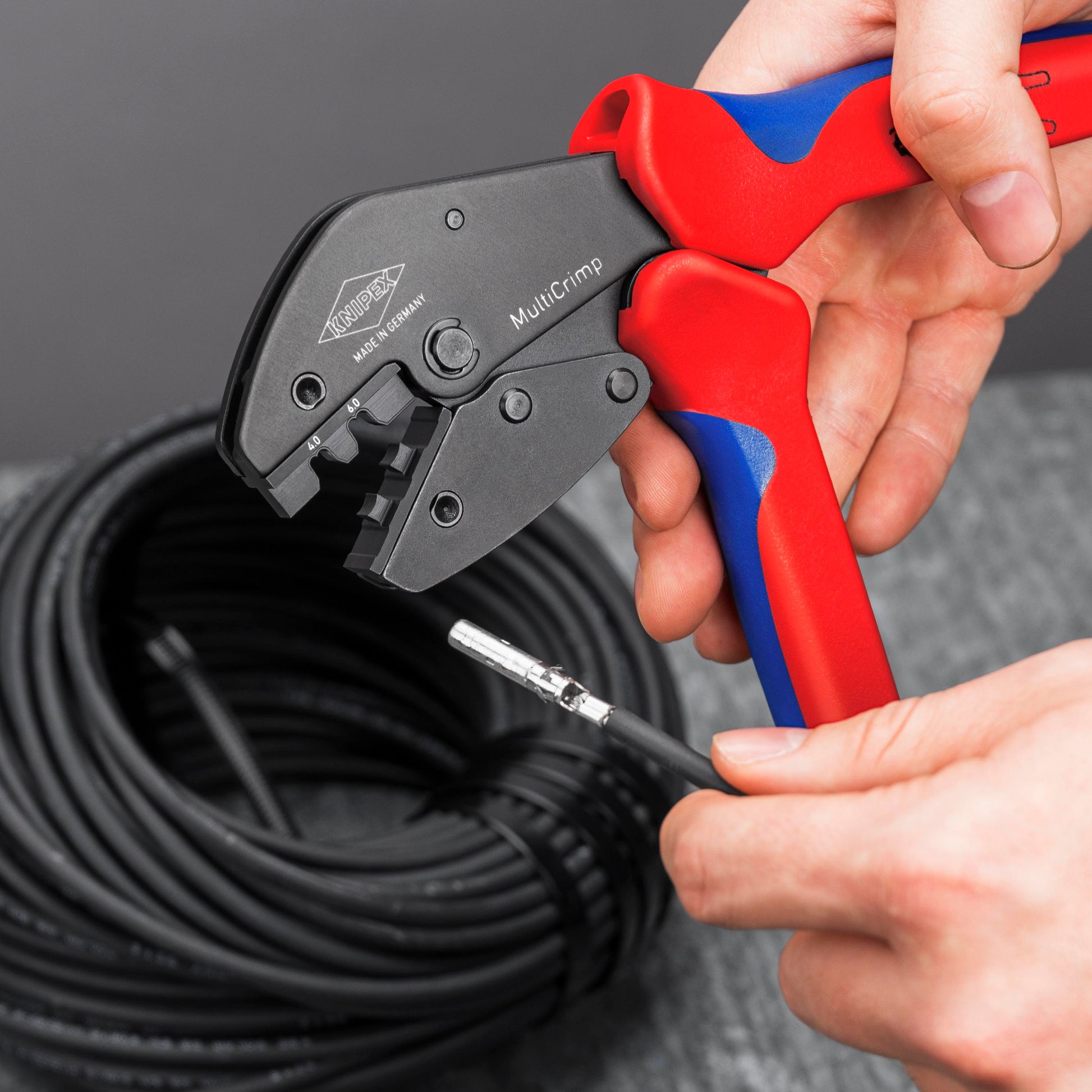

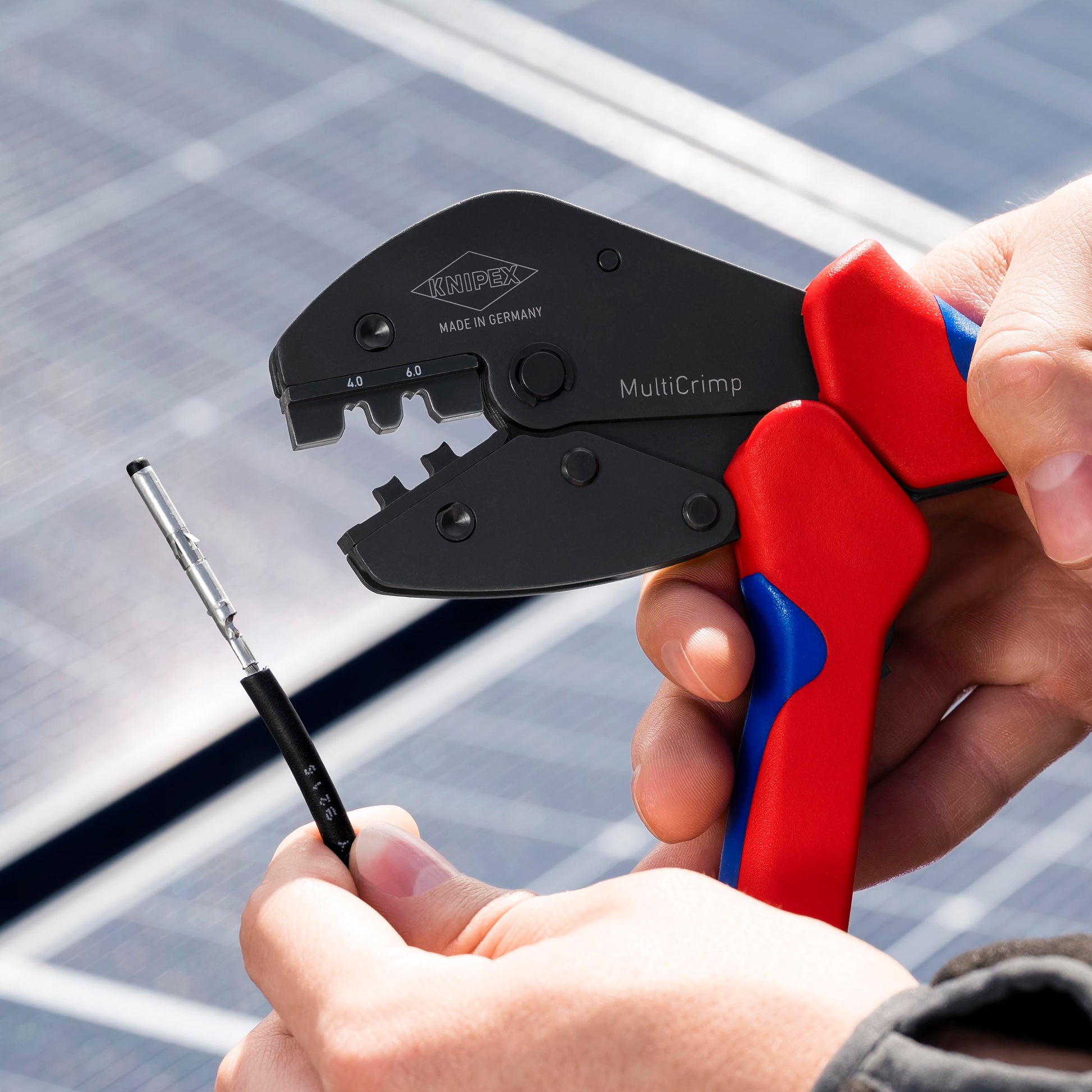

• Crimping die 97 39 42: Crimps connectors for PV conductors for MC4® and MC4® Evo 2 connectors for 4 and 6 mm² (12 and 10 AWG)
• Crimping dies 97 49 XX of the crimping system pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01 / 02 / 03

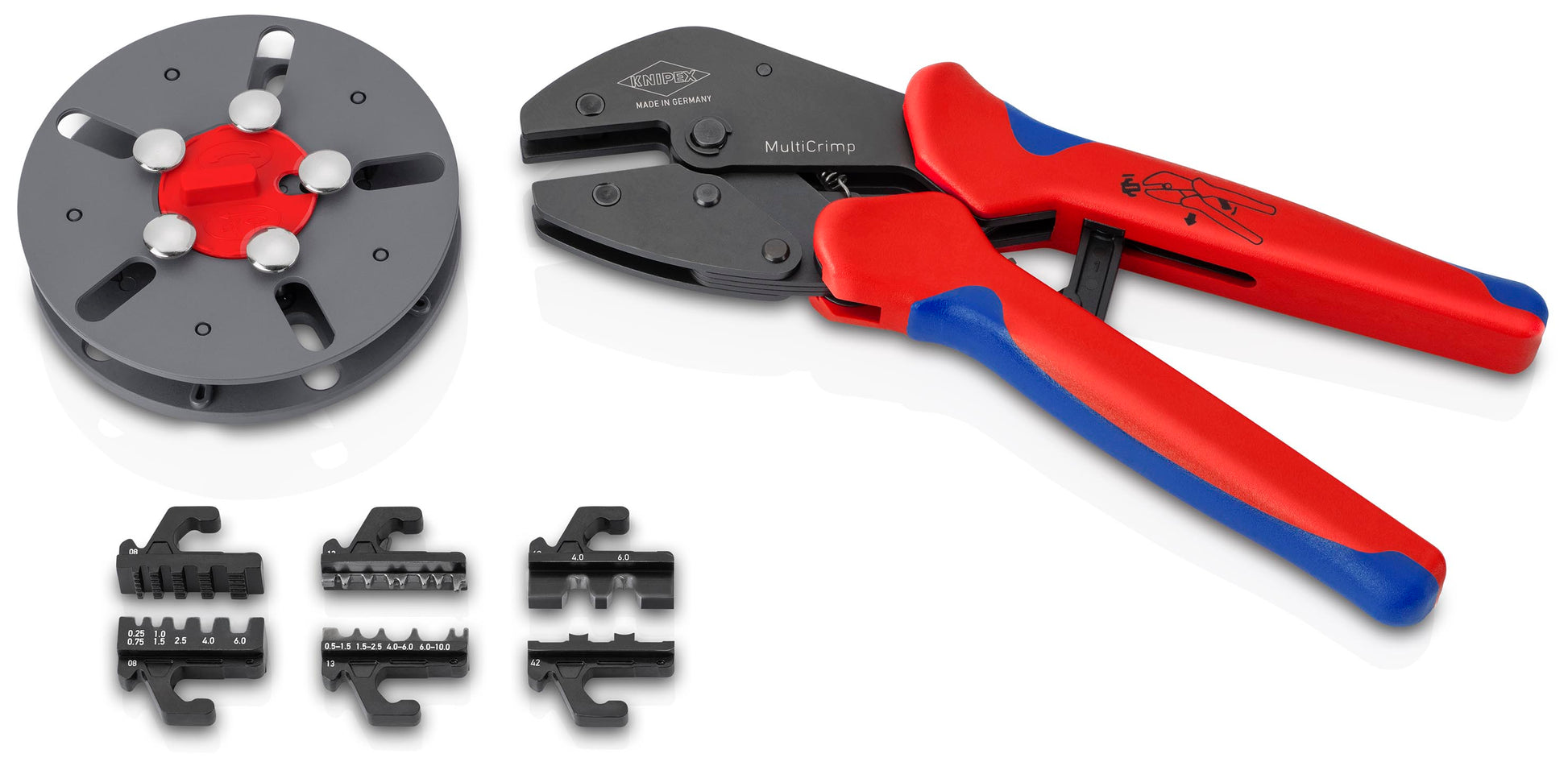

• Additional dies are available 97 39 05 / 06 / 09

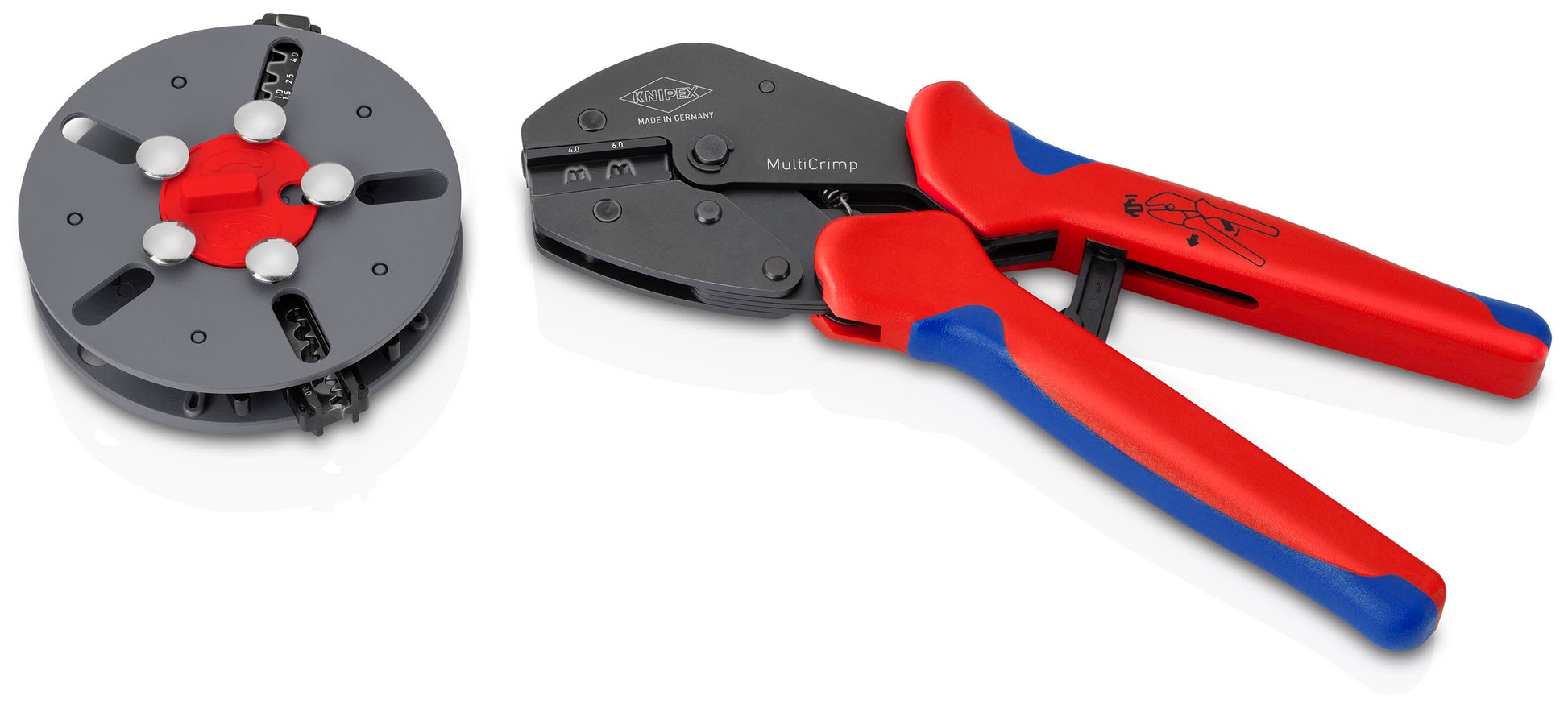

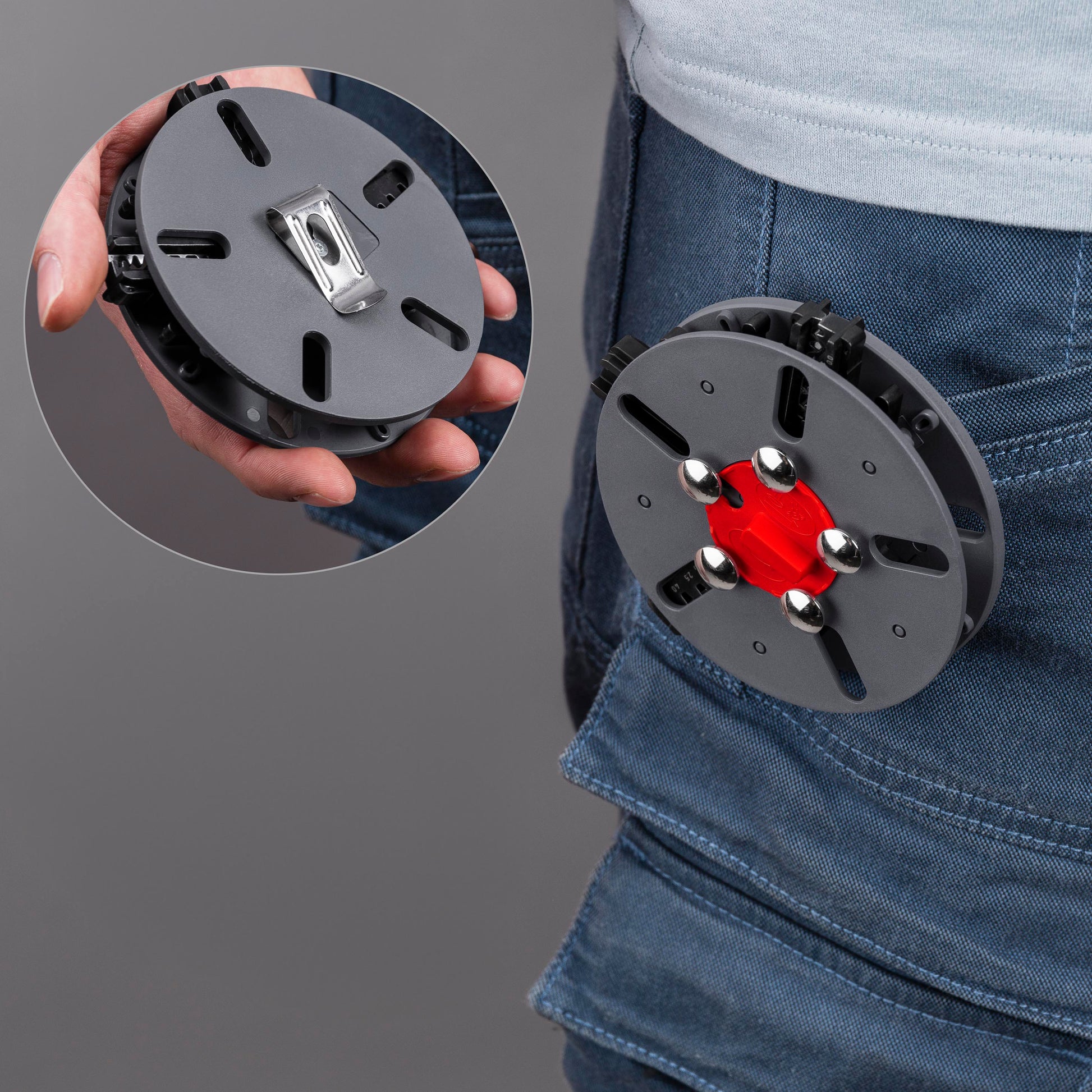

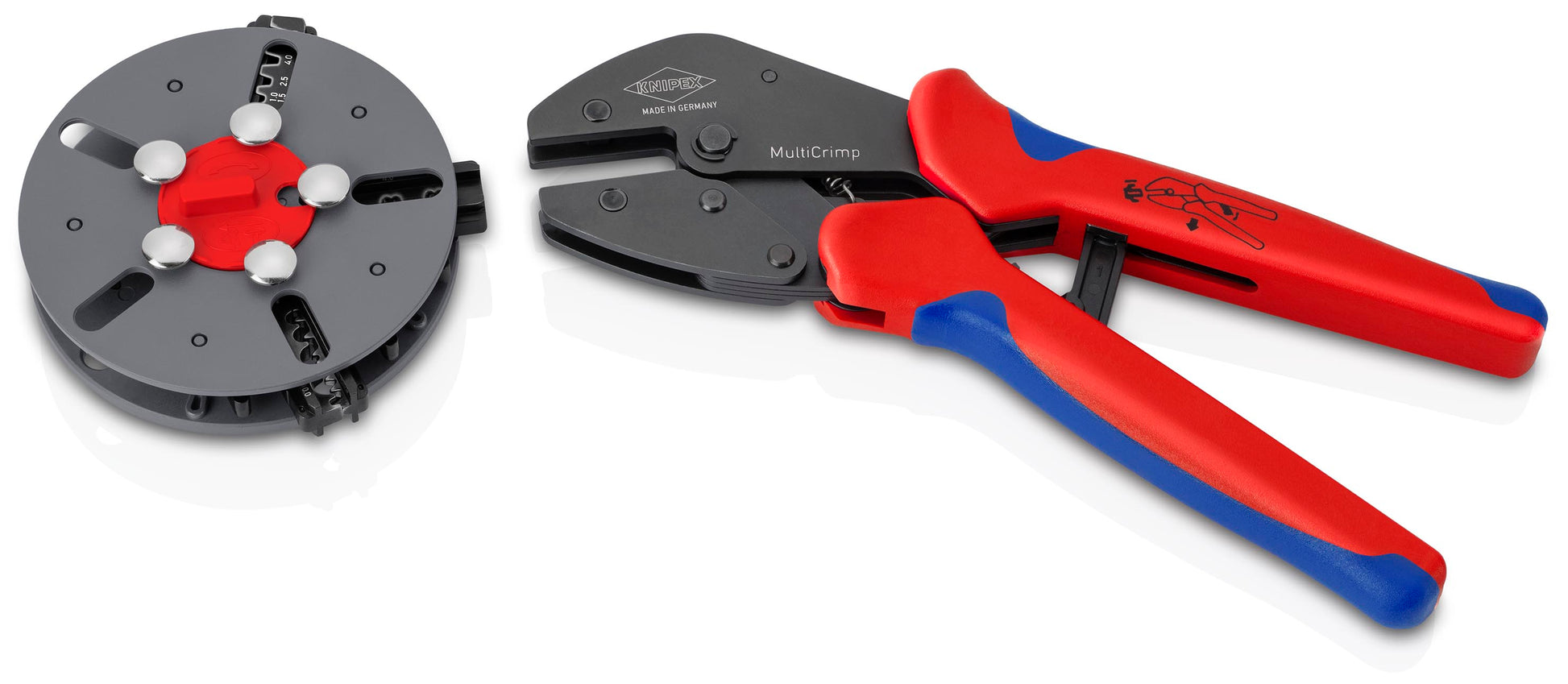

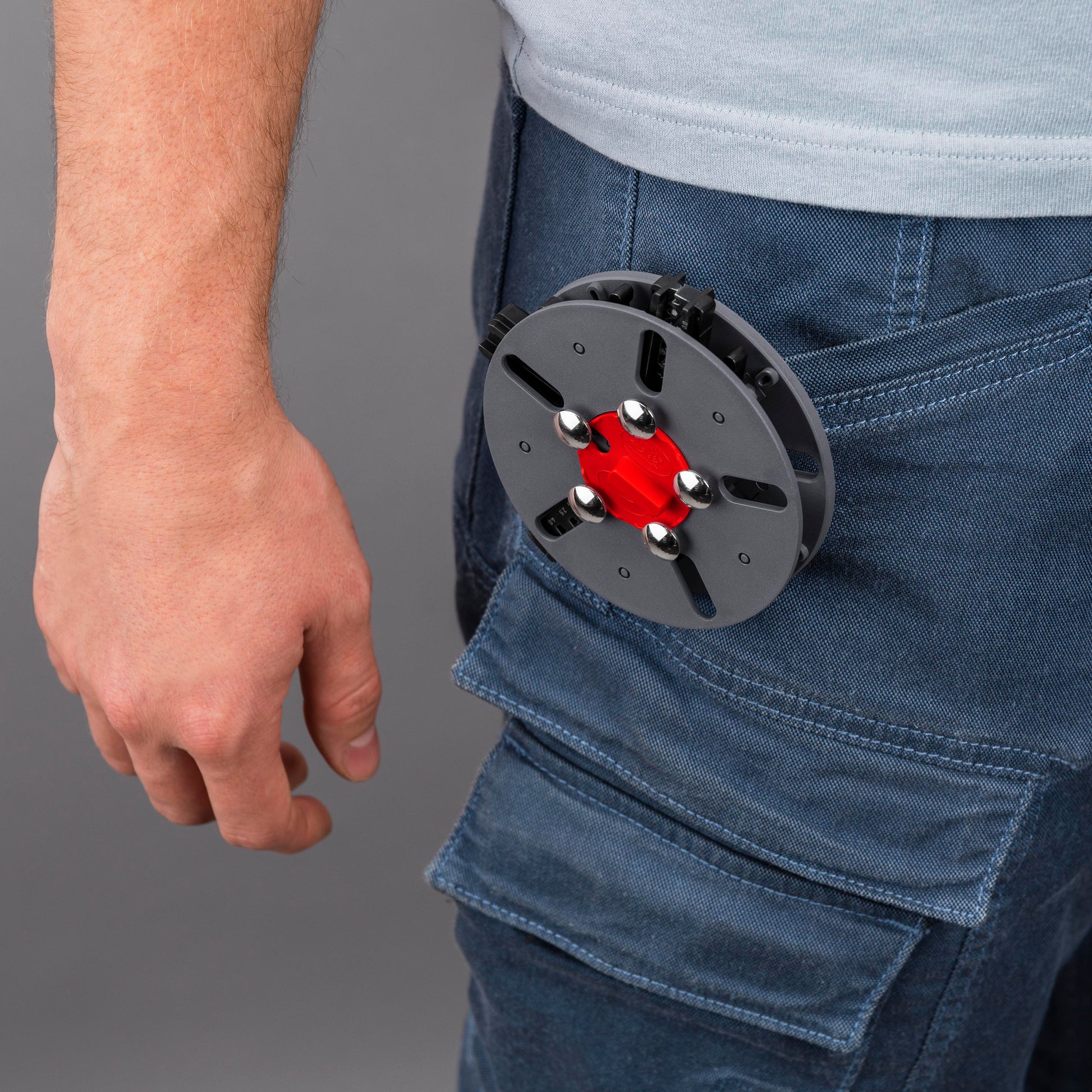

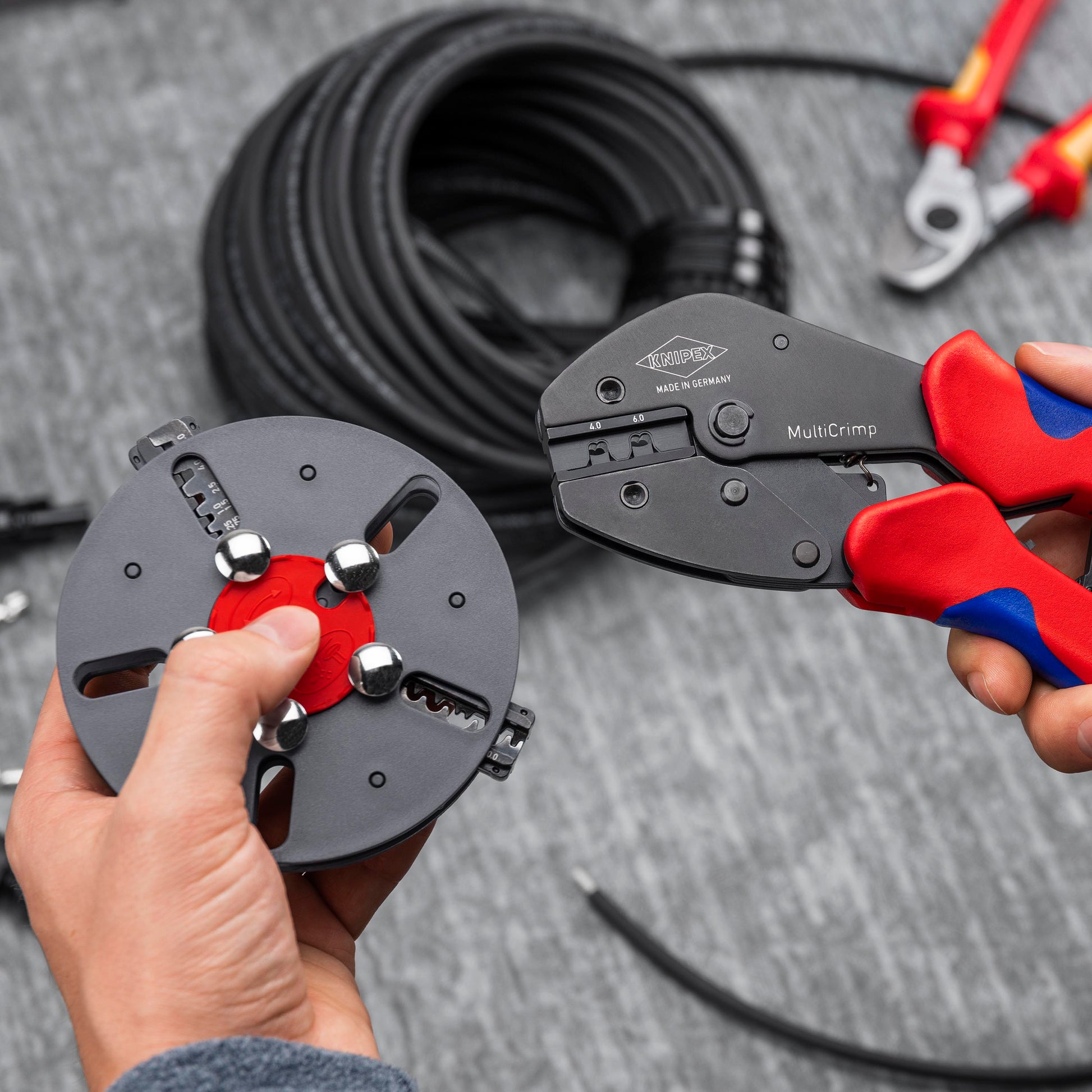

• Sorted and protected storage of the interchangeable dies in a round magazine
• Comfortable, powerful crimping pliers in professional quality
• Same reliable crimping results as with fixed crimping dies
• Chrome vanadium electric steel in special quality, oil-hardened

Specifications

• Manufacturer Part Number: 97 33 03
• Sub Brand Name: MultiCrimp®
• Material Type: Chrome vanadium electric steel, oil-hardened
• Other Material Type: Round magazine: fiberglass reinforced plastic
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Blue|Red
• Nominal Length: 9 1/4"
• Tool Nominal Length: 9.25"
• Tool Length: 9.2"
• Tool Width: 3.6"
• Tool Height: 1.2"
• Tool Weight: 562 g (1.24 lb)
• Crimping Positions: Set of dies
• Crimping Profile: Trapezoid crimp
• Terminal Type: End Ferrules-Single|End Ferrules-Single (Insulated)|MC4|MC4 EVO2
• Crimping Capacity: 0.25 to 6 mm² (24 to 10 AWG)
• Crimping Capacity - AWG: 24 to 10
• Crimping Capacity - mm2: 0.25 to 6
• For Use With: 97 39 42
• UPC: 843221030797
