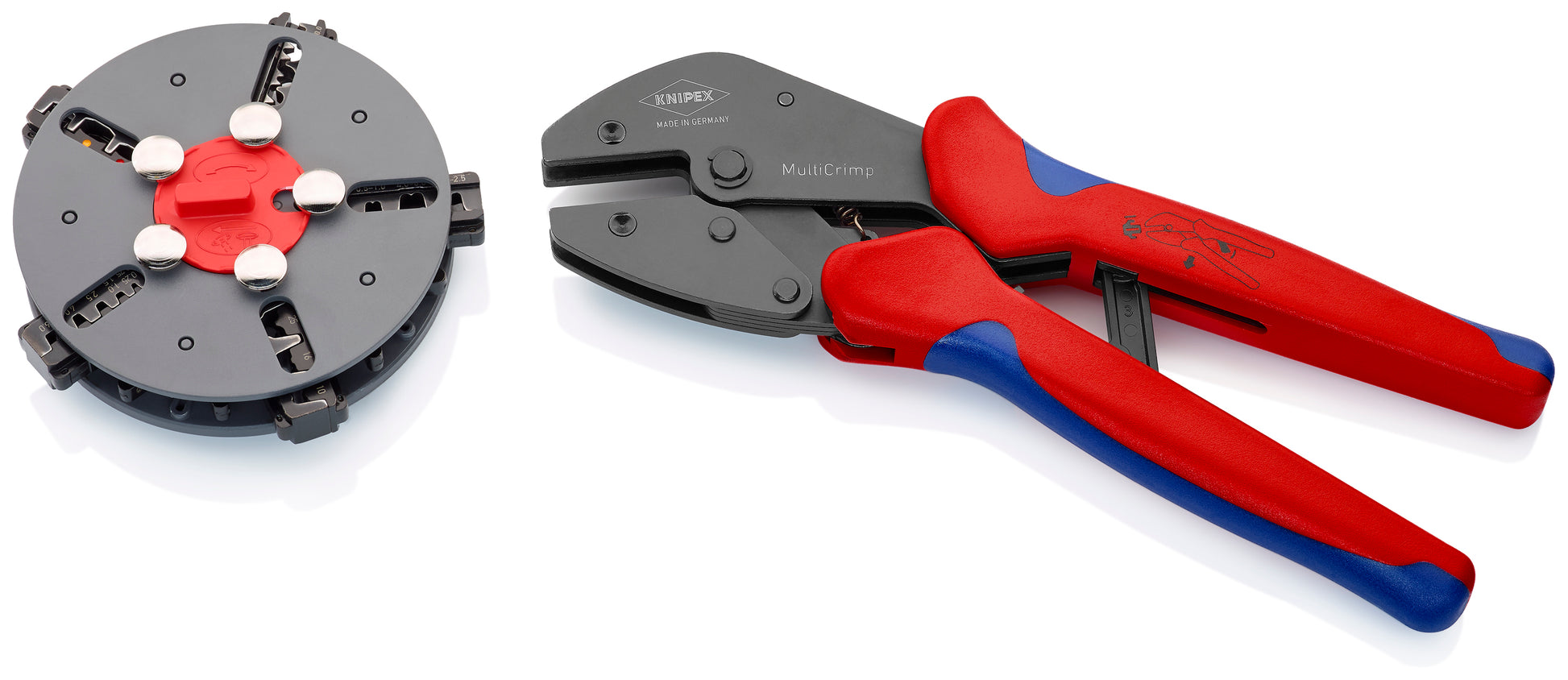

Knipex 97 33 02 MultiCrimp® Crimping Pliers

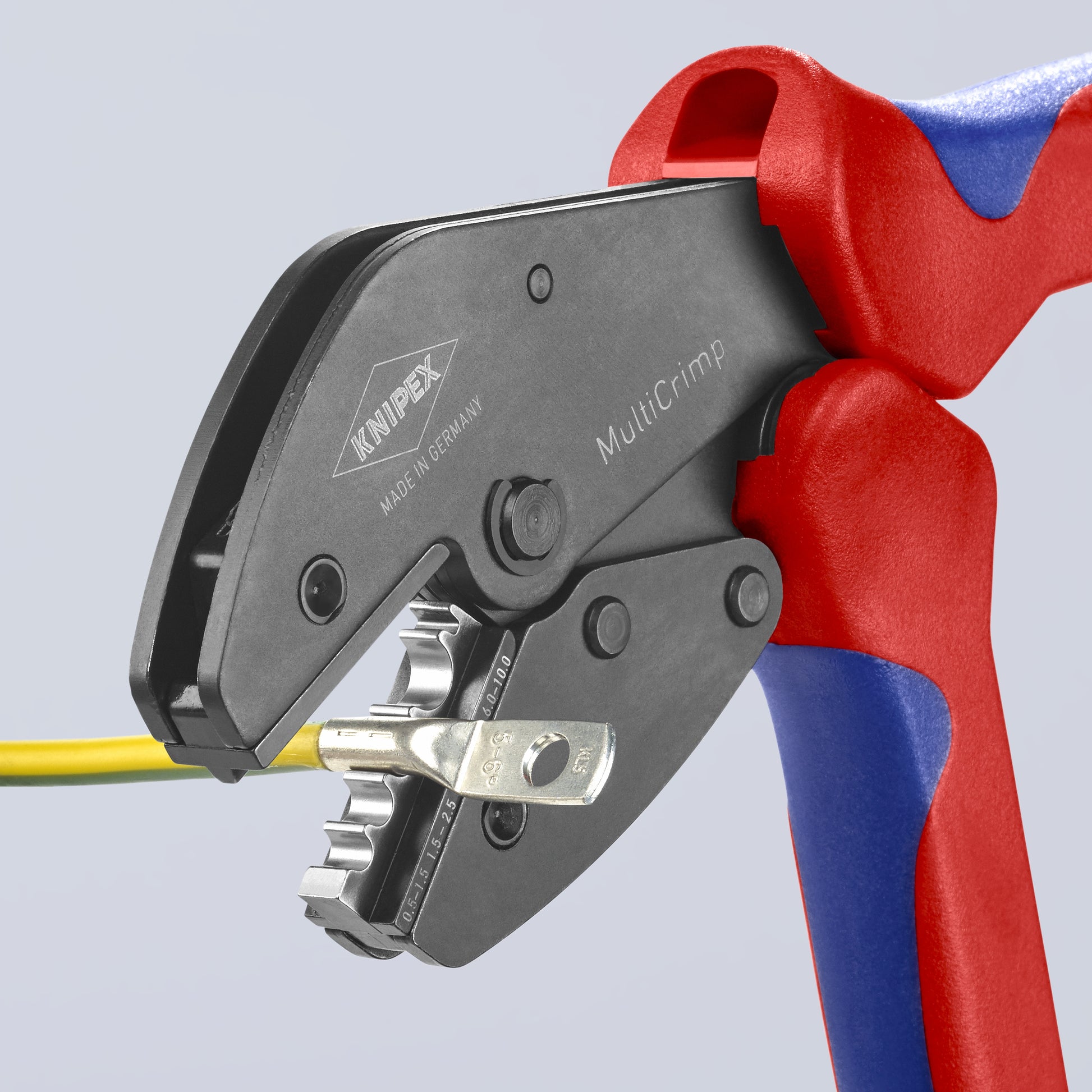

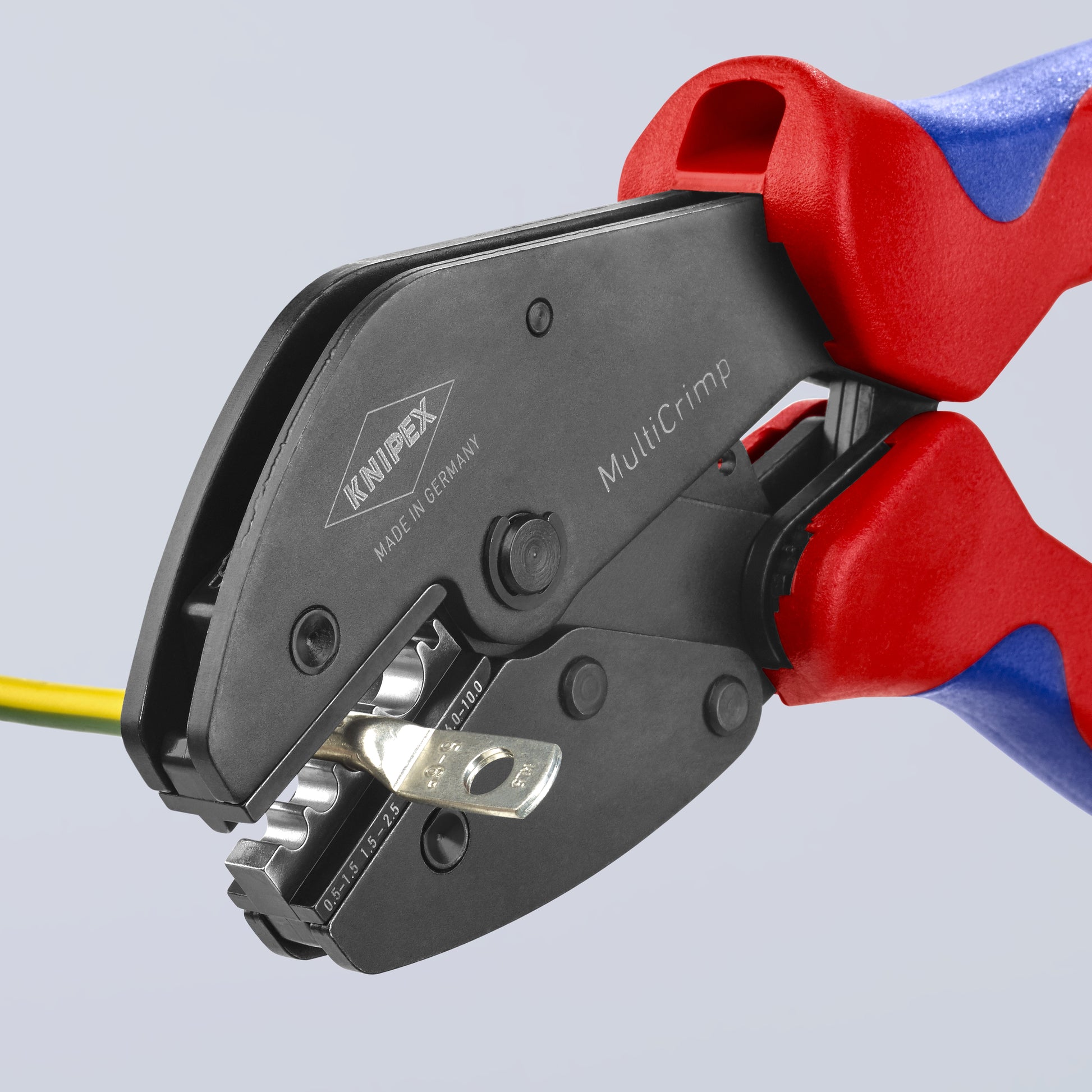

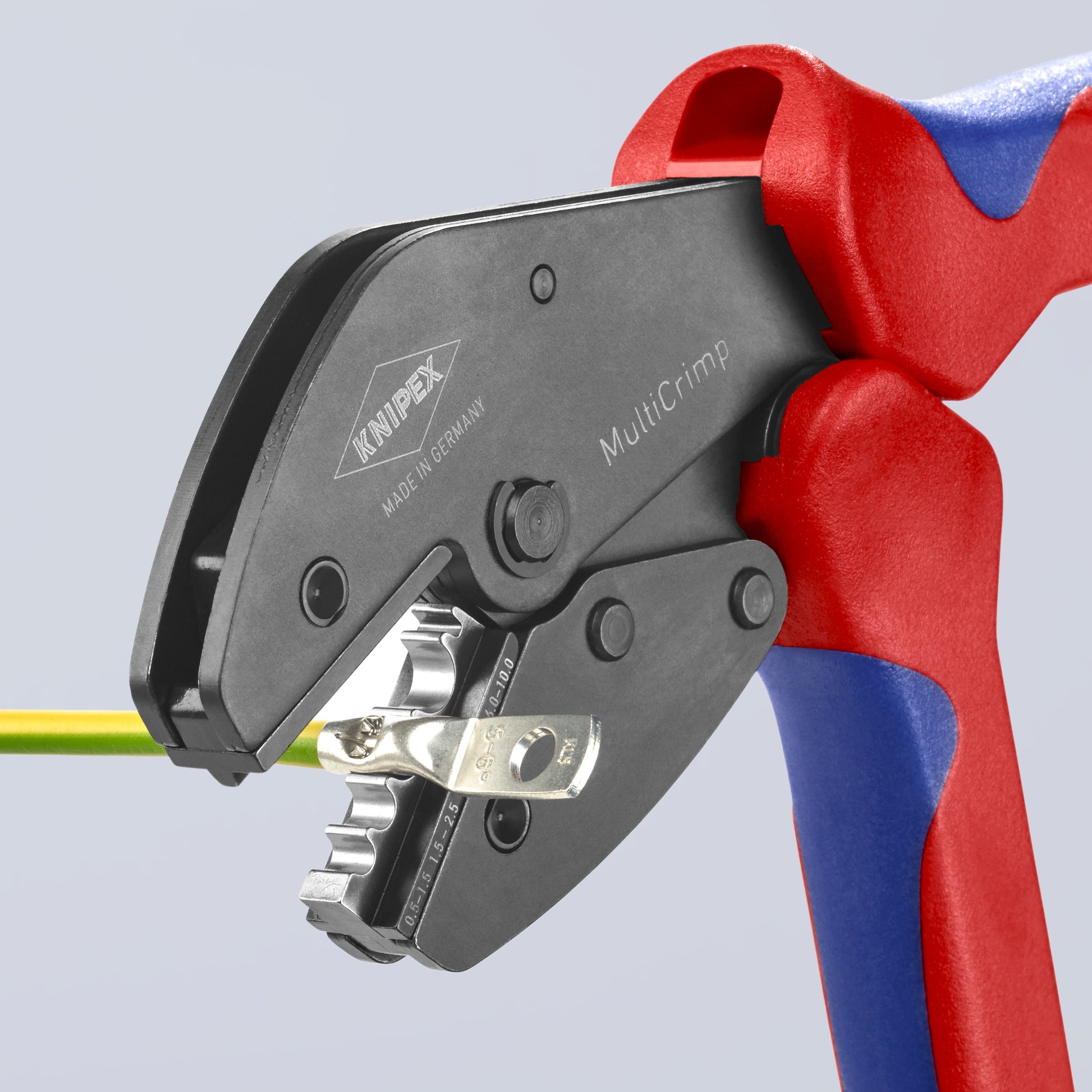

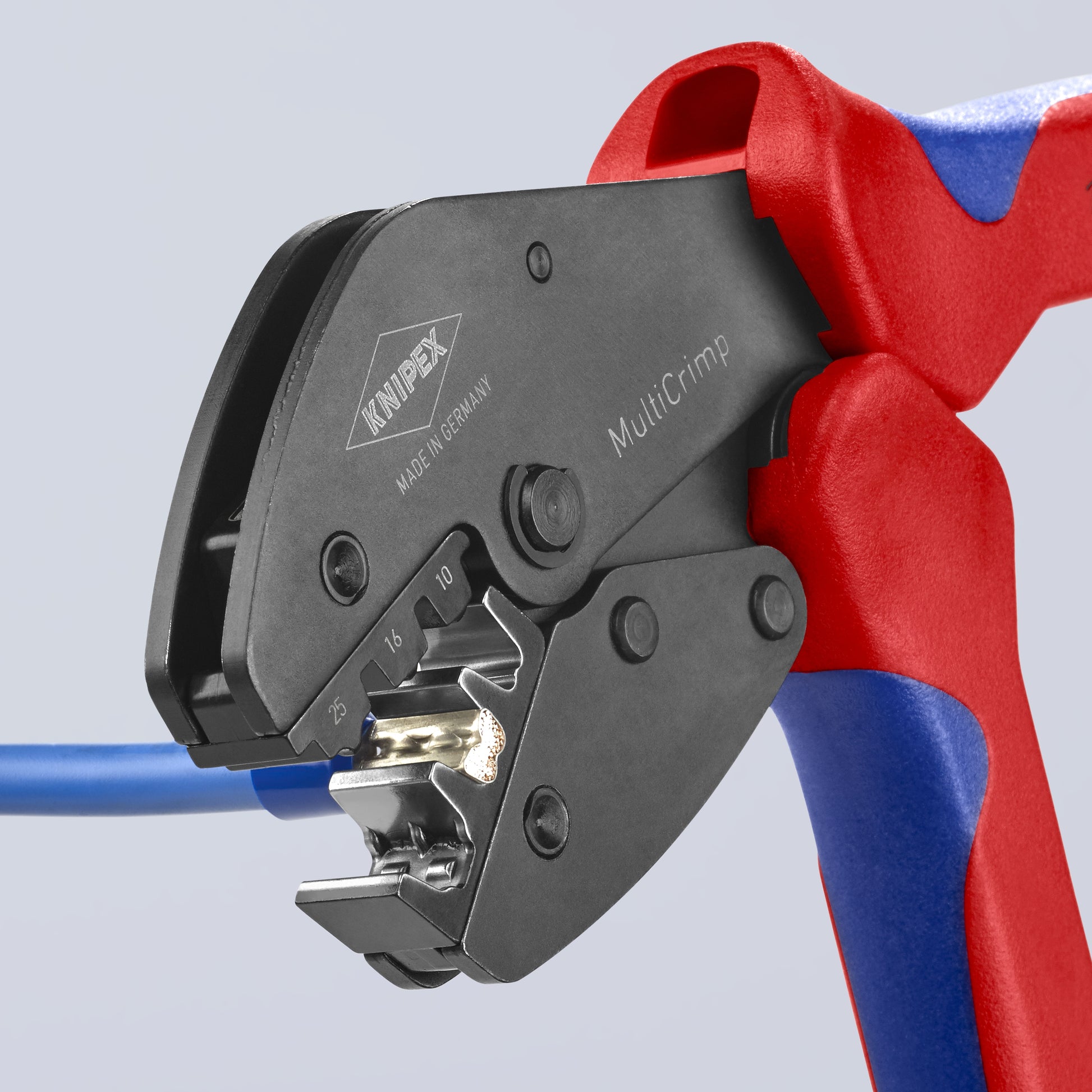

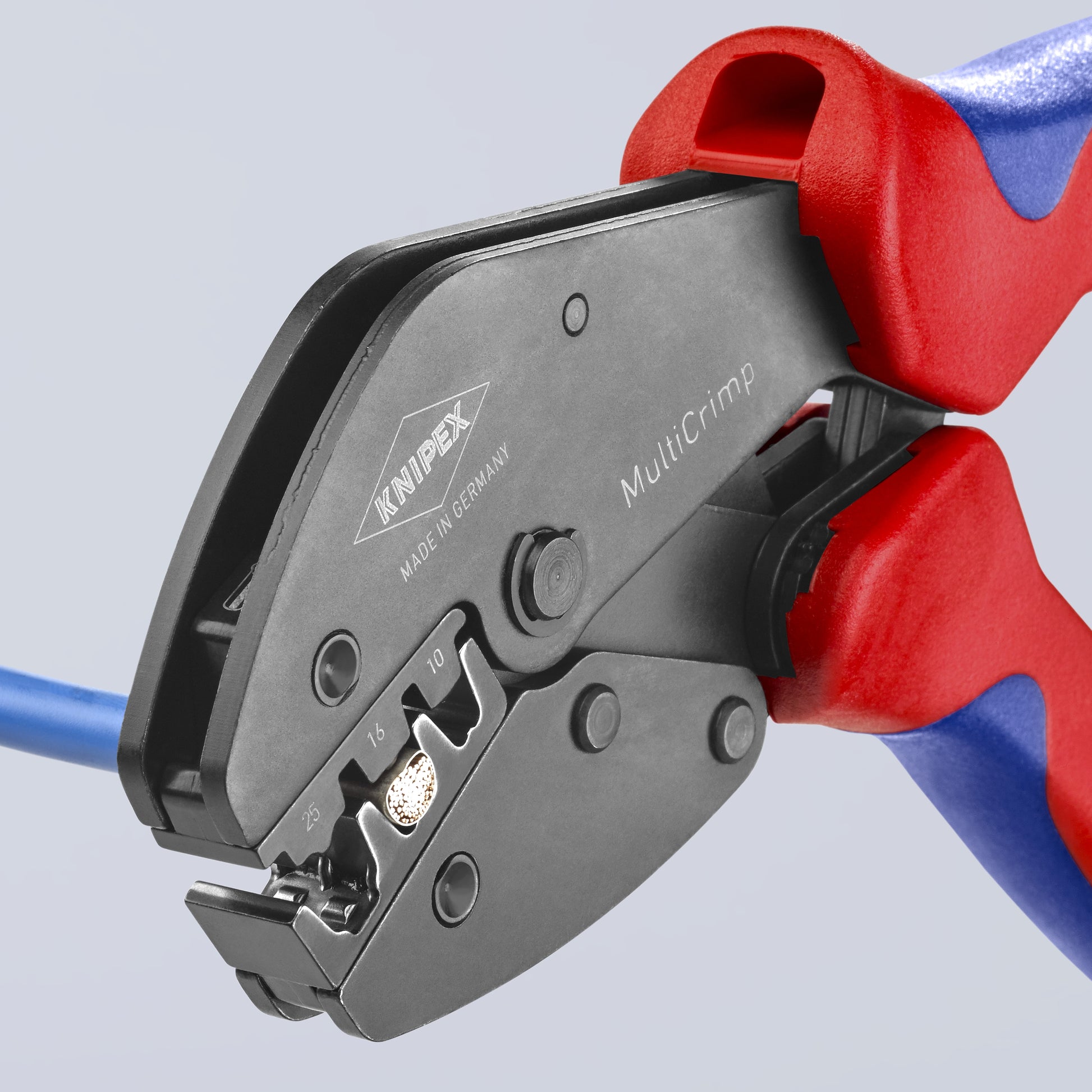

Crimping Pliers with round magazine and five interchangeable dies for: - non-insulated open plug-type connectors (plug width 4.8 + 6.3 mm) from 1/64-15/64" (0.5 - 6.0 mm²) - insulated terminals, plug connectors and butt connectors from 1/64-15/64" (0.5 - 6.0 mm²) - insulated and non-insulated ferrules (end sleeves) from 1/64-15/64" (0.25 - 6 mm²) - insulated and non-insulated ferrules (end sleeves) with 10 / 16 / 25 mm² and for non-insulated crimp terminals - tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 - non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267

Features

• Just one tool for the most common crimping applications

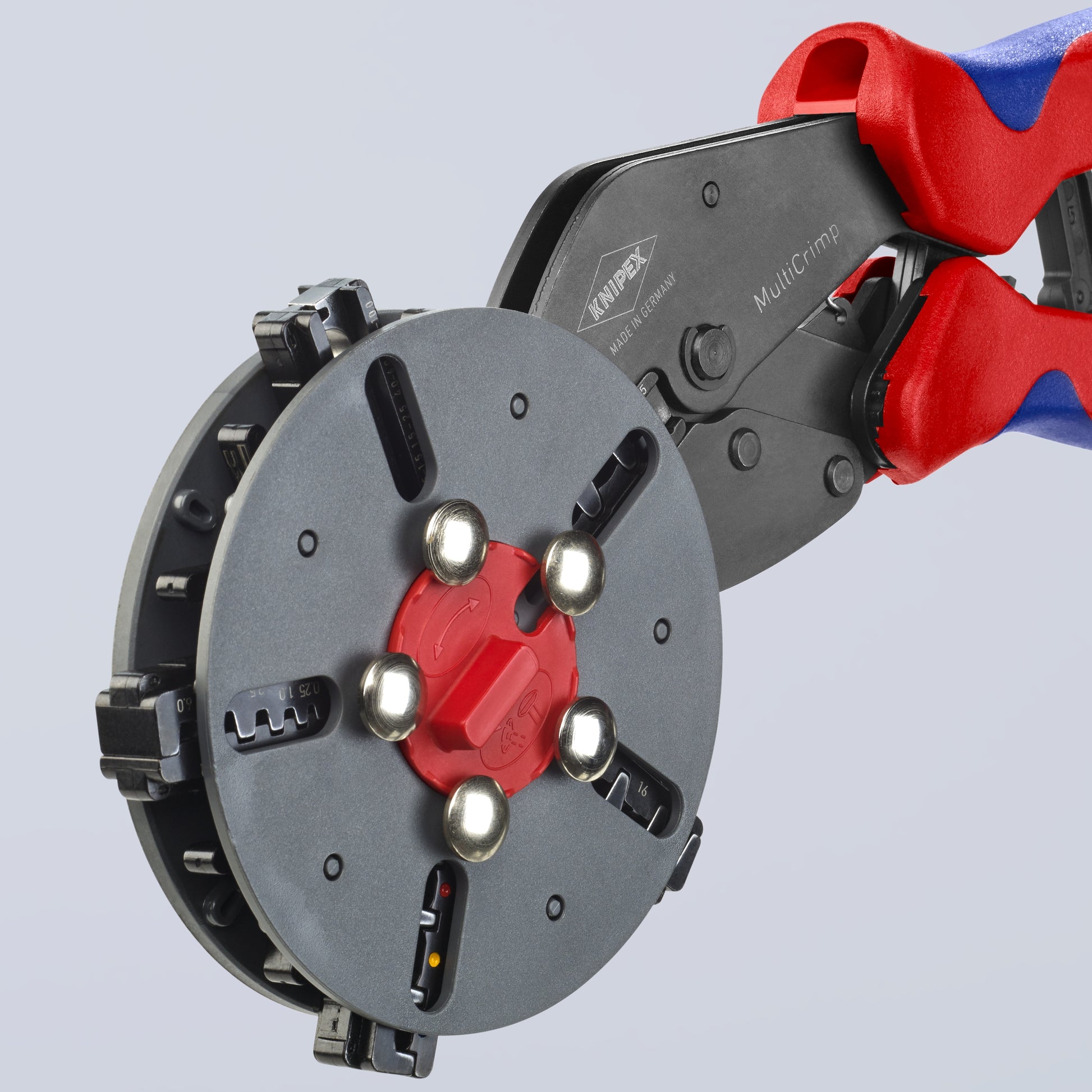

• Crimping dies changed quickly and easily without any additional tool

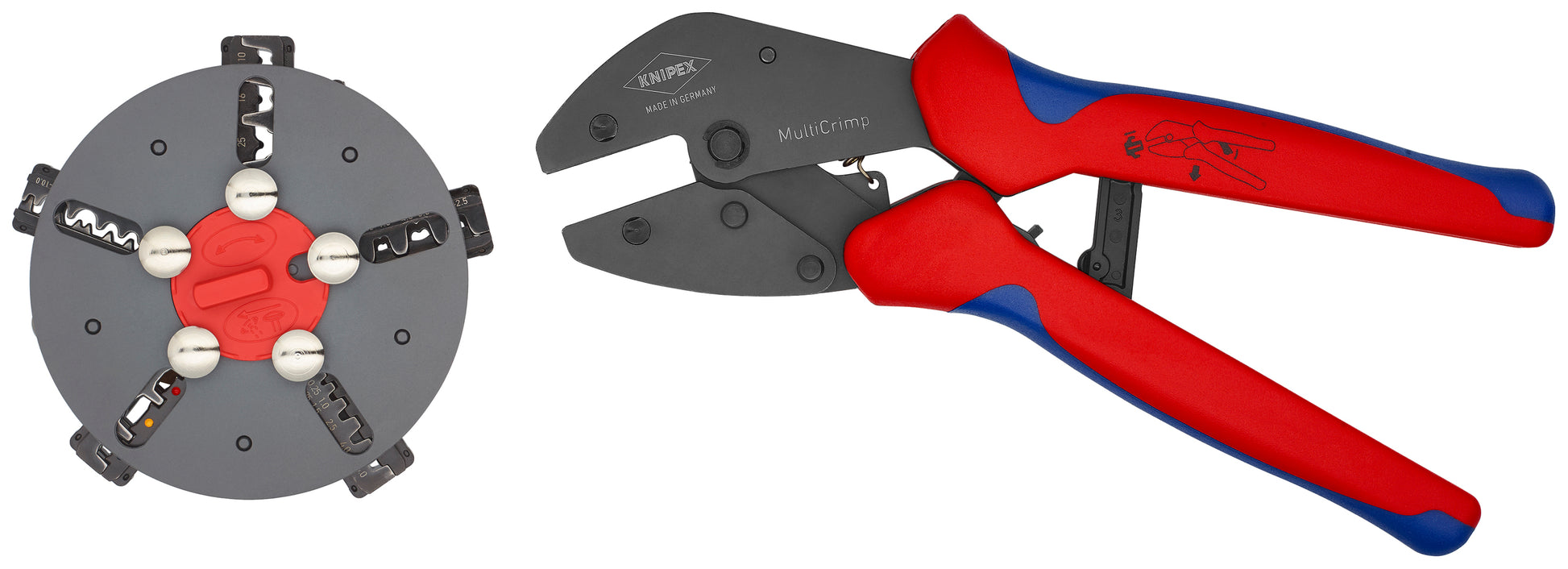

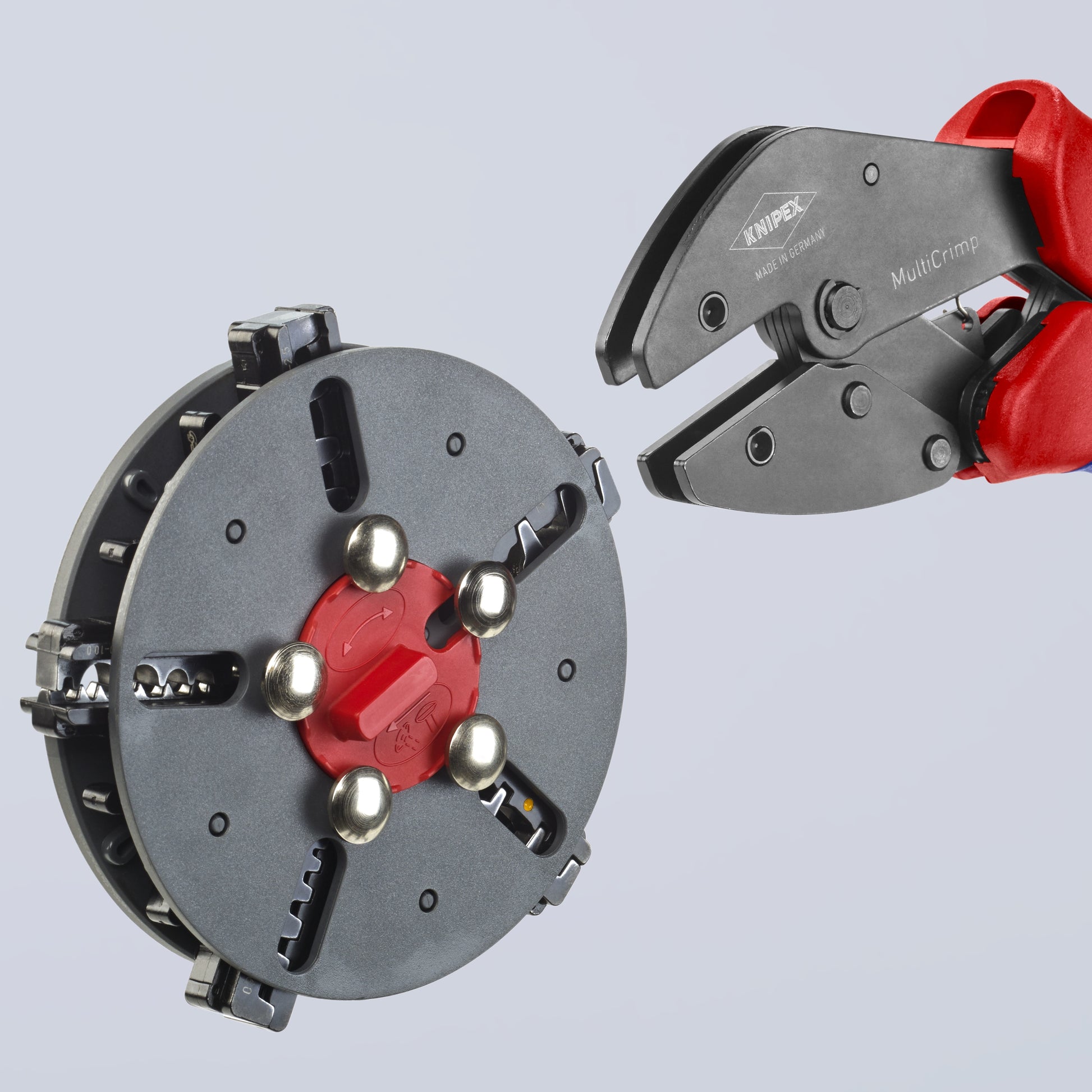

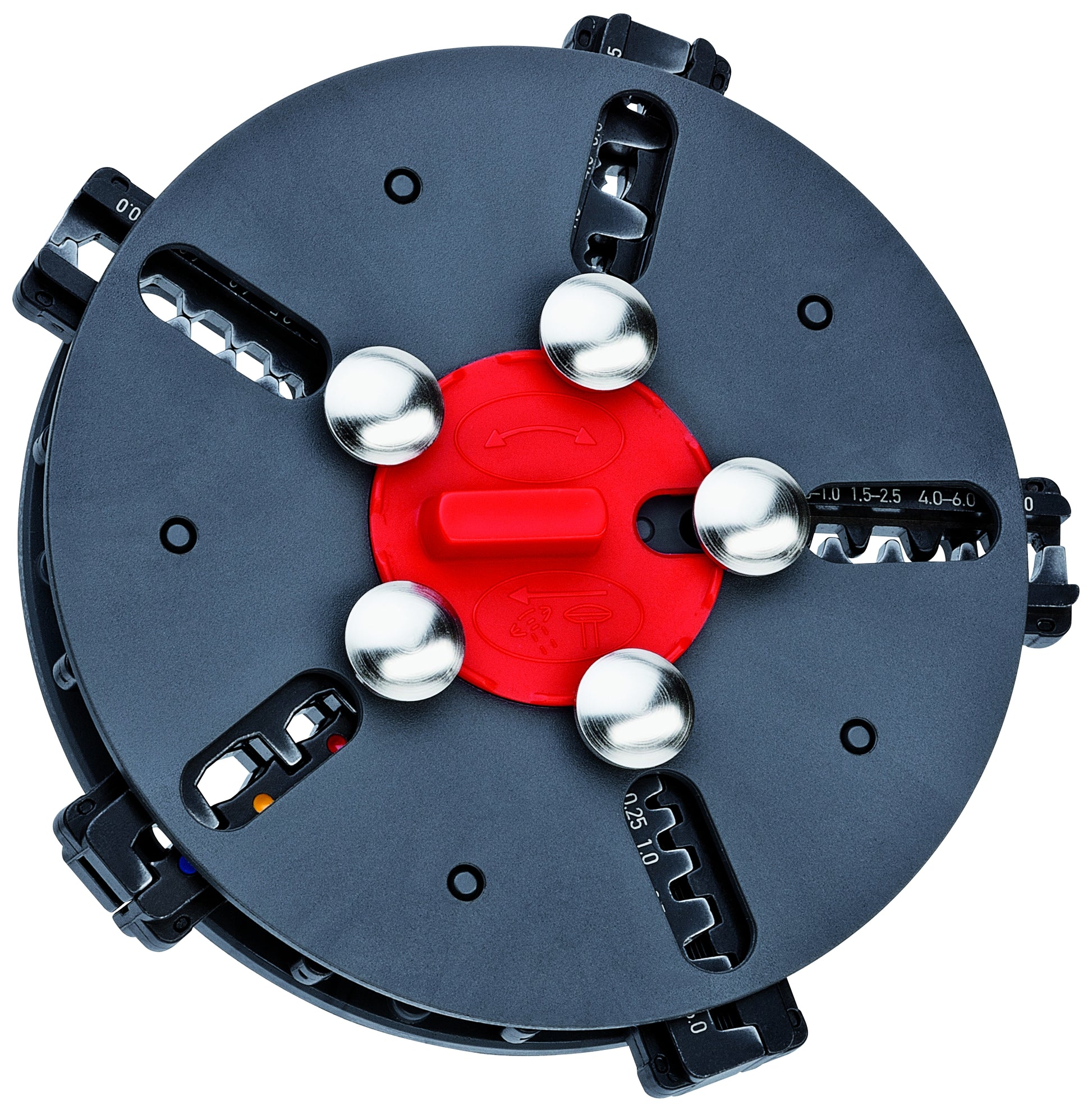

• Sorted and protected storage of the interchangeable dies in a round magazine
• Comfortable, powerful crimping pliers in professional quality
• Same reliable crimping results as with fixed crimping dies
• Consistently high crimping quality due to precision dies and forced locking mechanism (unlockable)
• Chrome vanadium electric steel in special quality, oil-hardened
• Round magazine: plastic, fiberglass-reinforced

Specifications

• Manufacturer Part Number: 97 33 02
• Sub Brand Name: MultiCrimp®
• Material Type: Chrome vanadium electric steel, oil-hardened
• Other Material Type: Round magazine: fiberglass reinforced plastic
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Blue|Red
• Nominal Length: 9 1/4"
• Tool Nominal Length: 9.25"
• Tool Length: 9.2"
• Tool Width: 3.6"
• Tool Height: 1.2"
• Tool Weight: 562 g (1.24 lb)
• Crimping Positions: Set of dies
• Crimping Profile: F crimp|Oval crimp|Trapezoid crimp|Trapezoid indent crimp|W crimp
• Terminal Type: Butt/Ring/Fork|Cable lug|End Ferrules-Single|Open Plug|Tube
• Crimping Capacity: 0.25 to 25.0 mm² (24 to 4 AWG)
• Crimping Capacity - AWG: 24 to 4
• Crimping Capacity - mm2: 0.25 to 25
• UPC: 843221015381
