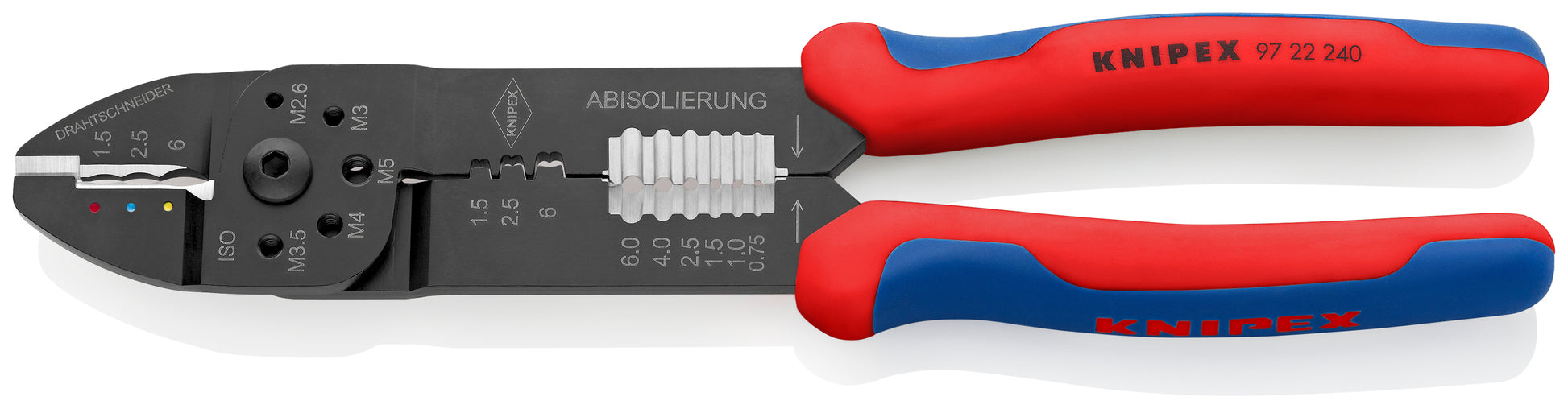

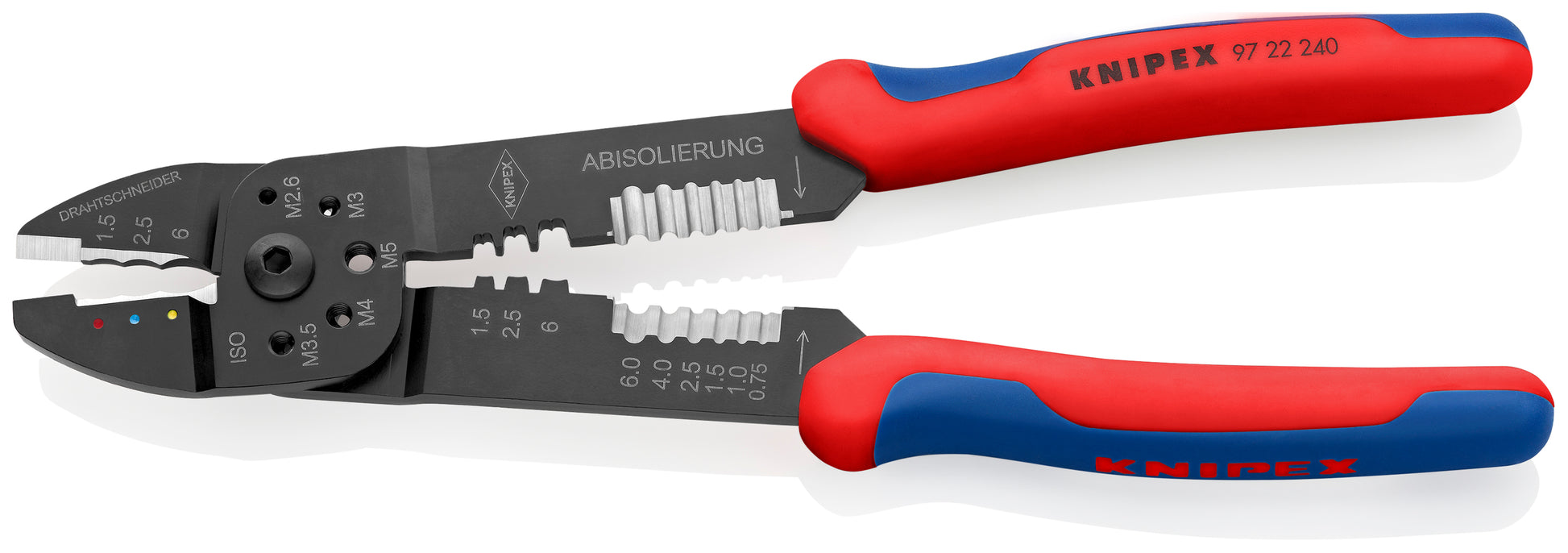

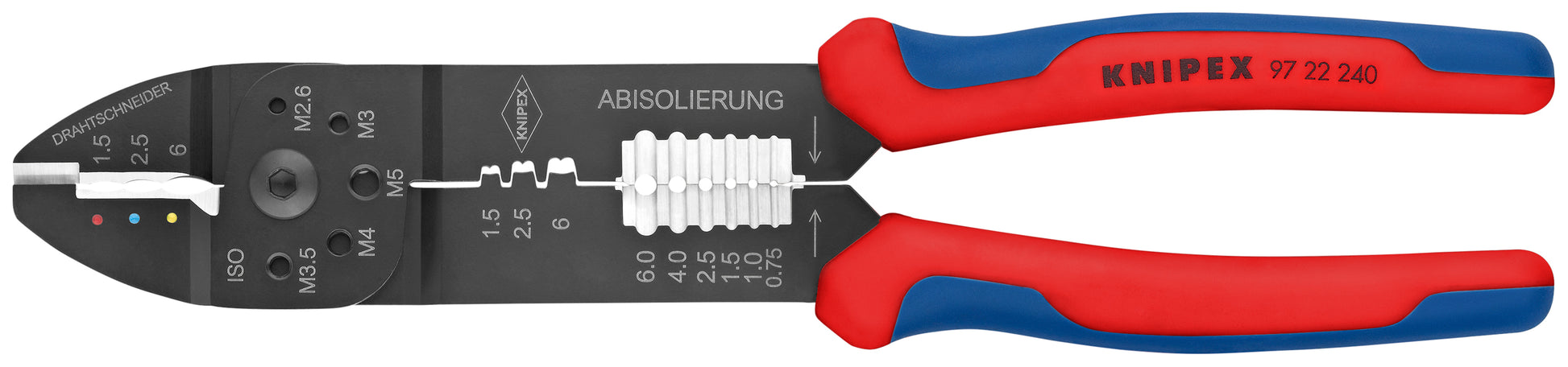

Knipex 97 22 240 Crimping Pliers

For cutting cables, stripping wire and crimping insulated terminals, cable connectors and plug-type connectors

Features

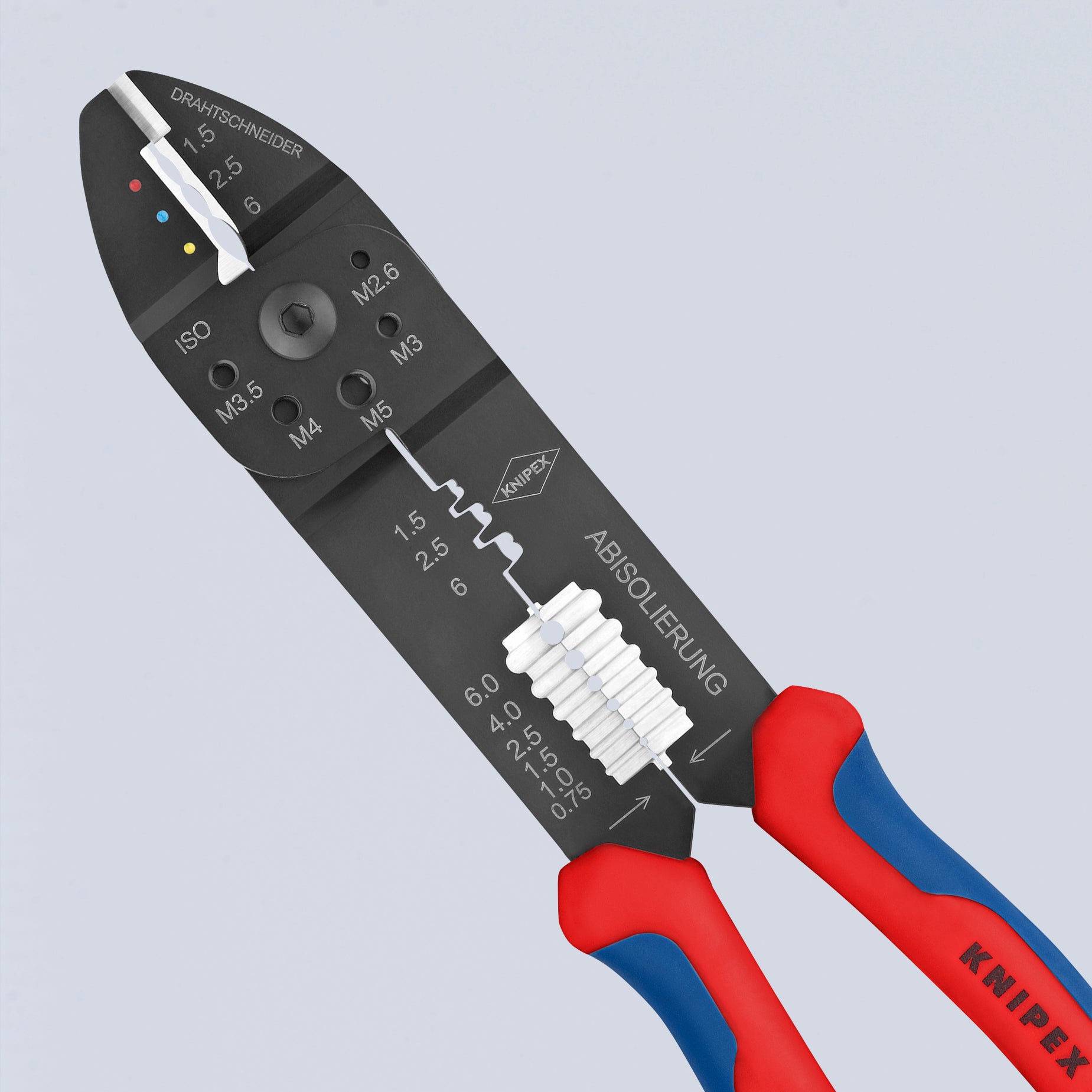

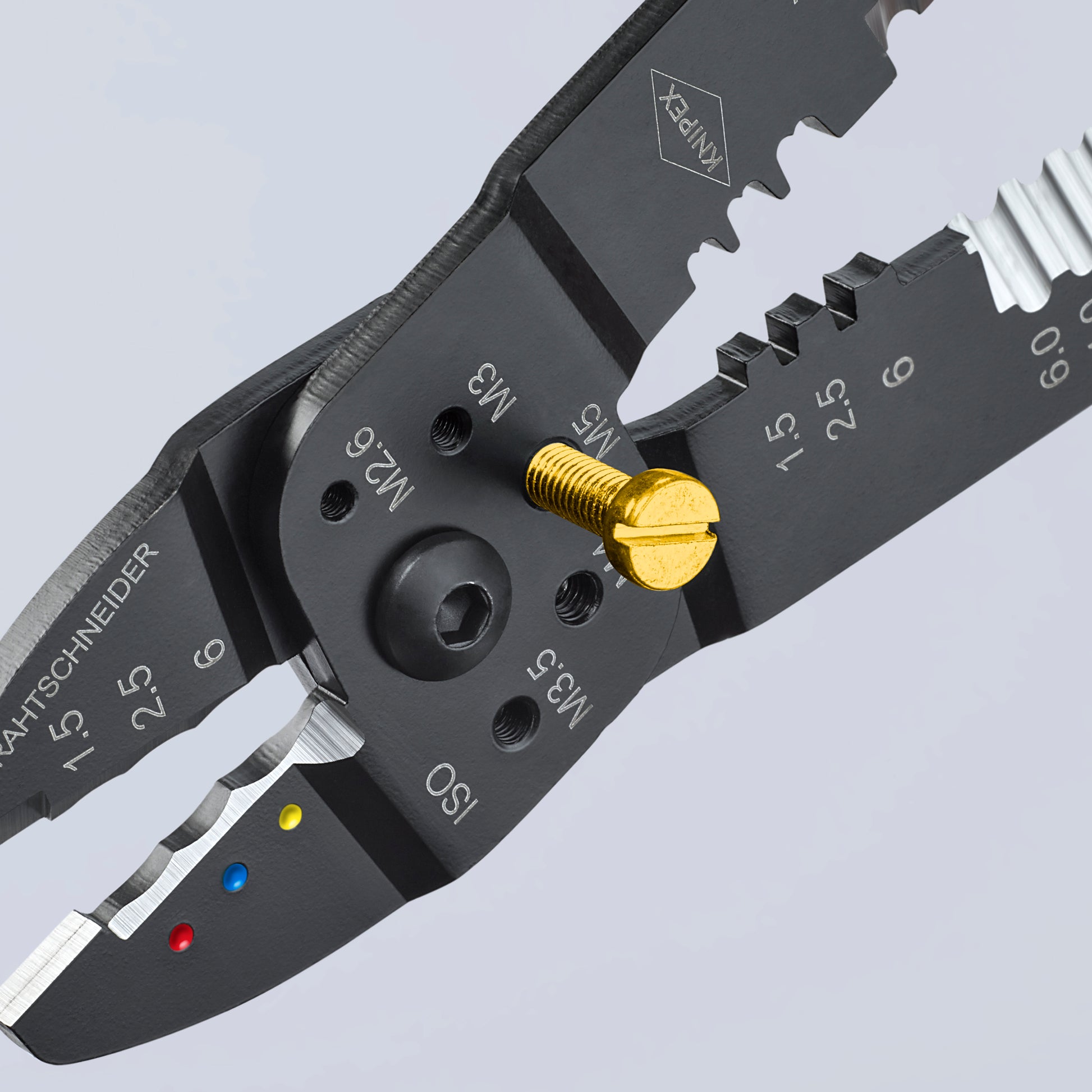

• With threaded holes for cutting copper and brass screws threaded 7/64", 1/8", 9/64", 5/32" and 13/64" (M2.6, M3, M3.5, M4 and M5)
• Bolted joint for higher stability and smooth movement
• Made of special tool steel, oil-hardened
• Special steel, high-strength
• Pliers black lacquered
• Handles with multi-component covers

Specifications

• Manufacturer Part Number: 97 22 240
• Material Type: High strength special steel
• Handle Type: Multi-component
• Other Surface Finish: Black lacquered
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 9 1/2"
• Tool Nominal Length: 9.5"
• Tool Length: 9.35"
• Tool Width: 2.4"
• Tool Height: 1.15"
• Tool Weight: 304 g (0.67 lb)
• Joint Type: Bolted

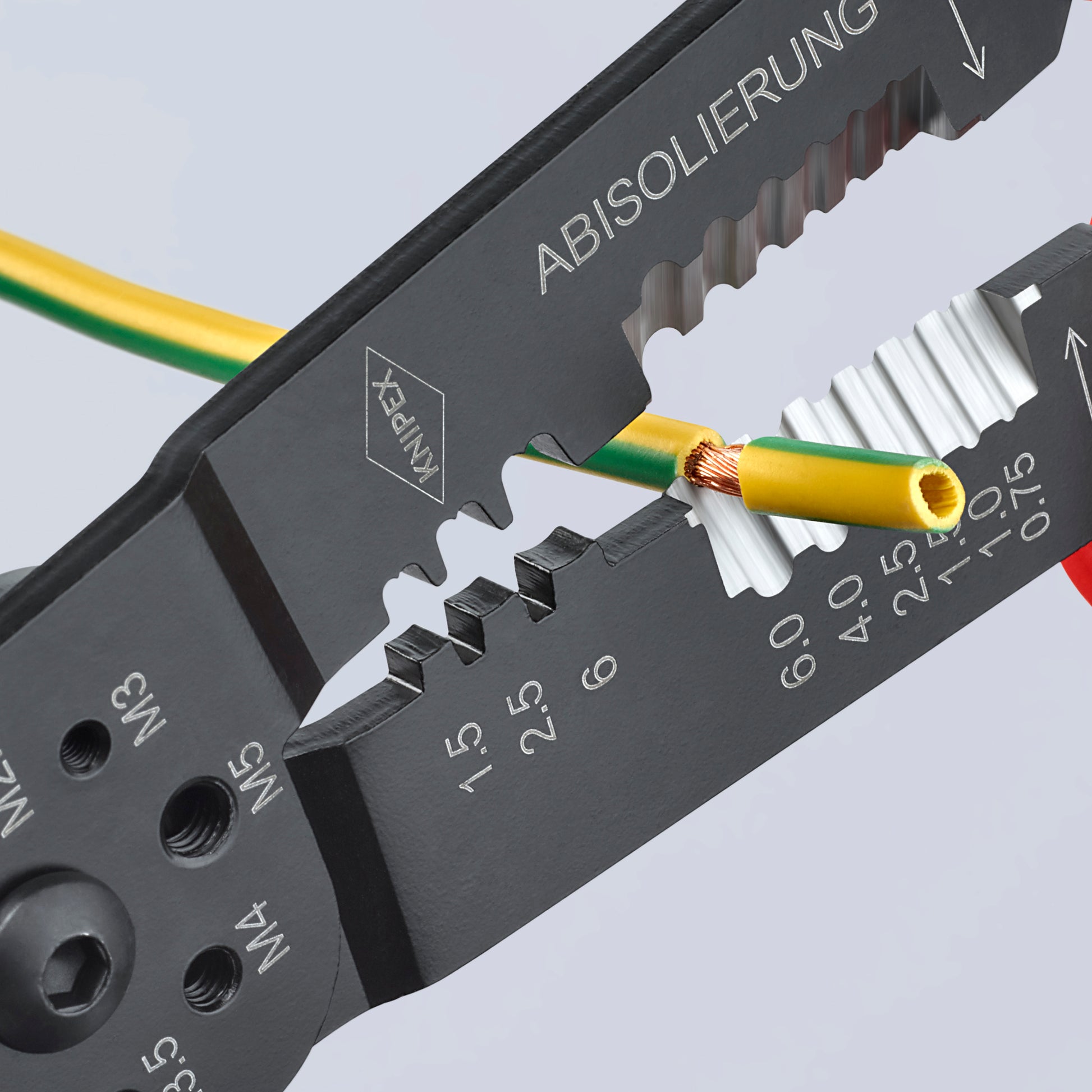

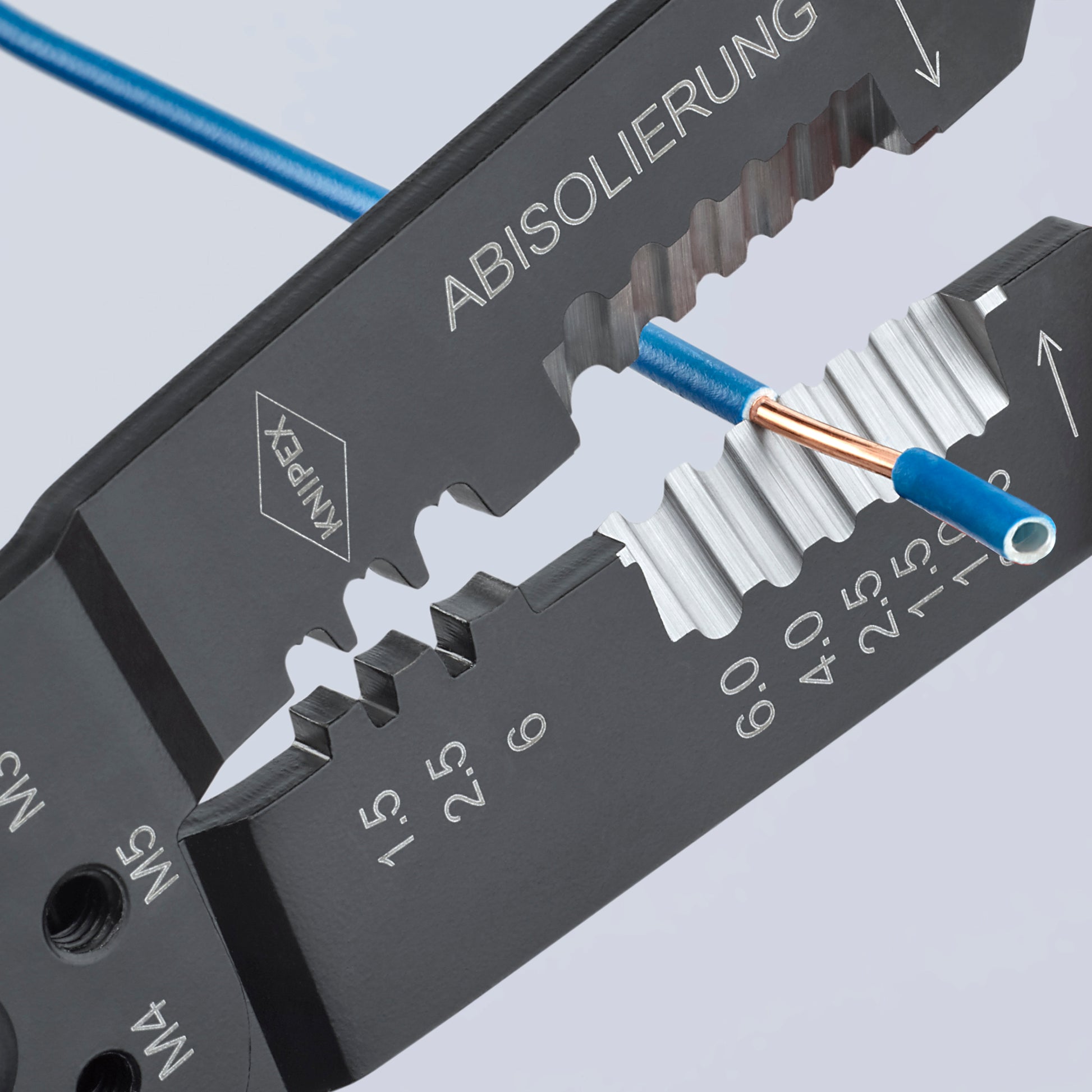

• Stripping Capacity - mm2: Insulated terminals: 0.75 to 6.0 Non-insulated terminals: 0.5 to 2.5
• Stripping Capacity - AWG: Insulated terminals: 18 to 10 Non-insulated terminals: 20 to14
• Crimping Positions: 3
• Crimping Profile: F crimp|Oval crimp

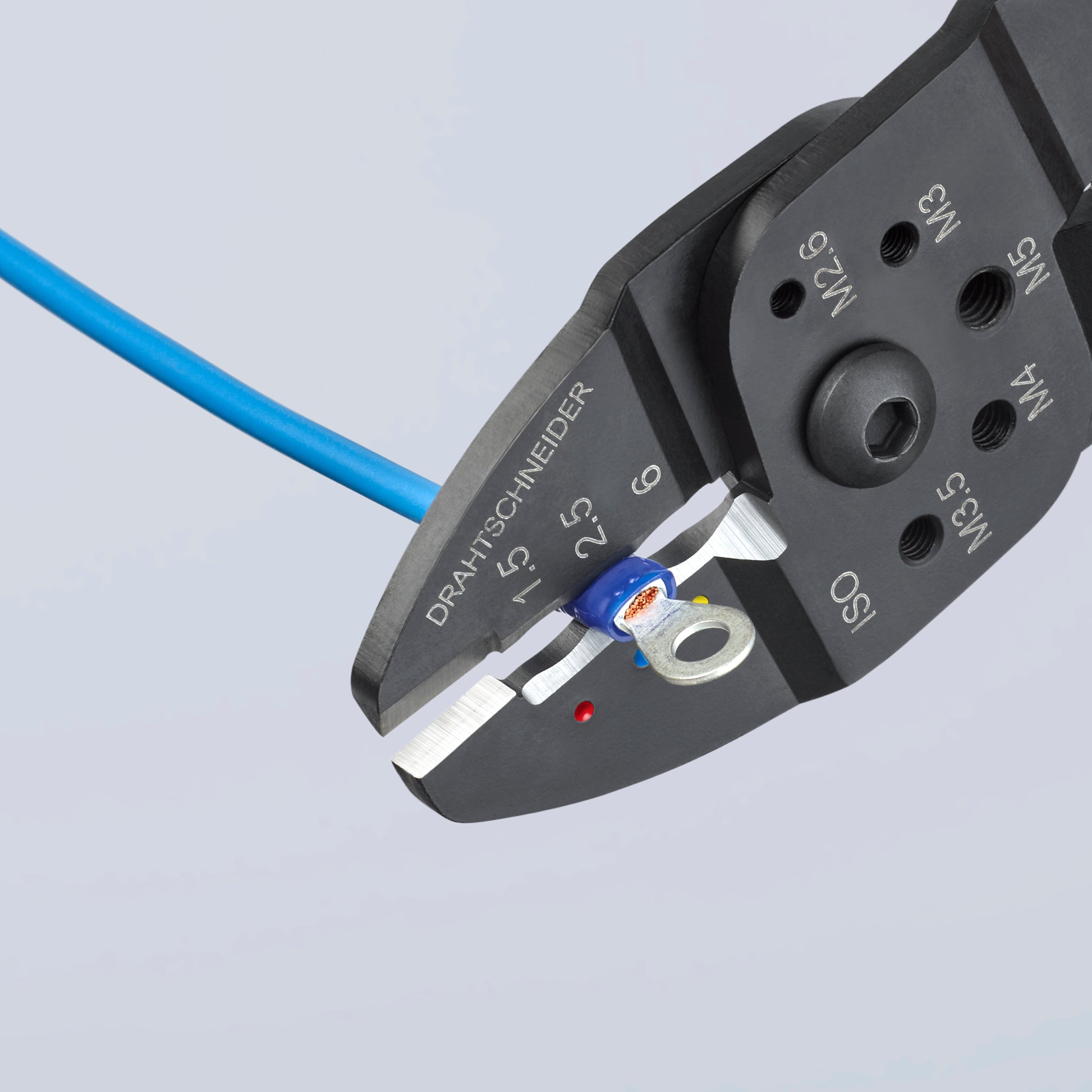

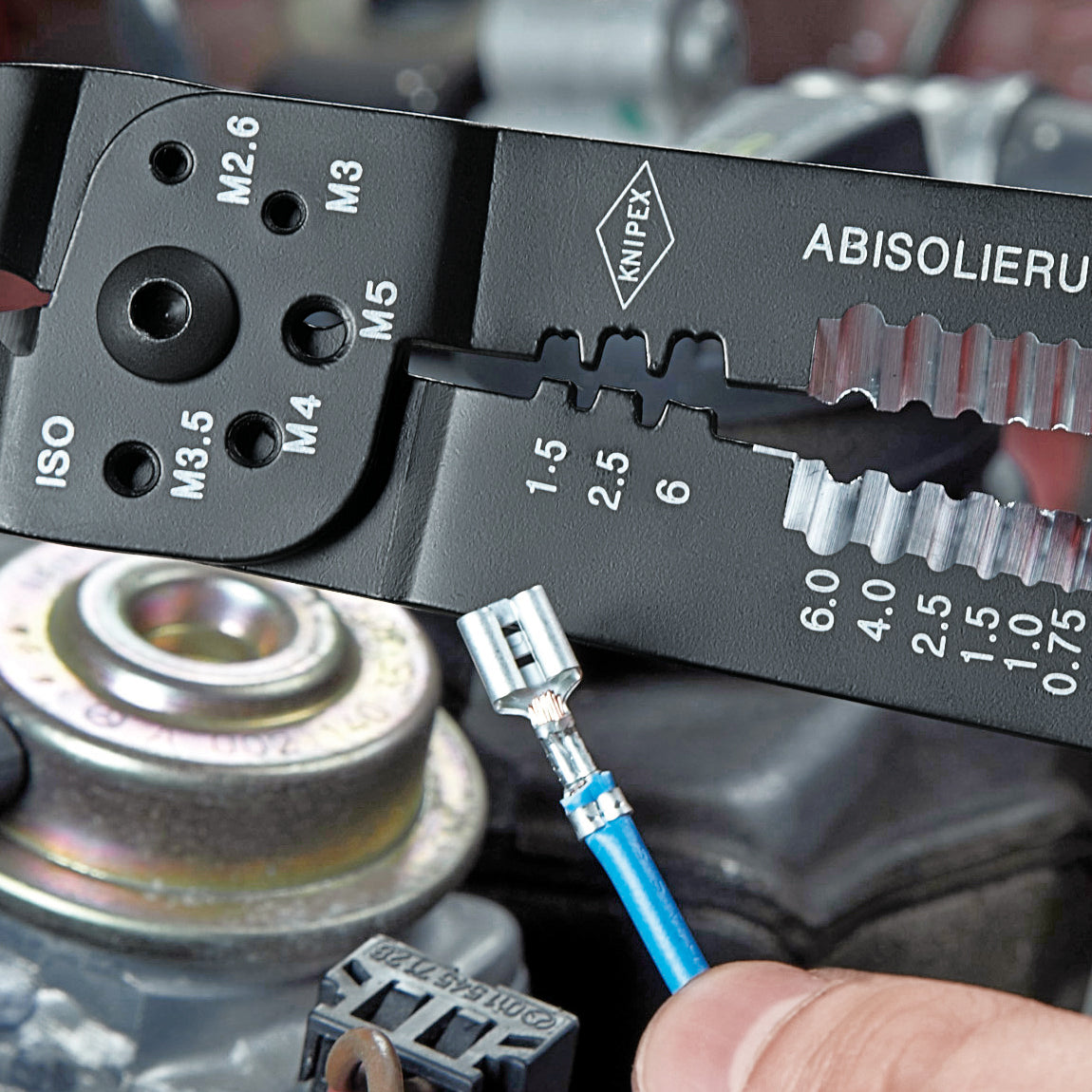

• Terminal Type: Butt/Ring/Fork (Insulated)|Open Plug
• Crimping Capacity - AWG: Red-16 | Blue-14 | Yellow-10
• Crimping Capacity - mm2: Red-1.5 | Blue-2.5 | Yellow-6.0
• UPC: 843221019662
