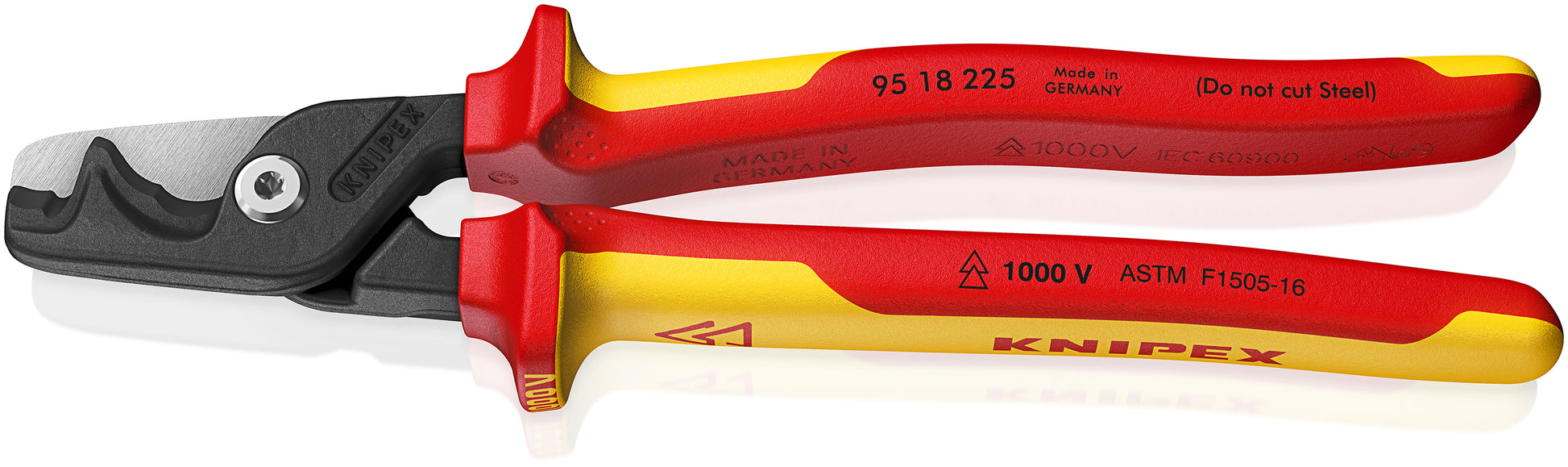

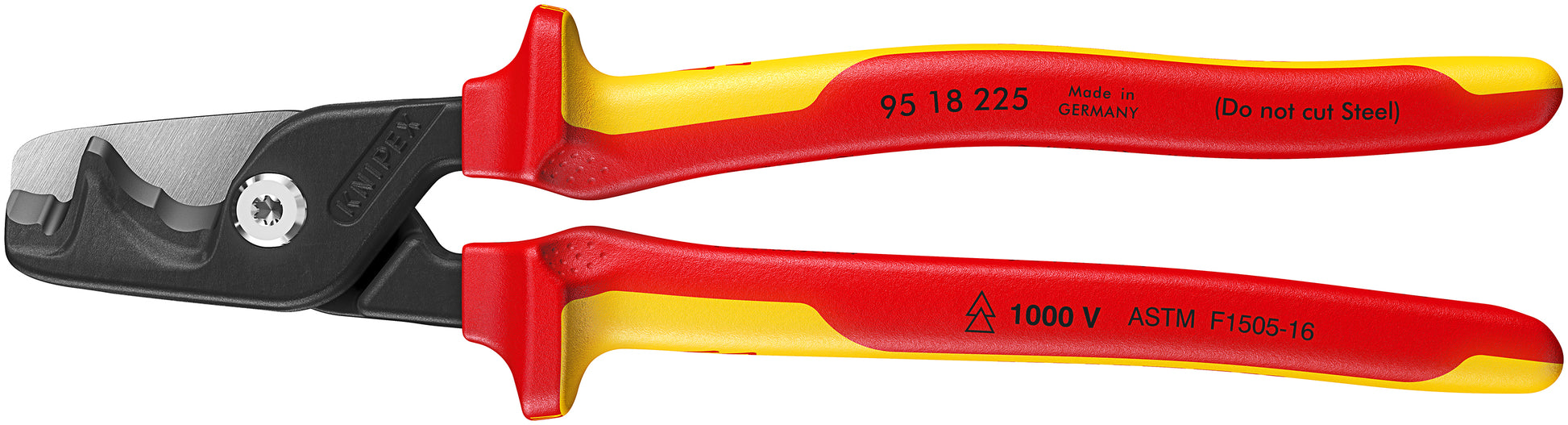

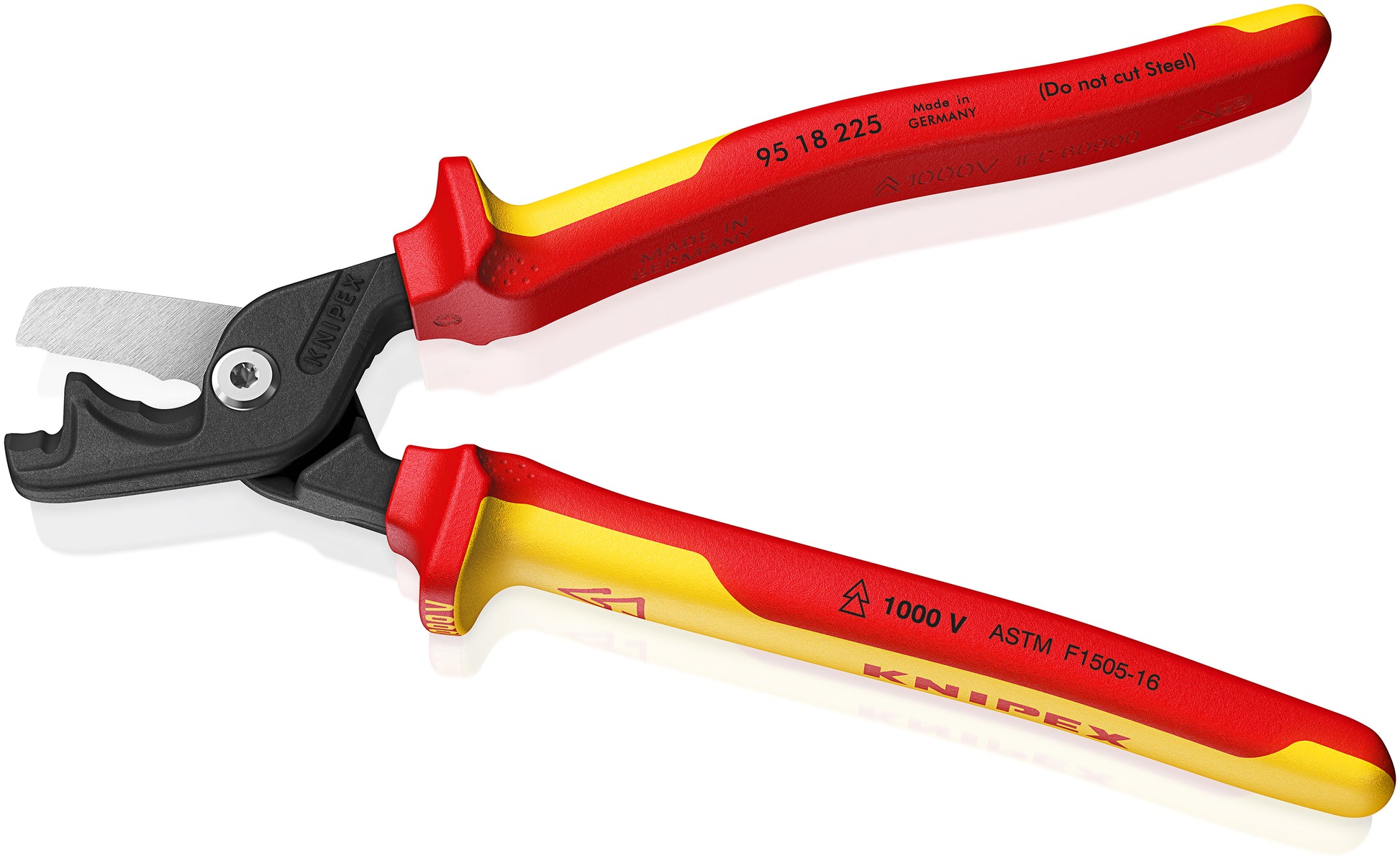

Knipex 95 18 225 US StepCut® XL Cable Shears-1000V Insulated

High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears

Features

• Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

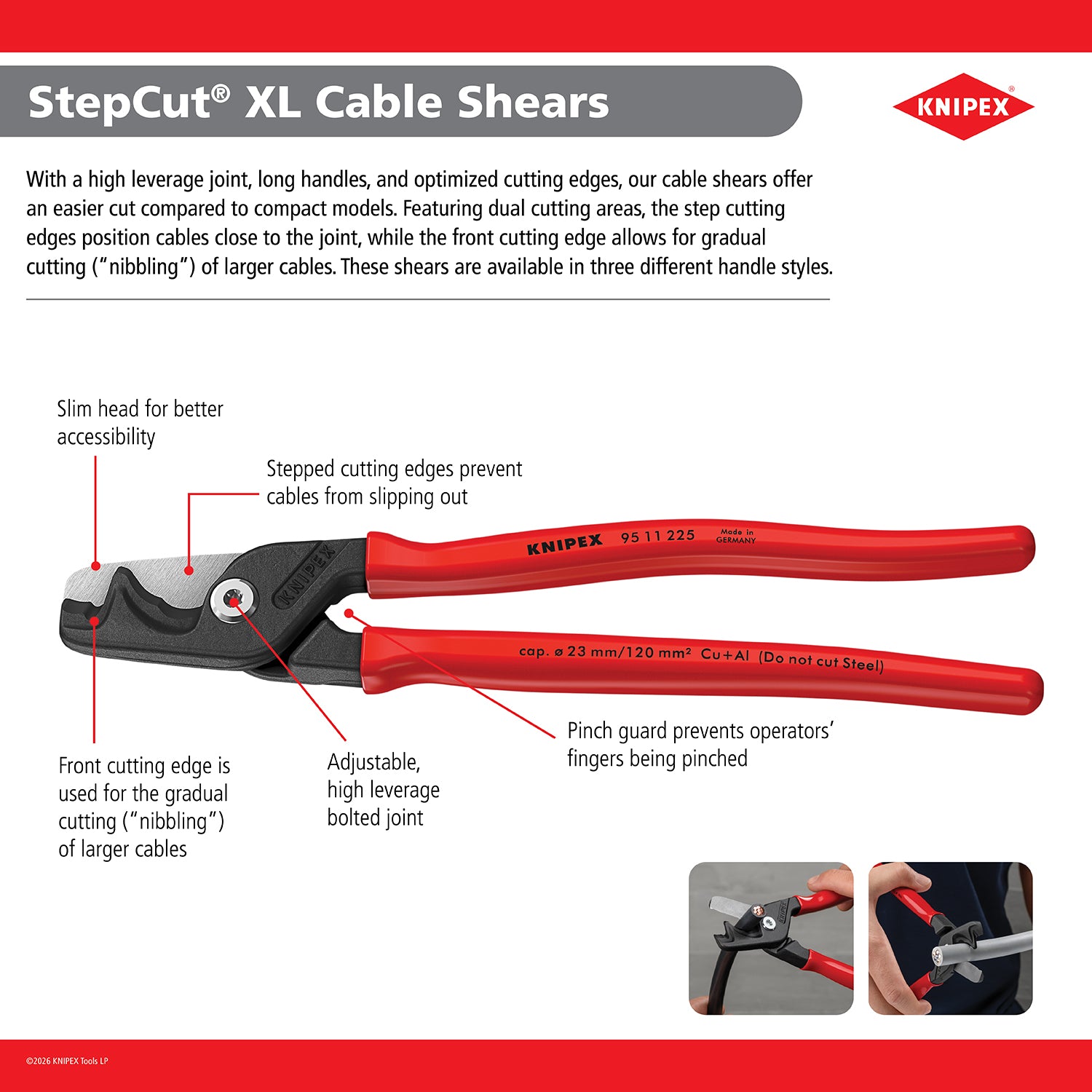

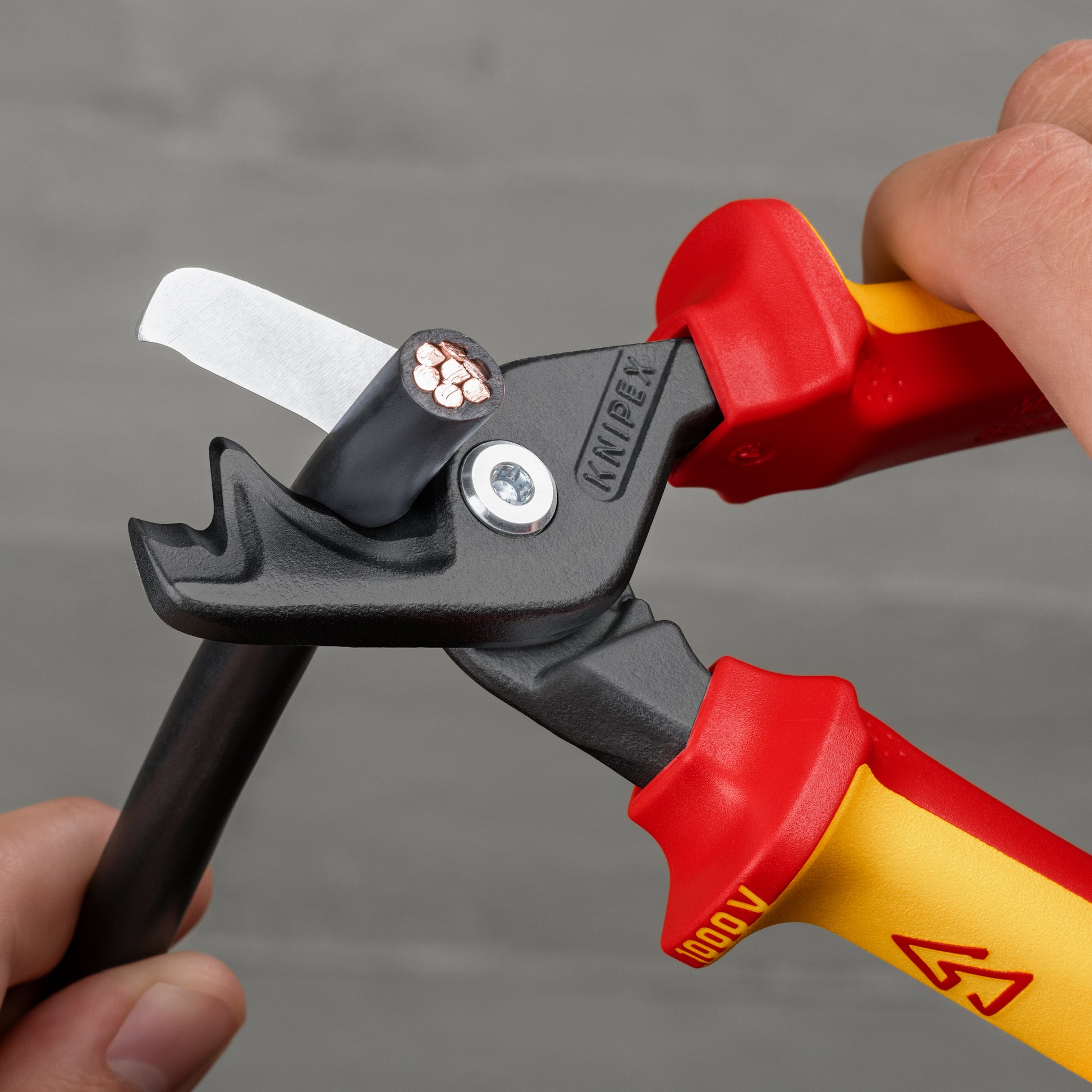

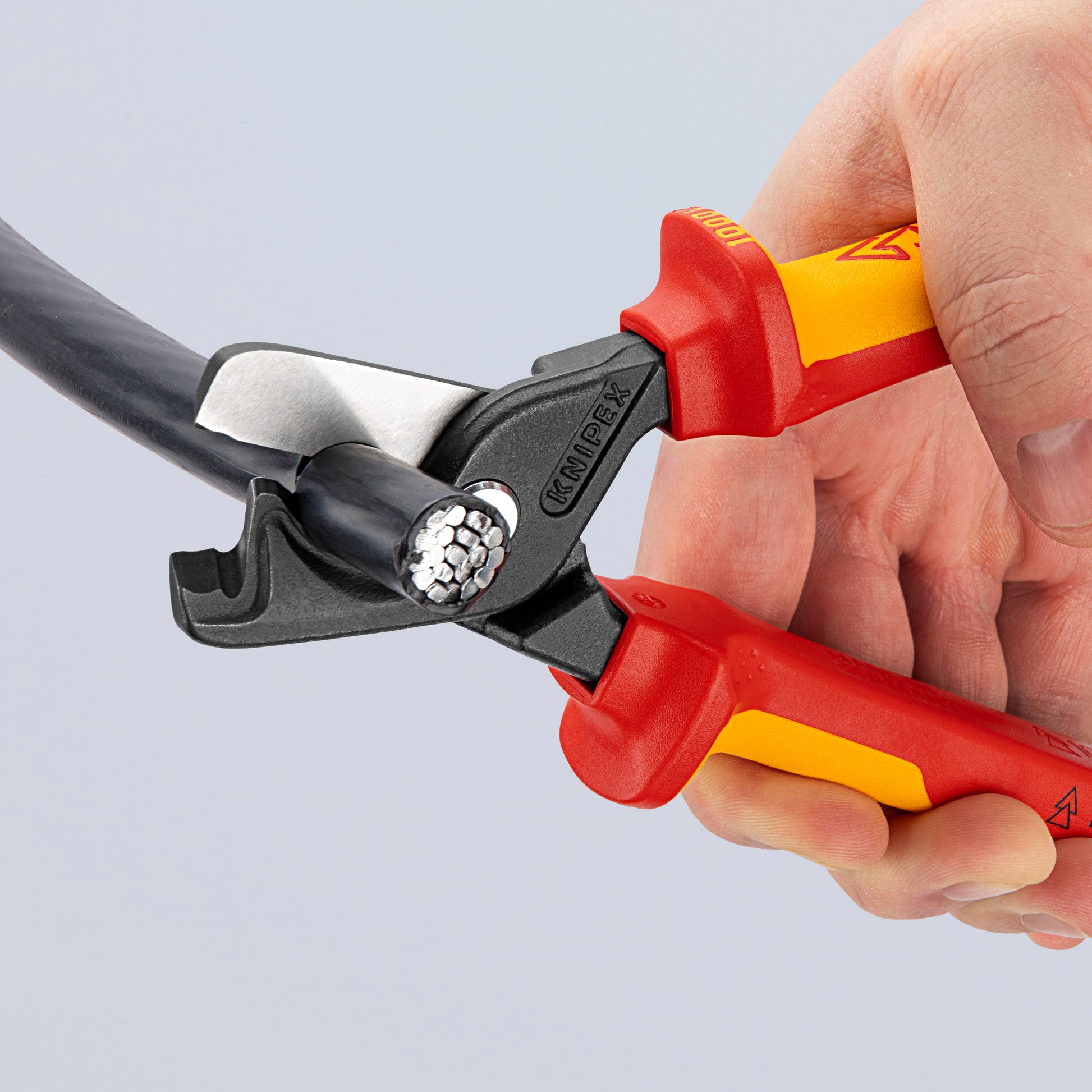

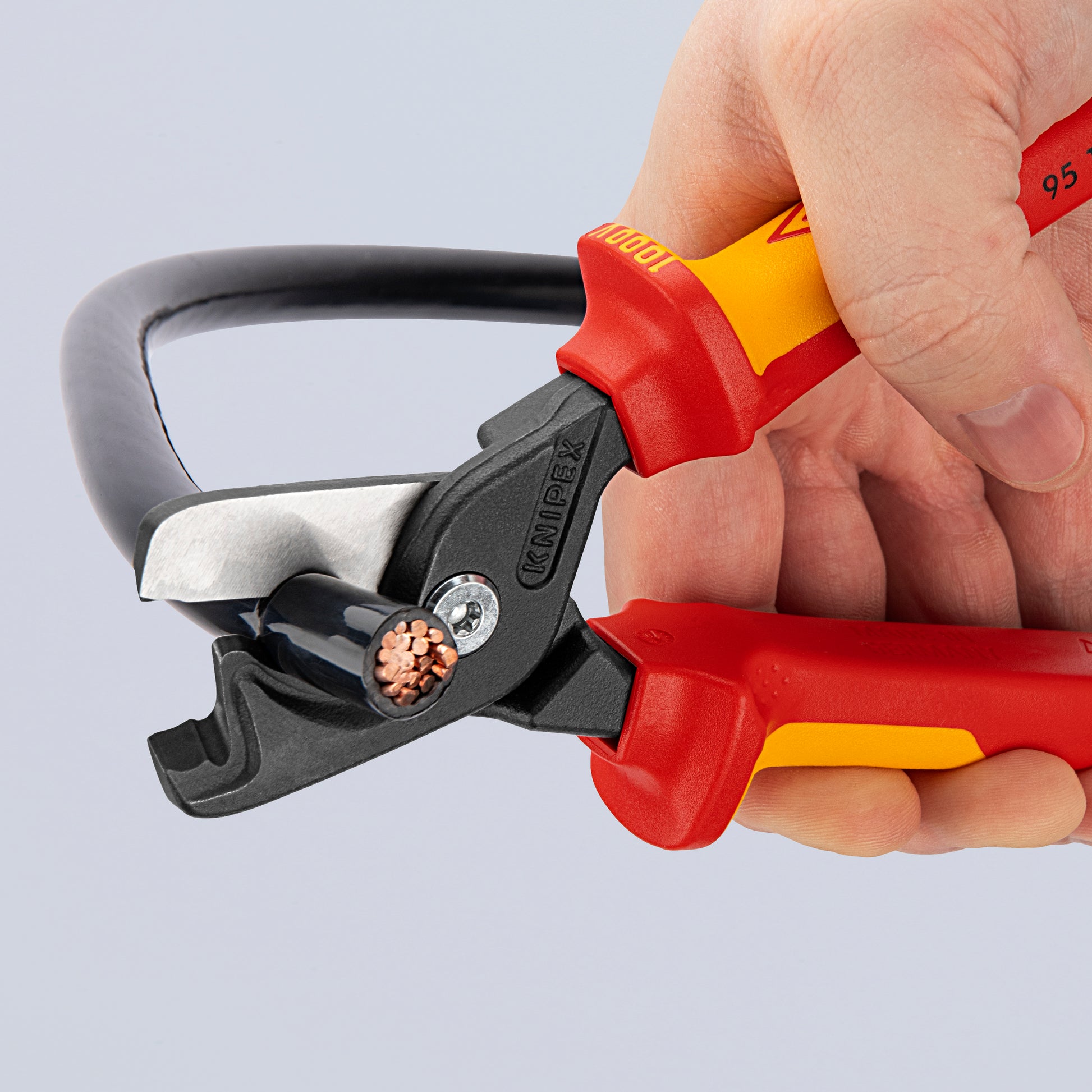

• Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
• Easy one- or two-handed operation with minimal handle opening for large cable diameters
• Slim head for better accessibility
• Not suitable for steel-reinforced cables, e.g. ACSR
• Adjustable, high-leverage bolted joint provides precise and smooth cutting
• Pinch guard prevents operators' fingers being pinched
• Laser-hardened cutting edges (approx. 56 HRC)
• High-grade special tool steel; forged; oil-hardened
• 1000V multi-component grips, ASTM F1505-tested

Specifications

• Manufacturer Part Number: 95 18 225 US
• Sub Brand Name: StepCut
• Material Type: High-grade special tool steel, forged, oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Surface Finish: Burnished
• 1000V Insulated: Yes
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red/Yellow
• Nominal Length: 9"
• Tool Nominal Length: 9"
• Tool Length: 9.21"
• Tool Width: 2.56"
• Tool Height: 1.14"
• Tool Weight: 428 g (0.944 lb)
• Joint Type: Bolted
• Handle Length: 6 1/2"
• Jaw Length: 1 1/4"
• Jaw Width: 1 1/4"
• Jaw Thickness: 1/2"
• Tip Width: 1"
• Tip Thickness: 1/4"
• Cutting Edge Shape: Shear
• Cutting Edge HRC: Approx. 56 HRC
• Cable Cutting Capacity: 29/32" (2/0 AWG)
• Cable Type: Stranded Cables|Fine Stranded Cables|Solid Cable
• Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
• UPC: 843221029760
