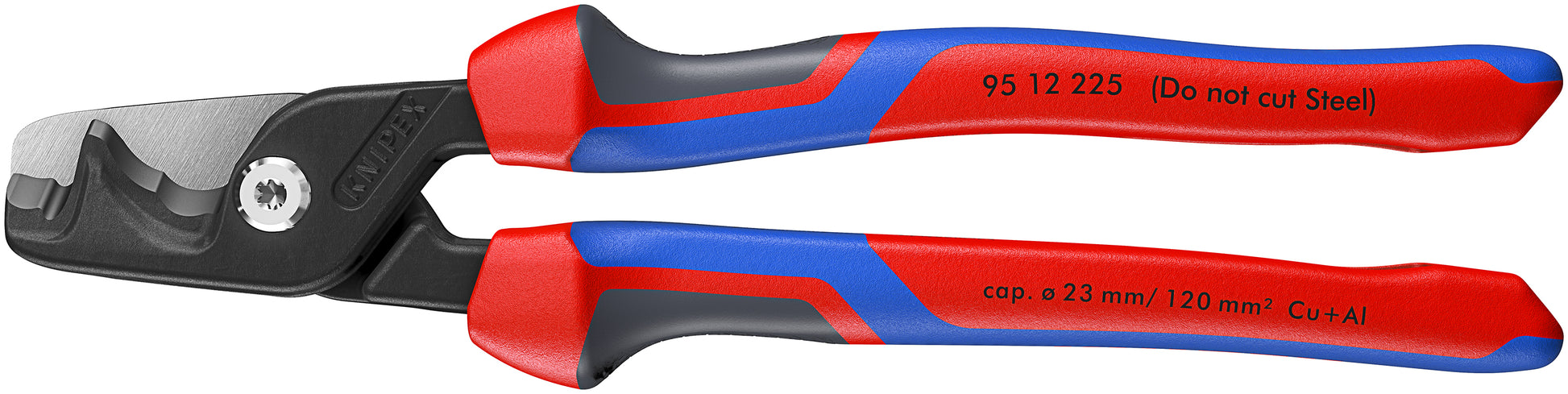

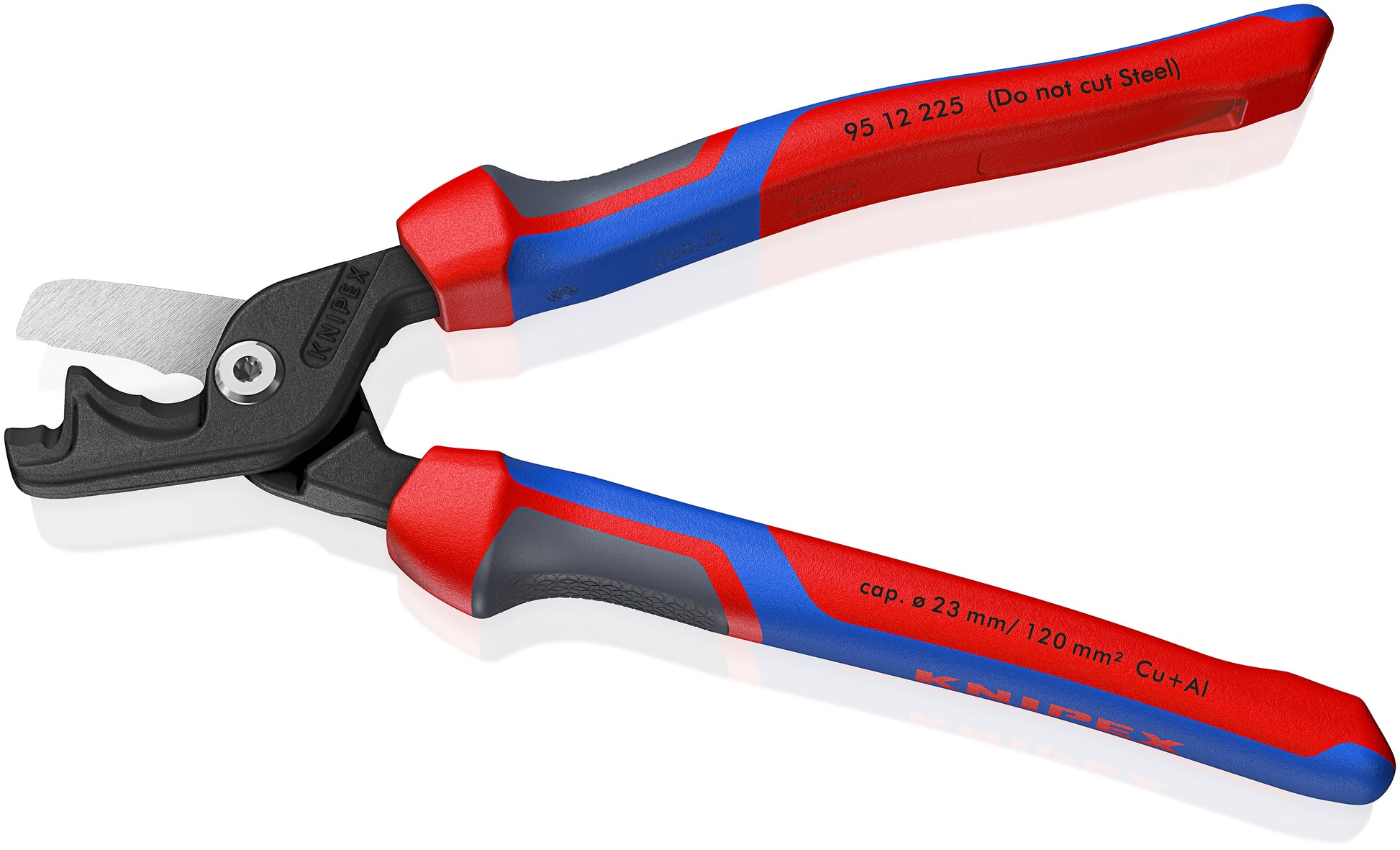

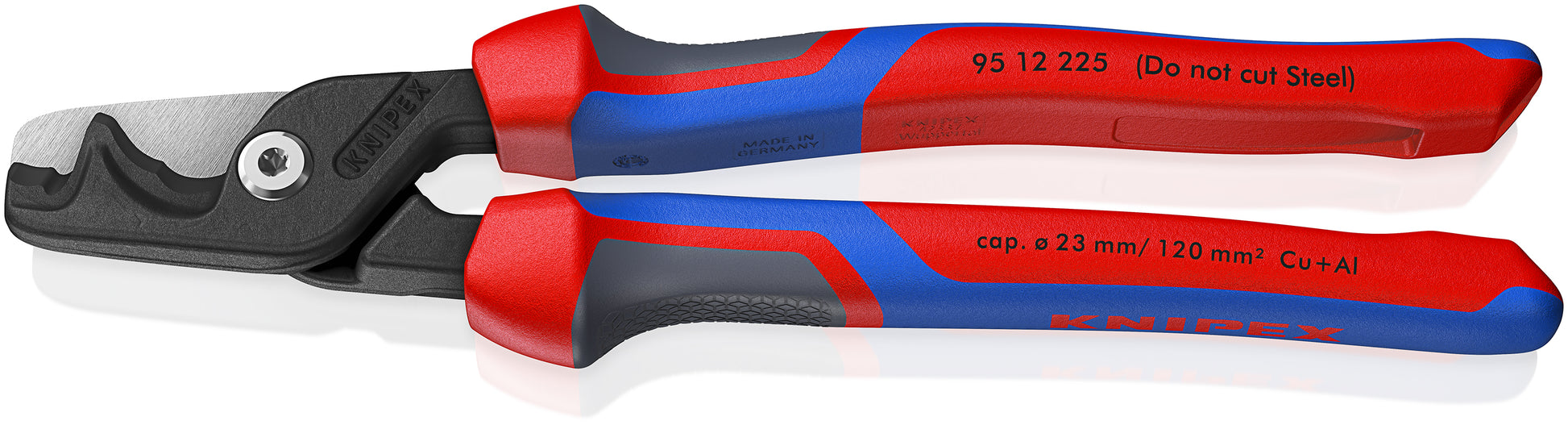

Knipex 95 12 225 SBA StepCut® XL Cable Shears

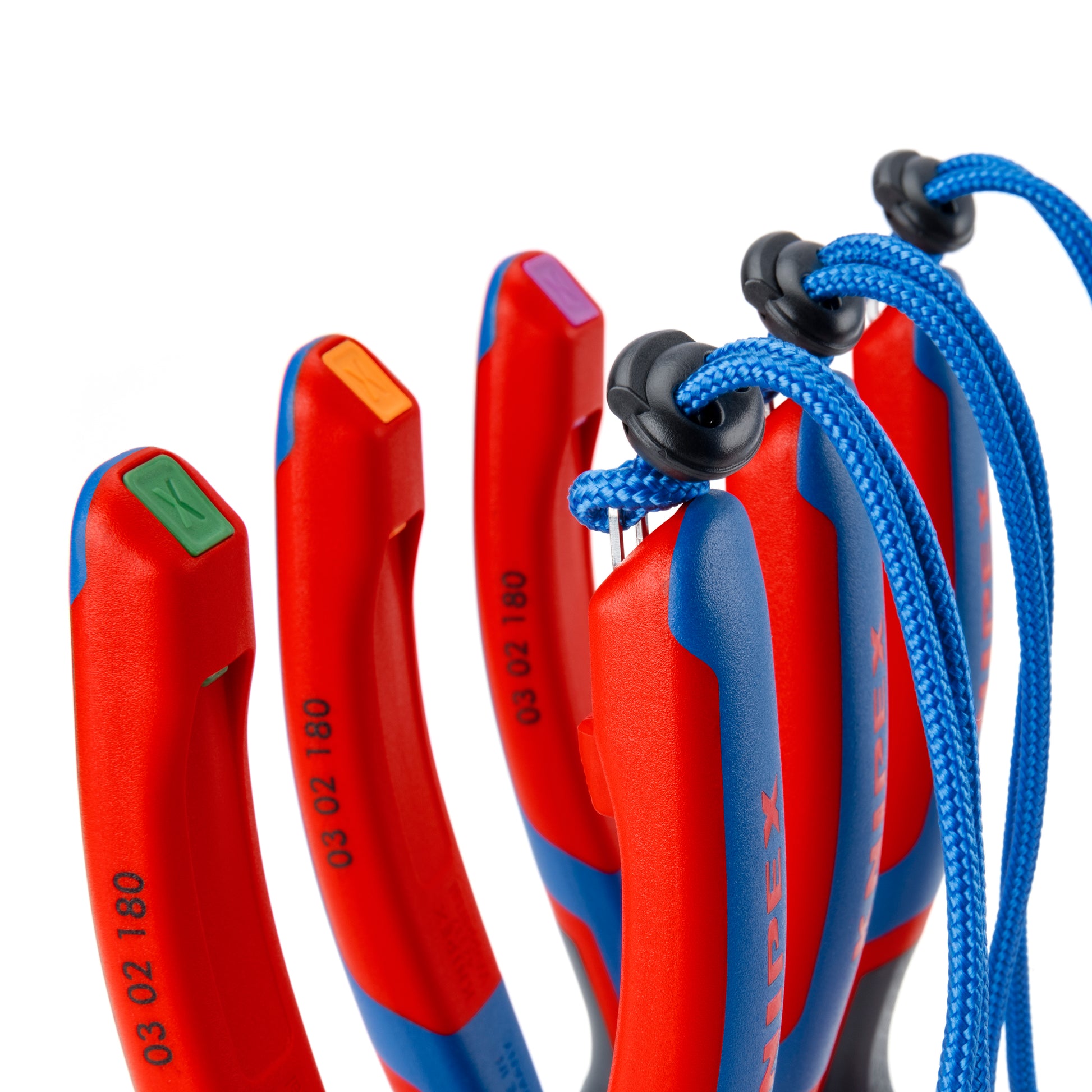

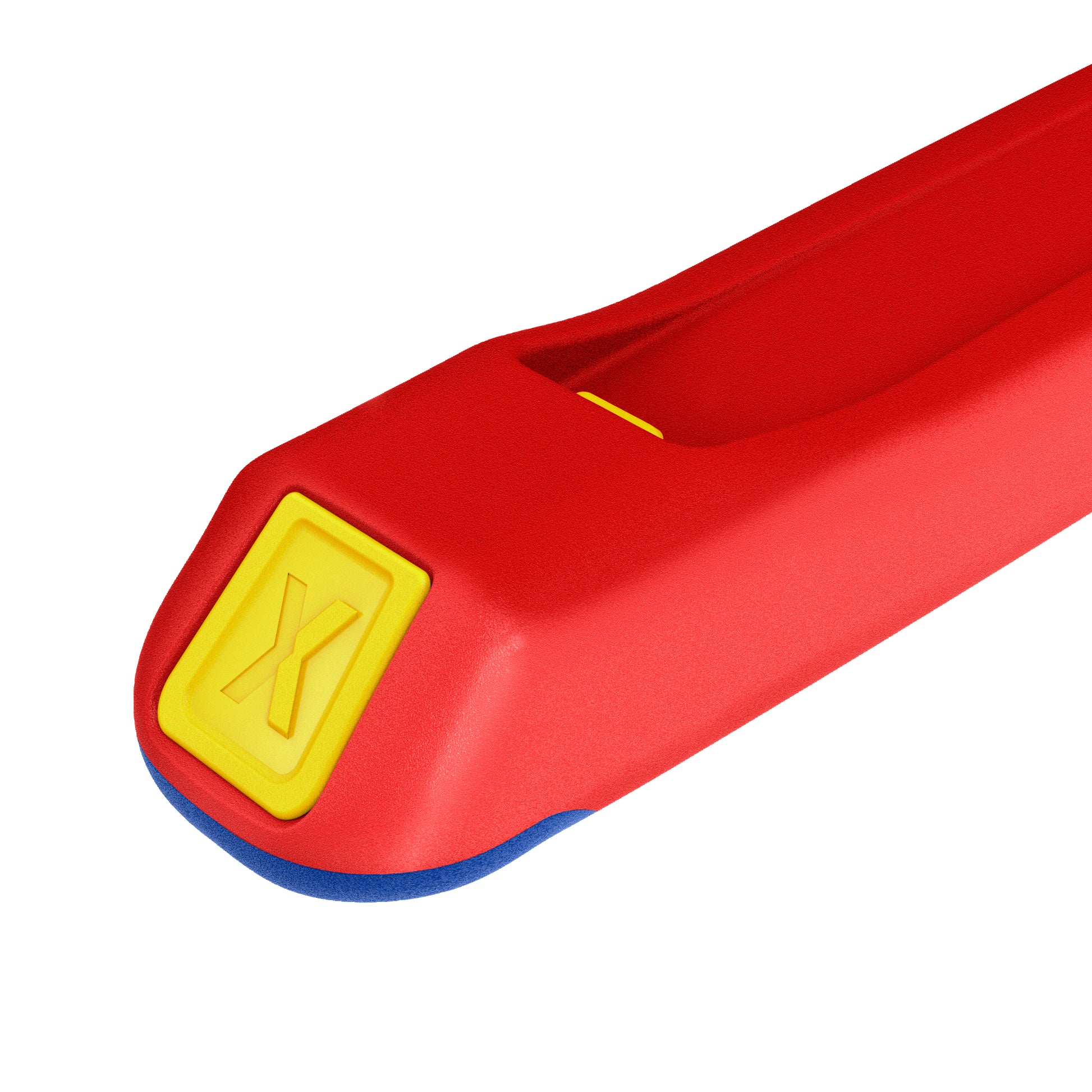

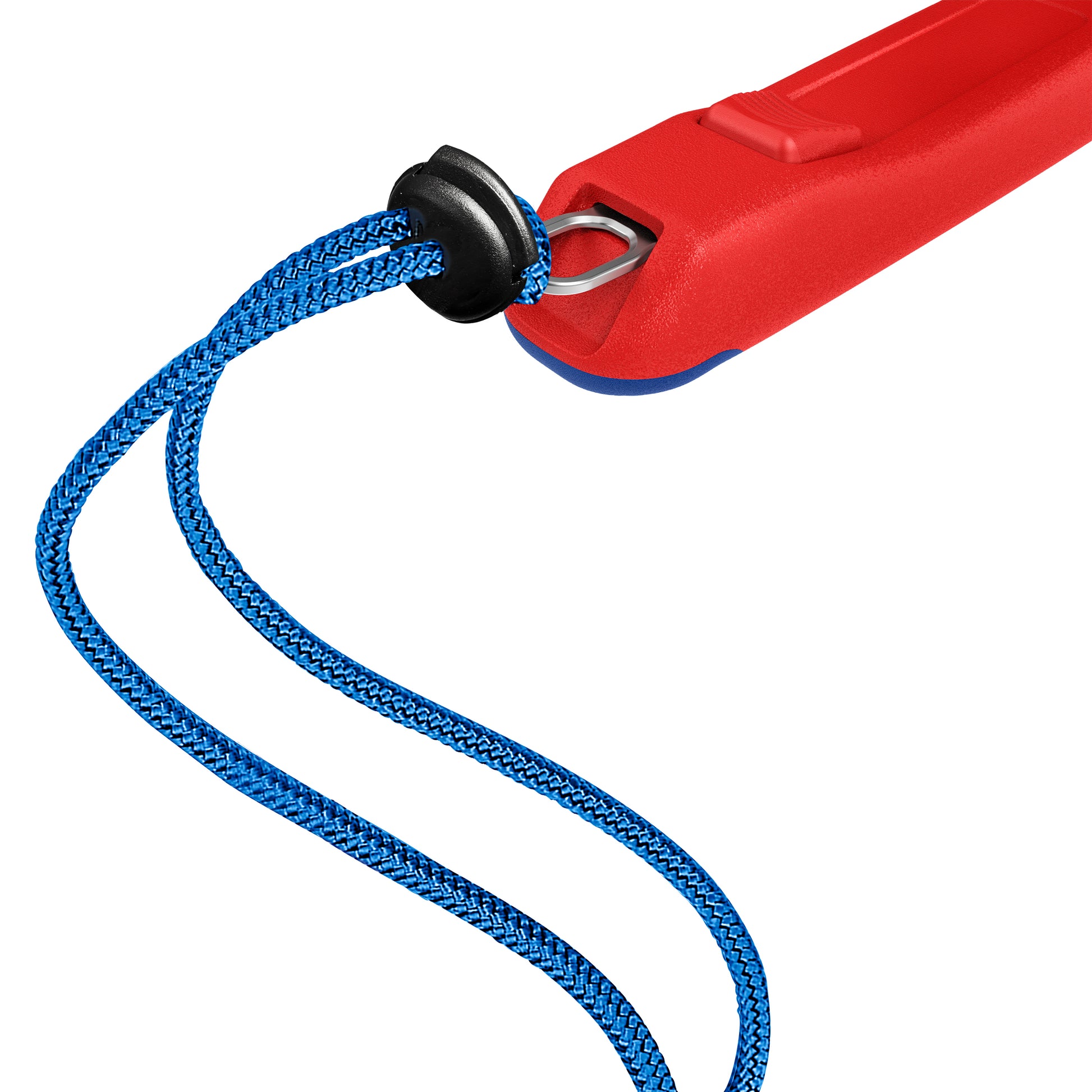

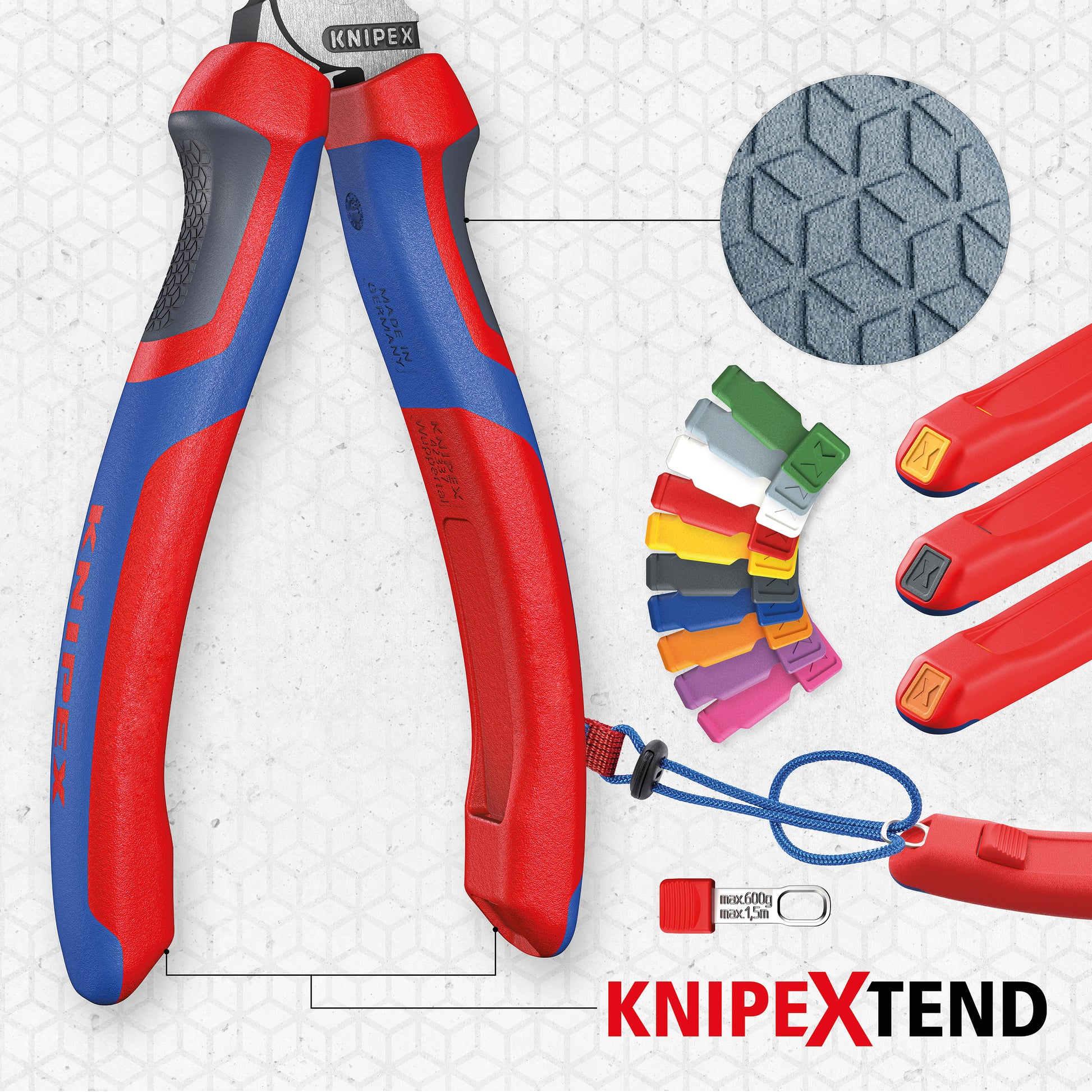

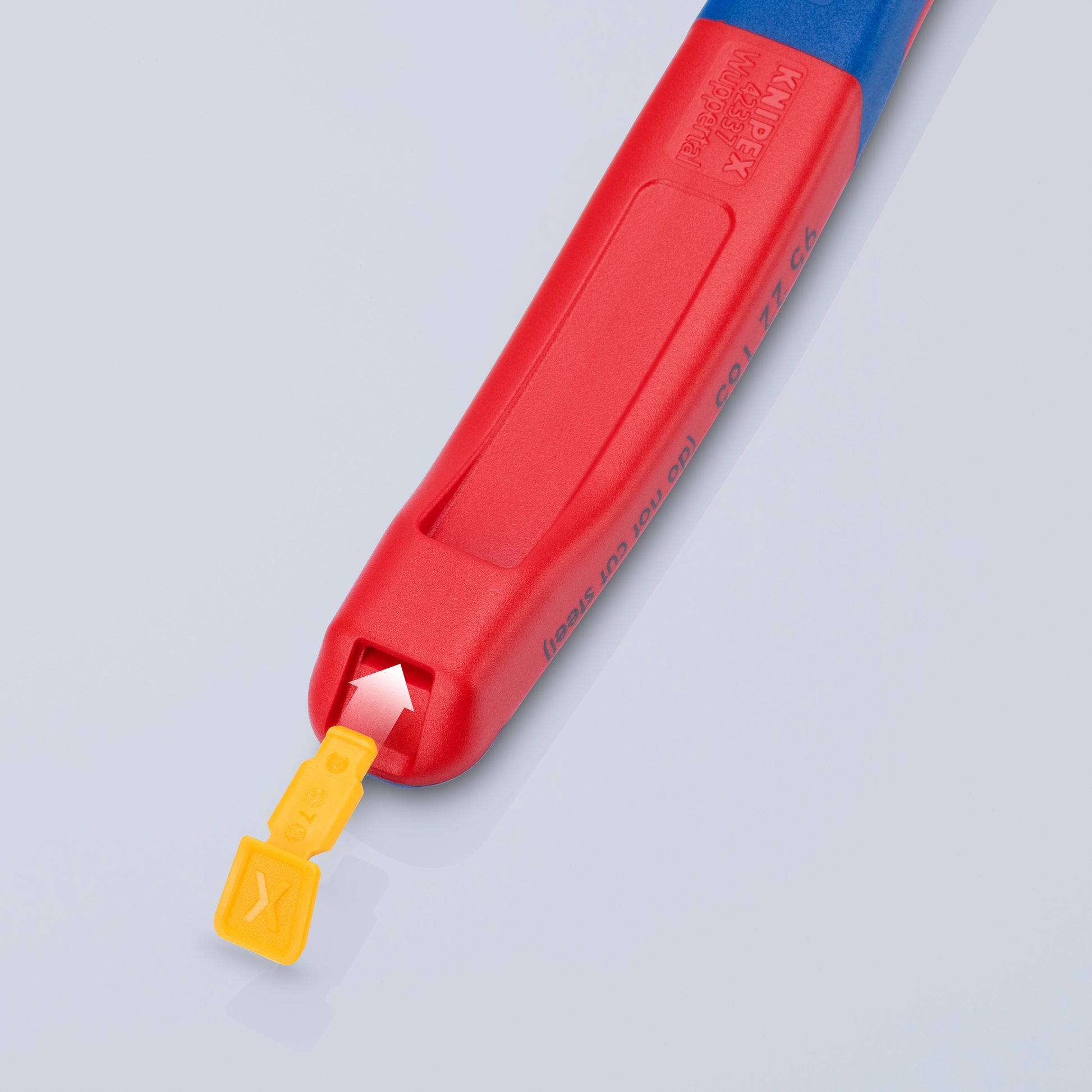

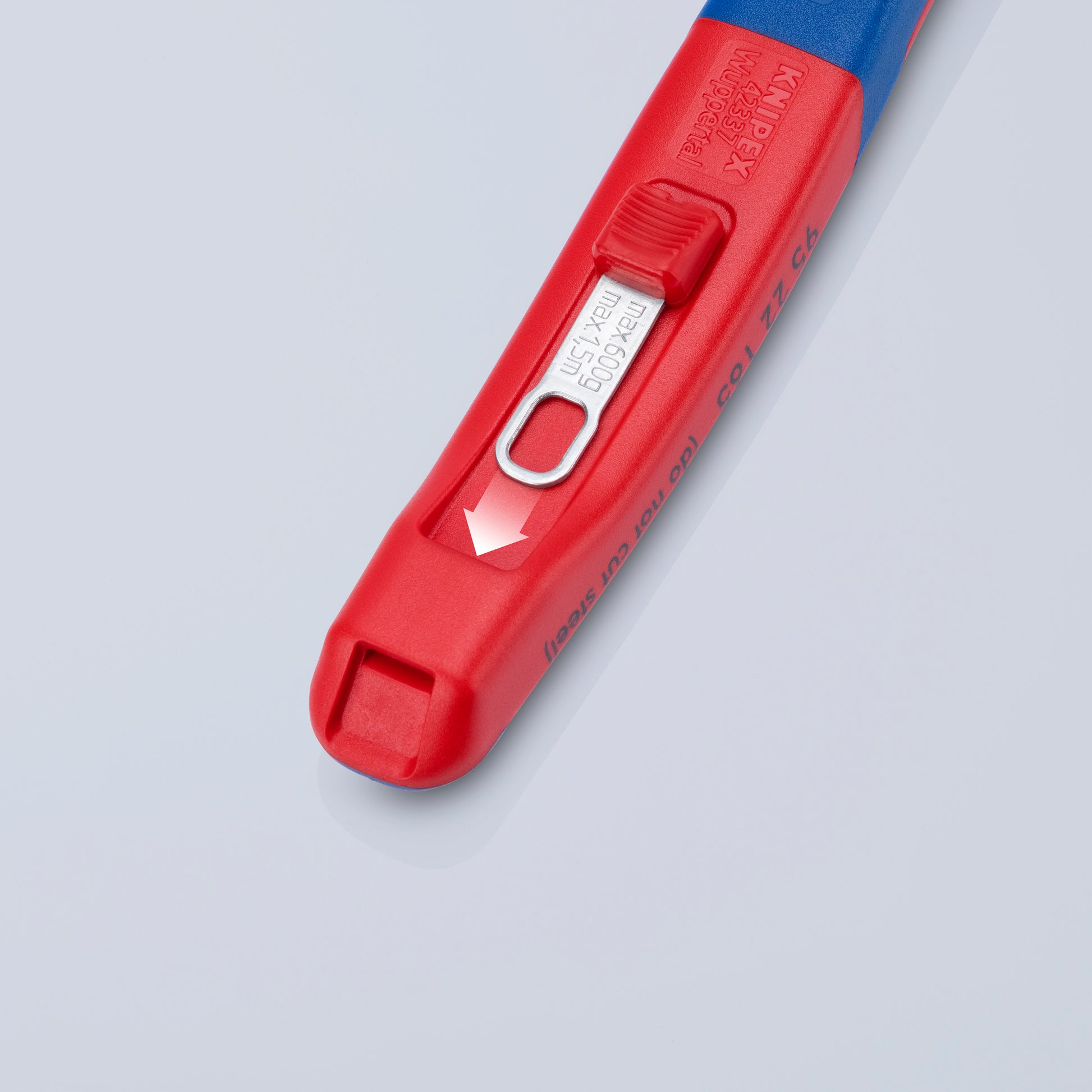

KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)

Features

• High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears

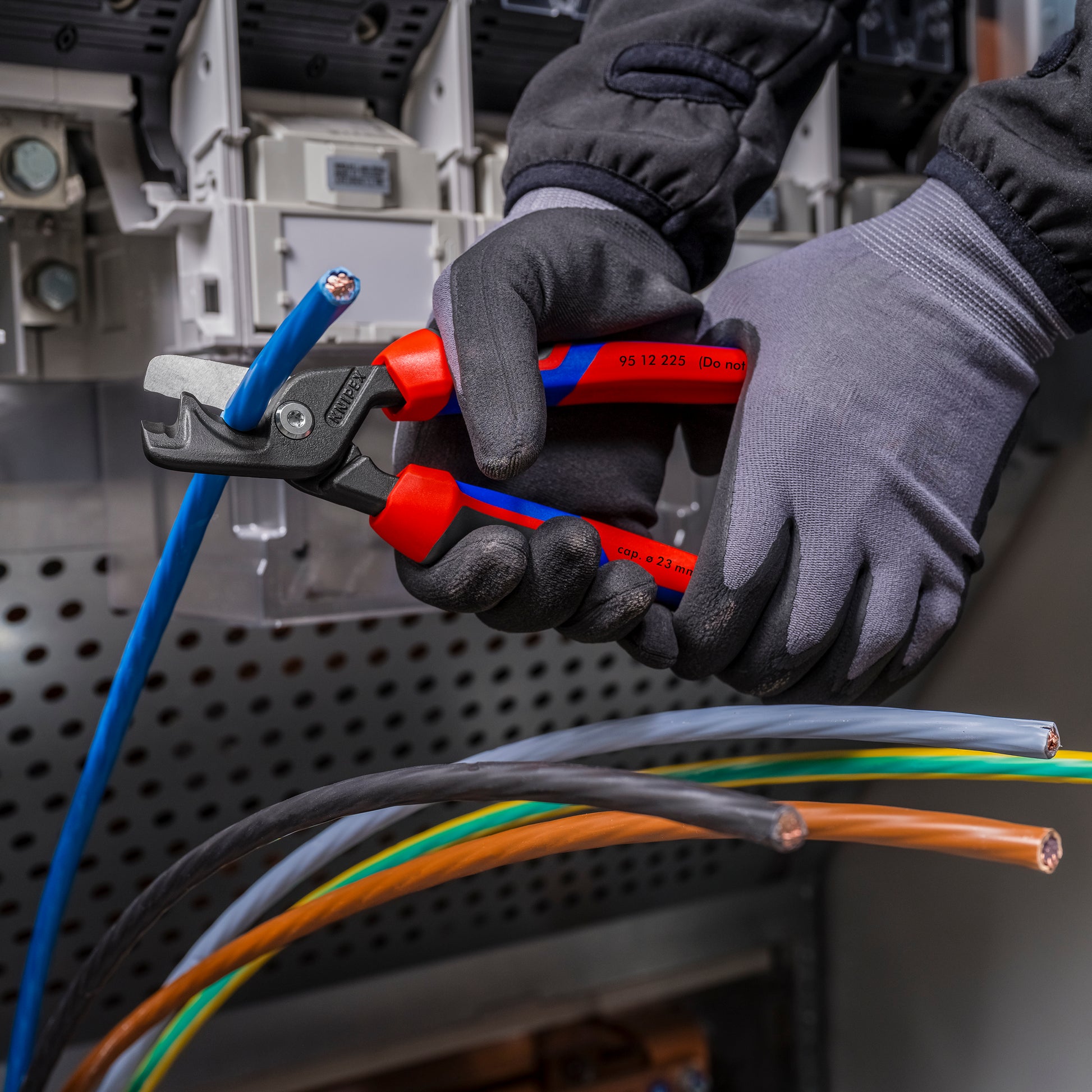

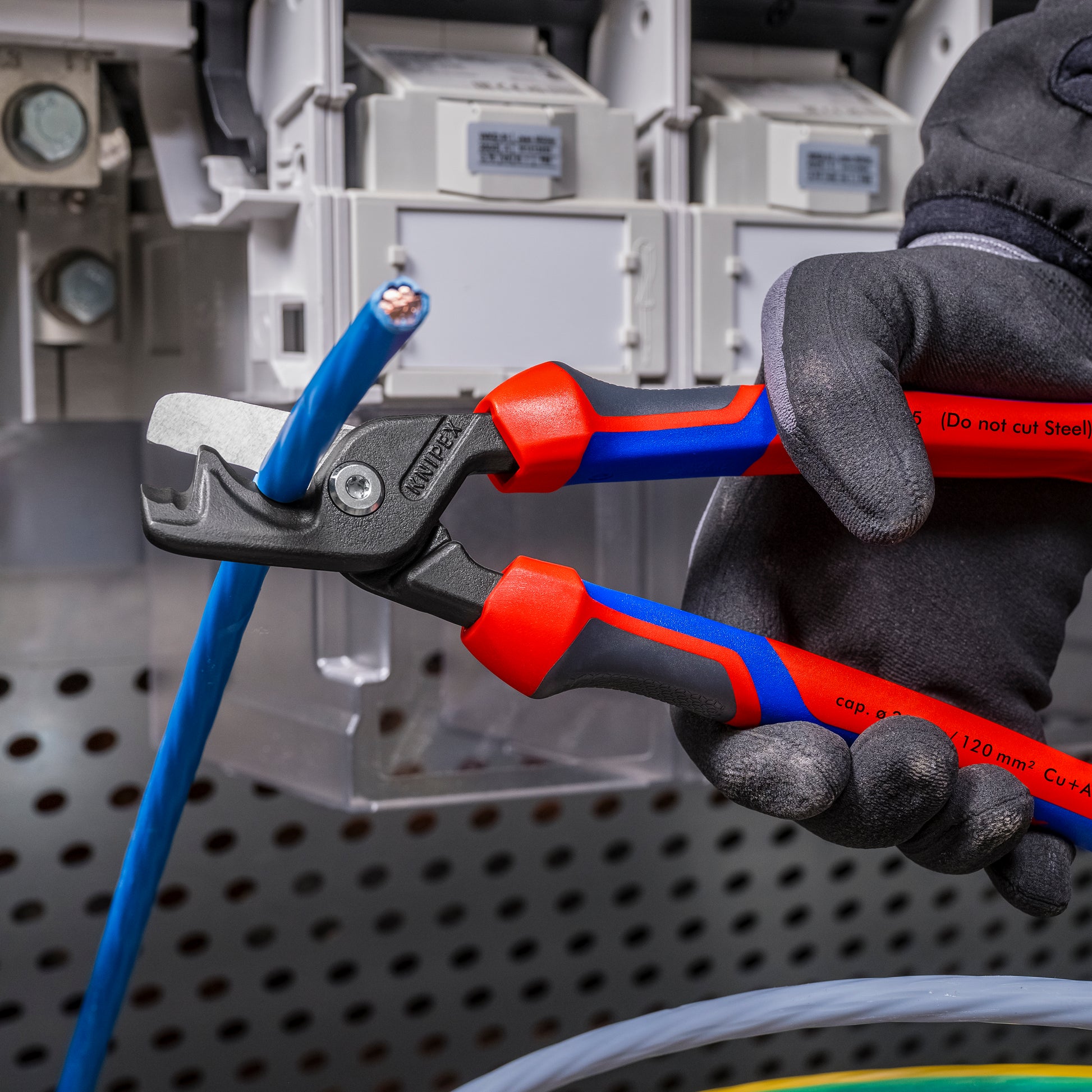

• Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

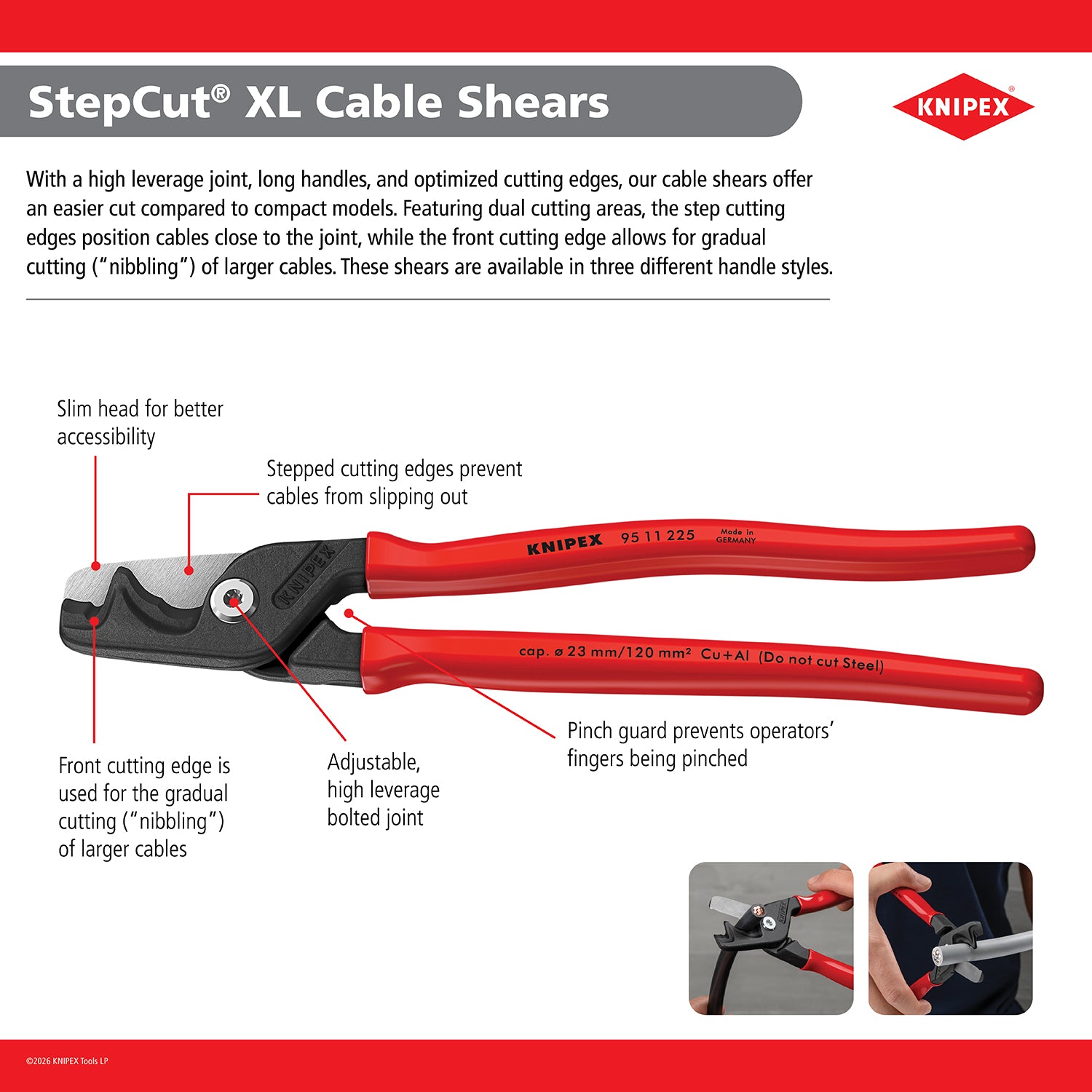

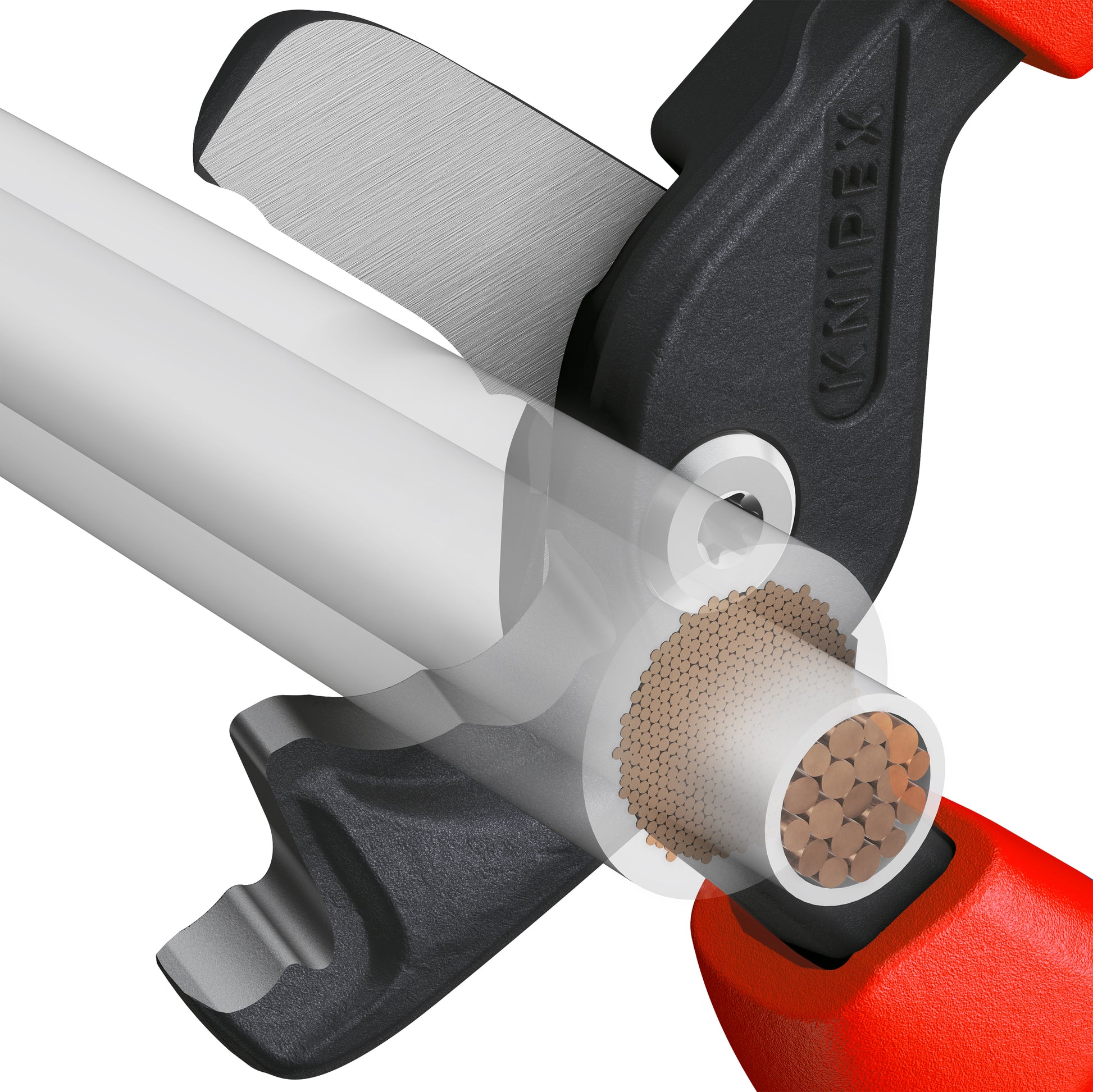

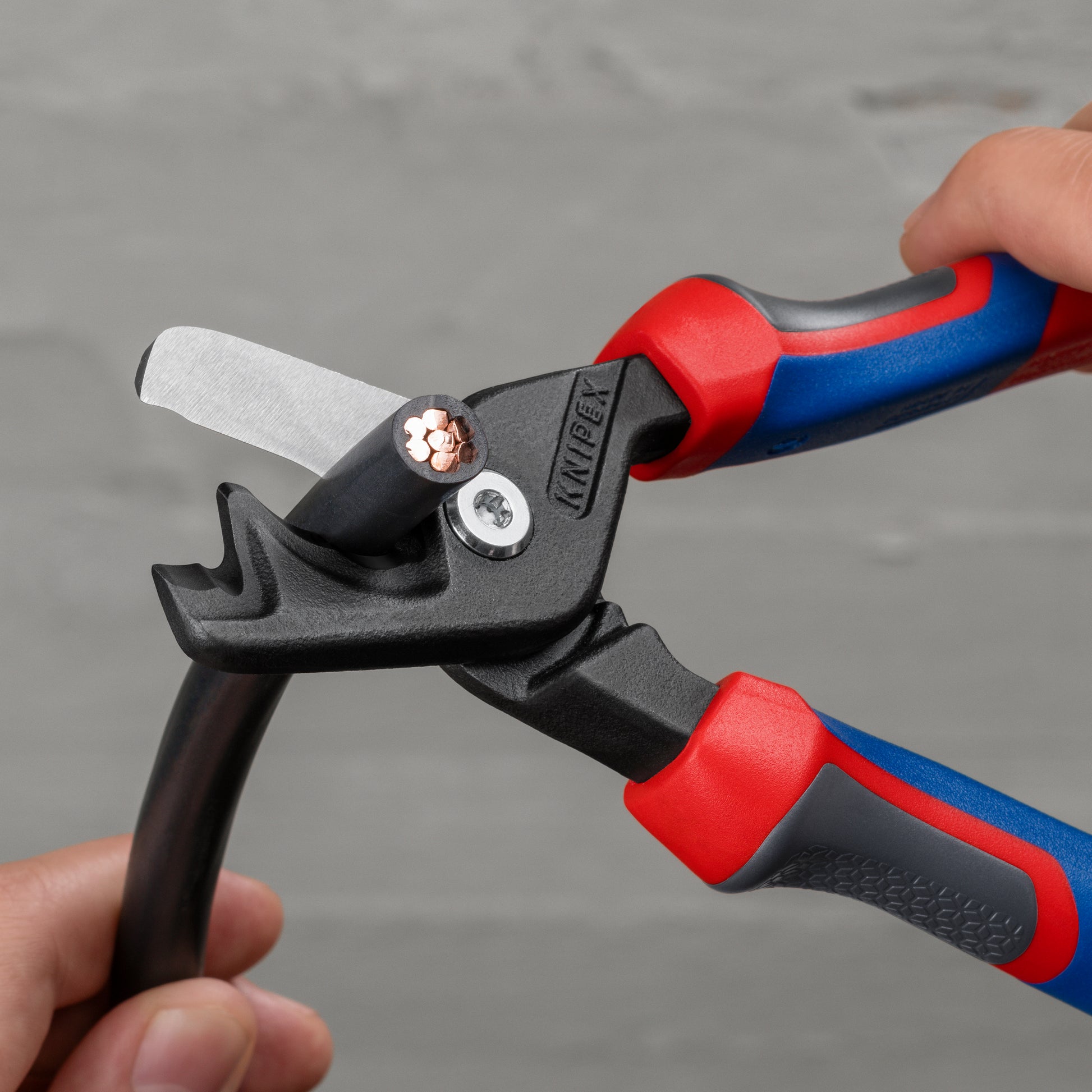

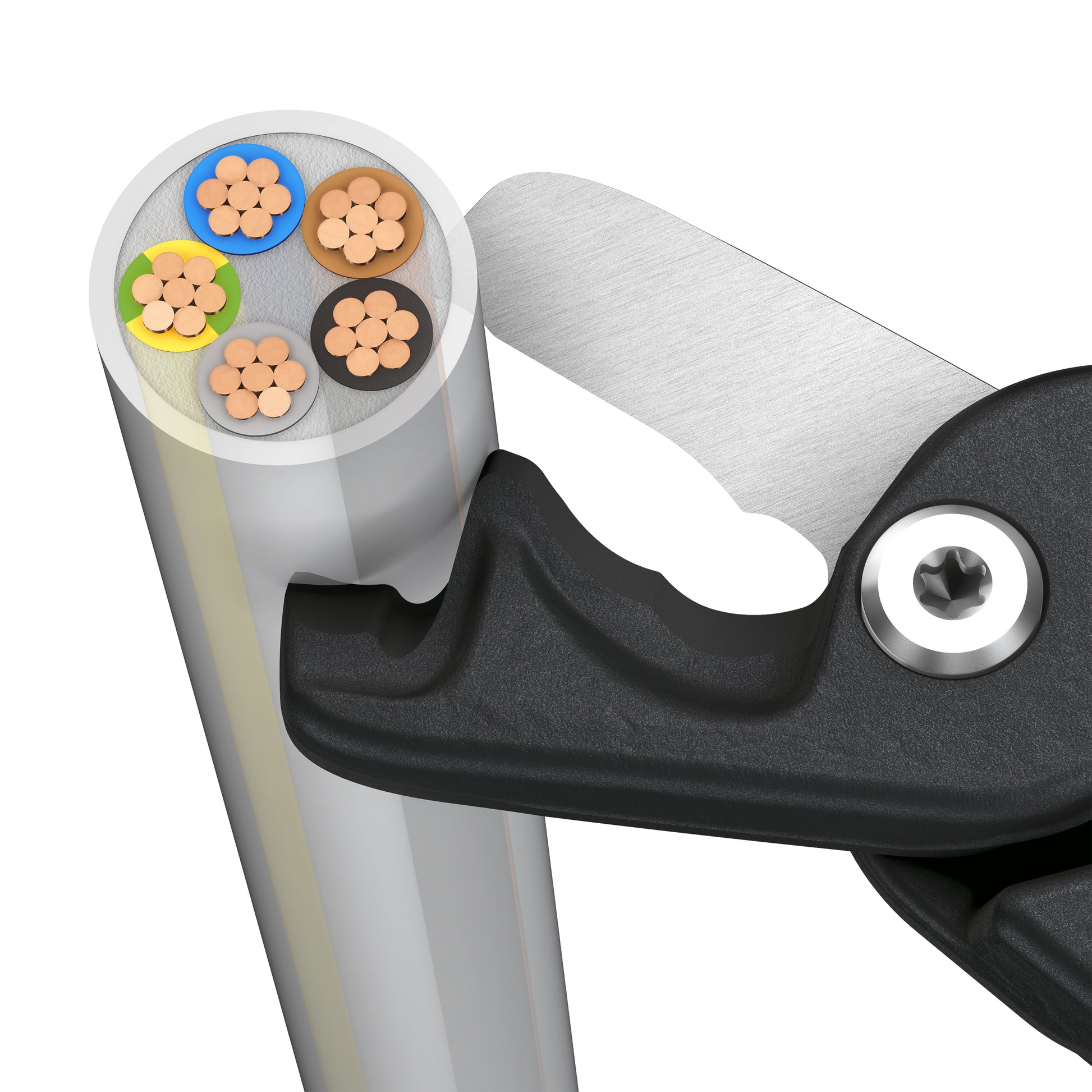

• Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables
• Easy one- or two-handed operation with minimal handle opening for large cable diameters
• Slim head for better accessibility
• Not suitable for steel-reinforced cables, e.g. ACSR
• Adjustable, high-leverage bolted joint provides precise and smooth cutting
• Pinch guard prevents operators' fingers being pinched
• Laser-hardened cutting edges (approx. 56 HRC)
• High-grade special tool steel; forged; oil-hardened
• HANDLES HAVE RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 95 12 225 SBA
• Sub Brand Name: StepCut
• Material Type: High-grade special tool steel, forged, oil-hardened
• Handle Type: KNIPEXTEND Comfort Handle
• Surface Finish: Burnished
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: true
• ESD Indicator: No
• Color: Blue|Gray|Red
• Nominal Length: 9"
• Tool Nominal Length: 9"
• Tool Length: 9.21"
• Tool Width: 2.25"
• Tool Height: 1"
• Tool Weight: 420 g (0.925 lb)
• Joint Type: Bolted
• Handle Length: 6 3/8"
• Jaw Length: 1 1/4"
• Jaw Width: 1 1/4"
• Jaw Thickness: 1/2"
• Tip Width: 1"
• Tip Thickness: 1/4"
• Cutting Edge Shape: Shear
• Cutting Edge HRC: Approx. 56 HRC
• Cable Cutting Capacity: 29/32"
• Cable Type: Stranded Cables|Fine Stranded Cables|Solid Cable
• Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
• Accessory Part Number: 00 61 10 CV SBA|00 62 10 TR SBA|00 61 10 CO SBA|00 61 10 CS SBA|00 61 10 CB SBA|00 61 10 CW SBA|00 61 10 CY SBA|00 63 06TCR SBA|00 61 10 CA SBA|00 61 10 CR SBA|00 61 10 02 SBA|00 61 10 CM SBA|00 61 10 01 SBA|00 61 10 CG SBA
• UPC: 843221029753
