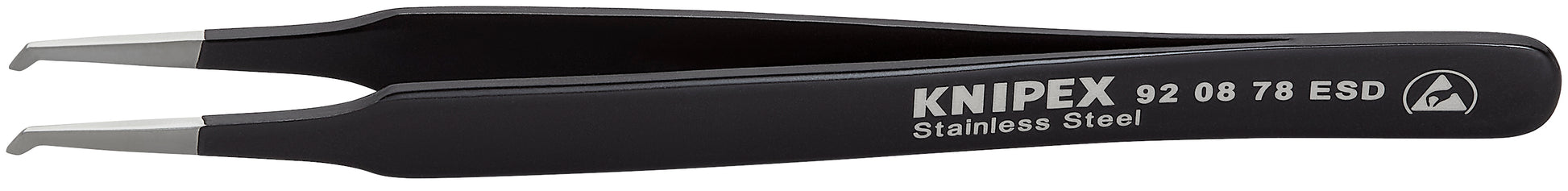

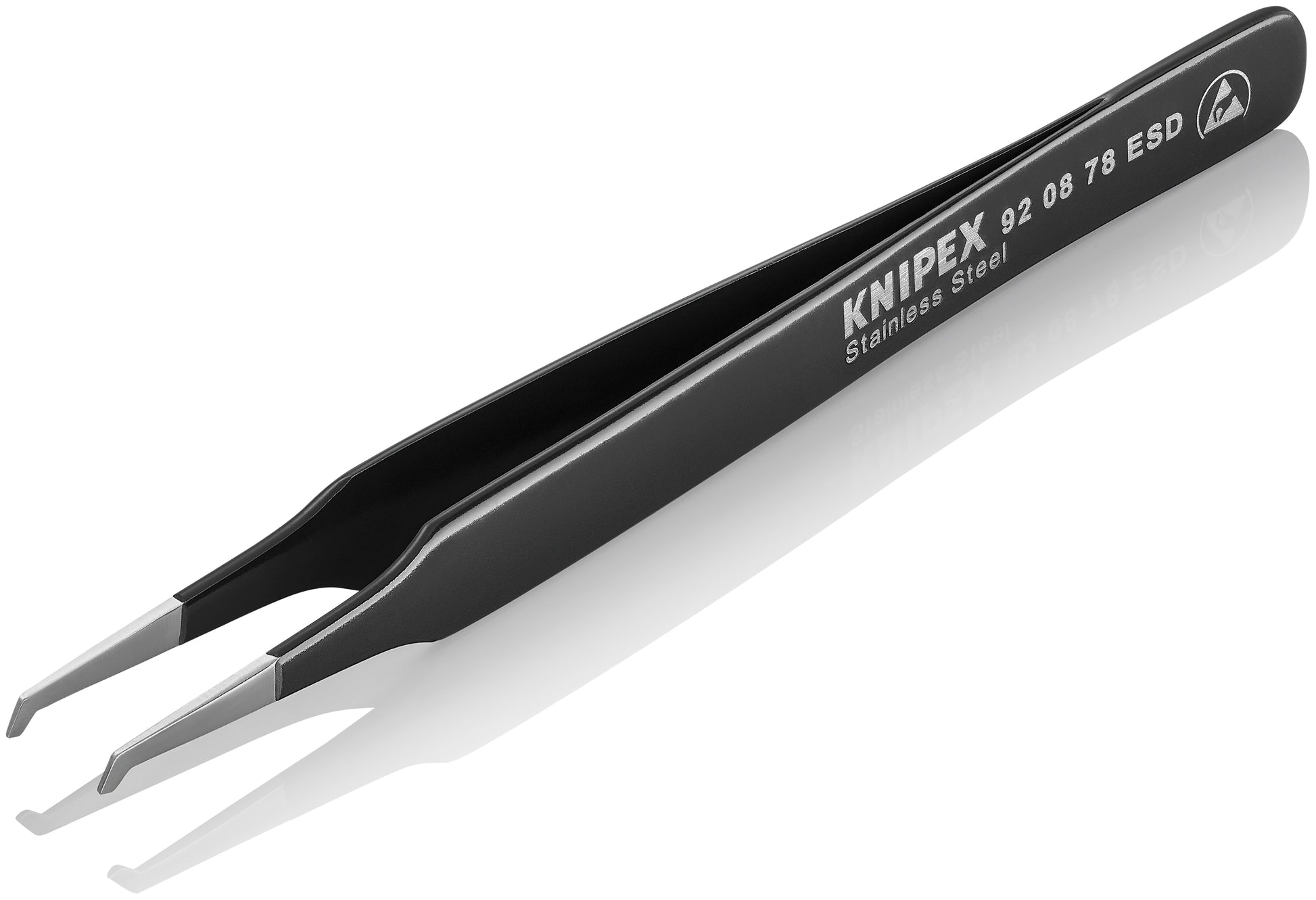

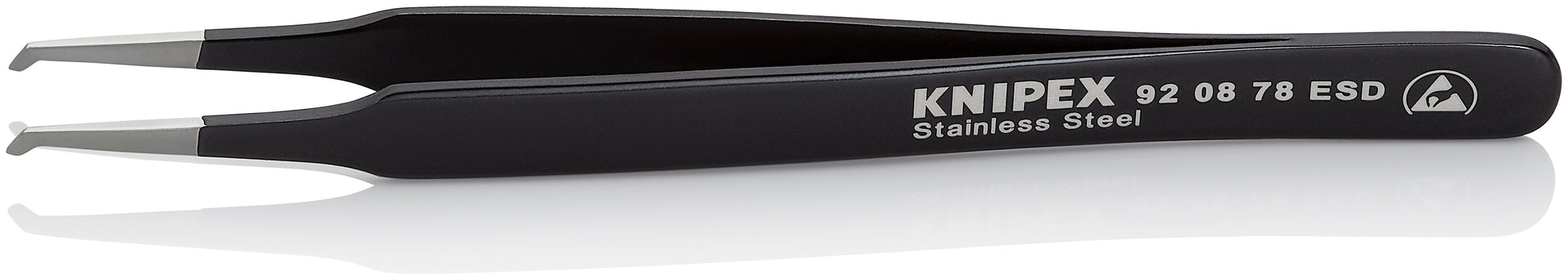

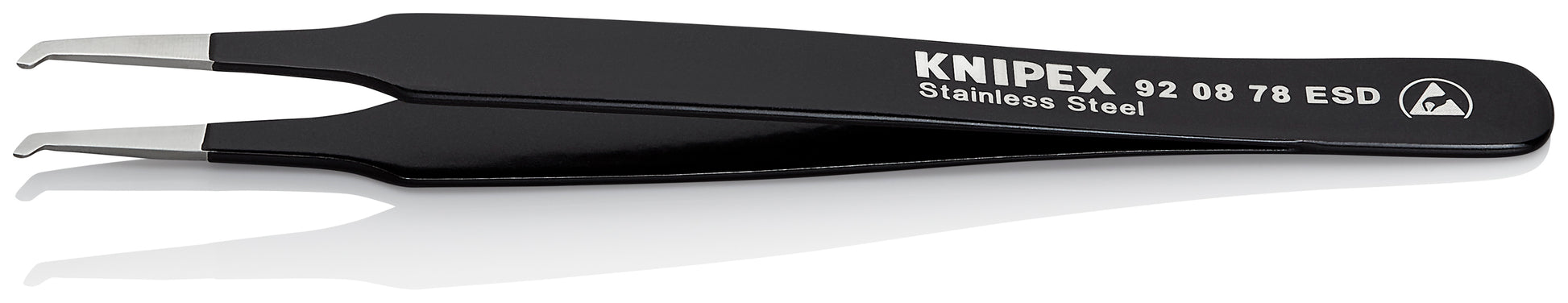

Knipex 92 08 78 ESD Stainless Steel Positioning Tweezers-ESD-SMD

Stainless steel offers corrosion resistance

Features

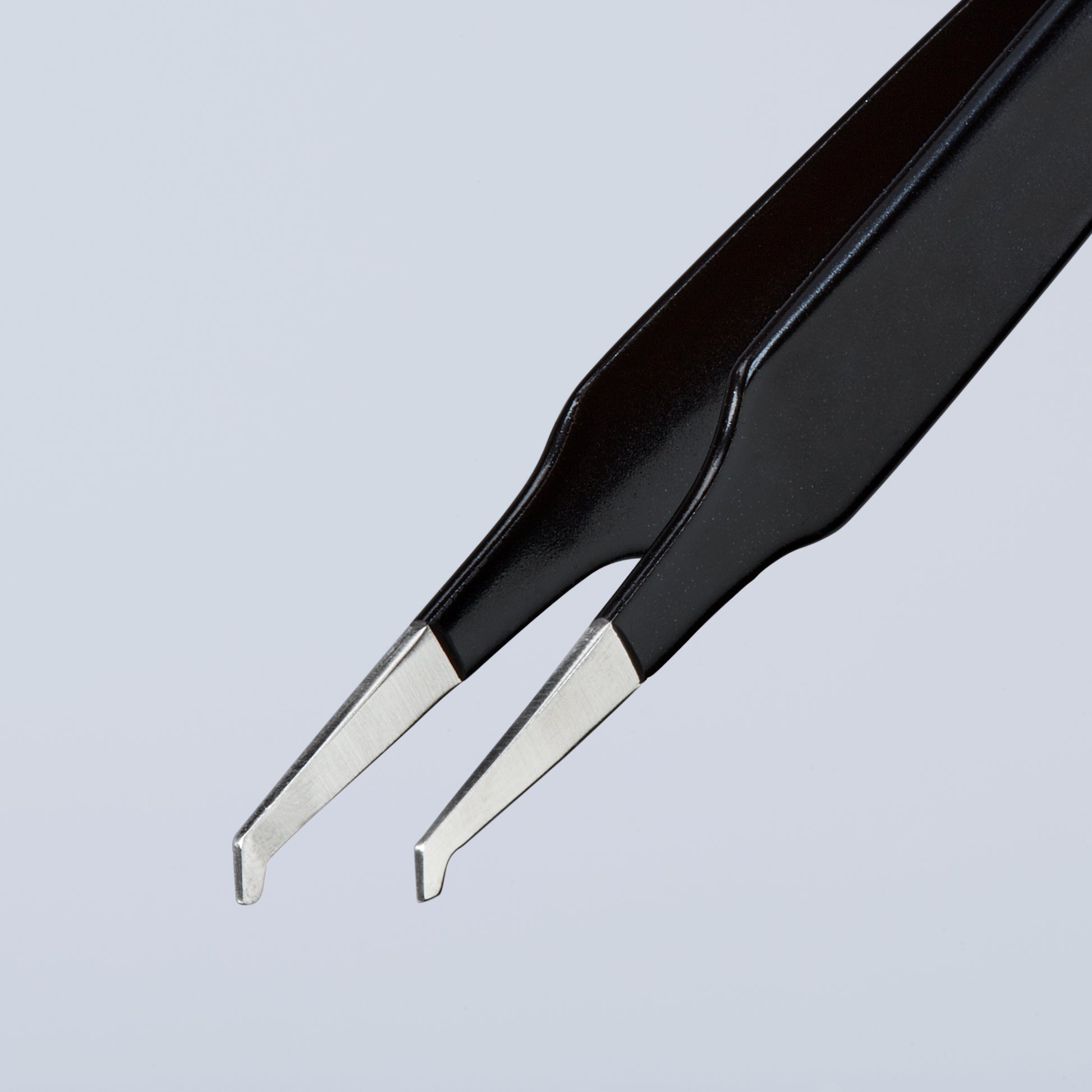

• Angled tips make it easier to reach and grasp objects in tight or hard-to-reach spaces

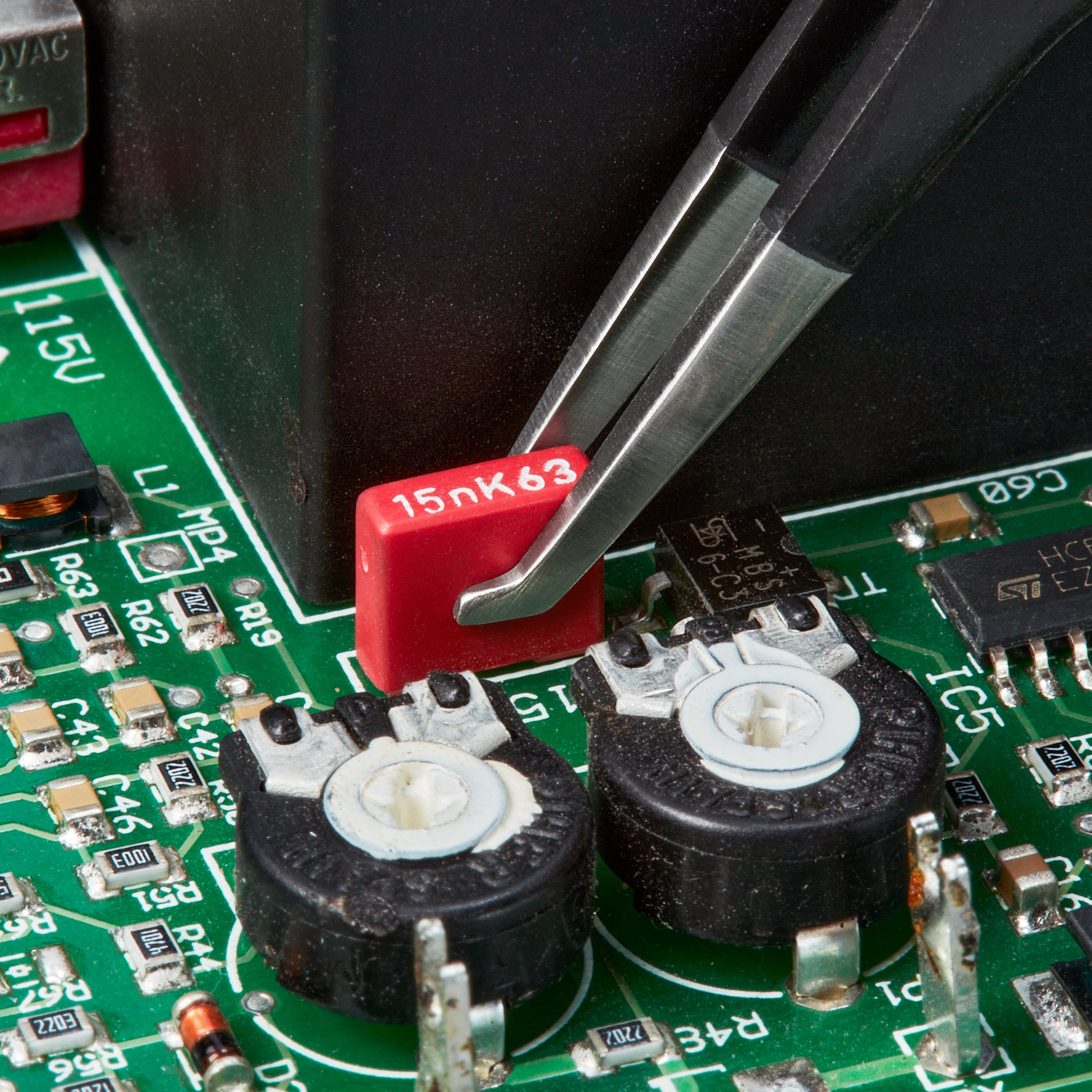

• Positioning tips offer exact positioning of components when working on surface mounted devices (SMD) or through hole technology (THT)
• Smooth gripping surface will not mar fine components
• Smooth handles minimizes any potential interference with surrounding materials
• 80% anti-magnetic design minimizes magnetic interference
• ESD handles discharge electrostatic energy through the handles in a gradual and controlled manner

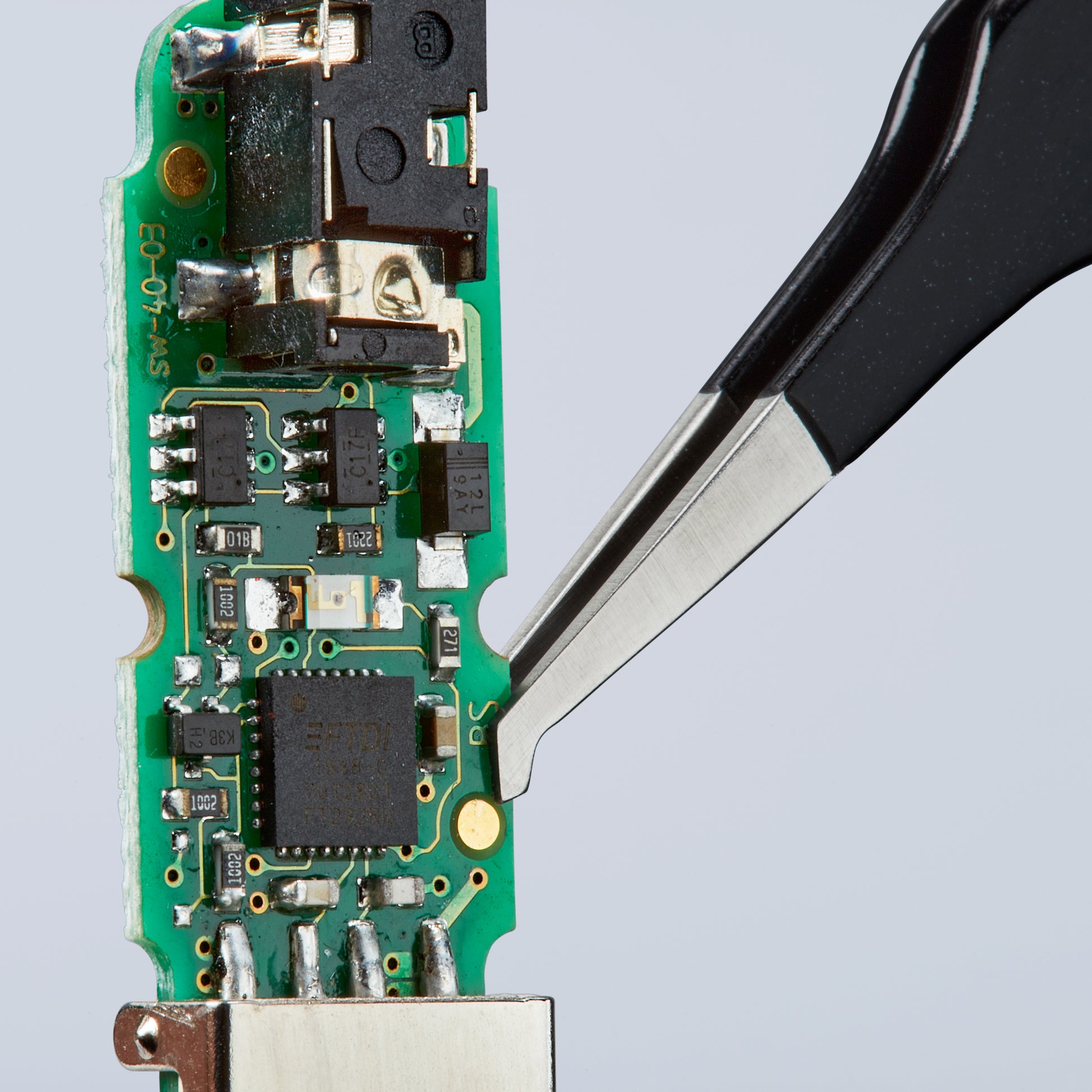

• SMD (surface mounted device) tweezers position electronic components to be soldered directly onto the circuit board

Specifications

• Manufacturer Part Number: 92 08 78 ESD
• Material Type: Stainless Steel
• Handle Type: ESD coating
• Gripping Surface: Smooth
• Surface Finish: Matte
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 4 3/4"
• Tool Nominal Length: 4.75"
• Tool Length: 4.55"
• Tool Width: 0.4"
• Tool Height: 0.5"
• Tool Weight: 18 g (0.0396 lb)
• Angled Head: 45 degree
• Tip Type: Positioning
• Tip Width: 2.50 mm
• Tip Thickness: 0.50 mm
• UPC: 843221014636
