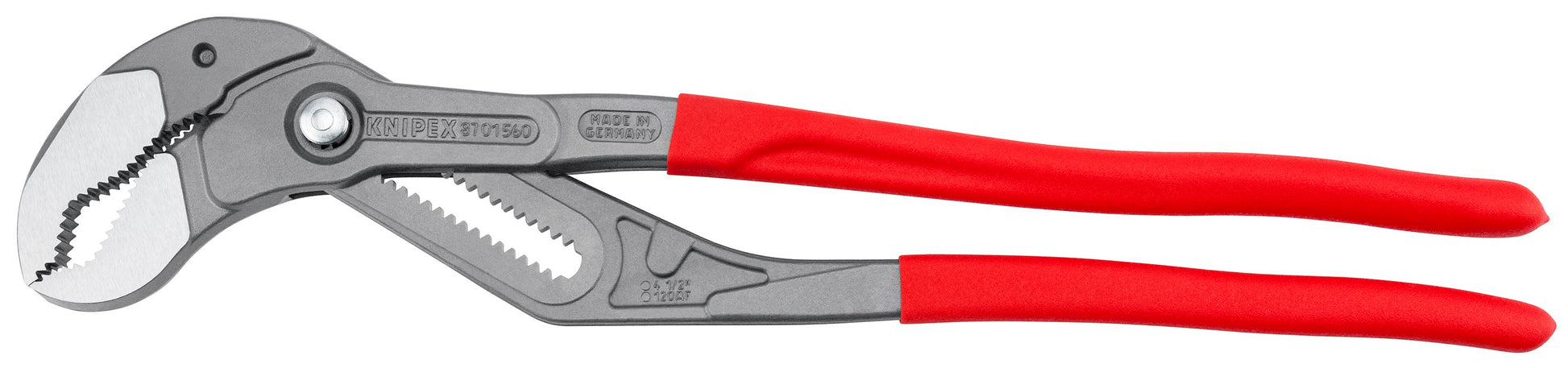

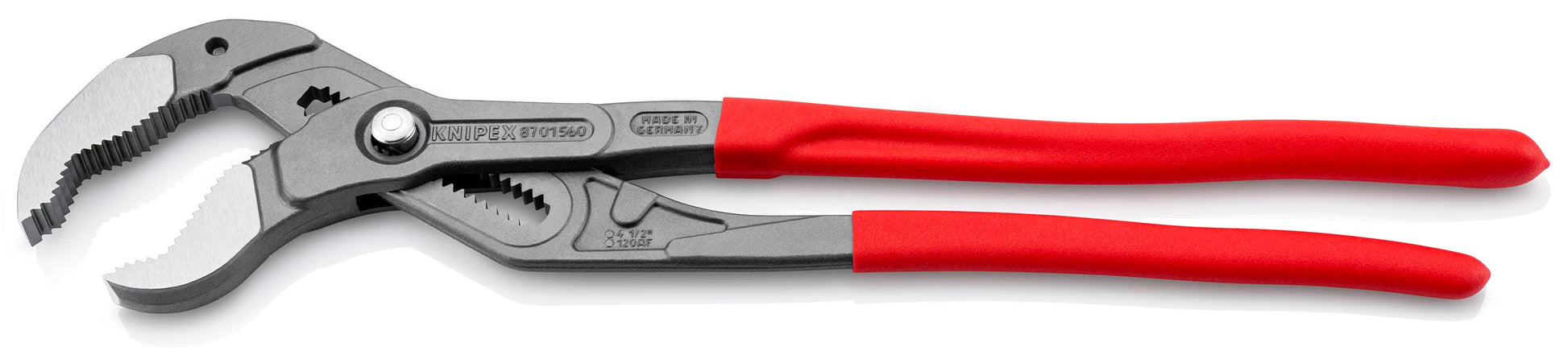

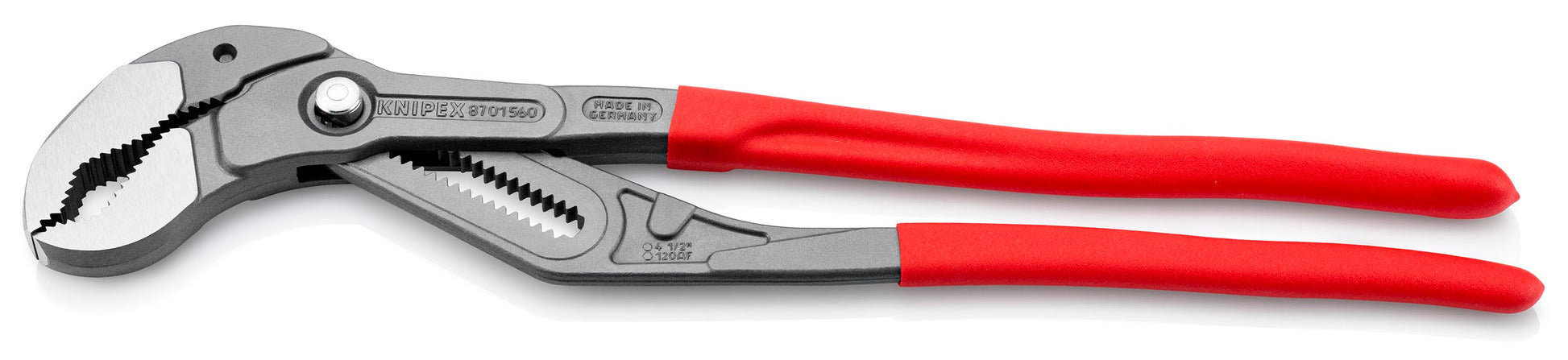

Knipex 87 01 560 US Cobra® XXL Water Pump Pliers

Greater gripping capacity and lighter weight than comparable pipe wrenches

Features

• Fast push-button adjustment directly on the workpiece, no unintentional slipping of the joint
• Fine adjustment for optimum adaptation to different size workpieces and a comfortable gripping position

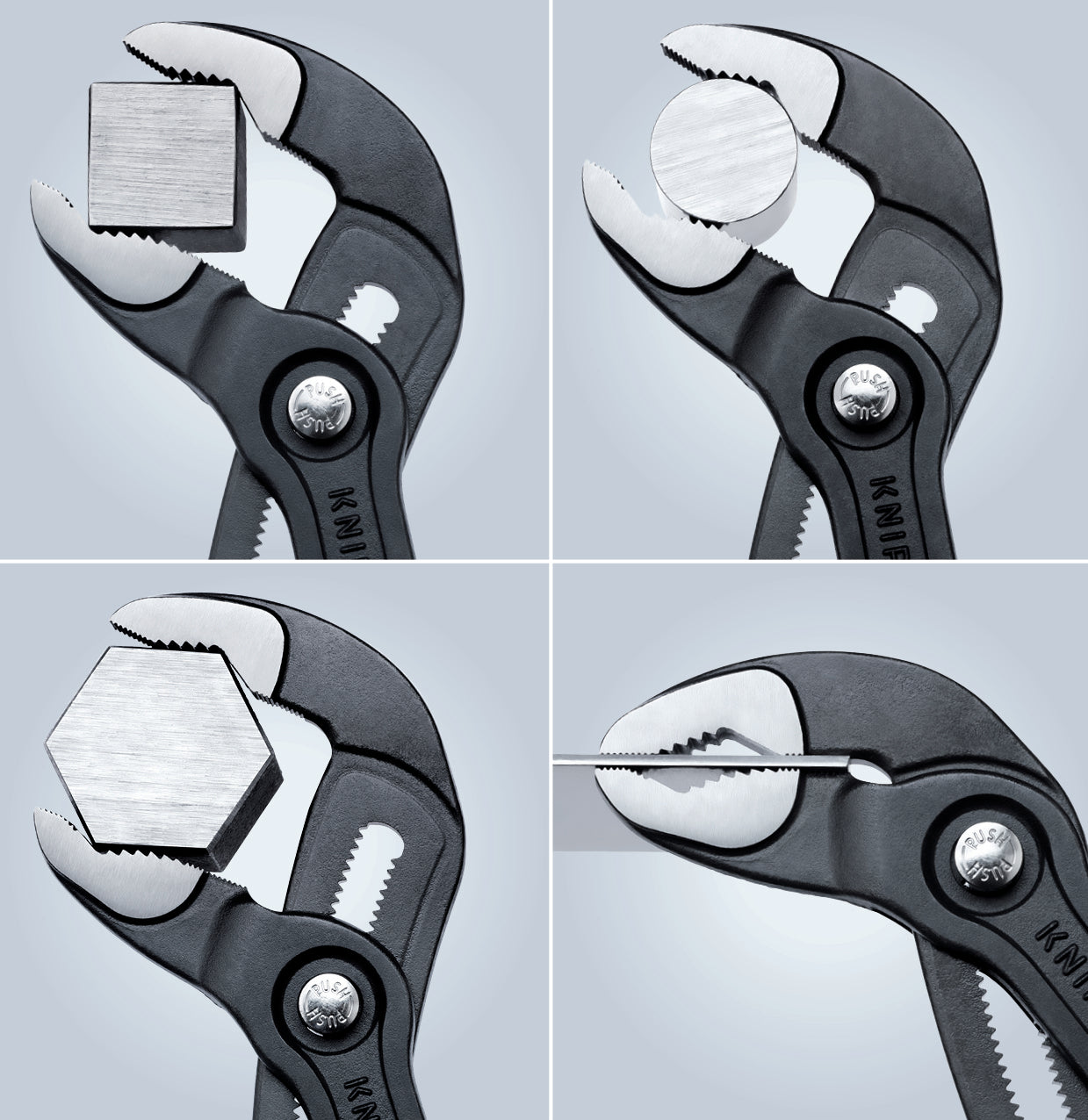

• Self-locking on pipes and nuts: no slipping off the workpiece and low hand force required
• Gripping surfaces with special hardened teeth, teeth hardness (approx. 61 HRC): low wear and reliable gripping

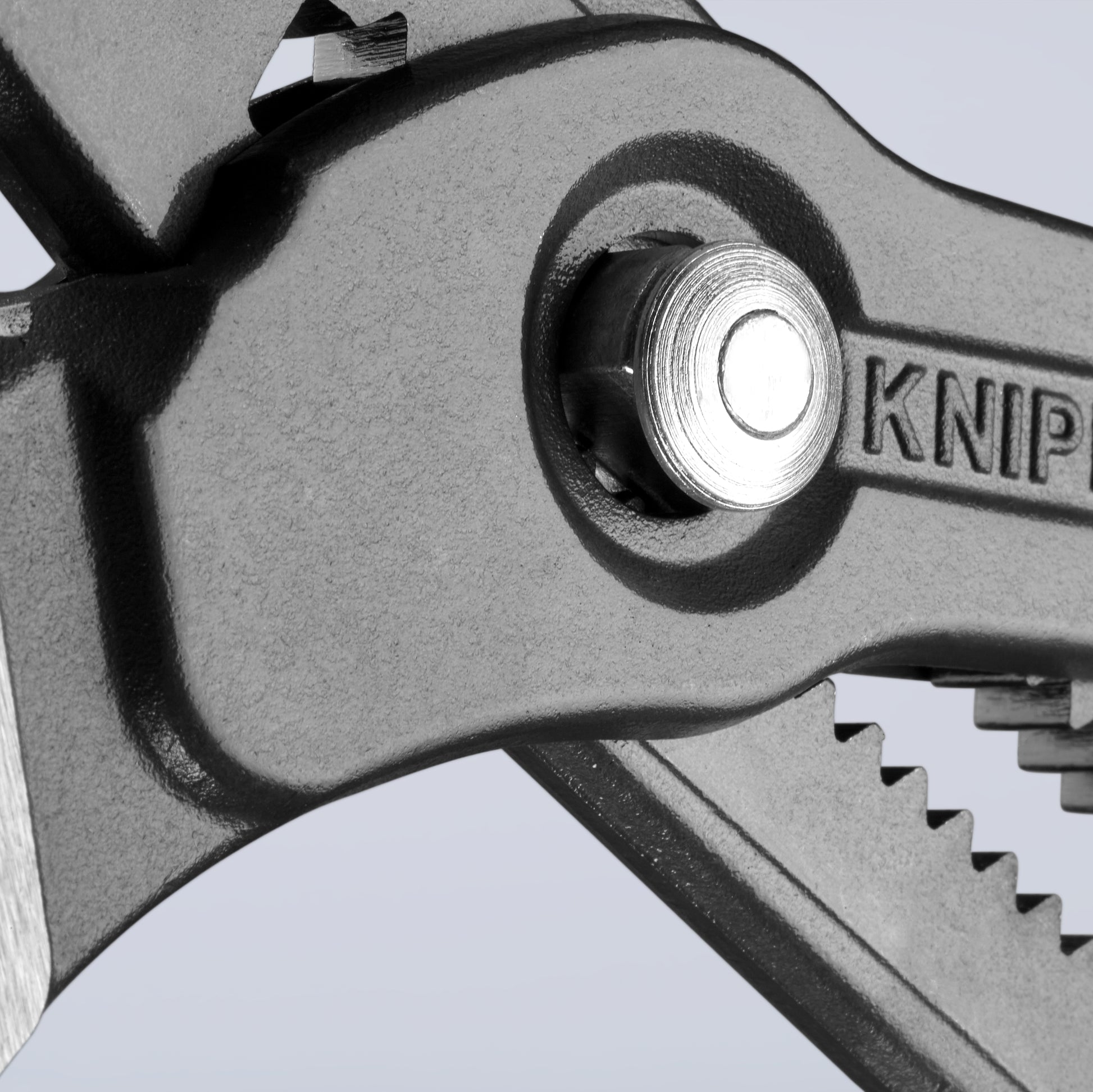

• Box-joint design: high stability because of double guide
• Pinch guard prevents operators' fingers being pinched
• 20 adjustment positions
• Chrome vanadium electric steel; forged, multi-stage oil-hardened

Specifications

• Manufacturer Part Number: 87 01 560 US
• Sub Brand Name: Cobra®
• Material Type: Chrome vanadium electric steel, forged, oil-hardened
• Handle Type: Non-slip plastic
• Gripping Surface: Serrated
• Surface Finish: Polished jaws
• Other Surface Finish: Grey atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red
• Nominal Length: 22"
• Tool Nominal Length: 22"
• Tool Length: 21.85"
• Tool Width: 4.25"
• Tool Height: 1.25"
• Tool Weight: 2740 g (6.04 lb)
• Joint Type: Box-joint
• Handle Length: 12 3/4"
• Handle Width: 2 21/32"
• Jaw Length: 3 1/2"
• Jaw Thickness: 47/64"
• Tip Thickness: 23/32"
• Number of Adjustment Positions: 20
• Max Jaw Opening - Working Capacity: 4 3/4"
• Max Jaw Opening - Round pipe: 4 1/2"
• Max Jaw Opening - Hex: 4 3/4"
• Teeth Hardness HRC: Approx. 61 HRC
• Spare Part: 87 09 560
• Set Part Number: 9K 00 80 149 US
• UPC: 843221000240
