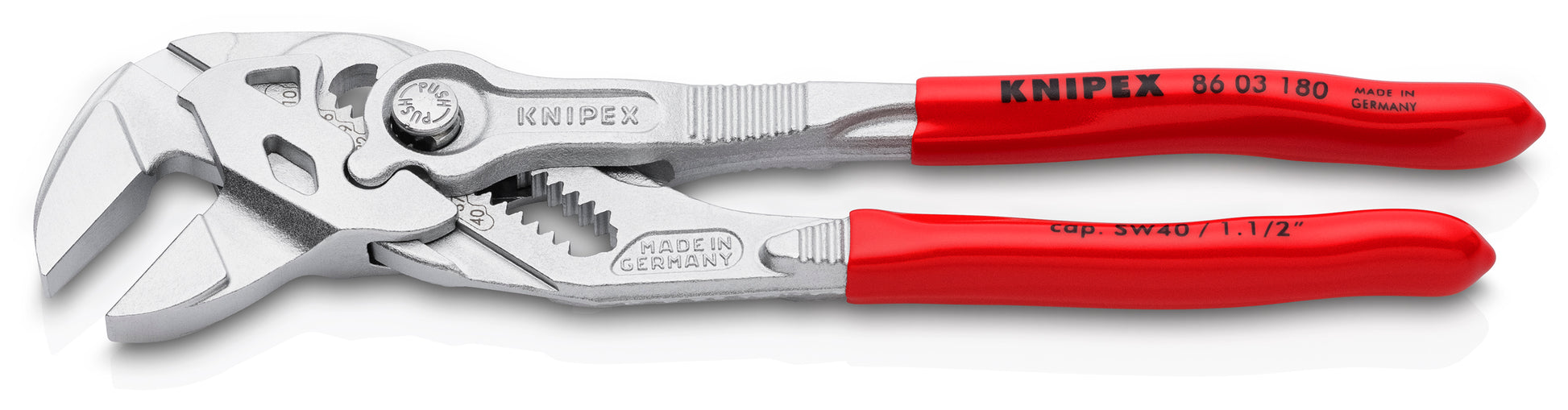

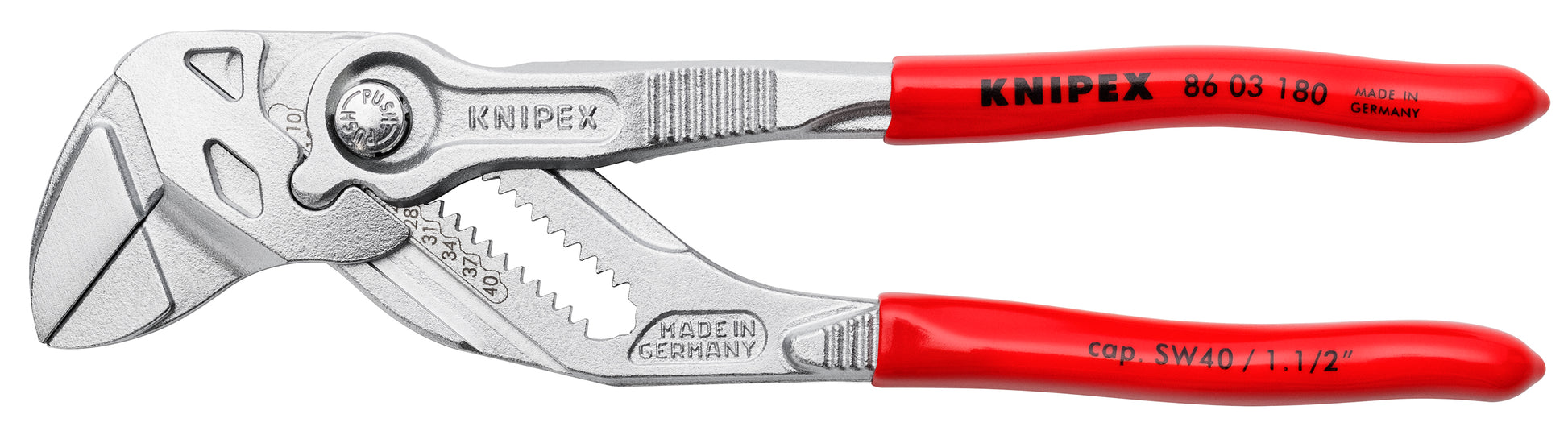

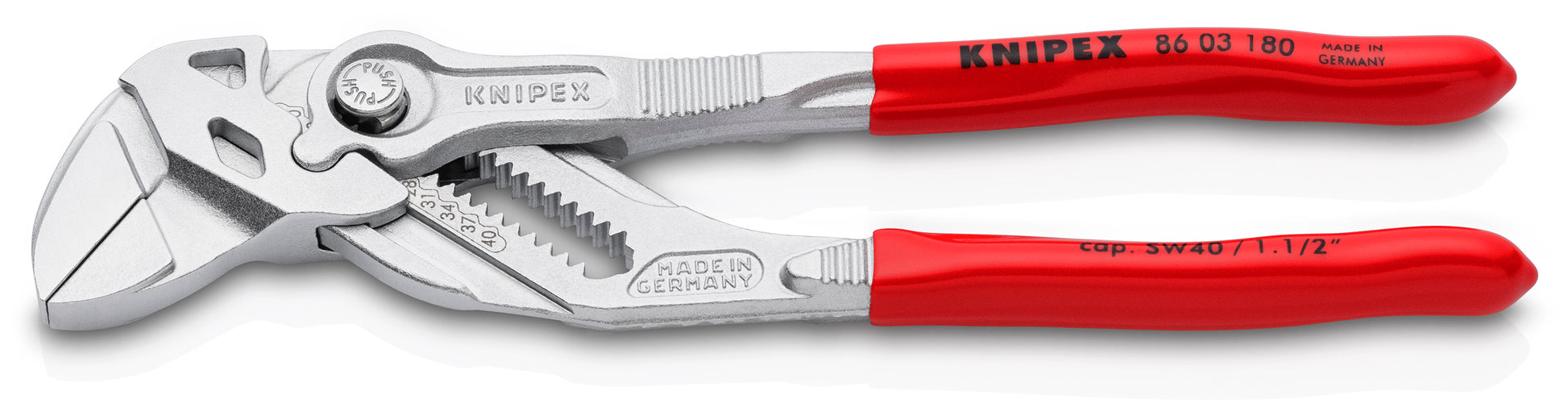

Knipex 86 03 180 Pliers Wrench

Replaces a full set of inch and metric open end wrenches up to 1 1/2" (40 mm)

Features

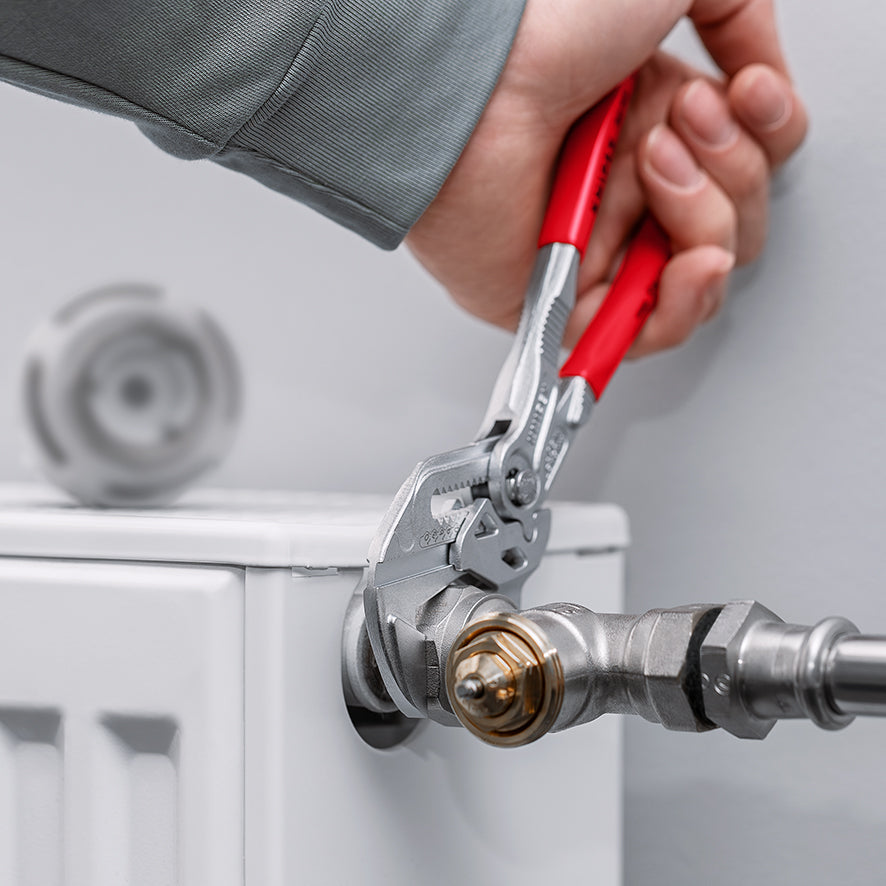

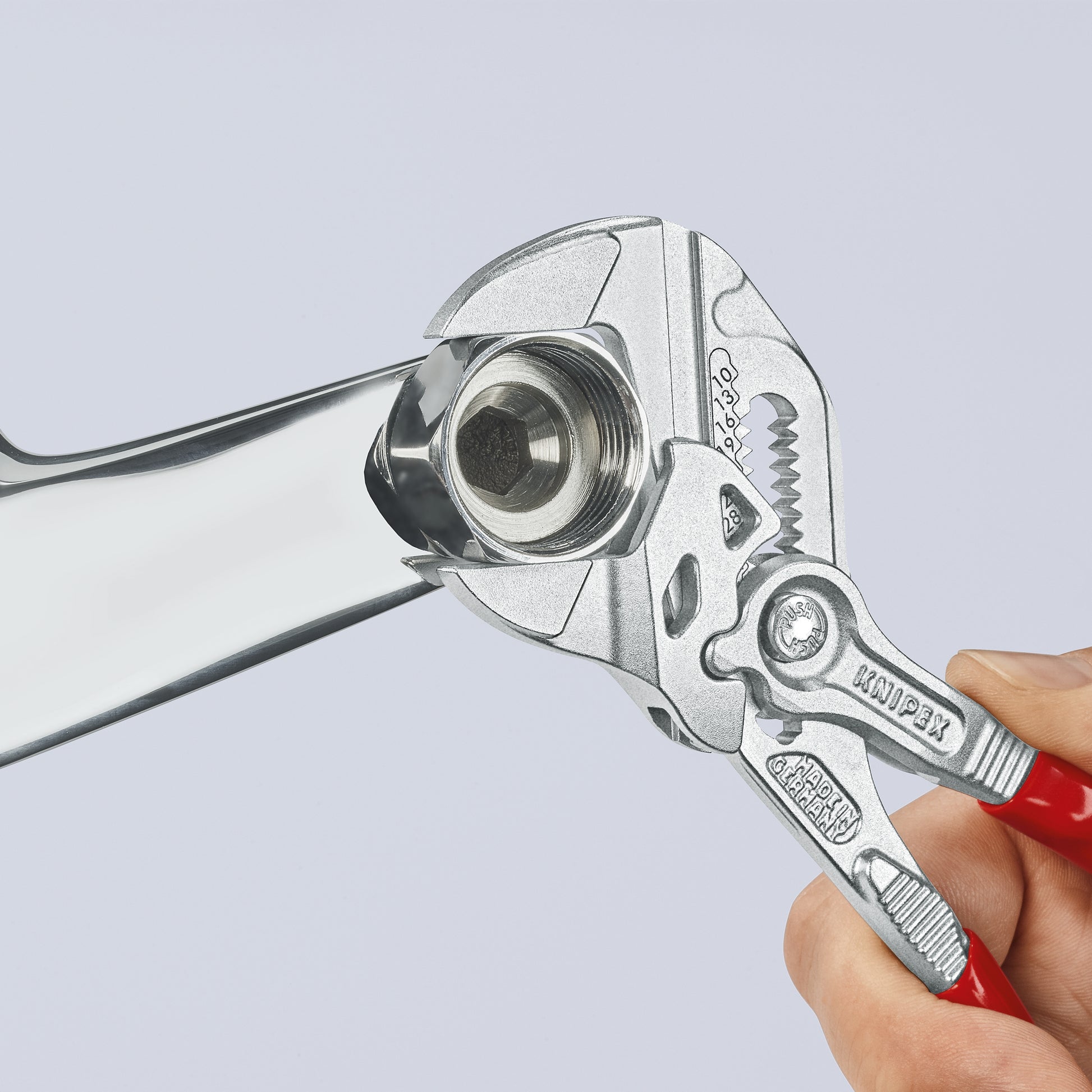

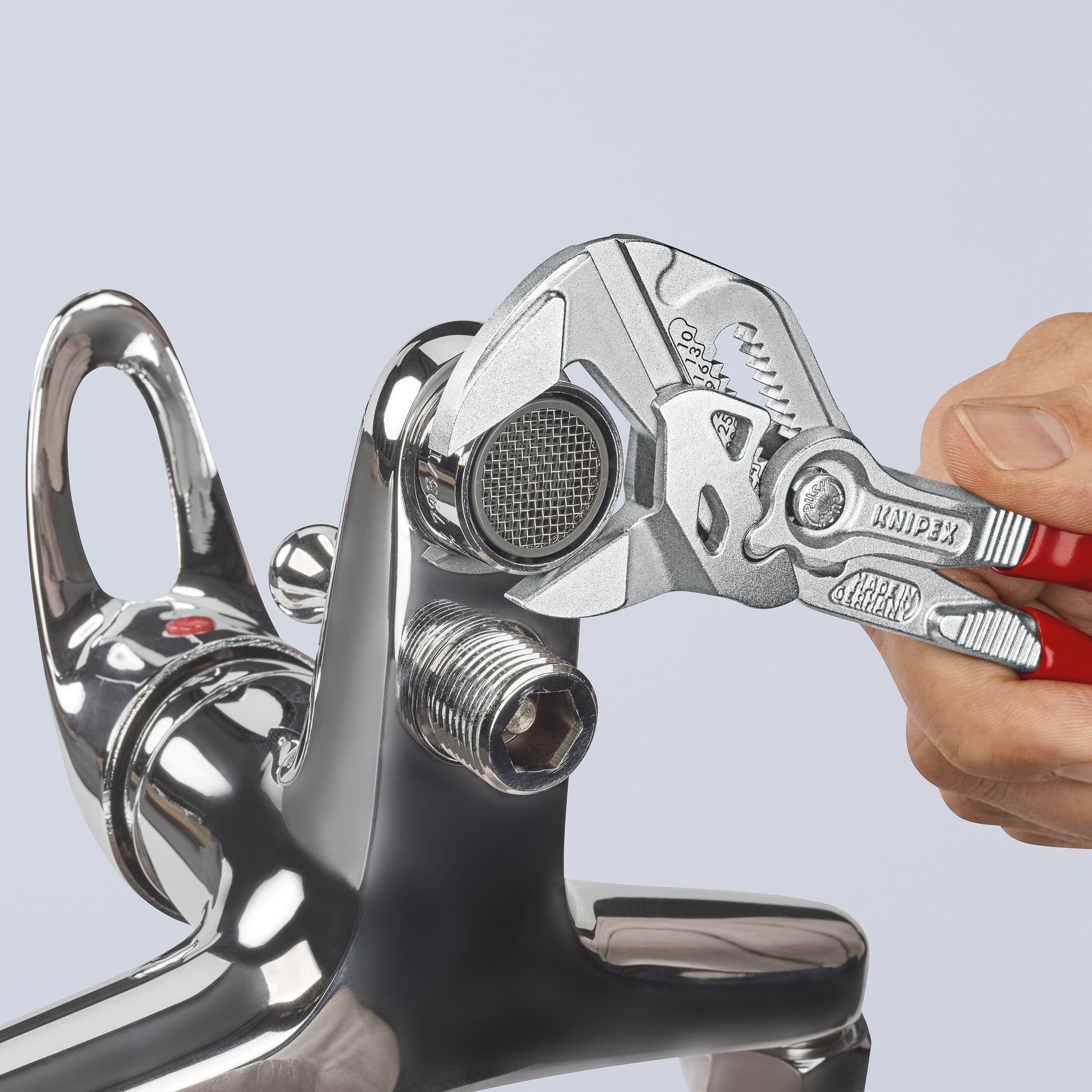

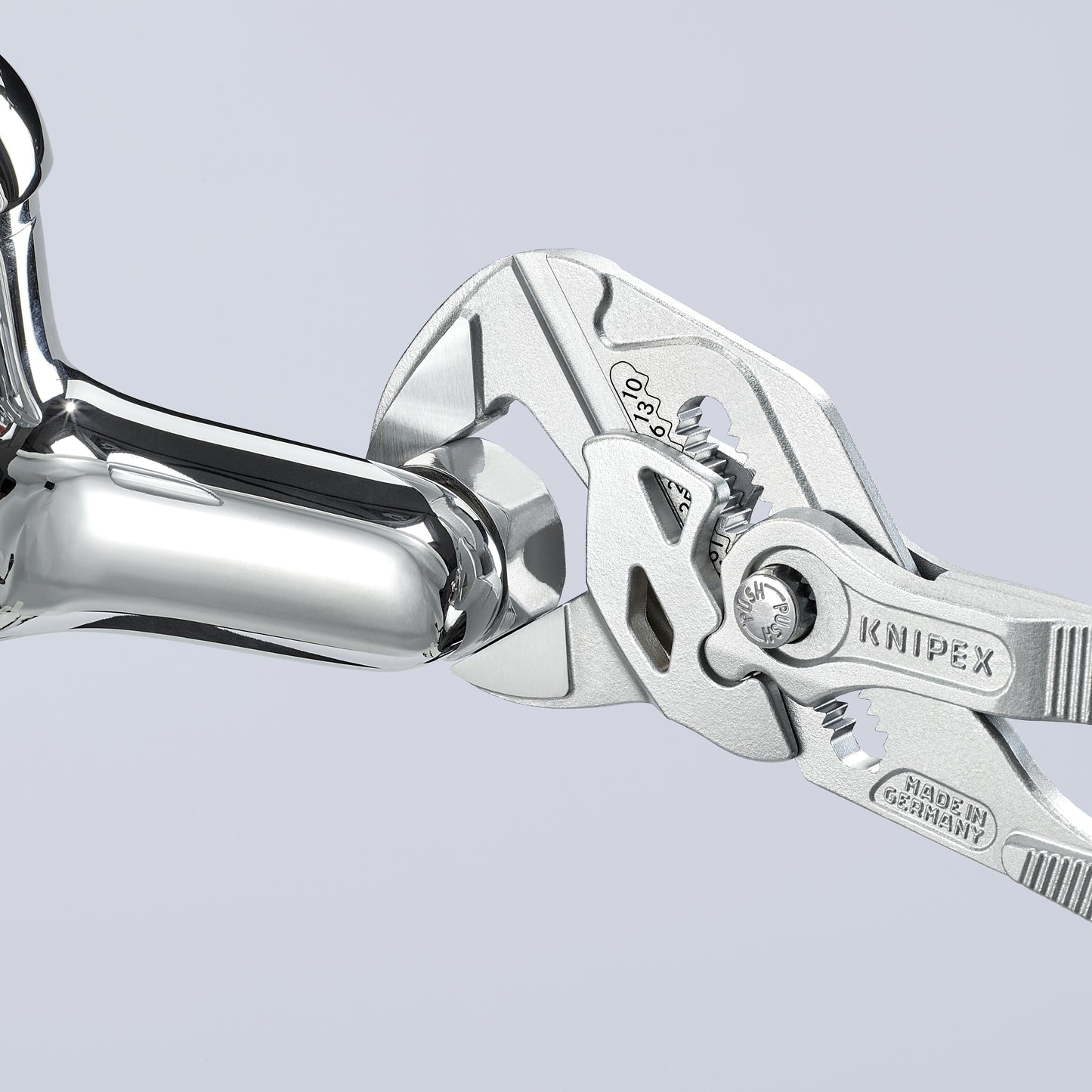

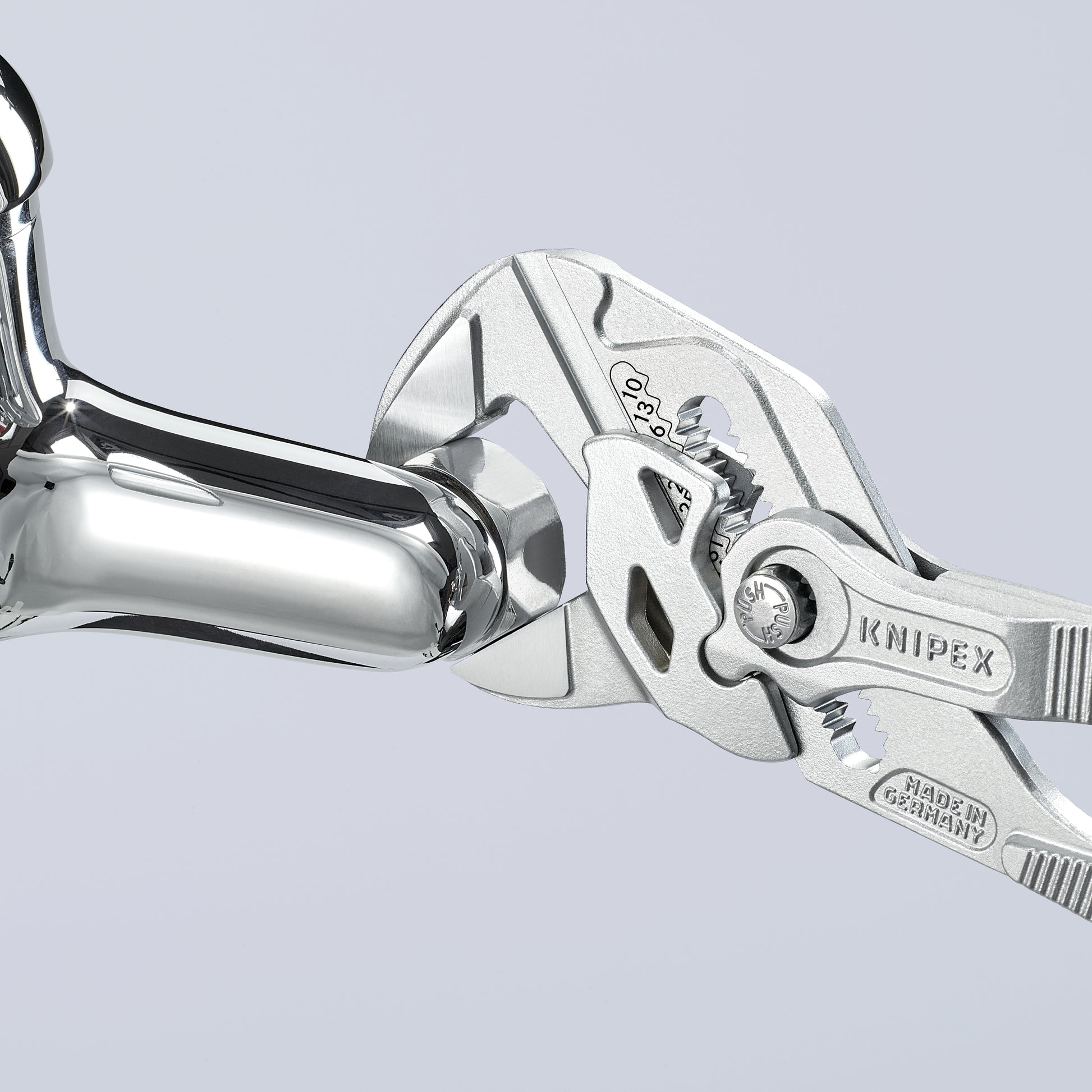

• Smooth jaws for damage free installation of plated fittings - working directly on chrome
• Adjustable tightening tool
• Excellent for gripping, holding, pressing and bending applications

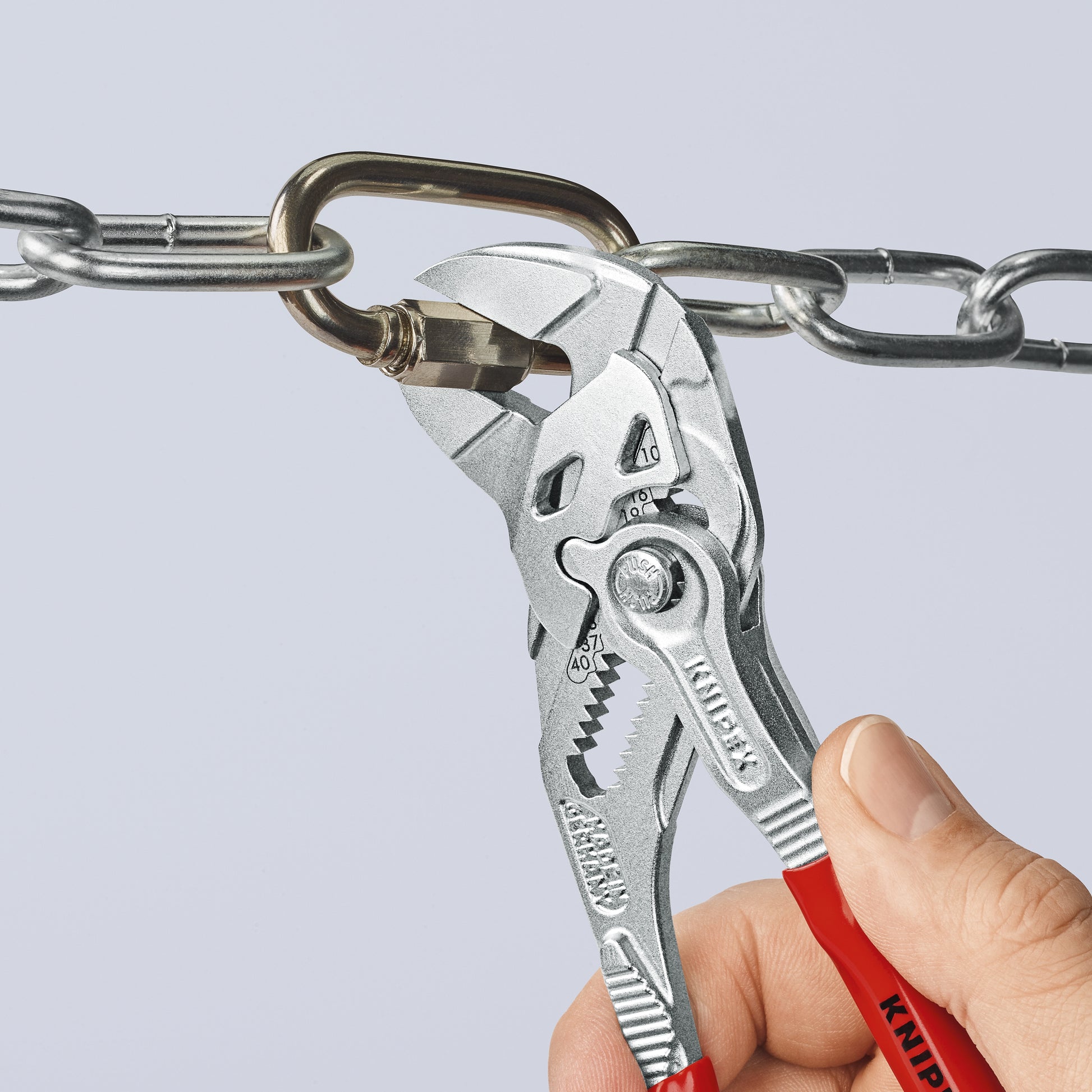

• Zero backlash jaw surface pressure prevents damage to edges of sensitive components
• 15 adjustment positions at the touch of a button directly on the workpiece

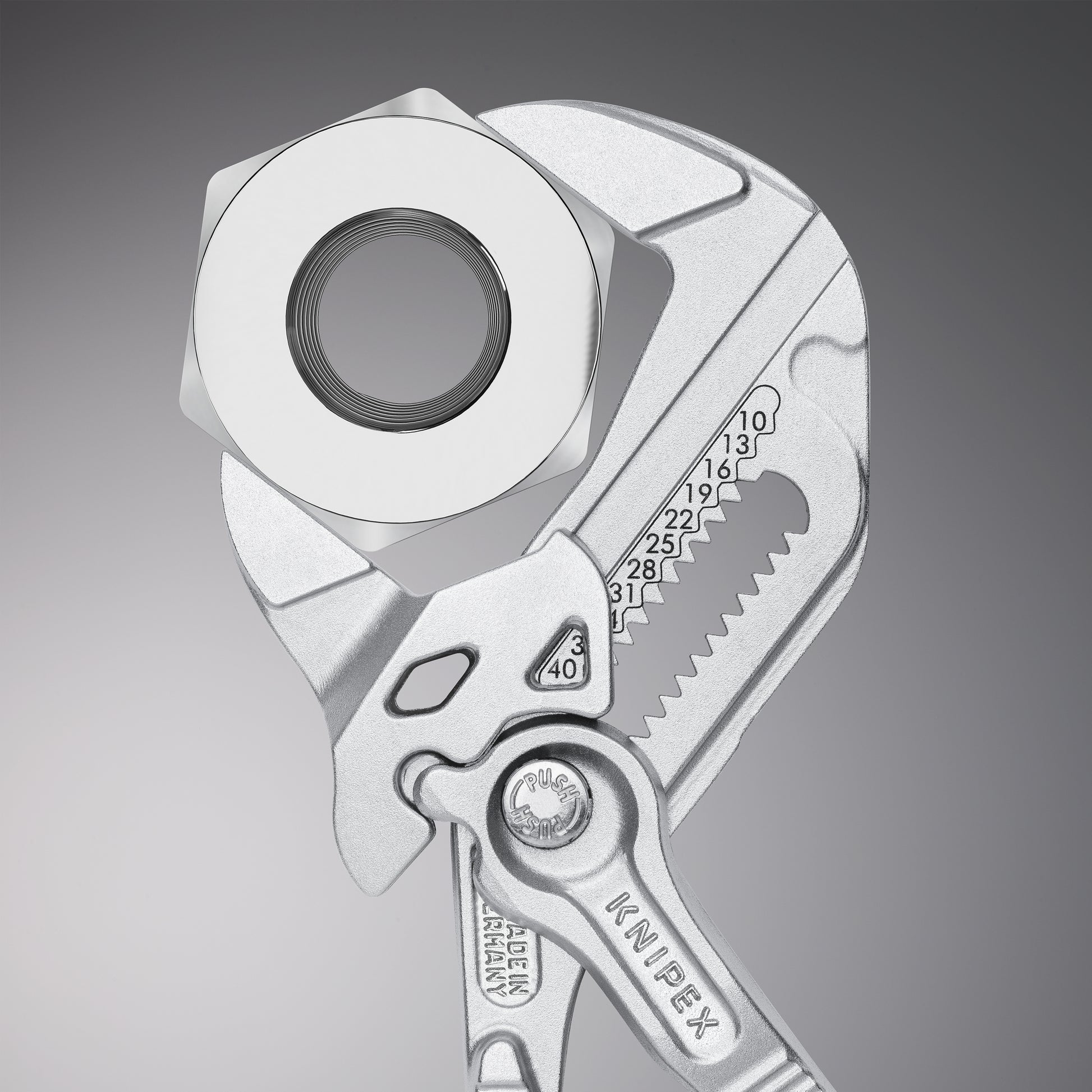

• Laser-etched scale allows the wrench opening to be set before gripping onto workpiece - metric and inch markings

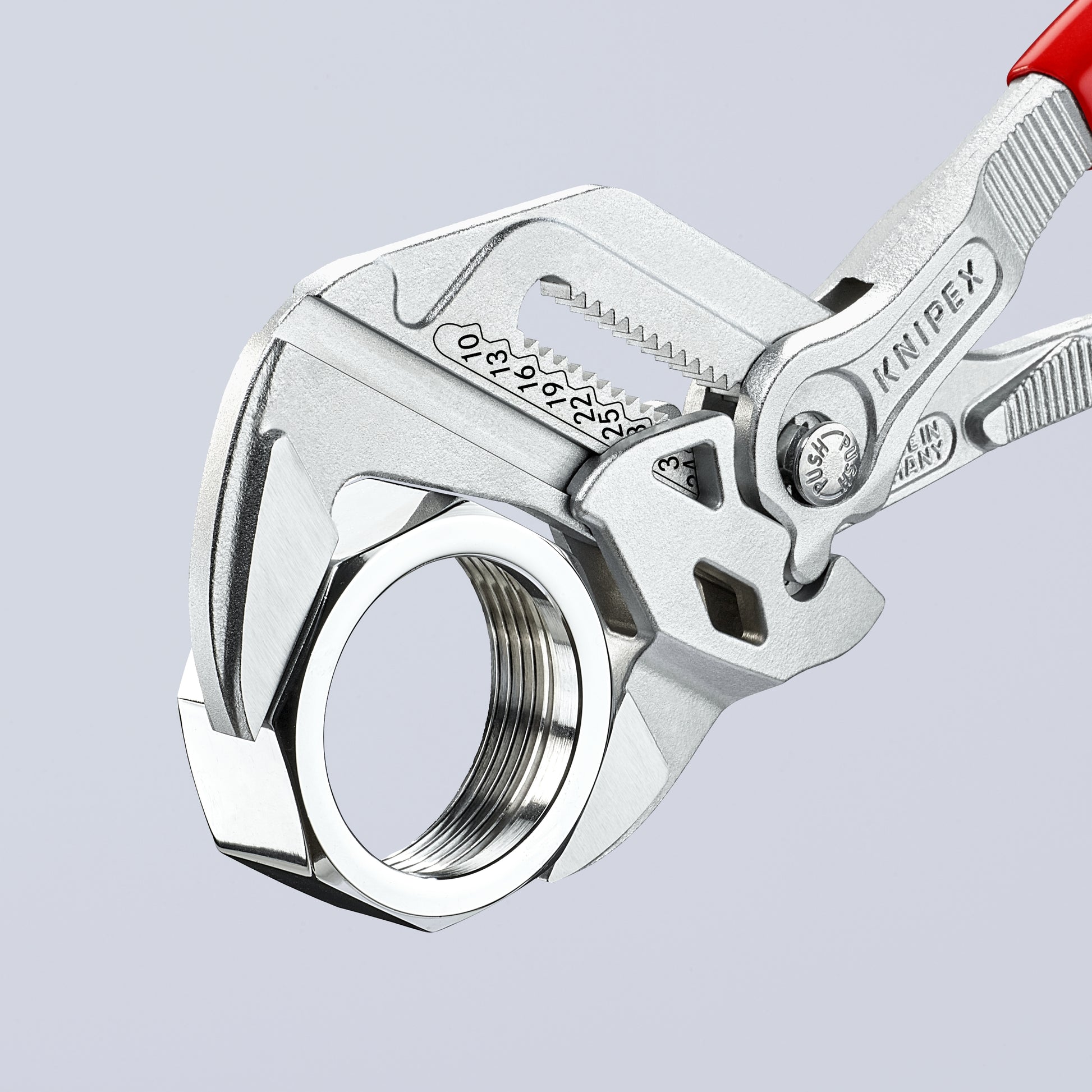

• Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
• Reliable catching of the hinge bolt: no unintentional shifting

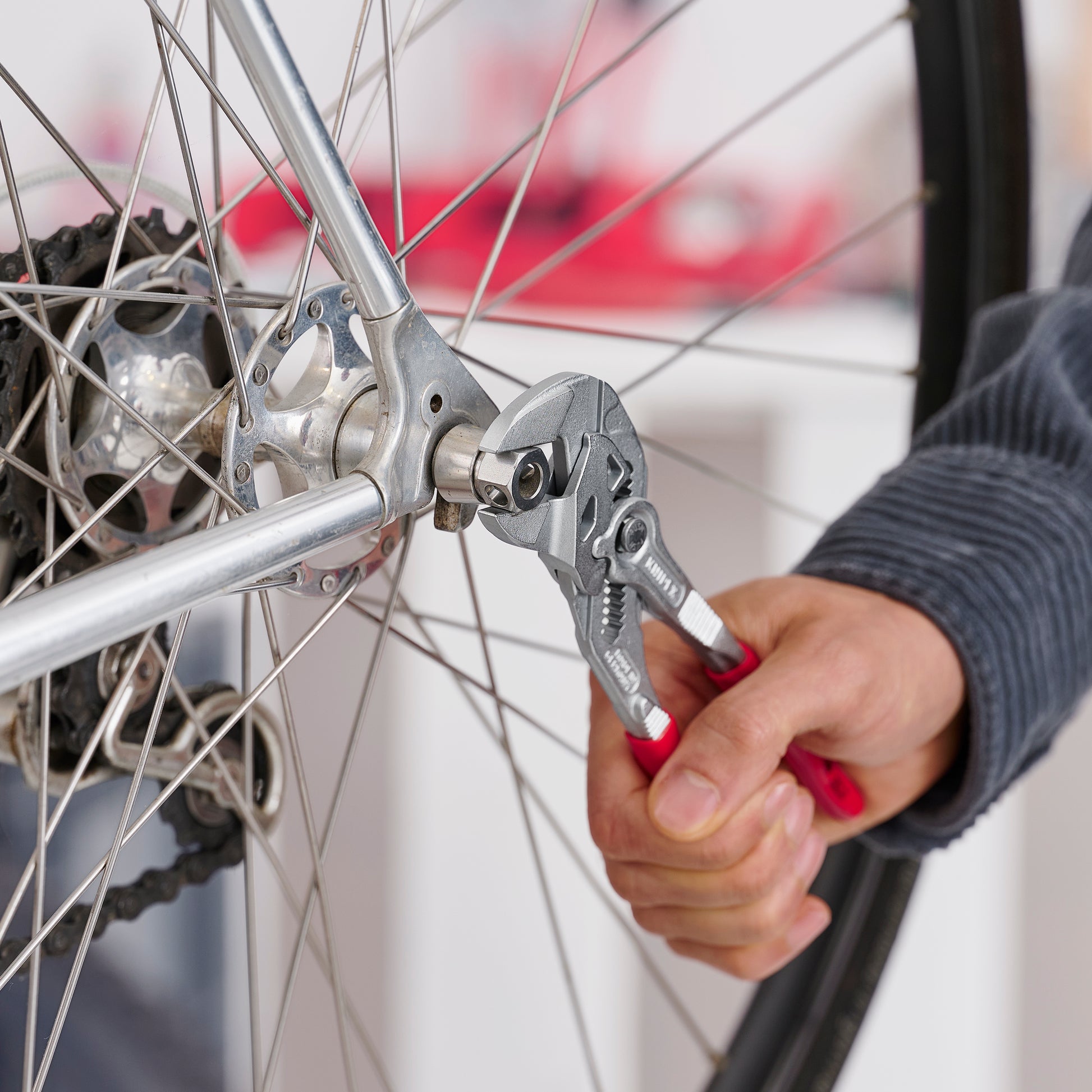

• The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
• Lever transmission greater than 10-1 for strong gripping power
• Chrome vanadium electric steel; forged, oil-hardened
• With adjustment scale for presetting the adjustment position

Specifications

• Manufacturer Part Number: 86 03 180
• Material Type: Chrome vanadium electric steel, forged, oil-hardened
• Handle Type: Plastic coating
• Gripping Surface: Smooth
• Surface Finish: Chrome Plated
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red
• Nominal Length: 7 1/4"
• Tool Nominal Length: 7.25"
• Tool Length: 7.1"
• Tool Width: 1.65"
• Tool Height: 0.65"
• Tool Weight: 247 g (0.545 lb)
• Joint Type: Box-joint
• Handle Length: 4"
• Handle Width: 1 3/4"
• Jaw Length: 1"
• Jaw Thickness: 5/16"
• Tip Thickness: 9/32"
• Number of Adjustment Positions: 15
• Max Jaw Opening - Working Capacity: 1 1/2"
• Max Jaw Opening - Hex: 1 1/2"
• Spare Part: 86 09 180
• Accessory Part Number: 86 09 180 V01
• Set Part Number: 9K 00 80 167 US|00 20 06 US2|9K 00 80 109 US|9K 00 80 121 US|9K 00 80 45 US|00 19 55 S4|00 19 55 S6|9K 00 80 127 US
• UPC: 843221003029
