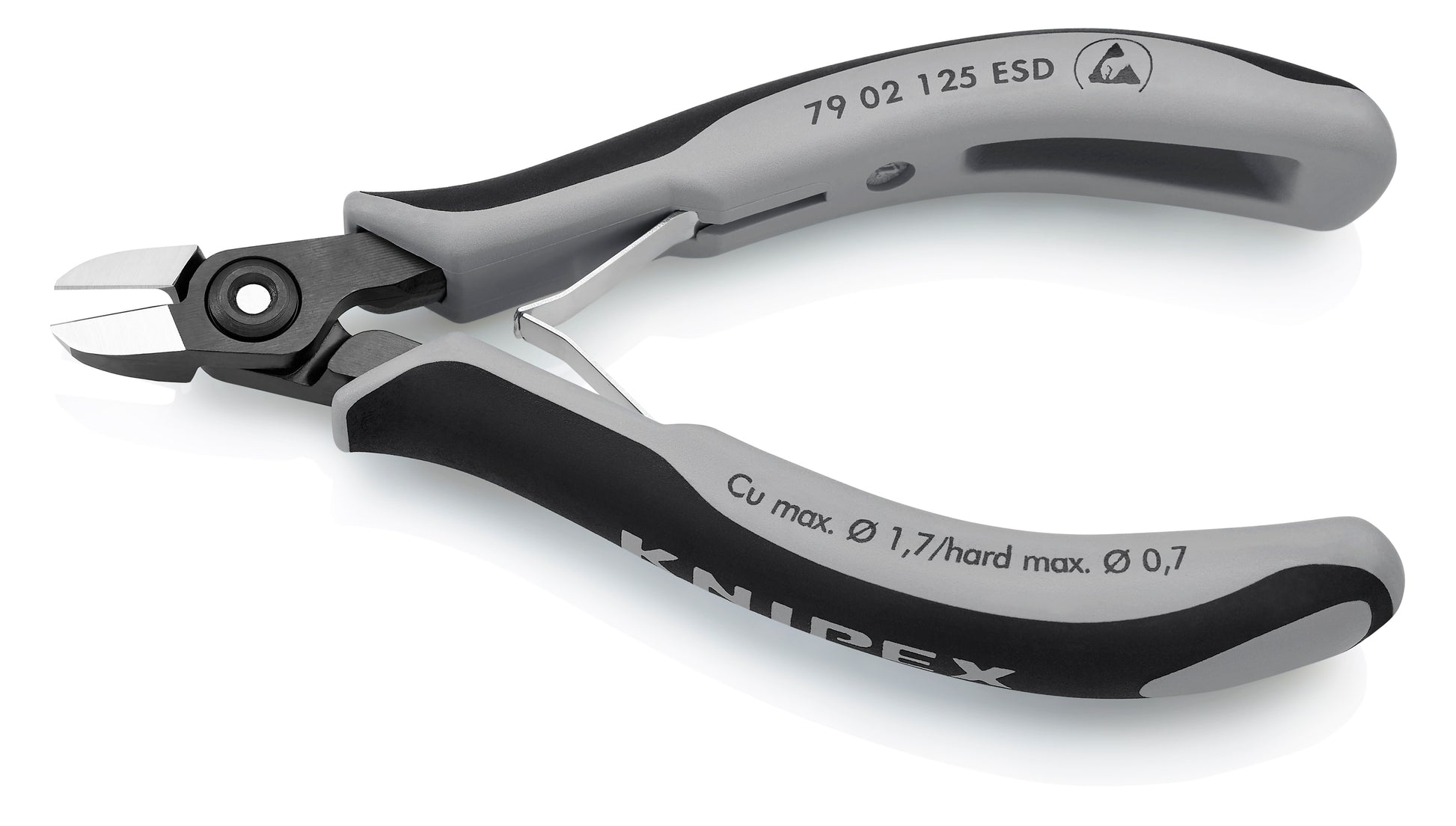

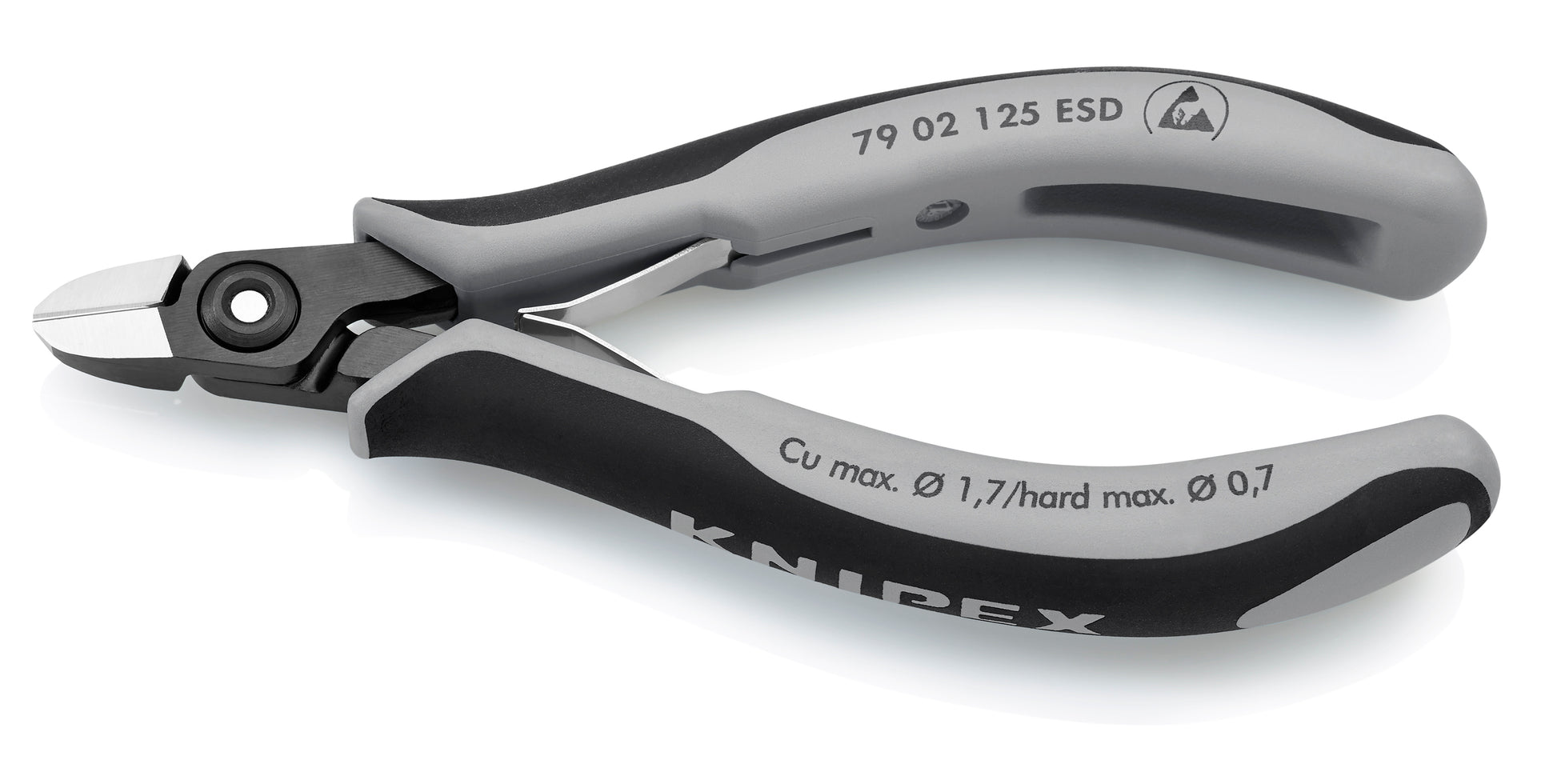

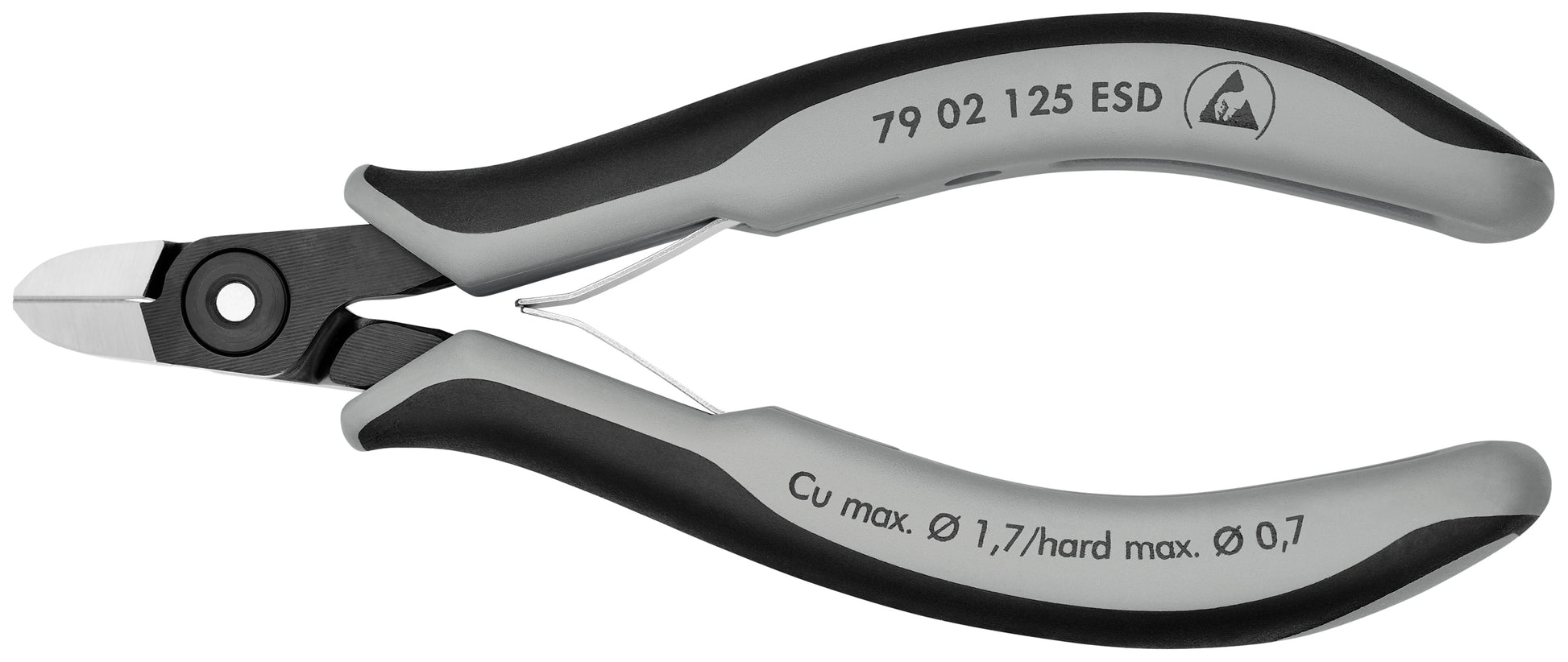

Knipex 79 02 125 ESD Electronics Diagonal Cutters-ESD Handles

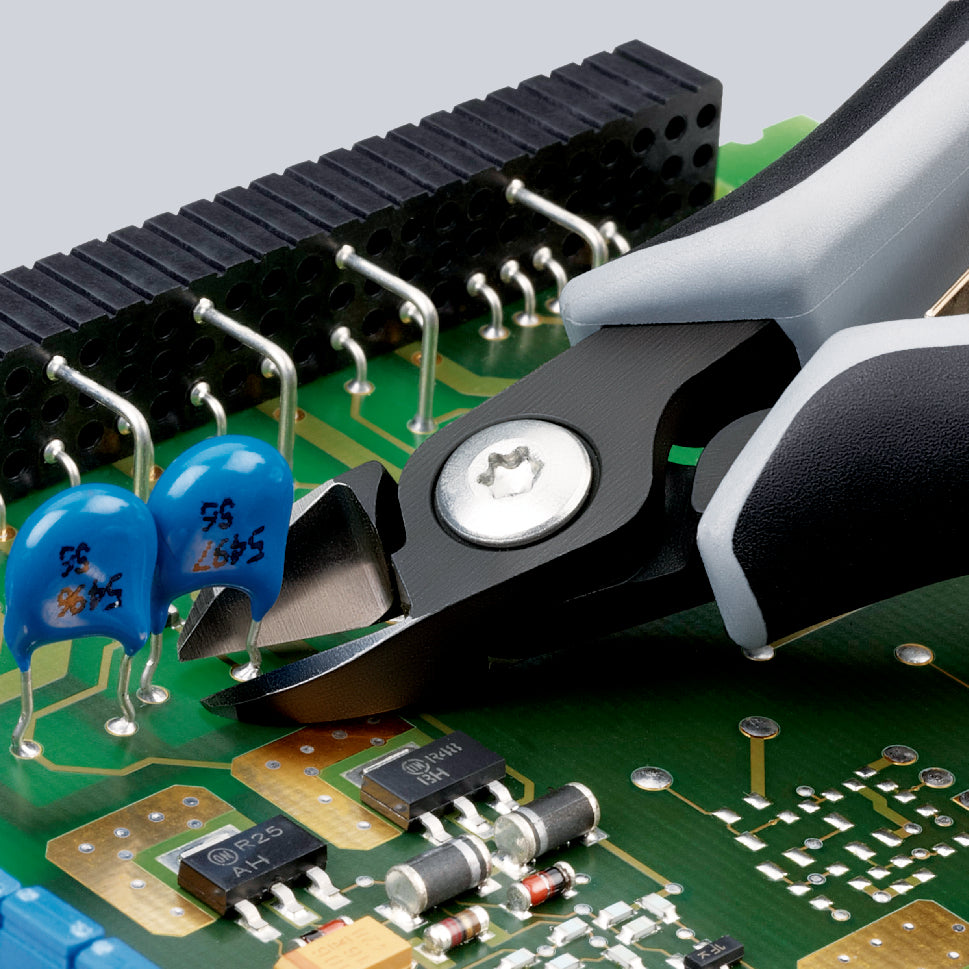

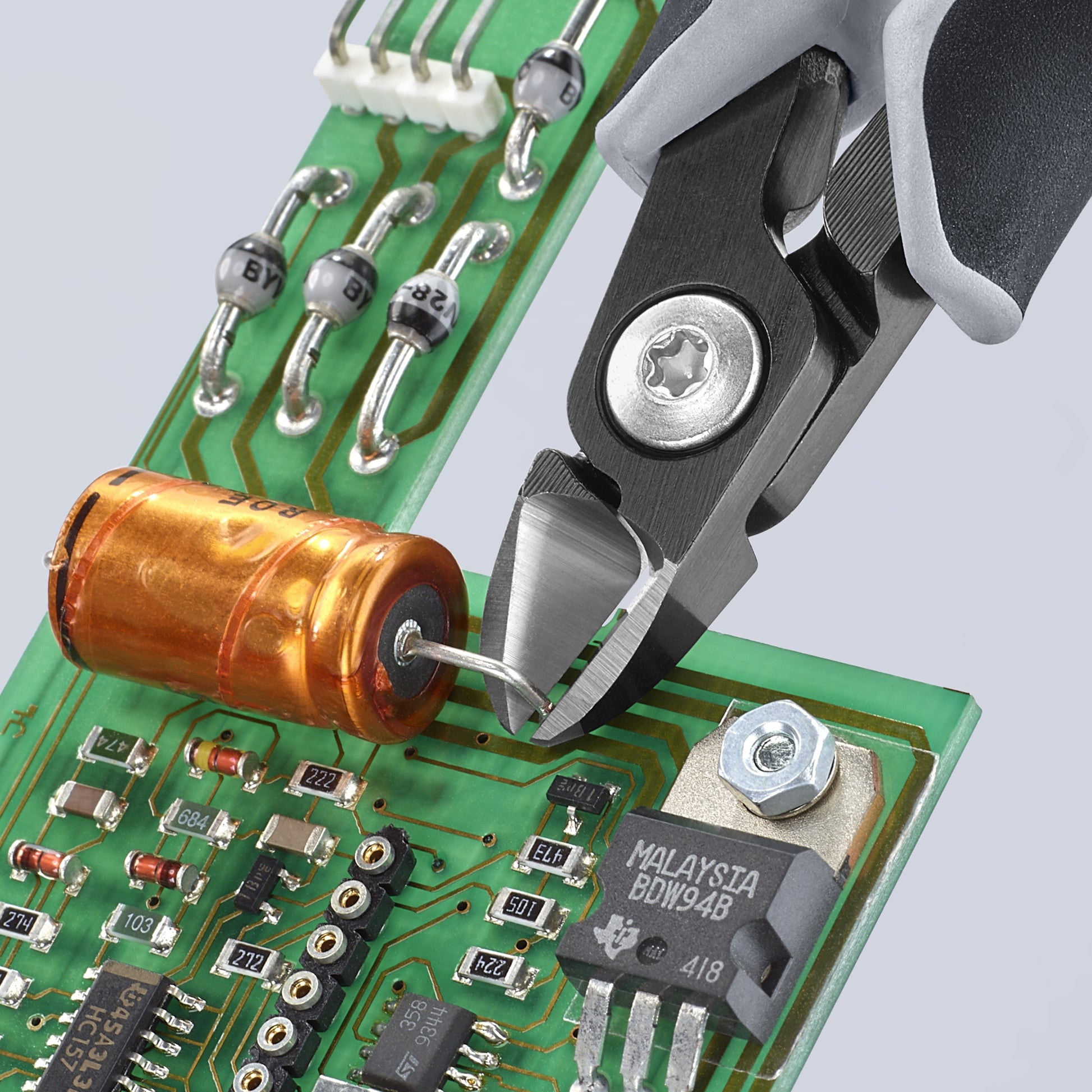

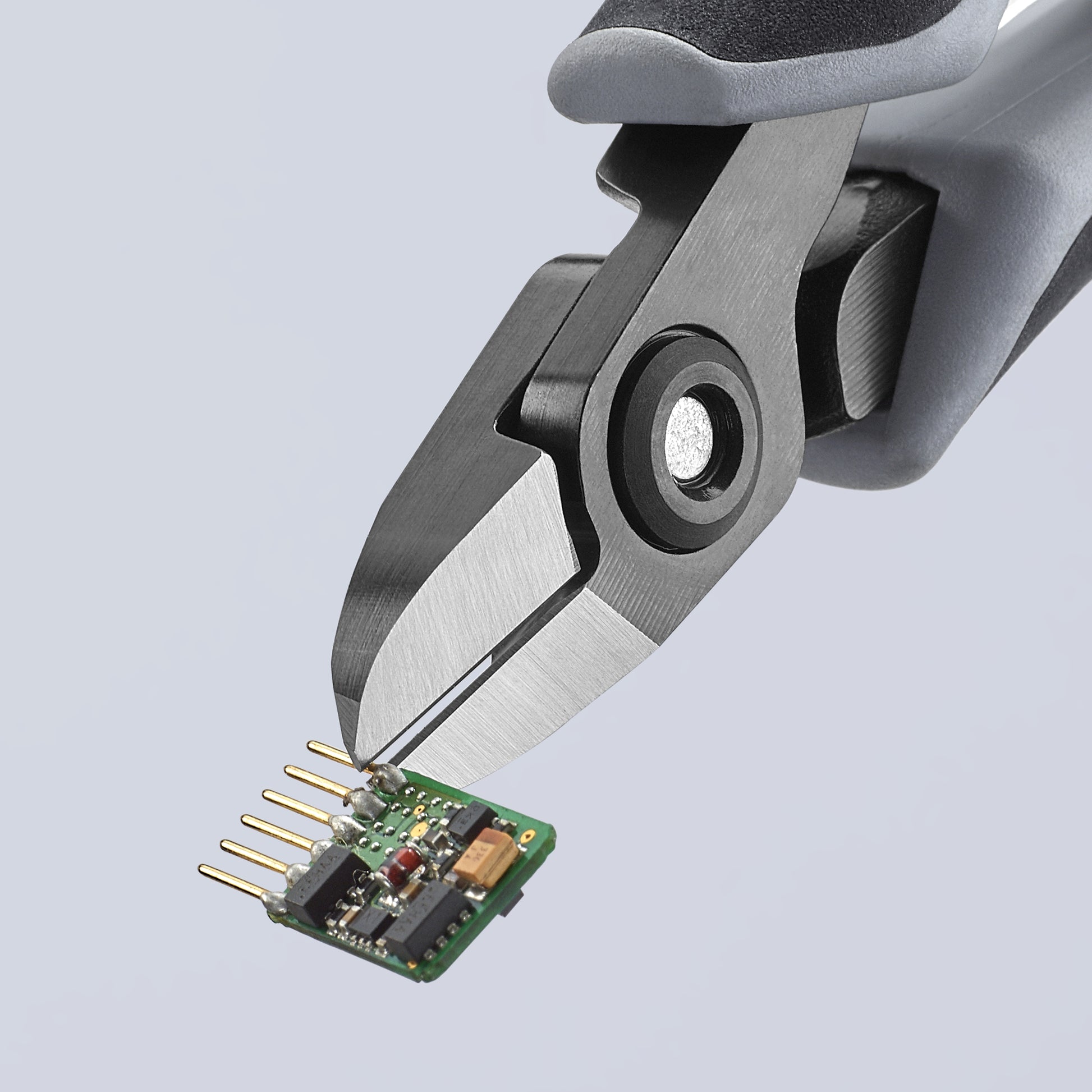

Precision pliers for ultra fine cutting work

Features

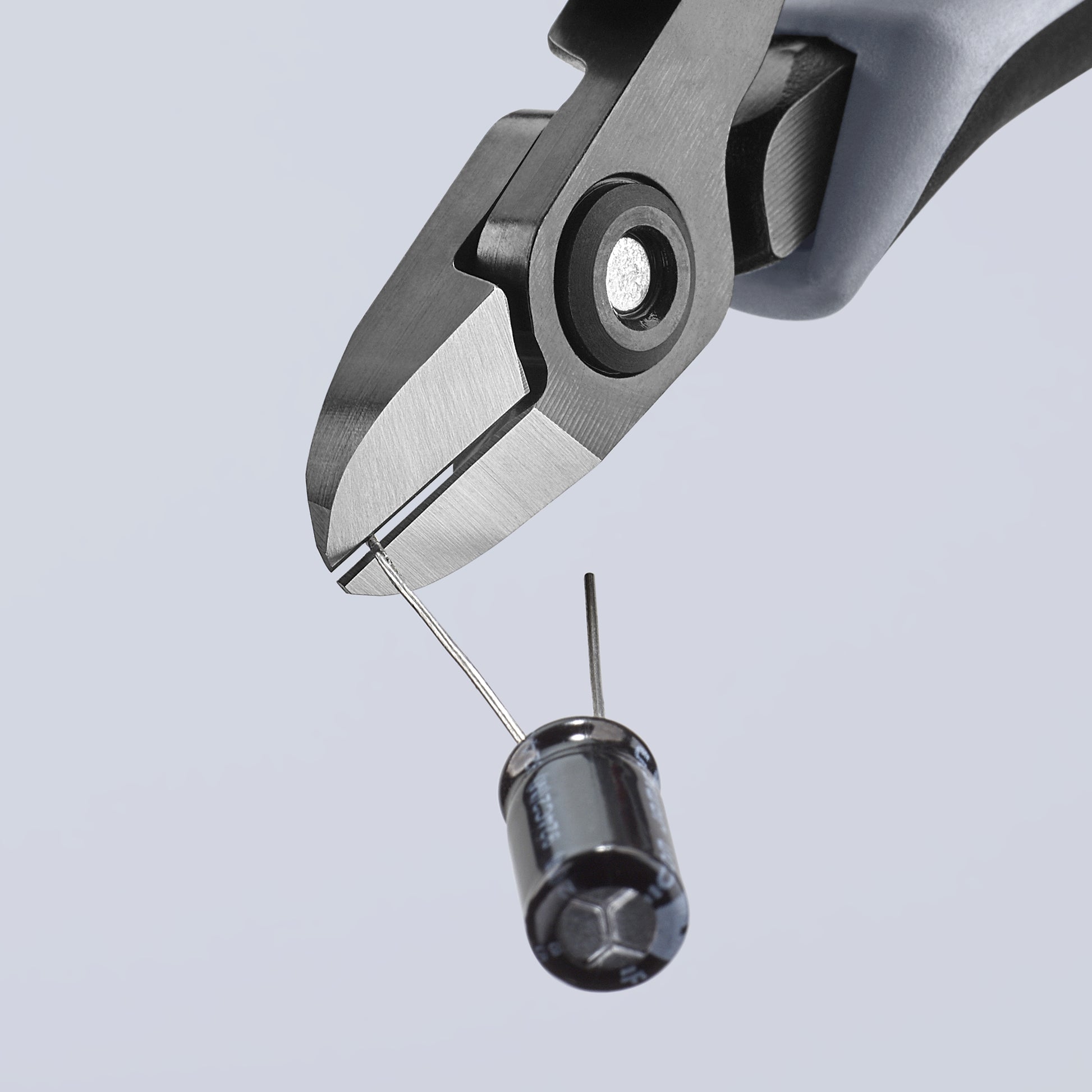

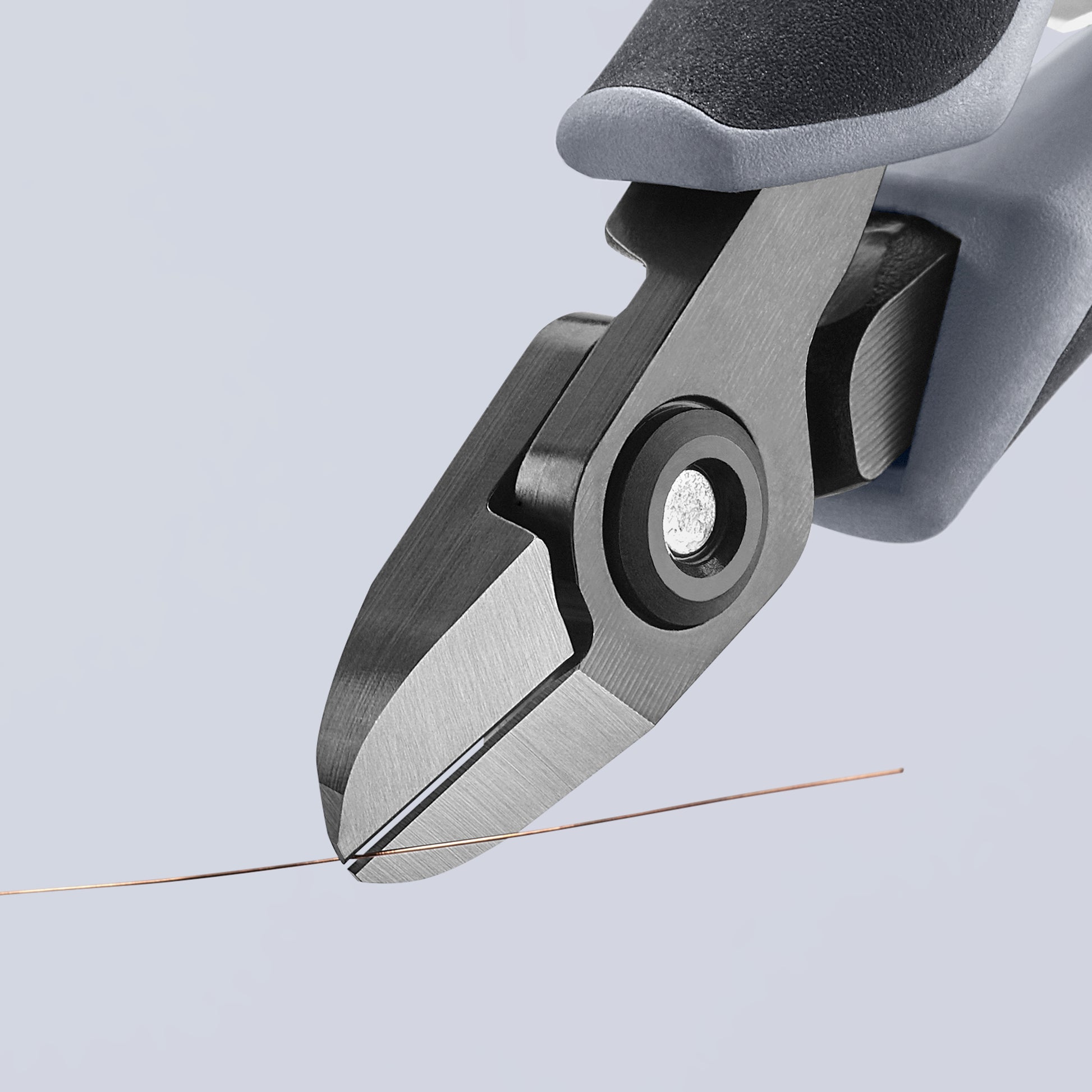

• Very precisely ground and sharp cutting edges
• Approximately 20% lighter than conventional electronic pliers
• Double spring for a gentle and even opening
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.
• Cutting edge hardness (approx. 64 HRC) for longer life and for more durable cutting

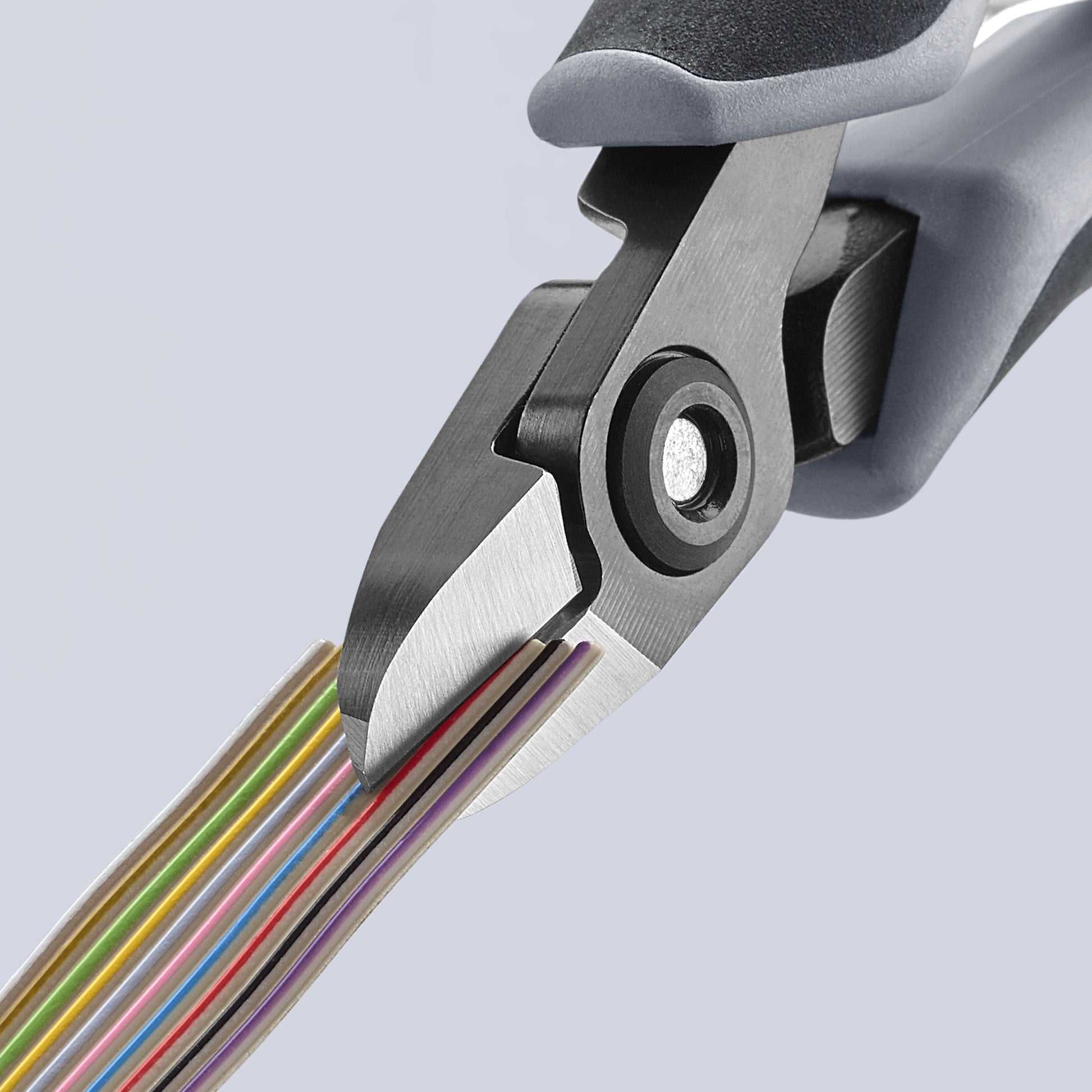

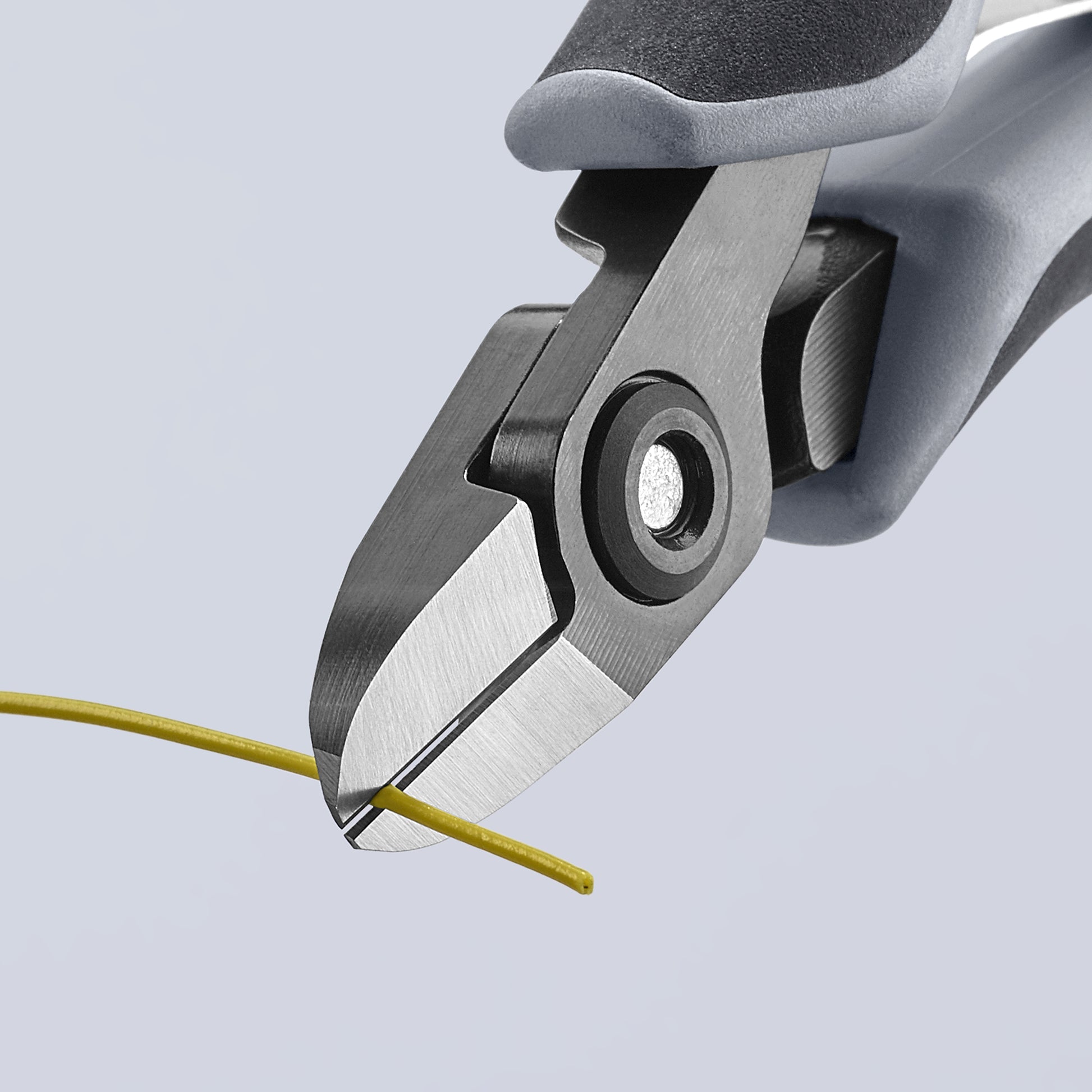

• Cutting capacity - up to 5/64" for soft wire, 3/64" for medium and up to 1/32" for hard wire
• Low-friction movement throughout the entire opening range
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 79 02 125 ESD
• Material Type: Ball bearing chrome steel, forged, oil-hardened
• Handle Type: ESD multi-component
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 5"
• Tool Nominal Length: 5"
• Tool Length: 4.9"
• Tool Width: 2.05"
• Tool Height: 1.1"
• Tool Weight: 59 g (0.13 lb)
• Joint Type: Bolted
• Handle Length: 3 3/4"
• Jaw Length: 25/64"
• Jaw Width: 7/16"
• Jaw Thickness: 1/4"
• Tip Width: 7/16"
• Tip Thickness: 1/4"
• Head Style: Oval

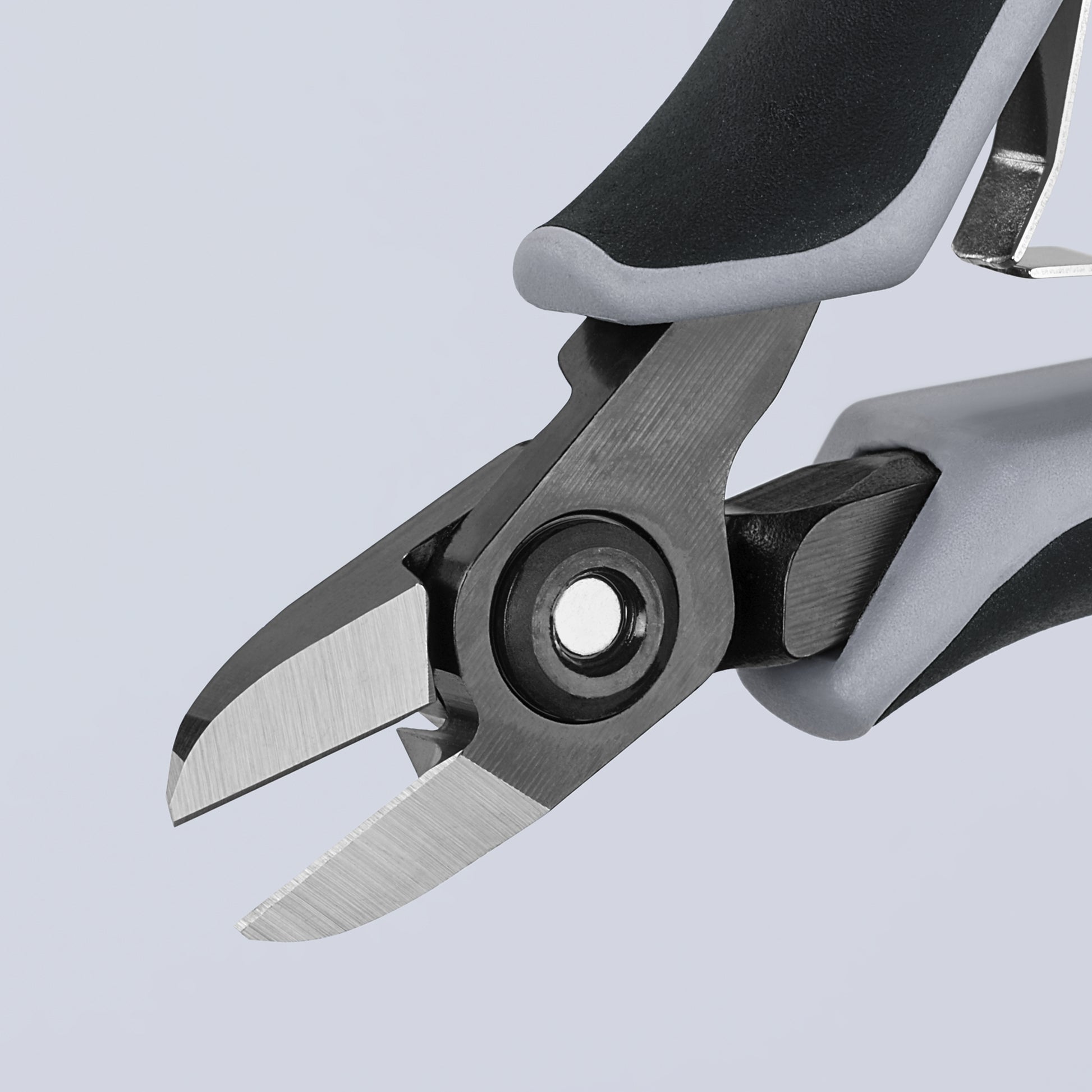

• Cutting Edge Shape: Semi-flush with very small bevel
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Soft Wire: 1/64" to 5/64"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/32"
• Blade Length: 25/64"
• Set Part Number: 9K 00 80 10 US|9K 00 80 11 US|00 20 16 P ESD
• UPC: 843221013691
