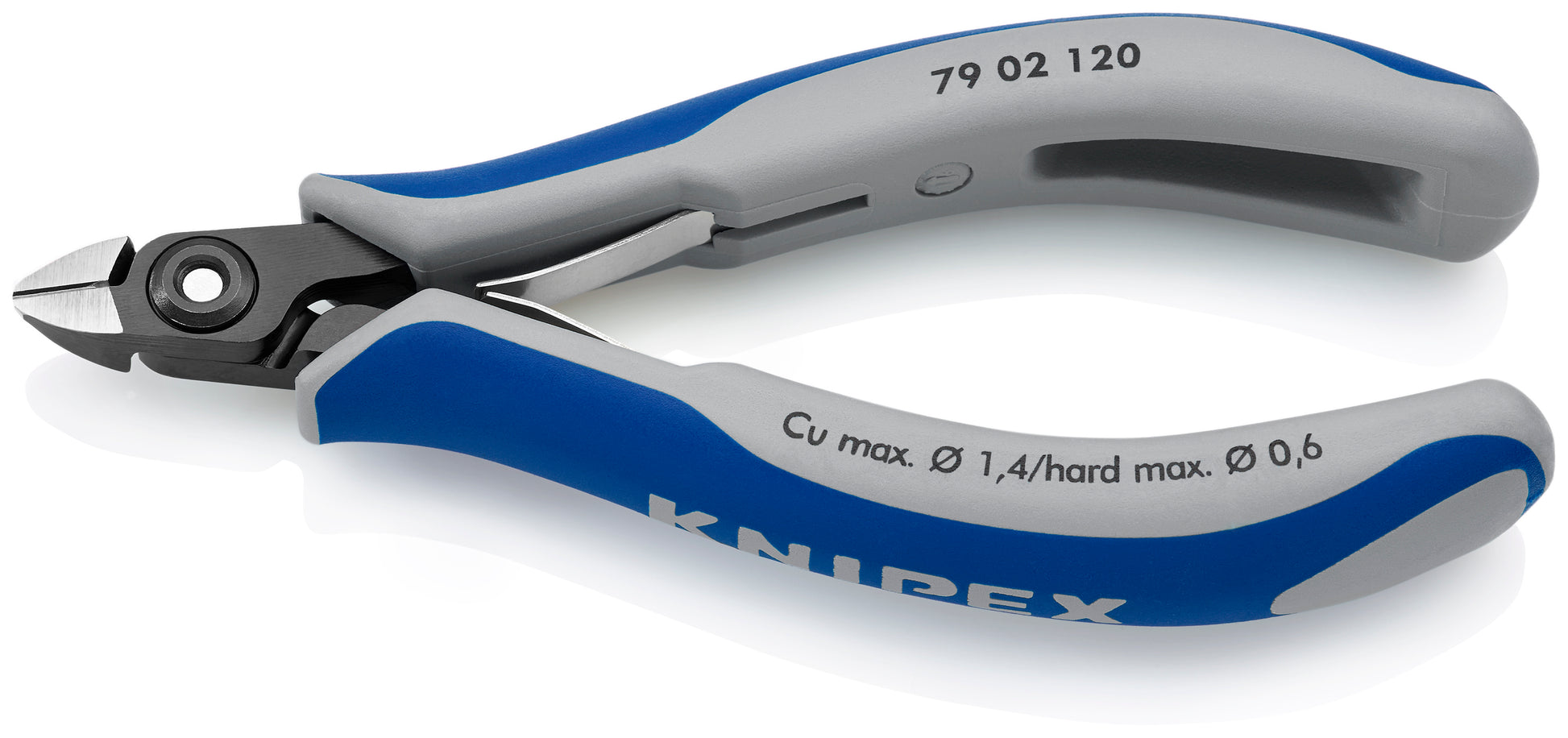

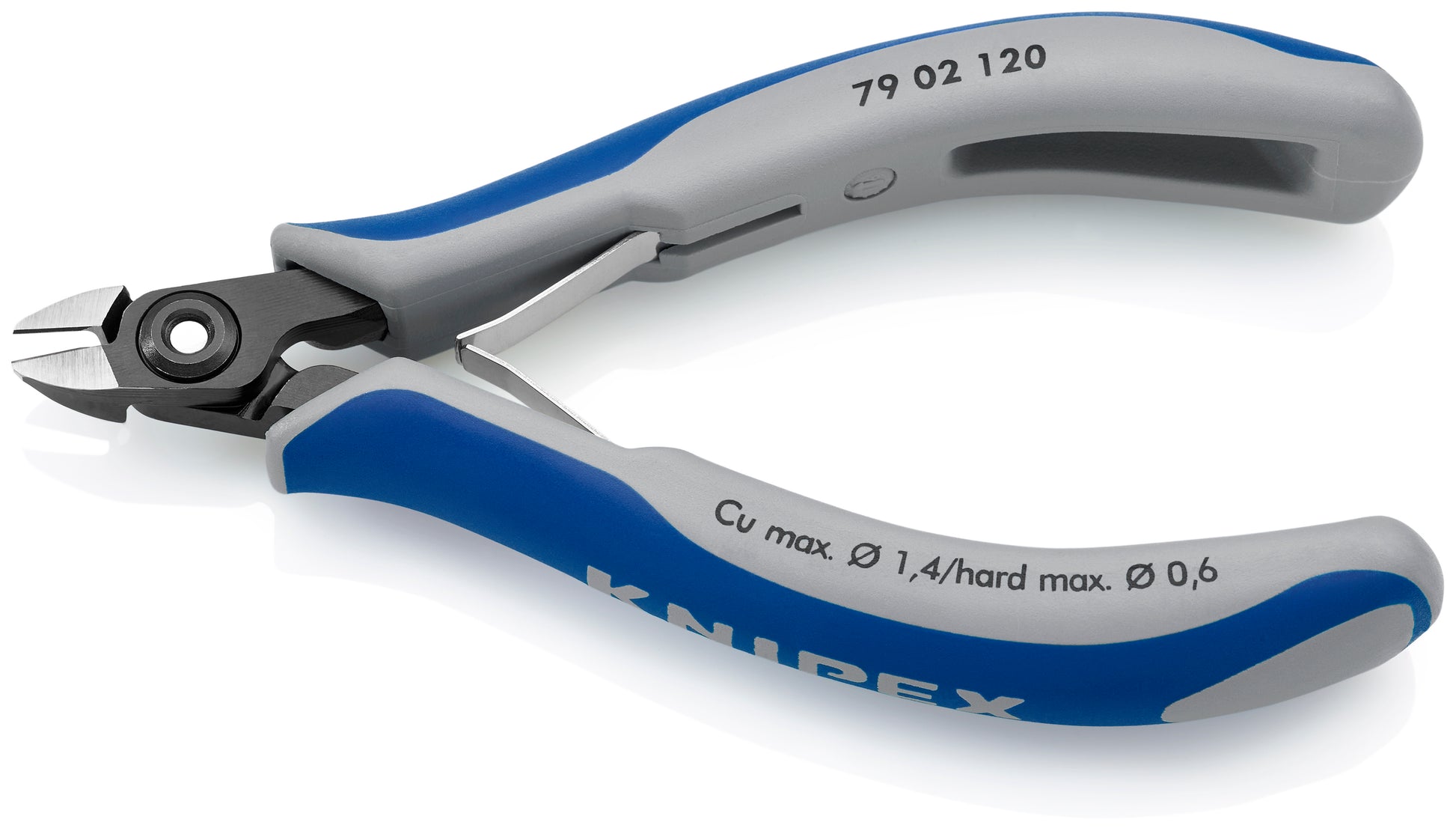

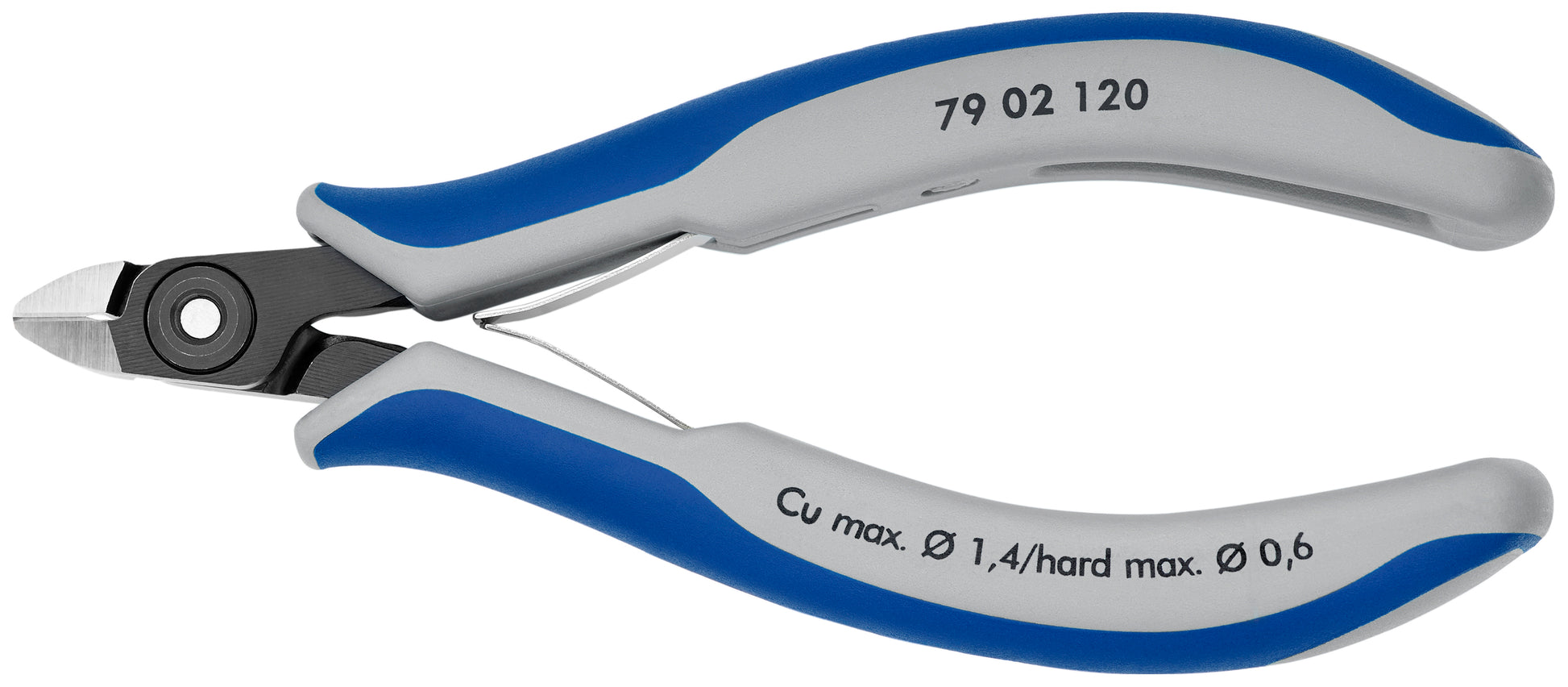

Knipex 79 02 120 Electronics Diagonal Cutters

Precision pliers for ultra fine cutting work

Features

• Very precisely ground and sharp cutting edges
• Approximately 20% lighter than conventional electronic pliers
• Double spring for a gentle and even opening
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.
• Cutting edge hardness (approx. 64 HRC) for longer life and for more durable cutting

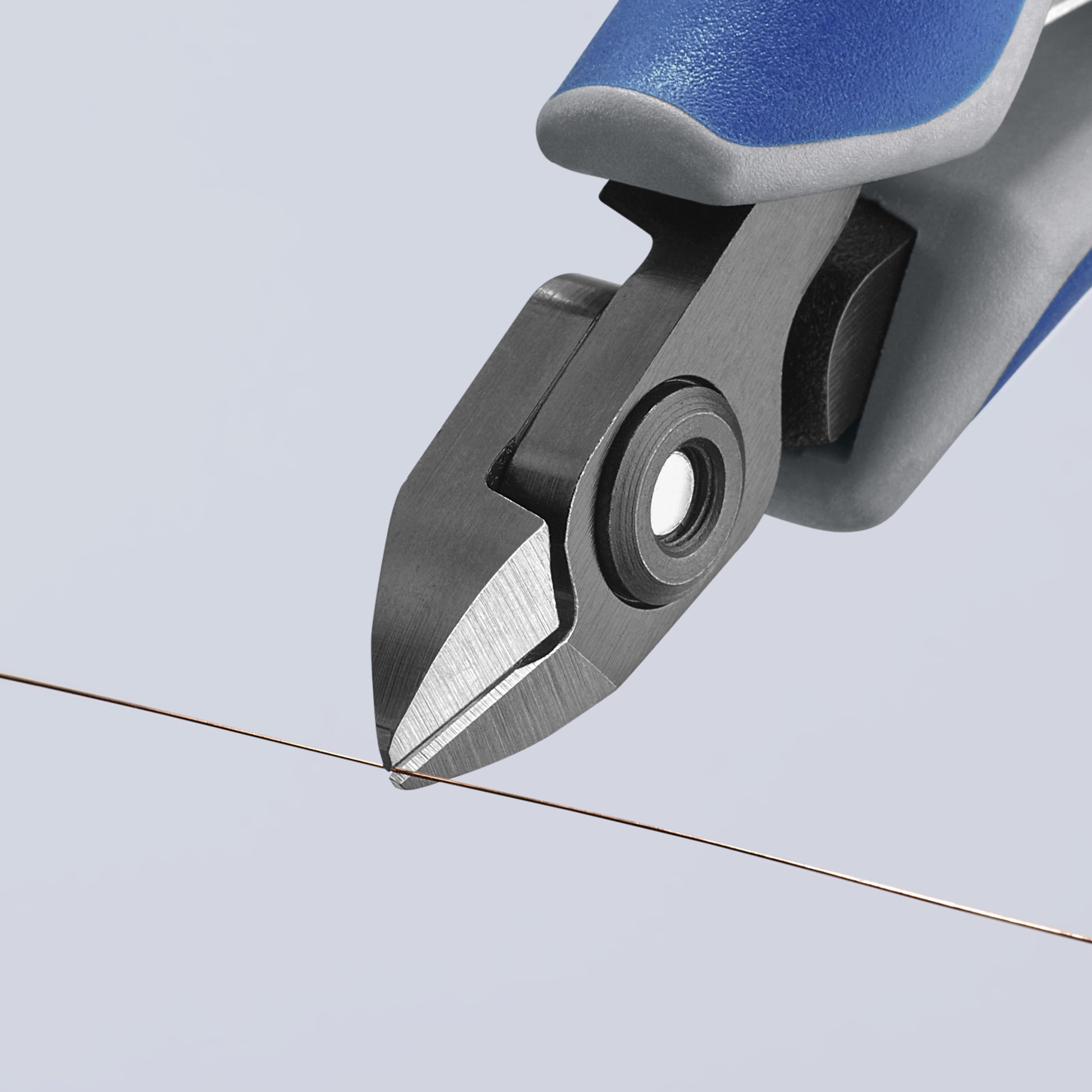

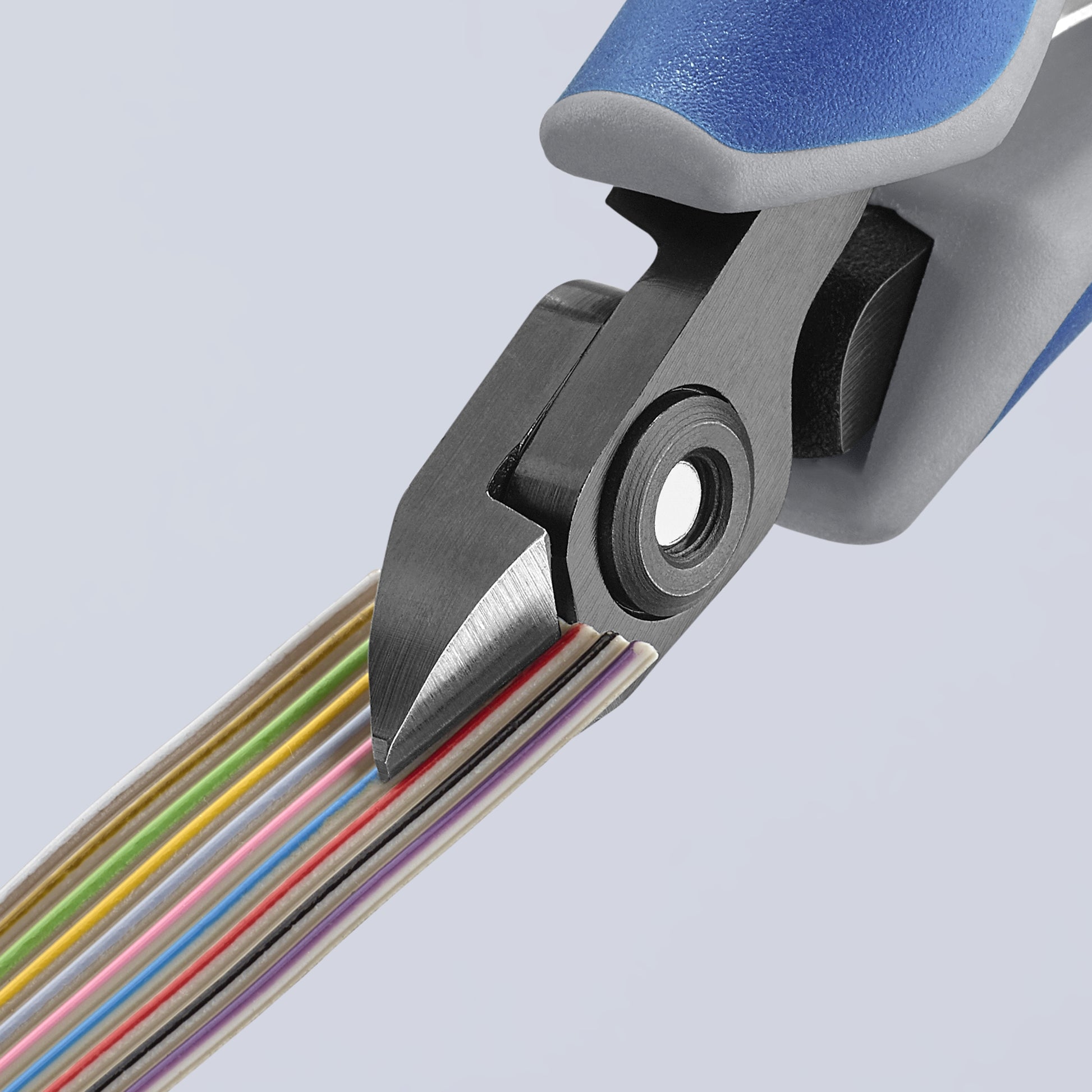

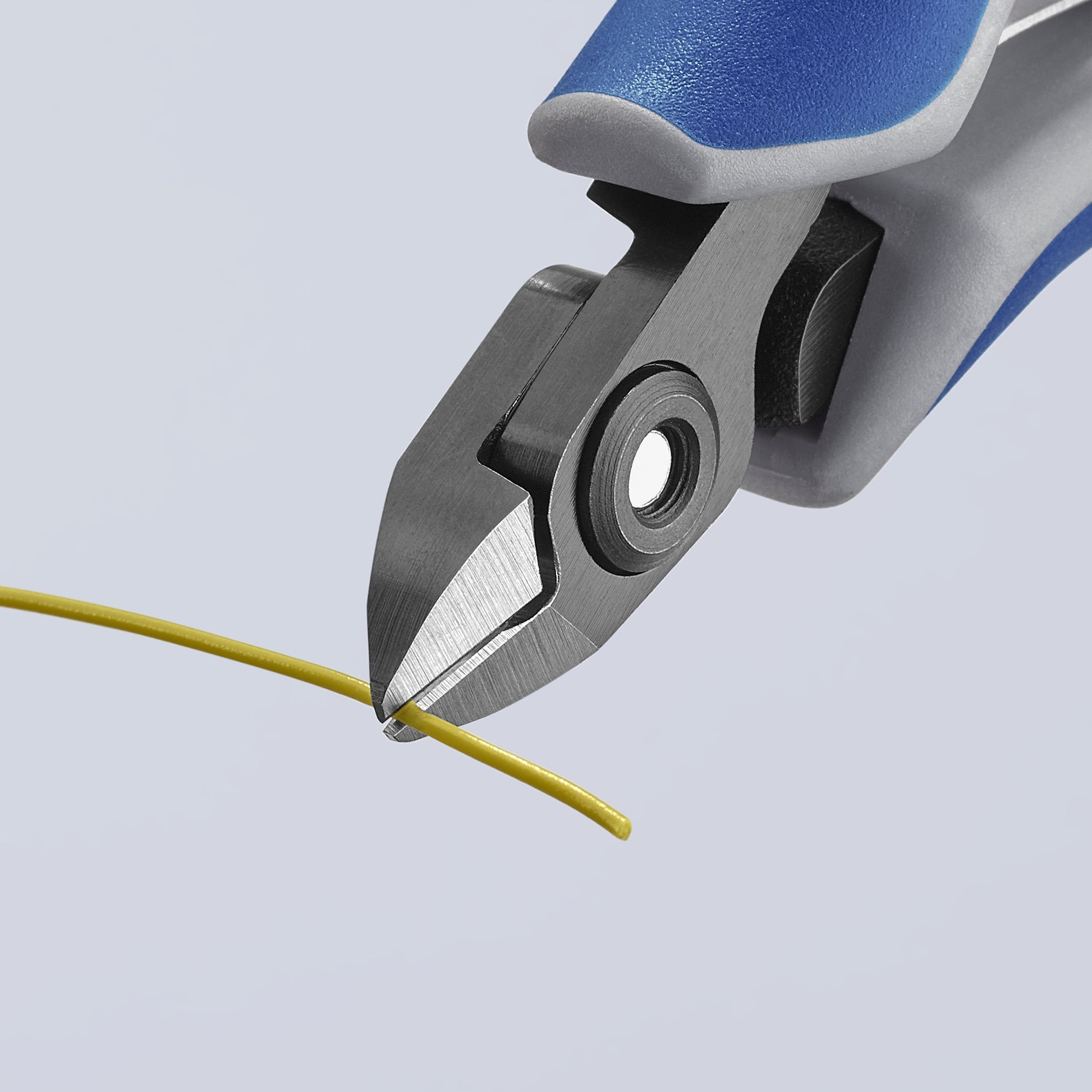

• Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire
• Low-friction movement throughout the entire opening range

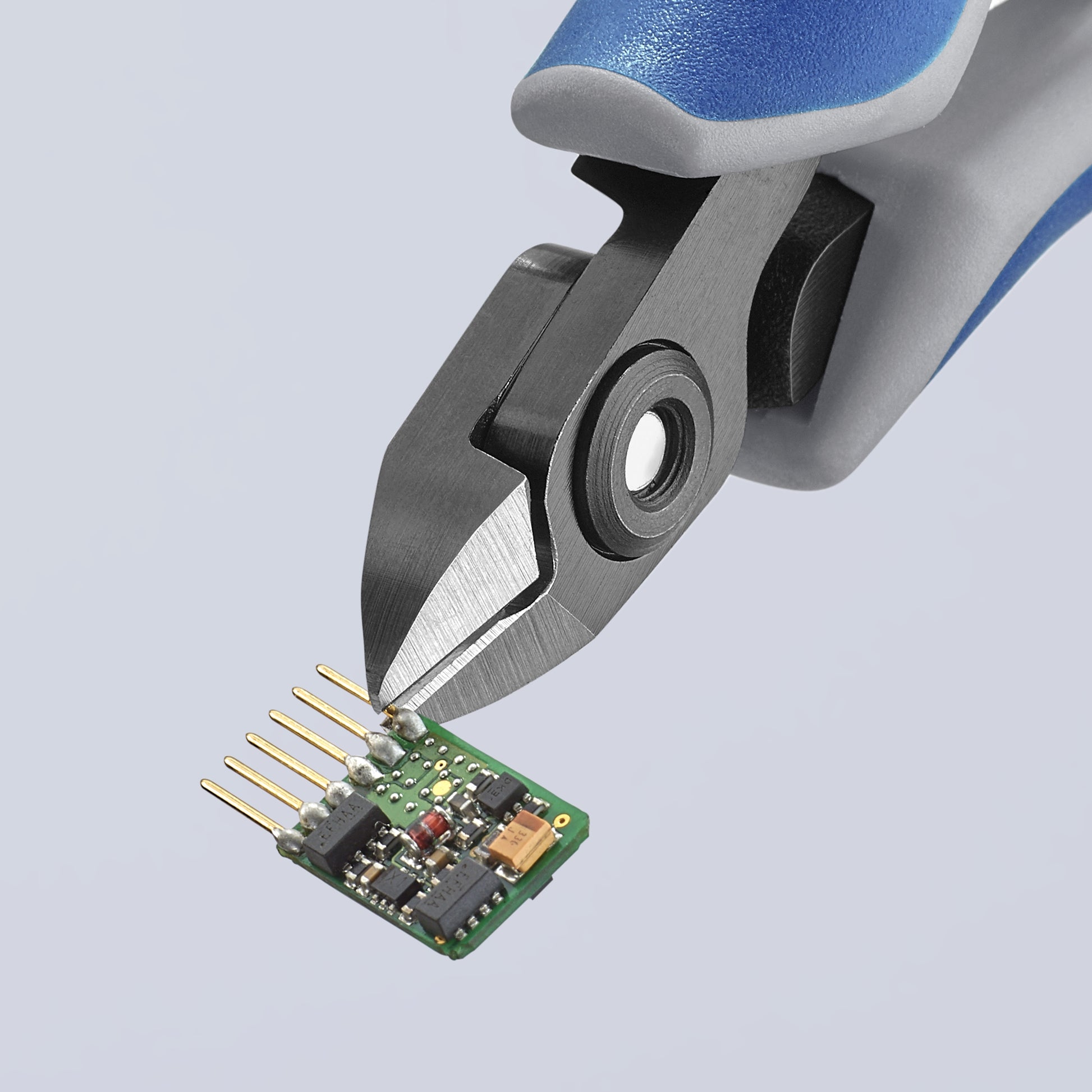

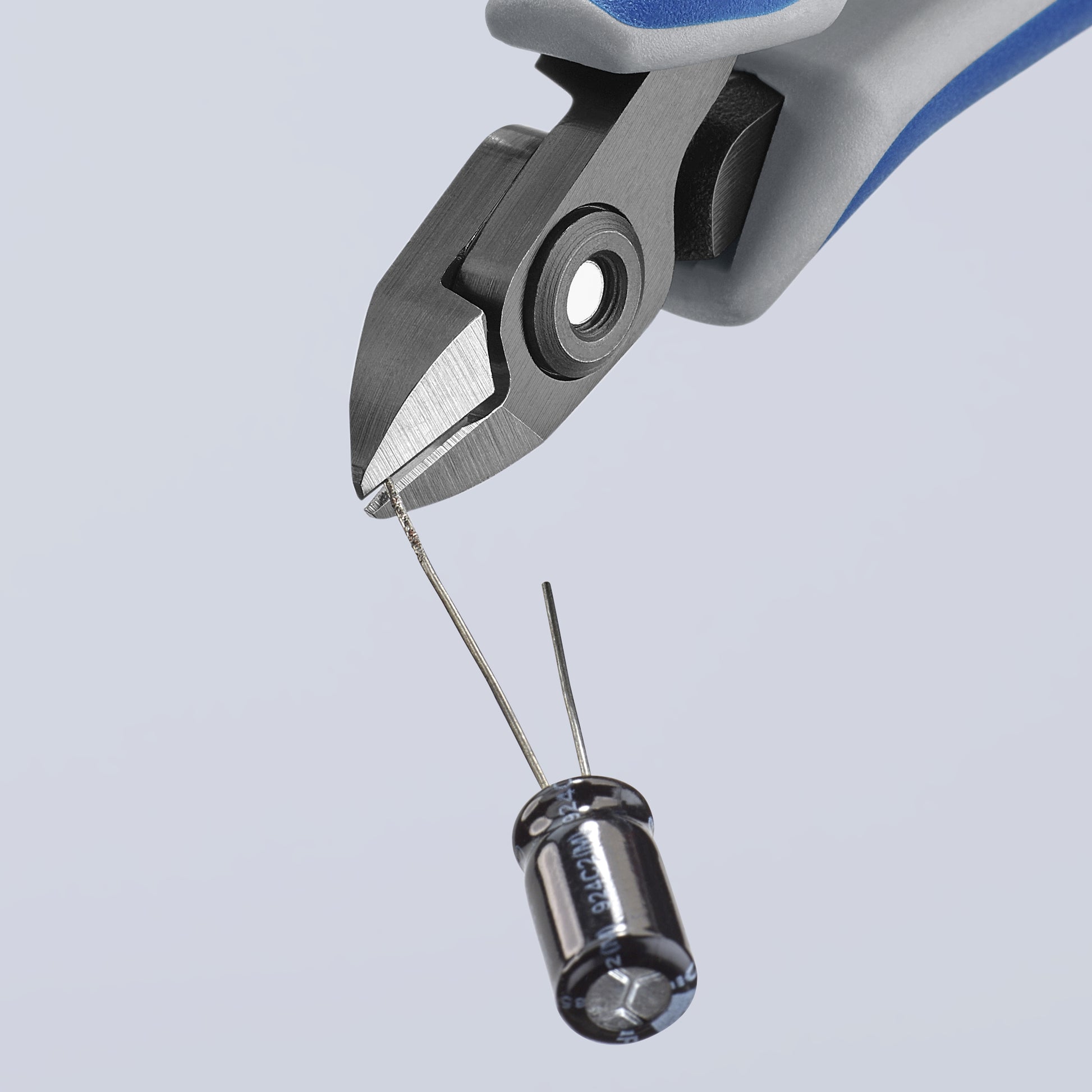

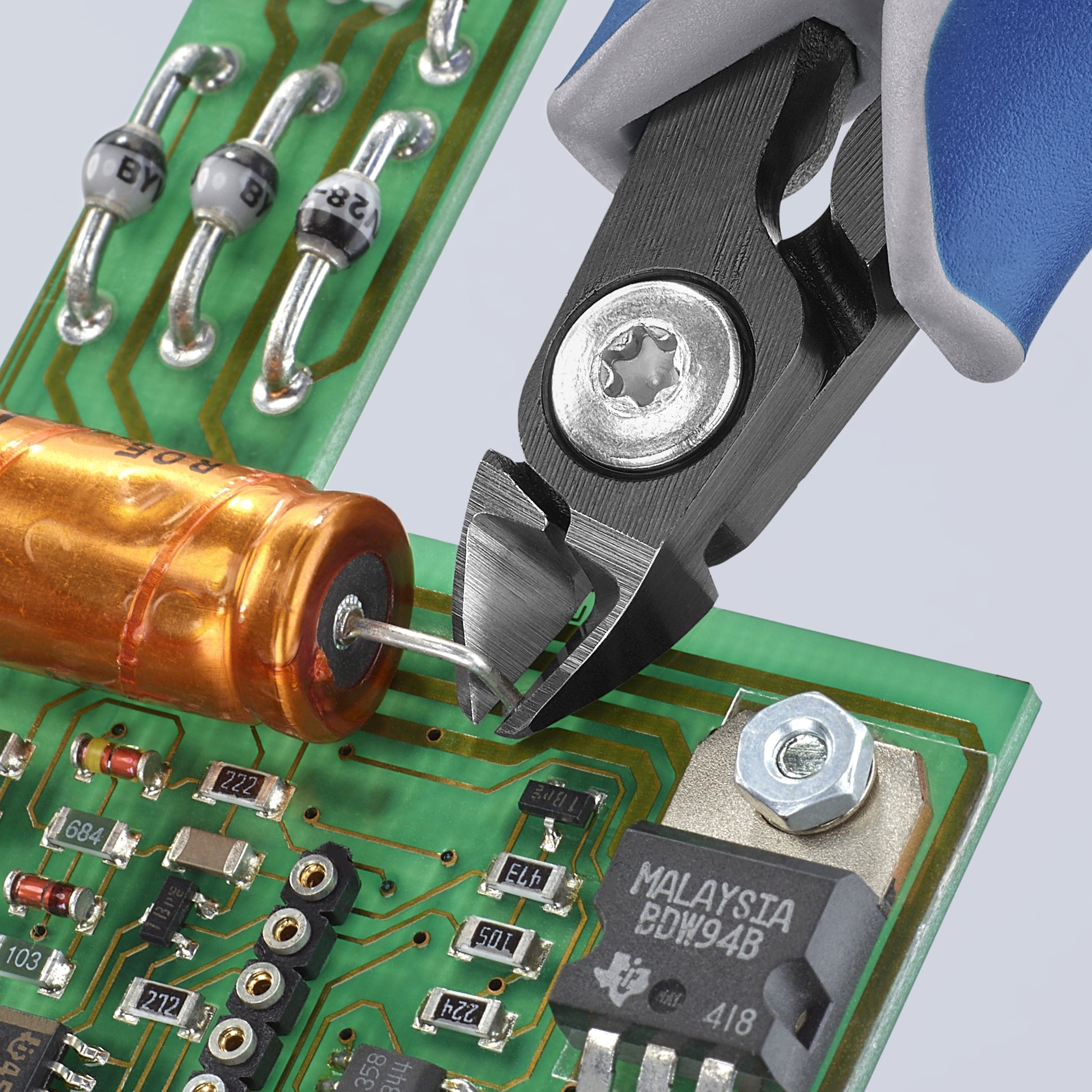

• For fine precision work working with eletrical components

Specifications

• Manufacturer Part Number: 79 02 120
• Material Type: Ball bearing chrome steel, forged, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Blue/Gray
• Nominal Length: 4 3/4"
• Tool Nominal Length: 4.75"
• Tool Length: 4.7"
• Tool Width: 1.94"
• Tool Height: 0.85"
• Tool Weight: 59 g (0.13 lb)
• Joint Type: Bolted
• Handle Length: 3 3/4"
• Jaw Length: 1/4"
• Jaw Width: 23/64"
• Jaw Thickness: 1/4"
• Tip Width: 23/64"
• Tip Thickness: 1/4"
• Head Style: Tapered
• Cutting Edge Shape: Semi-flush with very small bevel
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Soft Wire: 1/64" to 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/64"
• Blade Length: 1/4"
• Set Part Number: 00 20 16 P
• UPC: 843221013684
