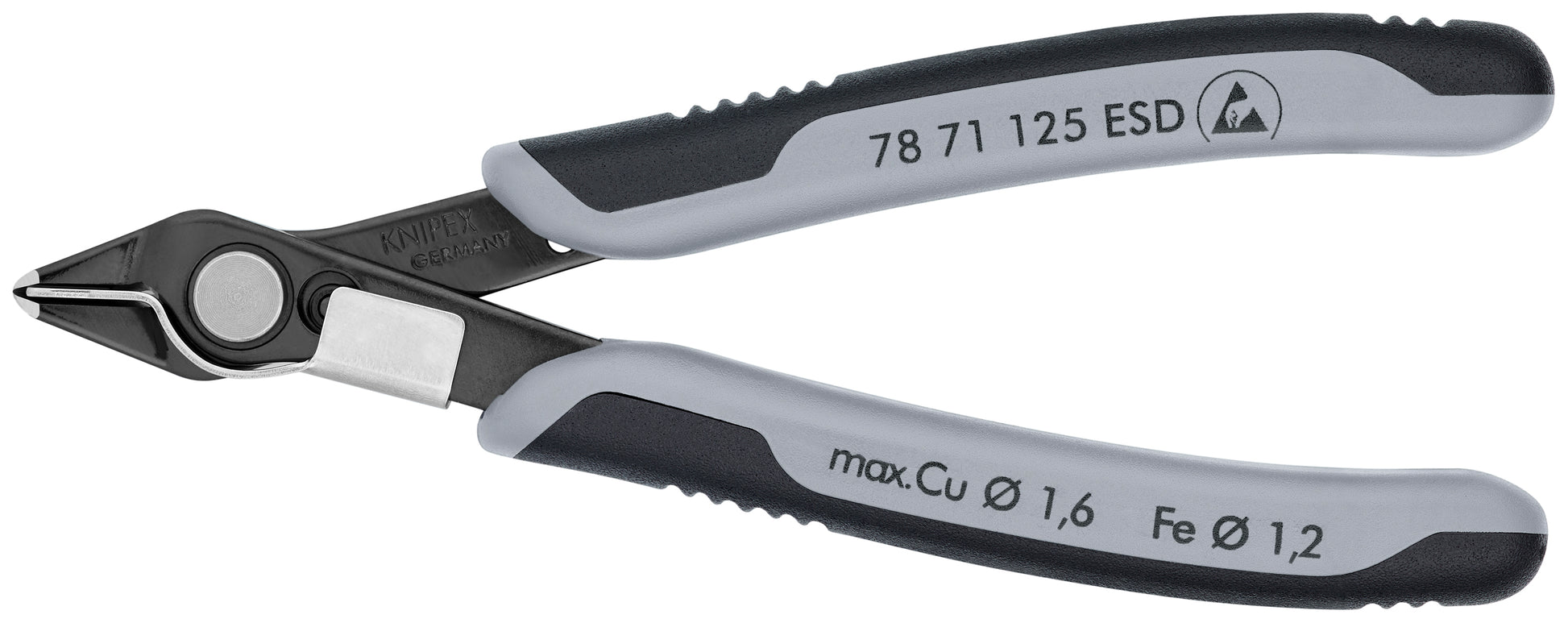

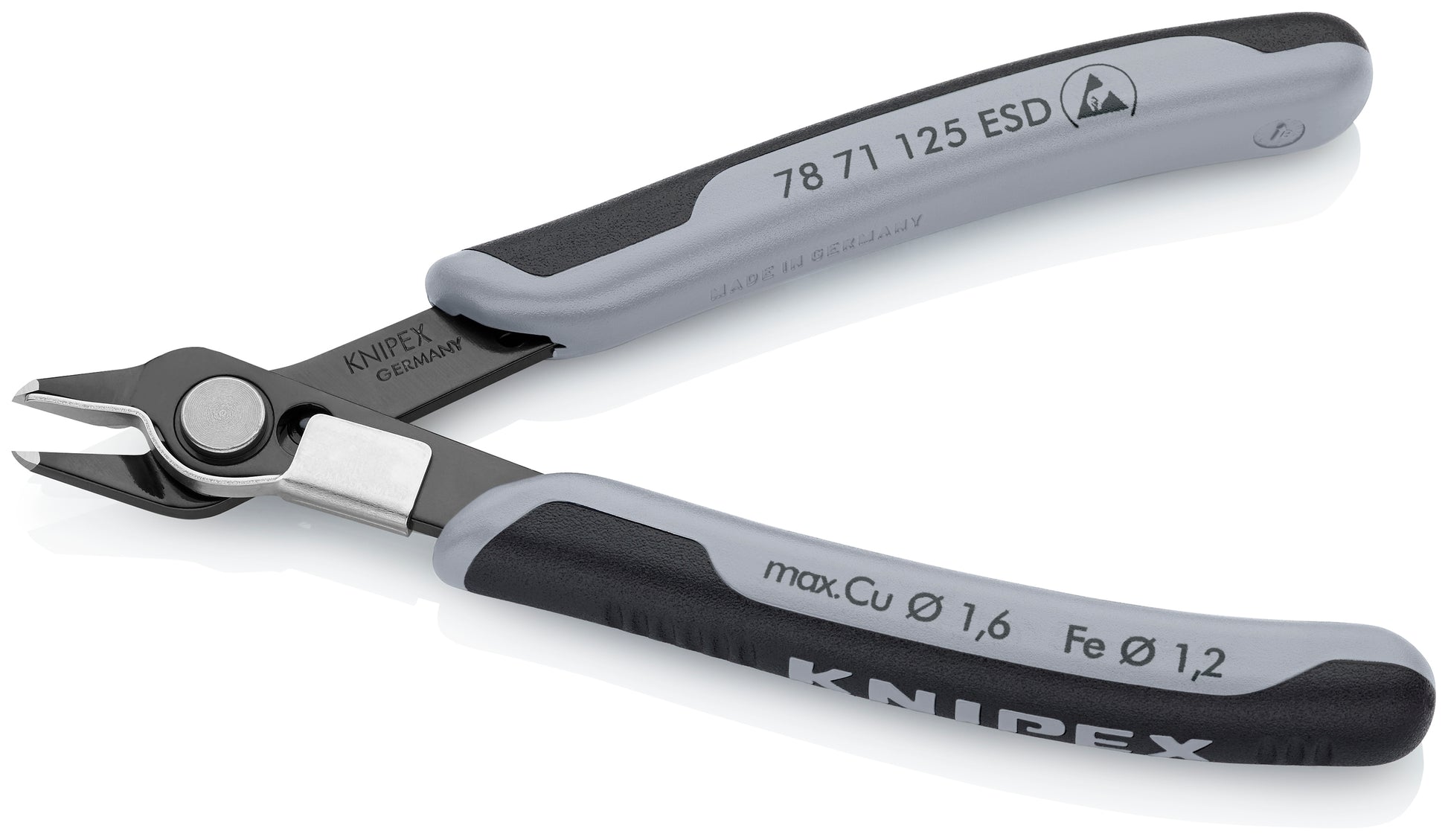

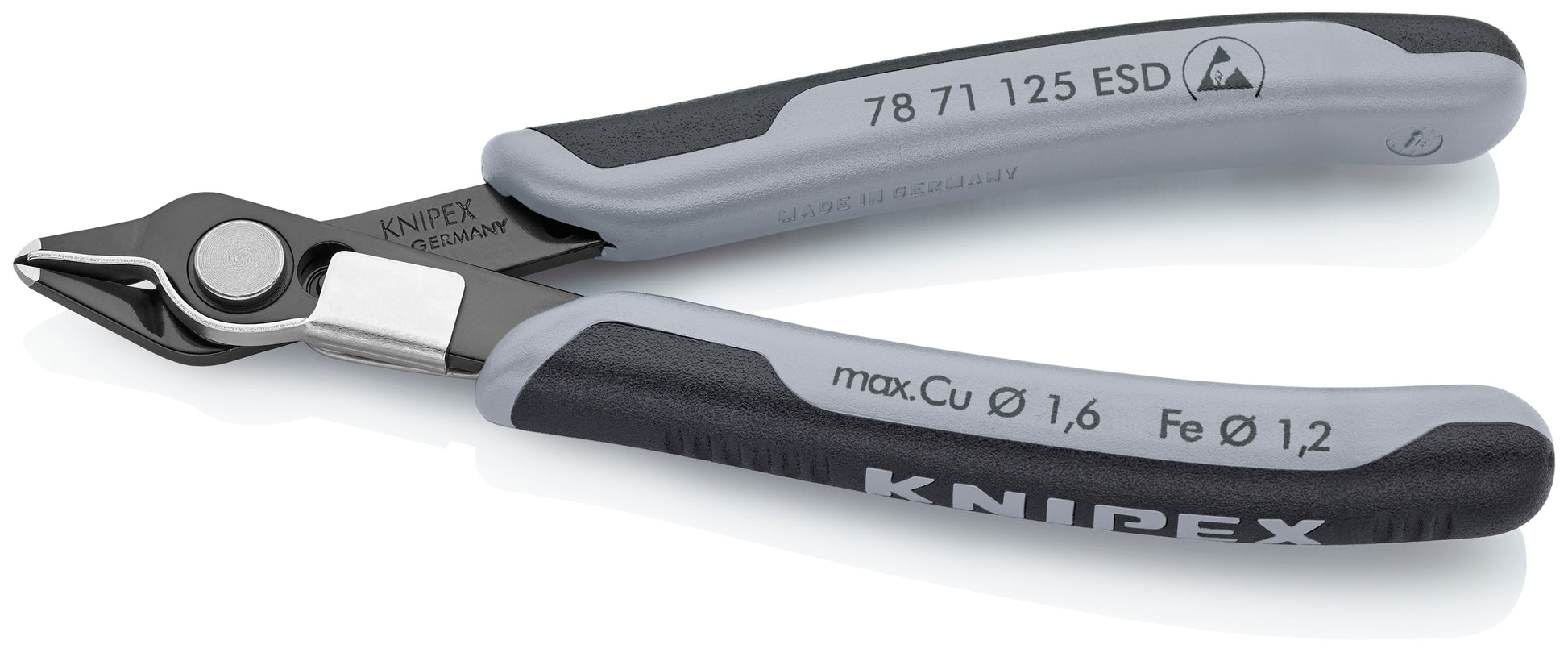

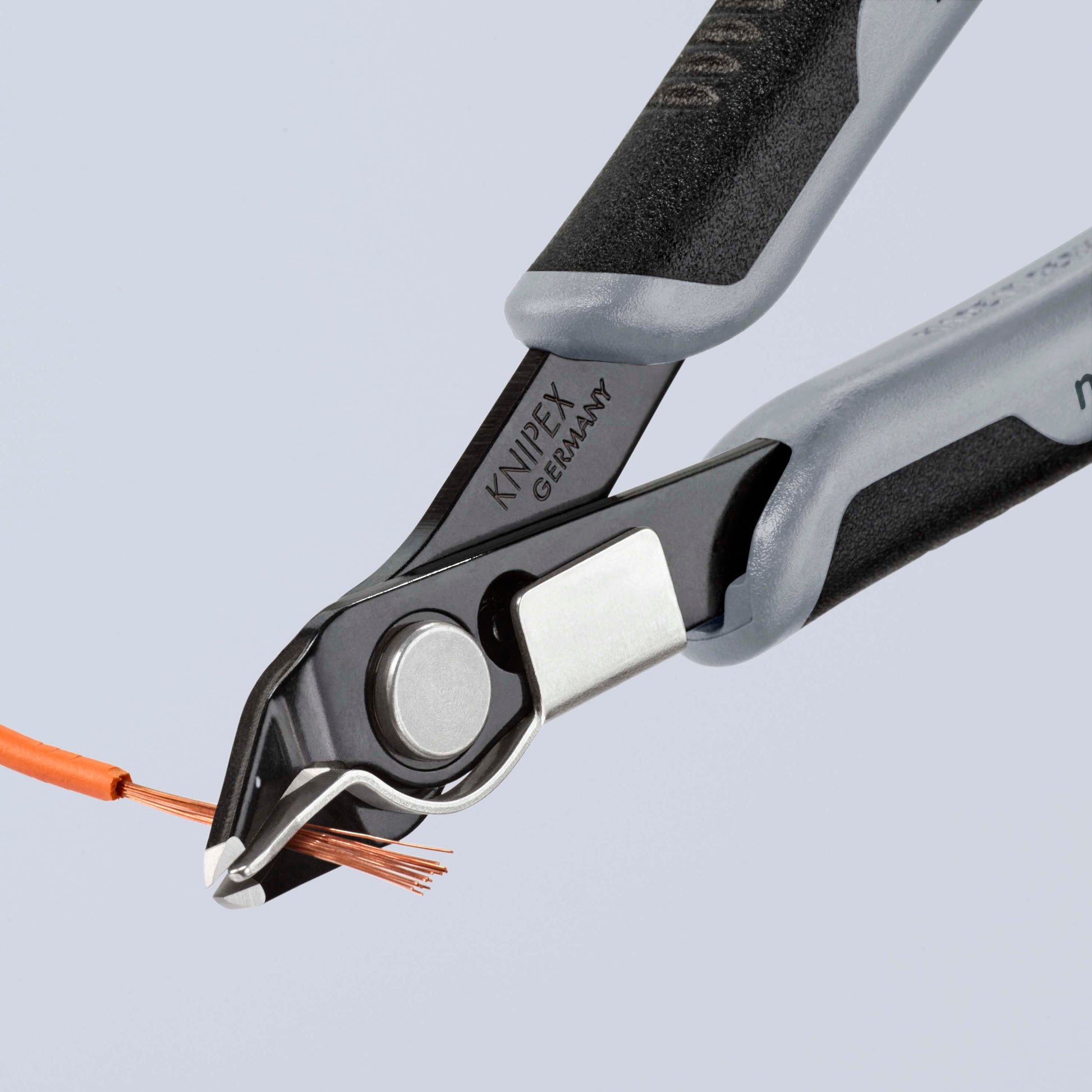

Knipex 78 71 125 ESD Electronics Super Knips®-ESD Handles

Precision pliers for ultra fine cutting work

Features

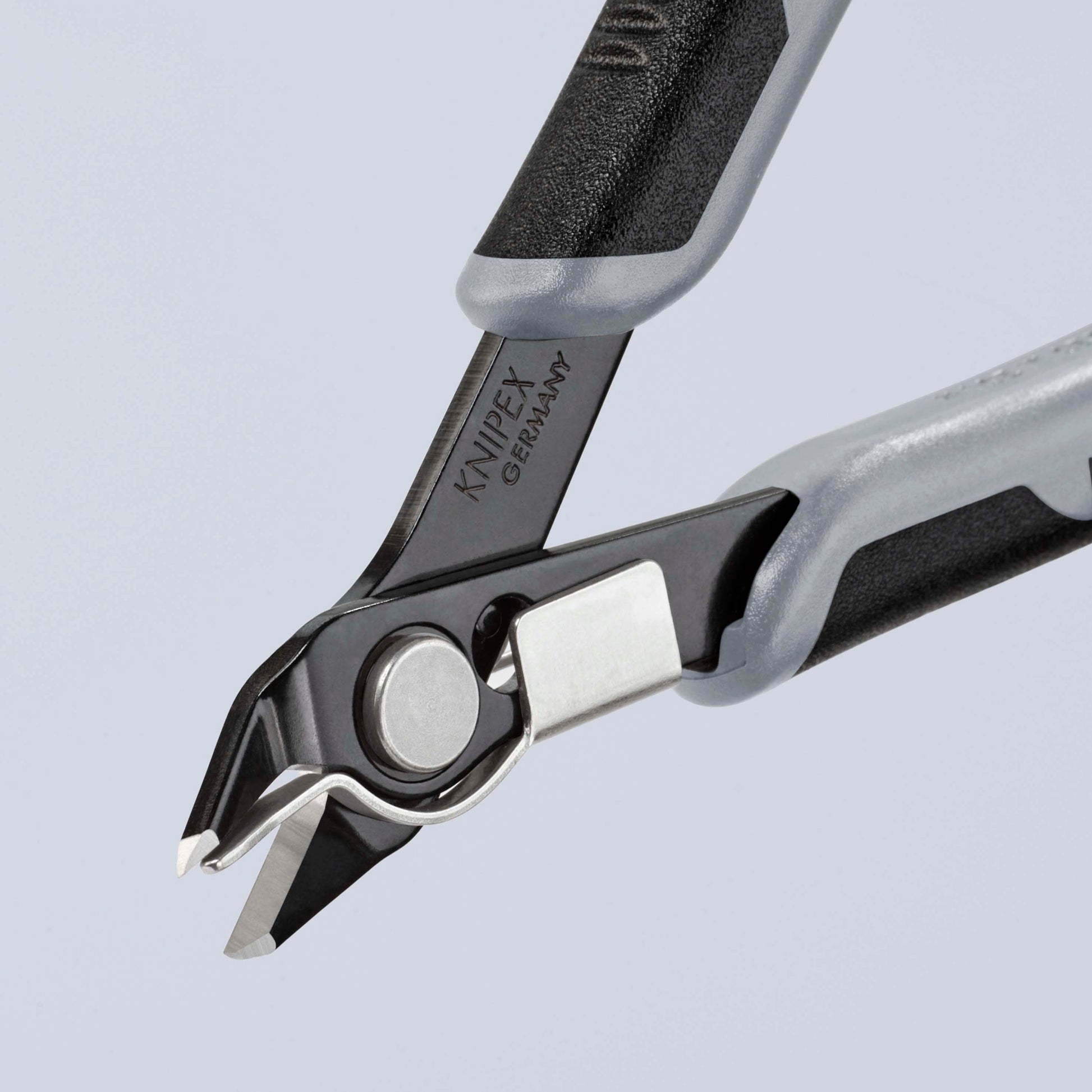

• Precisely ground and sharp cutting edges
• Approximately 20% lighter than conventional electronics pliers
• Opening spring with built-in opening limiter
• Joint with stainless steel rivet

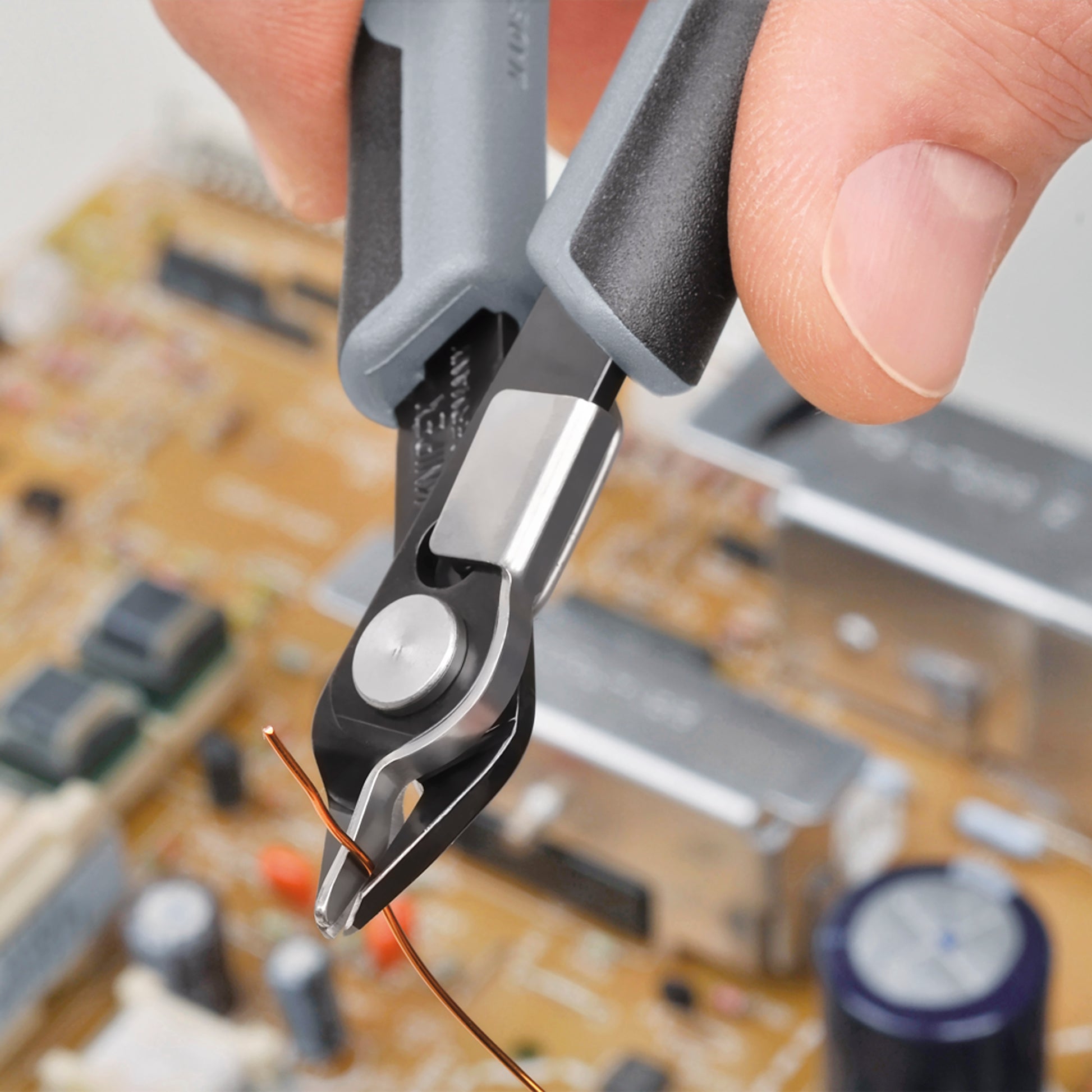

• Great for general purpose cutting of wire, zip ties and electrical components
• Cutting edge hardness (approx. 64 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 1/16" for soft wire and 3/64" for medium wire

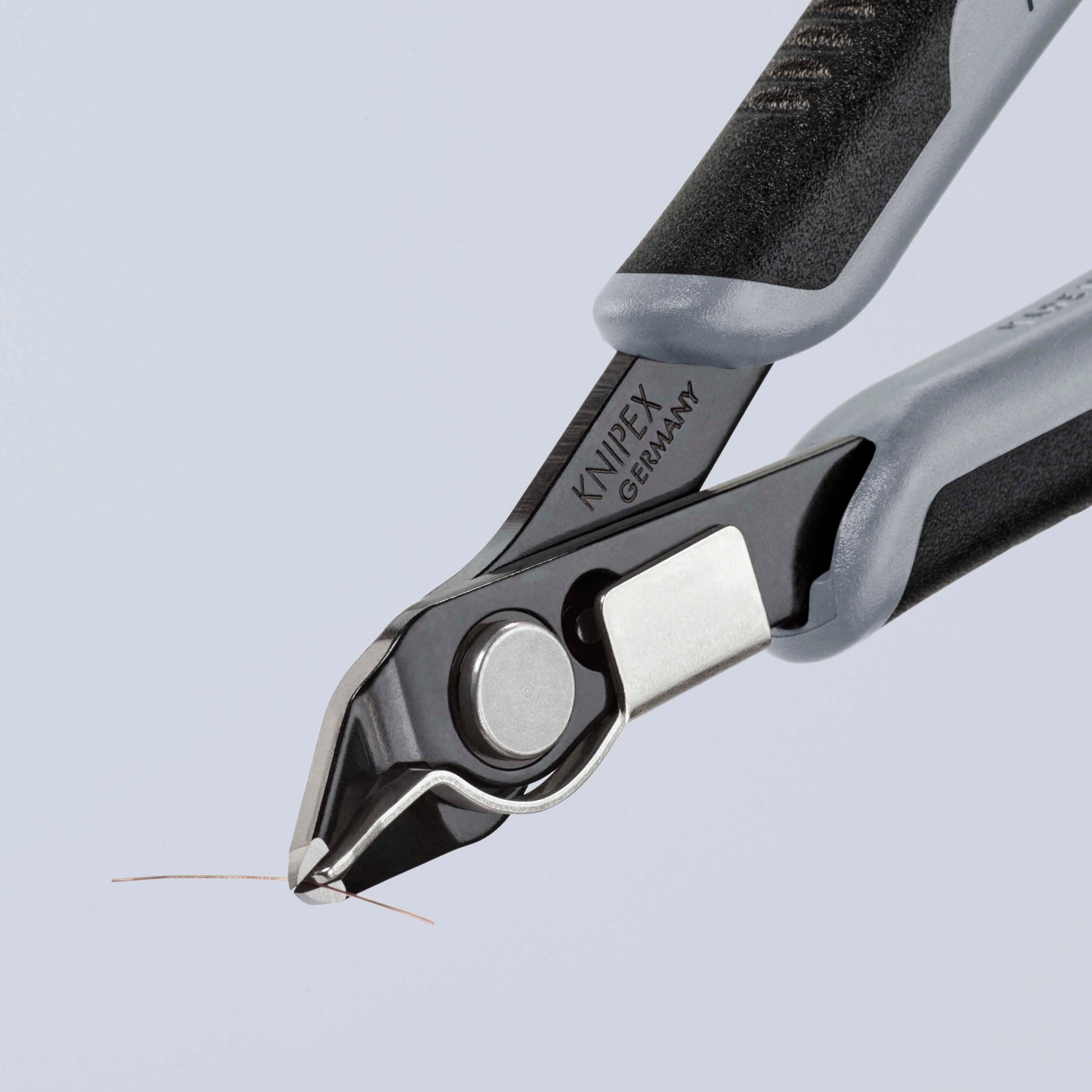

• Precision shaped tips cut wires resting on a board from 1/64" (0.2 mm) diameter
• Extremely smooth movement for minimum operator fatigue
• Grooves in handle provide a steady grip when applying slight pressure

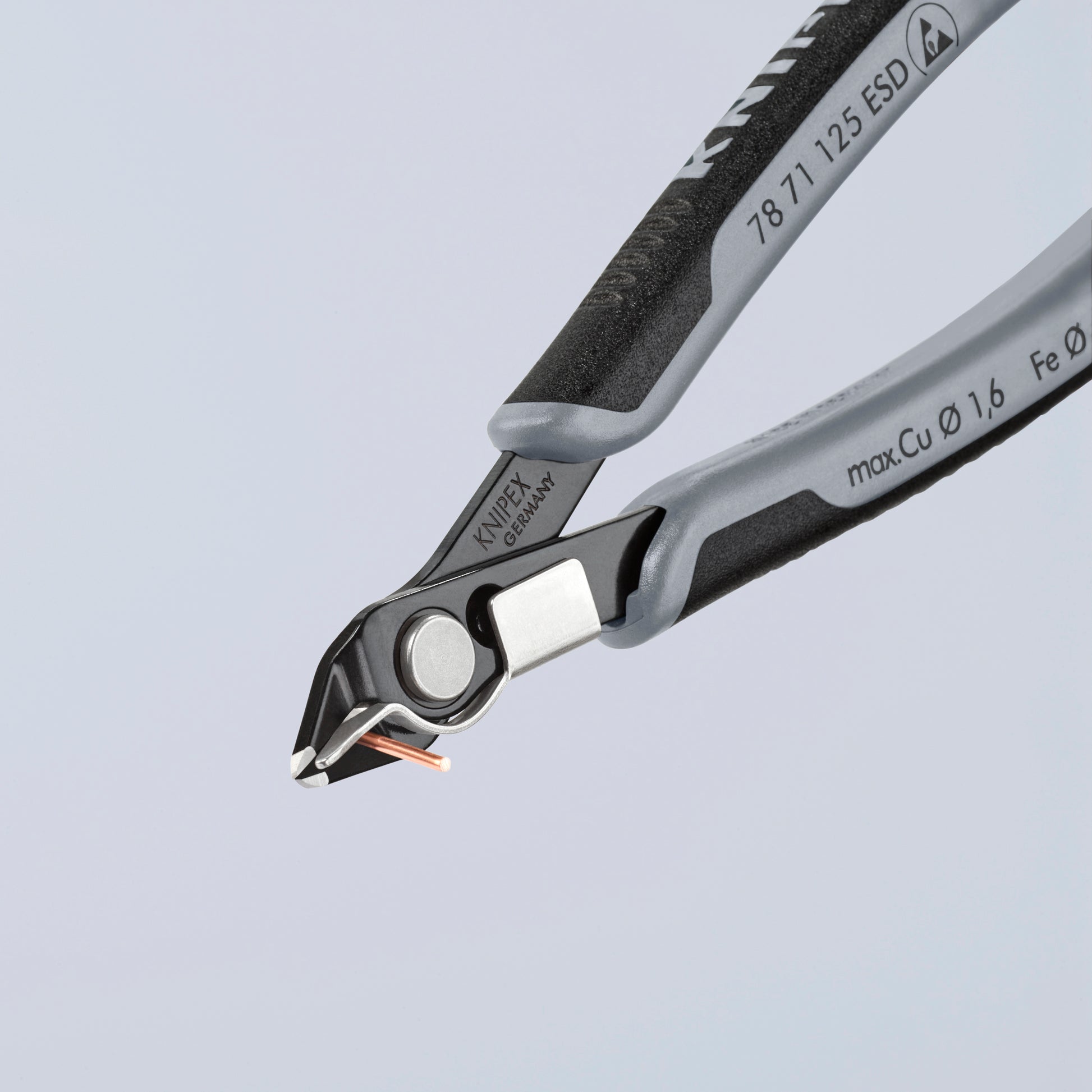

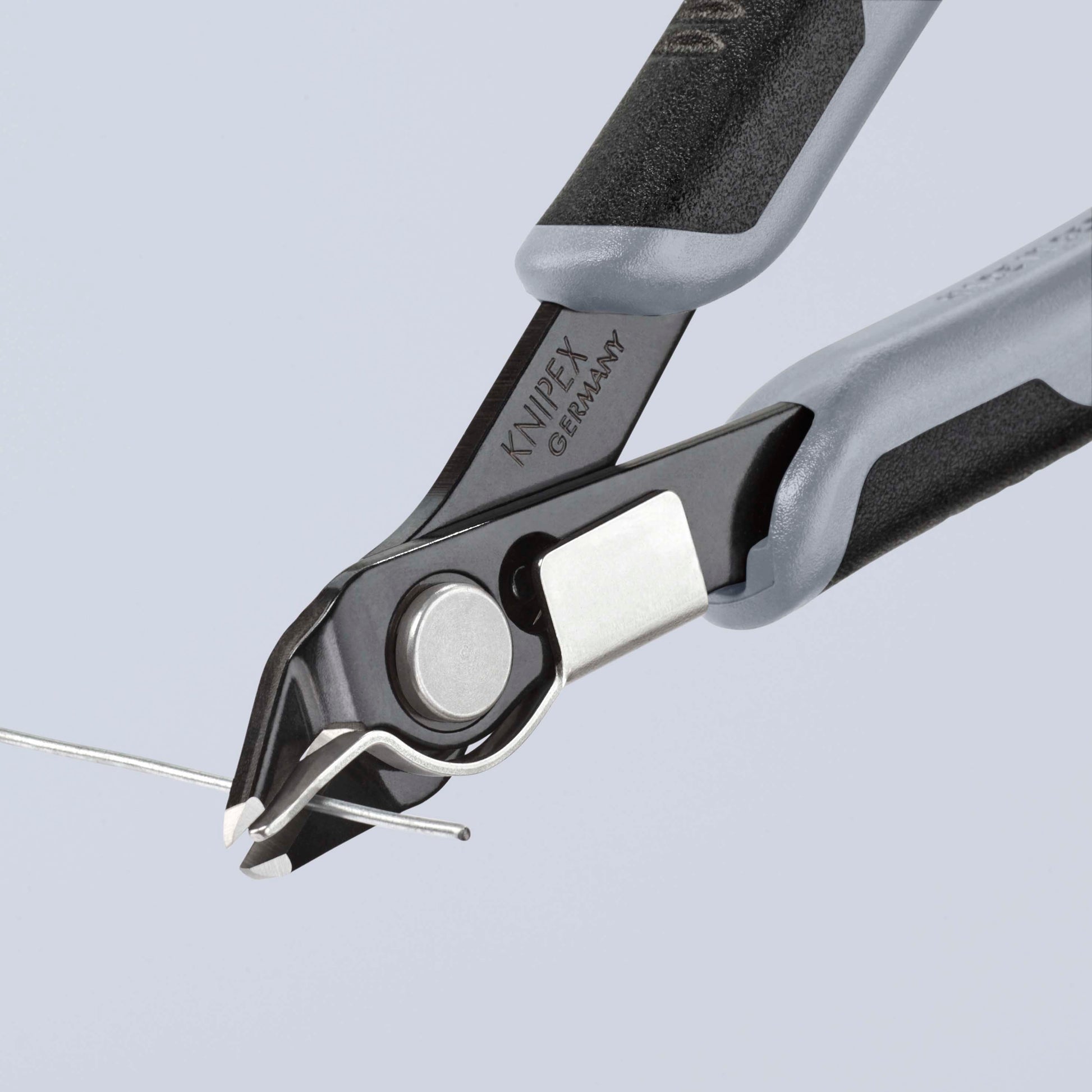

• Lead catcher, no uncontrolled loss of cut wire ends
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 78 71 125 ESD
• Sub Brand Name: Super Knips®
• Material Type: Special tool steel
• Handle Type: ESD multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 5"
• Tool Nominal Length: 5"
• Tool Length: 5.15"
• Tool Width: 1.94"
• Tool Height: 0.75"
• Tool Weight: 64 g (0.14 lb)
• Joint Type: Rivet
• Handle Length: 3 1/2"
• Jaw Length: 23/64"
• Jaw Width: 17/32"
• Jaw Thickness: 19/64"
• Tip Width: 17/32"
• Tip Thickness: 19/64"
• Head Style: Oval
• Cutting Edge Shape: Flush
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Soft Wire: 1/64" to 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Blade Length: 23/64"
• UPC: 843221013646
