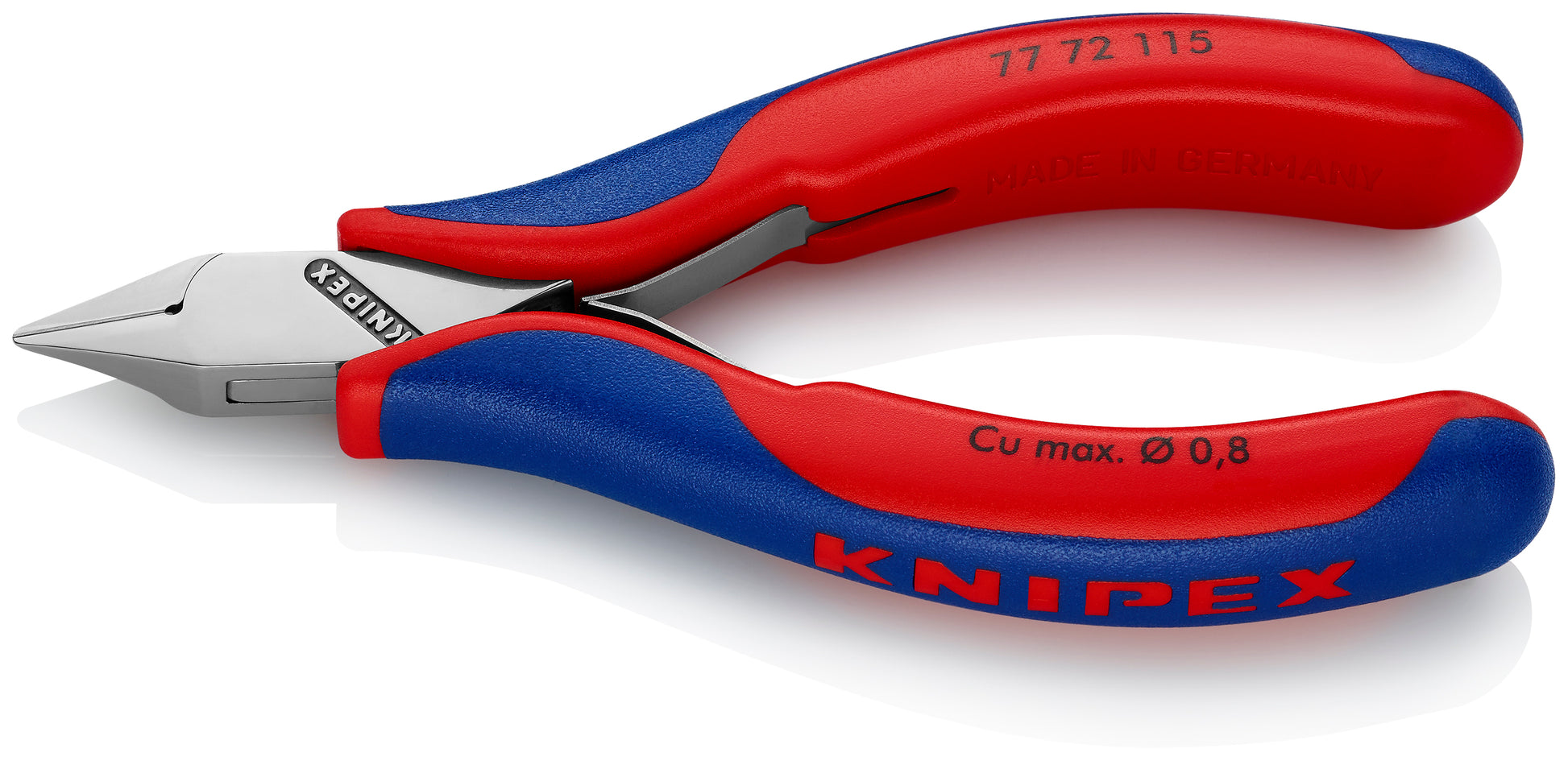

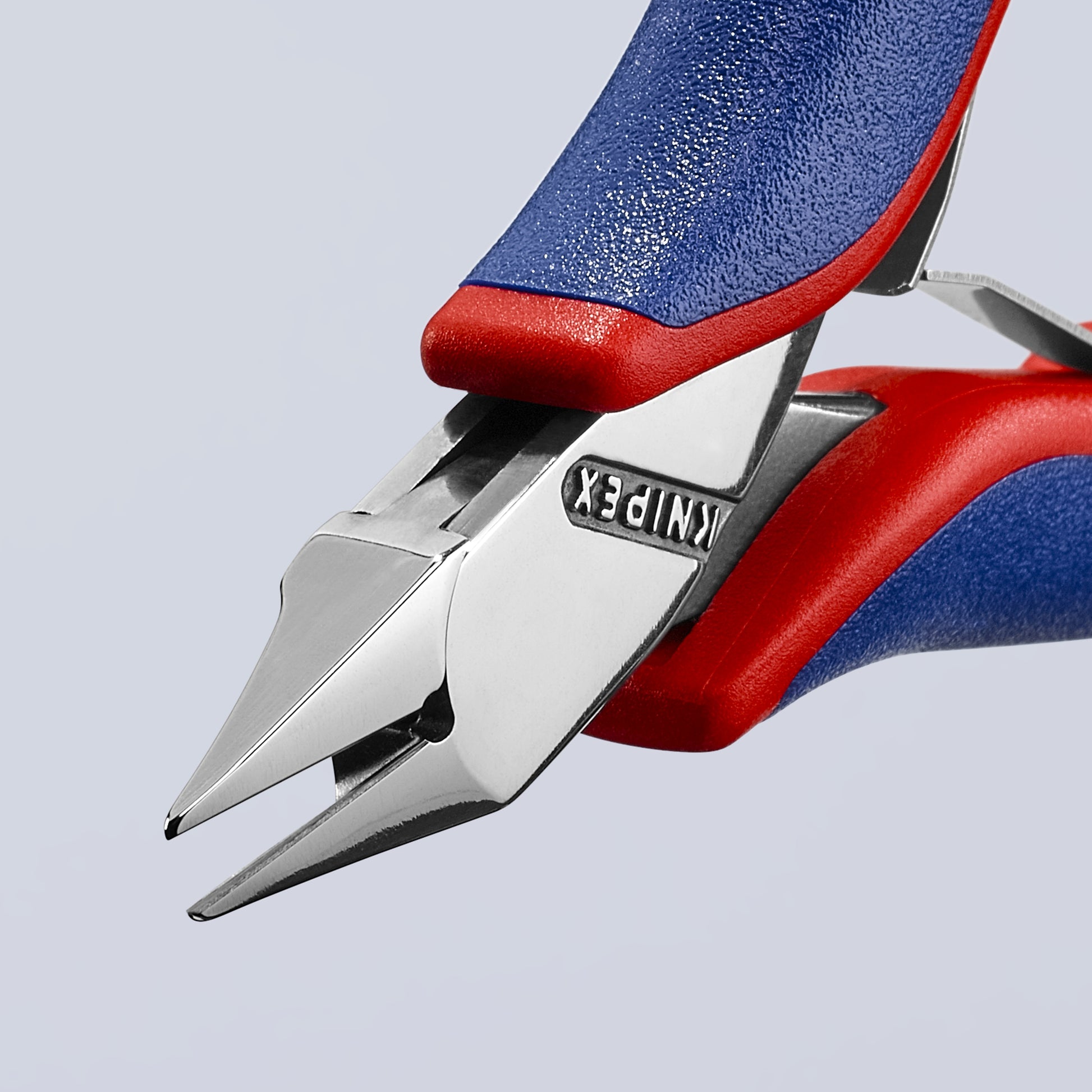

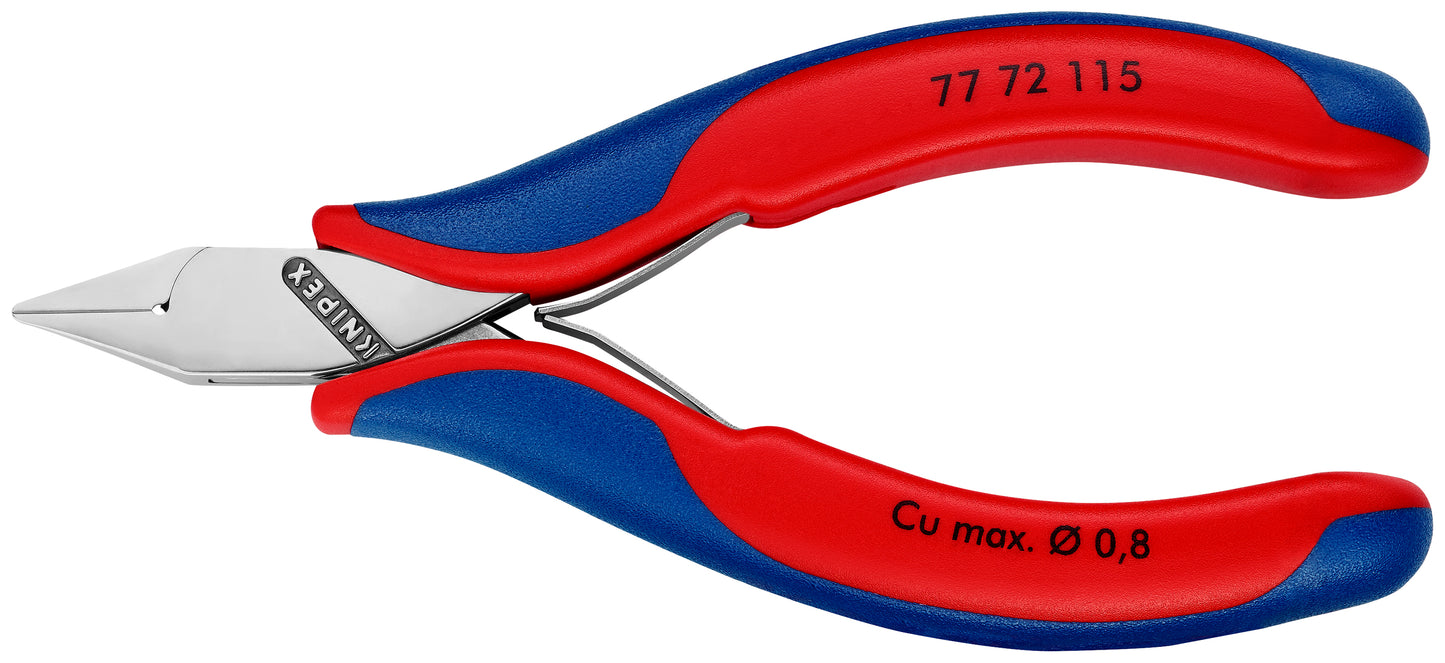

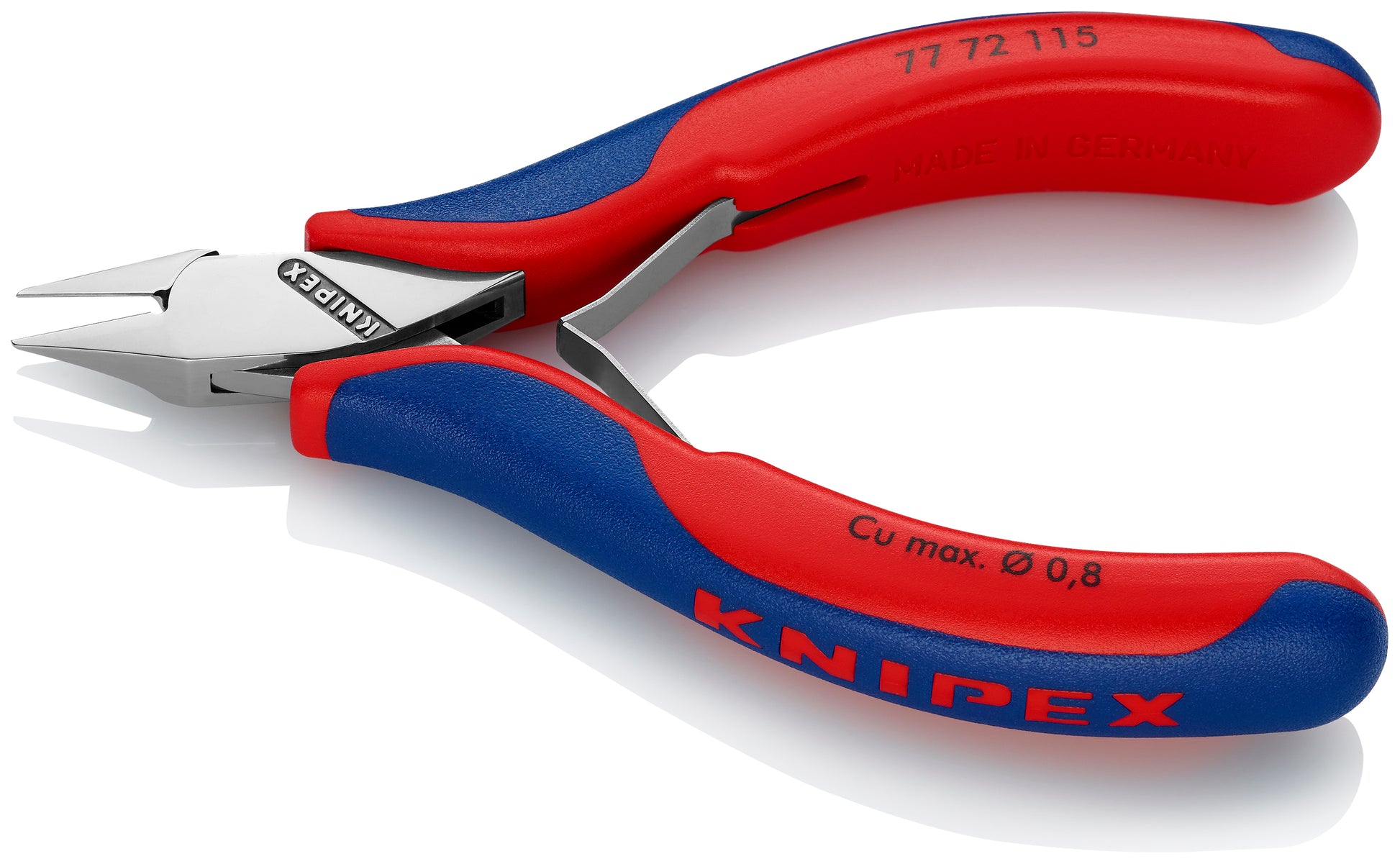

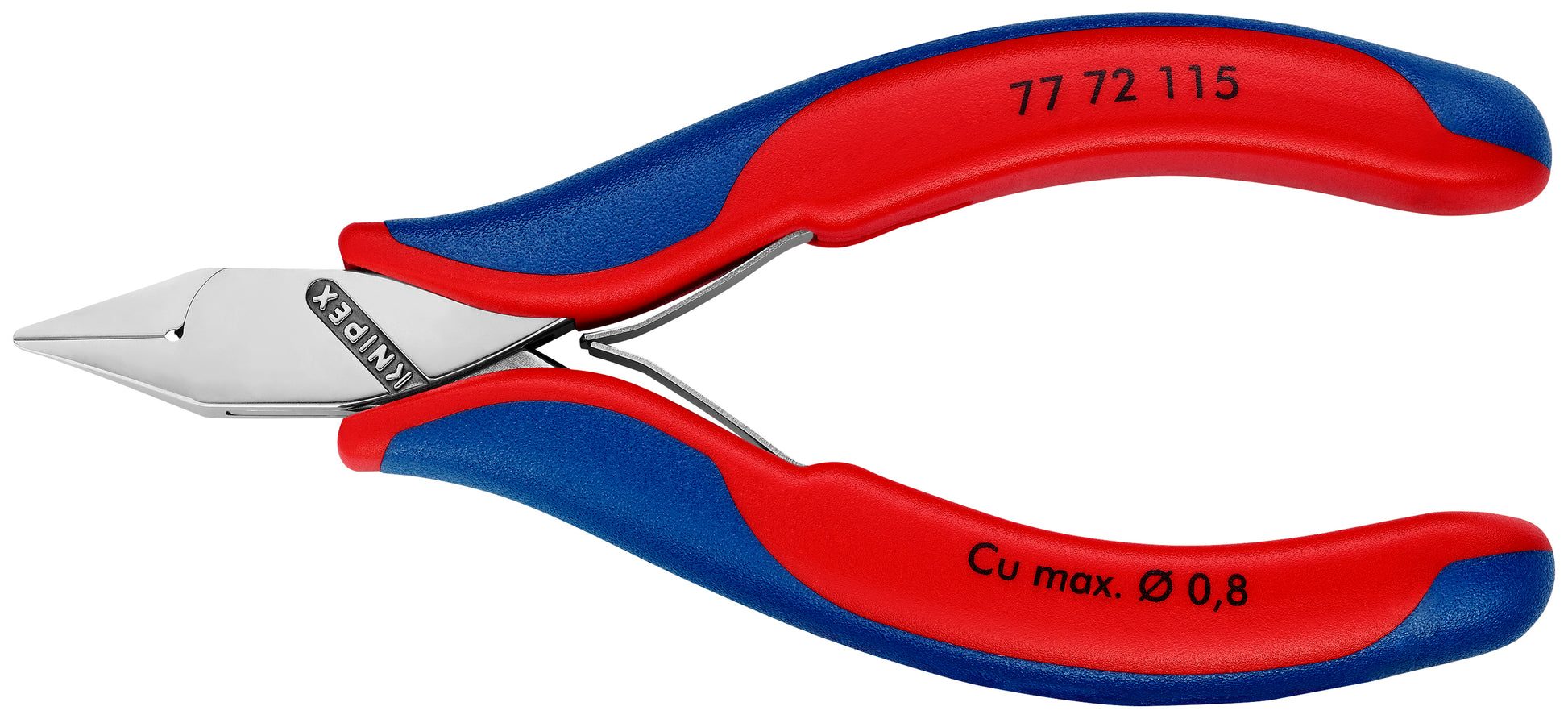

Knipex 77 72 115 Electronics Diagonal Cutters

For fine cutting work in electronics and fine mechanics

Features

• All edges are smooth - less damage to surrounding components
• Low-friction double spring for gentle and even opening of the pliers
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.
• Great for general purpose cutting of wire and components
• Cutting edge hardness (approx. 60 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 1/32" for soft wire
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Specifications

• Manufacturer Part Number: 77 72 115
• Material Type: Ball Bearing Steel
• Handle Type: Multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.4"
• Tool Width: 2"
• Tool Height: 0.75"
• Tool Weight: 6804 g (015 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 13/32"
• Jaw Width: 7/16"
• Jaw Thickness: 15/64"
• Tip Width: 7/16"
• Tip Thickness: 15/64"
• Head Style: Tapered
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 57 HRC
• Cutting Capacity - Soft Wire: 1/64" to 1/32"
• Blade Length: 13/32"
• UPC: 843221005337
