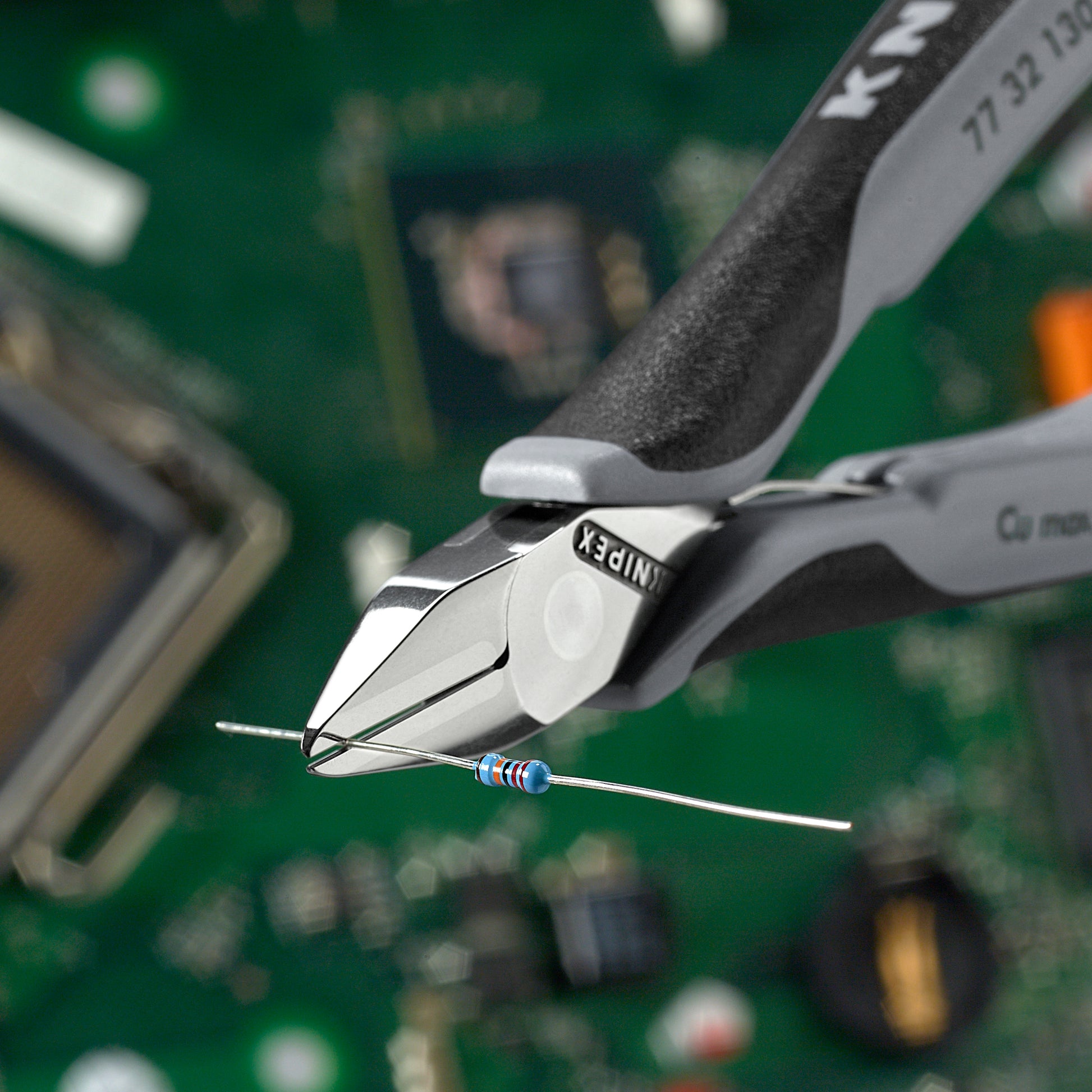

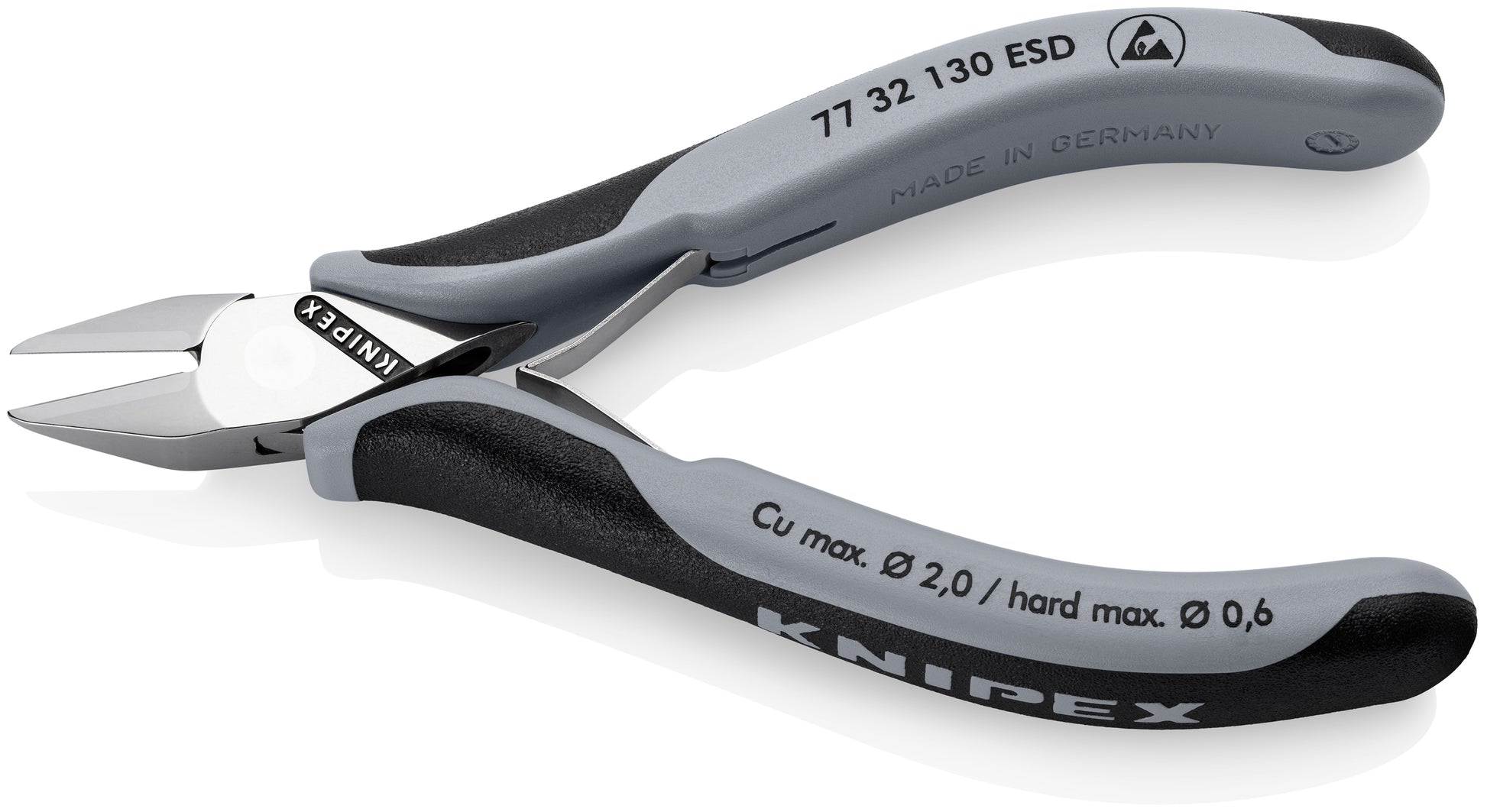

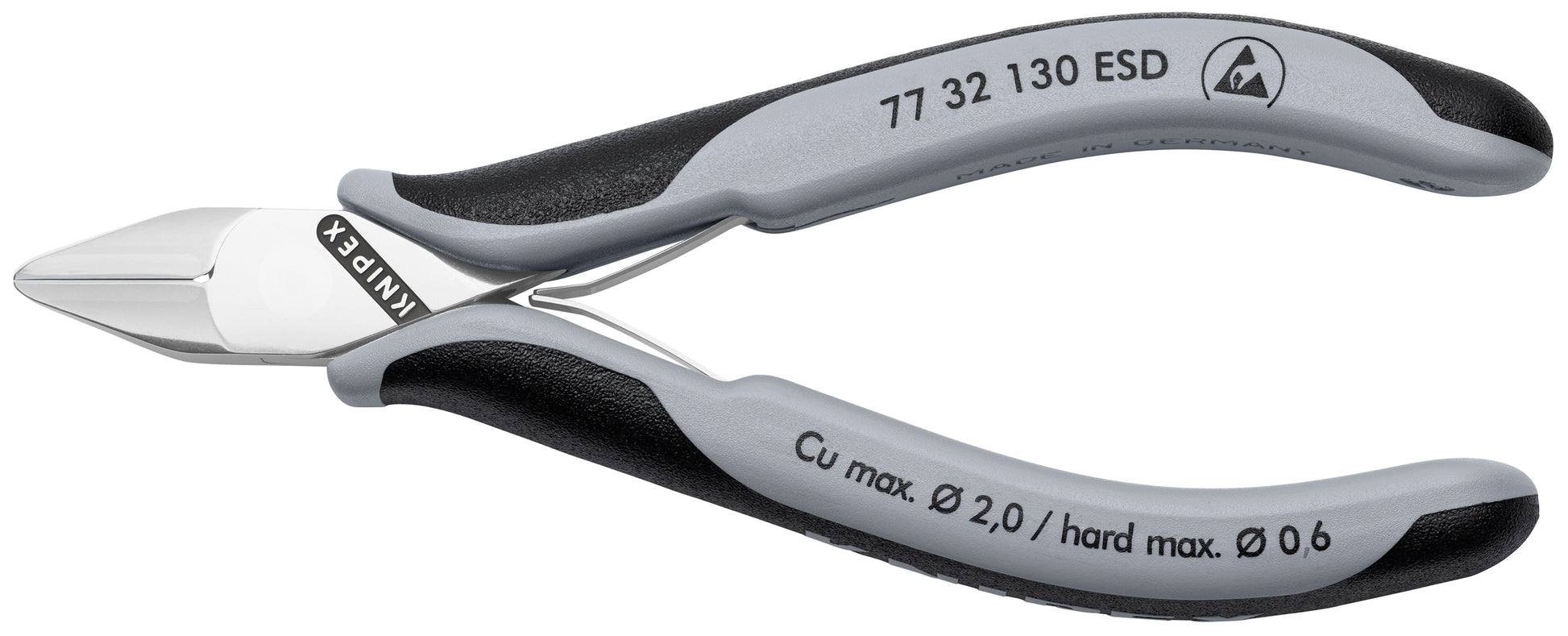

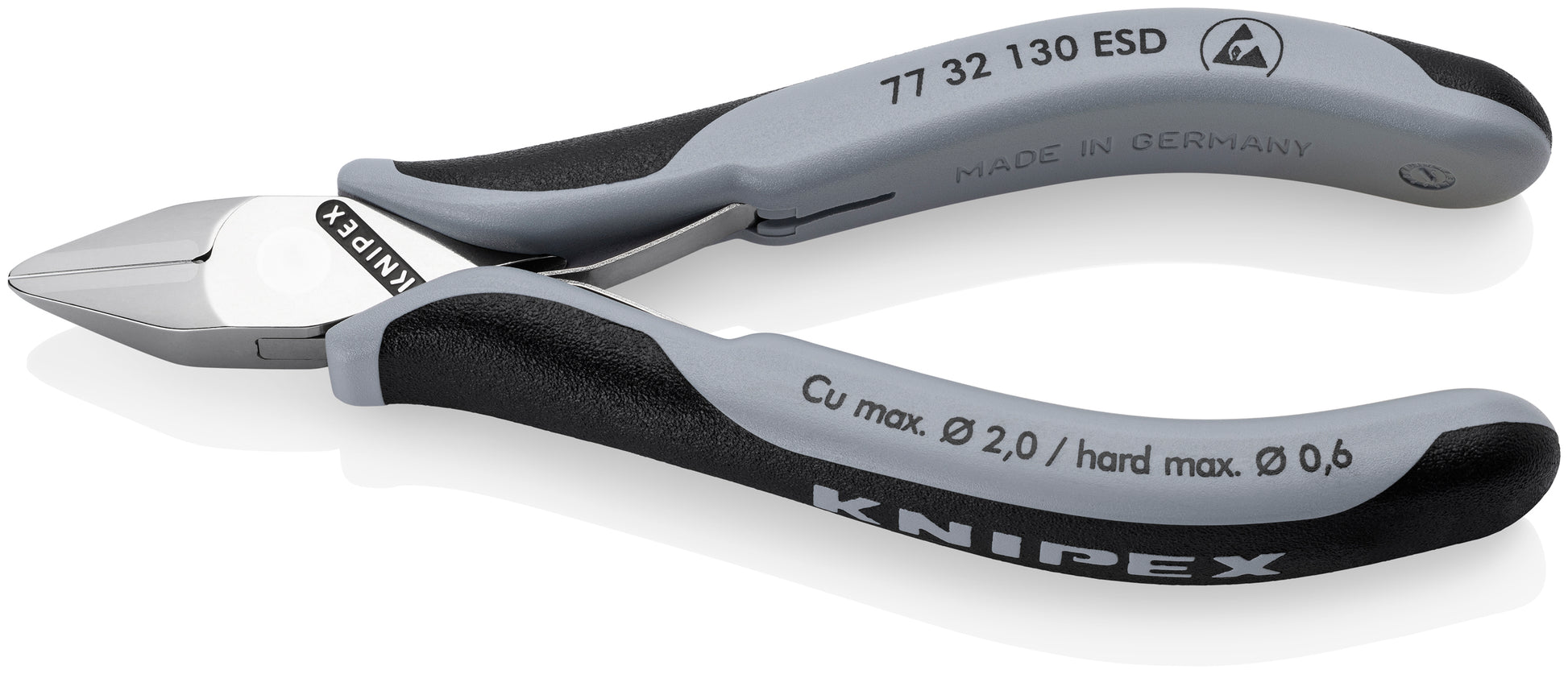

Knipex 77 32 130 ESD Electronics Diagonal Cutters-ESD Handles

For fine cutting work in electronics and fine mechanics

Features

• All edges are smooth - less damage to surrounding components
• Low-friction double spring for gentle and even opening of the pliers
• Box joint design allows for a long life and zero backlash
• Great for general purpose cutting of wire and components
• Cutting edge hardness (approx. 60 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 5/64" for soft wire, up to 1/16" for medium and up to 1/32" for hard wire
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 77 32 130 ESD
• Material Type: High grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: ESD multi-component
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue|Gray
• Nominal Length: 5 1/4"
• Tool Nominal Length: 5.25"
• Tool Length: 5"
• Tool Width: 3.15"
• Tool Height: 0.67"
• Tool Weight: 82 g (0.18 lb)
• Joint Type: Box-joint
• Jaw Length: 5/8"
• Jaw Width: 1/2"
• Jaw Thickness: 21/64"
• Tip Width: 1/2"
• Tip Thickness: 21/64"
• Head Style: Tapered
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Capacity - Soft Wire: 1/64" to 5/64"
• Cutting Capacity - Medium Hard Wire (Nail): 1/16"
• Cutting Capacity - Hard Wire (Steel Wire): 1/32"
• Blade Length: 5/8"
• UPC: 843221029906
