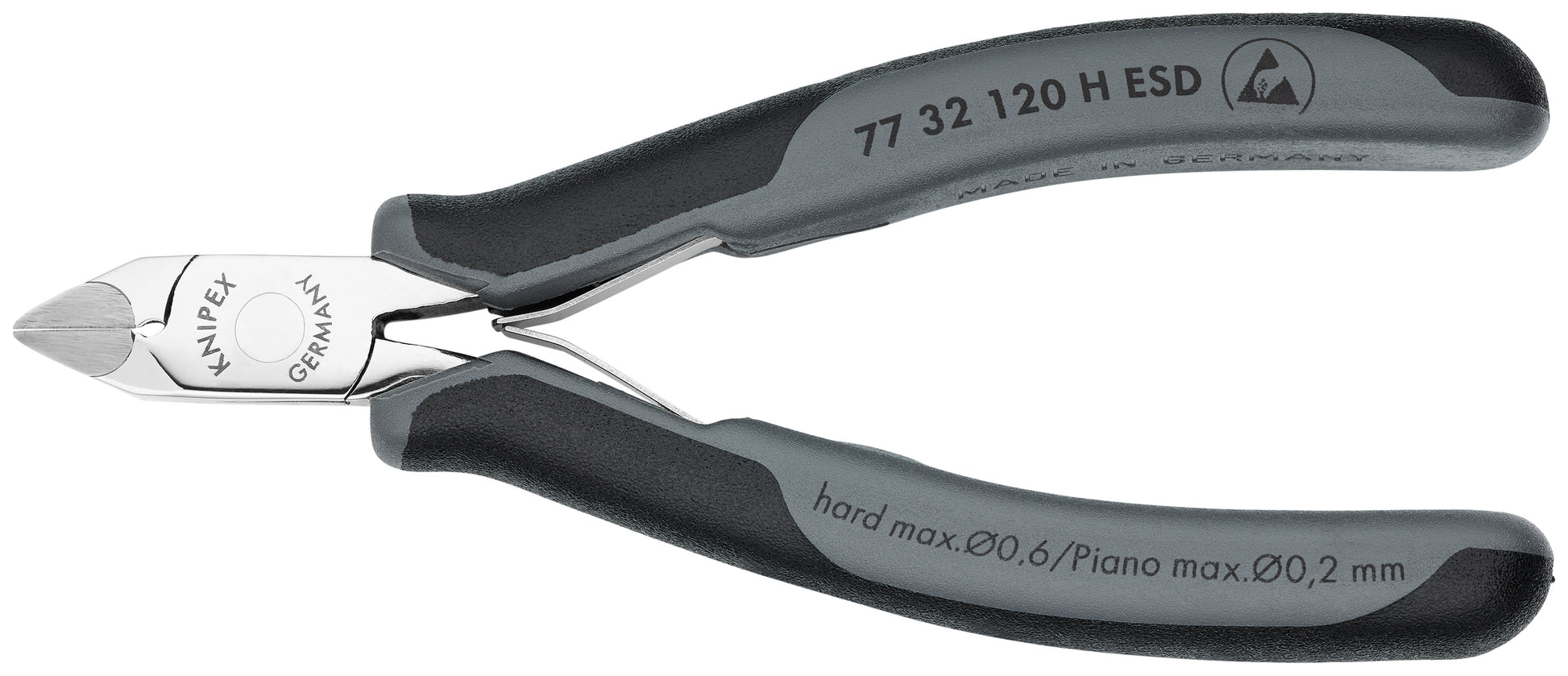

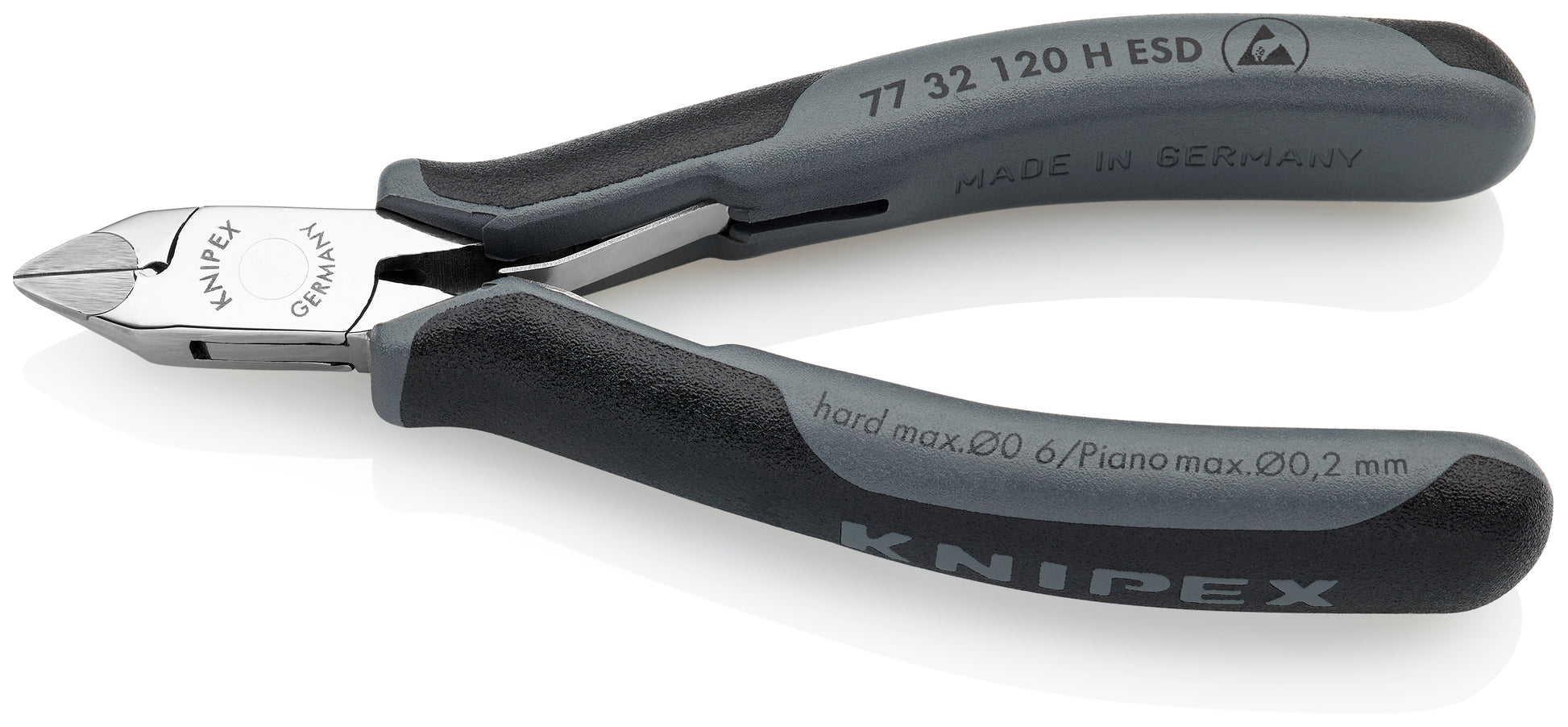

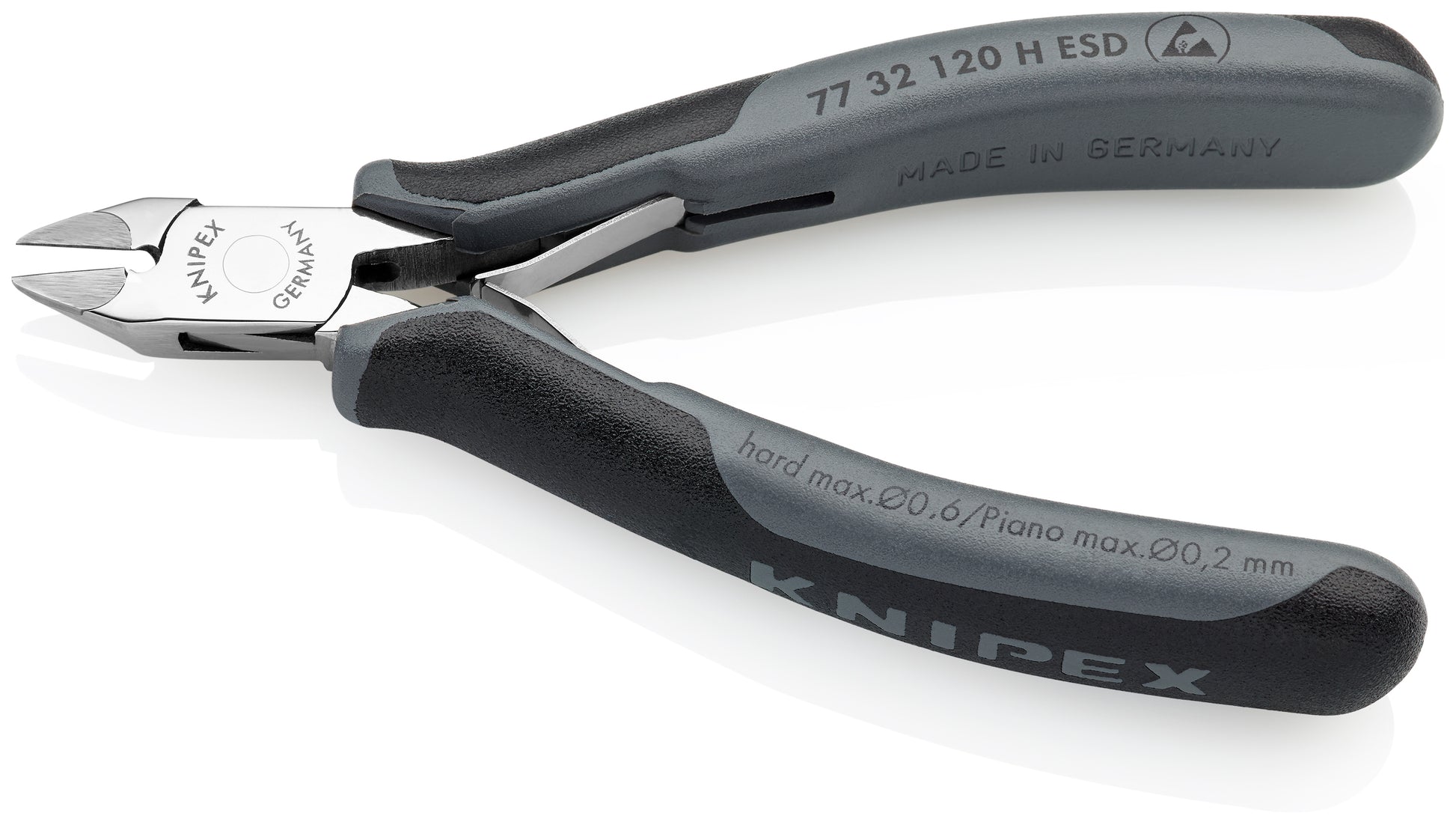

Knipex 77 32 120 H ESD Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles

Knipex 77 32 120 H ESD Electronics Diagonal Cutters-Carbide Metal Cutting Edges-ESD Handles

$218.87 USD
$218.87 USD
In Stock Temporarily Out
Shipping calculated at checkout.

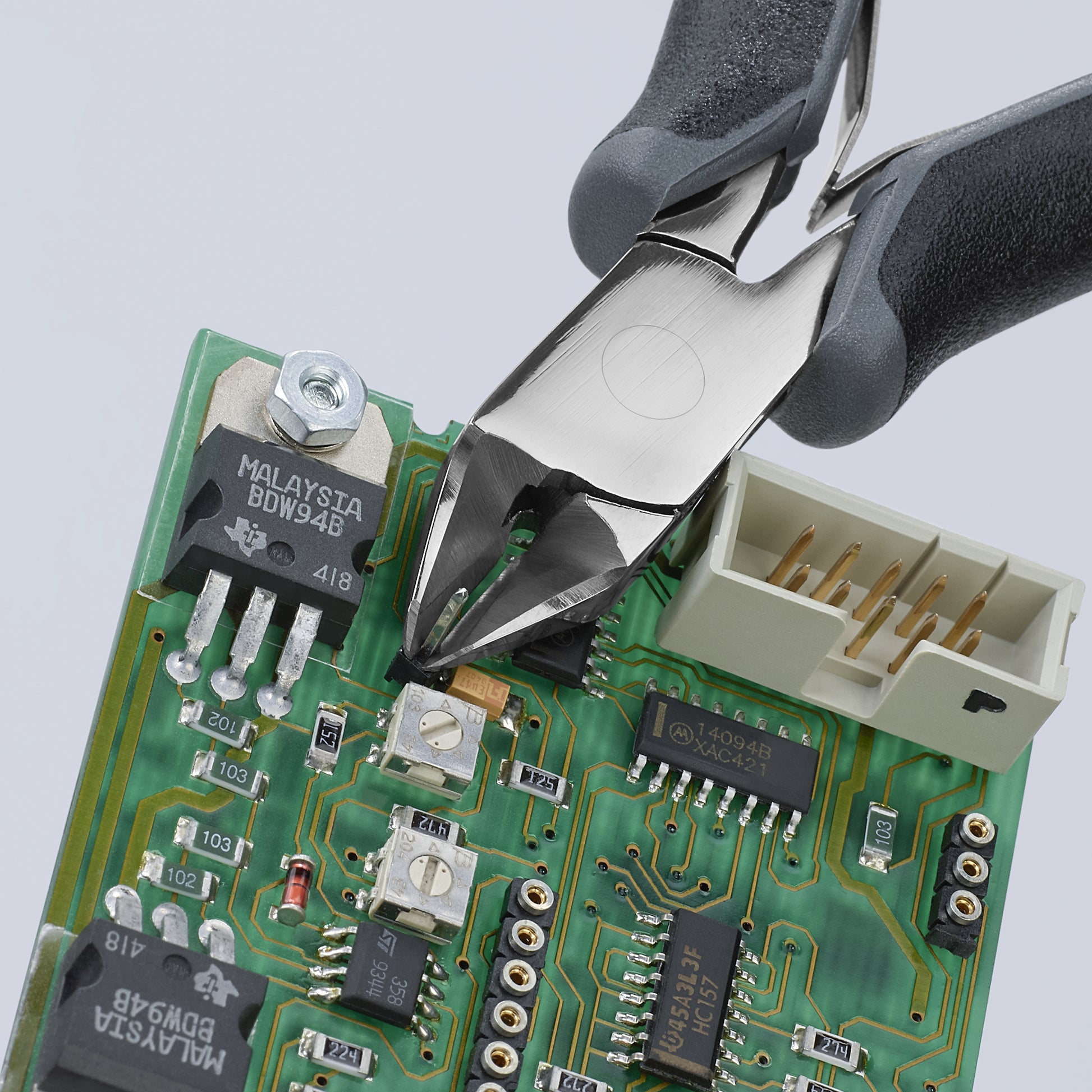

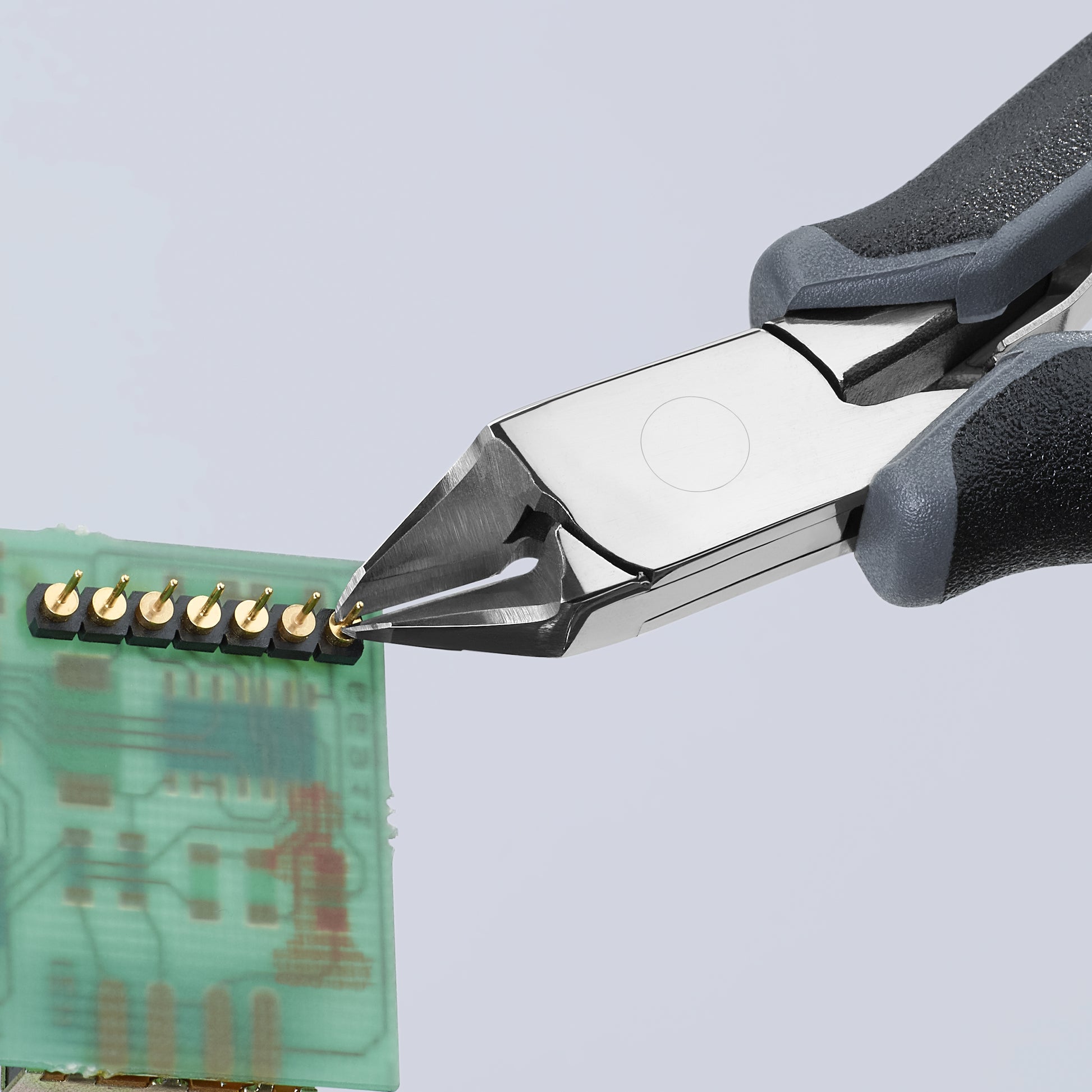

For fine cutting work in electronics and fine mechanics

Features

  • All edges are smooth - less damage to surrounding components
  • Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges
  • Low-friction double spring for gentle and even opening of the pliers
  • The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.
  • Great for general purpose cutting of wire and components
  • Cutting edge hardness (approx. 80-83 HRC) for longer life and for more durable cutting
  • Cutting capacity - 1/16" for soft wire, 1/32" for medium, 1/64" for hard wire and piano wire
  • Constantly reliable cutting results due to the avoidance of cutter deformations
  • ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

  • Manufacturer Part Number: 77 32 120 H ESD
  • Material Type: High grade special tool steel, forged, multi-stage oil-hardened
  • Other Material Type: Carbide metal cutting edges
  • Handle Type: ESD multi-component
  • Surface Finish: Polished
  • 1000V Insulated: No
  • Spring Loaded: Yes
  • Tethered Enabled: false
  • ESD Indicator: Yes
  • Color: Blue/Gray
  • Nominal Length: 4 3/4"
  • Tool Nominal Length: 4.75"
  • Tool Length: 4.65"
  • Tool Width: 1.9"
  • Tool Height: 0.75"
  • Tool Weight: 77 g (0.17 lb)
  • Joint Type: Box-joint
  • Handle Length: 3 1/2"
  • Jaw Length: 9/16"
  • Jaw Width: 7/16"
  • Jaw Thickness: 19/64"
  • Tip Width: 7/16"
  • Tip Thickness: 19/64"
  • Head Style: Tapered
  • Cutting Edge Shape: Semi-flush with small bevel
  • Cutting Edge HRC: Approx. 80 to 83 HRC
  • Cutting Capacity - Soft Wire: 1/16"
  • Cutting Capacity - Medium Hard Wire (Nail): 1/32"
  • Cutting Capacity - Hard Wire (Steel Wire): 1/64"
  • Cutting Capacity - Piano Wire: 1/64"
  • Blade Length: 9/16"
  • UPC: 843221020620
