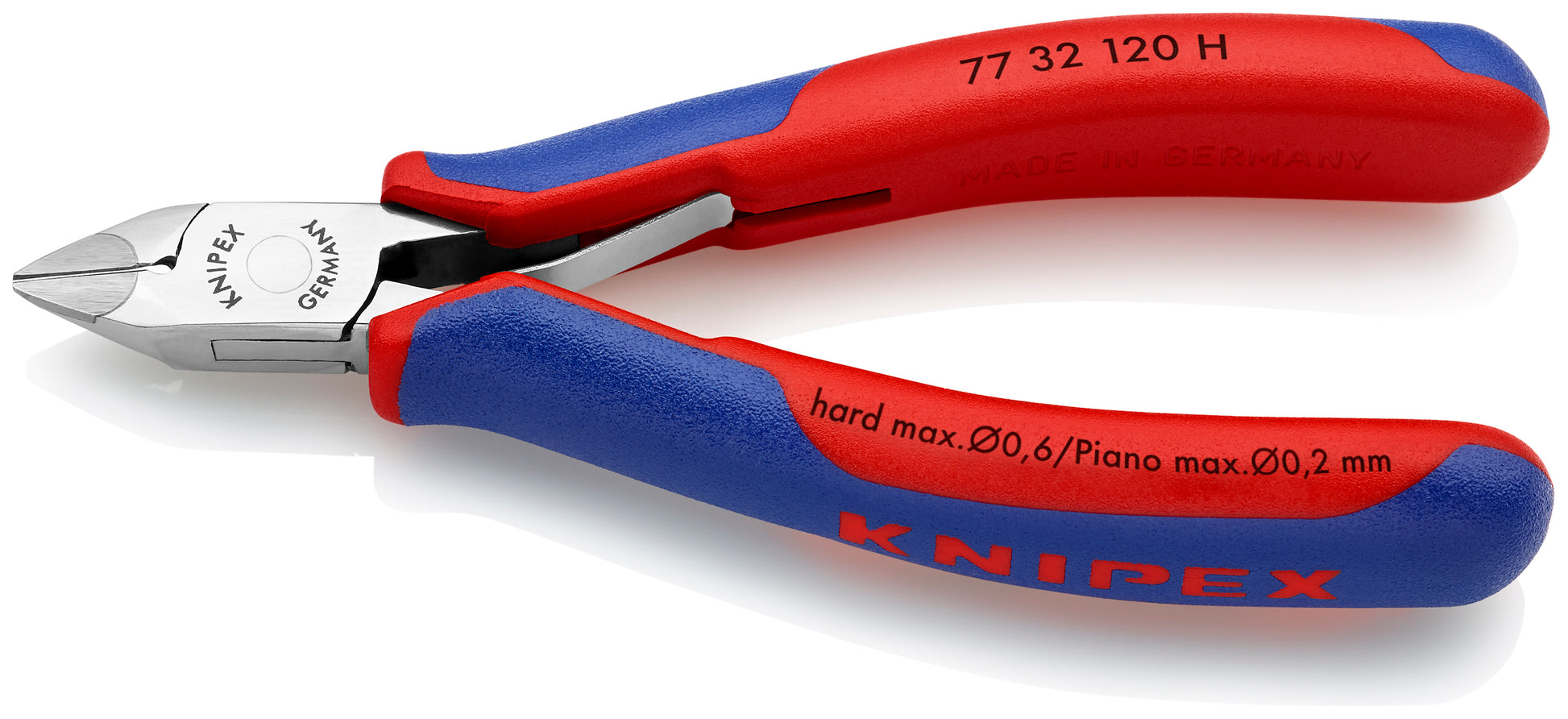

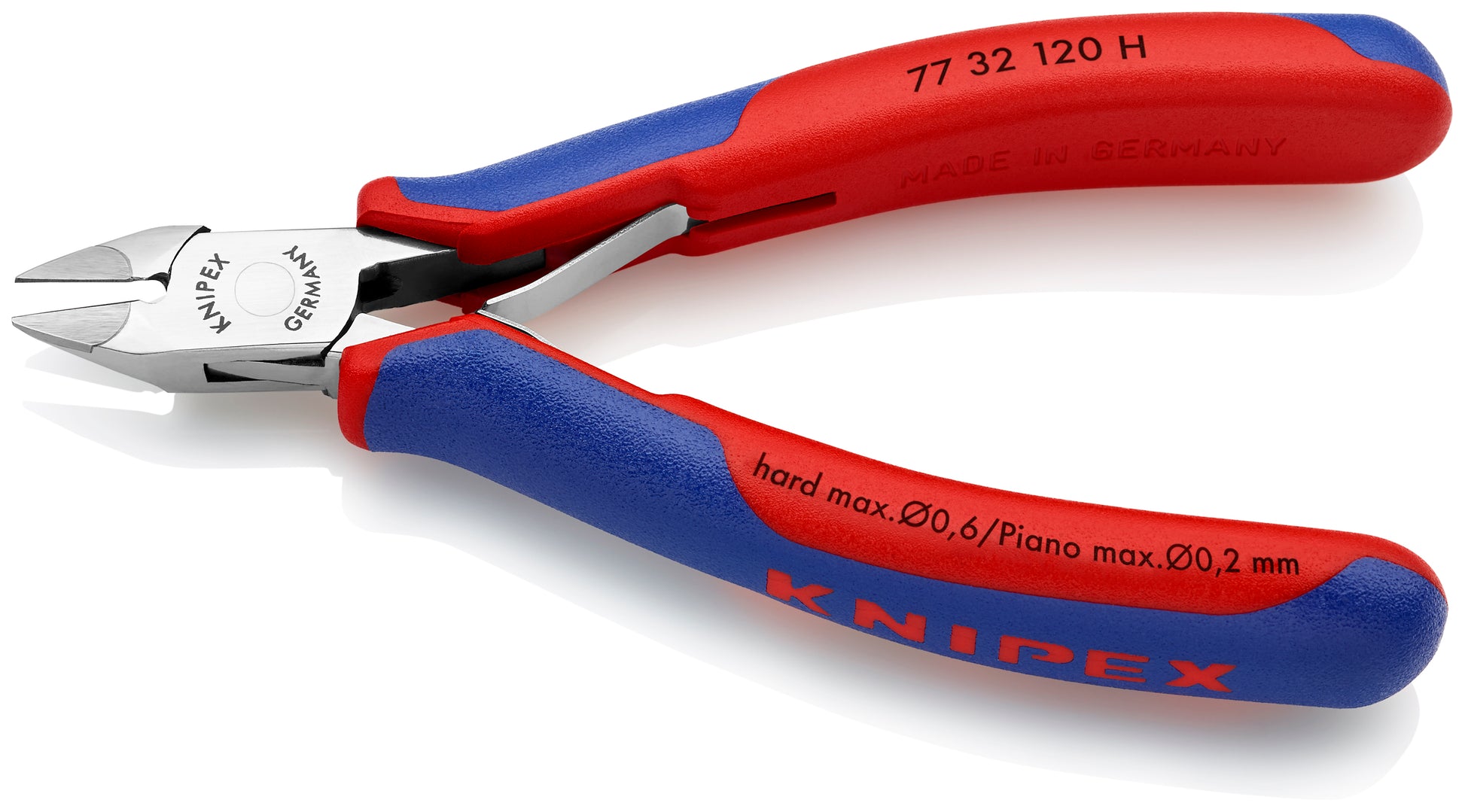

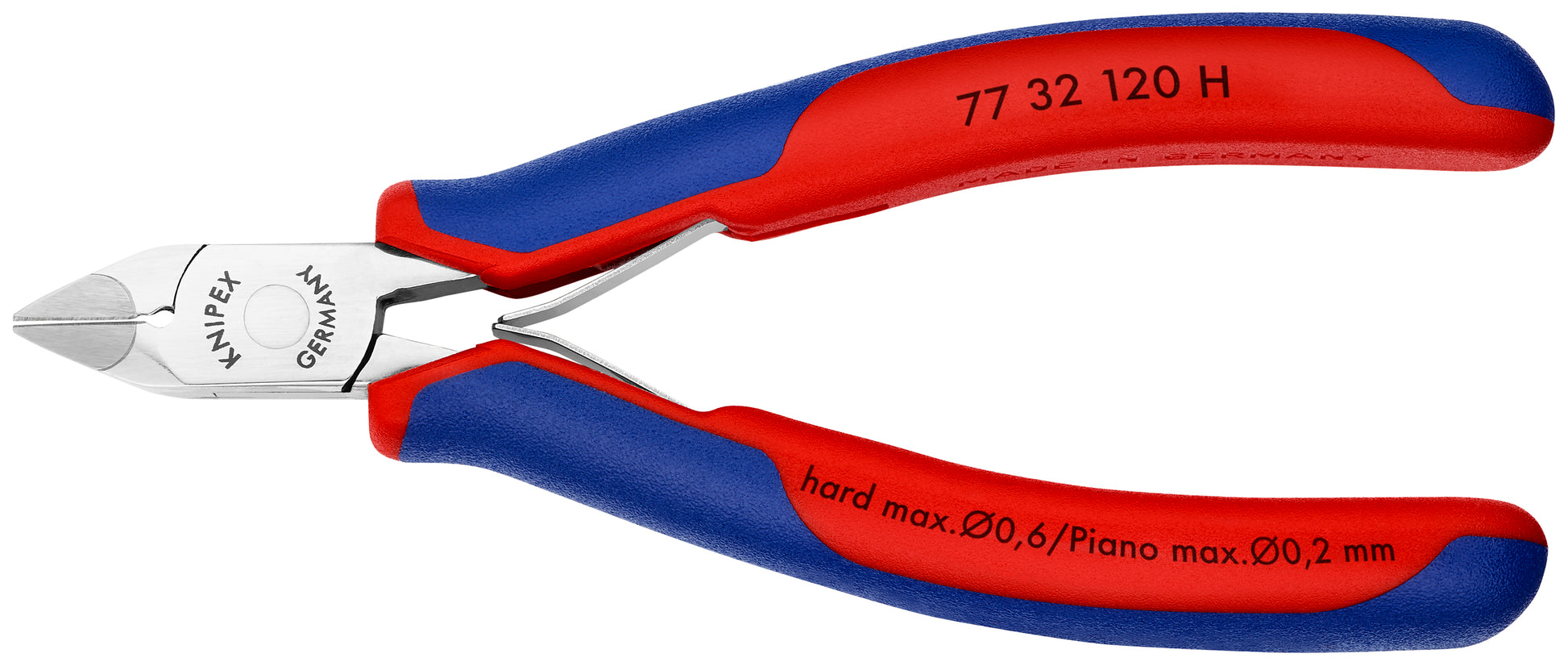

Knipex 77 32 120 H Electronics Diagonal Cutters-Carbide Metal Cutting Edges

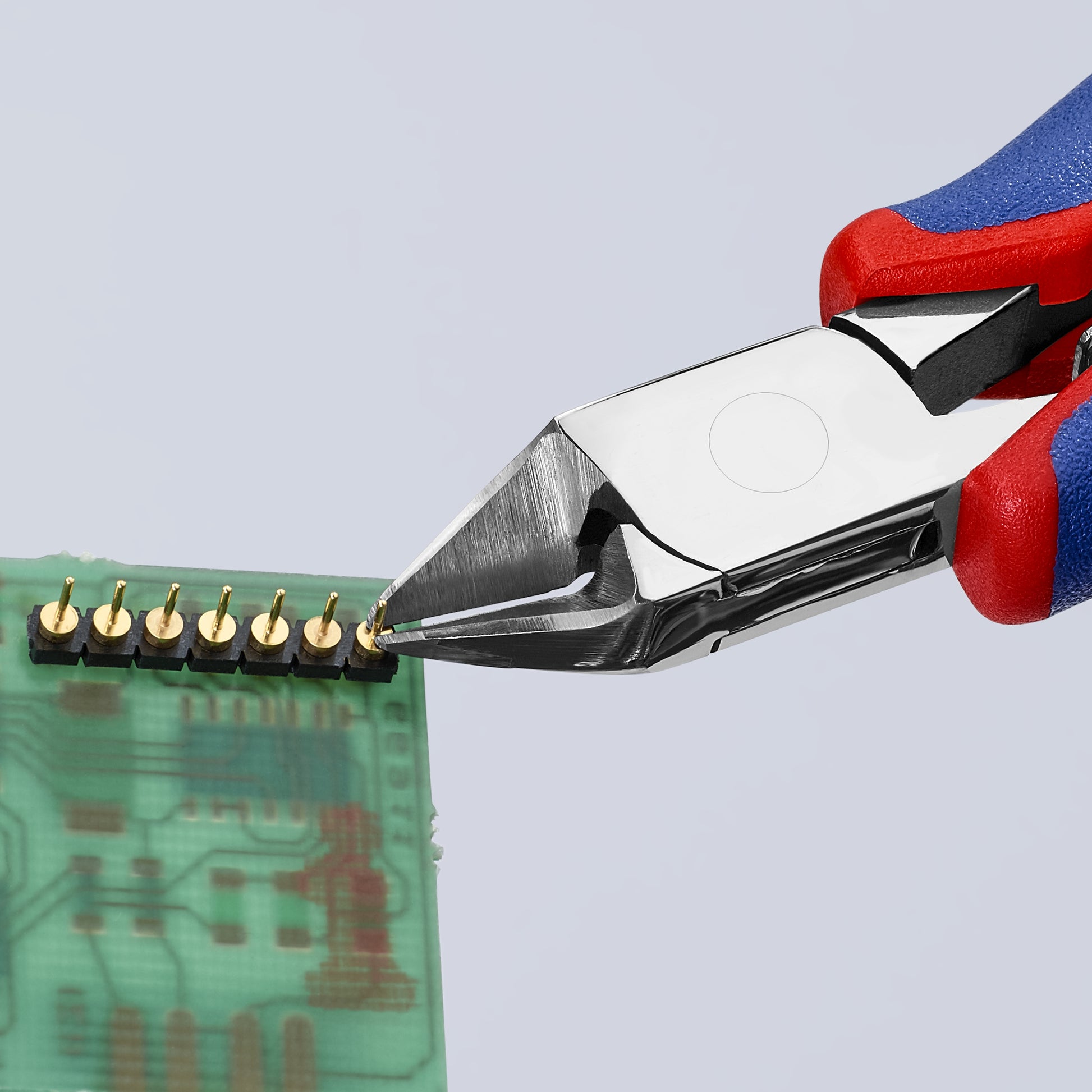

For fine cutting work in electronics and fine mechanics

Features

• All edges are smooth - less damage to surrounding components
• Pliers with carbide metal cutting edges have a substantially longer service life than with conventional cutting edges
• Low-friction double spring for gentle and even opening of the pliers
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.
• Great for general purpose cutting of wire and components
• Cutting edge hardness (approx. 80-83 HRC) for longer life and for more durable cutting

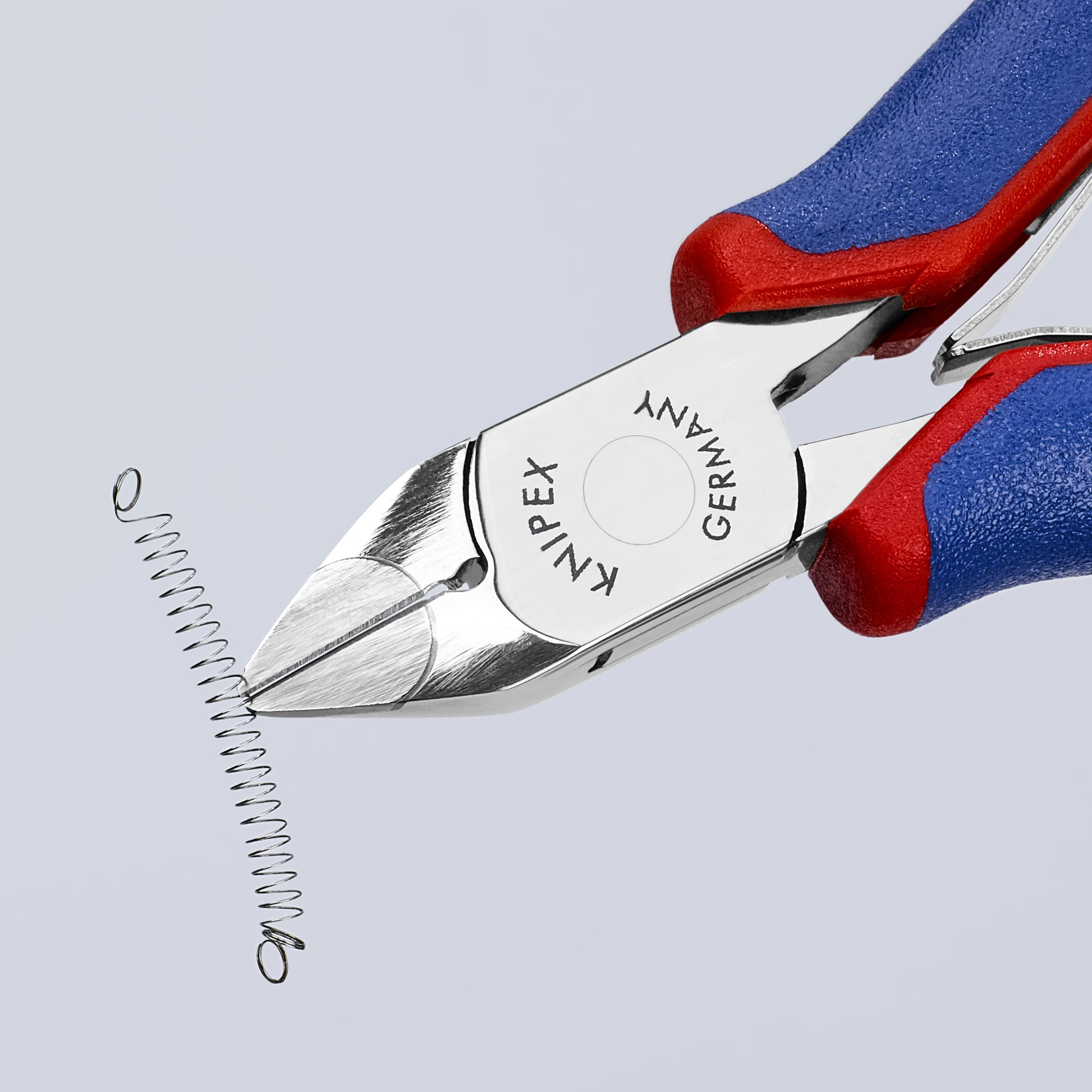

• Cutting capacity - 1/16" for soft wire, 1/32" for medium, 1/64" for hard wire and piano wire
• Constantly reliable cutting results due to the avoidance of cutter deformations

Specifications

• Manufacturer Part Number: 77 32 120 H
• Material Type: High grade special tool steel, forged, multi-stage oil-hardened
• Other Material Type: Carbide metal cutting edges
• Handle Type: Multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 4 3/4"
• Tool Nominal Length: 4.75"
• Tool Length: 4.6"
• Tool Width: 2"
• Tool Height: 0.75"
• Tool Weight: 77 g (0.17 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 9/16"
• Jaw Width: 7/16"
• Jaw Thickness: 19/64"
• Tip Width: 7/16"
• Tip Thickness: 19/64"
• Head Style: Tapered

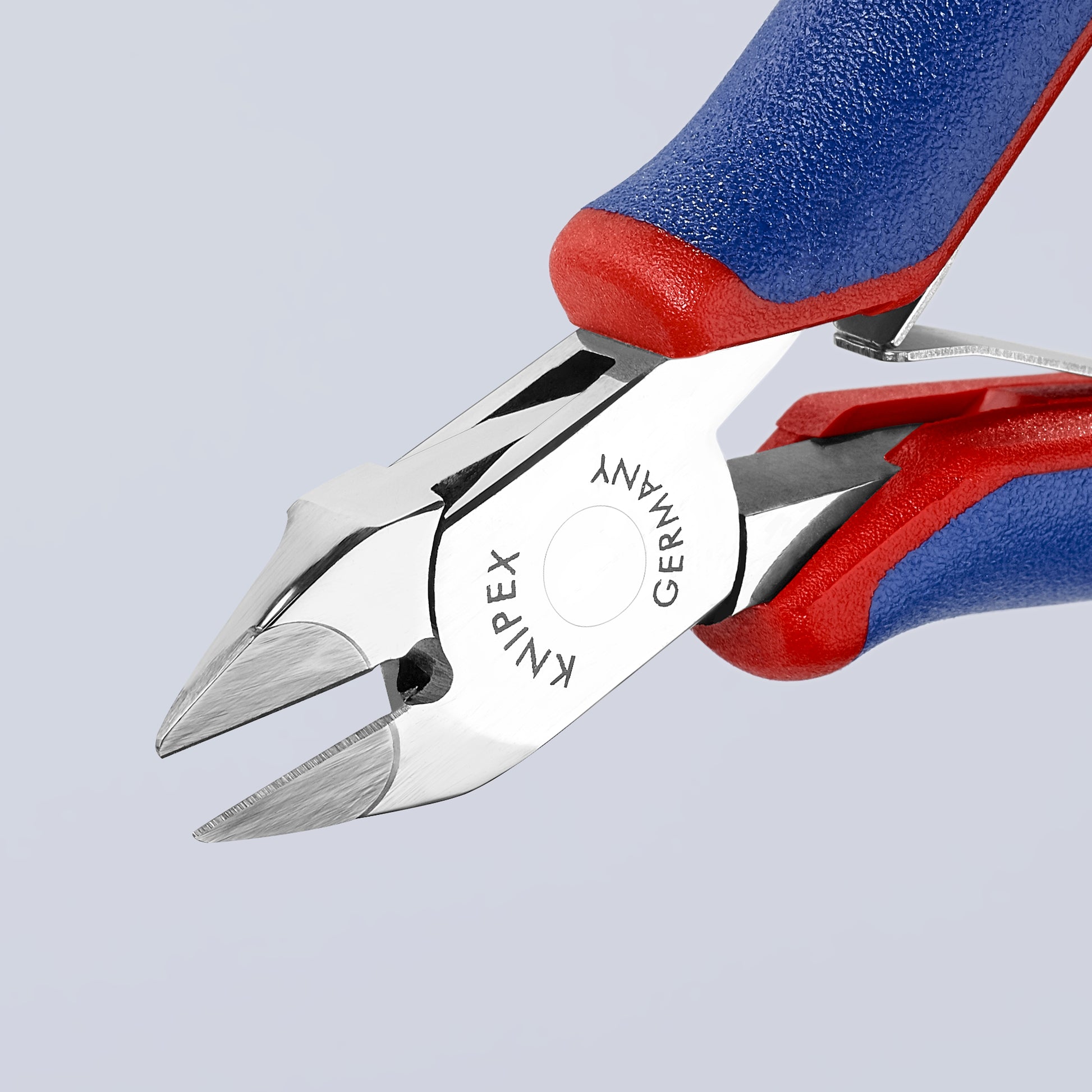

• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 80 to 83 HRC
• Cutting Capacity - Soft Wire: 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 1/32"
• Cutting Capacity - Hard Wire (Steel Wire): 1/64"
• Cutting Capacity - Piano Wire: 1/64"
• Blade Length: 9/16"
• UPC: 843221020590
