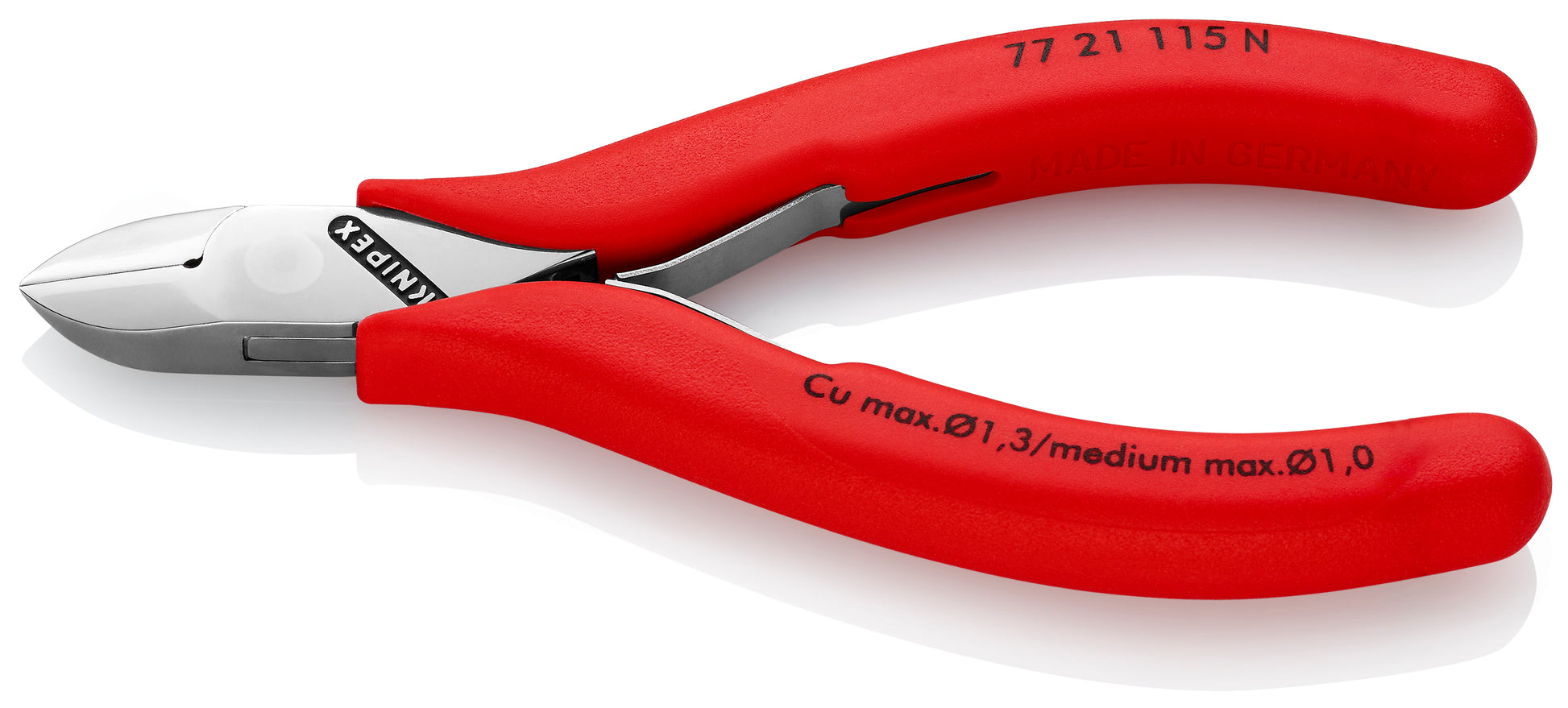

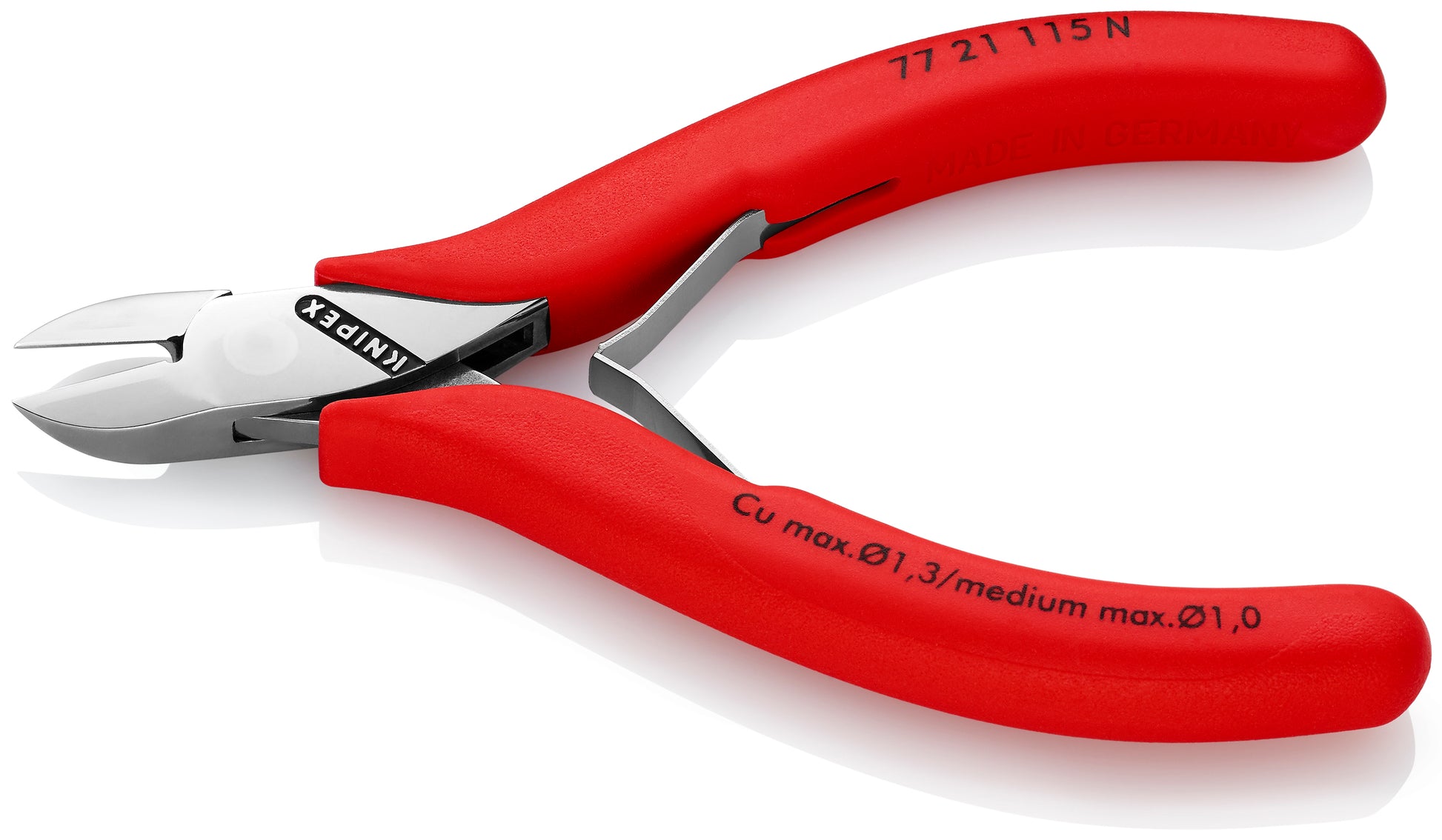

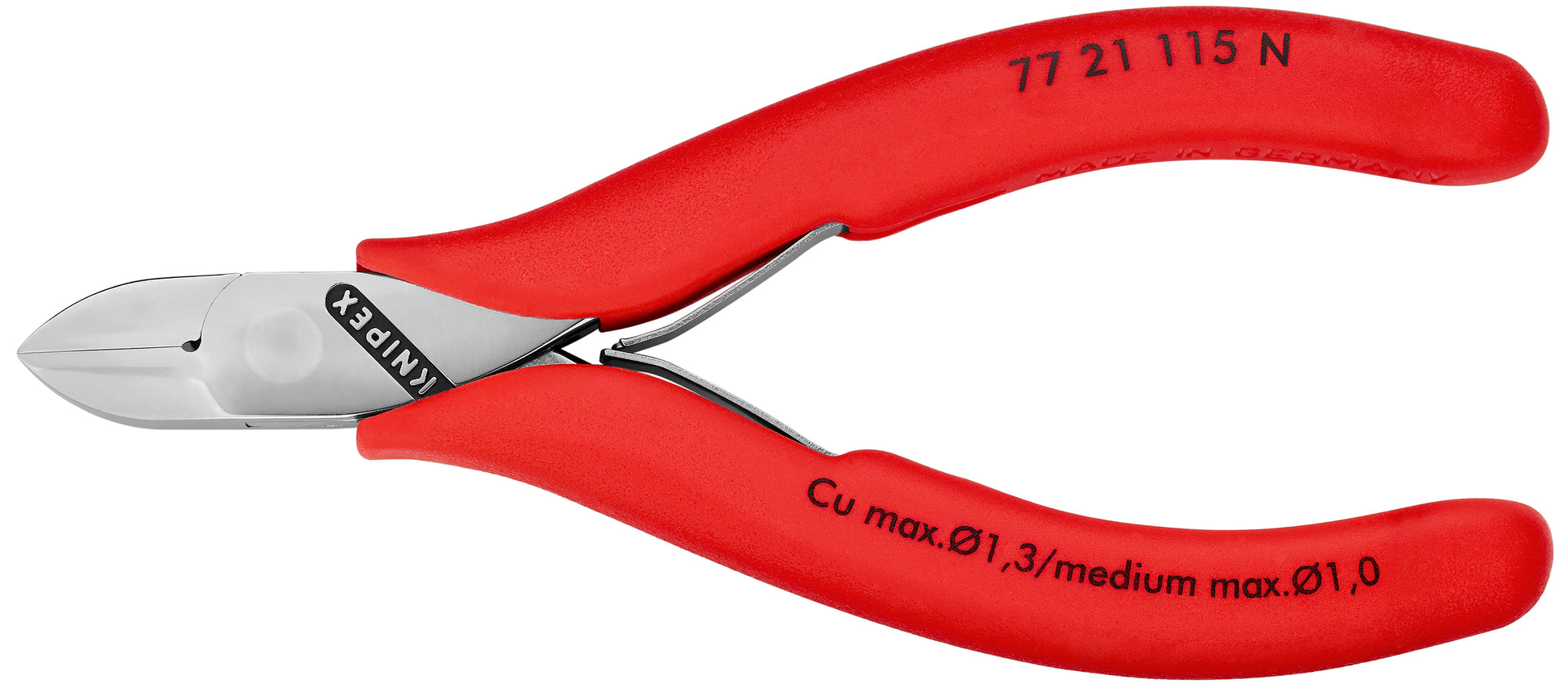

Knipex 77 21 115 N Electronics Diagonal Cutters

For fine cutting work in electronics and fine mechanics

Features

• All edges are smooth - less damage to surrounding components
• Low-friction double spring for gentle and even opening of the pliers
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.

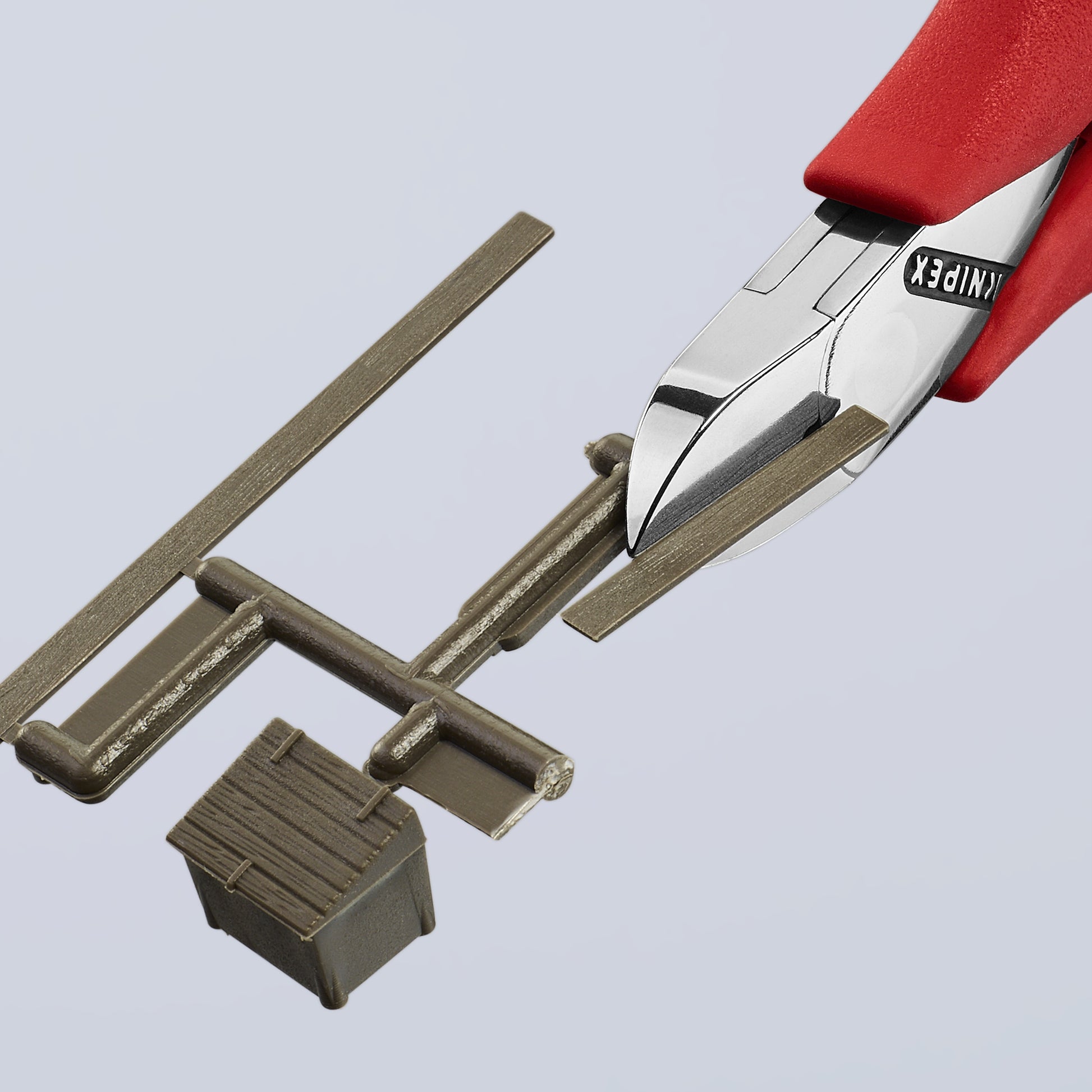

• Great for general purpose cutting of wire and components
• Cutting edge hardness (approx. 60 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 3/64" for soft wire and up to 3/64" for medium wire
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Specifications

• Manufacturer Part Number: 77 21 115 N
• Material Type: Ball Bearing Steel
• Handle Type: Single component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.4"
• Tool Width: 1.875"
• Tool Height: 0.56"
• Tool Weight: 50 g (0.11 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 35/64"
• Jaw Width: 7/16"
• Jaw Thickness: 9/32"
• Tip Width: 7/16"
• Tip Thickness: 9/32"
• Head Style: Oval

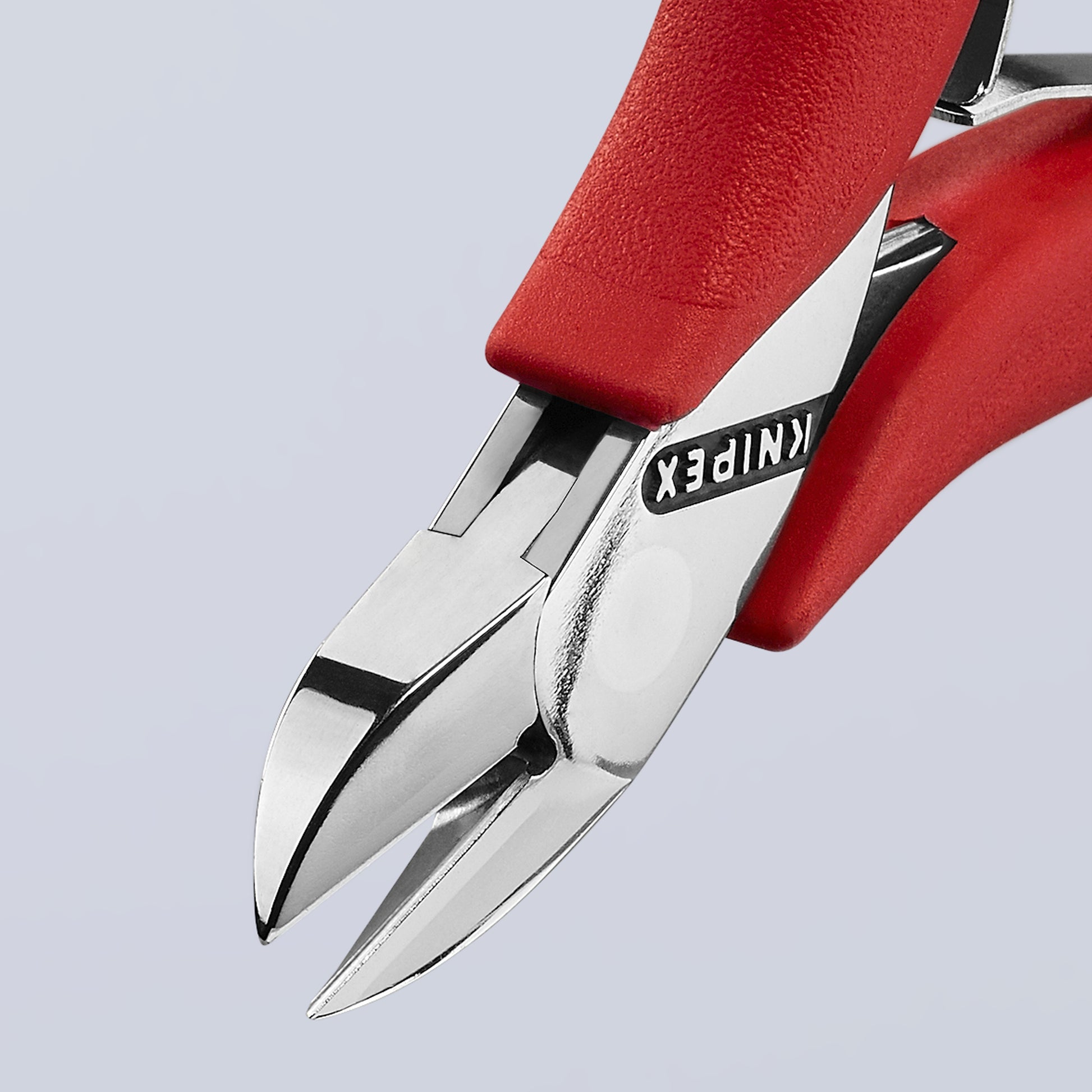

• Cutting Edge Shape: Flush
• Cutting Edge HRC: Approx. 57 HRC
• Cutting Capacity - Soft Wire: 1/64" to 3/64"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Blade Length: 33/64"
• UPC: 843221023713
