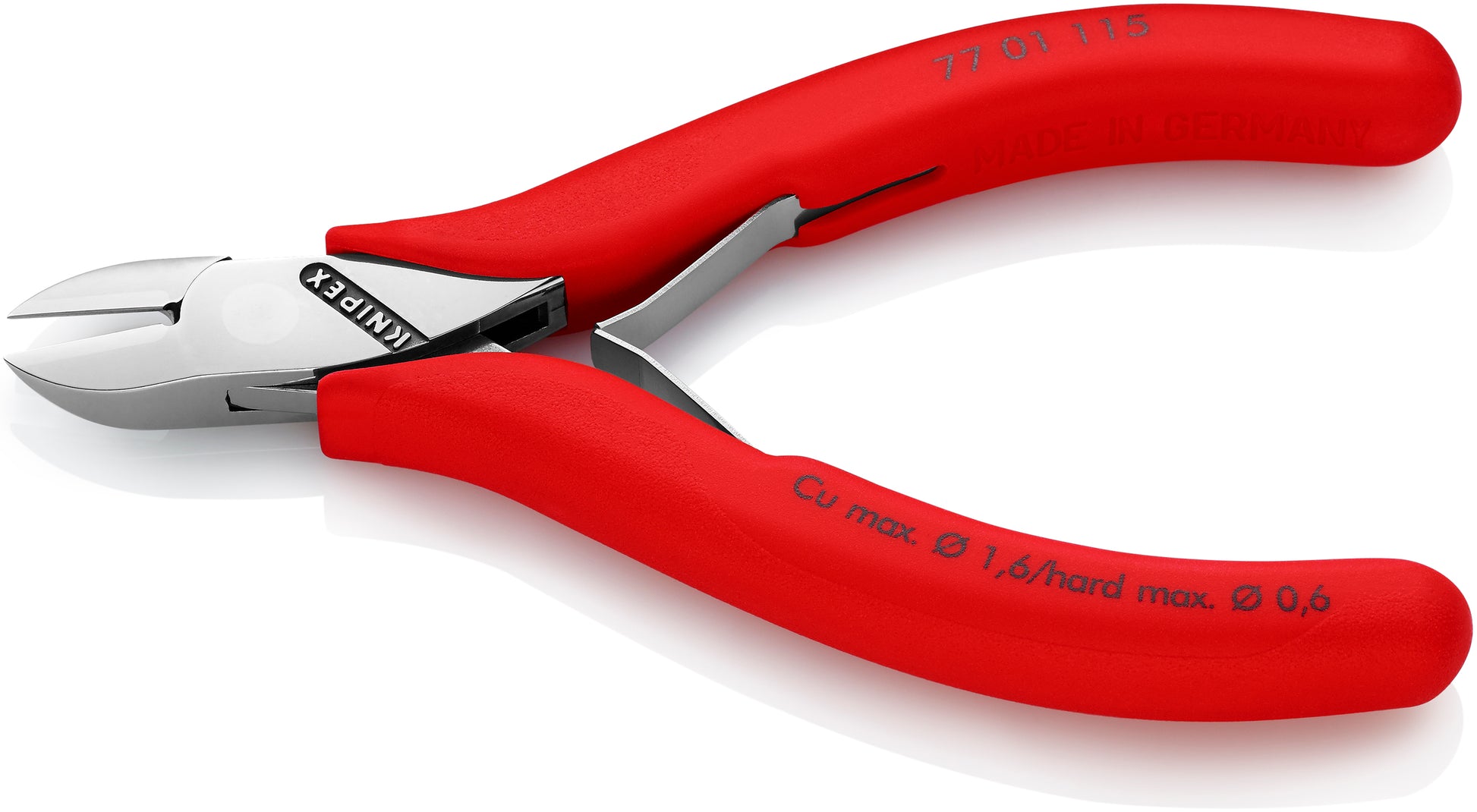

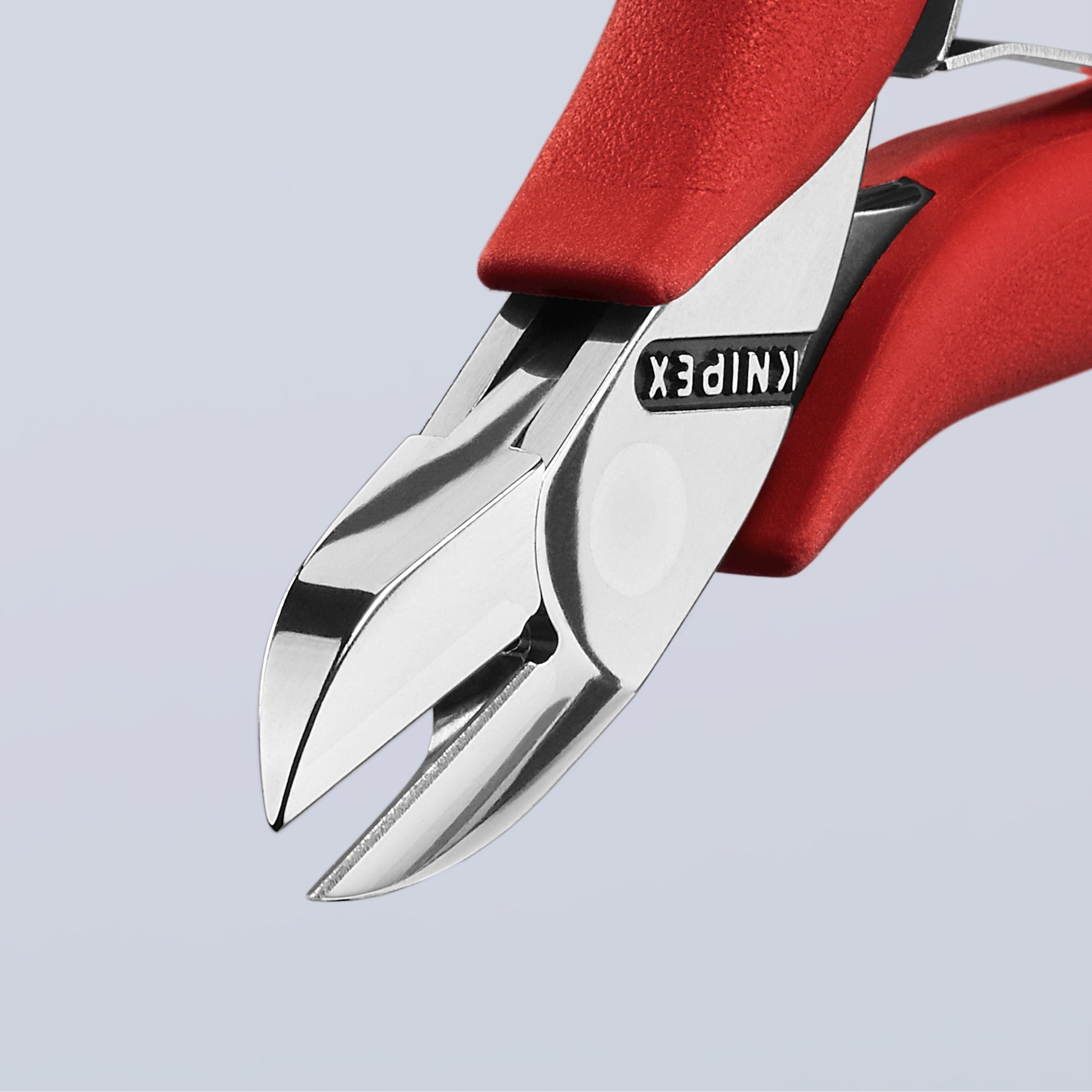

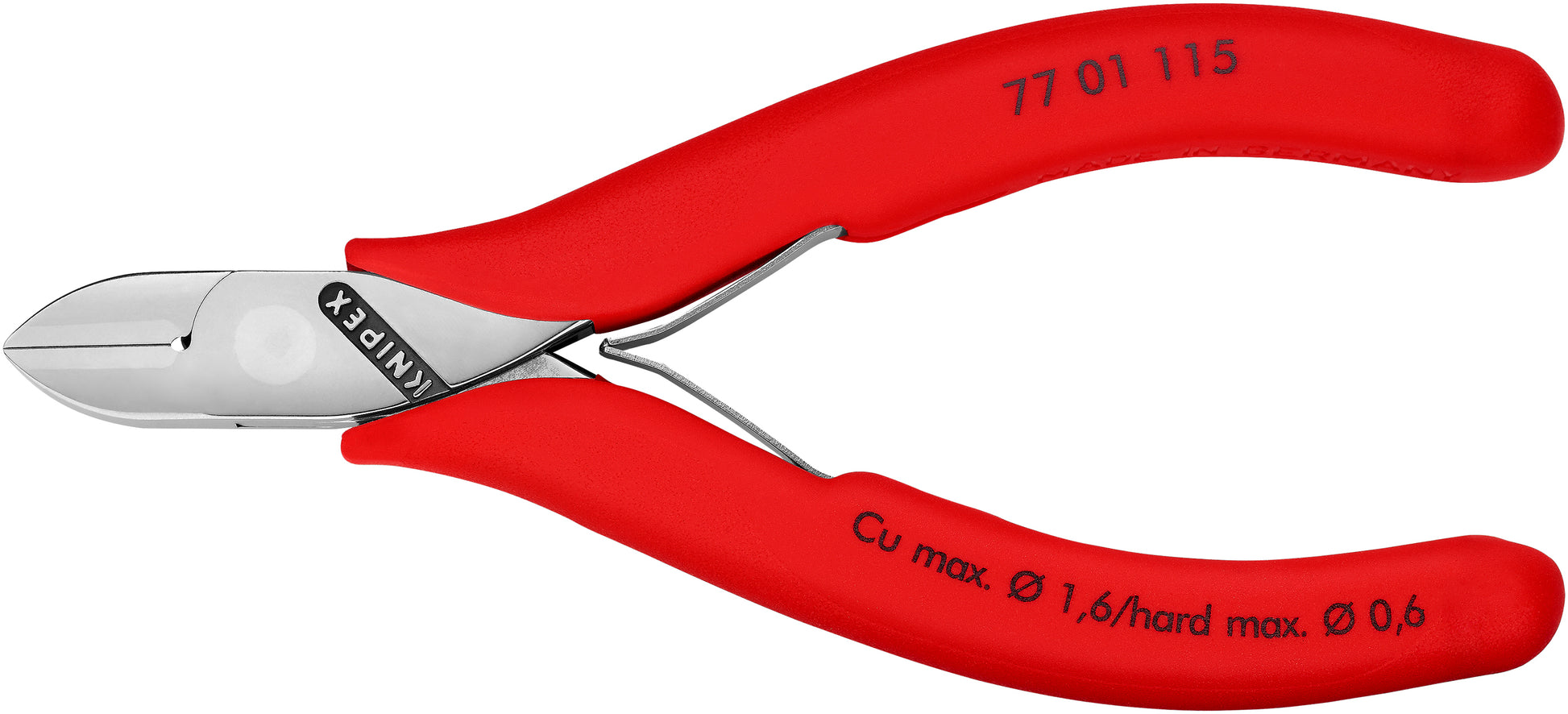

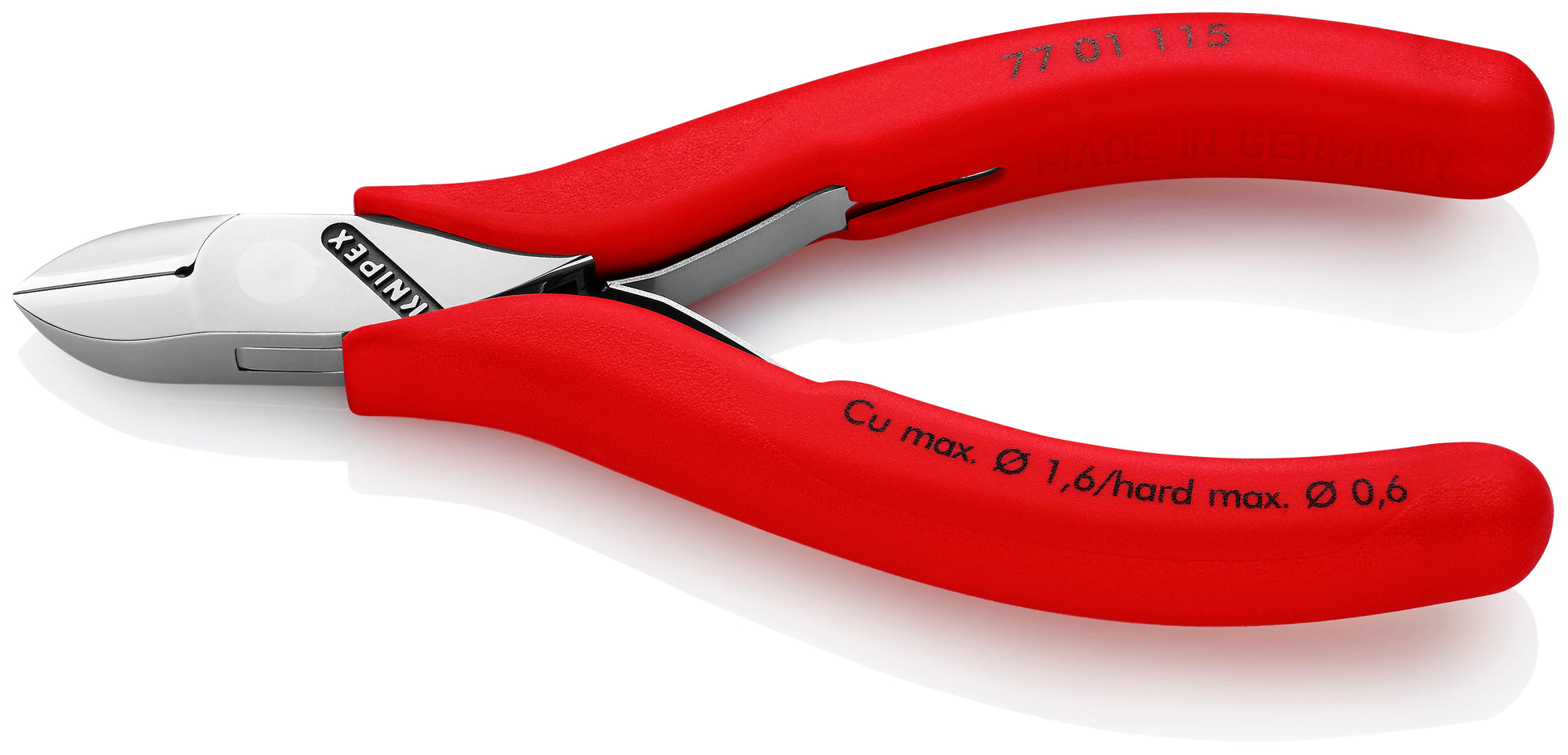

Knipex 77 01 115 Electronics Diagonal Cutters

For fine cutting work in electronics and fine mechanics

Features

• All edges are smooth - less damage to surrounding components
• Low-friction double spring for gentle and even opening of the pliers
• The bolted joint provides the most precision and a permanently even cutting movement making it a perfect fit for repetitive type applications.

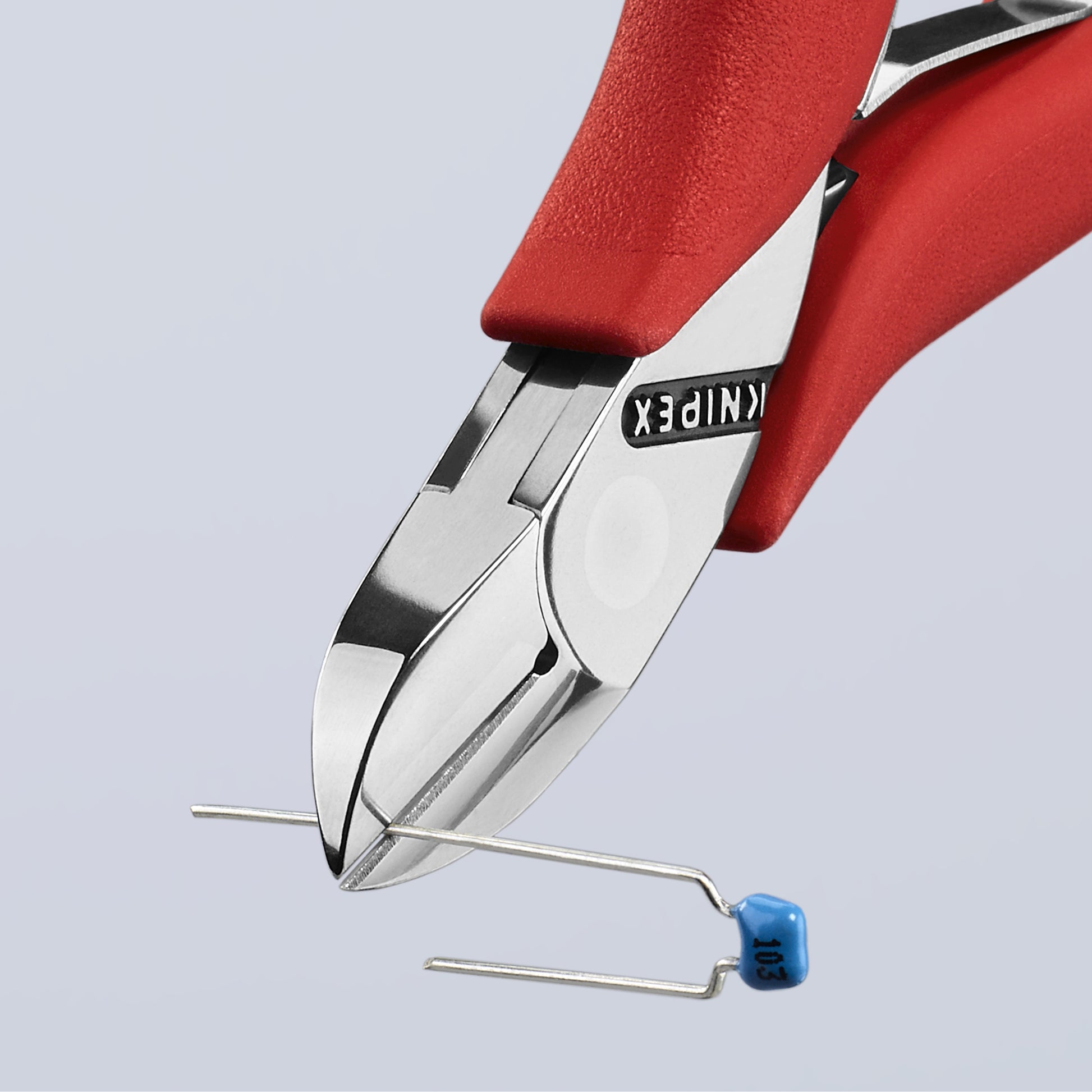

• Great for general purpose cutting of wire and components
• Cutting edge hardness (approx. 60 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Specifications

• Manufacturer Part Number: 77 01 115
• Material Type: Ball Bearing Steel
• Handle Type: Single component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.45"
• Tool Width: 1.94"
• Tool Height: 0.55"
• Tool Weight: 68 g (0.15 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 35/64"
• Jaw Width: 7/16"
• Jaw Thickness: 19/64"
• Tip Width: 7/16"
• Tip Thickness: 19/64"
• Head Style: Oval
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 62 HRC
• Cutting Capacity - Soft Wire: 1/64" to 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/64"
• Blade Length: 35/64"
• UPC: 843221013448
