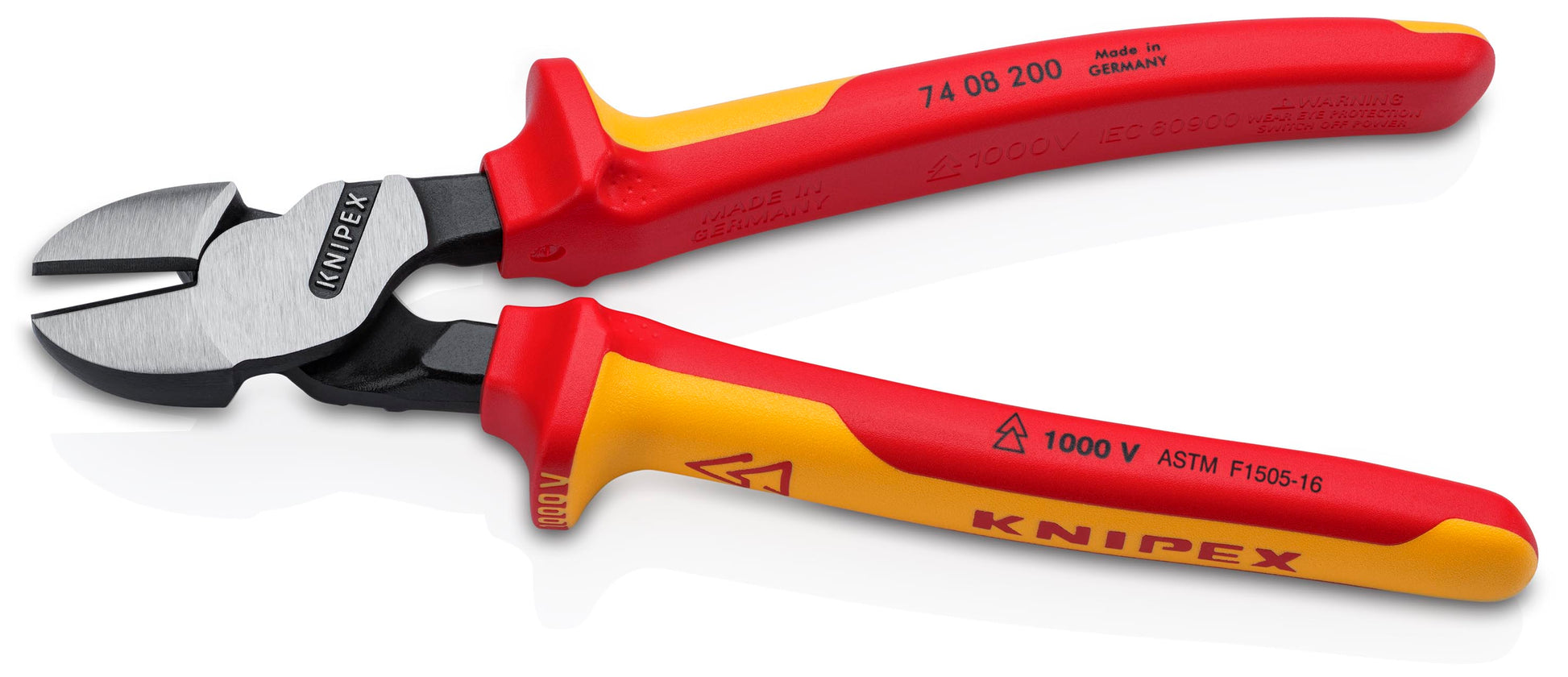

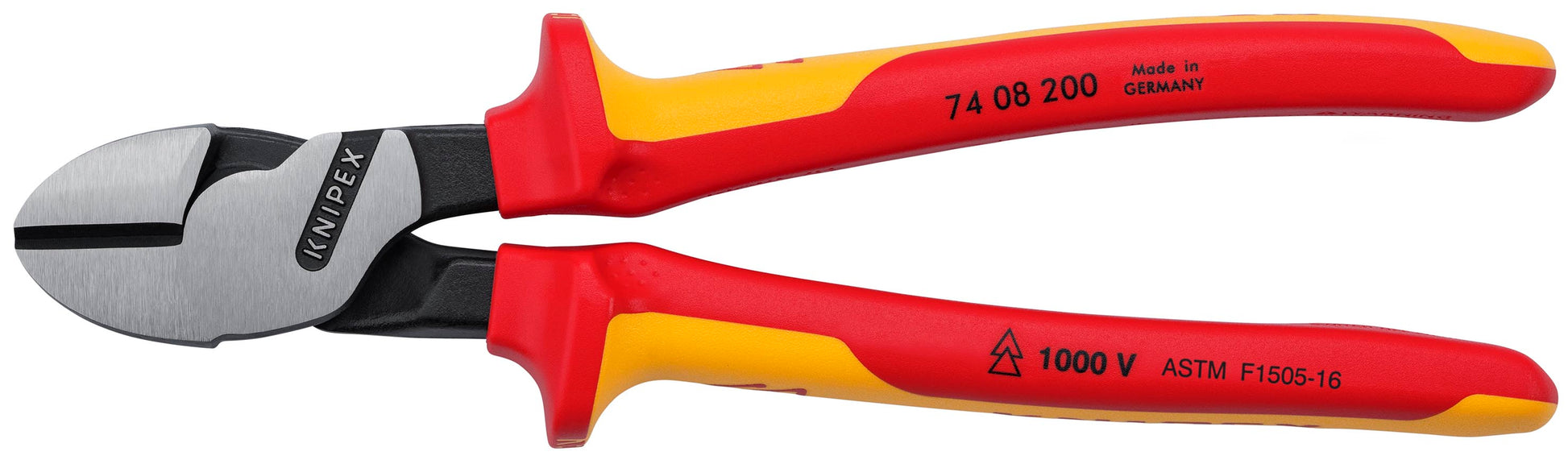

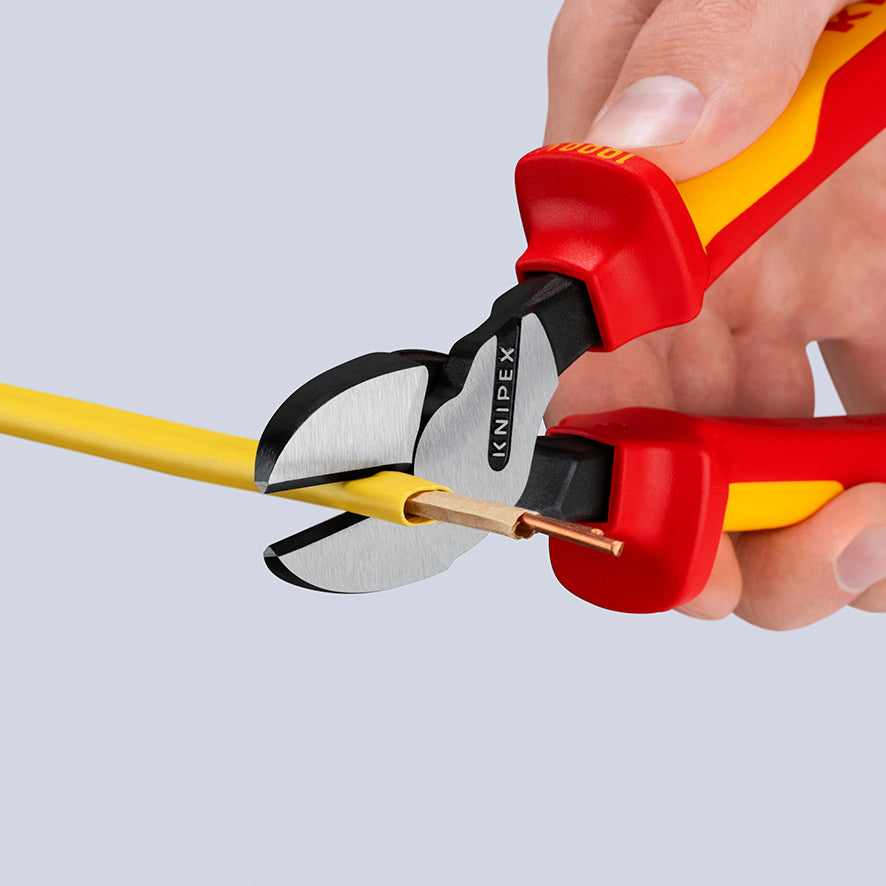

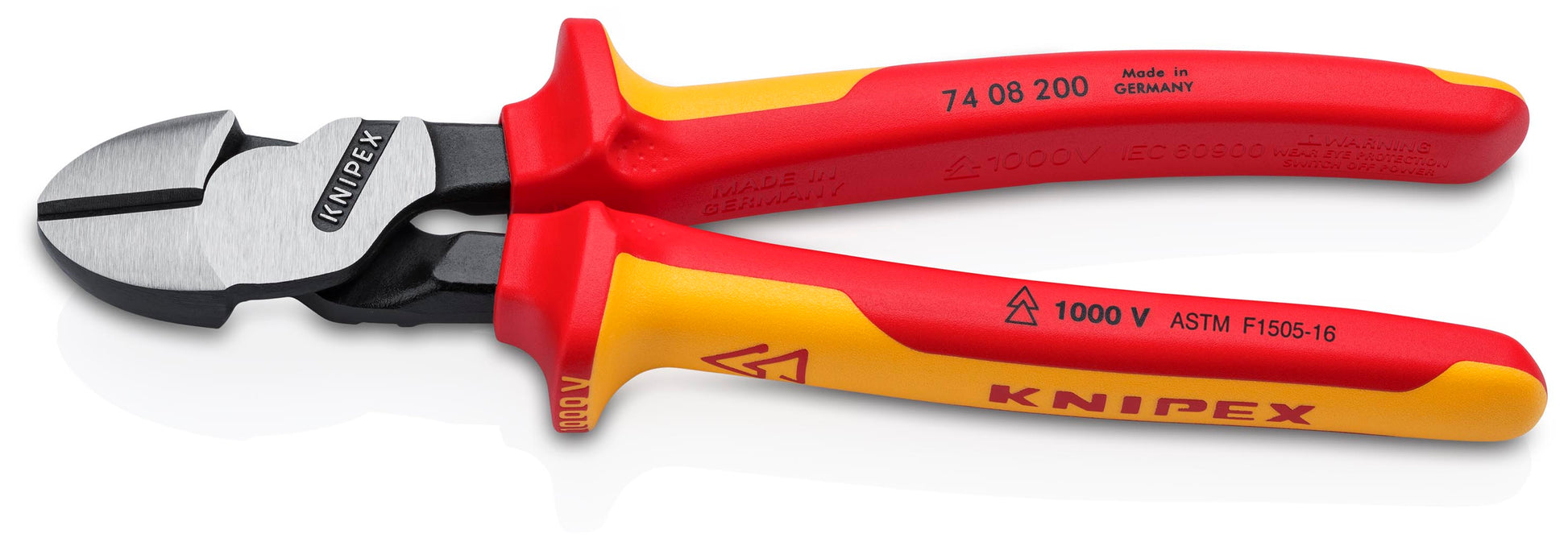

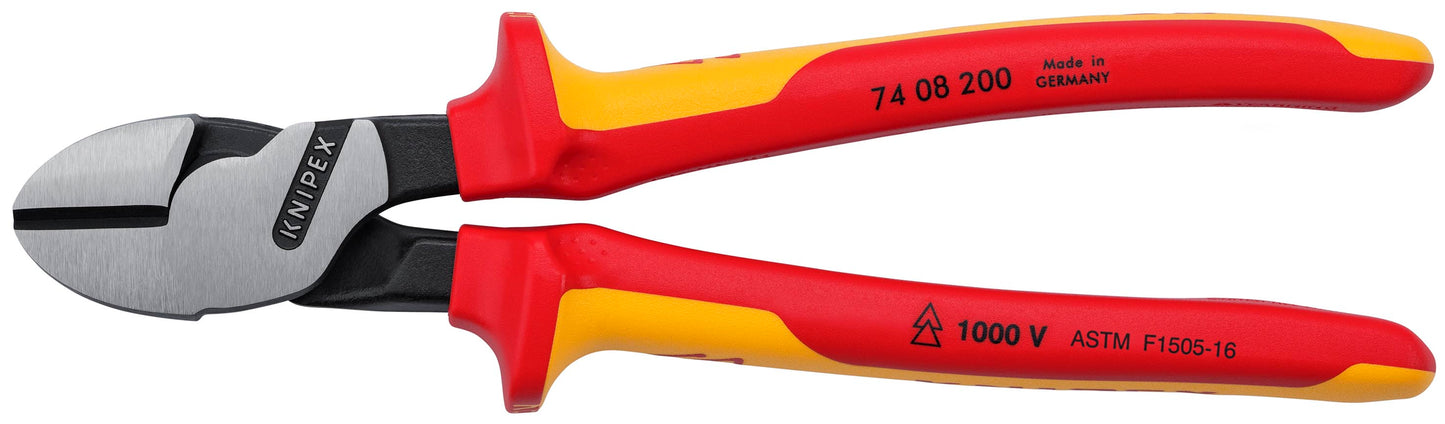

Knipex 74 08 200 US High Leverage Diagonal Cutters-1000V Insulated

Riveted joint, closer to cutting edges, requires 20% less cutting effort

Features

• For very tough, continuous use
• Superior cutting performance with reduced user effort, achieved by precisely aligning the cutting‑edge angle with an optimized transmission ratio
• Precision cutting edges induction-hardened (approx. 64 HRC) cut several types of wire including piano wire
• 1000V multi-component grips, ASTM F1505-tested
• Chrome vanadium heavy-duty steel; forged, multi-stage oil-hardened
• TOOL HAS RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 74 08 200 US
• Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: Yes
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red|Yellow
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8.1"
• Tool Width: 2.25"
• Tool Height: 1.1"
• Tool Weight: 306 g (0.675 lb)
• Joint Type: Rivet
• Cutting Edge Shape: Bevel
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Medium Hard Wire (Nail): 11/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/8"
• Cutting Capacity - Piano Wire: 3/32"
• Set Part Number: 9K 98 98 21 US|9K 00 80 03 US|9K 98 98 25 US|9K 98 98 27 US|9K 98 98 30 US|9K 98 98 31 US|9K 00 80 06 US|9K 00 80 142 US
• UPC: 843221005122
