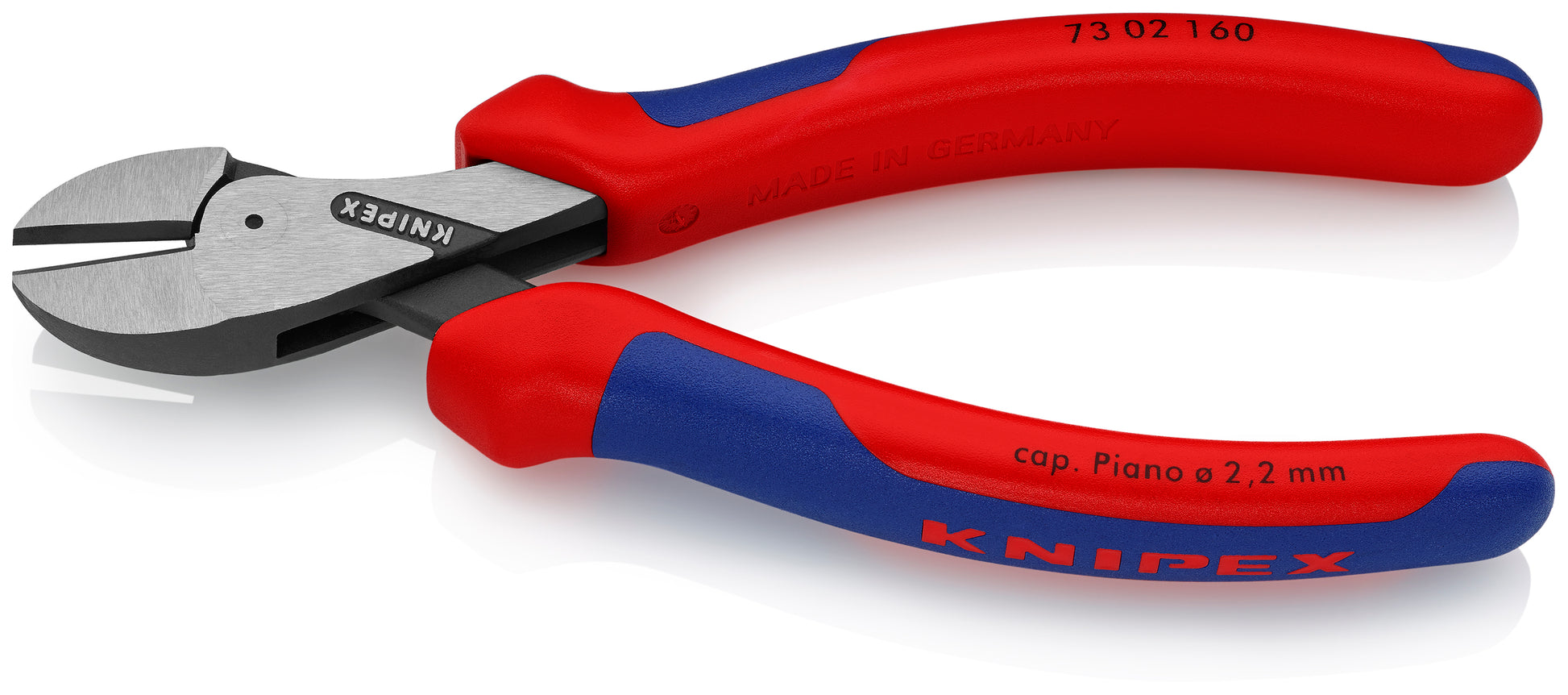

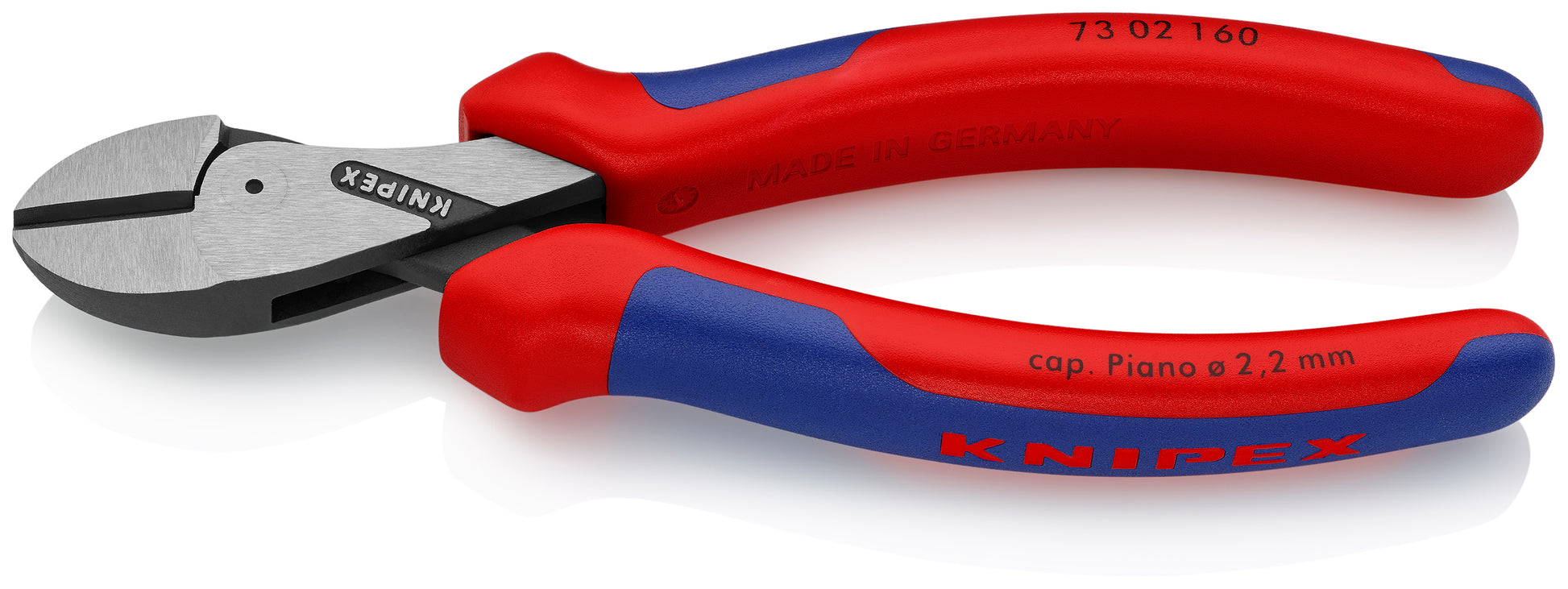

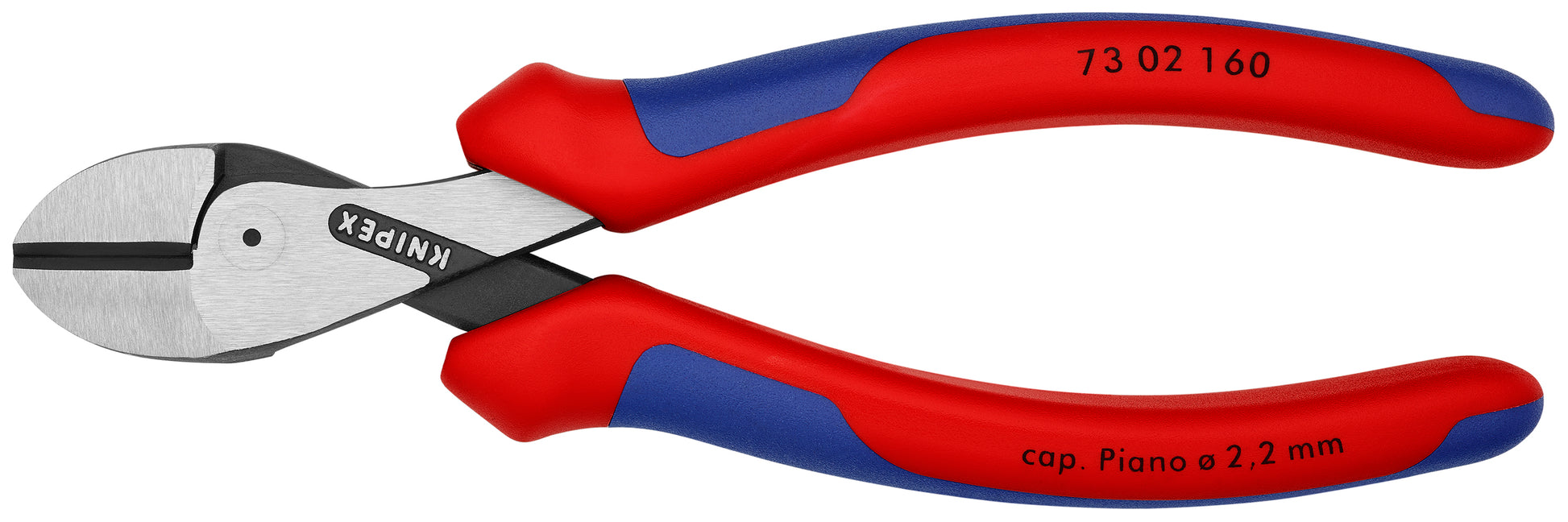

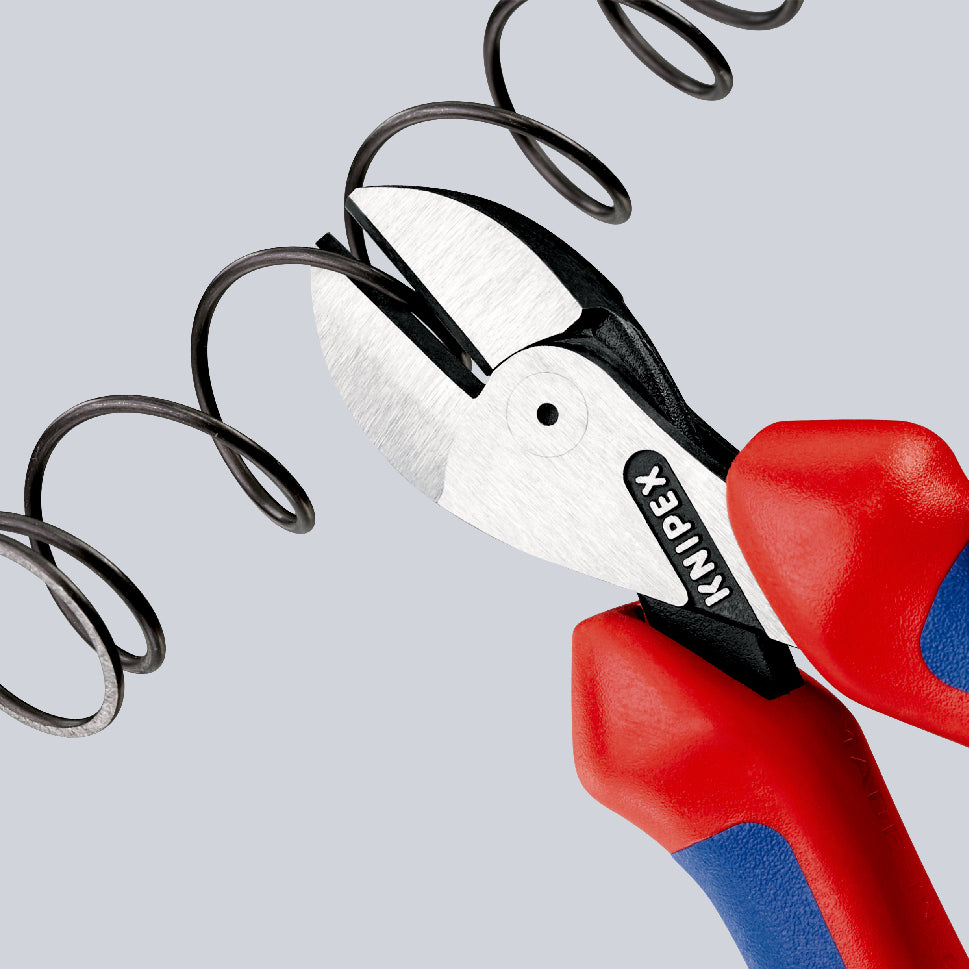

Knipex 73 02 160 X-Cut® Compact Diagonal Cutters

40% less effort required compared to diagonal cutters of the same length

Features

• Powerful, light weight and a universal cutter

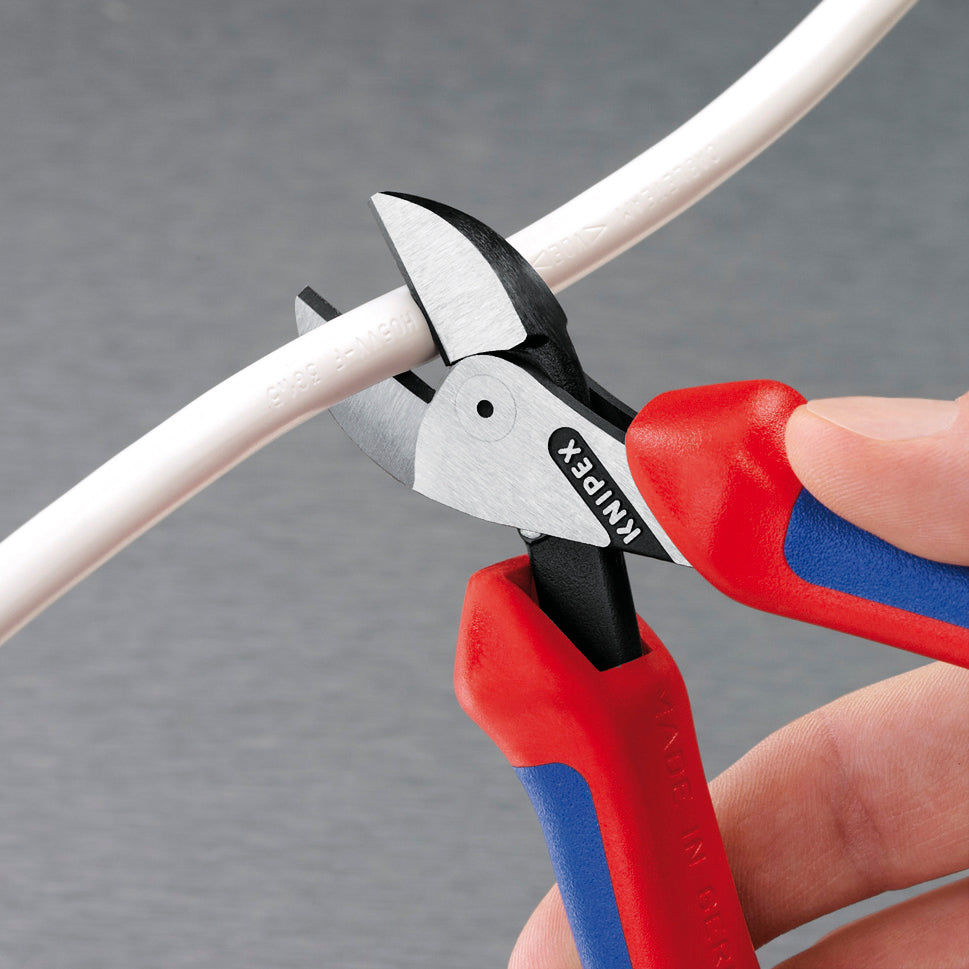

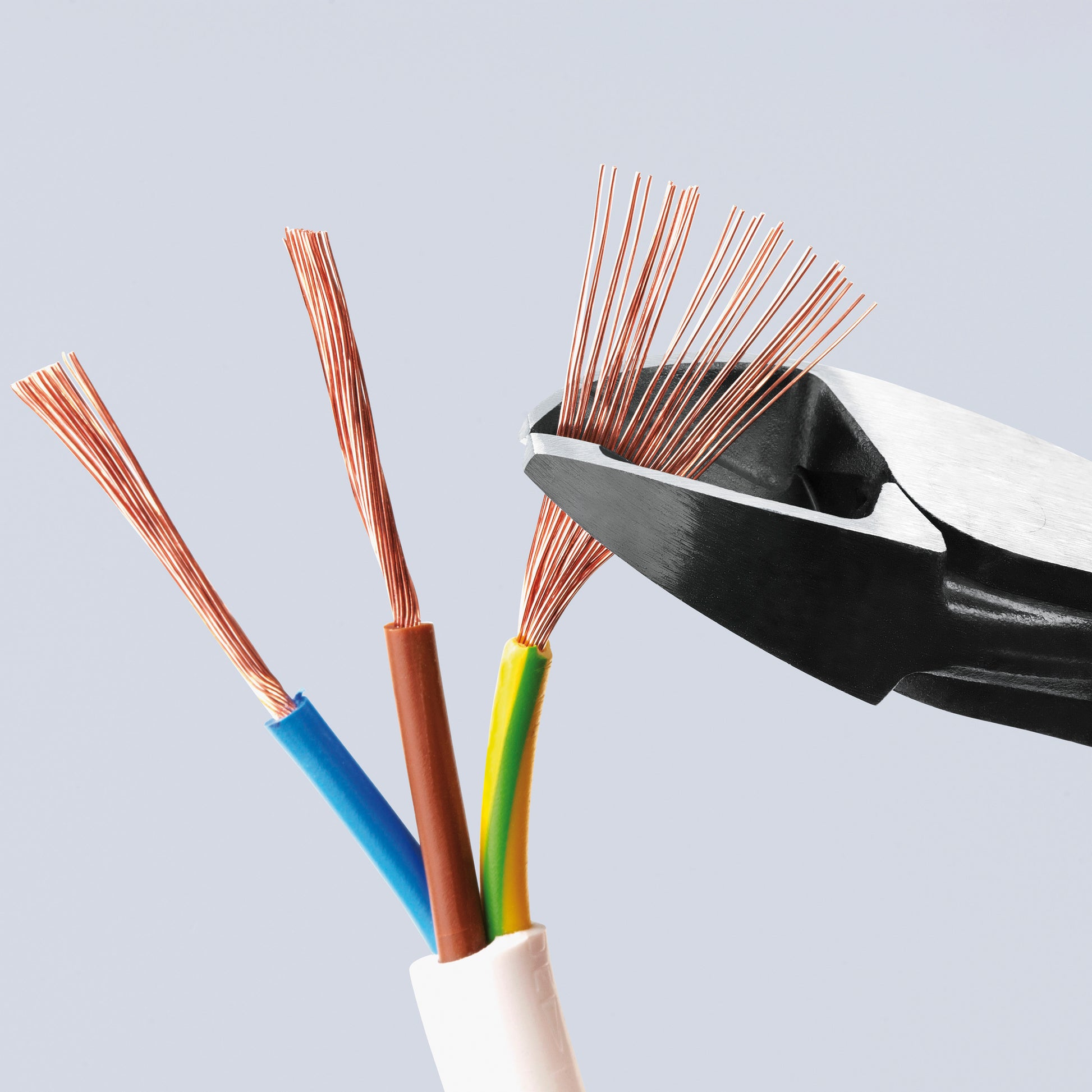

• Cuts fine strands as well as multi-stranded cables and piano wires
• Box-joint design for highest stability and lightweight
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Large opening width for thicker cables

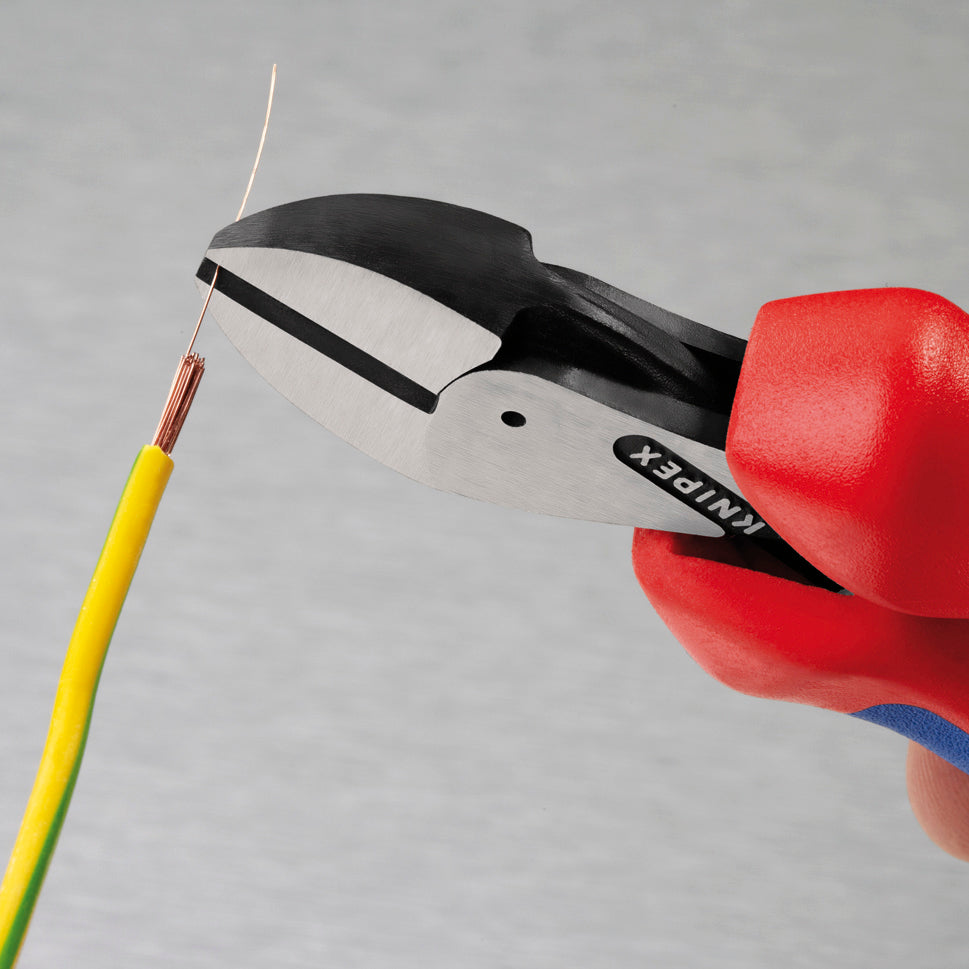

• Cuts all wires precisely, even fine copper wires
• Compact, low weight construction
• Double supported joint axis for heavy-duty work

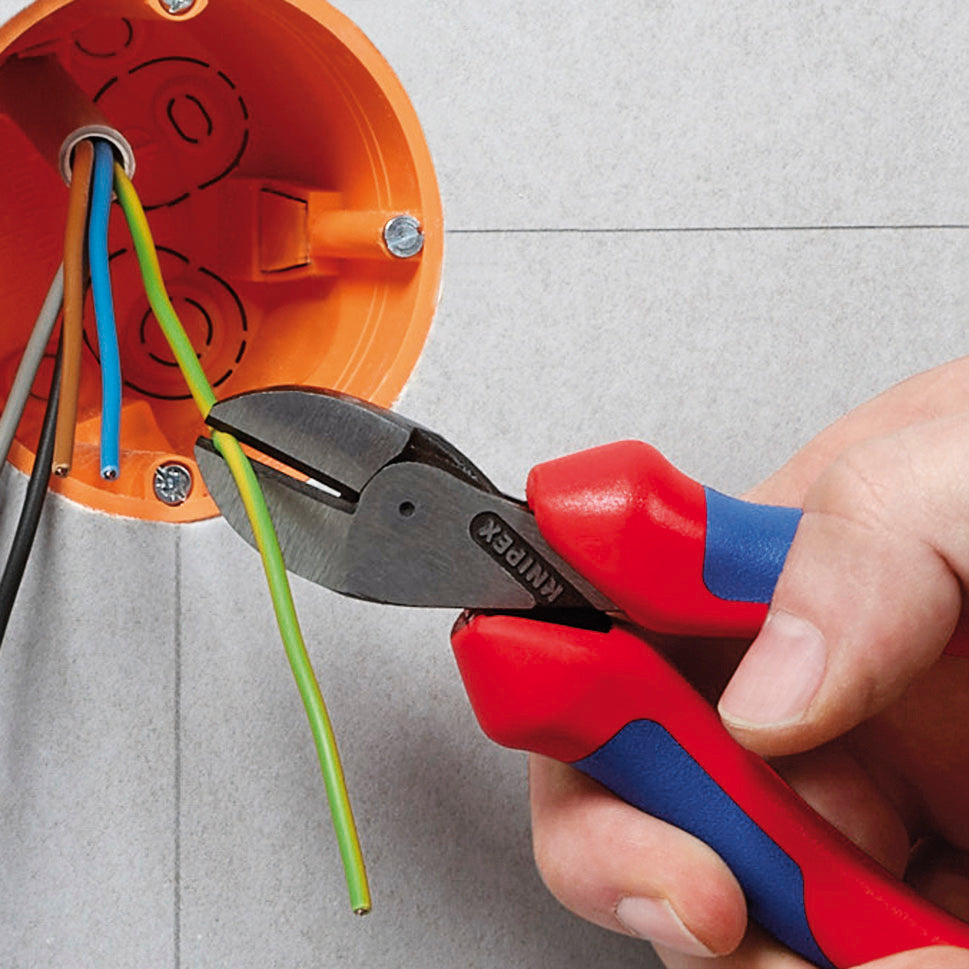

• Universal usage in the assembly, maintenance and production
• Cutting capacity - up to 3/16" for soft, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
• Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened

Specifications

• Manufacturer Part Number: 73 02 160
• Sub Brand Name: X-Cut®
• Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 6 1/4"
• Tool Nominal Length: 6.25"
• Tool Length: 6.55"
• Tool Width: 2.1"
• Tool Height: 0.9"
• Tool Weight: 177 g (0.39 lb)
• Joint Type: Box-joint with rivet
• Cutting Edge Shape: Bevel
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Soft Wire: 3/16"

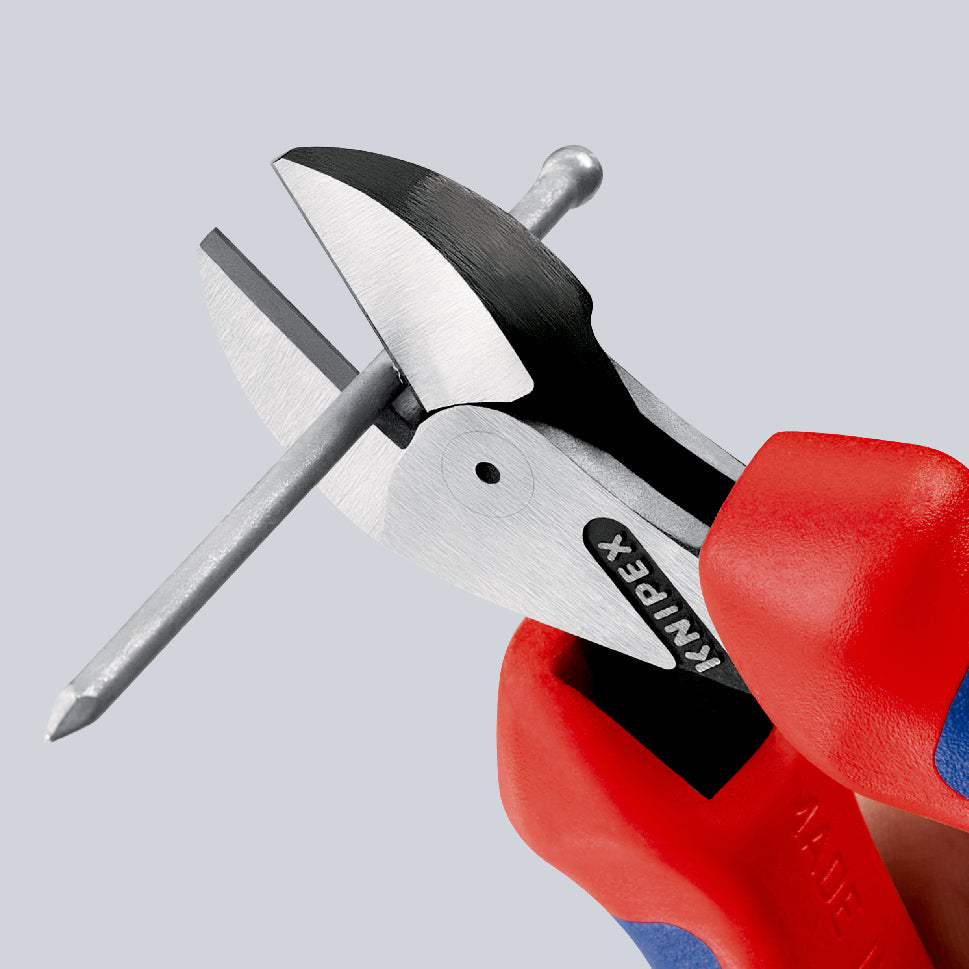

• Cutting Capacity - Medium Hard Wire (Nail): 5/32"
• Cutting Capacity - Hard Wire (Steel Wire): 7/64"
• Cutting Capacity - Piano Wire: 3/32"
• Cutting Capacity - Cu and Al conductor: 15/32"
• UPC: 843221020101
