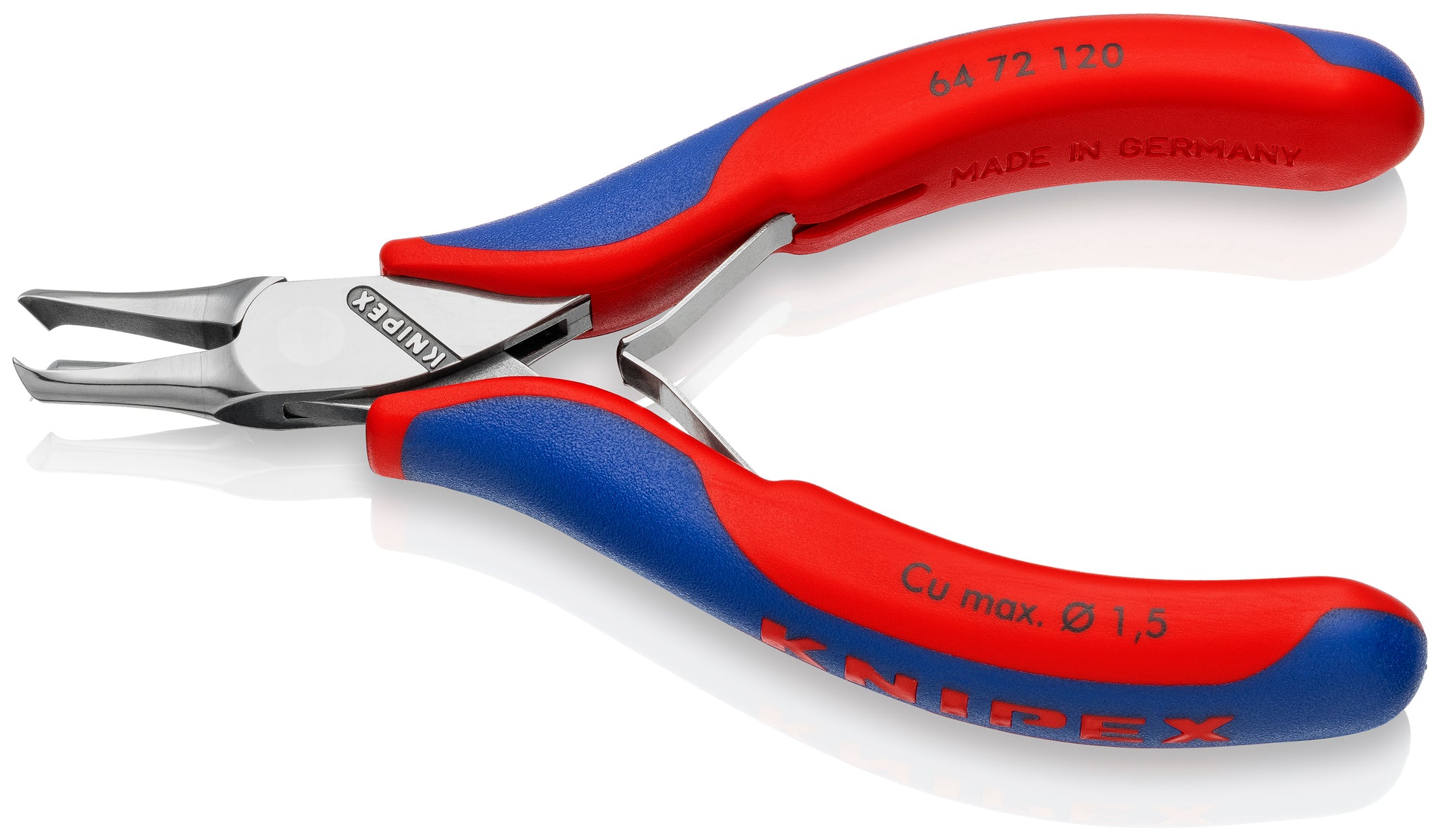

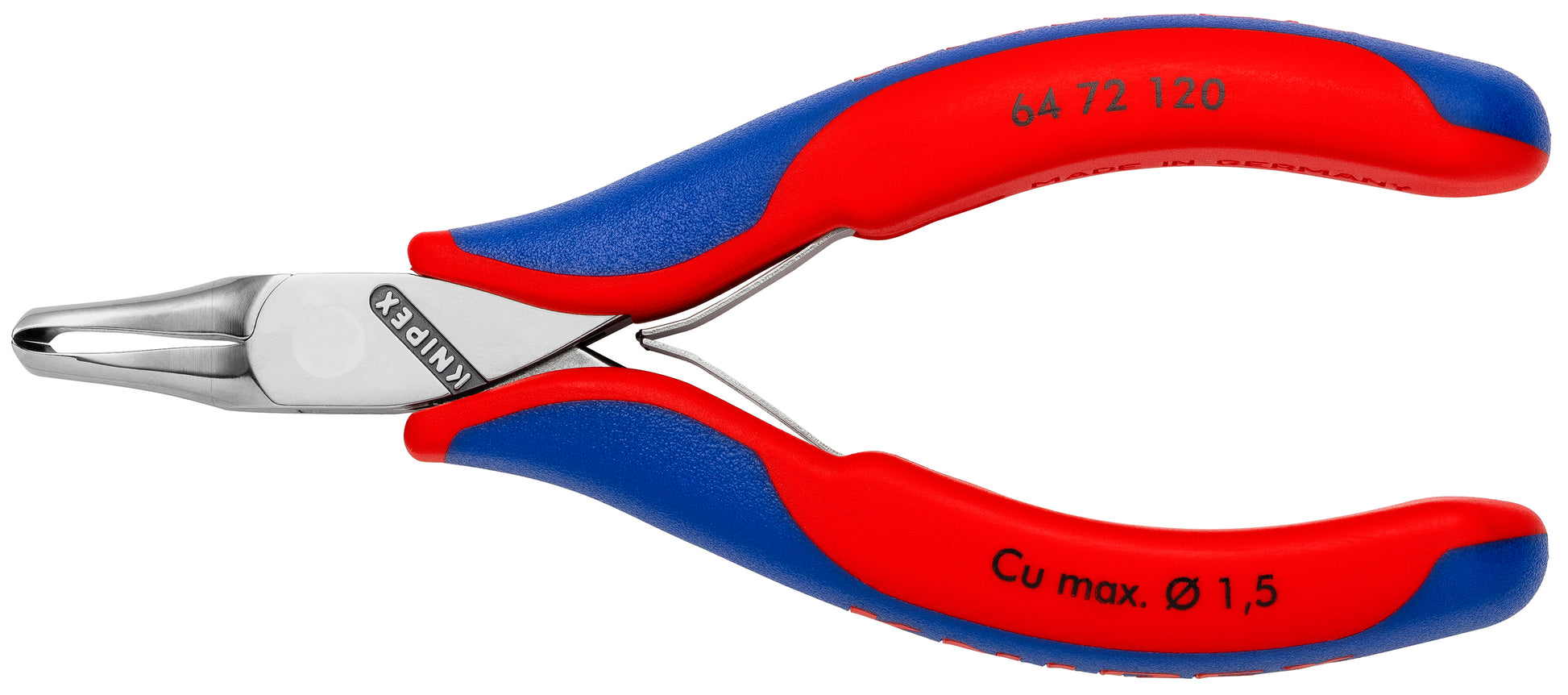

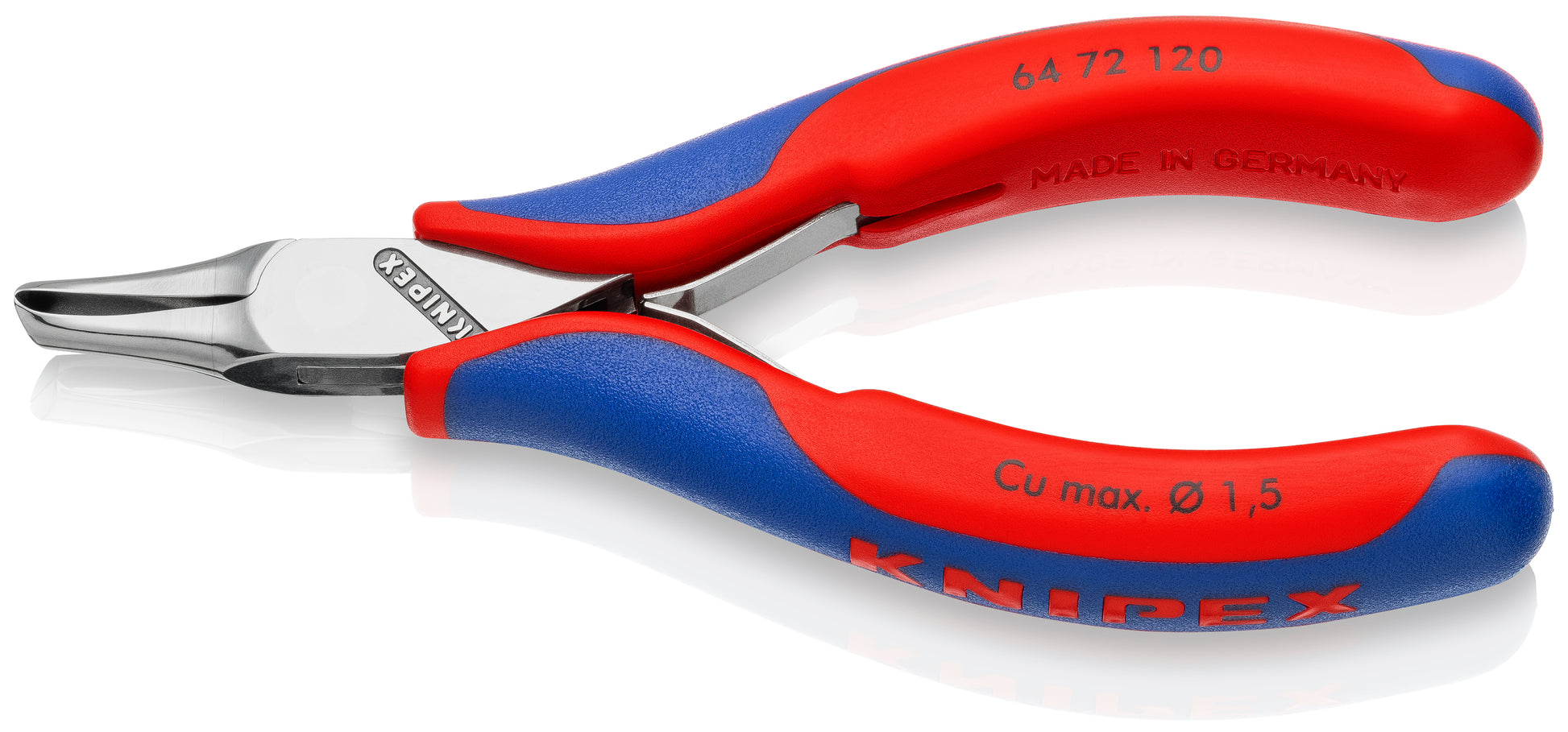

Knipex 64 72 120 Electronics End Cutting Nippers

Precision pliers for ultra fine cutting work in electronics and fine mechanics

Features

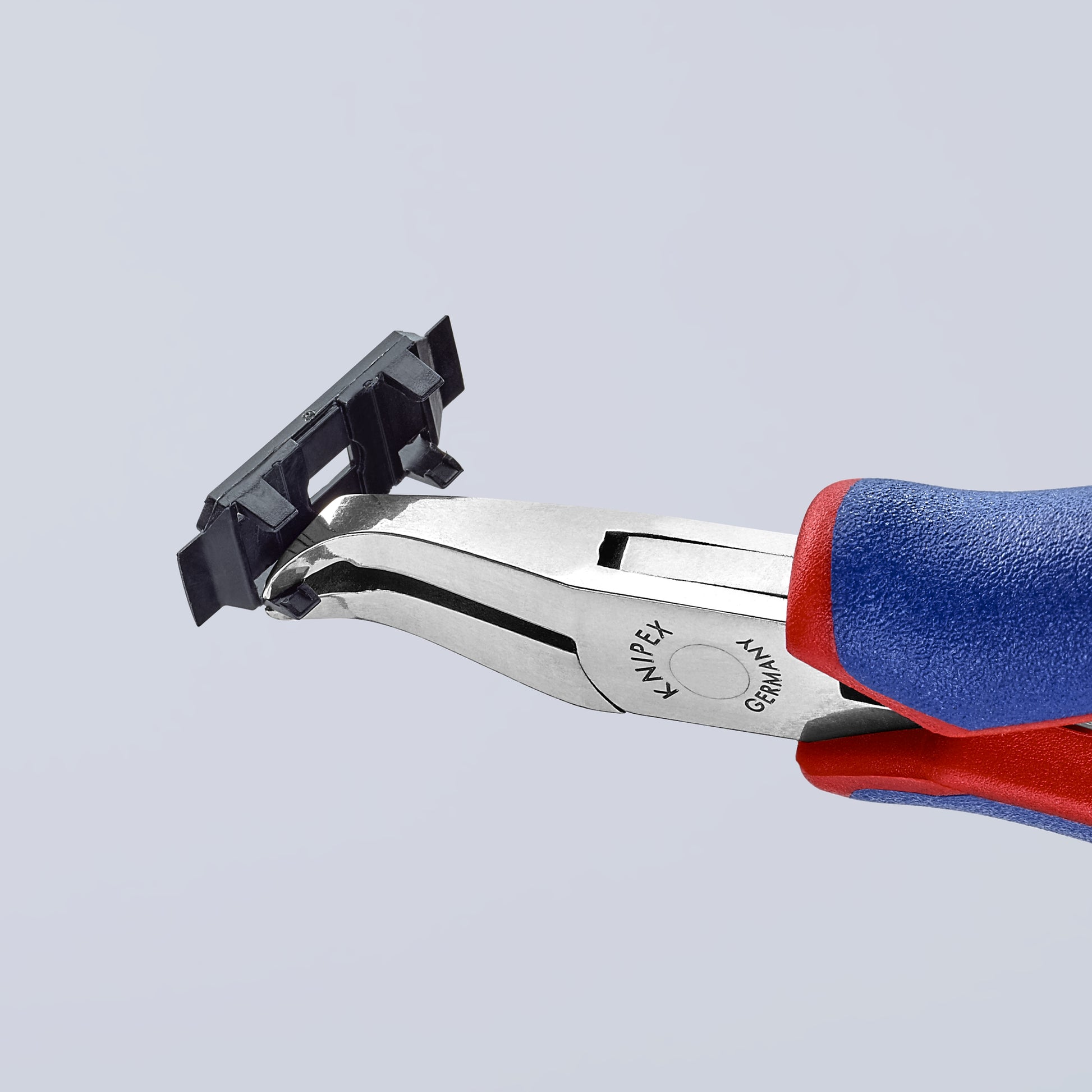

• End cutting allows for easier access into tight areas
• Low-friction double spring for gentle and even opening of the pliers
• Precision box joint for greater stability

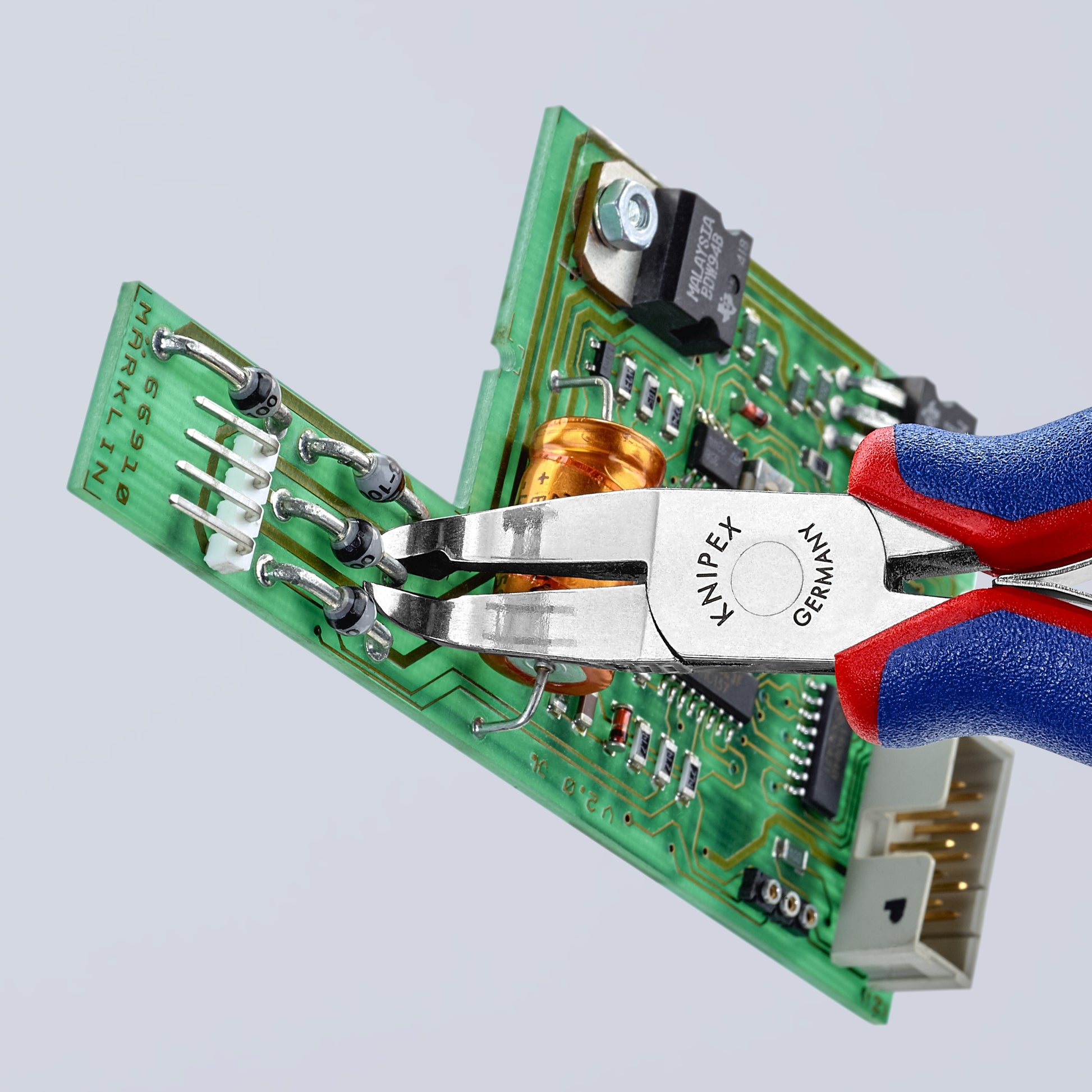

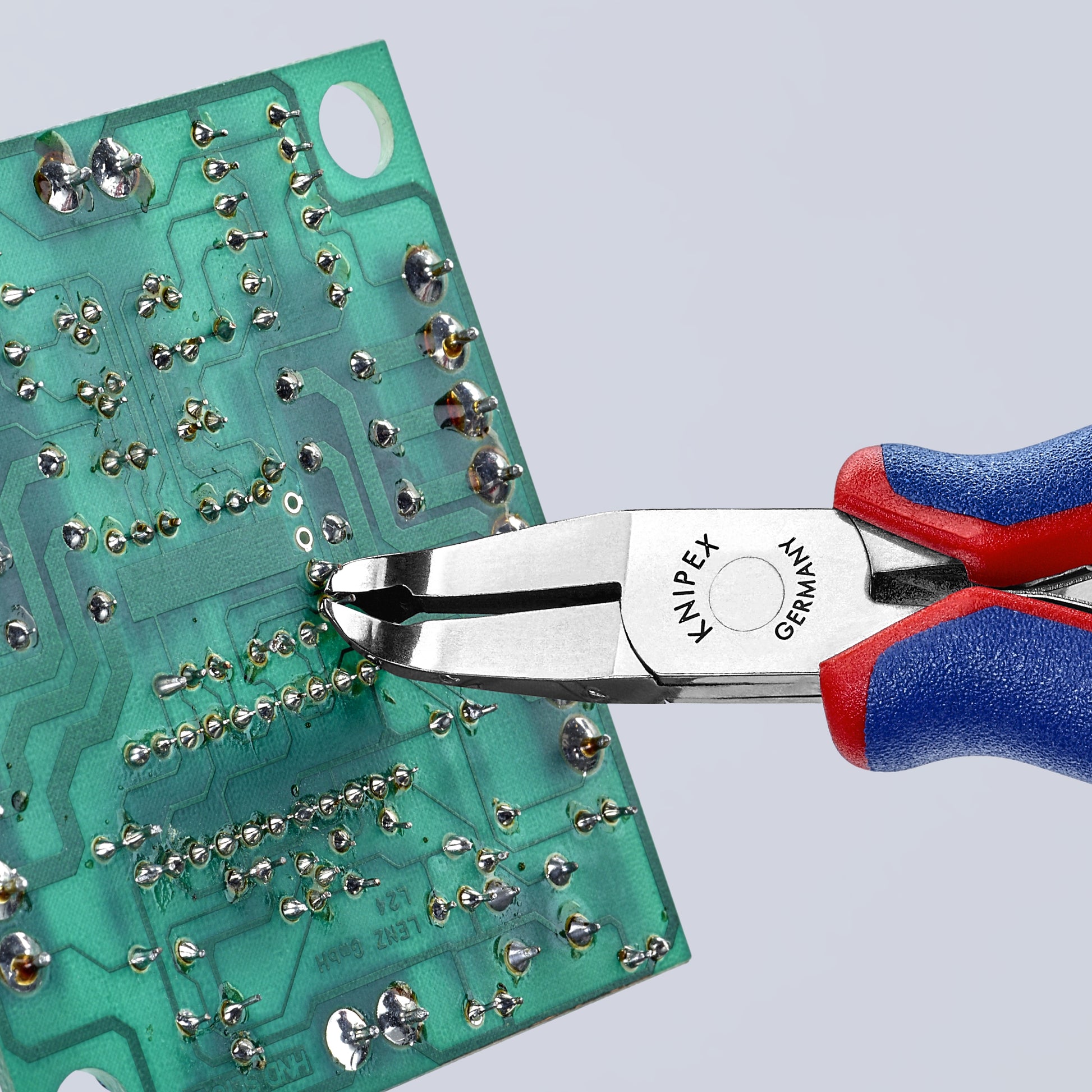

• Cutting electrical components flush with board surface
• Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 1/16" for soft wire
• Unique cutting head design allows for easier access into tight areas

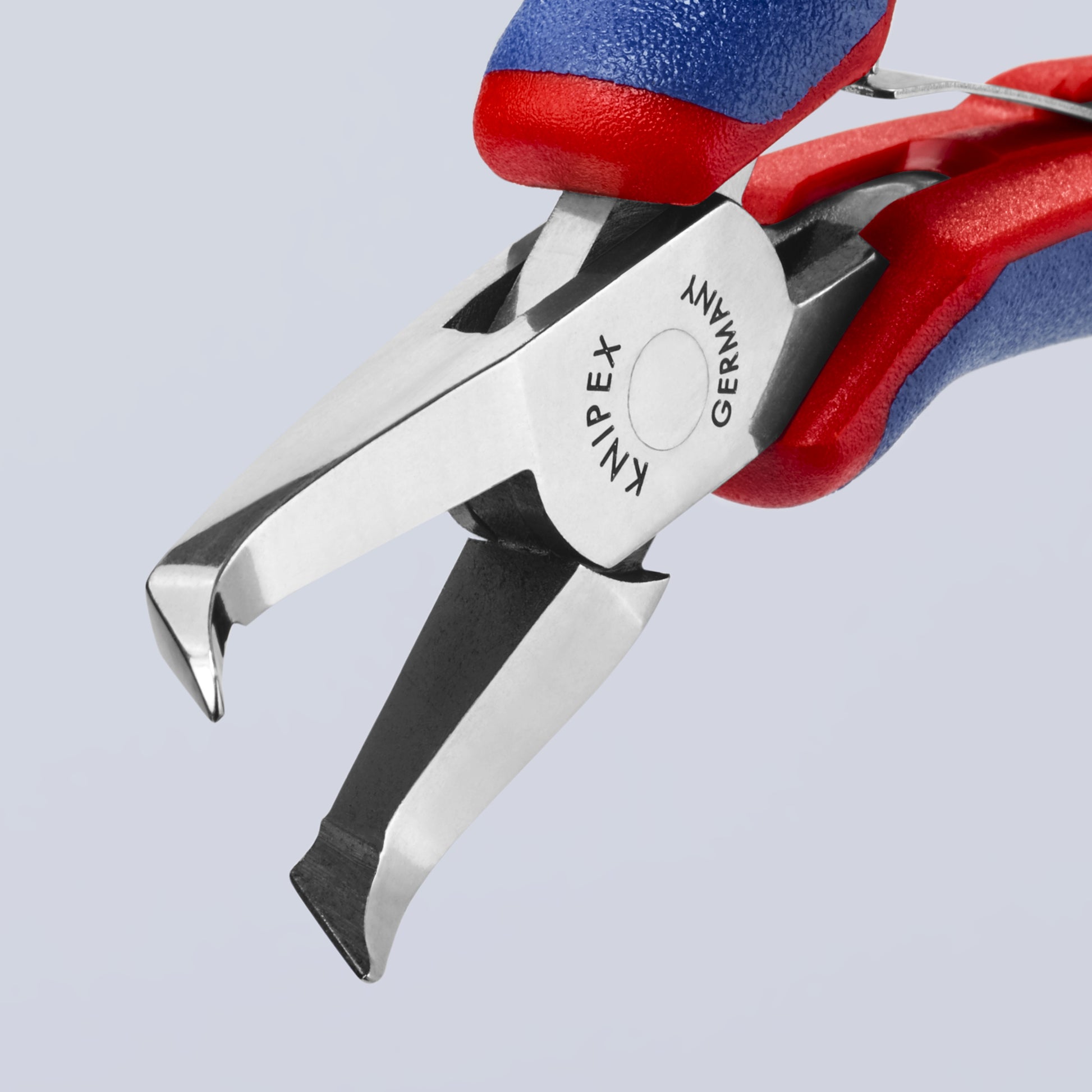

• Oblique end cutter, mini-blade with small bevel, head with recess, 35˚ angle

Specifications

• Manufacturer Part Number: 64 72 120
• Material Type: Special tool steel, forged, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 4 3/4"
• Tool Nominal Length: 5.25"
• Tool Length: 5.15"
• Tool Width: 2.15"
• Tool Height: 0.85"
• Tool Weight: 95 g (0.21 lb)
• Angled Head: 35 degree
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 49/64"
• Jaw Width: 15/32"
• Jaw Thickness: 9/32"
• Tip Width: 13/64"
• Tip Thickness: 13/64"
• Head Style: End Cutter
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 60 HRC
• Cutting Capacity - Soft Wire: 1/16"
• Blade Length: 13/64"
• UPC: 843221012960
