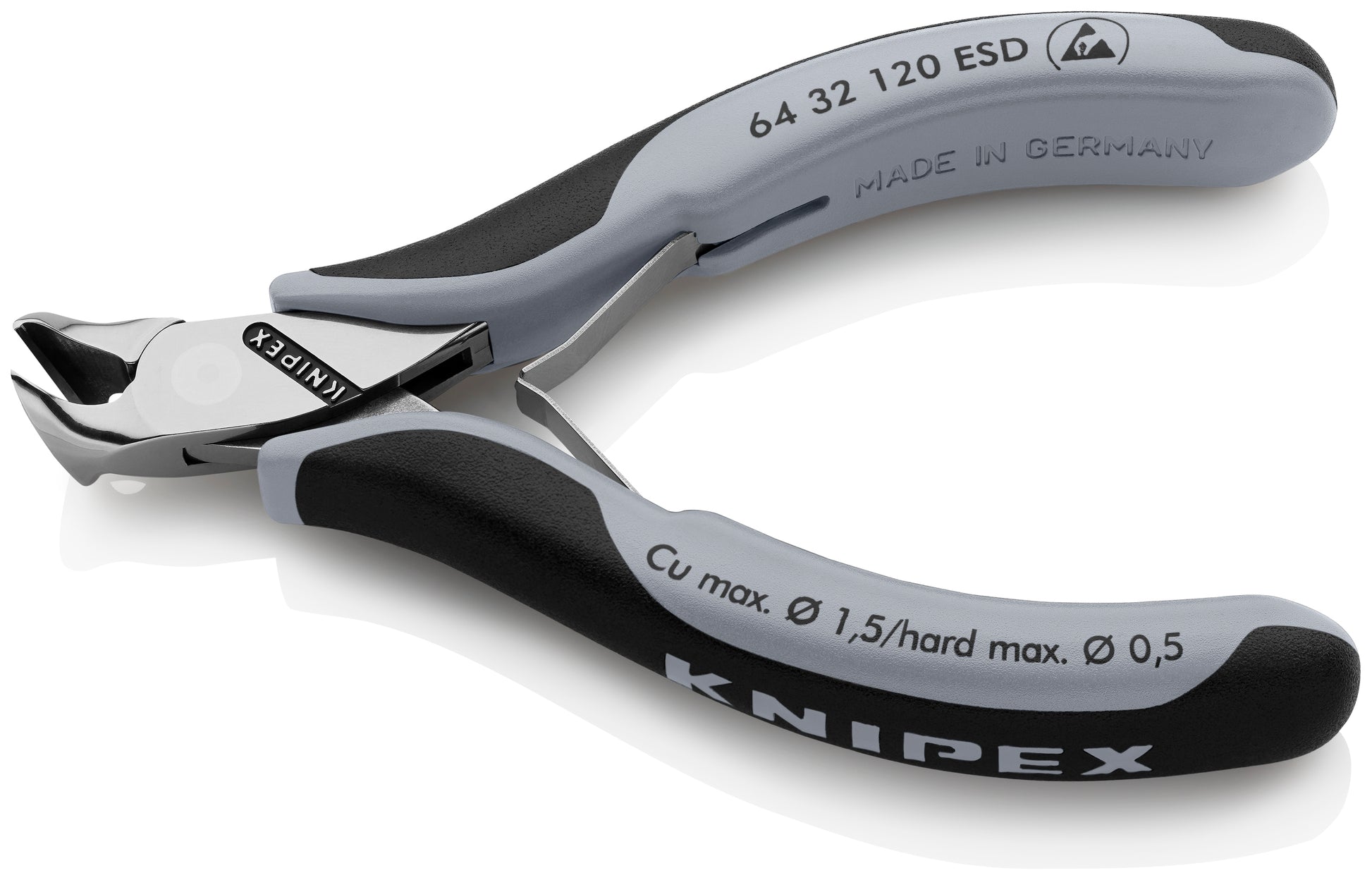

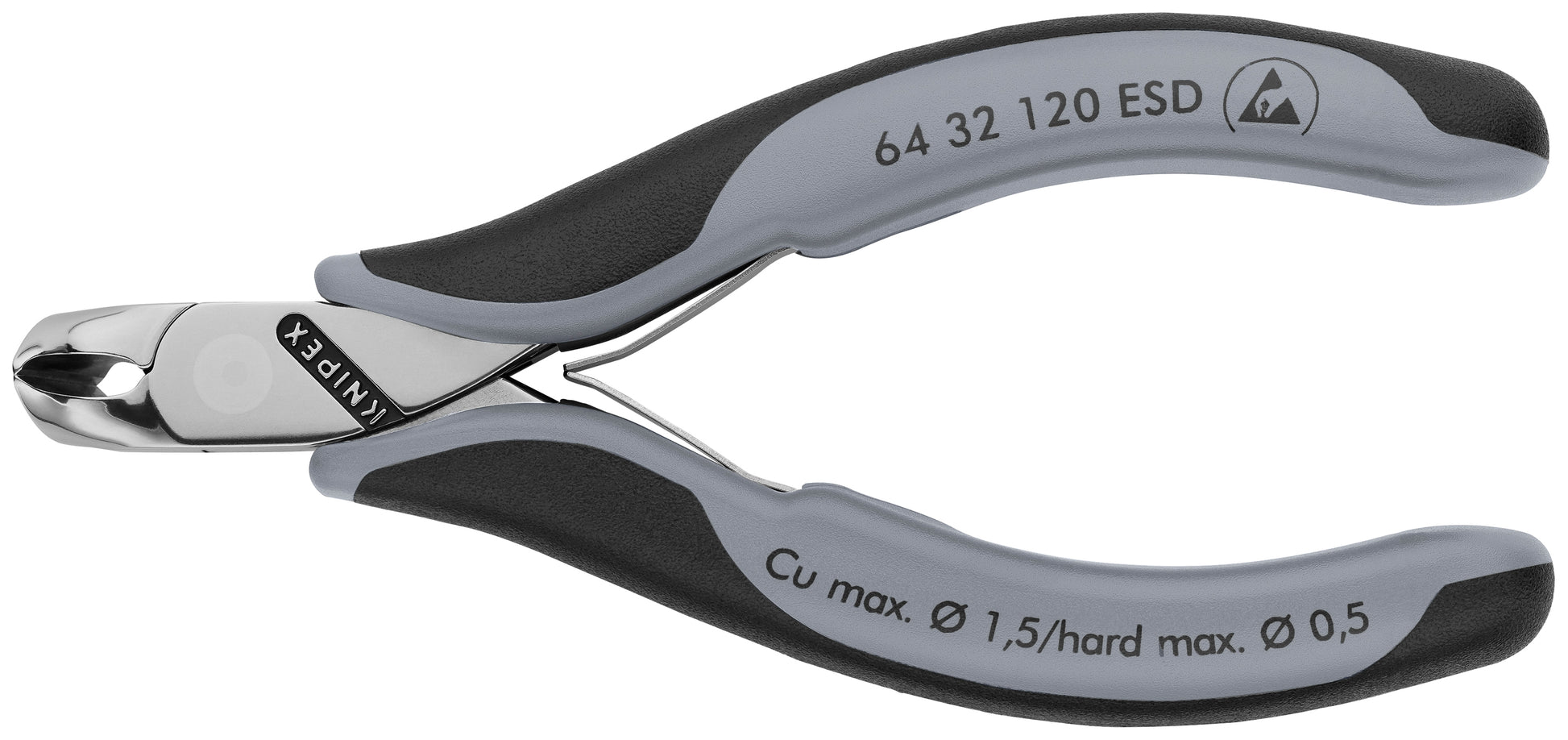

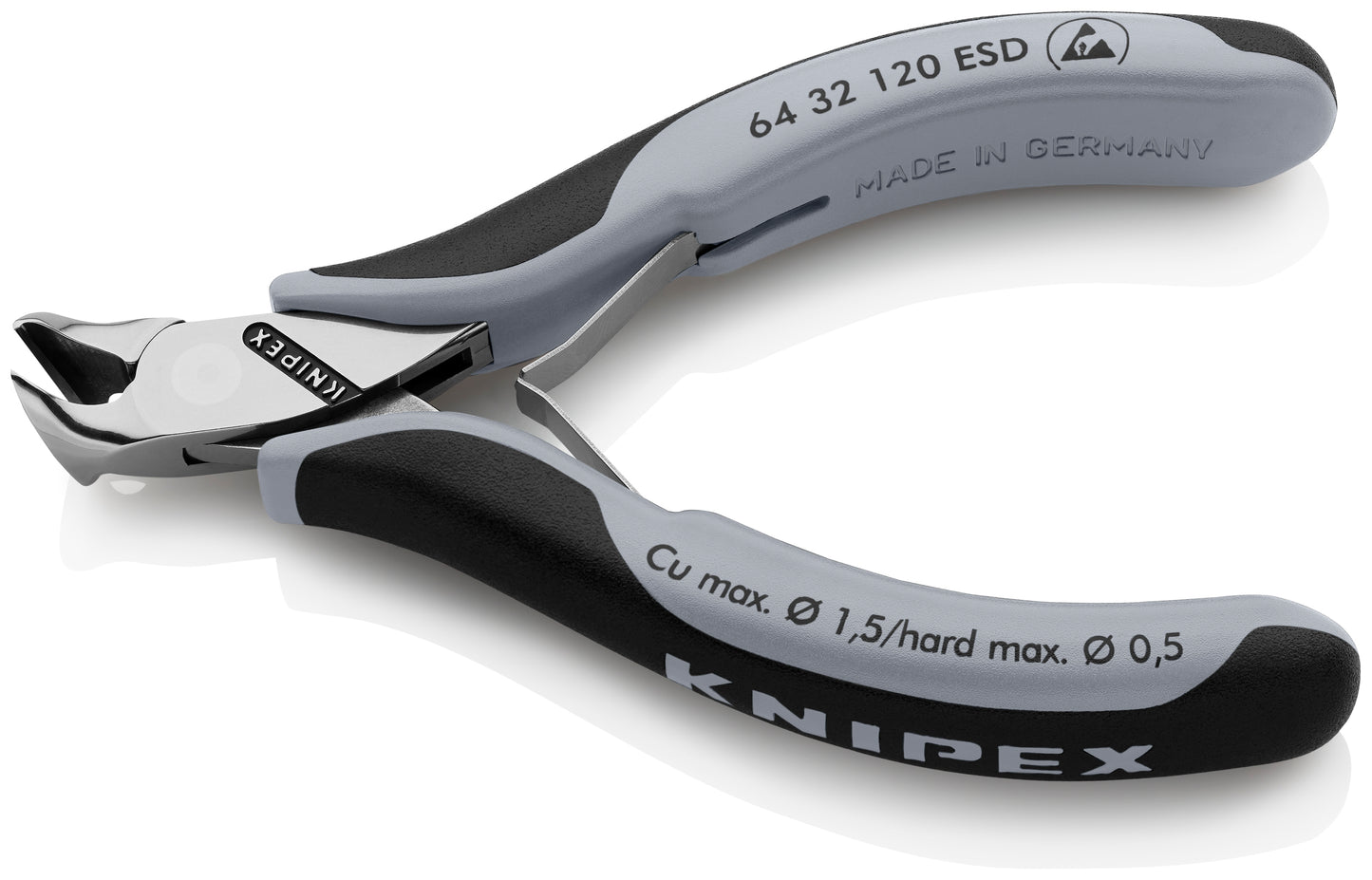

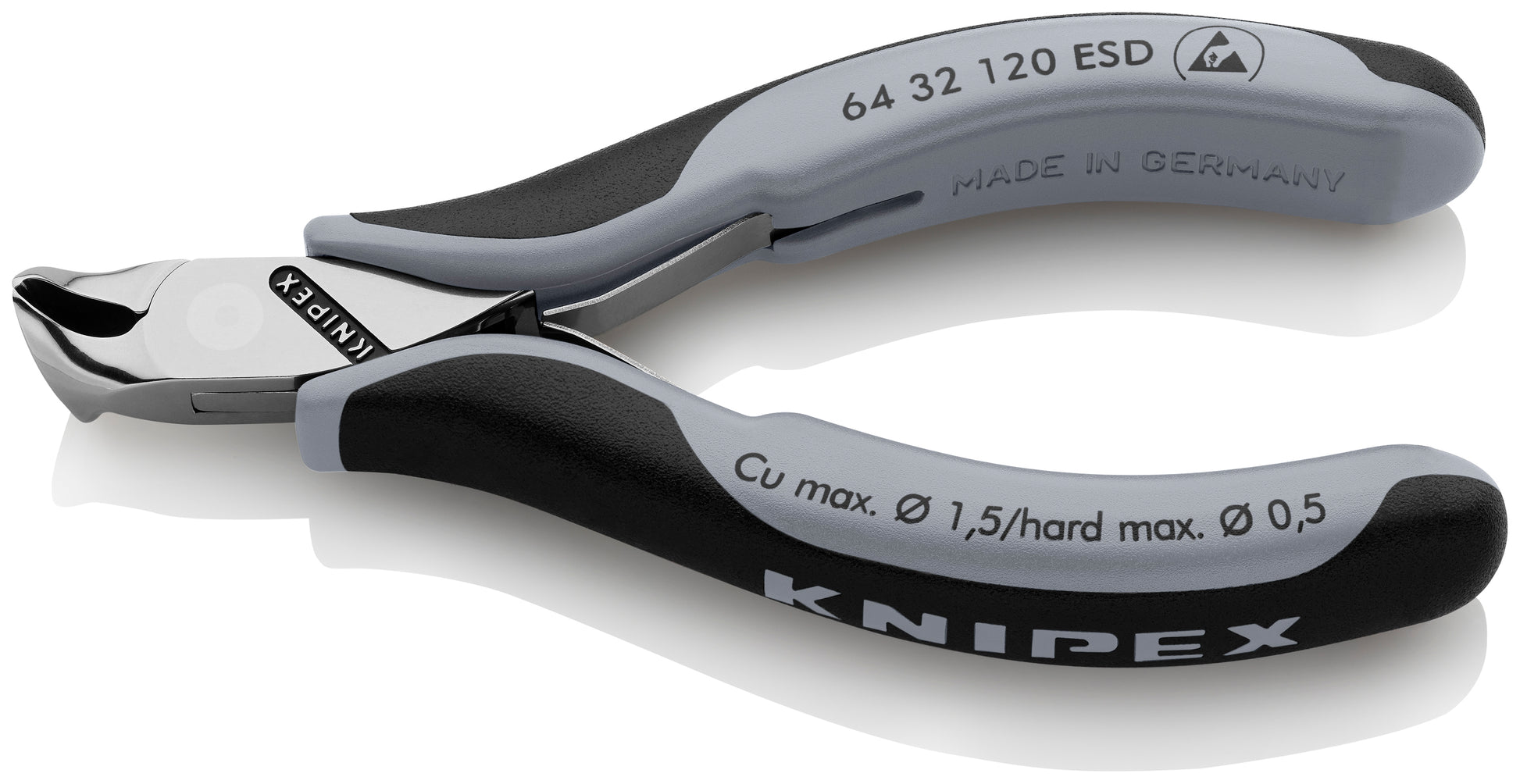

Knipex 64 32 120 ESD Electronics End Cutting Nippers-ESD Handles

Knipex 64 32 120 ESD Electronics End Cutting Nippers-ESD Handles

$80.27 USD
$80.27 USD
In Stock Temporarily Out
Shipping calculated at checkout.

Precision pliers for ultra fine cutting work in electronics and fine mechanics

Features

  • End cutting allows for easier access into tight areas
  • Low-friction double spring for gentle and even opening of the pliers
  • Precision box joint for greater stability

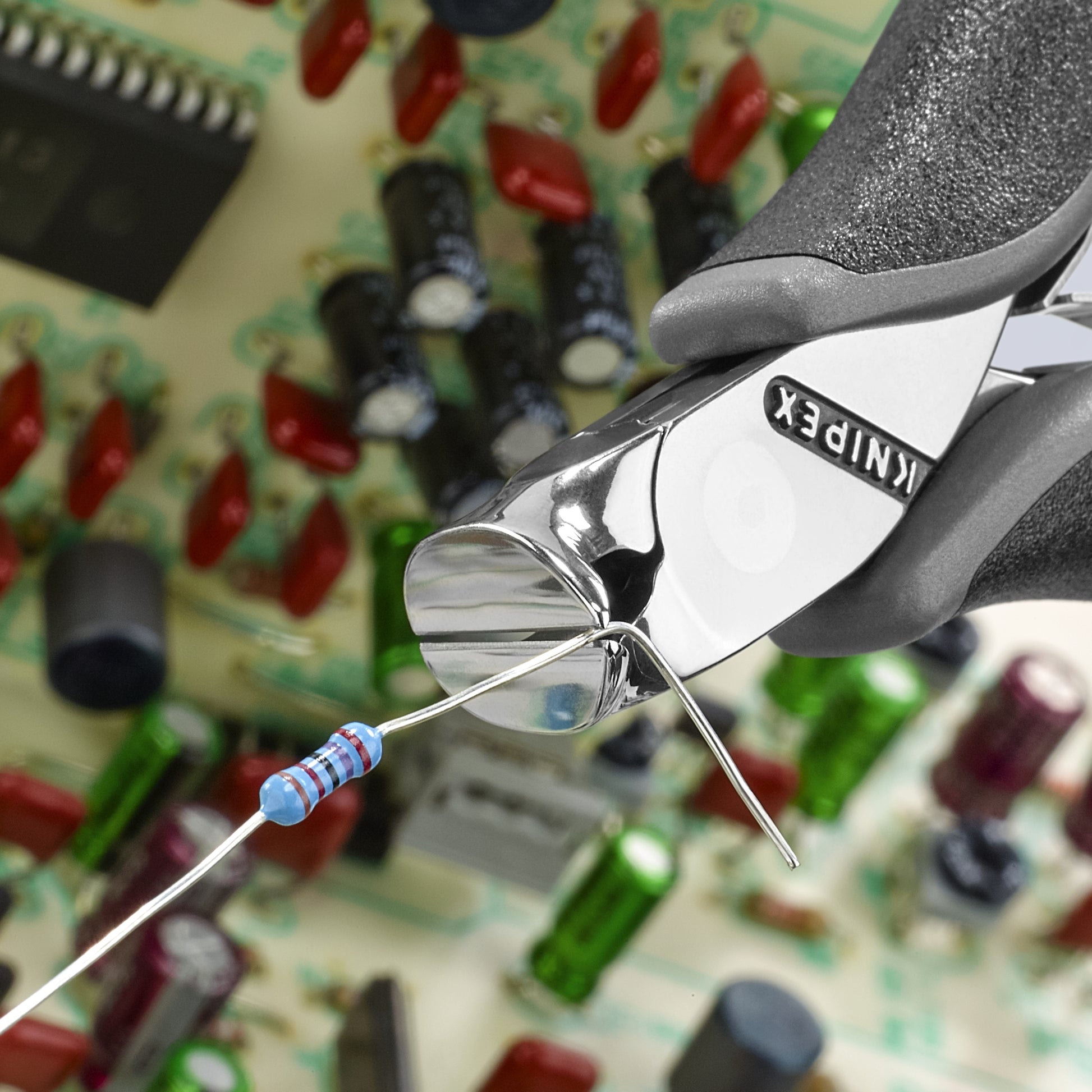

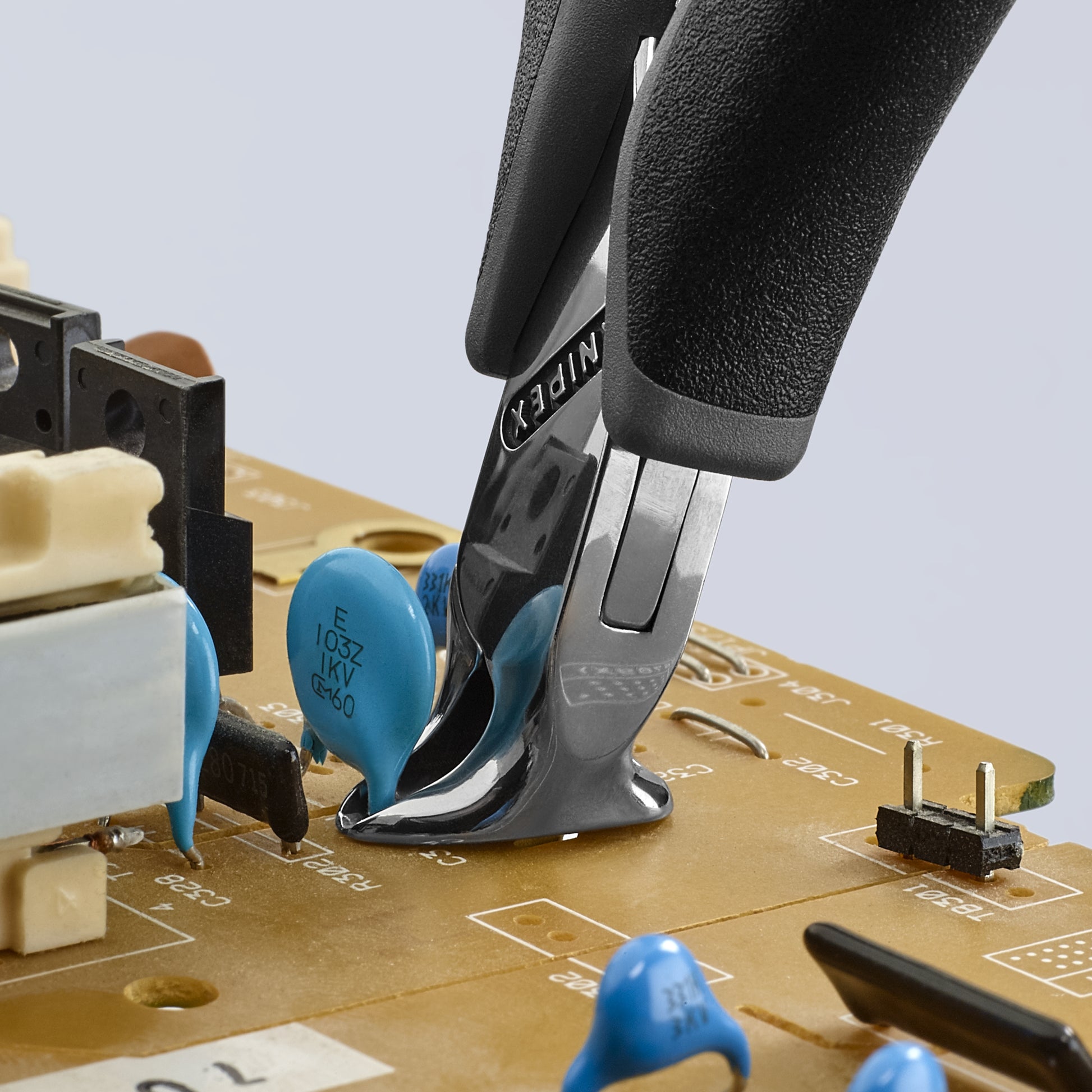

  • Cutting electrical components flush with board surface
  • Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
  • Cutting capacity - up to 1/16" for soft wire, up to 3/64" for medium wire and up to 1/64" for hard wire

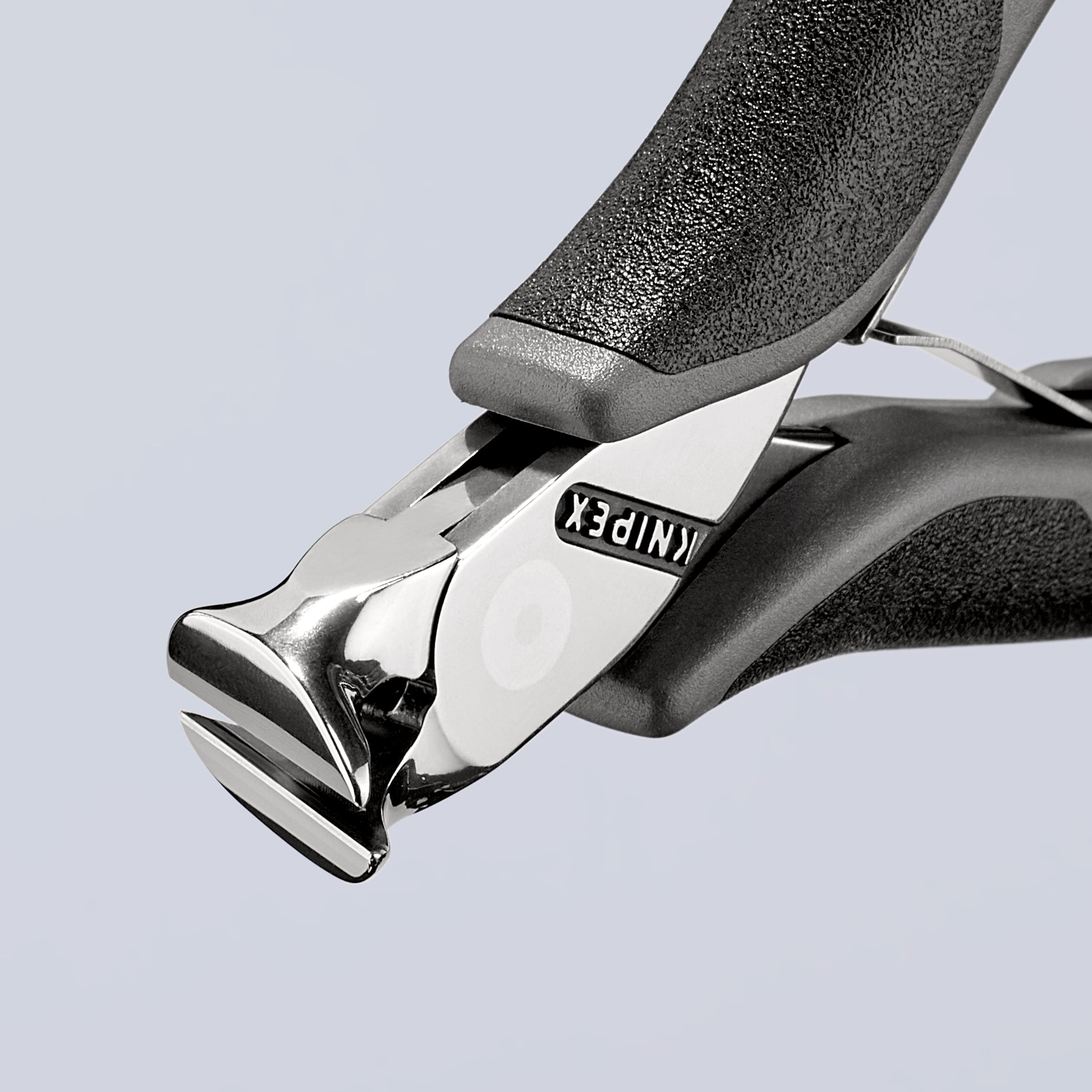

  • Unique cutting head design allows for easier access into tight areas
  • Oblique end cutter, short head, with small bevel, 15Ëš angle
  • ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

  • Manufacturer Part Number: 64 32 120 ESD
  • Material Type: Ball bearing steel, laser-hardened cutting edges
  • Handle Type: ESD multi-component
  • Surface Finish: Polished
  • 1000V Insulated: No
  • Spring Loaded: Yes
  • Tethered Enabled: false
  • ESD Indicator: Yes
  • Color: Blue/Gray
  • Nominal Length: 4 3/4"
  • Tool Nominal Length: 4.75"
  • Tool Length: 4.9"
  • Tool Width: 2"
  • Tool Height: 0.85"
  • Tool Weight: 91 g (0.20 lb)
  • Angled Head: 15 degree
  • Joint Type: Box-joint
  • Handle Length: 3 1/2"
  • Jaw Length: 25/64"
  • Jaw Width: 7/16"
  • Jaw Thickness: 9/32"
  • Tip Width: 43/64"
  • Tip Thickness: 43/64"
  • Head Style: End Cutter
  • Cutting Edge Shape: Semi-flush with small bevel
  • Cutting Edge HRC: Approx. 60 HRC
  • Cutting Capacity - Soft Wire: 1/16"
  • Cutting Capacity - Medium Hard Wire (Nail): 3/64"
  • Cutting Capacity - Hard Wire (Steel Wire): 1/64"
  • Blade Length: 43/64"
  • Set Part Number: 00 20 17
  • UPC: 843221012915
