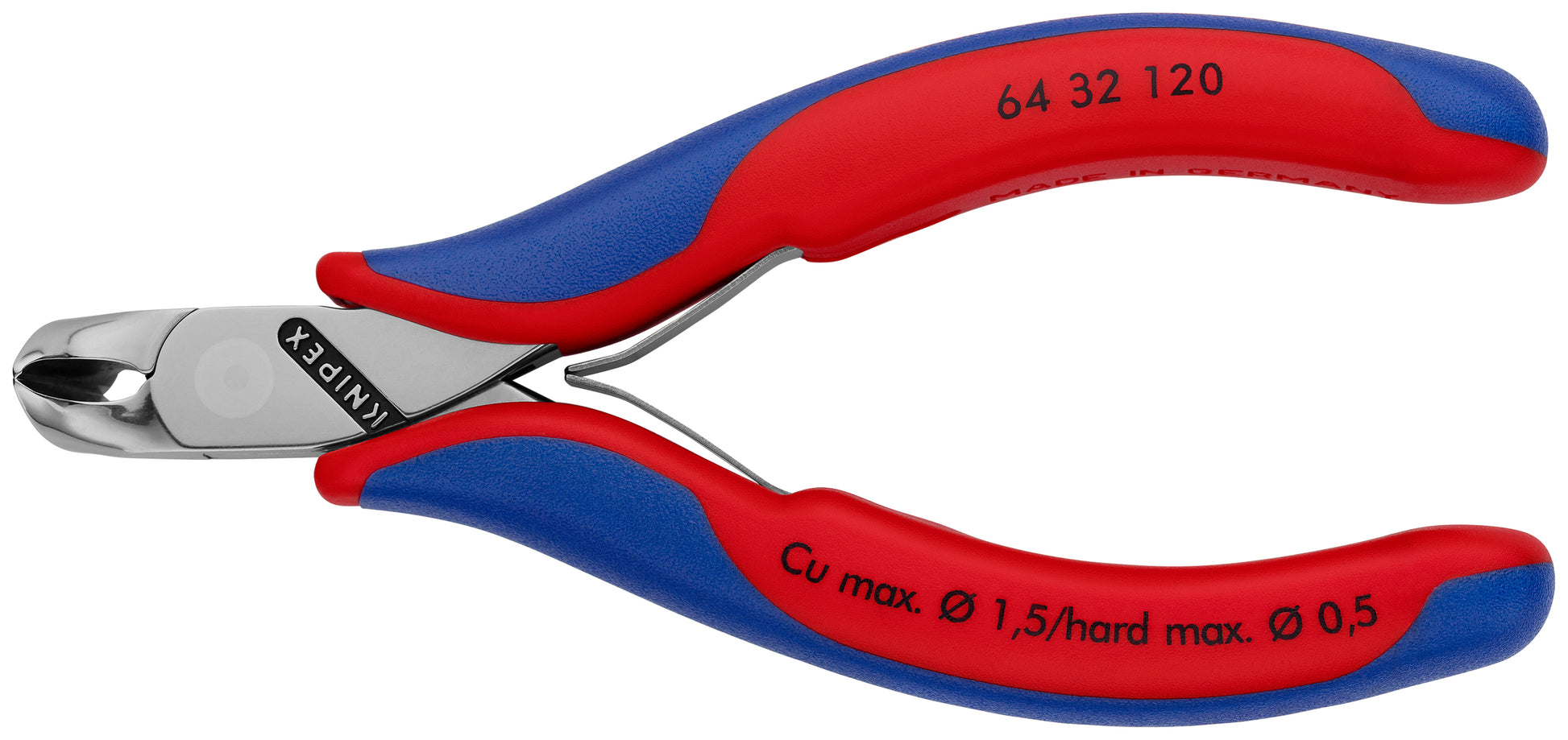

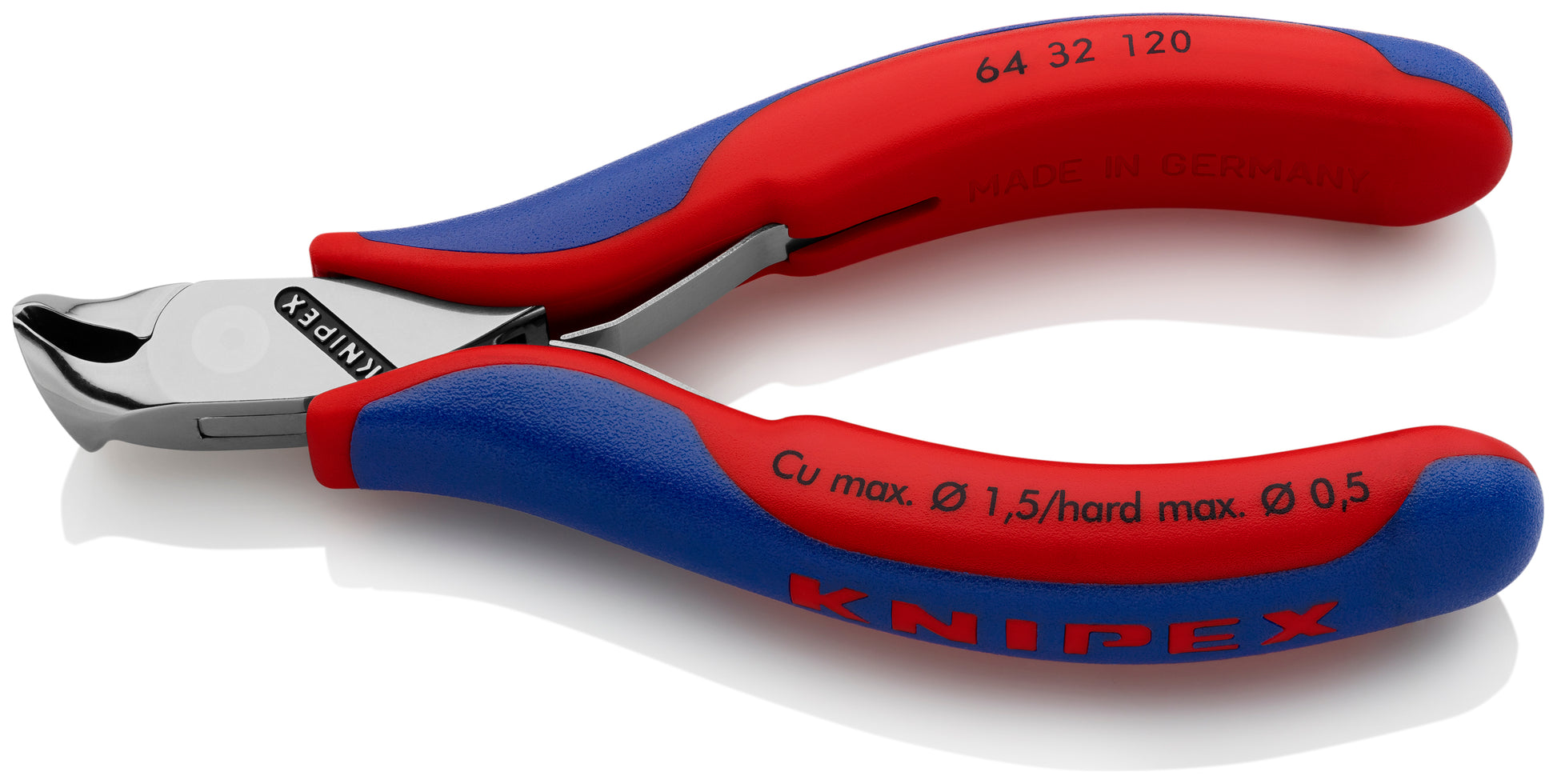

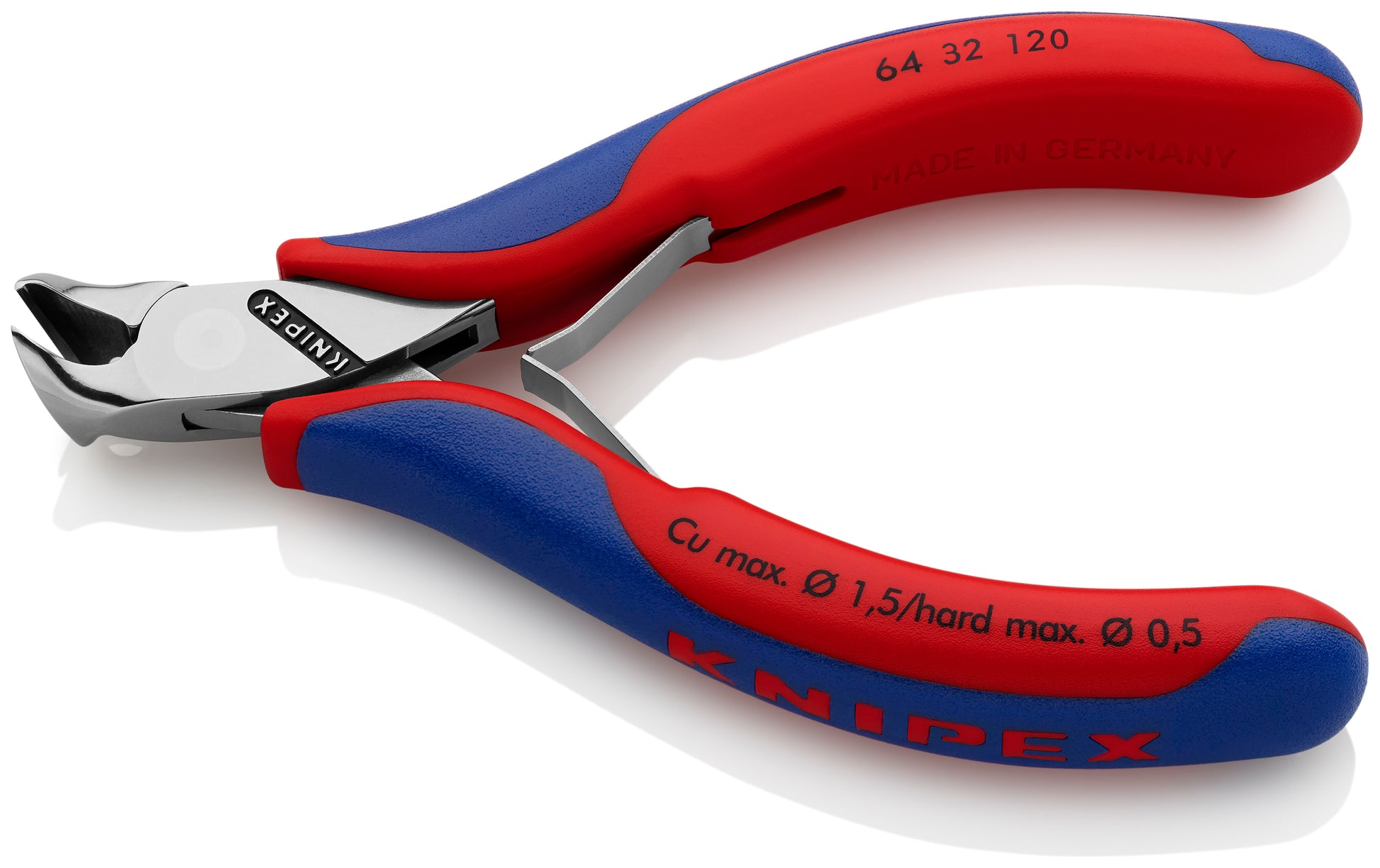

Knipex 64 32 120 Electronics End Cutting Nippers

Precision pliers for ultra fine cutting work in electronics and fine mechanics

Features

• End cutting allows for easier access into tight areas
• Low-friction double spring for gentle and even opening of the pliers
• Precision box joint for greater stability

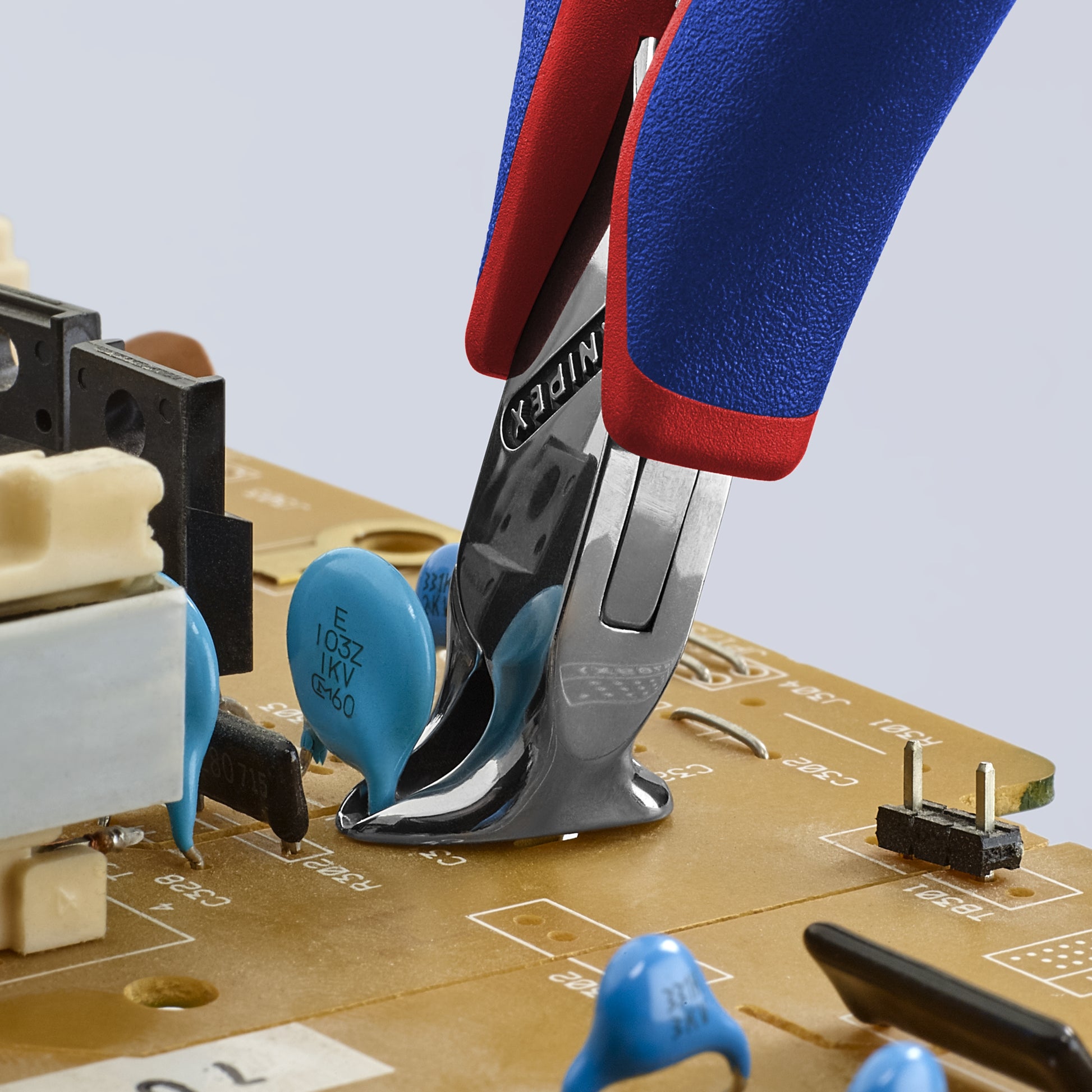

• Cutting electrical components flush with board surface
• Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting

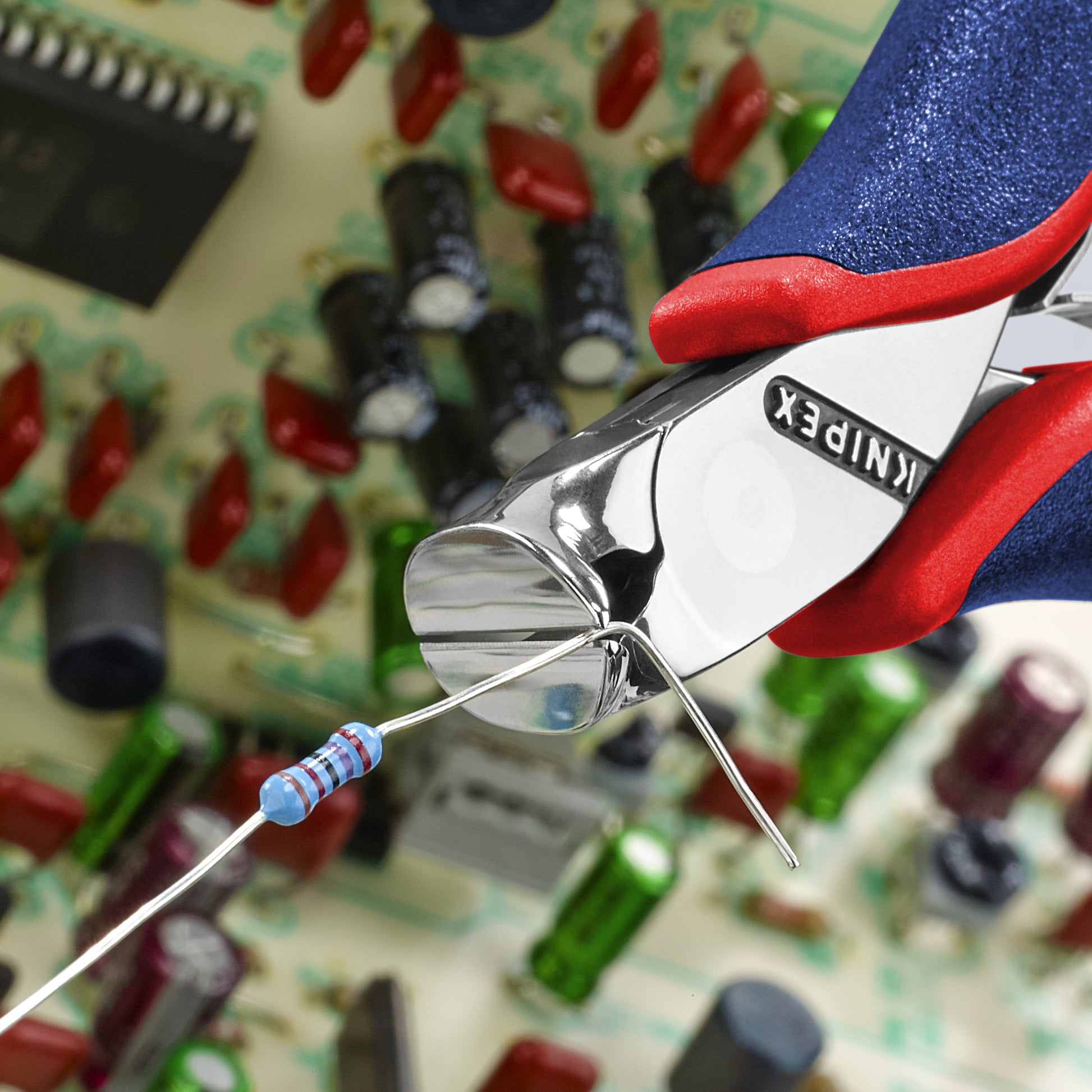

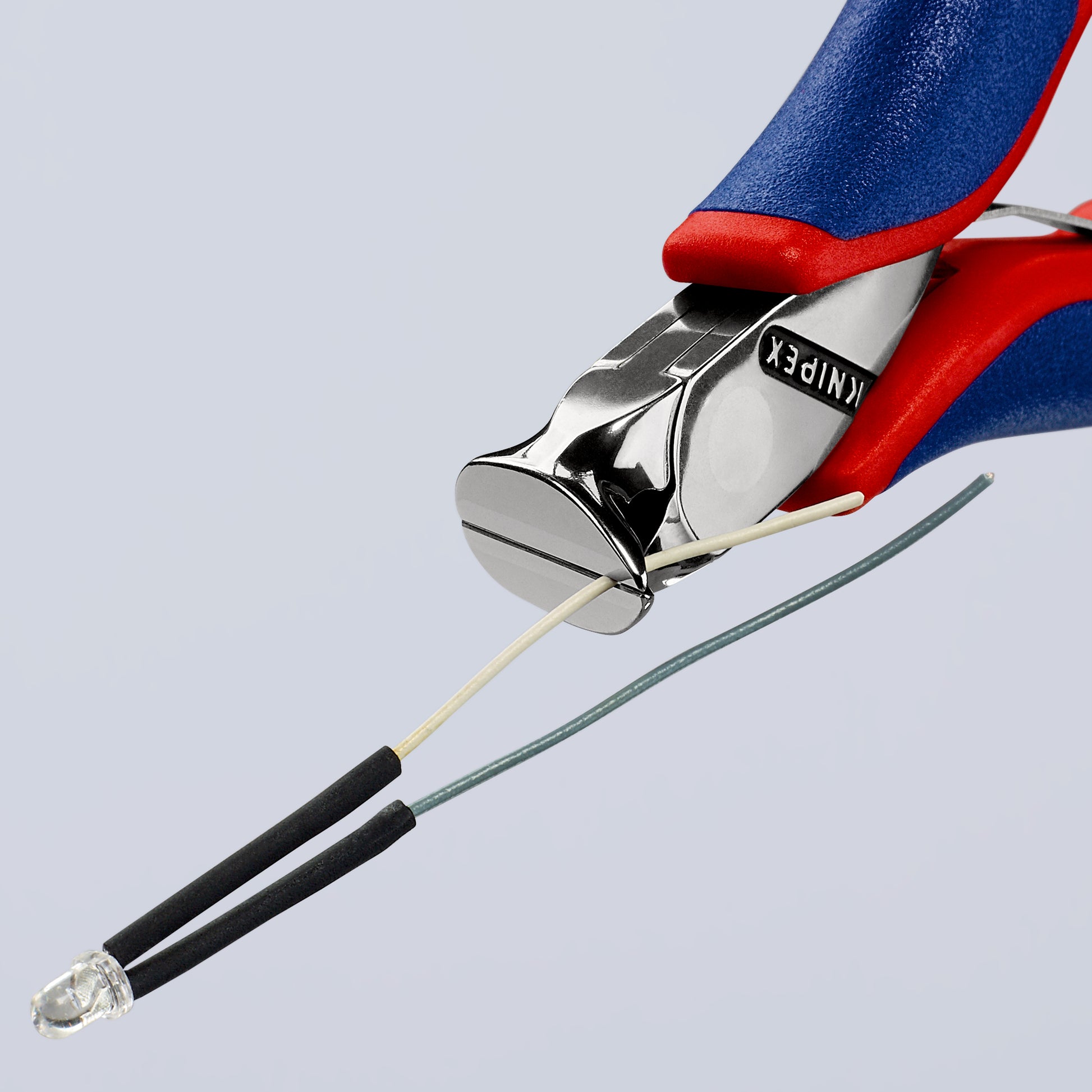

• Cutting capacity - up to 1/16" for soft wire, up to 3/64" for medium wire and up to 1/64" for hard wire

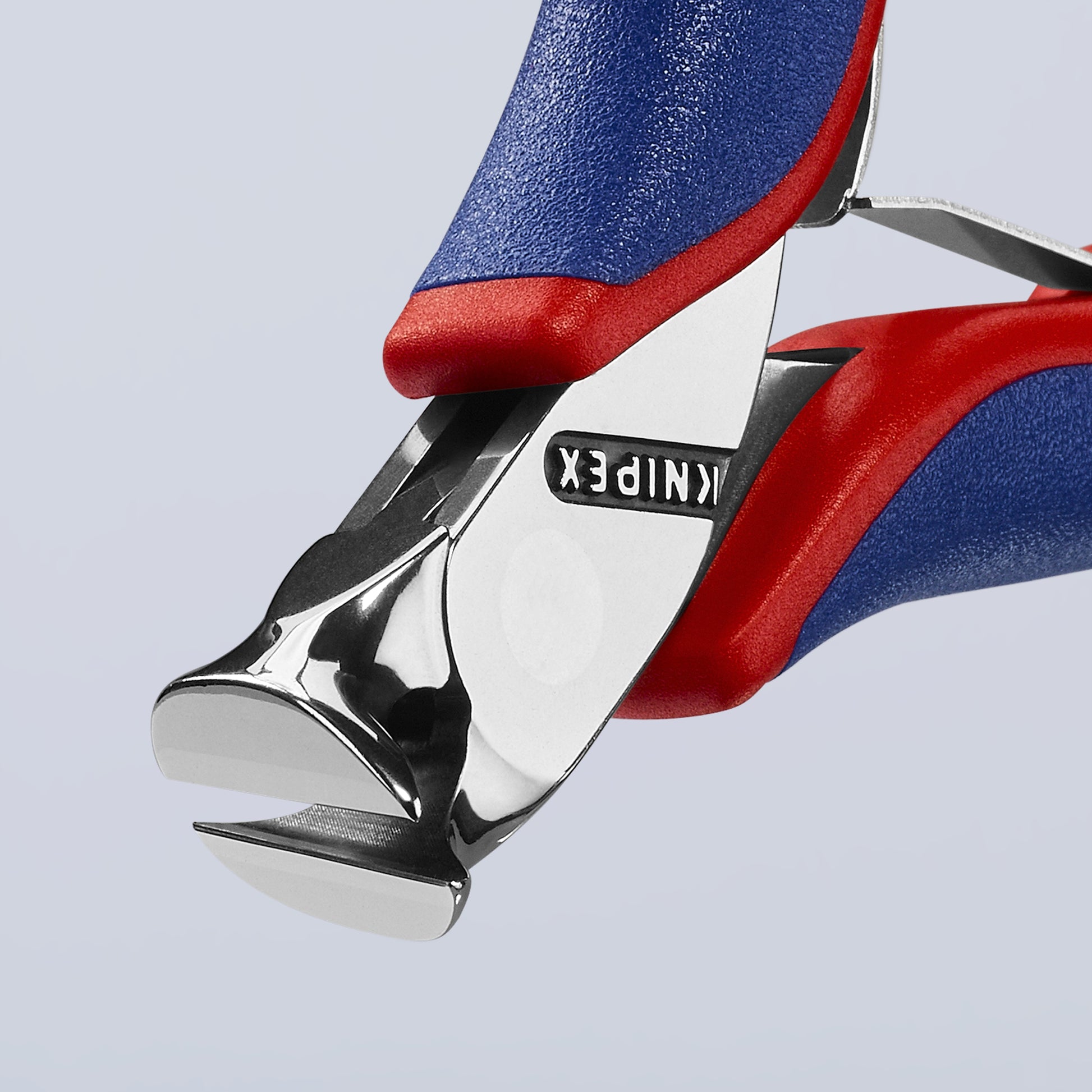

• Unique cutting head design allows for easier access into tight areas

Specifications

• Manufacturer Part Number: 64 32 120
• Material Type: Ball bearing steel, laser-hardened cutting edges
• Handle Type: Multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 4 3/4"
• Tool Nominal Length: 4.75"
• Tool Length: 4.85"
• Tool Width: 1.9"
• Tool Height: 0.85"
• Tool Weight: 91 g (0.20 lb)
• Angled Head: 15 degree
• Joint Type: Box-joint
• Jaw Length: 25/64"
• Jaw Width: 7/16"
• Jaw Thickness: 9/32"
• Tip Width: 43/64"
• Tip Thickness: 43/64"
• Head Style: End Cutter
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 60 HRC
• Cutting Capacity - Soft Wire: 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/64"
• Blade Length: 43/64"
• Set Part Number: 00 20 16
• UPC: 843221012922
