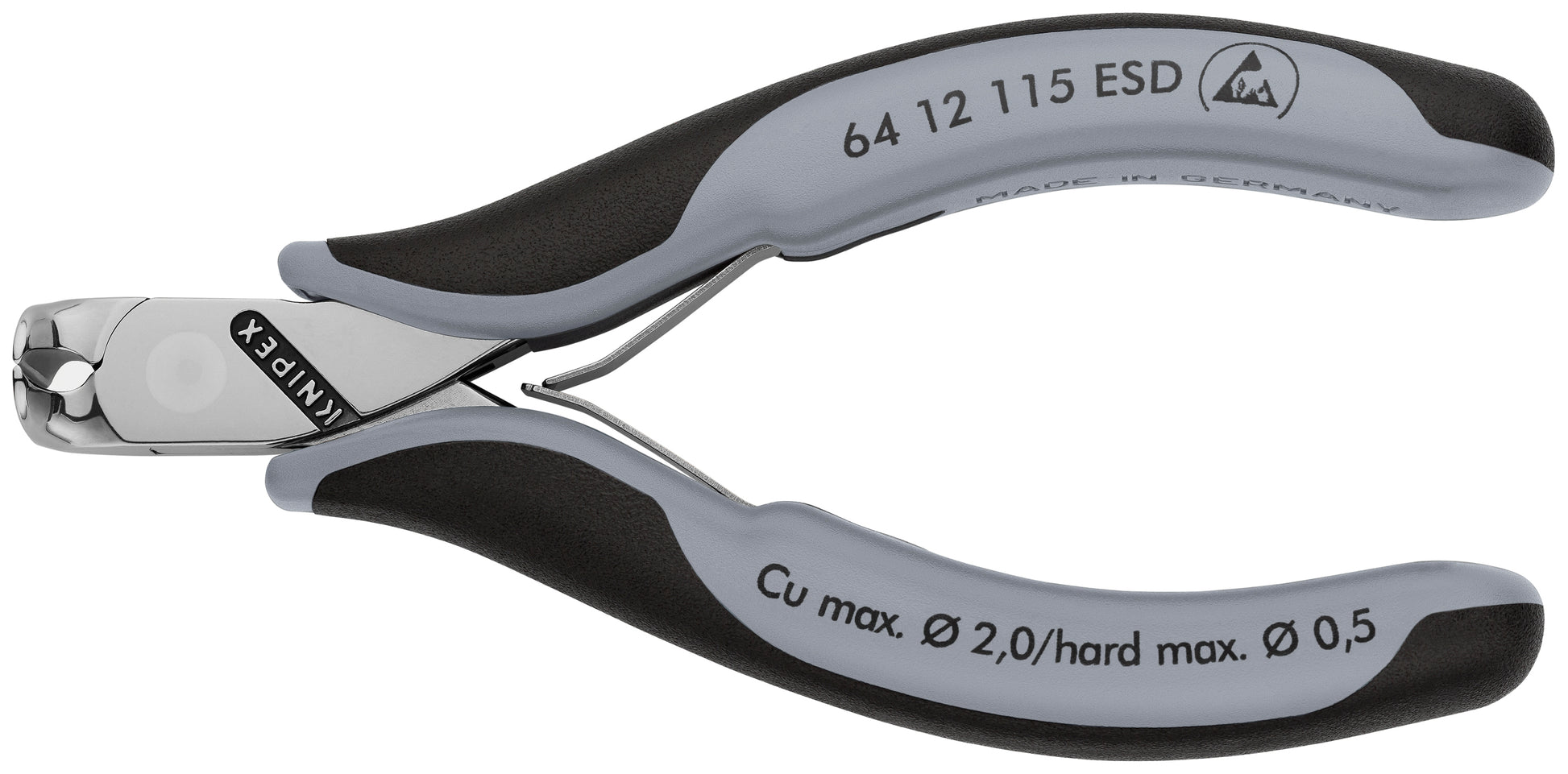

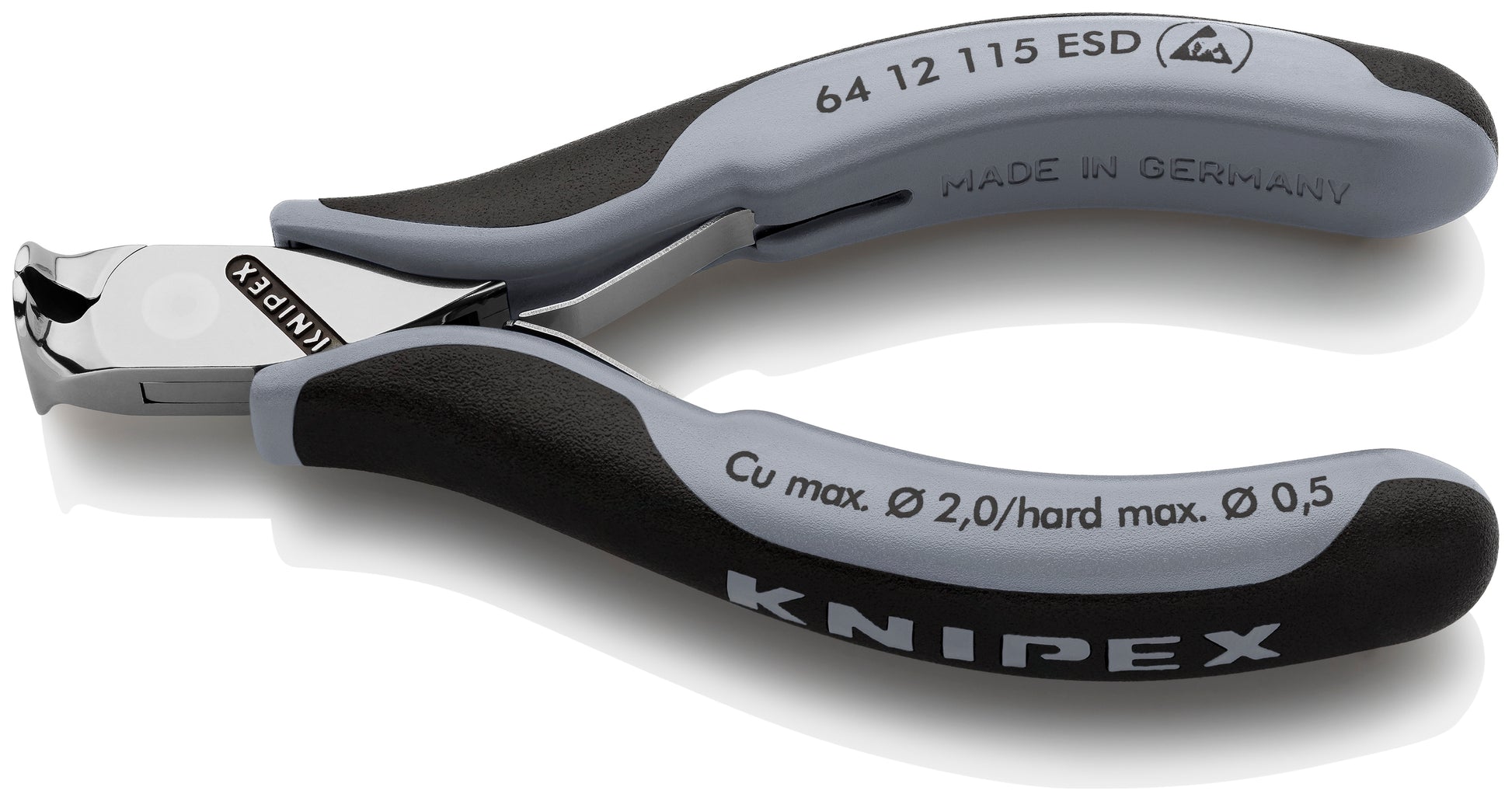

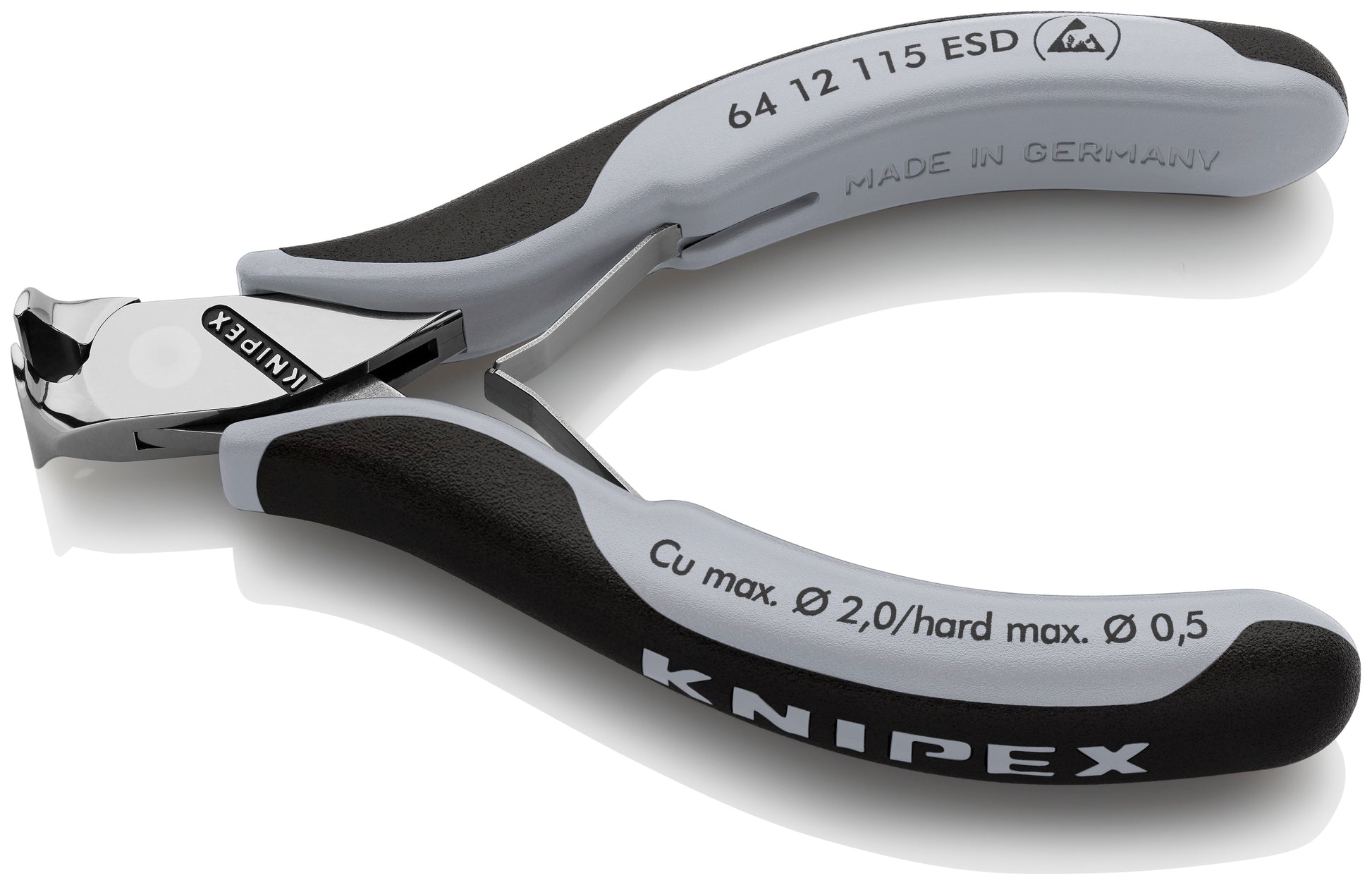

Knipex 64 12 115 ESD Electronics End Cutting Nippers-ESD Handles

Precision pliers for ultra fine cutting work in electronics and fine mechanics

Features

• End cutting allows for easier access into tight areas
• Low-friction double spring for gentle and even opening of the pliers
• Precision box joint for greater stability

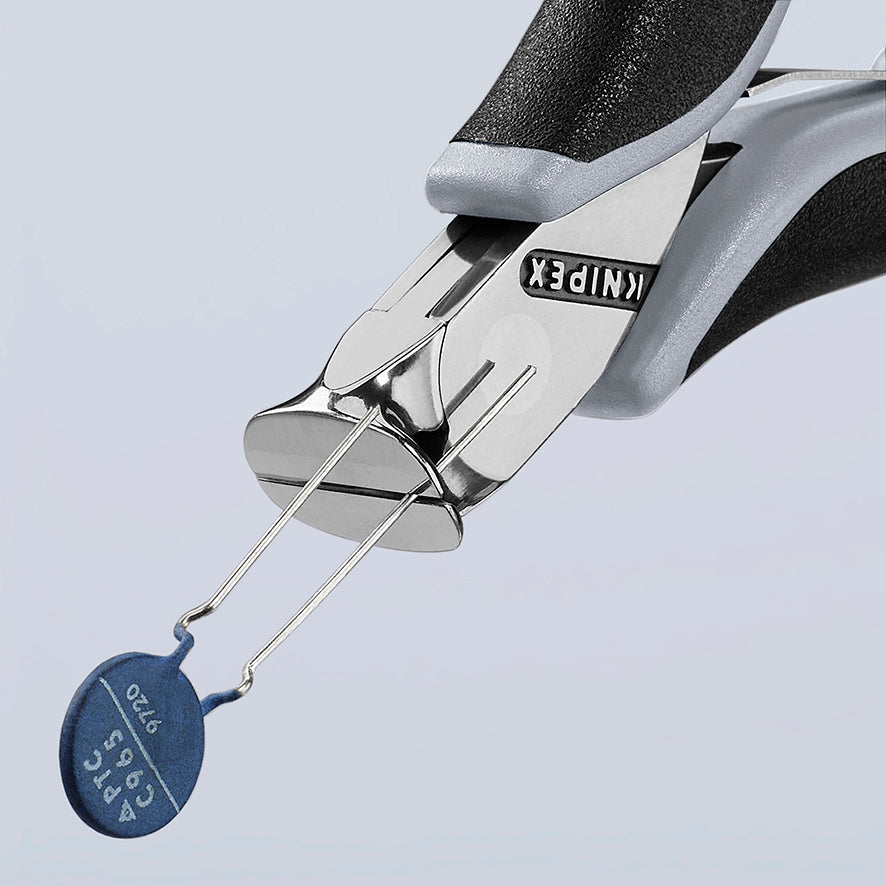

• Cutting electrical components flush with board surface
• Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 1/16" for soft wire and up to 1/32" for medium wire

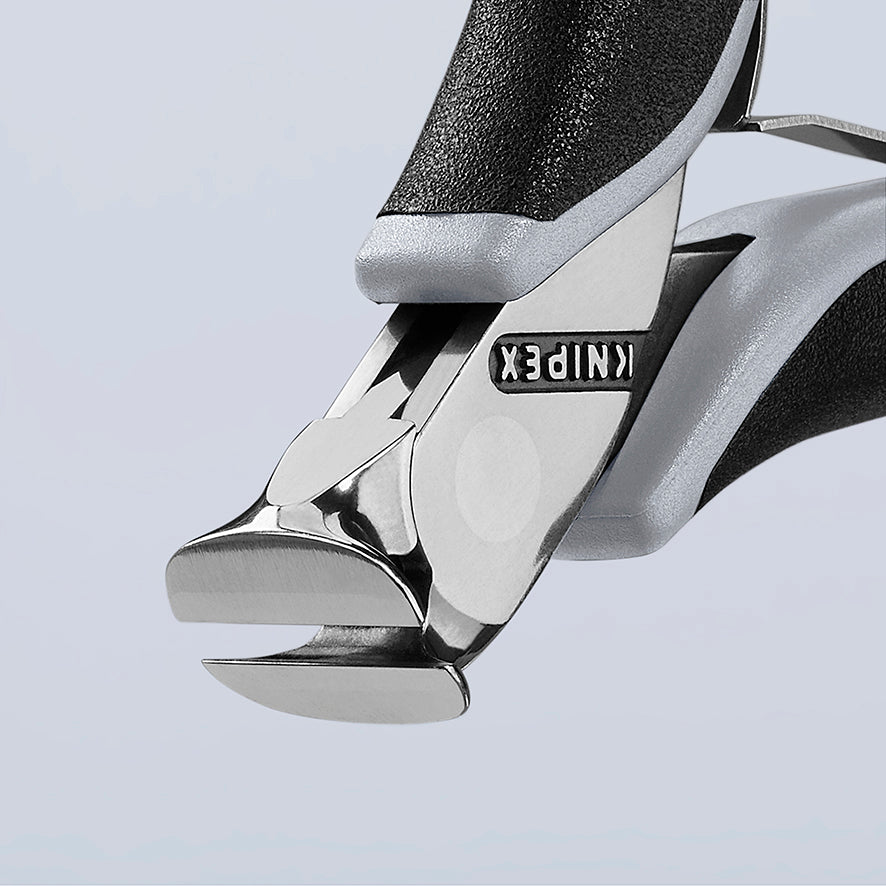

• Unique cutting head design allows for easier access into tight areas
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 64 12 115 ESD
• Material Type: Ball bearing steel, laser-hardened cutting edges
• Handle Type: ESD multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.75"
• Tool Width: 2.05"
• Tool Height: 0.95"
• Tool Weight: 95 g (0.21 lb)
• Angled Head: 90 degree
• Joint Type: Box-joint
• Handle Length: 4"
• Jaw Length: 15/64"
• Jaw Width: 7/16"
• Jaw Thickness: 9/32"
• Tip Width: 5/8"
• Tip Thickness: 5/8"
• Head Style: End Cutter
• Cutting Edge Shape: Flush
• Cutting Edge HRC: Approx. 60 HRC
• Cutting Capacity - Soft Wire: 1/16"
• Cutting Capacity - Medium Hard Wire (Nail): 1/32"
• Blade Length: 5/8"
• UPC: 843221012908
