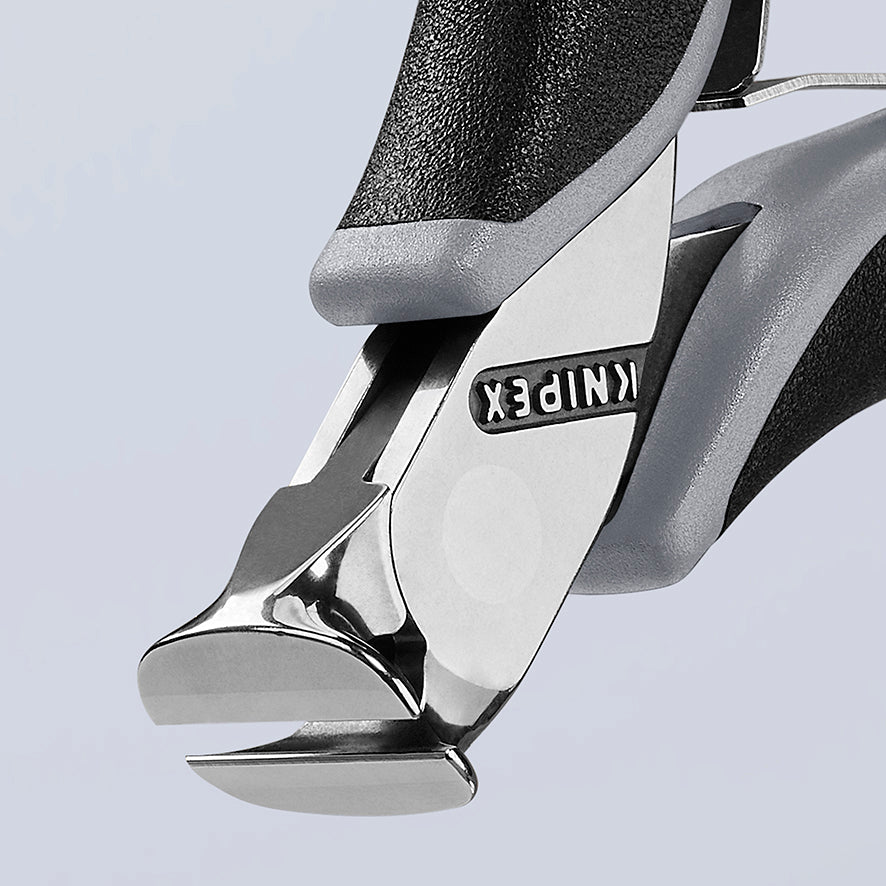

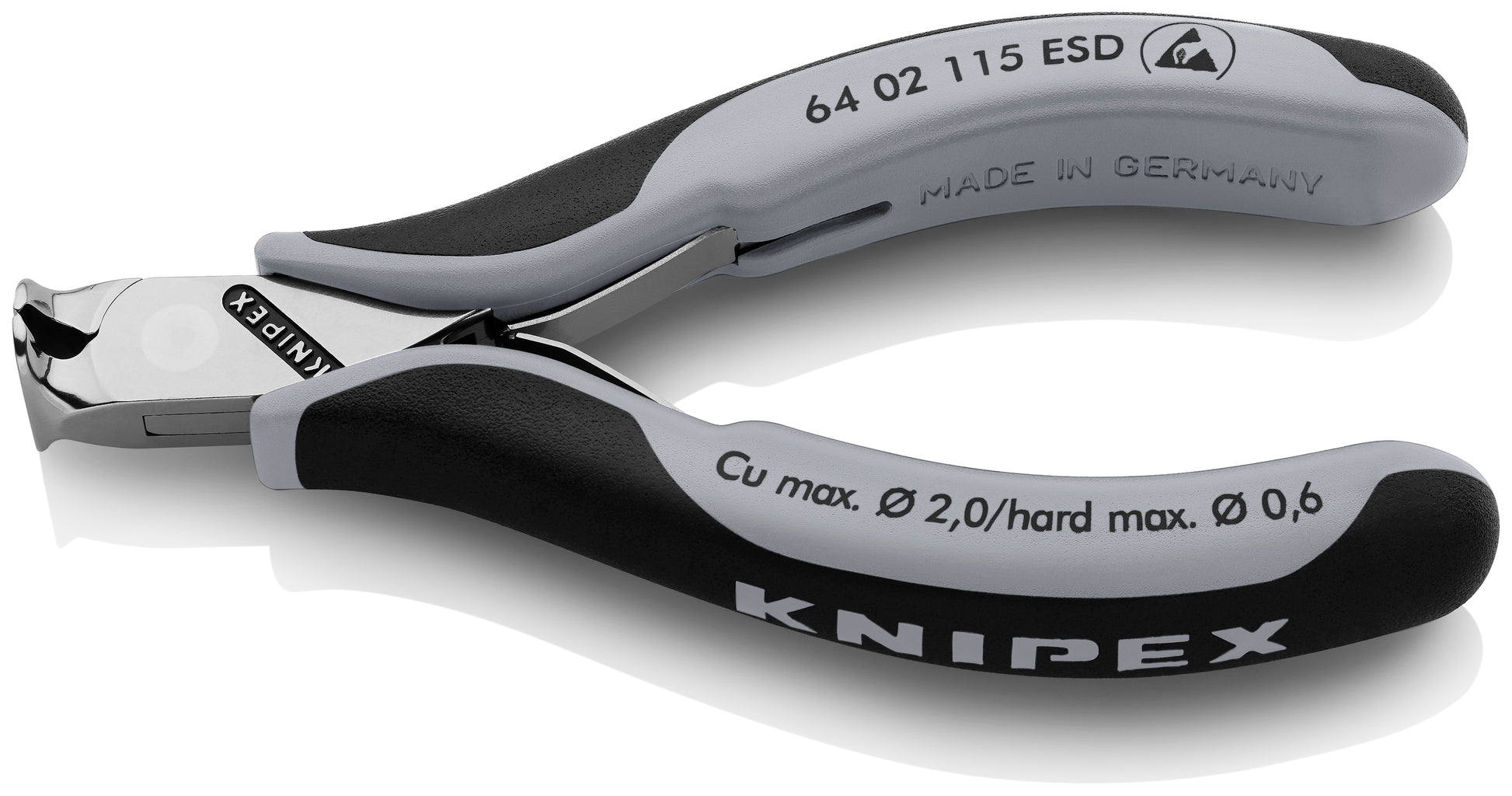

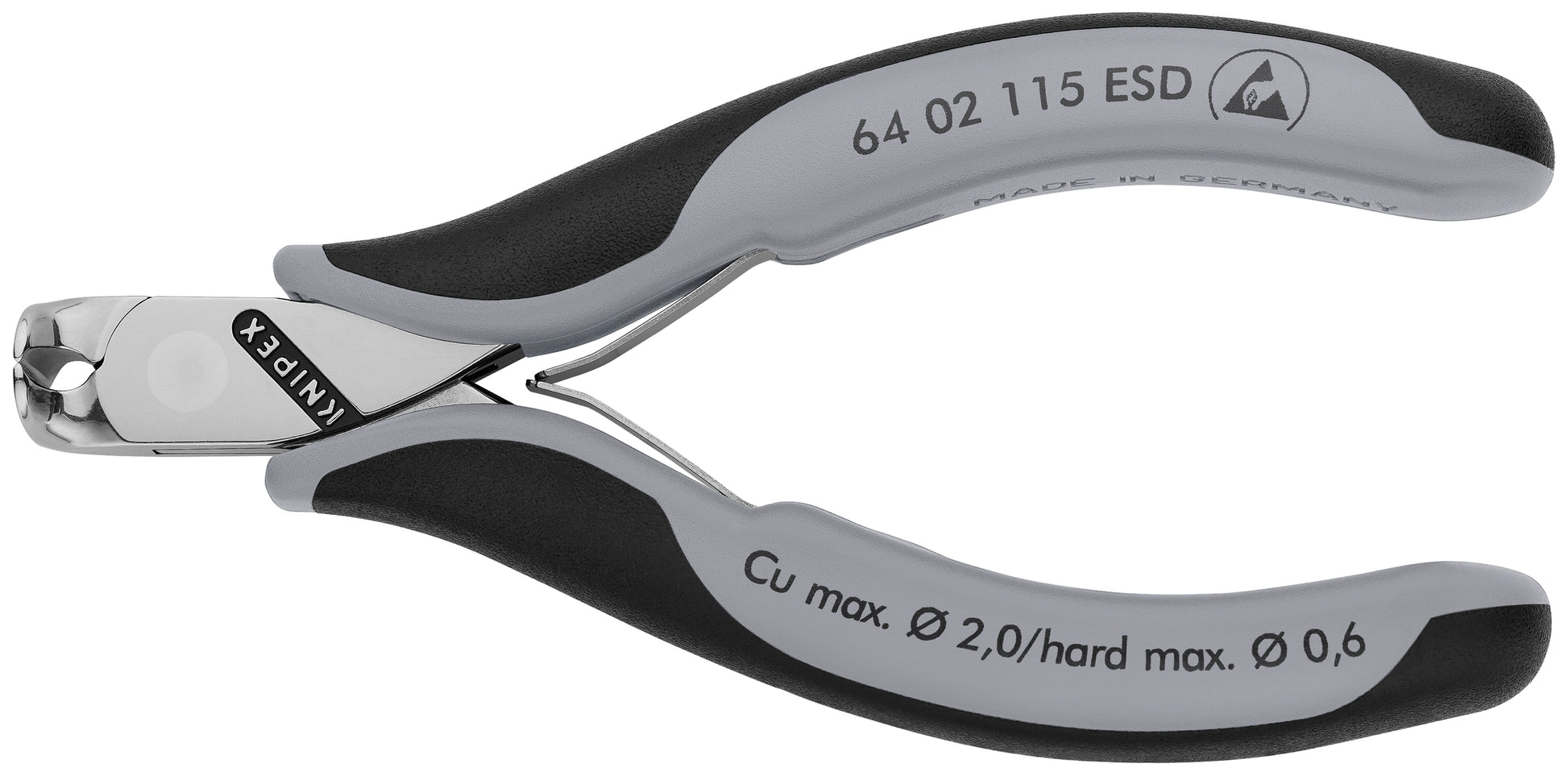

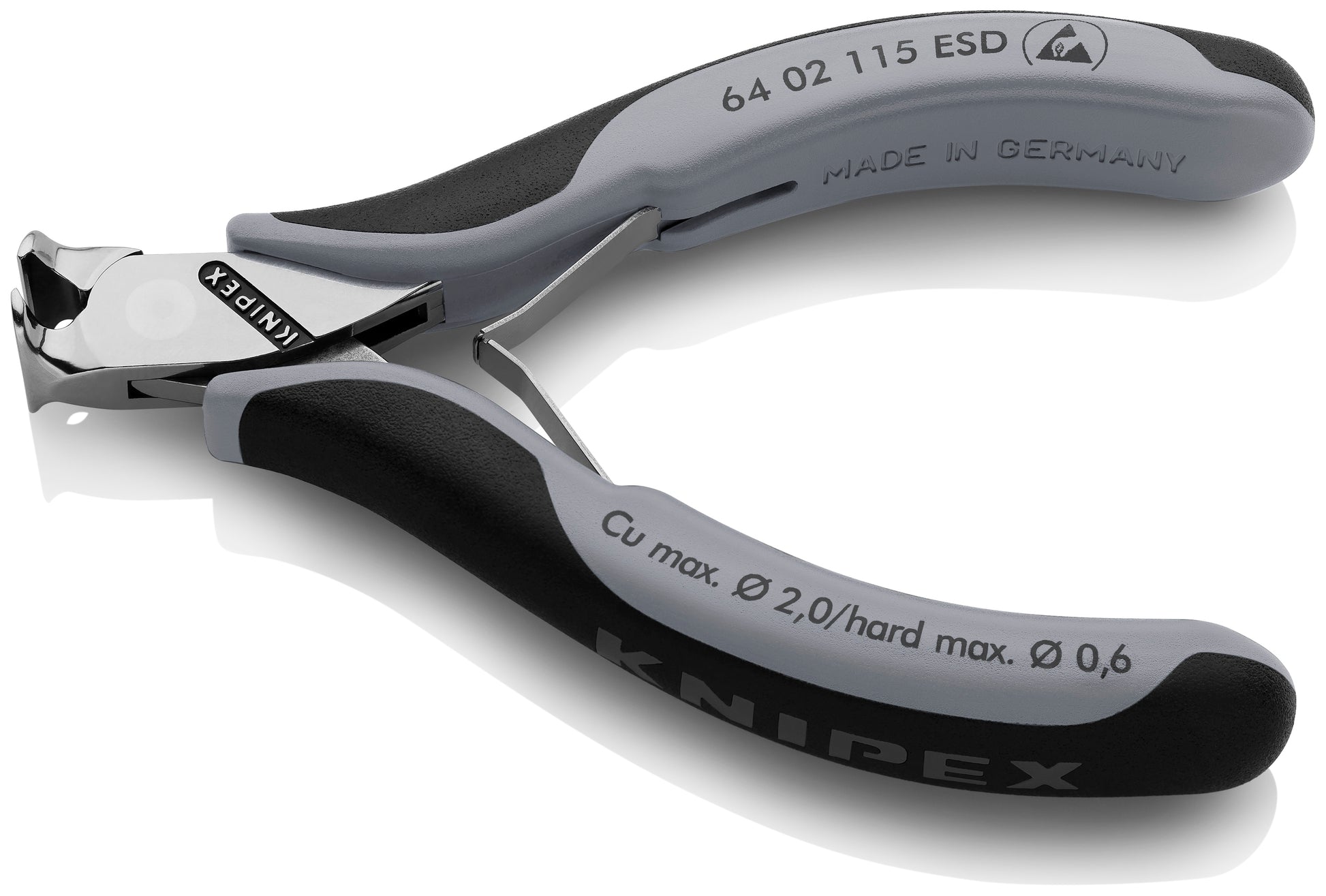

Knipex 64 02 115 ESD Electronics End Cutting Nippers-ESD Handles

Precision pliers for ultra fine cutting work in electronics and fine mechanics

Features

• End cutting allows for easier access into tight areas
• Low-friction double spring for gentle and even opening of the pliers
• Precision box joint for greater stability

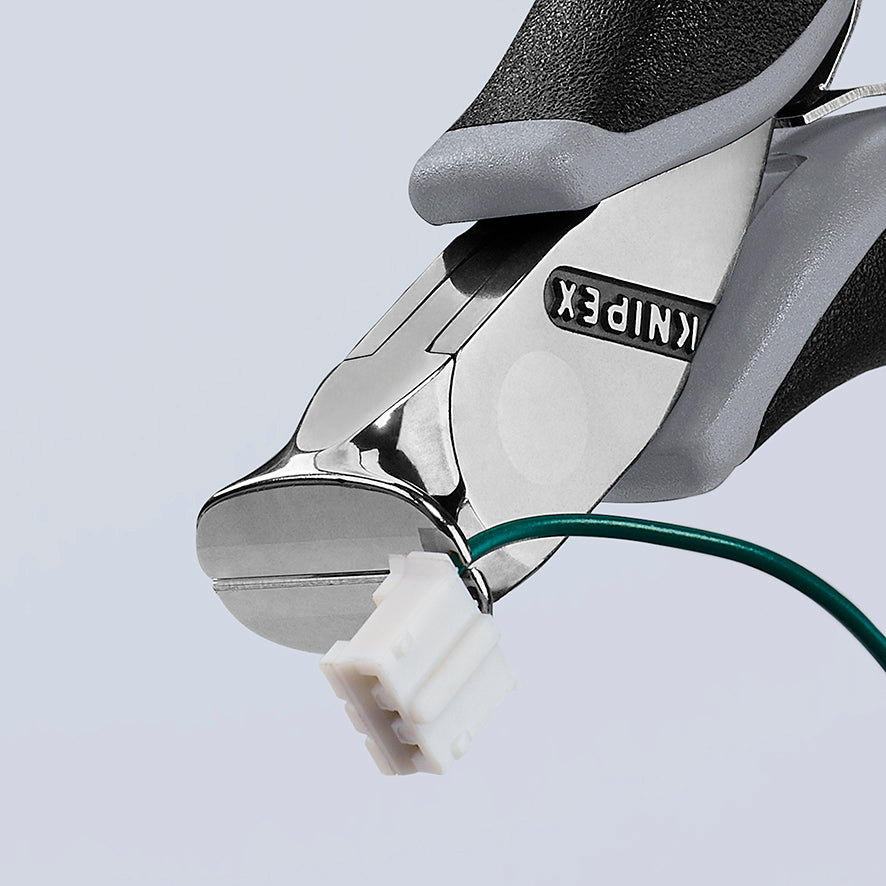

• Cutting electrical components flush with board surface
• Cutting edge hardness (approx. 56 HRC) for longer life and for more durable cutting
• Cutting capacity - up to 5/64" for soft wire, up to 3/64" for medium wire and up to 1/64" for hard wire
• Unique cutting head design allows for easier access into tight areas
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 64 02 115 ESD
• Material Type: Ball bearing steel, laser-hardened cutting edges
• Handle Type: ESD multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.75"
• Tool Width: 1.875"
• Tool Height: 0.875"
• Tool Weight: 95 g (0.21 lb)
• Angled Head: 90 degree
• Joint Type: Box-joint
• Handle Length: 3 3/4"
• Jaw Length: 15/64"
• Jaw Width: 7/16"
• Jaw Thickness: 19/64"
• Tip Width: 5/8"
• Tip Thickness: 5/8"
• Head Style: End Cutter
• Cutting Edge Shape: Semi-flush with small bevel
• Cutting Edge HRC: Approx. 60 HRC
• Cutting Capacity - Soft Wire: 5/64"
• Cutting Capacity - Medium Hard Wire (Nail): 3/64"
• Cutting Capacity - Hard Wire (Steel Wire): 1/64"
• Blade Length: 5/8"
• UPC: 843221022792
