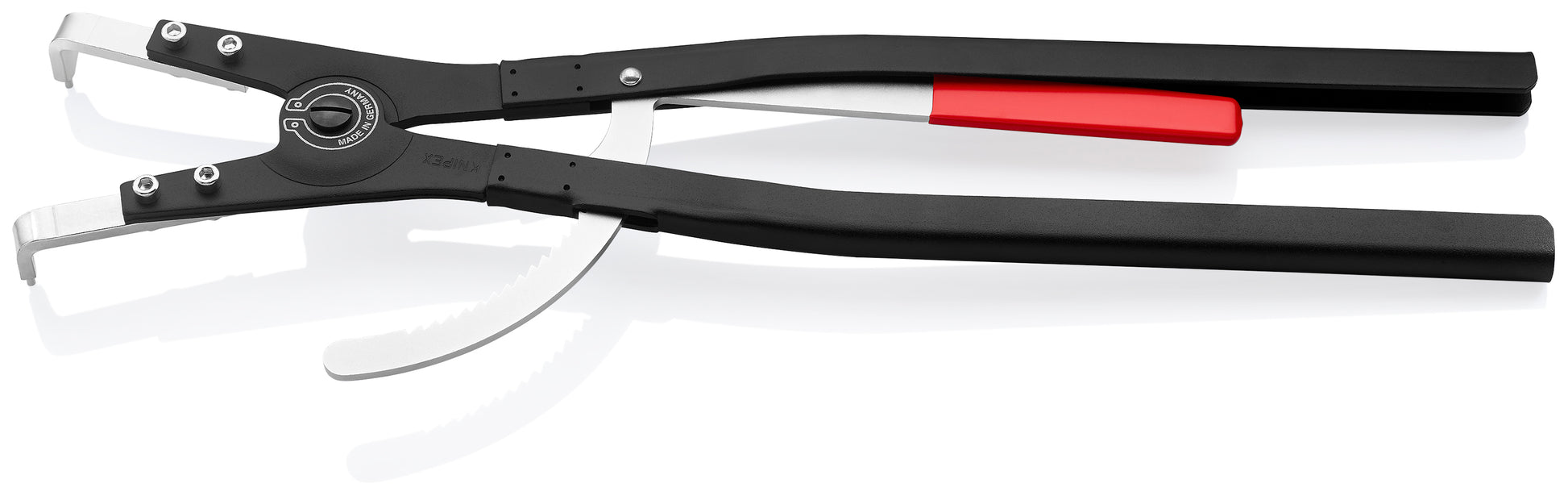

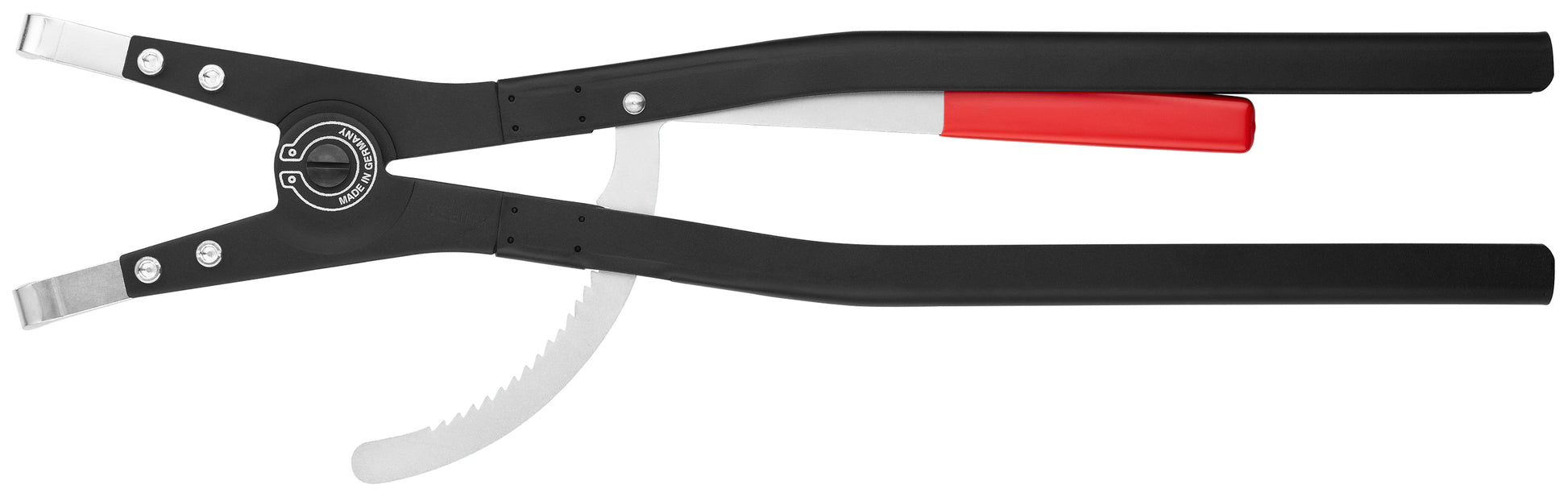

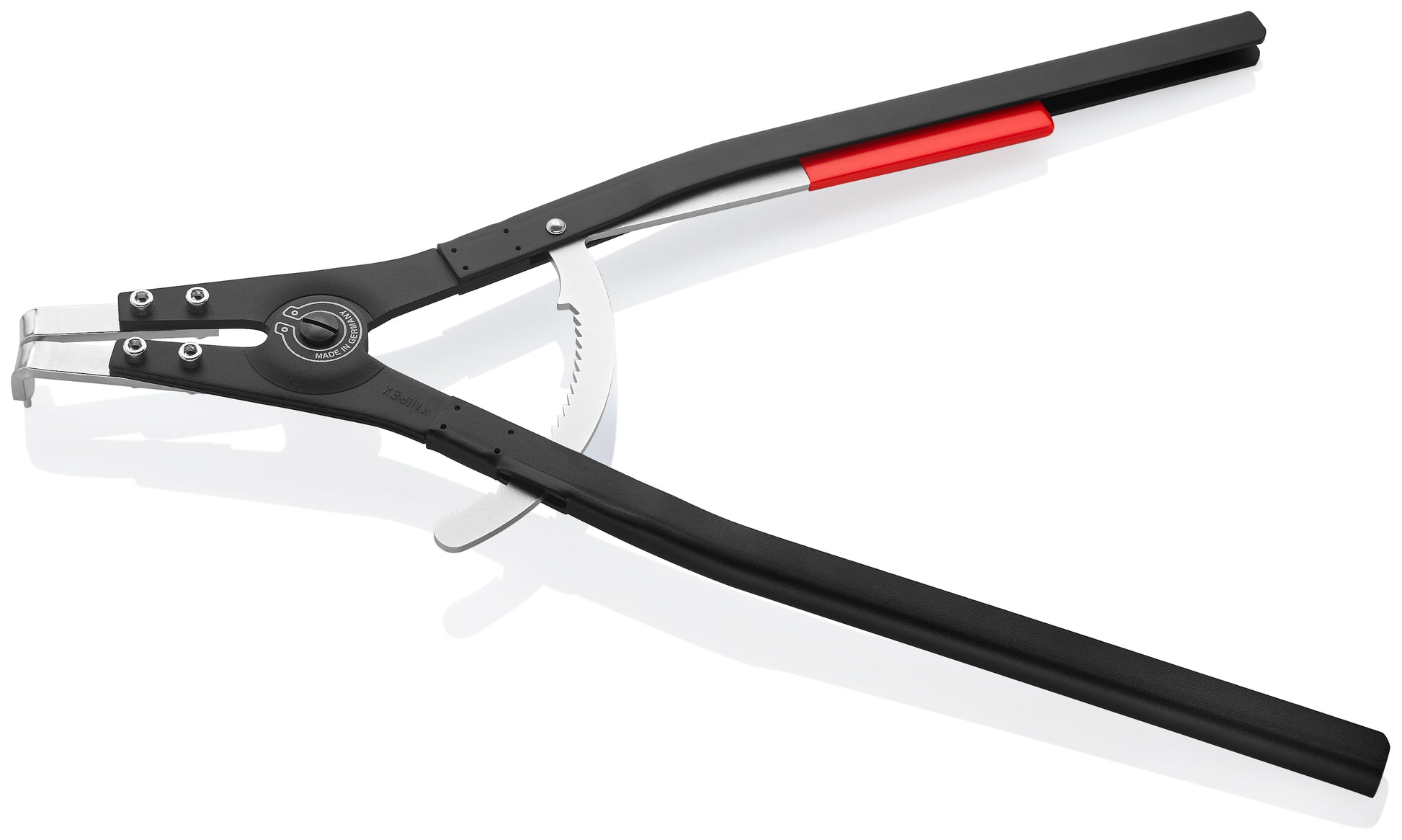

Knipex 46 20 A51 External 90° Angled Snap Ring Pliers-Large

For assembling snap rings on shafts, ranging from 4 51/64" - 12" (122-300 mm)

Features

• Includes locking device, can be released without completing cycle
• Replaceable 90˚ tips made of tempered steel
• Pliers body are made of rolled steel, high-strength
• Tips can be easily replaced by unthreading screws from pliers body
• Replaceable tip part number 46 29 A51
• Tips are made of special tool steel; oil-hardened

Specifications

• Manufacturer Part Number: 46 20 A51
• Material Type: Tips: special tool steel; oil-hardened
• Other Material Type: Pliers body: rolled steel, high-strength
• Handle Type: Bare handles
• Surface Finish: Black powder-coated
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Black
• Nominal Length: 22 3/4"
• Tool Nominal Length: 22.75"
• Tool Length: 22.75"
• Tool Width: 6.8"
• Tool Height: 2"
• Tool Weight: 1842 g (4.06 lb)
• Angled Head: 90 degree
• Joint Type: Bolted
• Handle Length: 15 1/2"
• Tip Width: 9/64"
• Circlip - External Shaft Size - inches: 4 51/64" to 12"
• Spare Part: 46 29 A51
• UPC: 843221012557
